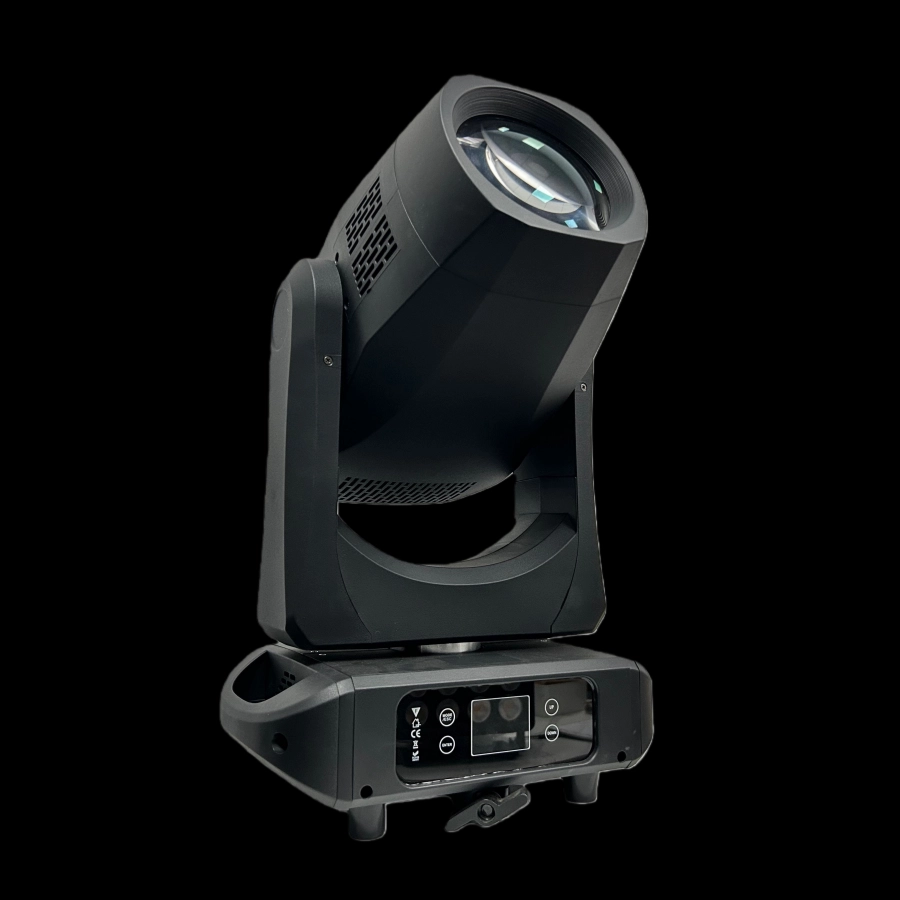

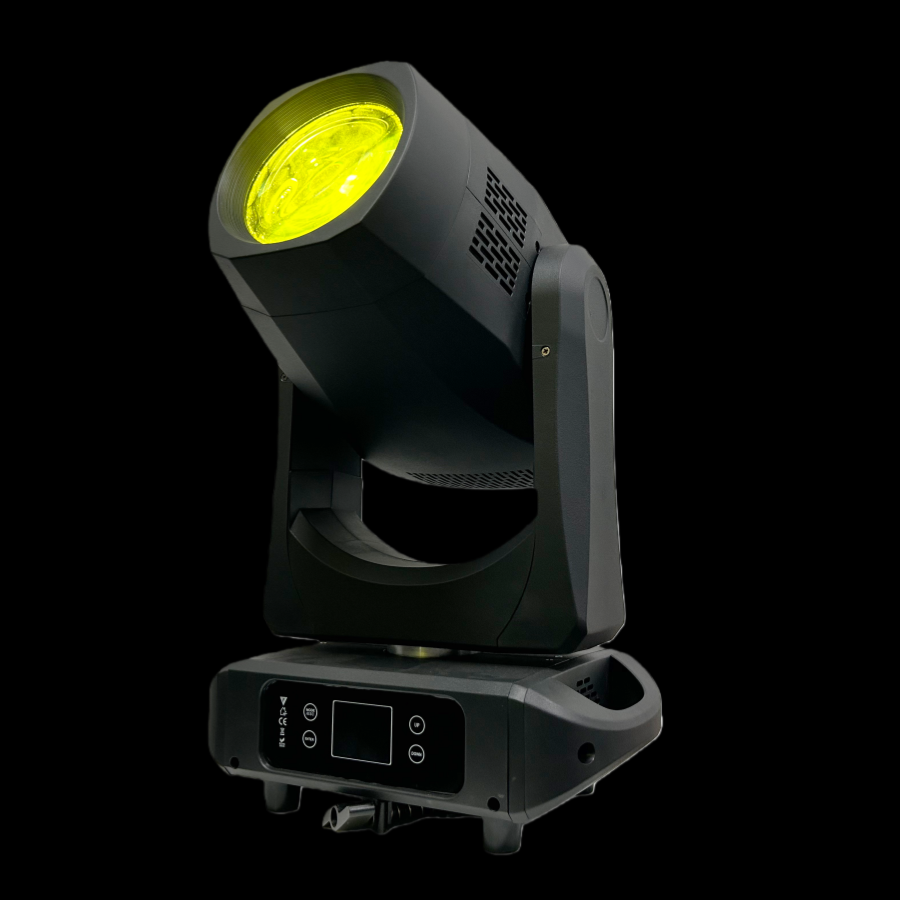

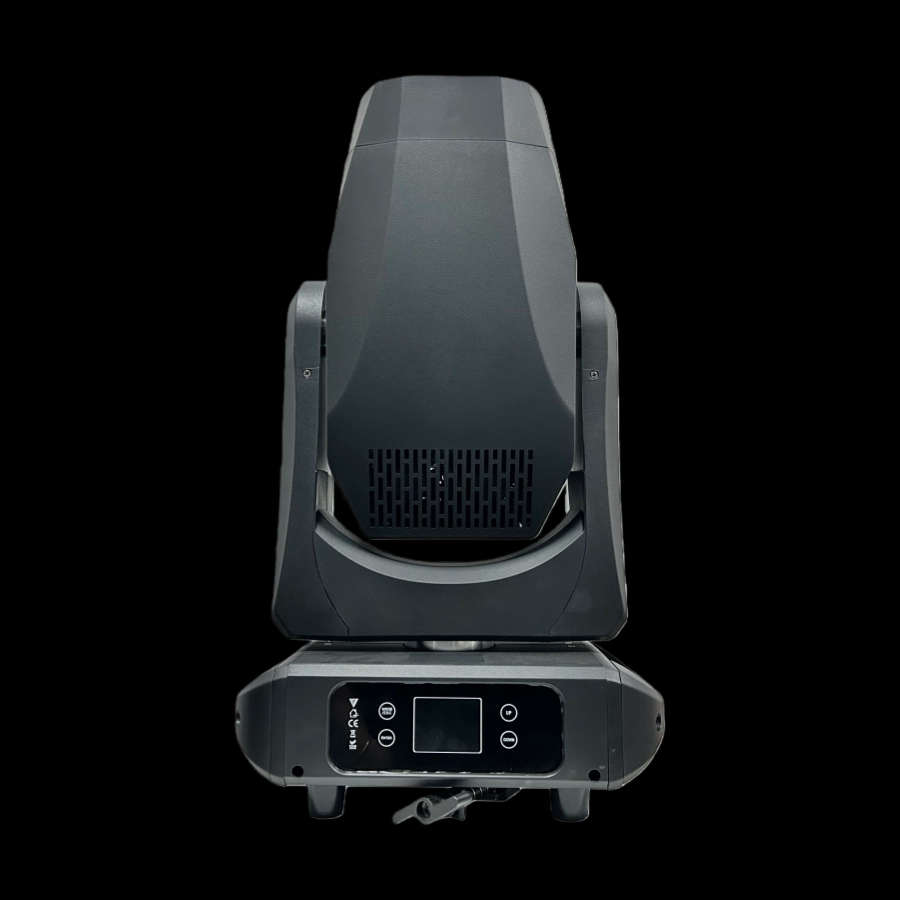

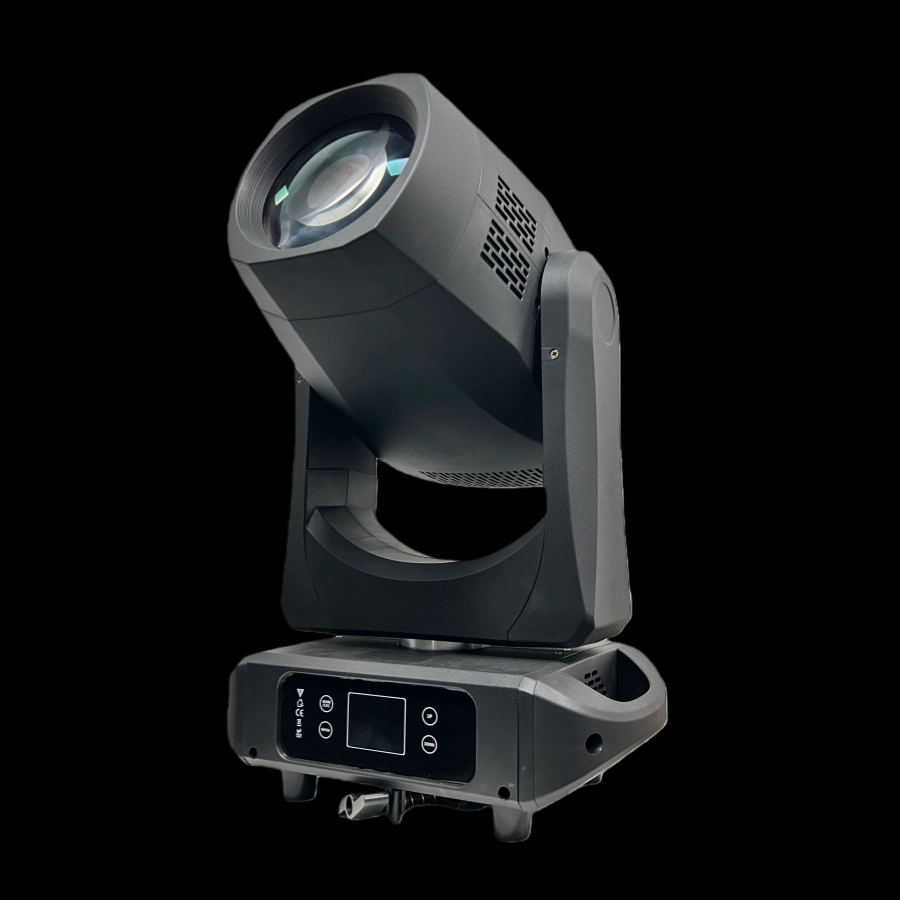

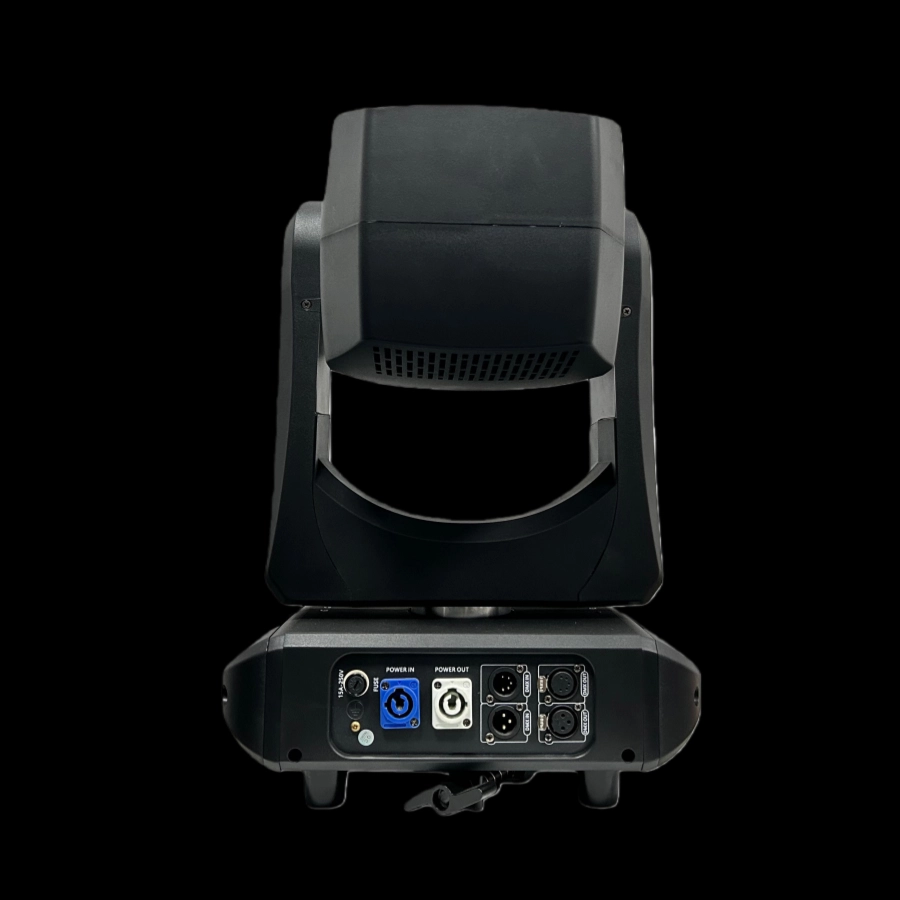

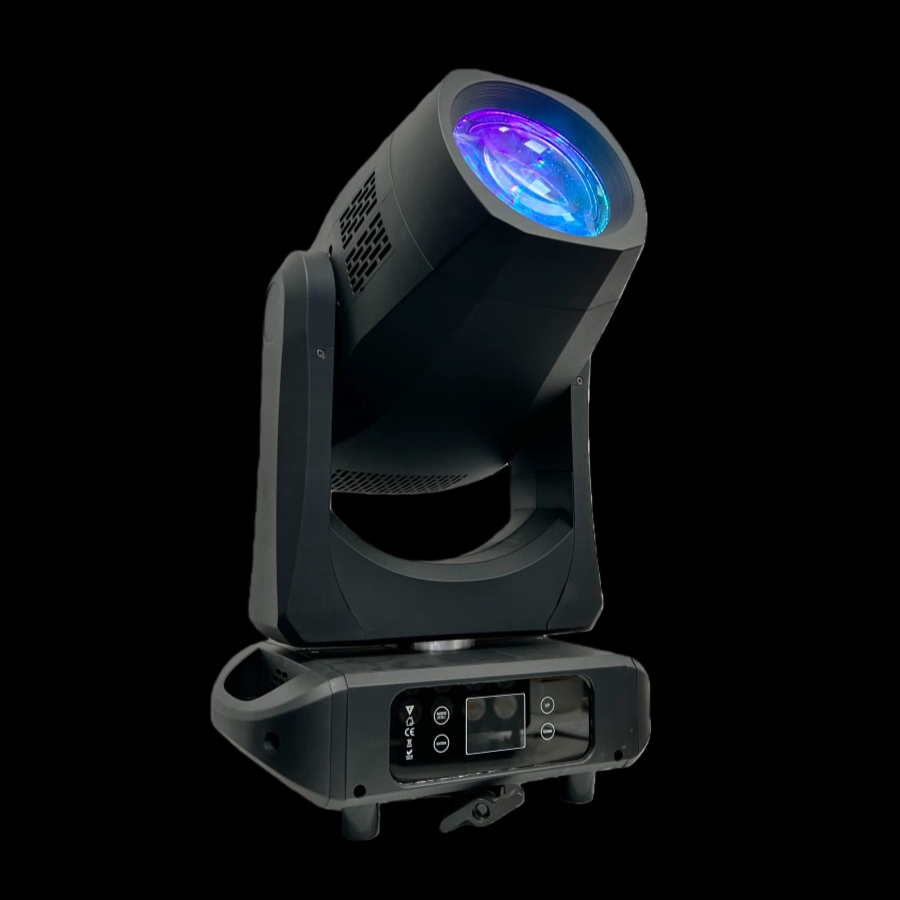

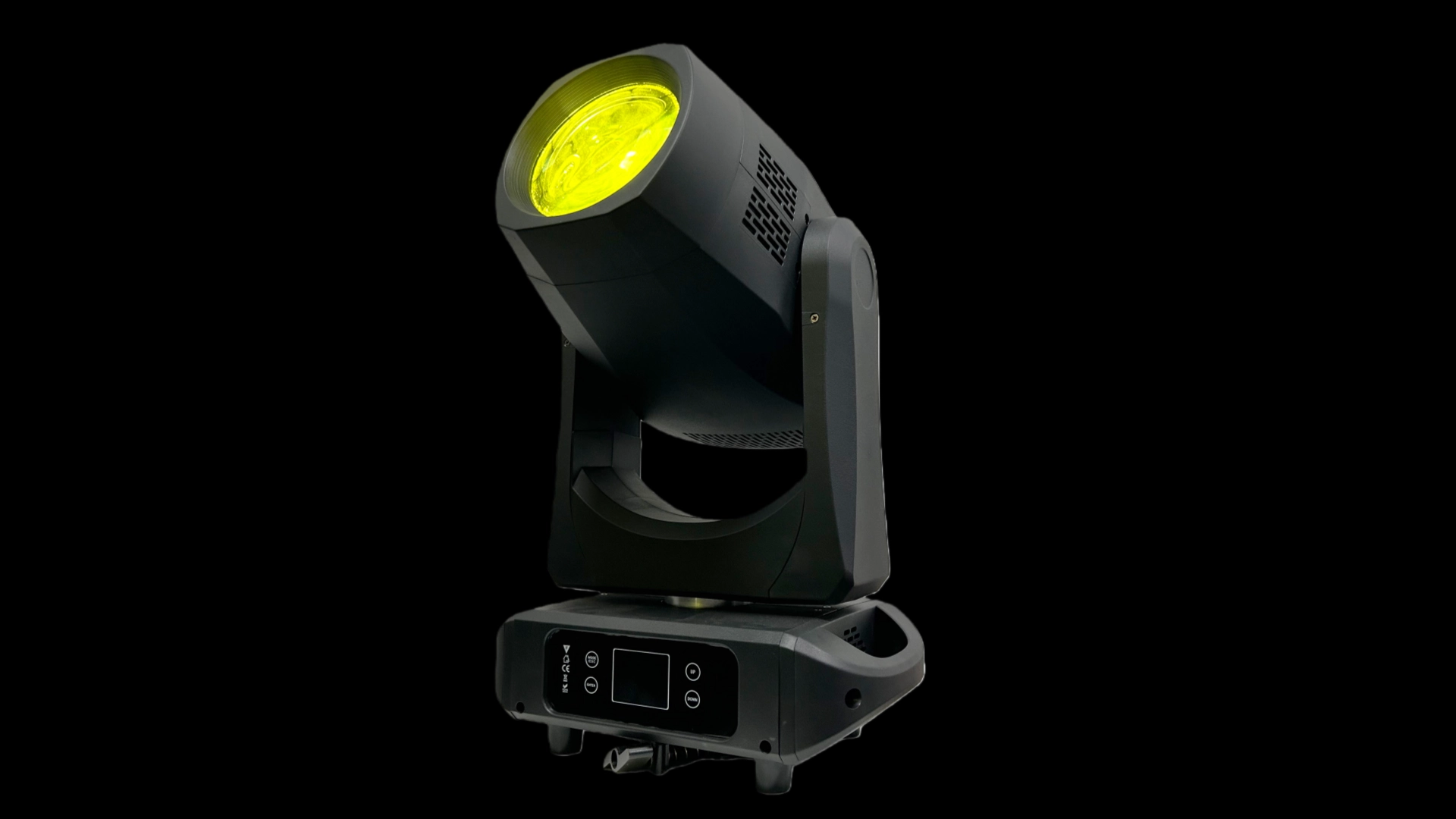

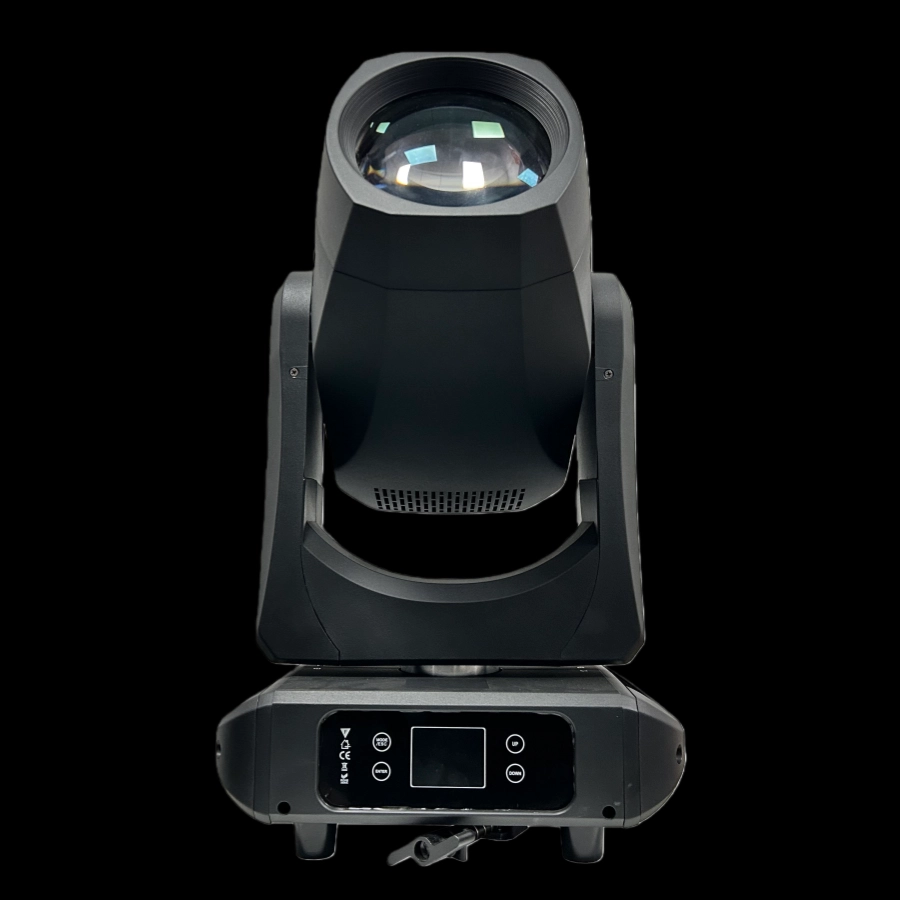

420 LED BSW 420W LED BSW 3-in-1 moving head with CMY & CTO
The 420W LED BSW 3-in-1 moving head with CMY & CTO features CMY color mixing and CTO color temperature adjustment, 420W high-power output, and integrates three core functions: beam, color, and pattern. It delivers precise and rich light effects, making it suitable for professional performance scenarios such as large stages, concerts, and light shows.
Specifications
OPTICS
•Light Source: 420W LED
•beam angle: 3°- 48°
•power: 420W
•color temperature: 7500K
•Input voltage:AC100-240V 50-60HZ
FEATURES
•Color: 8 colors + open with cmy，Interchangable ,indexable ,bidirectional rainbow effect
•Fixed gobo: 11 fixed patterns + white light
•rotating gobo wheel: 7 gobo + open ,and gobo shake , gobo continue bi-directional rotating
•Prism: Rotating 5-facet prism+ rotating T-facet prism with variable speed
•Frost : 3° Frost
•Dimming system: 0-100% linear adjustment
•DISPLAY:2.8 inch LCD display with English/Chinese menu
•Auto lock and display flip
SPECIFICATION

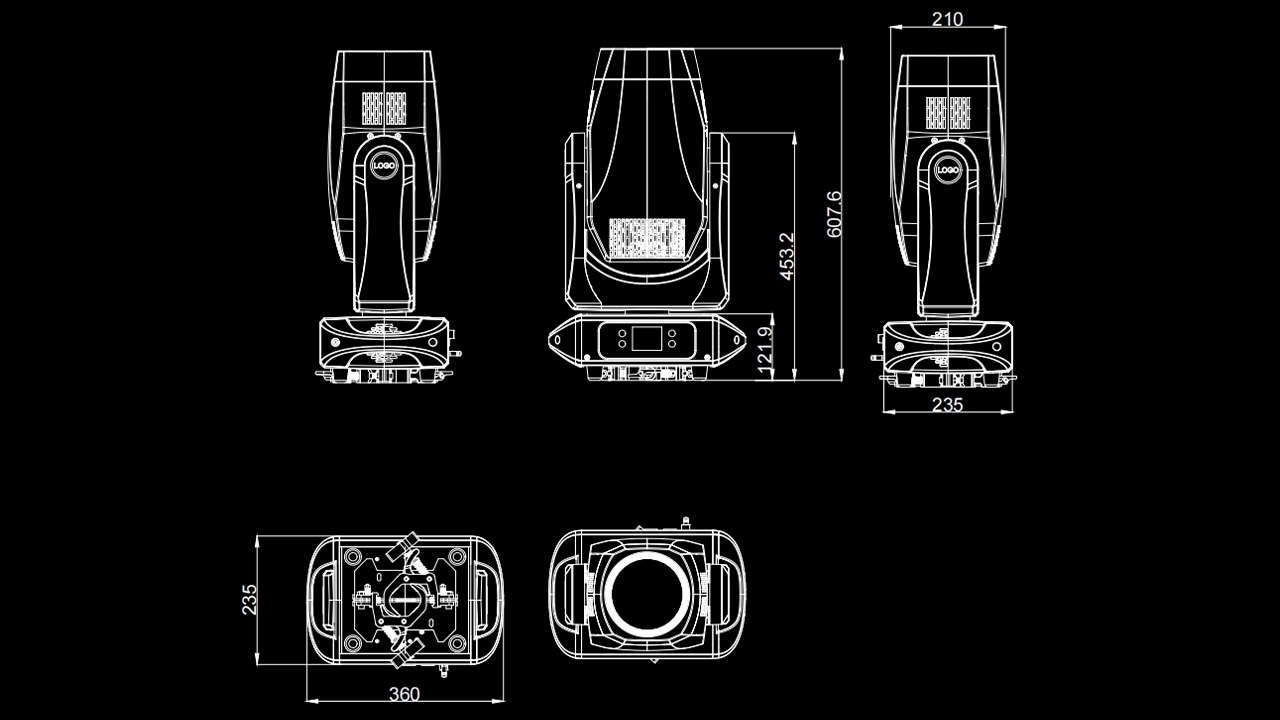

•Dimension:360*235*608mm ;Weight:17.4KG
Effect

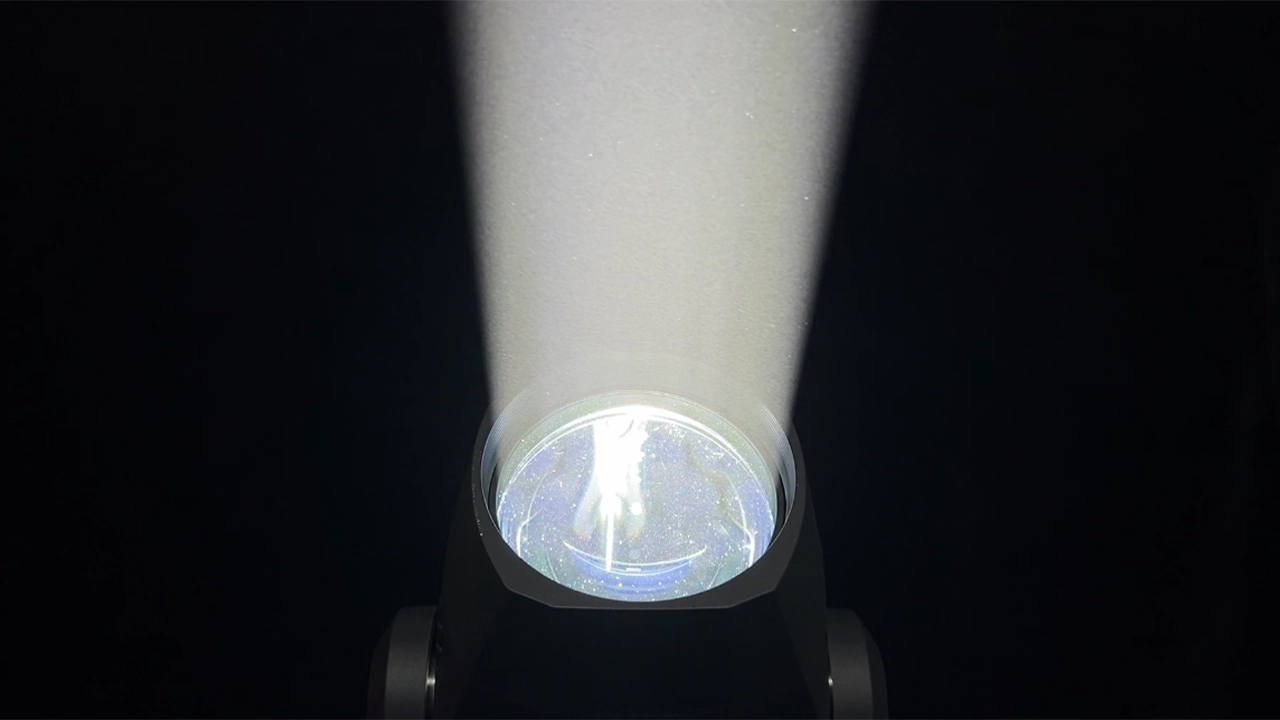

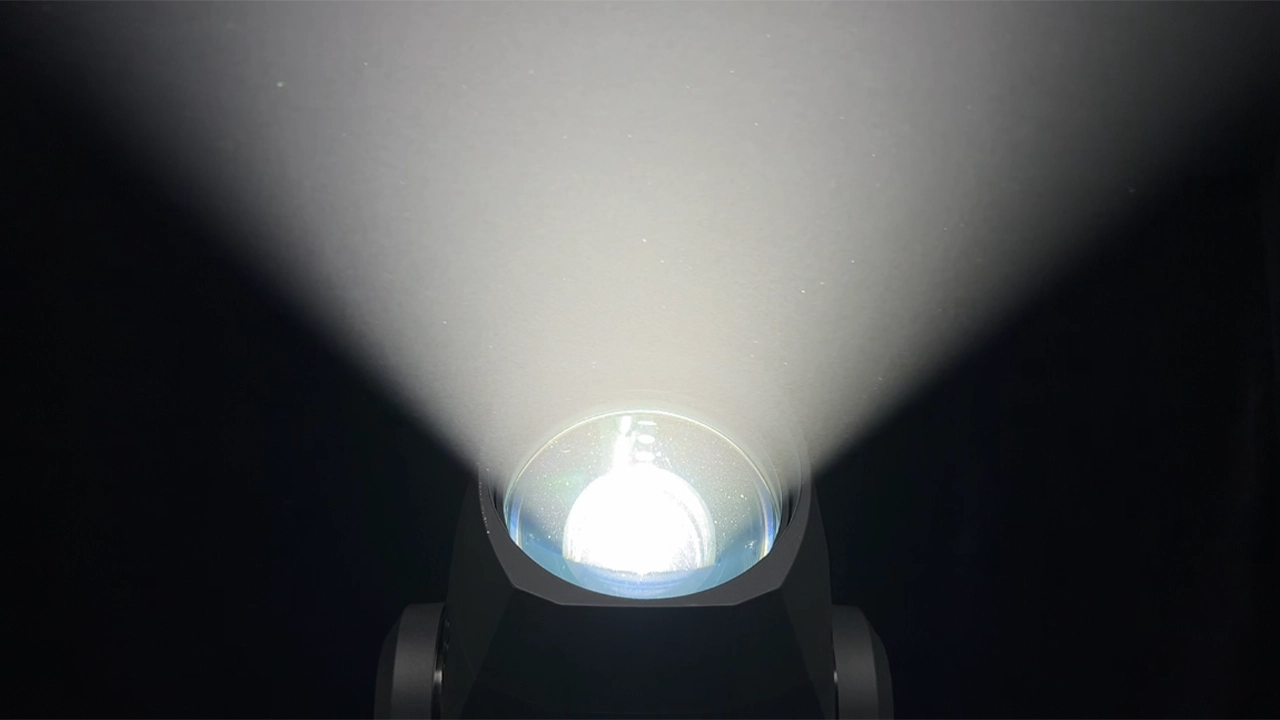

beam angle
beam angle
11 fixed gobos
11 fixed gobos
7 rotating gobos
7 rotating gobos
5-facet prism
5-facet prism
5-facet prism
5-facet prism
linear prism
linear prism

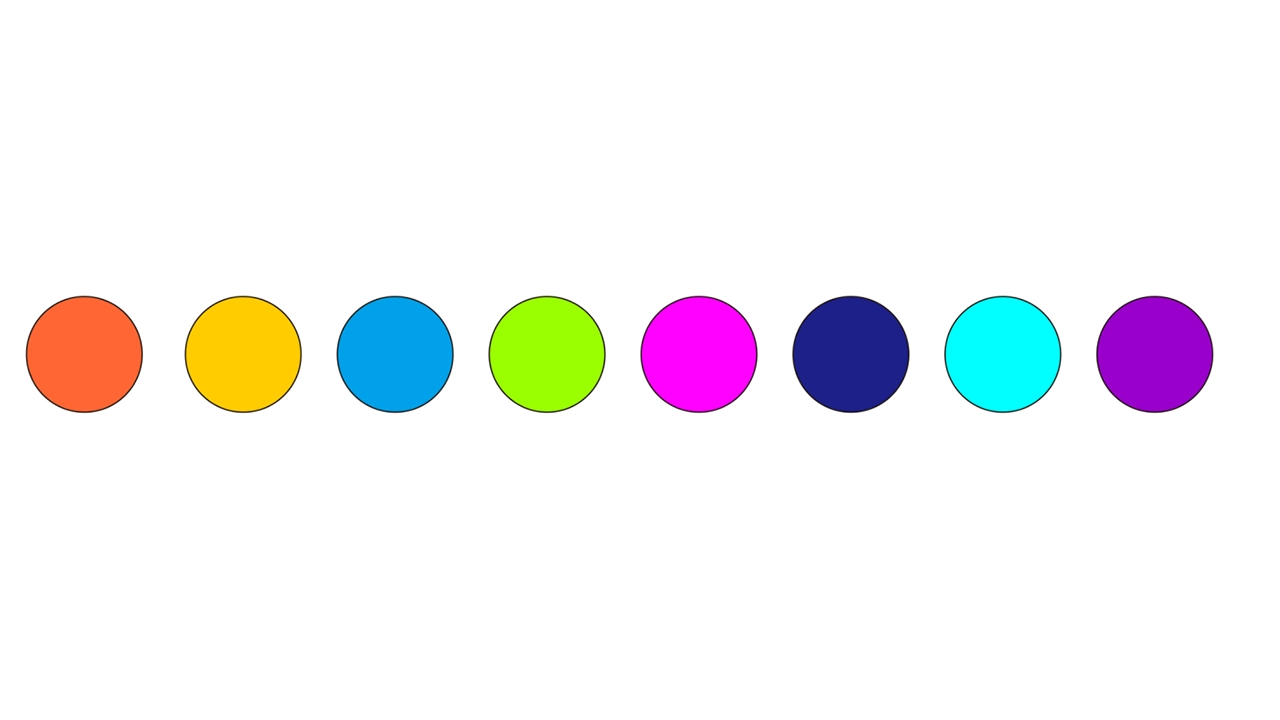

color wheels
gobo wheel
rotating gobo

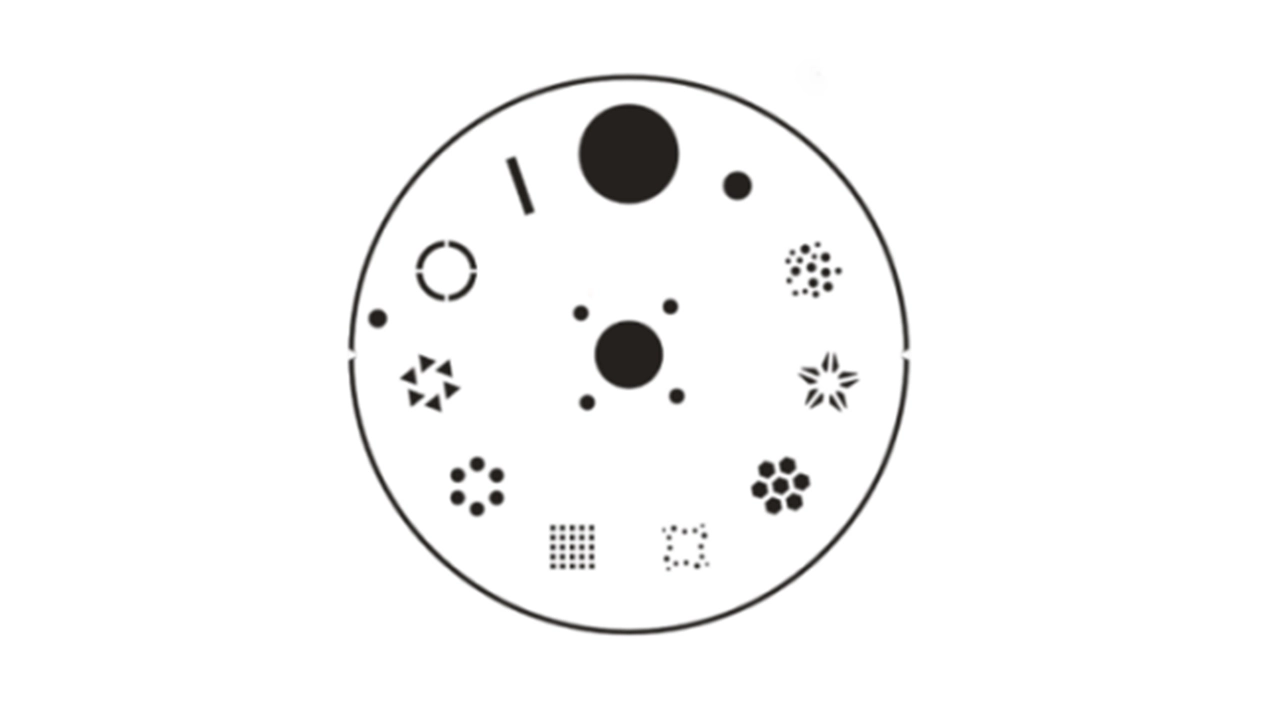

fixed gobo
Features
APPLICATION

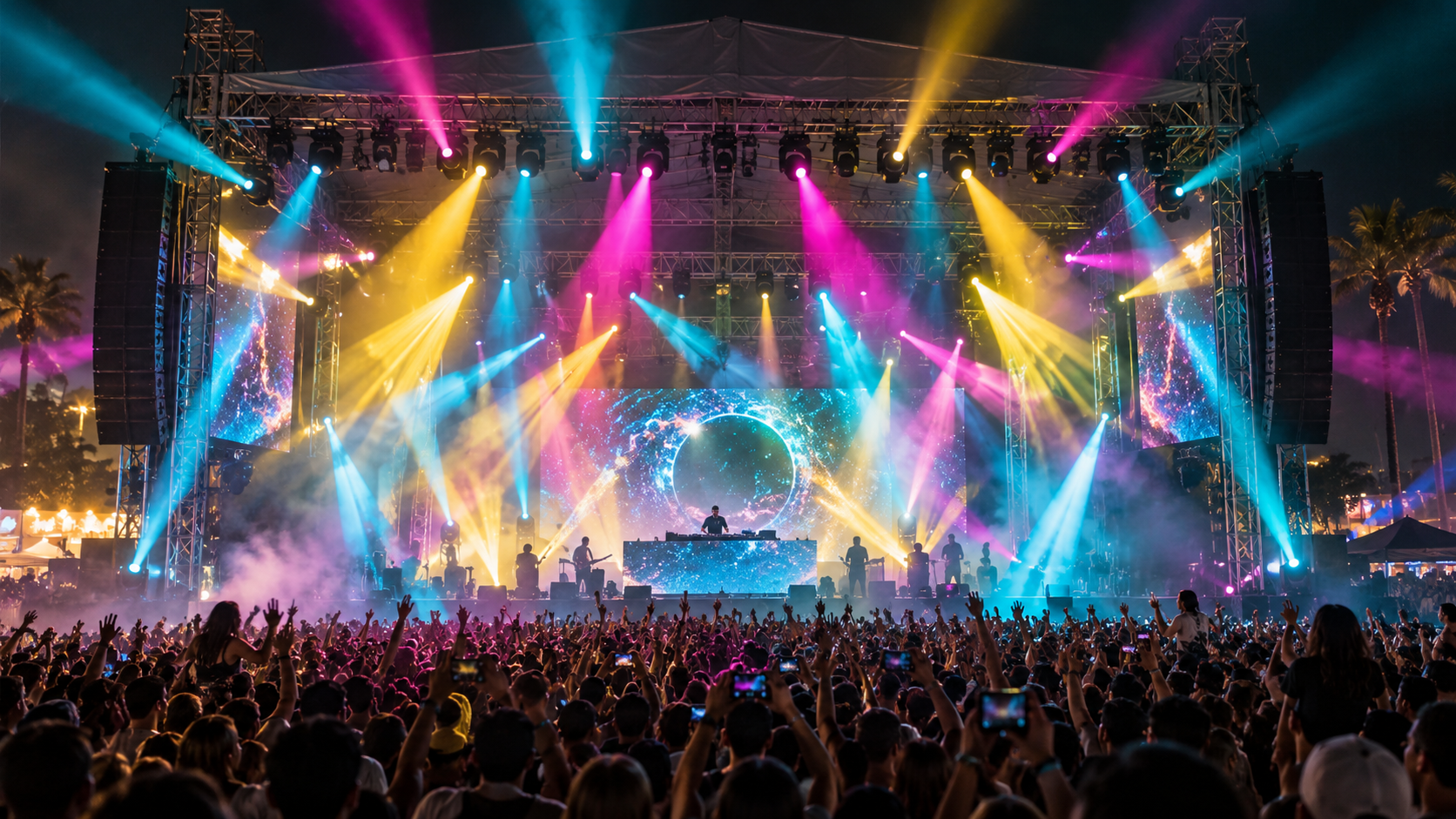

Outdoor Festival
Vibrant CMY colors energize large-scale outdoor music performances.

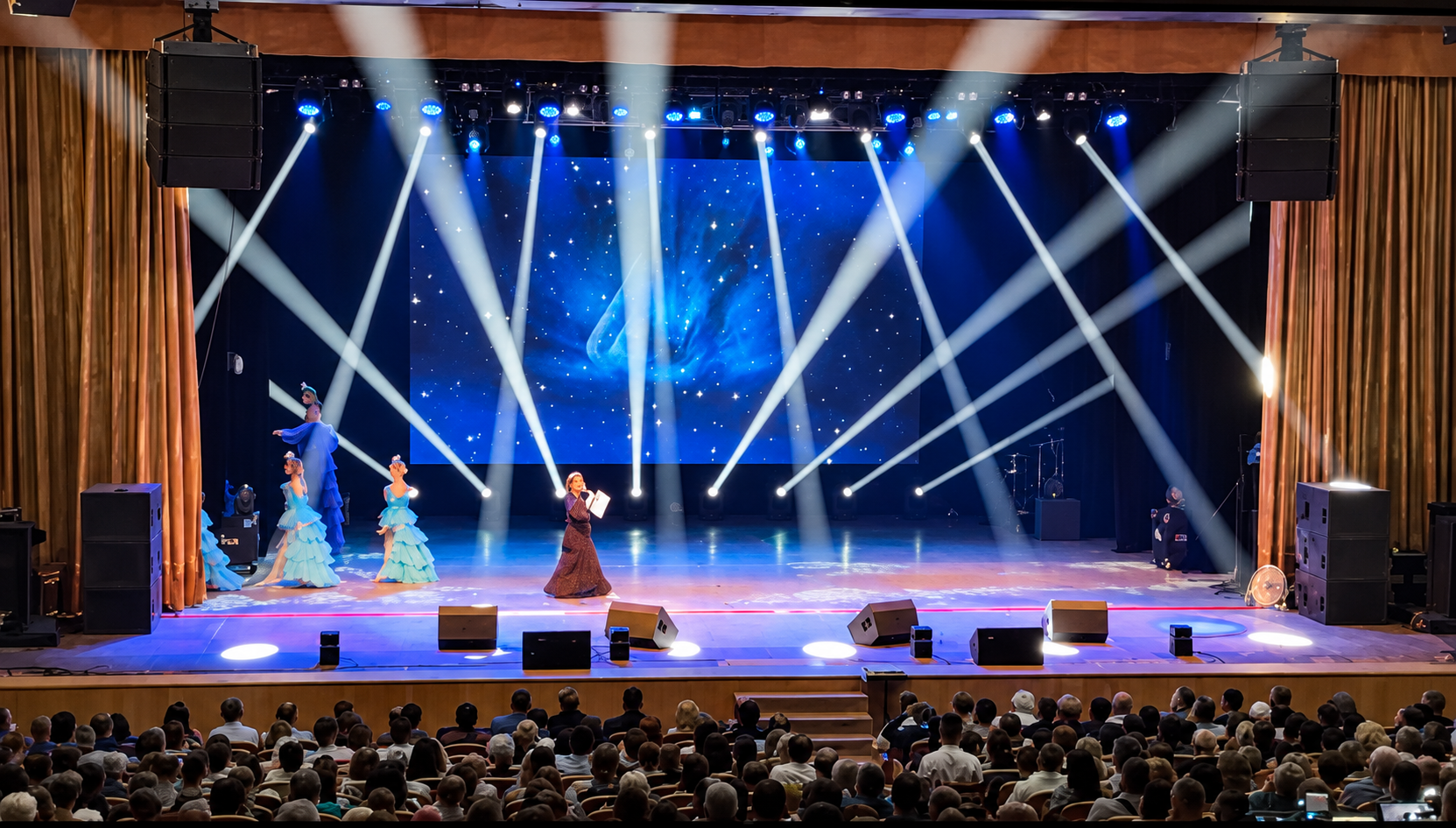

Indoor Theater
Precise beams create dynamic looks for professional stage performances.

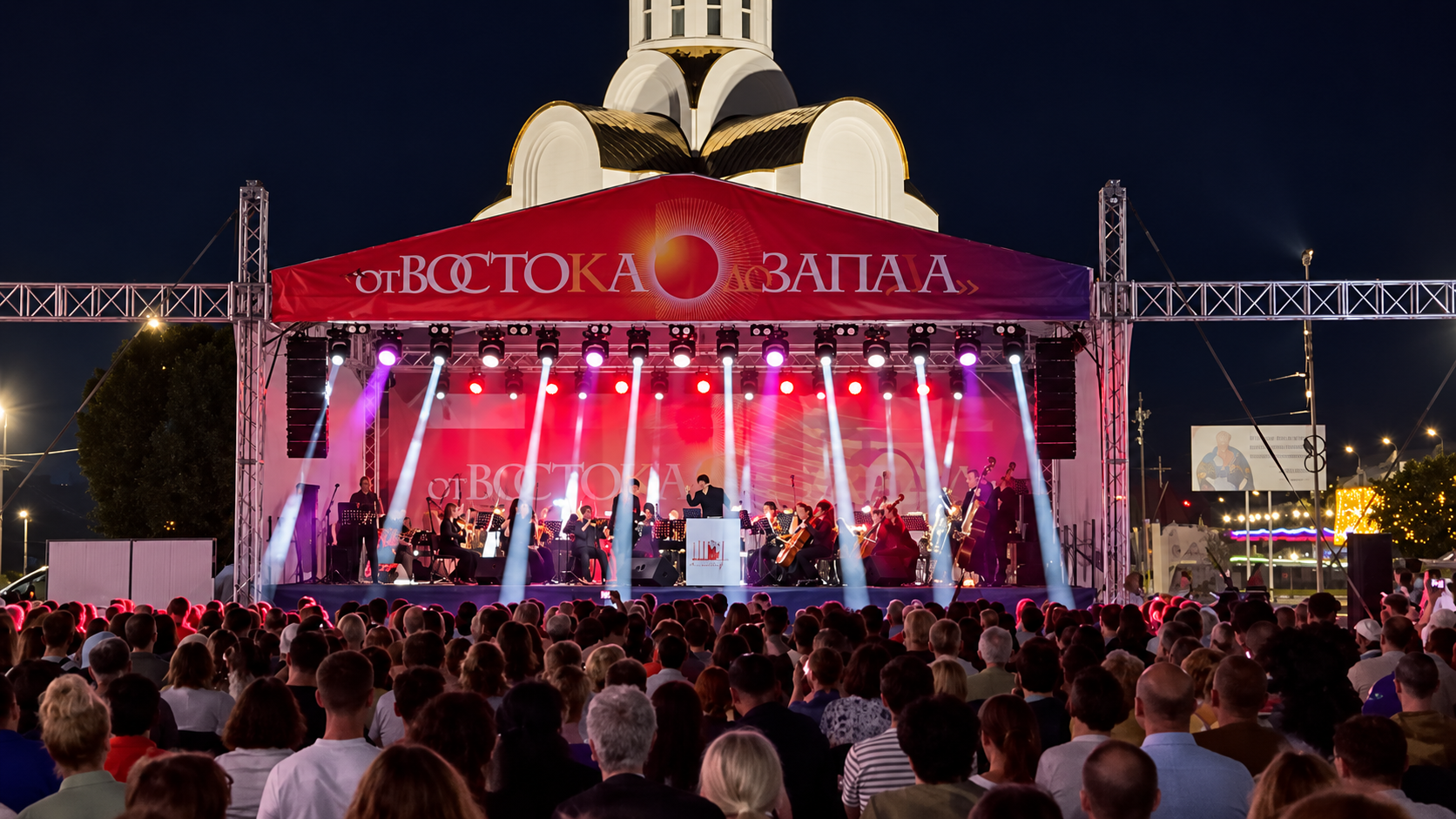

Outdoor Concert
Powerful projection delivers strong visibility across large outdoor audiences.

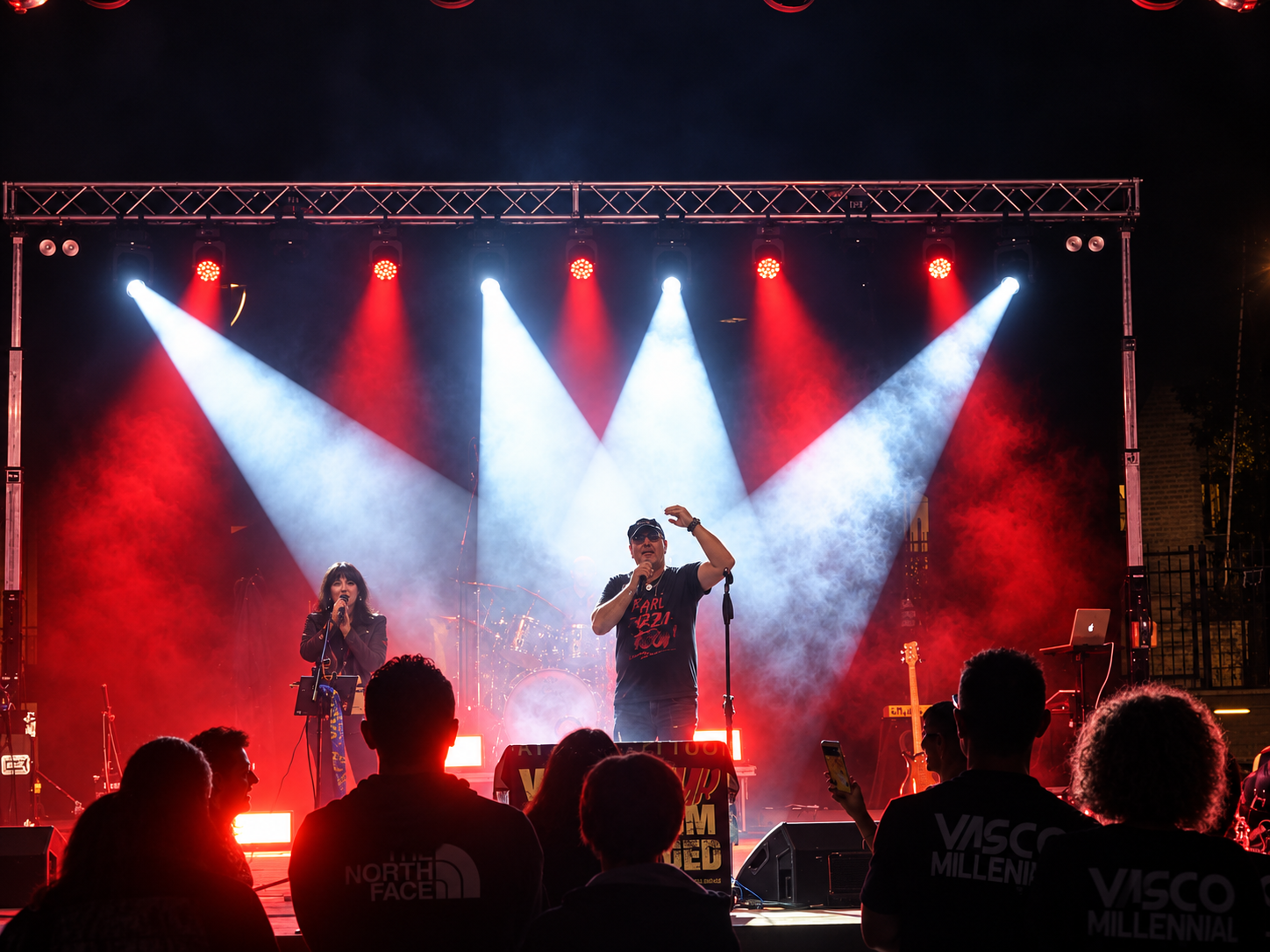

Music Festival
Bright beams enhance live performances with energetic visual impact.

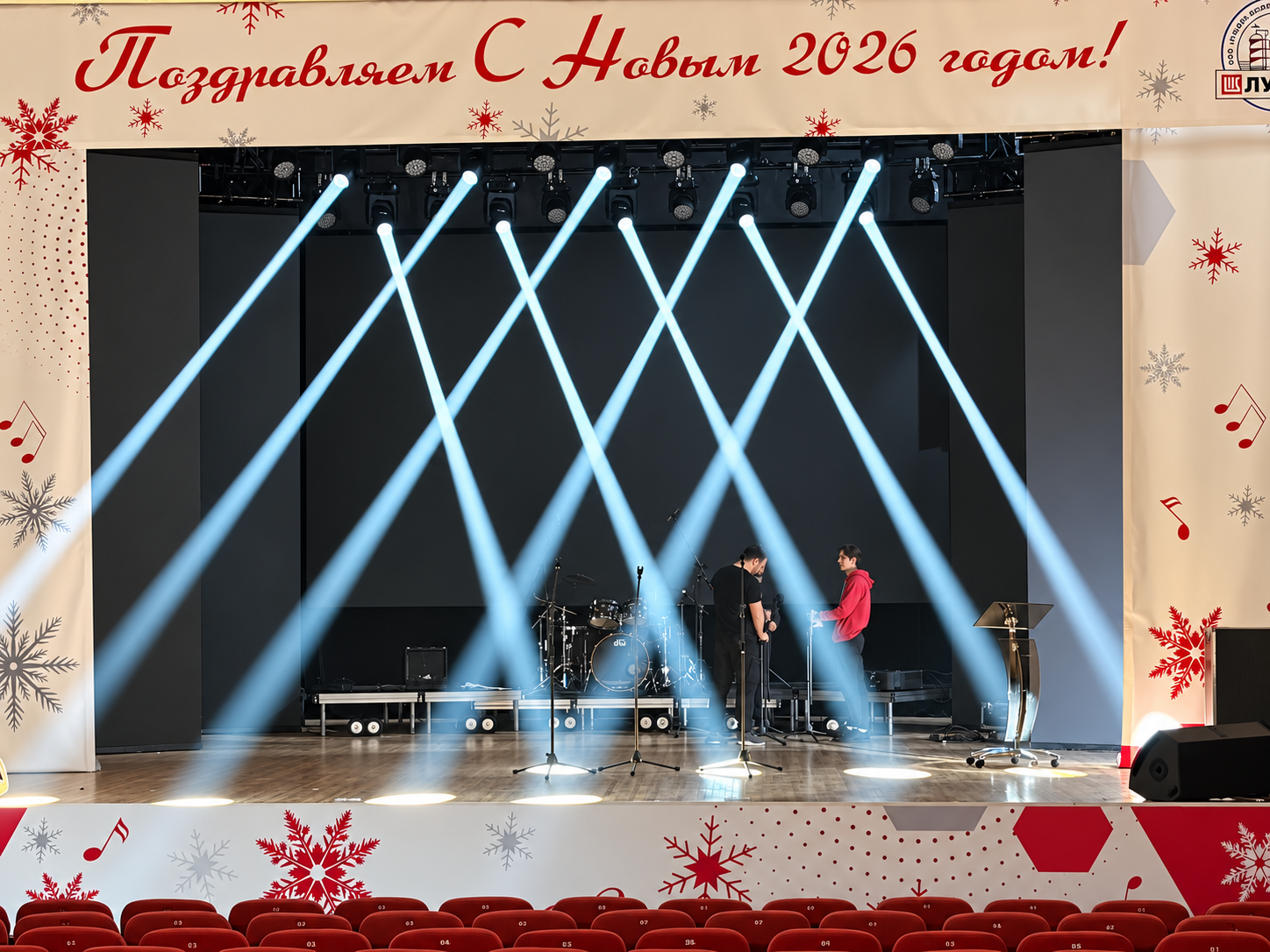

New Year
Sharp beam patterns create festive and symmetrical stage effects.

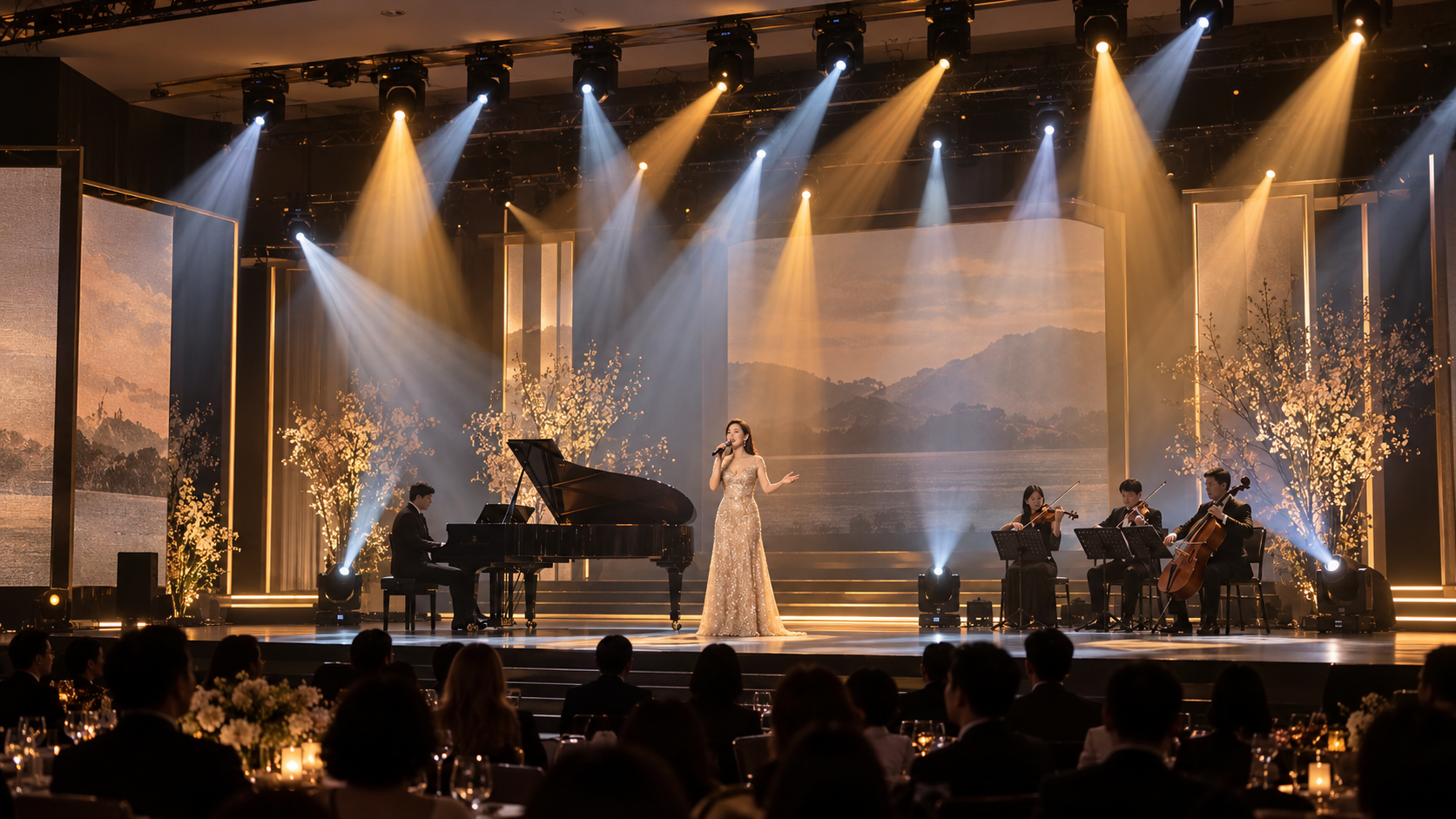

Indoor Performance
Warm CTO tones create natural, elegant stage illumination.
Packaging & Logistic
Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
420 LED BSW
What control features are available for lighting engineers?
It supports DMX512 25/36CH and RDM, plus smooth 0–100% linear dimming and linear focus adjustment for flexible programming and setup.
Is the 420 LED BSW suitable for concerts, theaters, and rental events?
Yes. Its 420W white LED, 3°–48° zoom, and Beam/Spot/Wash functions make it suitable for concerts, theaters, events, and rental productions.
What creative effects can lighting designers achieve?
It offers 8 colors + white, fixed and rotating gobos, gobo shake, 5-facet and linear prisms, frost, and adjustable focus for varied stage looks.
Why is the 420 LED BSW practical for rental companies?
The fixture combines multiple effects in one 17.4 kg moving head, helping reduce transport weight while covering different show applications.
Why choose UPLUS as a professional BSW moving head supplier?
UPLUS provides stage lighting manufacturing, OEM/customization, quality testing, technical support, and export experience for distributors, rental companies, and project customers.
