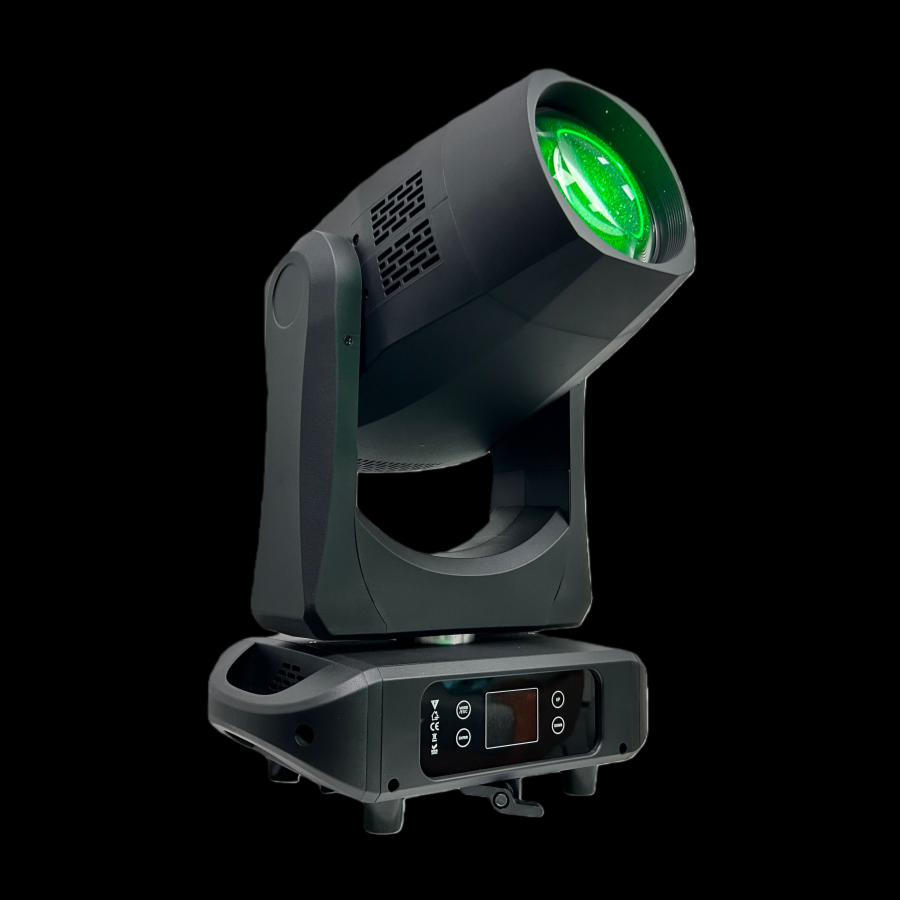

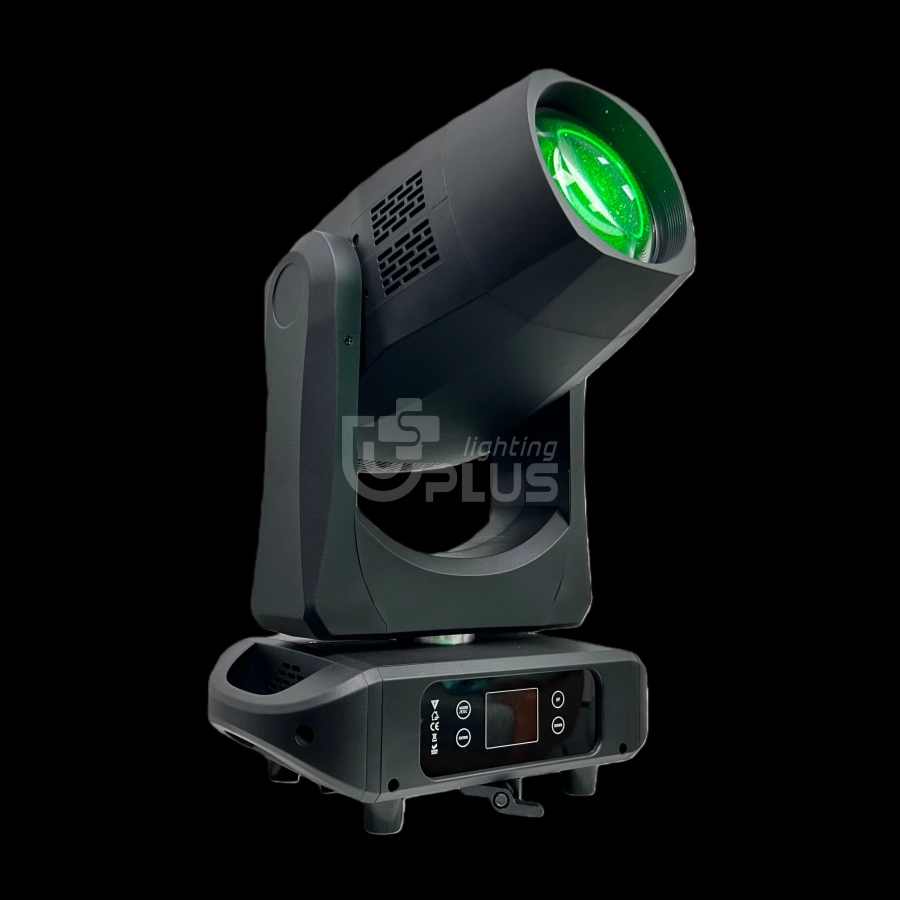

MINI 500W LED BSWF 4-in-1 moving head with CMY 7 - Uplus Lighting

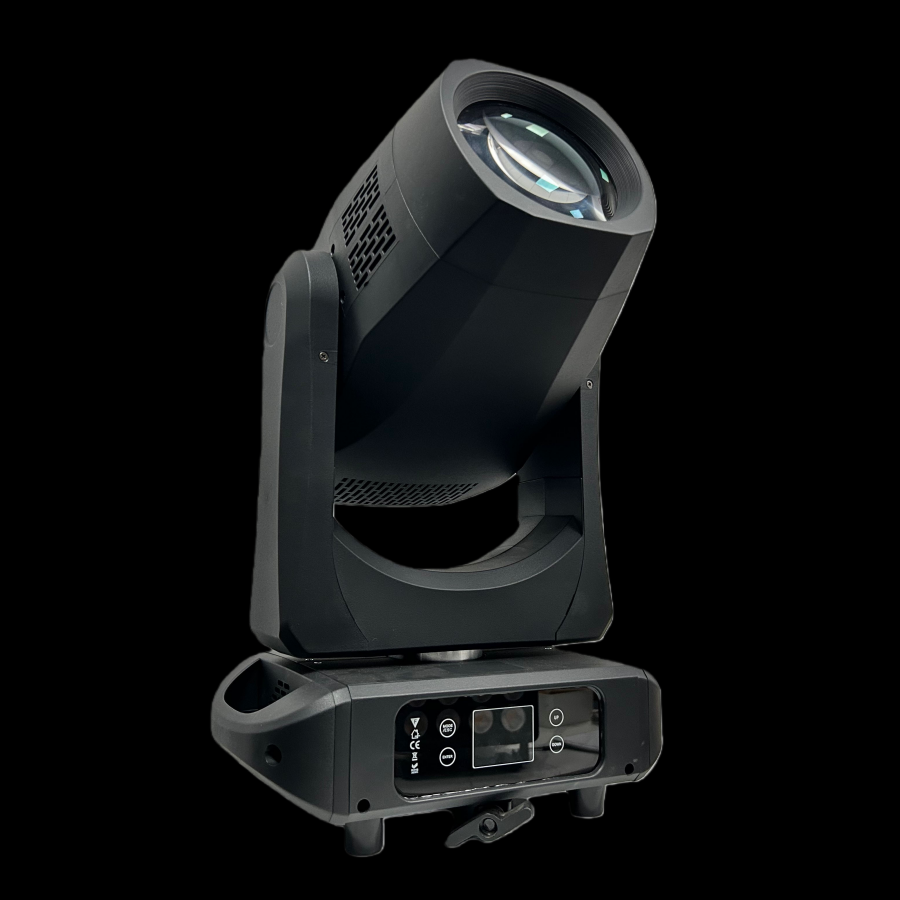

MINI 500W LED BSWF 4-in-1 moving head with CMY 3 - Uplus Lighting

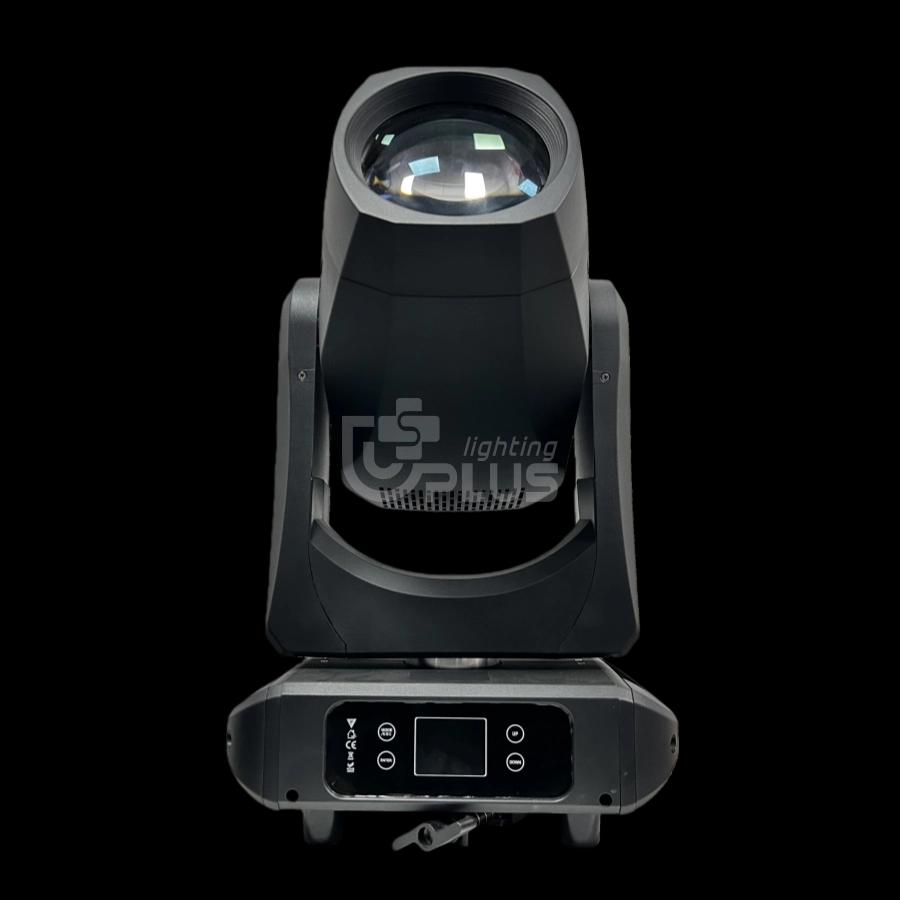

MINI 500W LED BSWF 4-in-1 moving head with CMY 1 - Uplus Lighting

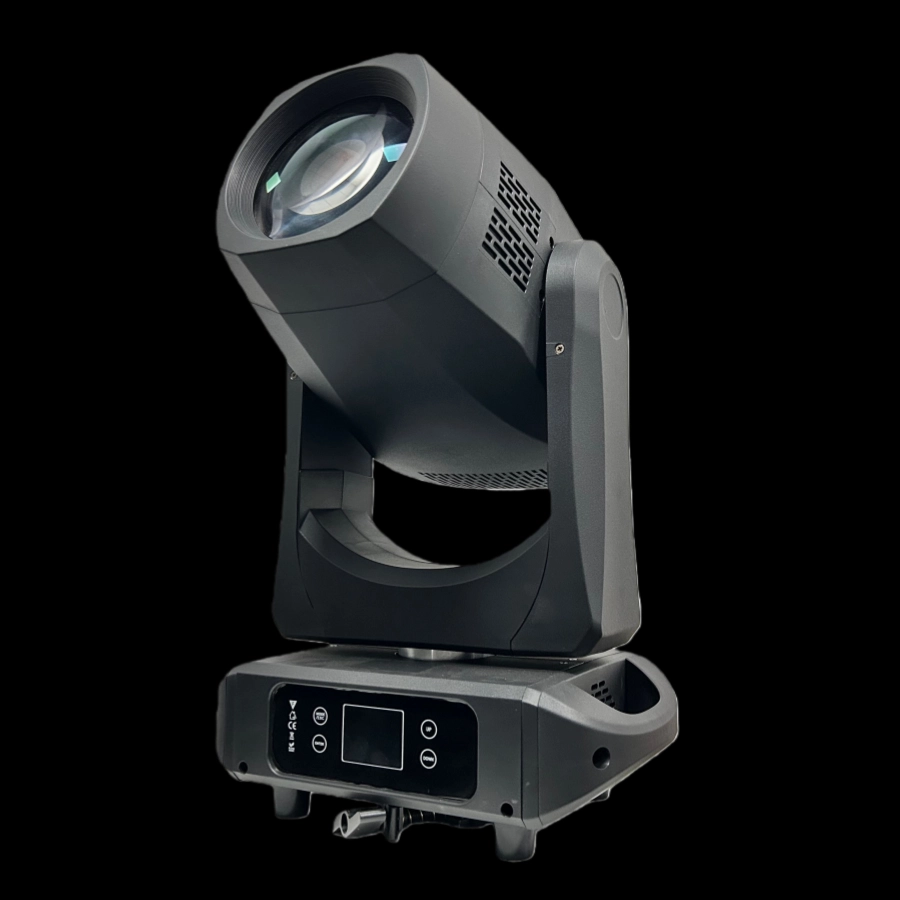

MINI 500W LED BSWF 4-in-1 moving head with CMY 4 - Uplus Lighting

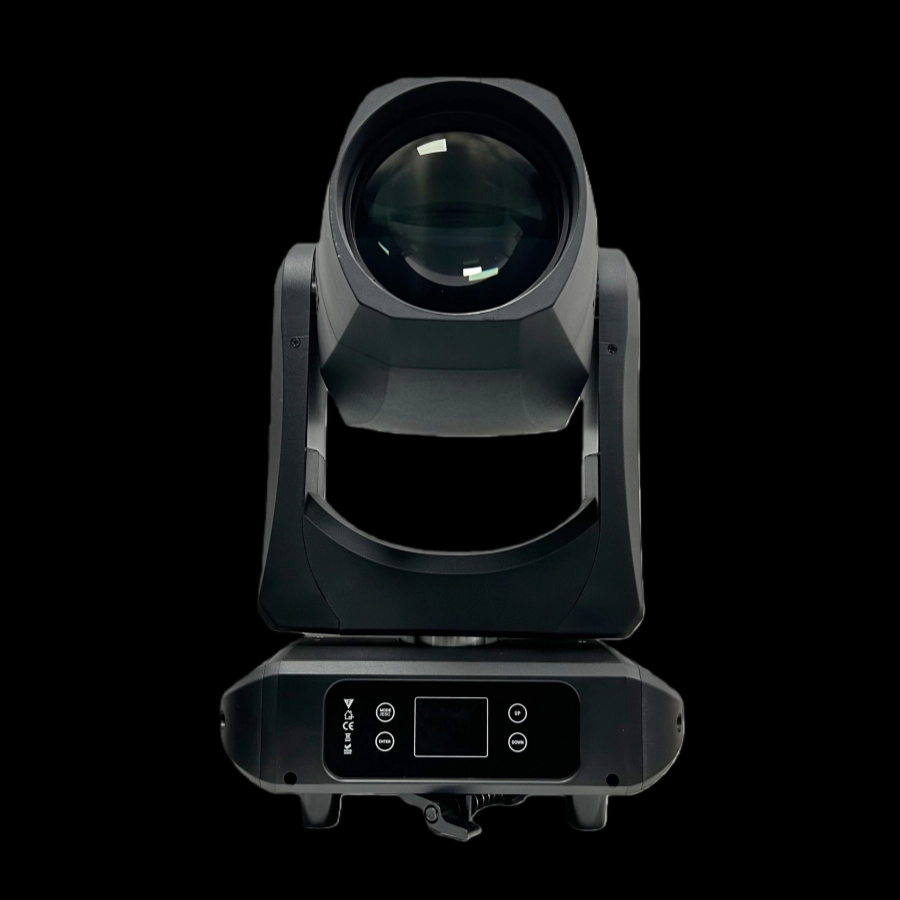

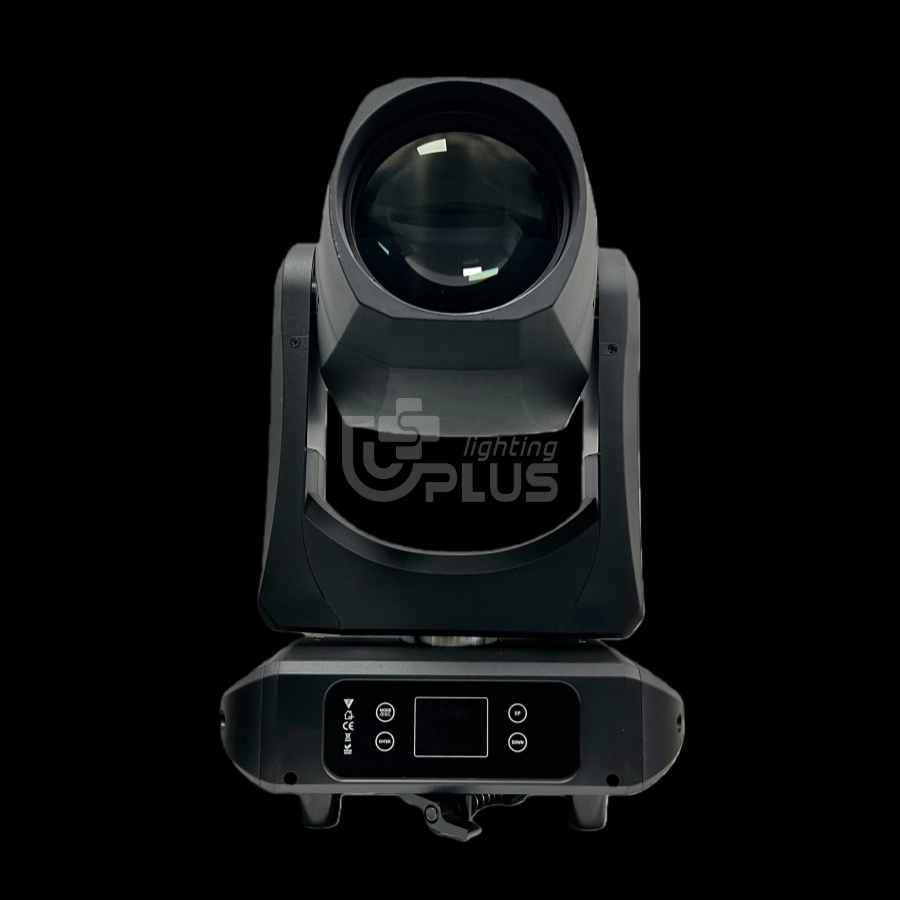

MINI 500W LED BSWF 4-in-1 moving head with CMY 5 - Uplus Lighting

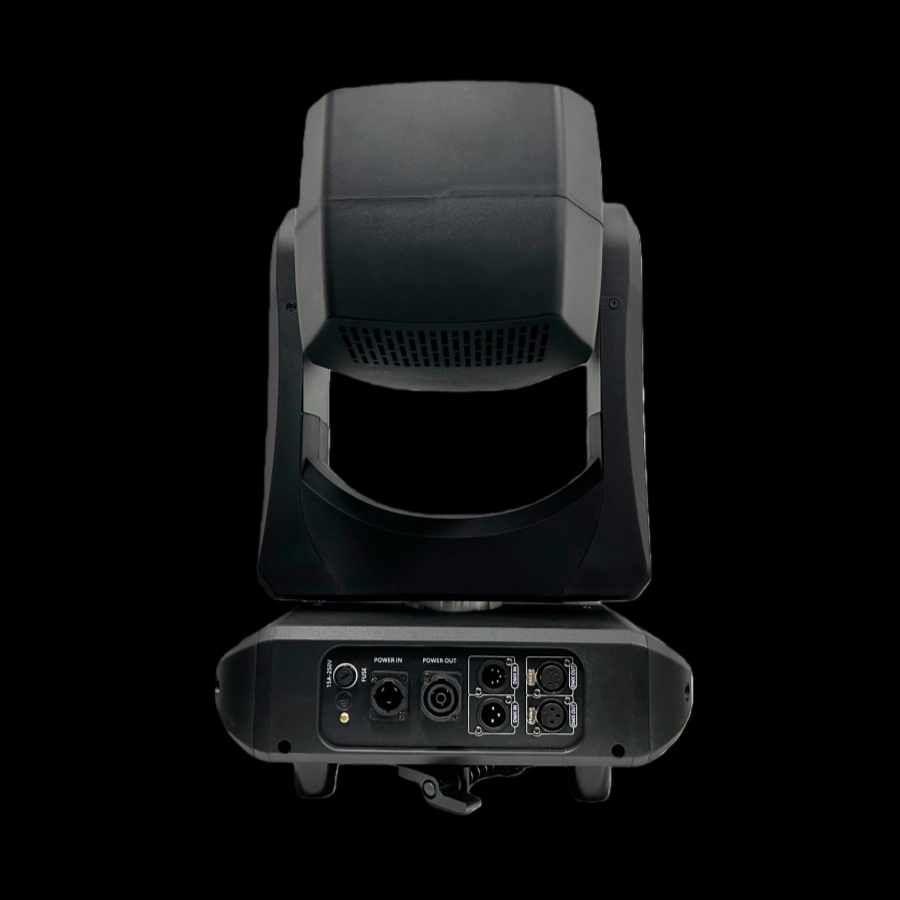

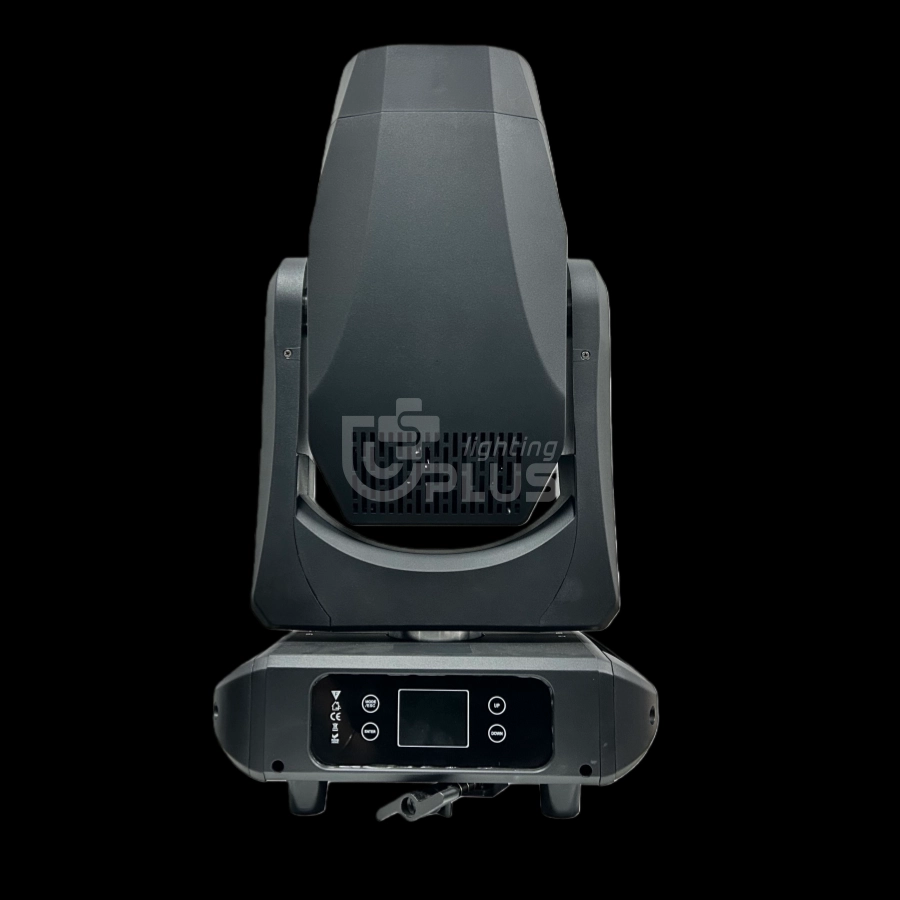

MINI 500W LED BSWF 4-in-1 moving head with CMY 2 - Uplus Lighting

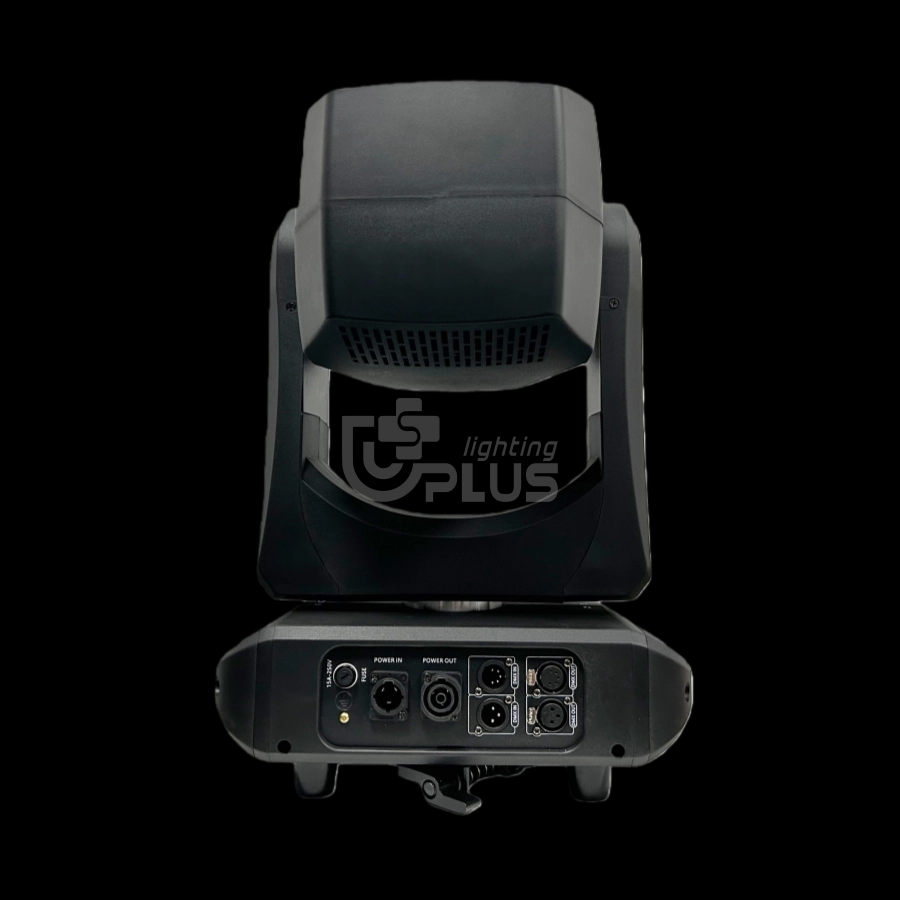

MINI 500W LED BSWF 4-in-1 moving head with CMY 6 - Uplus Lighting

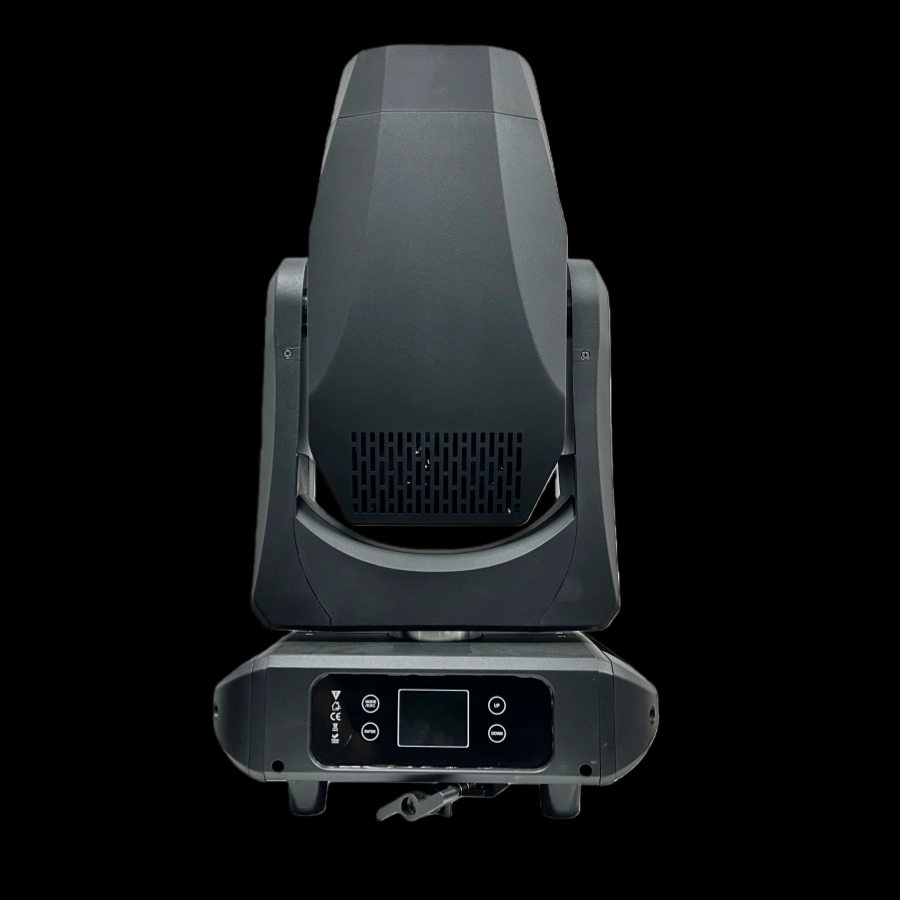

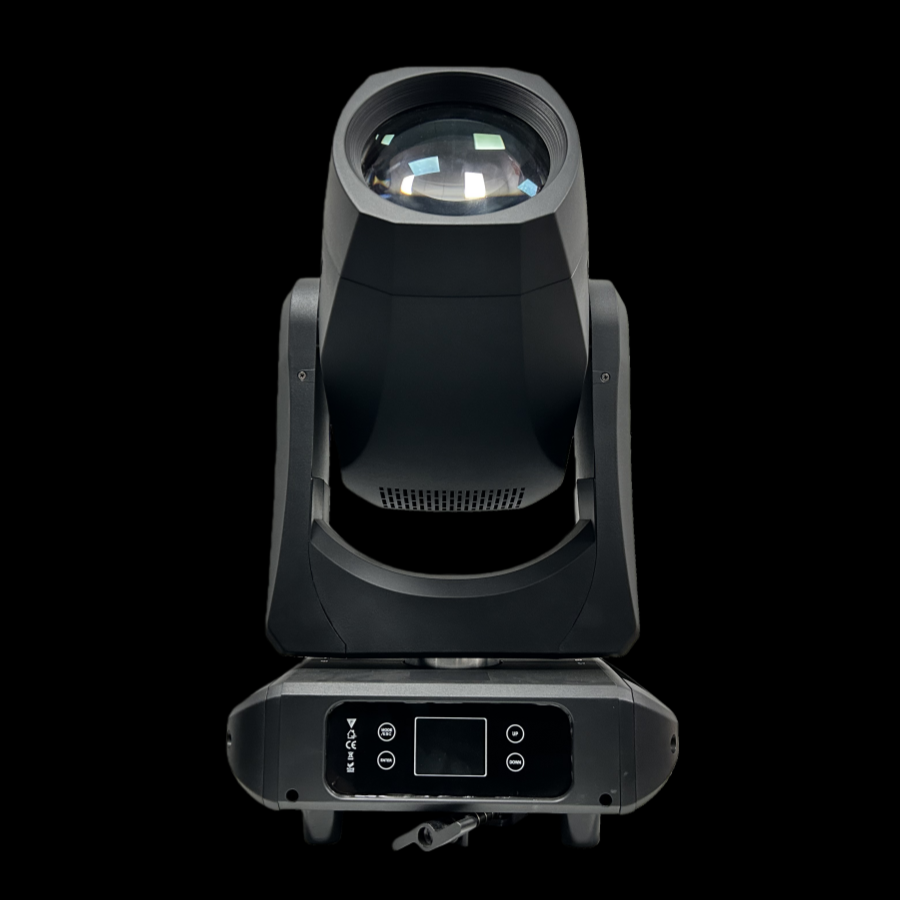

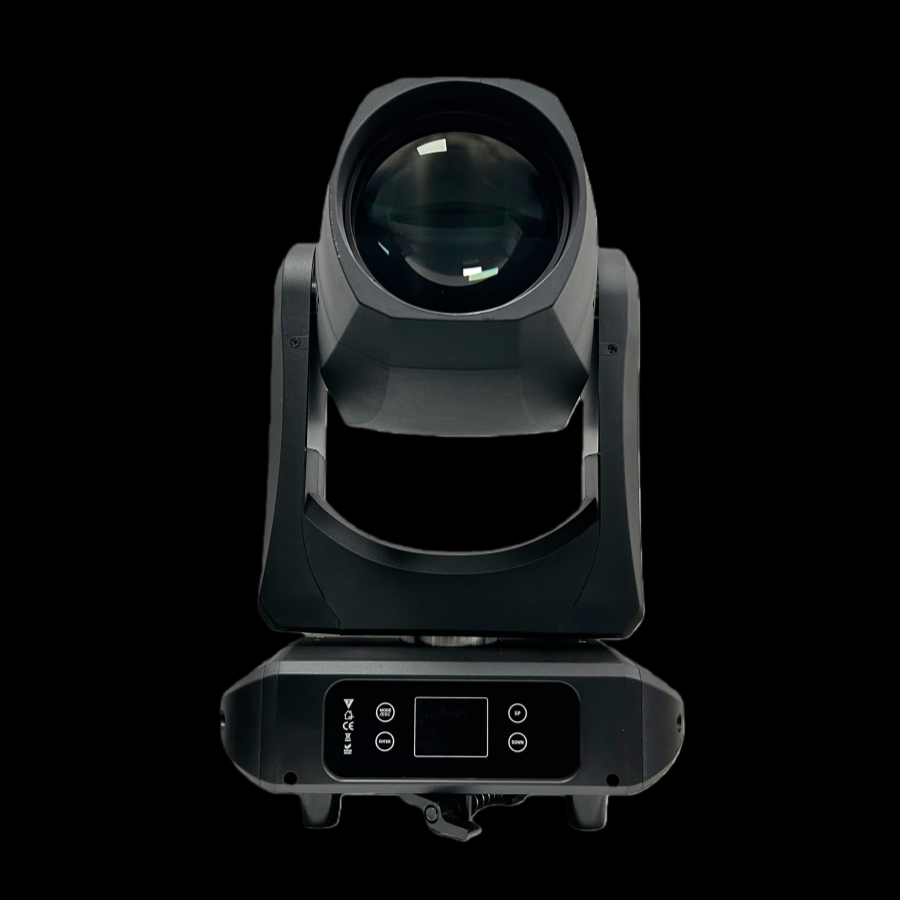

MINI 500 Profile MINI 500W LED BSWF 4-in-1 moving head with CMY

Q: What creative features are useful for lighting designers?

It offers CMY+CTO color mixing, 7 colors, 7 rotating gobos, a 5-facet prism, and 4 framing shutters , giving designers flexible beam shaping and effect options.

Q: Why is the MINI 500 Profile practical for rental companies and engineers?

It supports 34/36/56CH DMX , weighs only 21 kg with folding hook , and combines multiple functions in one compact moving head for easier transport and setup.

The MINI 500W LED BSWF 4-in-1 moving head with CMY features CMY color mixing, a 500W high-power mini body, and integrates four effects: beam, color, pattern, and fog. It delivers precise and rich lighting effects, making it suitable for core lighting in professional scenarios such as stage performances and venue events.

GET A FREE QUOTE ➜

GET THE PRODUCT CATALOG ➜

MINI 500 Profile.pdf

MINI 500 Profile MA.zip

MINI500 profile D4.zip

INTRODUCTION

SPECIFICATIONS

EFFECT

LUX DATE & DIMENSION

FEATURES

APPLICATION

PACKAGING & LOGISTIC

FAQs

quote

MINI 500W LED BSWF 4-in-1 moving head with CMY 8 - Uplus Lighting

Specifications

OPTICS

•Light source：450W LED
•Color temperature：7500K
•Consumption： 220V@450W，110V@480W

FEATURES

•Beam angle： 3.8°- 48°
•PAN 540° TILT 270°
•DMX channels： Standard (36CH)/Basic (34CH)/Extended (56CH)
•Color color wheel（7+open）/CMY linear/3200K~6800K linear
•Gobos ：Gobos（rotating）7 interchangeable+open
•Zoom Motorized / Frost 3° Frost / Strobe 0 - 30Hz
•Dimming：4 dimming curves, 0~100% linear dimming

•Protection level：IP20

SPECIFICATION

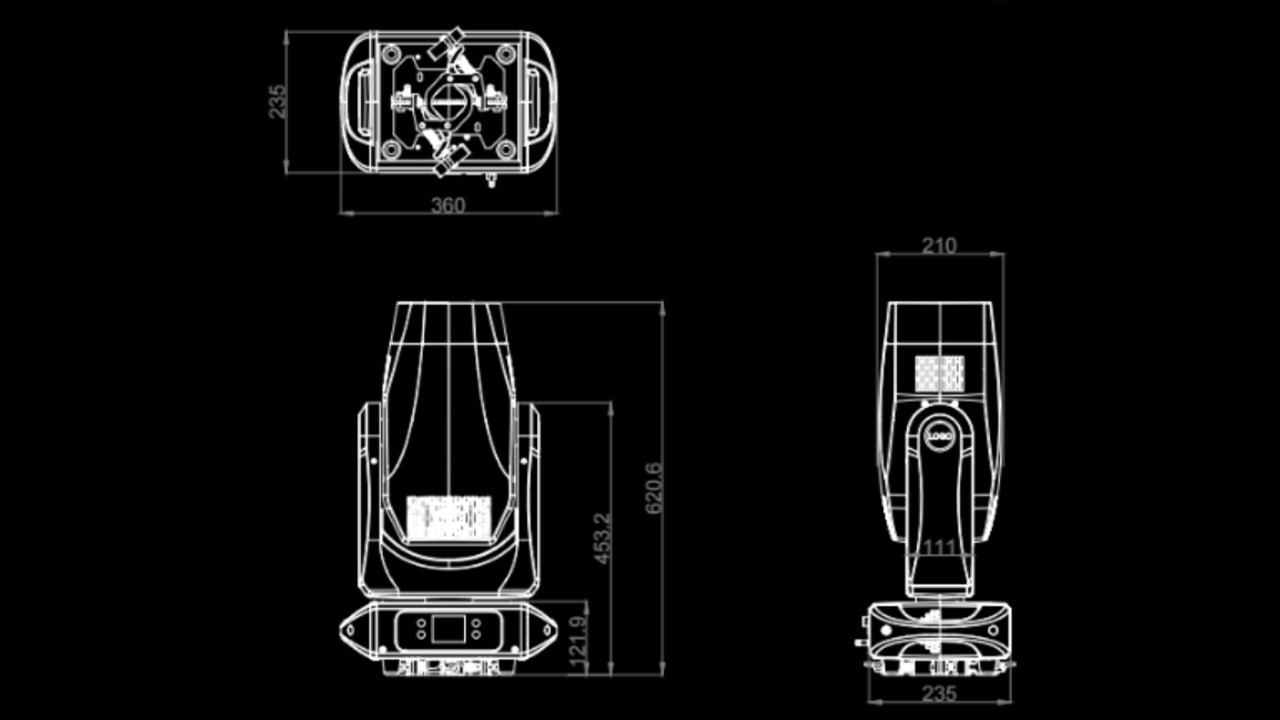

•Dimension: 360*235*621mm; NW:21kgs

Effect

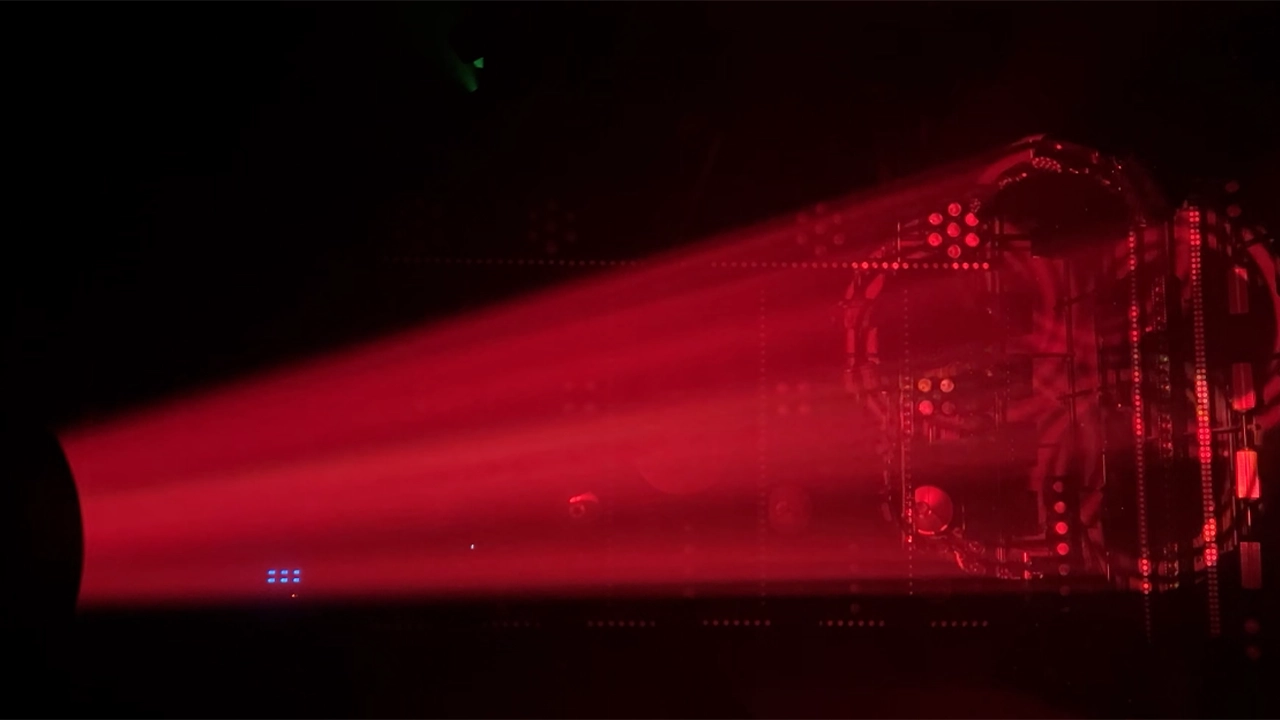

color wheel

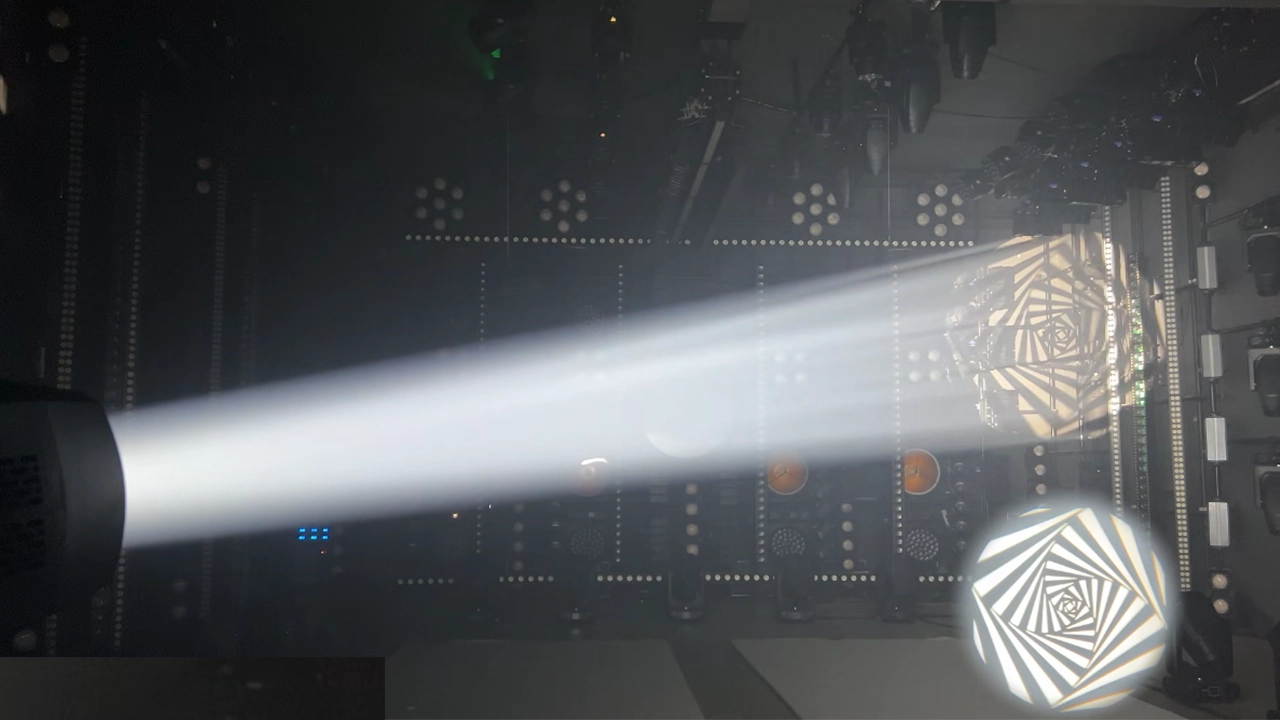

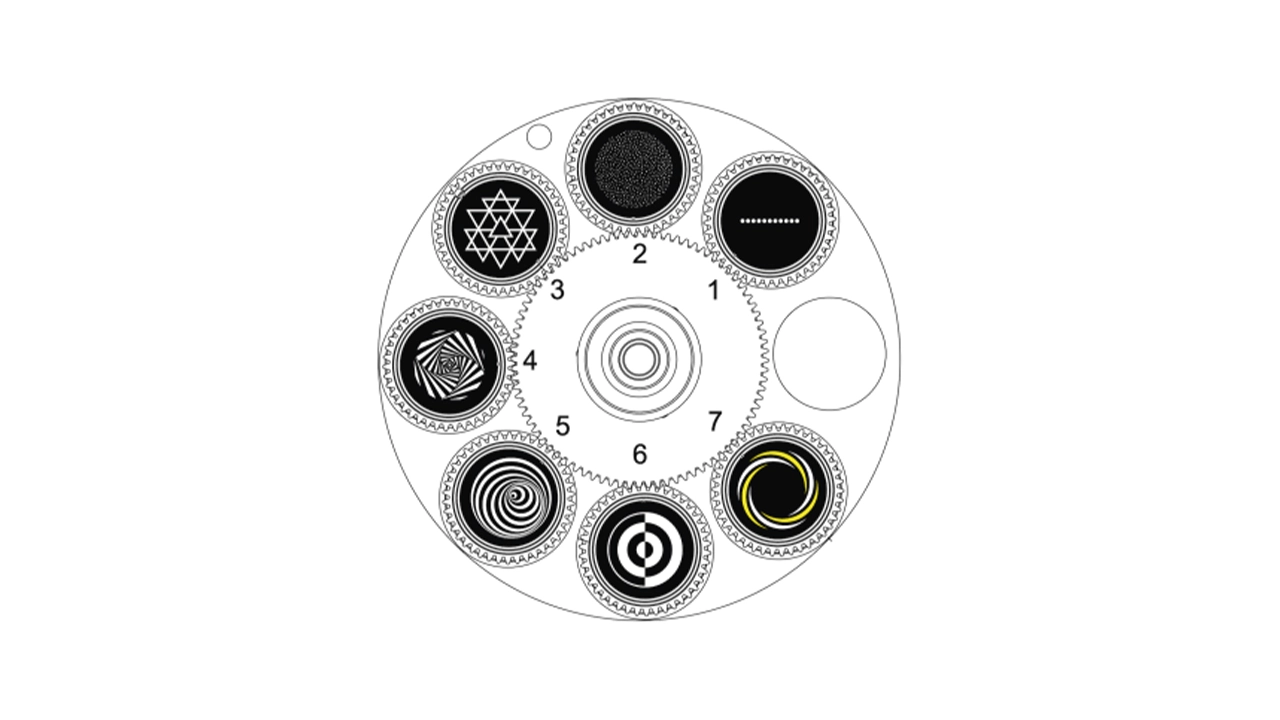

gobo wheel

7 rotating gobos

rotating 5-facet prism with variable speed

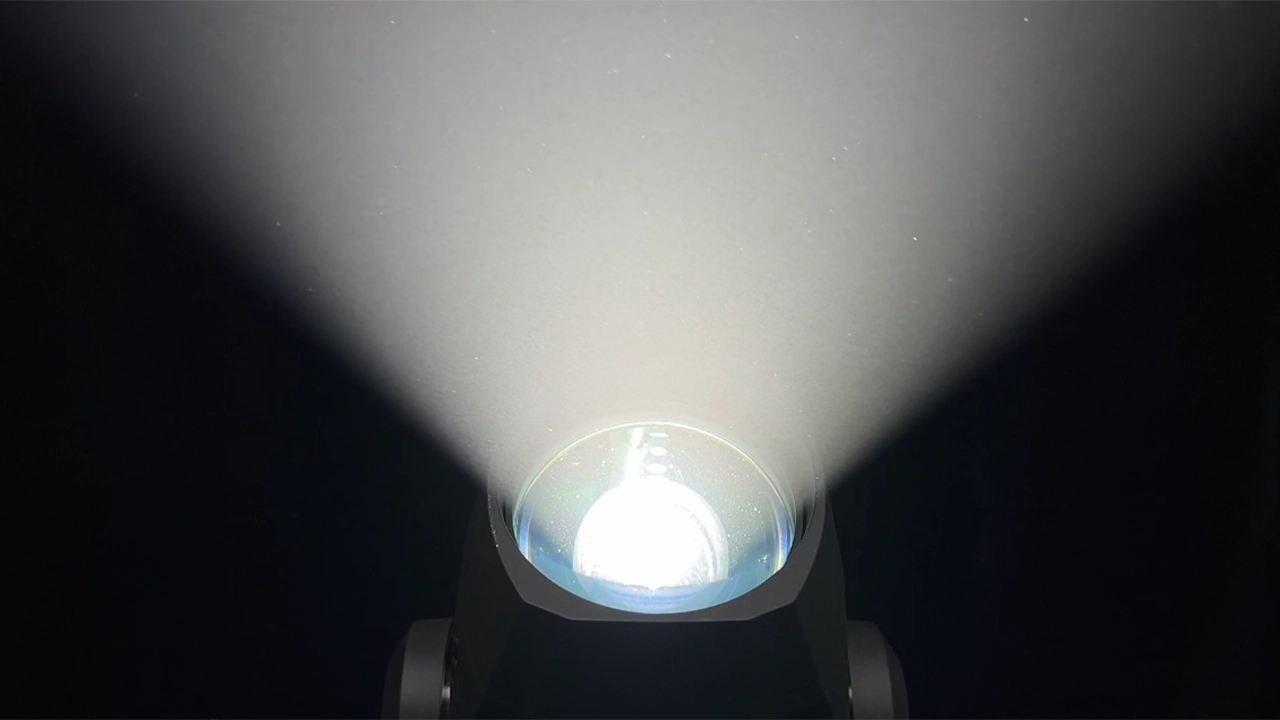

beam angle

LUX Date & Dimension

Features

APPLICATION

Indoor Theater

Precise beams create dynamic looks for professional stage performances.

Outdoor Concert

Powerful projection delivers strong visibility across large outdoor audiences.

Music Festival

Bright beams enhance live performances with energetic visual impact.

New Year

Sharp beam patterns create festive and symmetrical stage effects.

Event Lighting

Framing and gobos shape creative looks for premium events.

Theater Framing

Precise shutters shape light for scenery and performance areas.

Packaging & Logistic

Packaging

Cartons or flight cases.

Production Time

Depends on the production time required for the product.

Shipping

Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

Can't find your answer?

Learn more

About Cooperation Process

How do I select the appropriate product?

Please send us an inquiry or tell us your purpose and location, and we will provide you with the appropriate product as soon as we receive your information.

Can I schedule a video meeting or factory tour?

Support video conferencing. Welcome to visit our factory at any time.

Who should I contact if I receive a damaged item?

If you receive a damaged item, please take a photo and send it to us. We will then confirm with the logistics company whether it is a shipping issue or a problem with our product packaging. After verification, we will resend the product or provide compensation.

MINI 500 Profile

What creative features are useful for lighting designers?

It offers CMY+CTO color mixing, 7 colors, 7 rotating gobos, a 5-facet prism, and 4 framing shutters, giving designers flexible beam shaping and effect options.

Why is the MINI 500 Profile practical for rental companies and engineers?

It supports 34/36/56CH DMX, weighs only 21 kg with folding hook, and combines multiple functions in one compact moving head for easier transport and setup.
