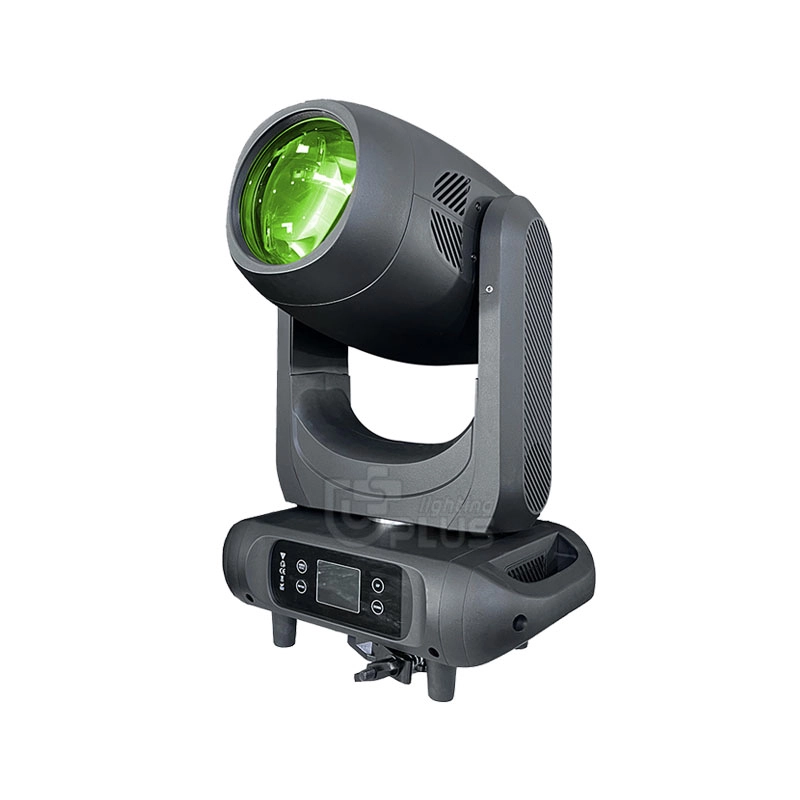

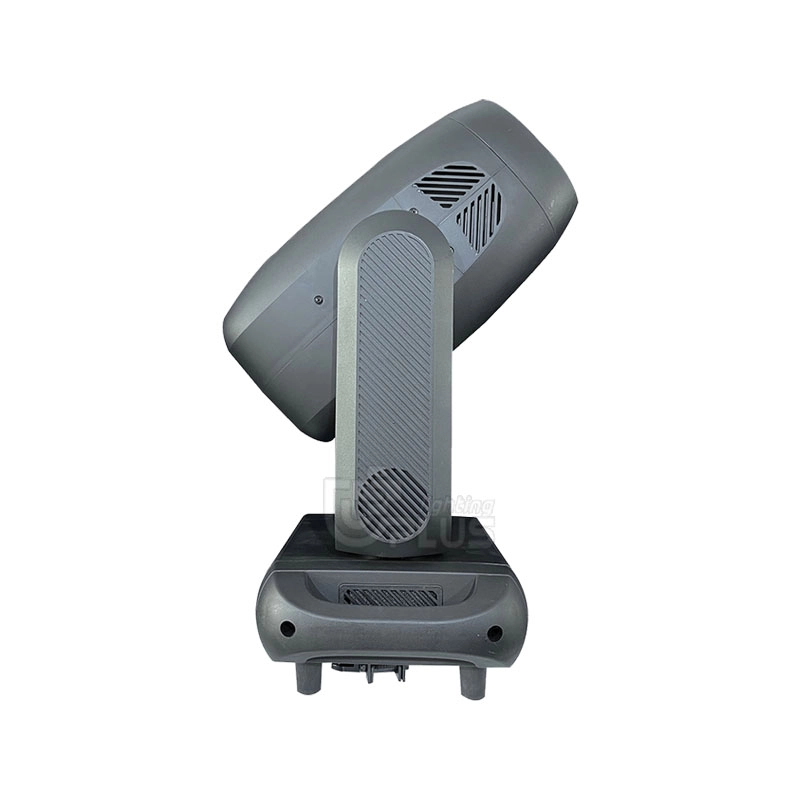

320 LED BSW 320W LED BSW 3-in-1 moving head
The 320W LED BSW 3-in-1 moving head features high-power output, integrating beam, color, and pattern functions. It delivers powerful and precise lighting effects, is easy to install, and is suitable for core lighting design in professional scenarios such as stage performances, music festivals, and venue events.
Specifications
OPTICS
•Light Source:300W white LED
•beam angle:3°-45°
•power:350W
•color temperature: 7500K
•Input voltage:AC100-240V 50-60HZ
FEATURES
•Pan movement:540° (16bit )
•Tilt movement:270°(16bit)
•Color: 8 colors + White，Interchangable ,indexable ,bidirectional rainbow effect
•Fixed gobo: 11 fixed patterns + white light
•rotating gobo wheel: 7 gobo + open ,and gobo shake , gobo continue bi-directional rotating
•Prism: 5 facet prisms
•Frost filter for wash effect
•Dimming system: 0-100% linear adjustment
•DISPLAY:2.8 inch LCD display with English/Chinese menu
•Auto lock and display flip
SPECIFICATION
•Dimension: 360*235*608mm;NW:17.4KG
Effect
beam angle
beam angle
11 fixed patterns+white
11 fixed patterns+white
7 rotating gobo+open and gobo shake
7 rotating gobo+open and gobo shake
5 facet prisms+color
5 facet prisms+color
5 facet prisms+fixed gobos
5 facet prisms+fixed gobos
5 facet prisms+rotating gobos
5 facet prisms+rotating gobos
Features
APPLICATION
Courtyard/Balcony Decoration
Lights up at dusk, projecting dynamic light and shadow patterns. Paired with greenery or outdoor furniture, it creates a warm and relaxing indoor/outdoor space.
Festival Atmosphere Decoration
No wiring required. Simply place it at the entrance or on the lawn. RGB dynamic colors enhance the festive atmosphere.
Small Outdoor Parties/Camping
Decorate campsites and terrace parties. The waterproof design is unaffected by outdoor dew or light rain. Flowing light and shadow enhance the interactive atmosphere.
Shop/Window Display
Place at entrances or in shop windows. Dynamic text and patterns attract passersby, suitable for attracting customers to restaurants, retail stores, and other offline stores.
Children's Birthday Parties/Small Events
Suitable for both indoor and outdoor use. Brightly colored dynamic lasers paired with cartoon patterns appeal to children.
Garden Weddings/Small Celebrations
Soft dynamic light and shadow are projected onto the venue. The waterproof feature is suitable for outdoor environments, creating a romantic atmosphere.
Packaging & Logistic
Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
320 LED BSW
What is the zoom range of the 320 LED BSW moving head?
The 320 LED BSW offers a 3°–45° zoom range, covering narrow beam effects and wider spot or wash applications.
What control protocols and DMX modes does the 320 LED BSW support?
The 320 LED BSW supports DMX512 and RDM, with 19-channel and 25-channel DMX modes.
What light source does the 320 LED BSW use?
It uses a 300W white LED source in a 320W BSW 3-in-1 moving head design.
Does the 320 LED BSW support prism, frost and focus effects?
Yes. It includes a 5-facet prism, frost and linear focus adjustment, giving designers more control over beam texture and projection.
What color and gobo options are available on the 320 LED BSW?
The fixture includes 8 colors + white, 11 fixed gobos, and 7 pluggable rotating glass gobos + open for varied stage effects.
