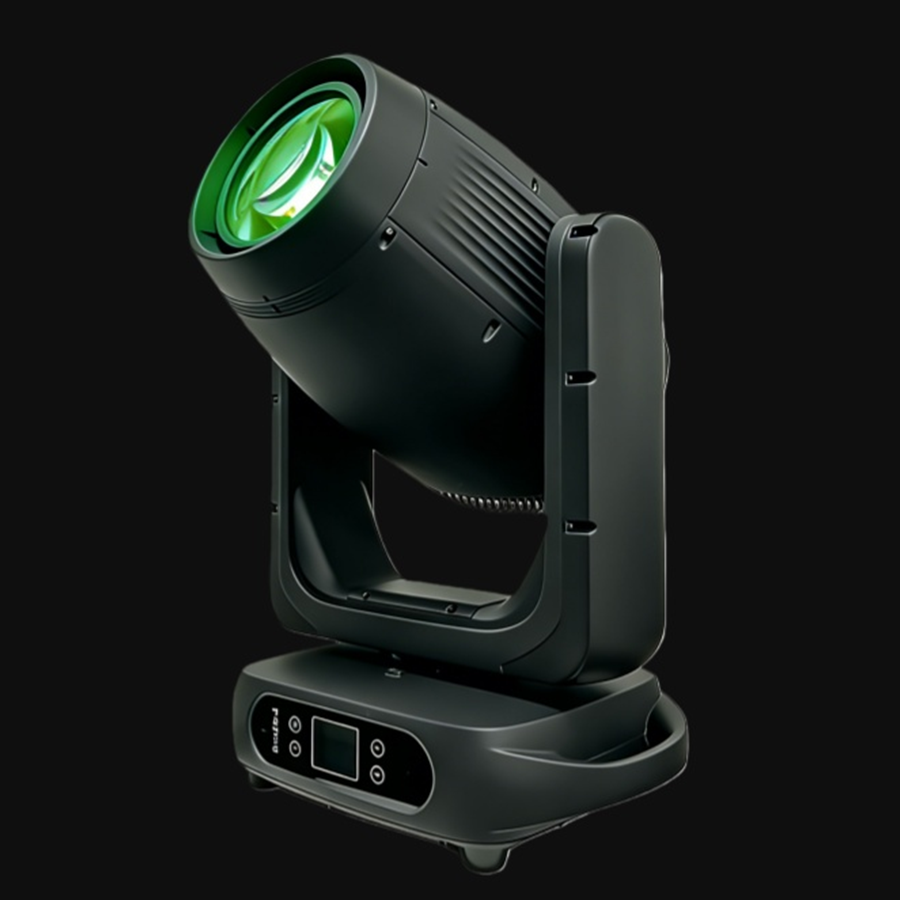

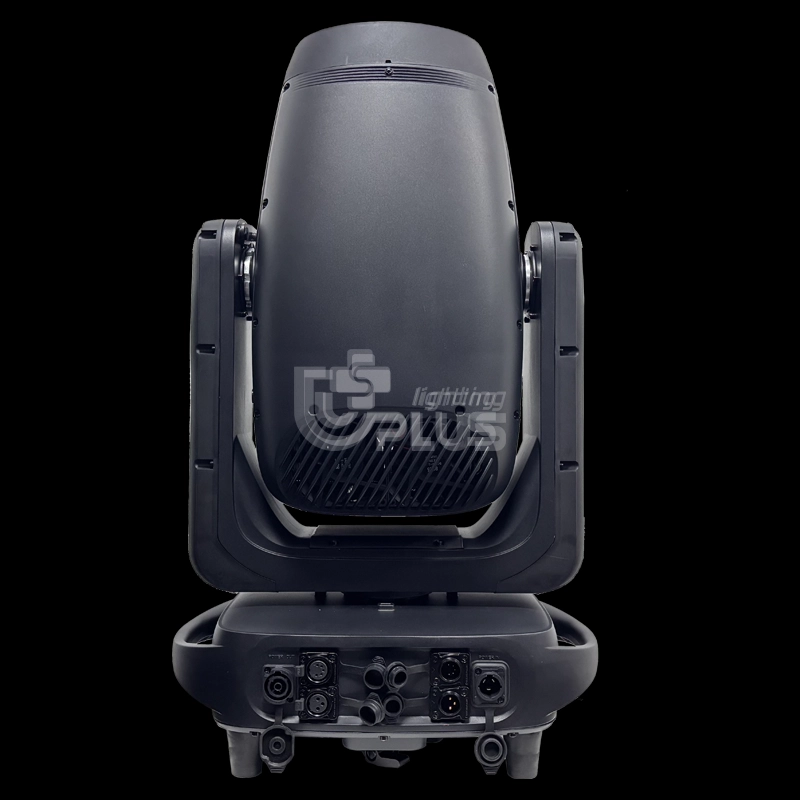

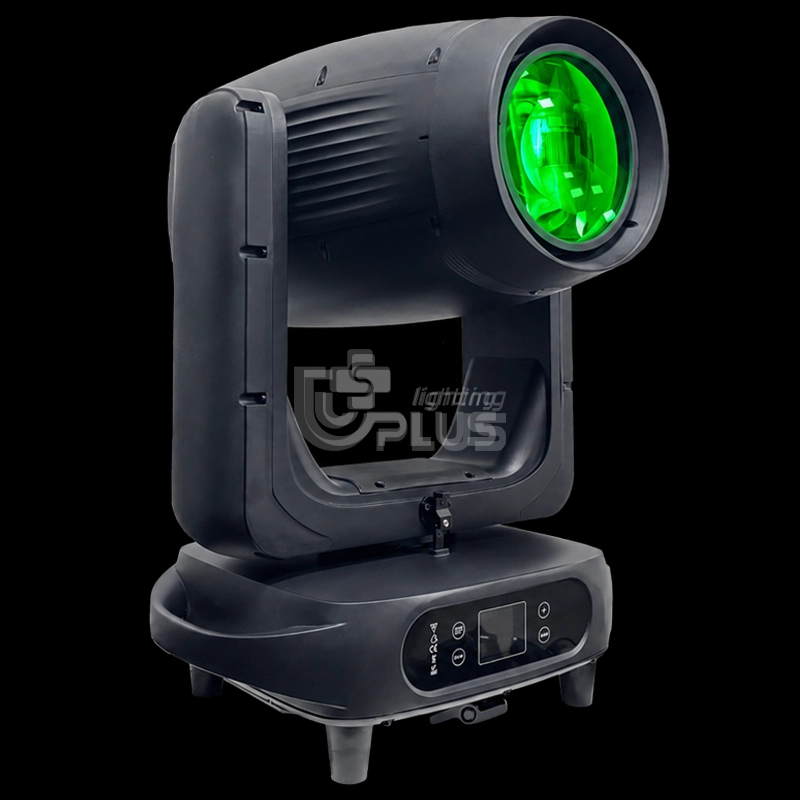

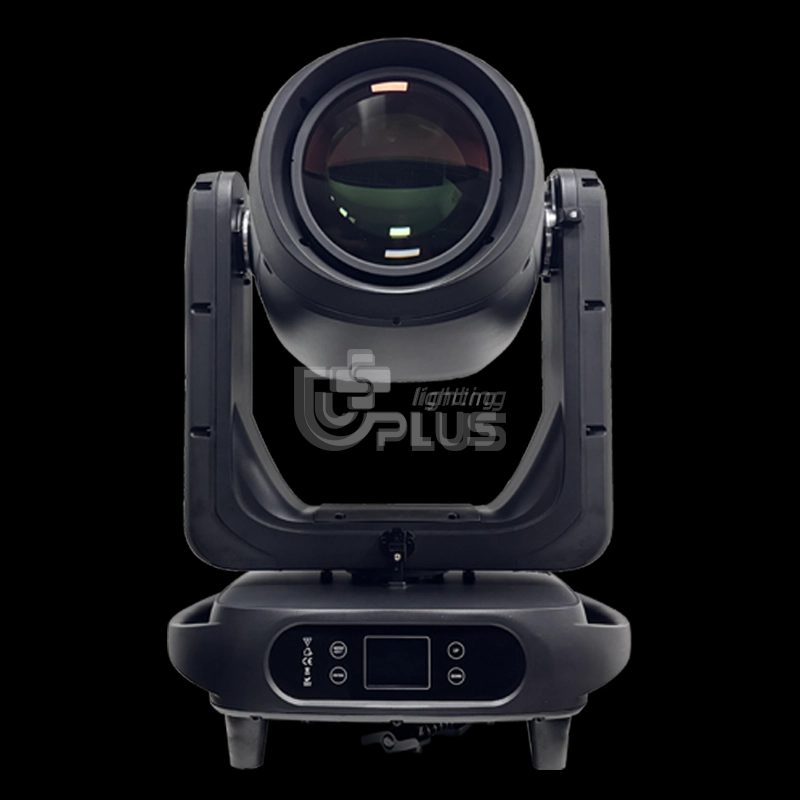

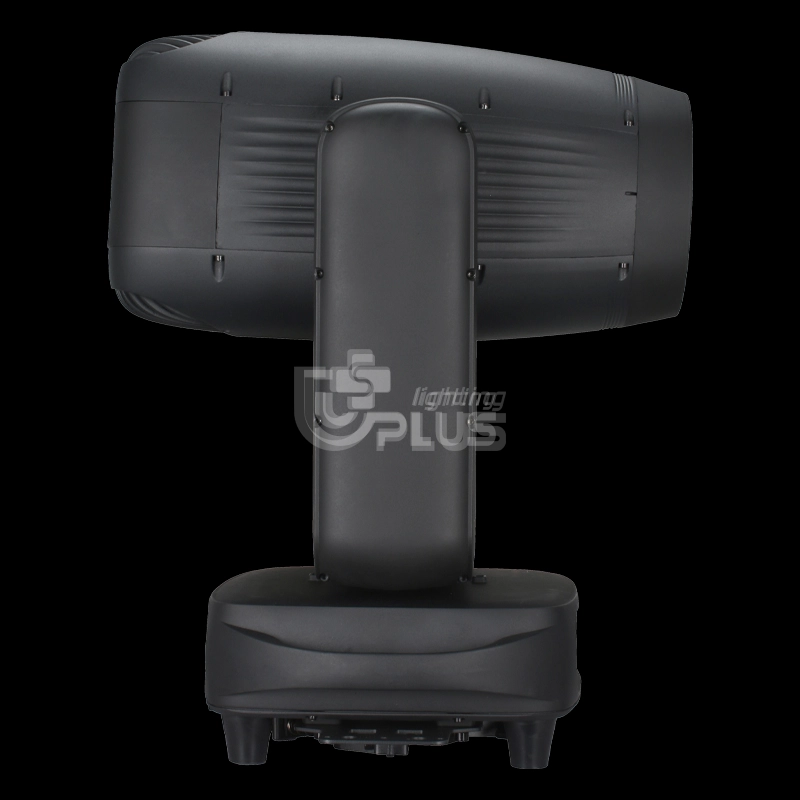

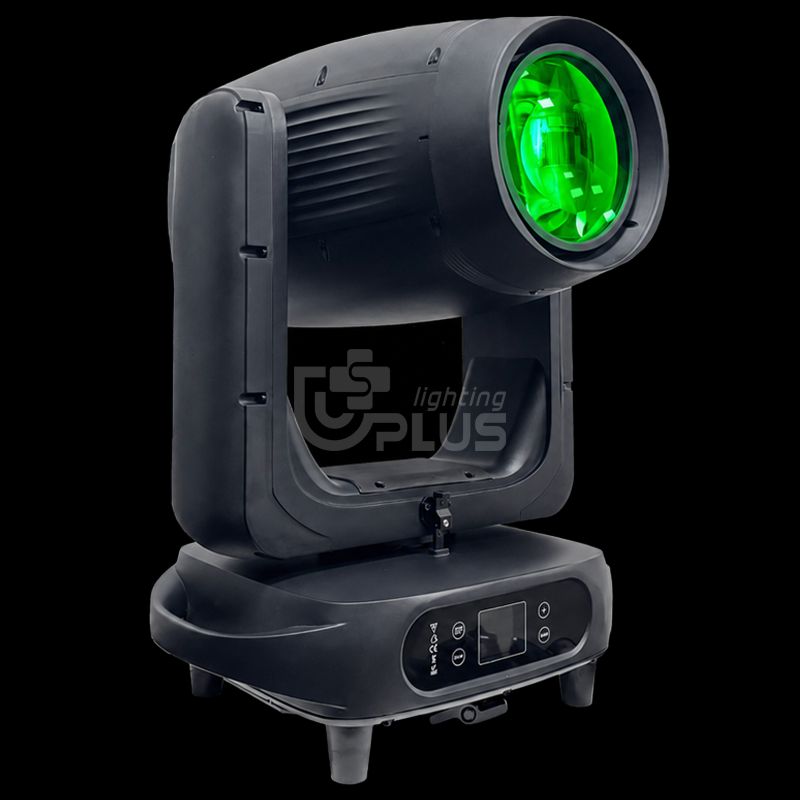

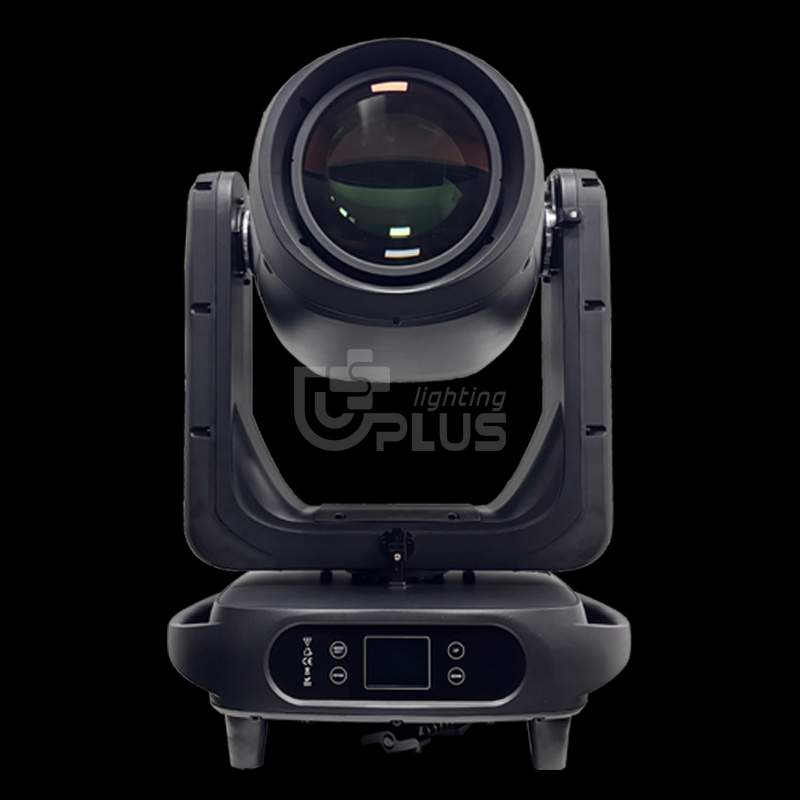

IP700 BSWF 700W waterproof BSWF 4in1 moving head
The IP700 BSWF 700W waterproof BSWF 4in1 moving head light by Uplus Lighting delivers versatile, durable stage lights designed for outdoor and indoor use. Engineered for reliable performance, this moving head light integrates four functions in one compact unit, ideal for dynamic lighting setups.
Specifications
OPTICS
⦁Light Source: 680W White LED
⦁Power consumption:780W
⦁Beam range:3.8-50°
⦁Light Color Temperature:6800K
FEATURES
•Body Materials: die-cast aluminum+aviation die-cast magnesium alloy
•Control mode: DMX512, RDM, self-walking, master-slave, sound control, built-in
•Channels: 34CH, 36CH，56CH
•Dimming: 4 dimming curves, 0~100% linear dimming
•CTO: 3200K~6800K, linear
•CMY: CMY linear
•Color wheel: 7 colors +white
•Rotating Gobo Wheel: 7 gobos+white
•1 animation wheel
•Prism: rotating 5-facet prism
•Cutting: 8 individually positionable framing blades ,Framing system rotation +/-90°
SPECIFICATION
⦁Dimension: 418*299*654mm; NW:29.7 kg with folding hook
Effect
color wheel
CMY+CTO linear
gobo wheel
animation wheel
5 facet prism+rotating gobos
5 facet prism+rotating gobos
5 facet prism+rotating gobos
5 facet prism+rotating gobos
beam angle
beam angle
Features
APPLICATION
Outdoor Festival
Powerful beams cut through haze across massive festival stages.
Stadium Concert
Long-throw beams deliver high-impact looks across stadium-scale productions.
City Plaza
Wide zoom and framing shape architecture-focused outdoor event lighting.
Theme Park
Bright beams create immersive nighttime spectaculars around landmark attractions.
Heritage Show
Precise framing highlights façades while protecting architectural details.
Open Amphitheater
Strong output maintains visibility across large open-air performance venues.
Packaging & Logistic
Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
About Cooperation Process
What warranty do your products come with?
Our products come with a one-year warranty. During this period, if there are any problems with our products, we will provide customers with the necessary accessories and related services.
How do I select the appropriate product?
Please send us an inquiry or tell us your purpose and location, and we will provide you with the appropriate product as soon as we receive your information.
Can I schedule a video meeting or factory tour?
Support video conferencing. Welcome to visit our factory at any time.
IP700 BSWF
How flexible is the IP700 BSWF for color mixing and creative effects?
The fixture provides linear CMY color mixing, a 3200K–6800K linear CTO system, and a color wheel with 7 colors plus open. It also includes 7 rotating gobos plus open, an animation wheel, and a rotating 5-facet prism, giving designers multiple options for creating colors, textures, aerial effects, and dynamic stage looks.
Is the IP700 BSWF suitable for outdoor concerts, festivals, and rental productions?
Yes. The IP700 BSWF features an IP65-rated housing made from die-cast aluminum and aviation-grade magnesium alloy, making it suitable for demanding outdoor applications. Its 680W white LED, 3.8°–50° zoom range, and BSWF 4-in-1 design make it a practical choice for concerts, festivals, touring productions, and professional rental companies.
