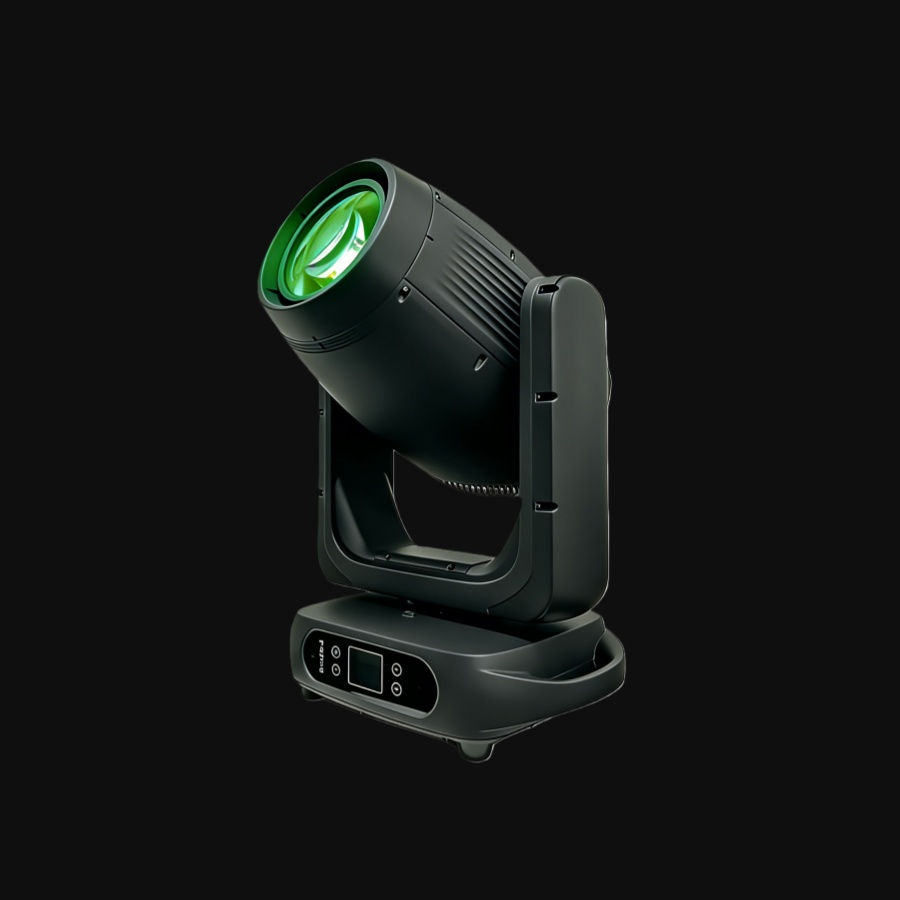

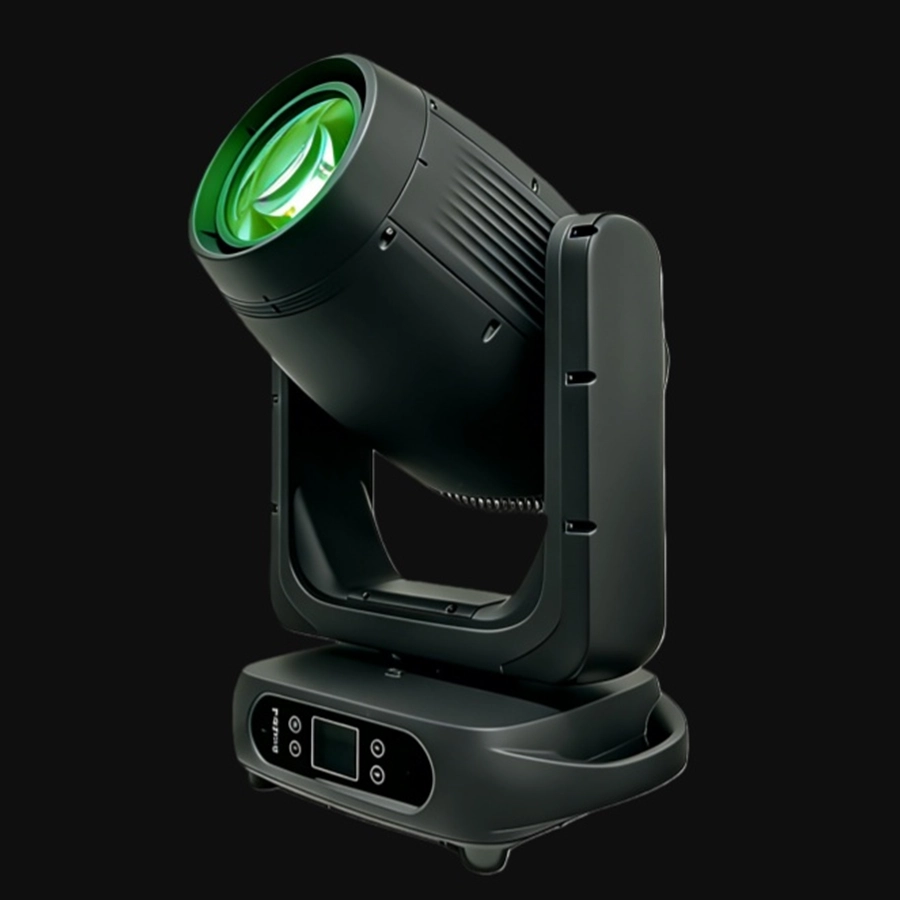

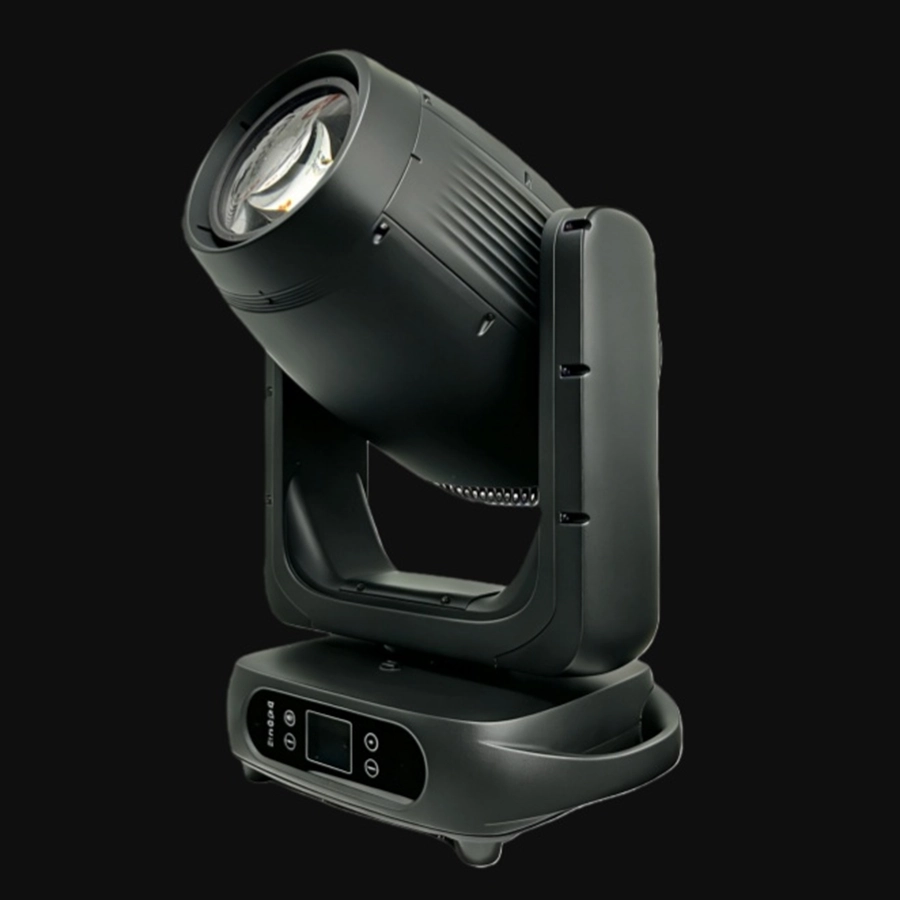

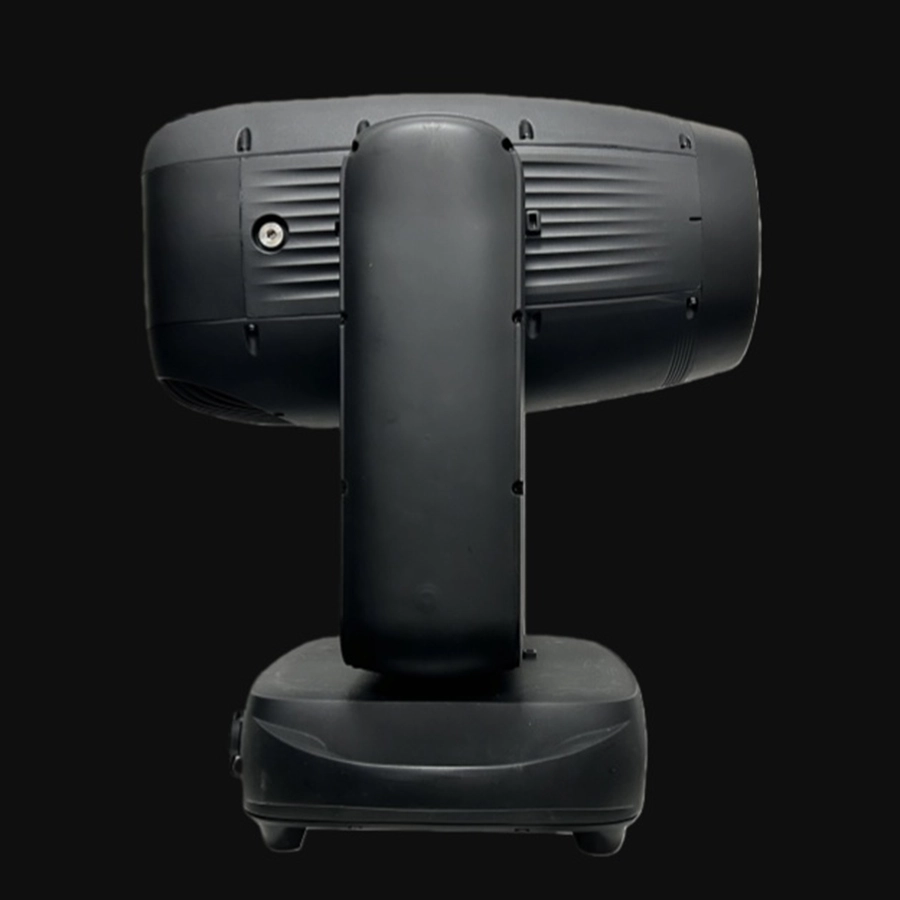

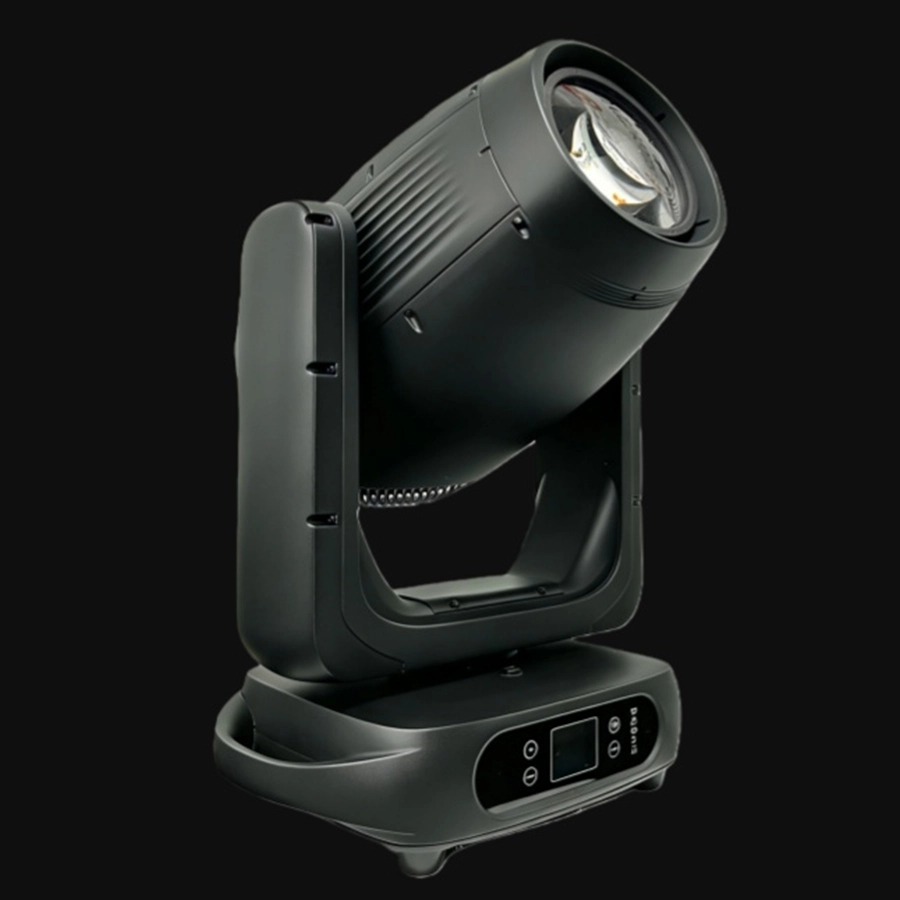

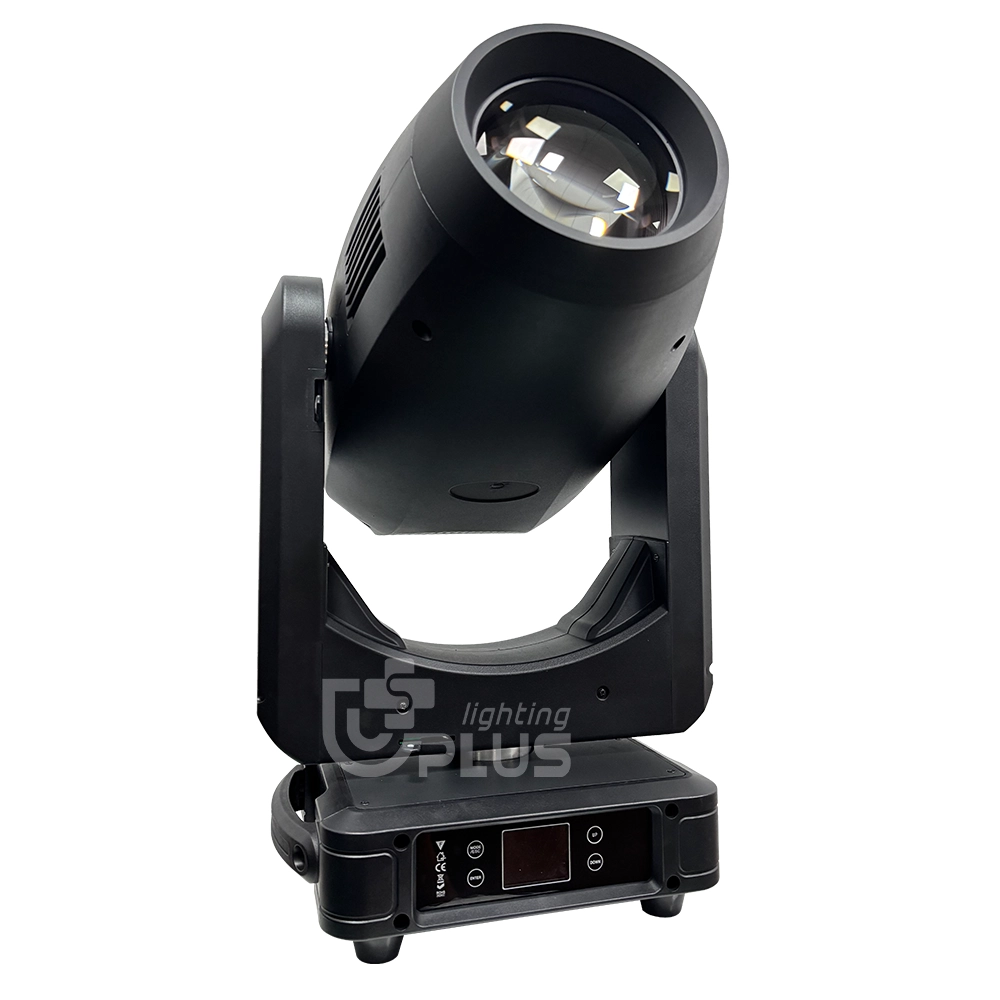

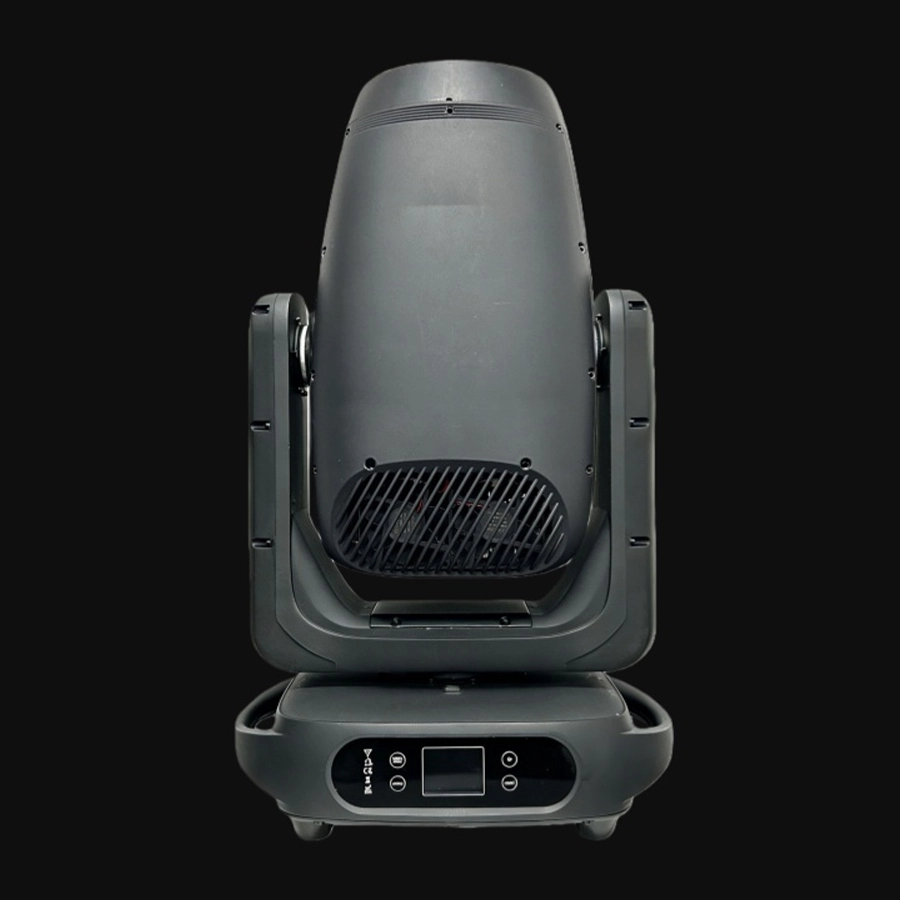

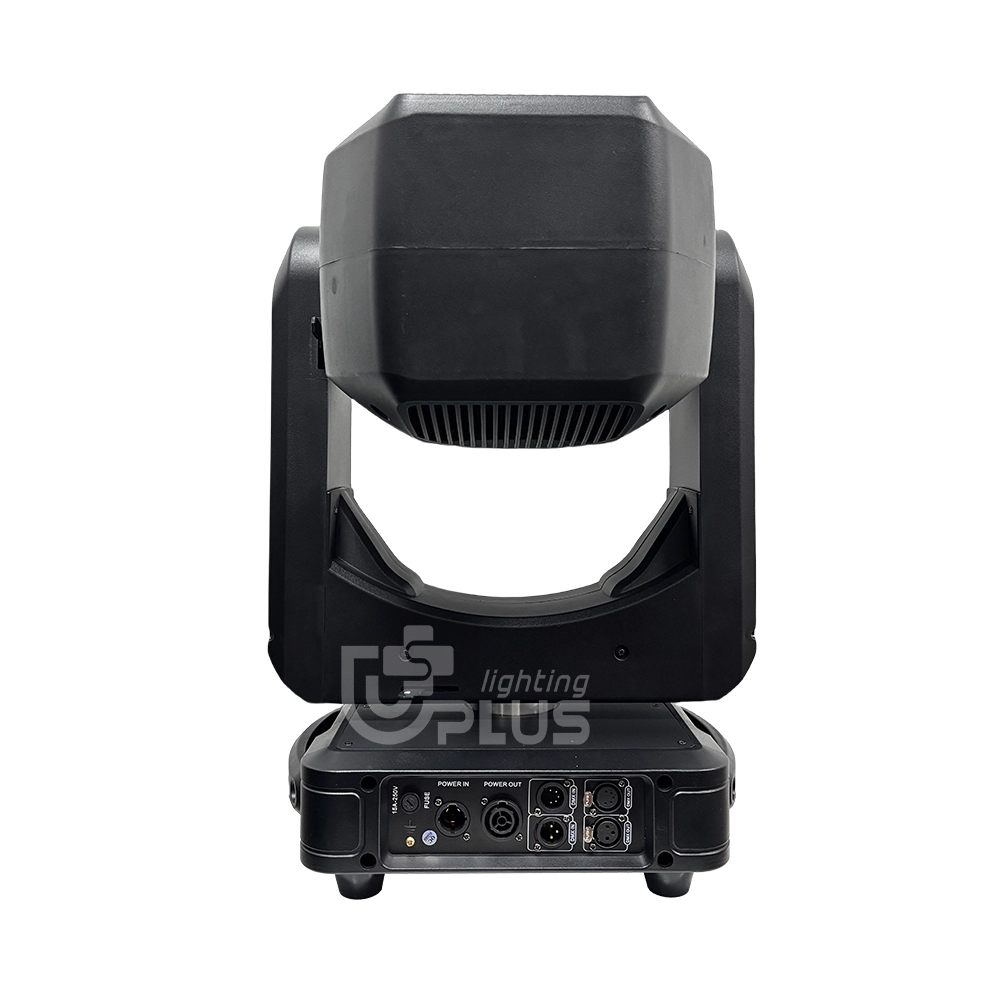

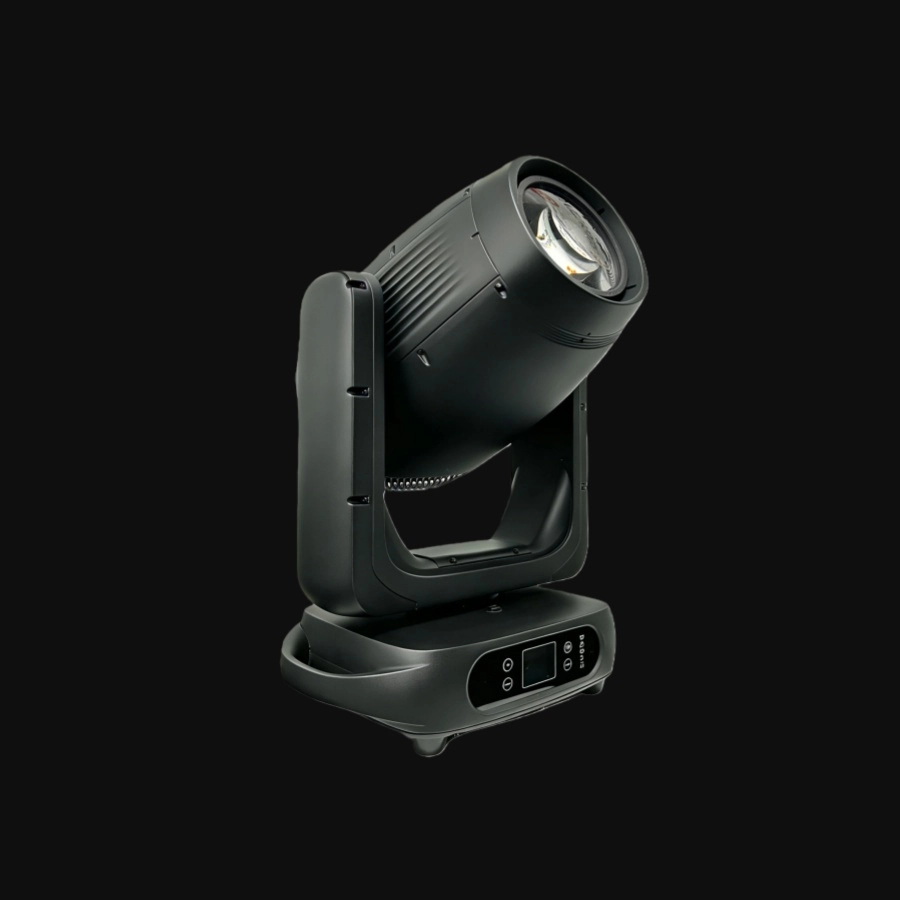

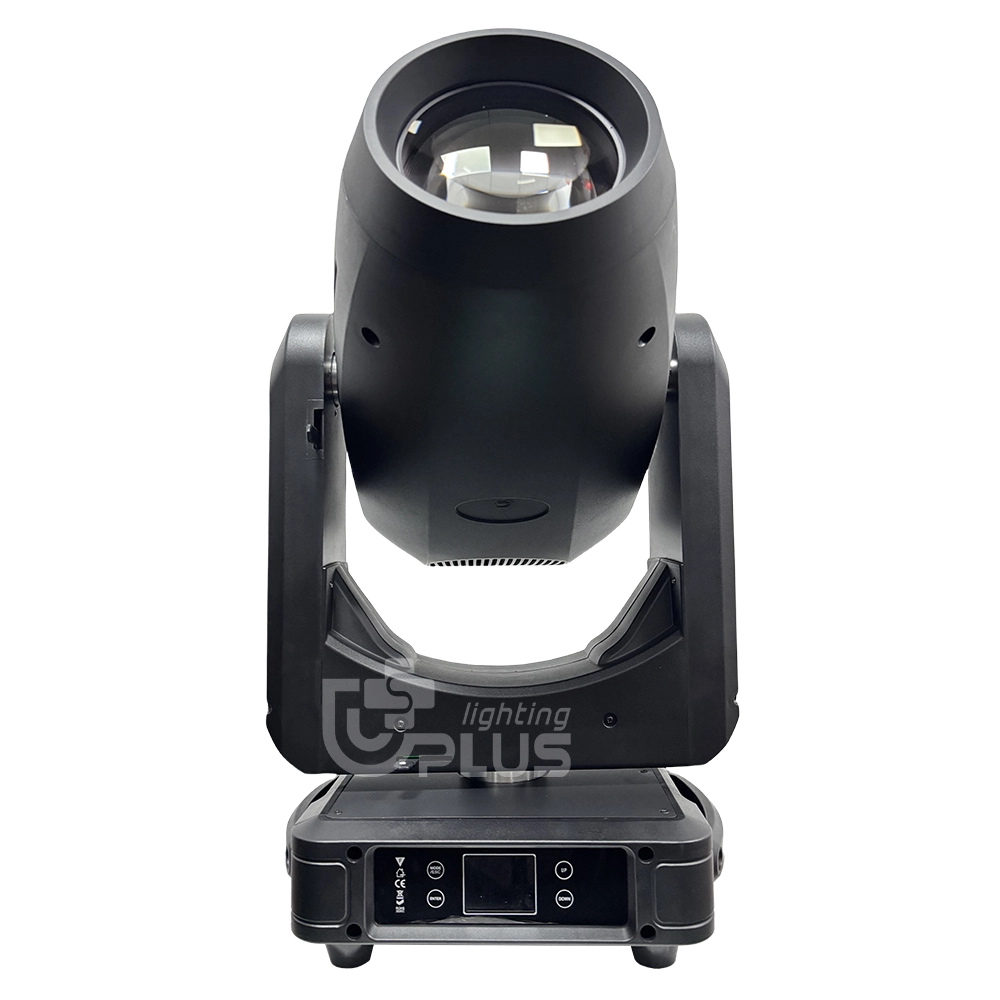

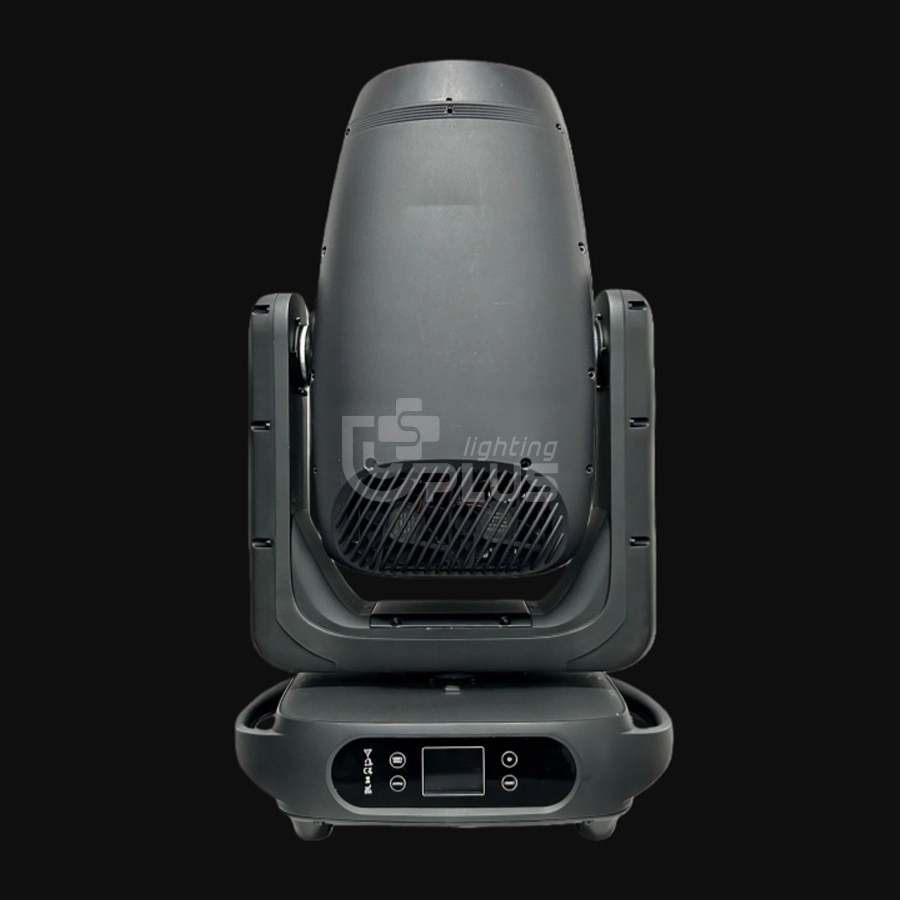

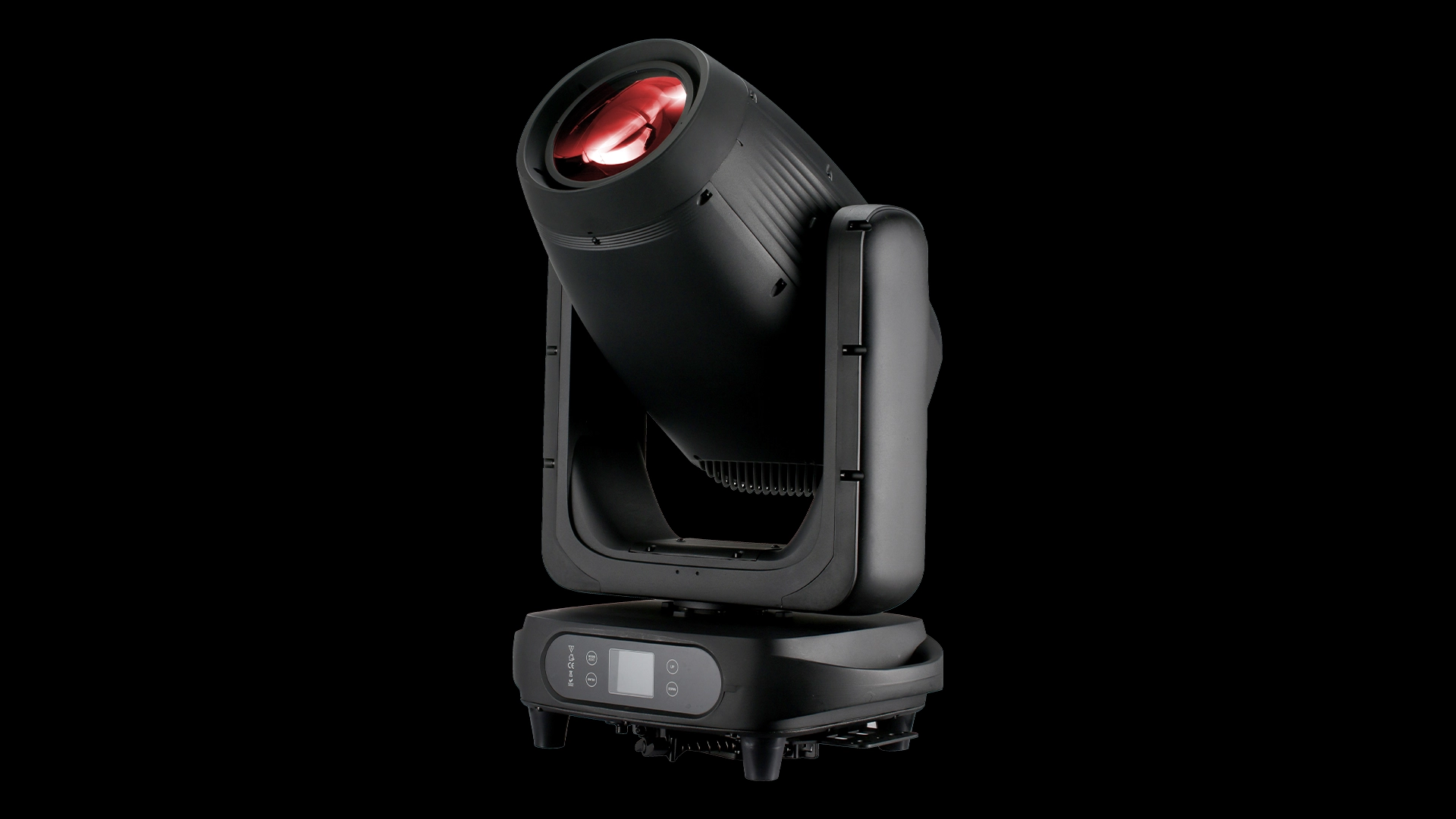

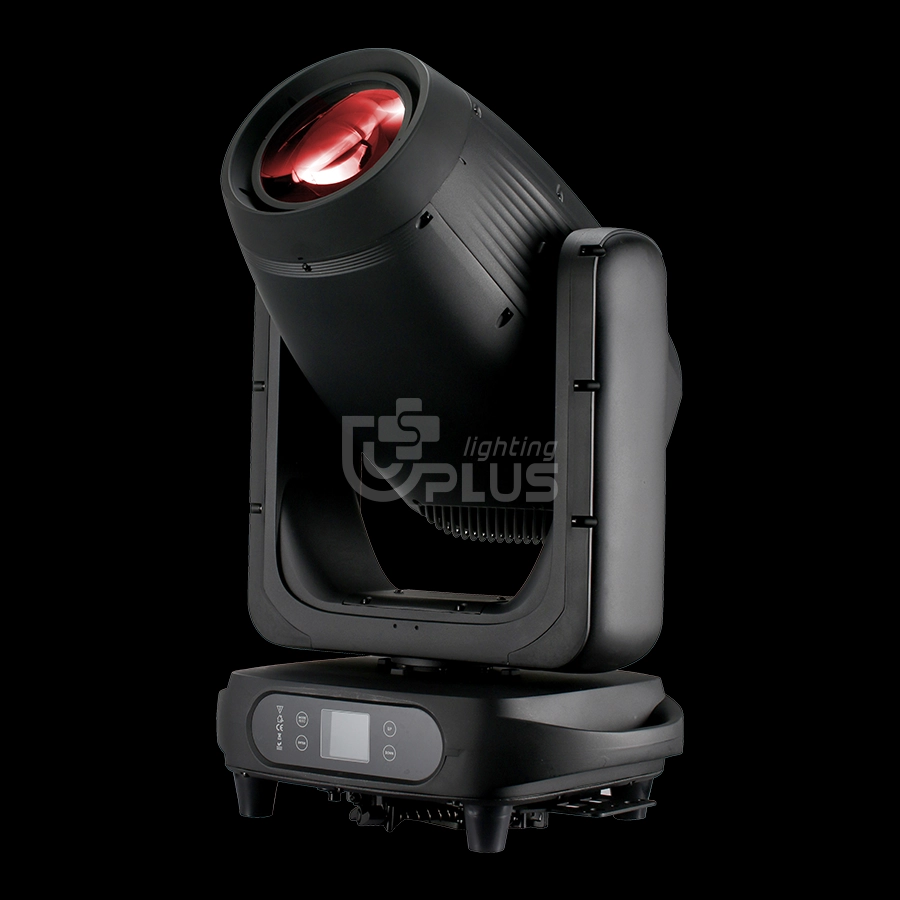

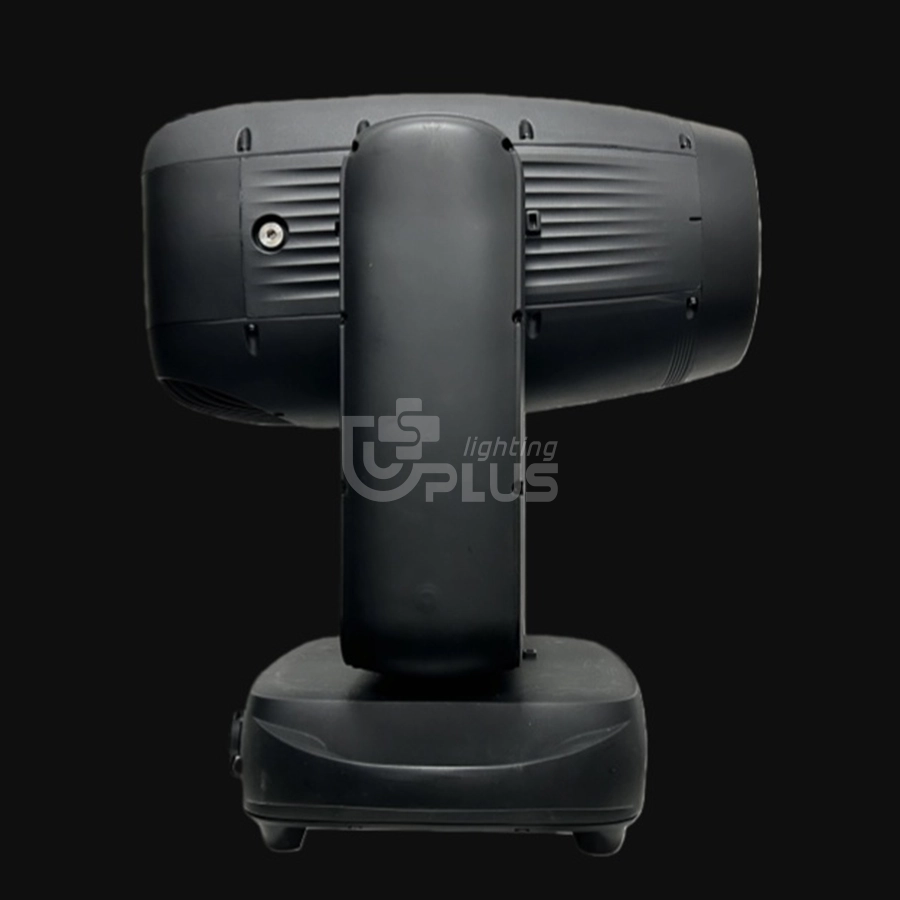

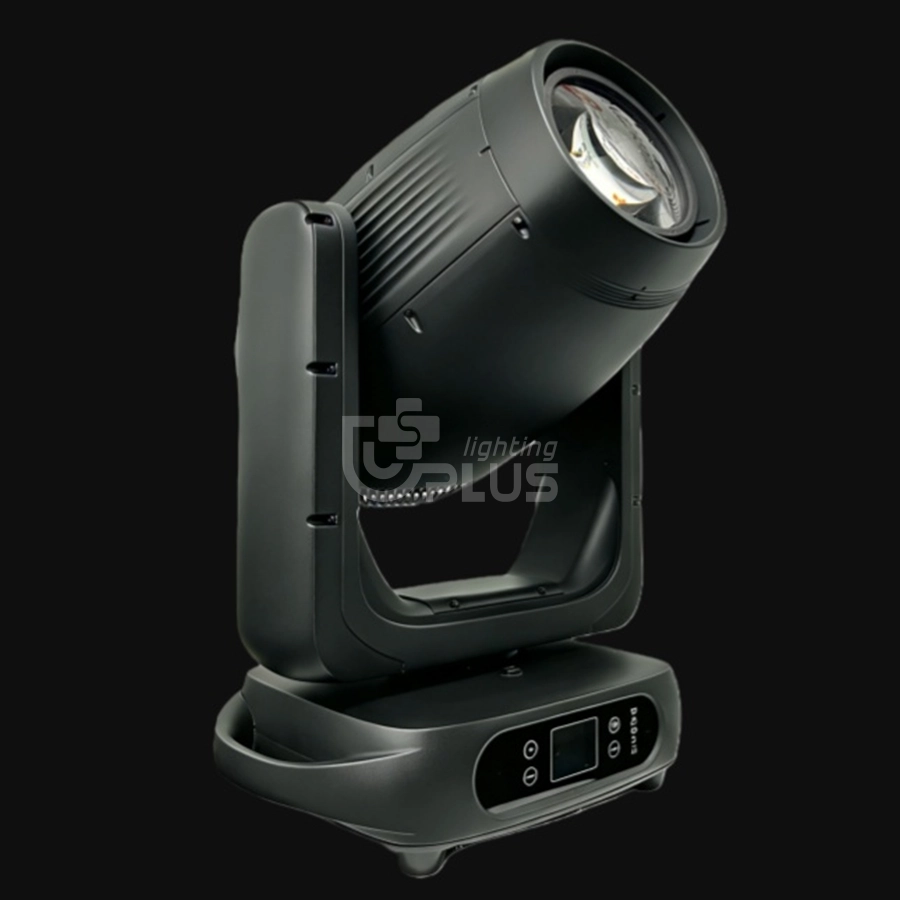

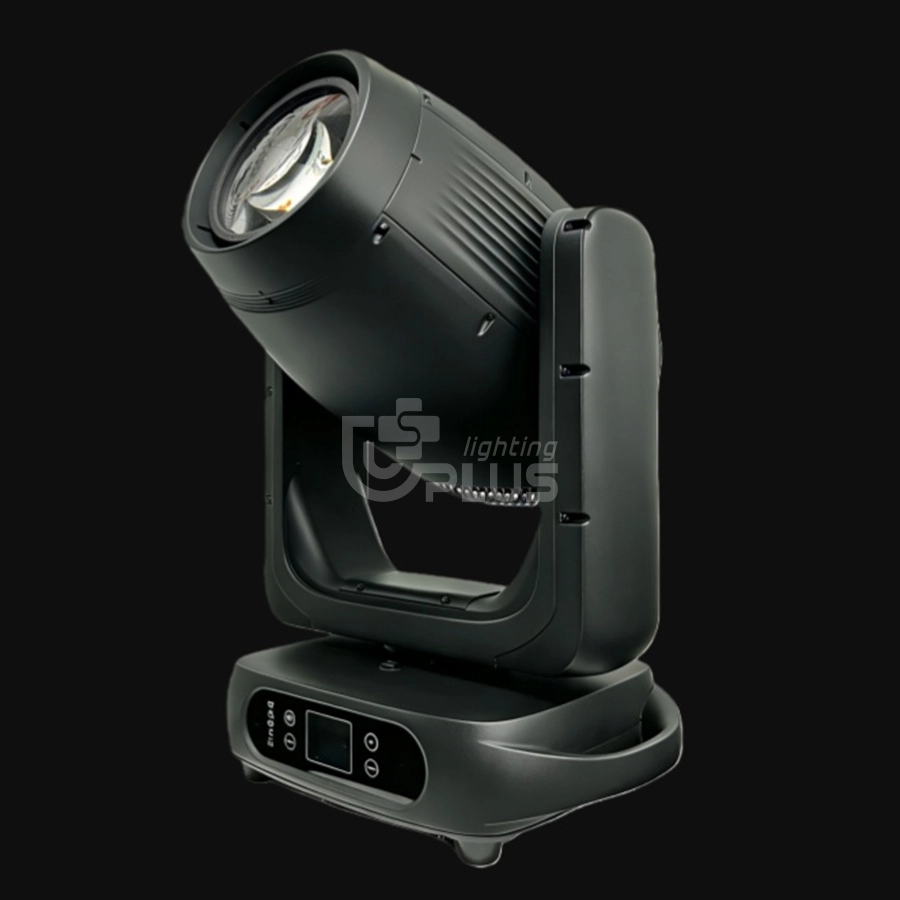

IP1000 BSWF 1000W waterproof BSWF 4in1 moving head
1000W Waterproof BSWF 4-in-1 Moving Head combines beam, spot, wash, and frame effects in one. IP-rated waterproof design, high-brightness output, precise control, ideal for outdoor & indoor stage events.
Specifications
OPTICS
•Light source: 850W White LED
•Max power consumption: 1000W
•Beam angle: 3.8-50°
•Color Temperature: 6800K
FEATURES
•Body Materials: die-cast aluminum+aviation die-cast magnesium alloy
•Control mode: DMX512,RDM, self-walking, master-slave, voice control, built-in
•Channels: 34CH, 36CH，56CH
•Dimming: 4 dimming curves, 0~100% linear dimming
•CTO: 3200K~6800K, linear
•CMY: CMY linear

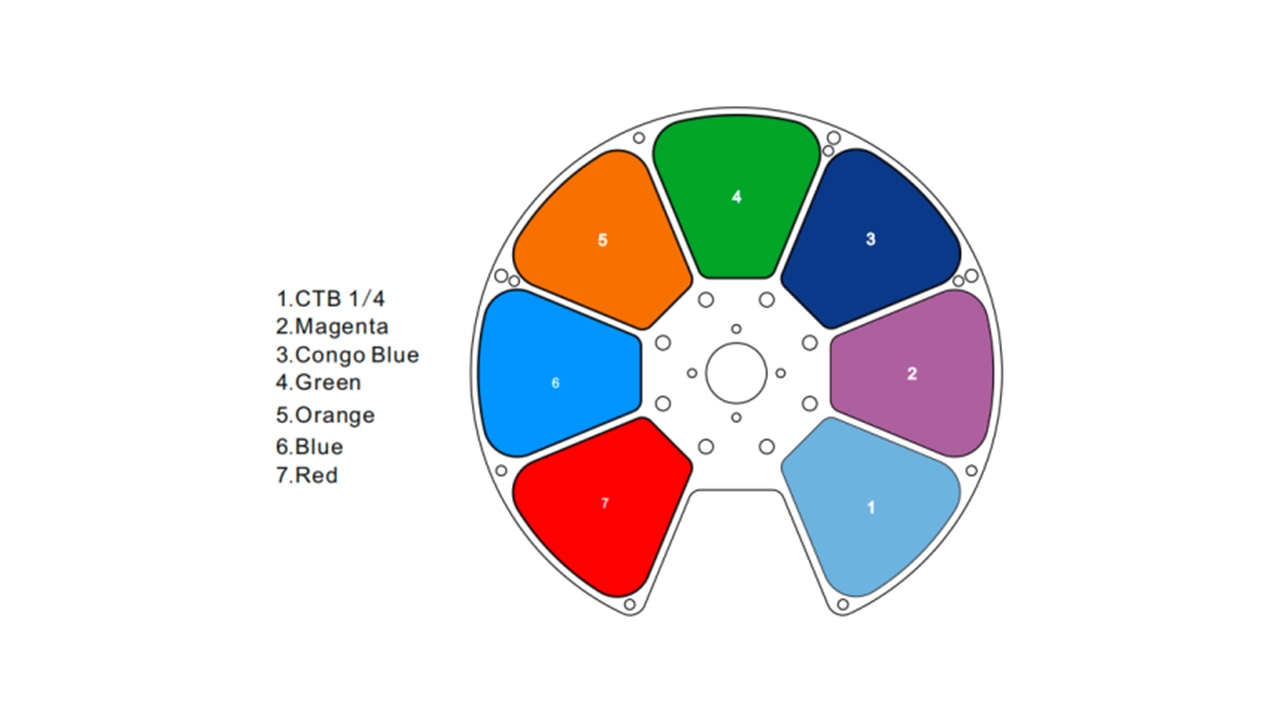

•Color wheel: 7 colors +white
•Rotating Gobo Wheel: 7 gobos+white
•1 animation wheel
•Prism: bidirectional 5-facet rotating prism , prism can be positioned
•Cutting: 1 set of all directional framing system with 8 framing blades precise position can be cutting 120°rotation, full field travel with the ability to create different shapes. Flicker-free management
SPECIFICATION

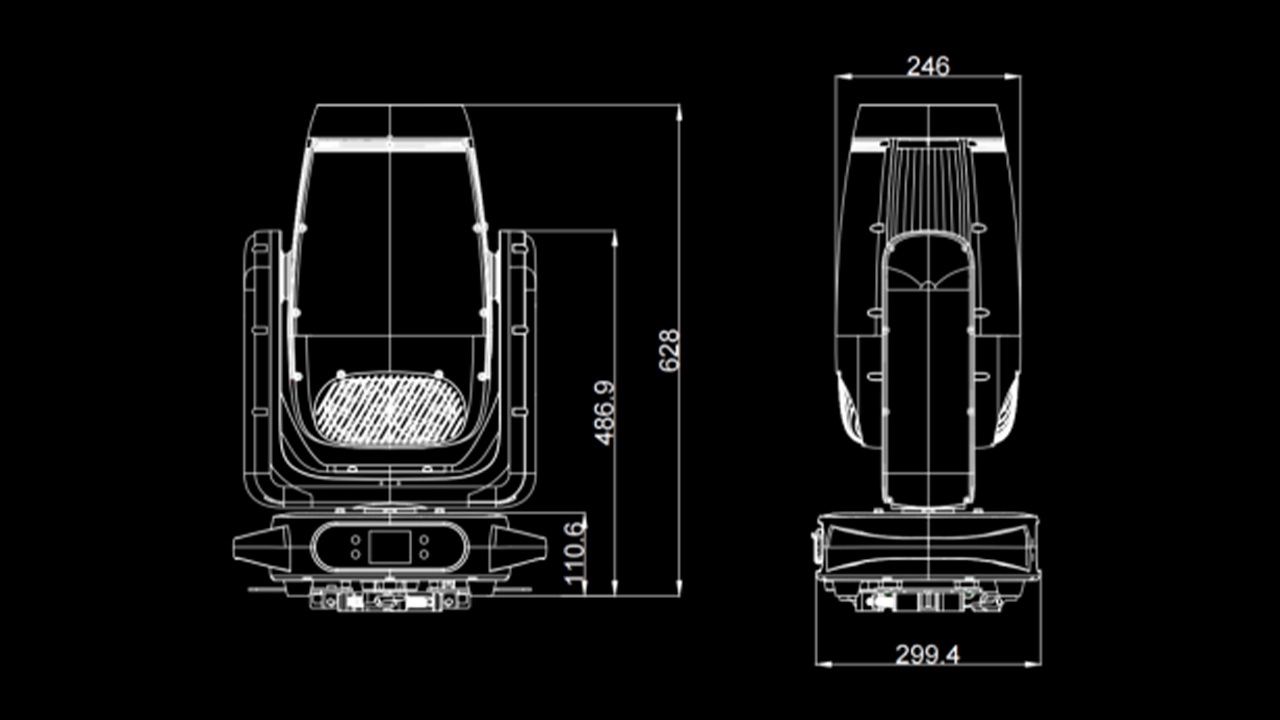

•Dimension:mm, NW:29.7 kg with folding hooks
Effect
color wheel
CMY+CTO linear
gobo wheel

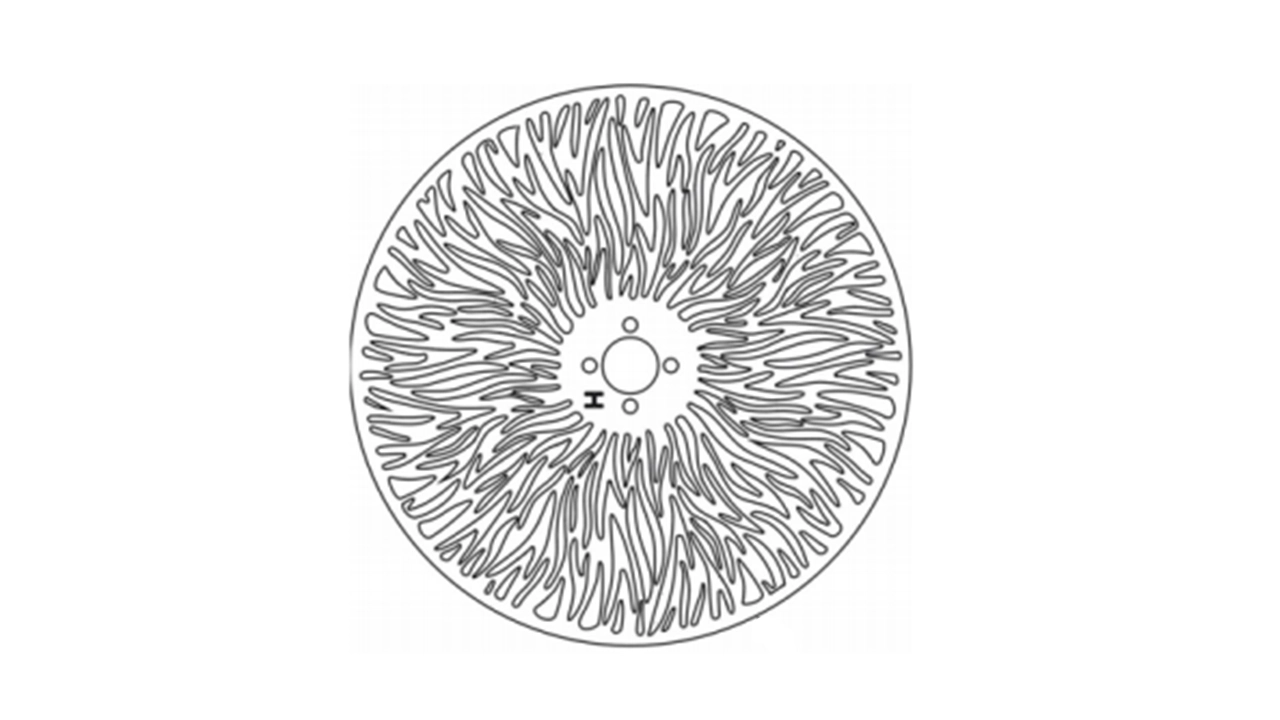

animation wheel

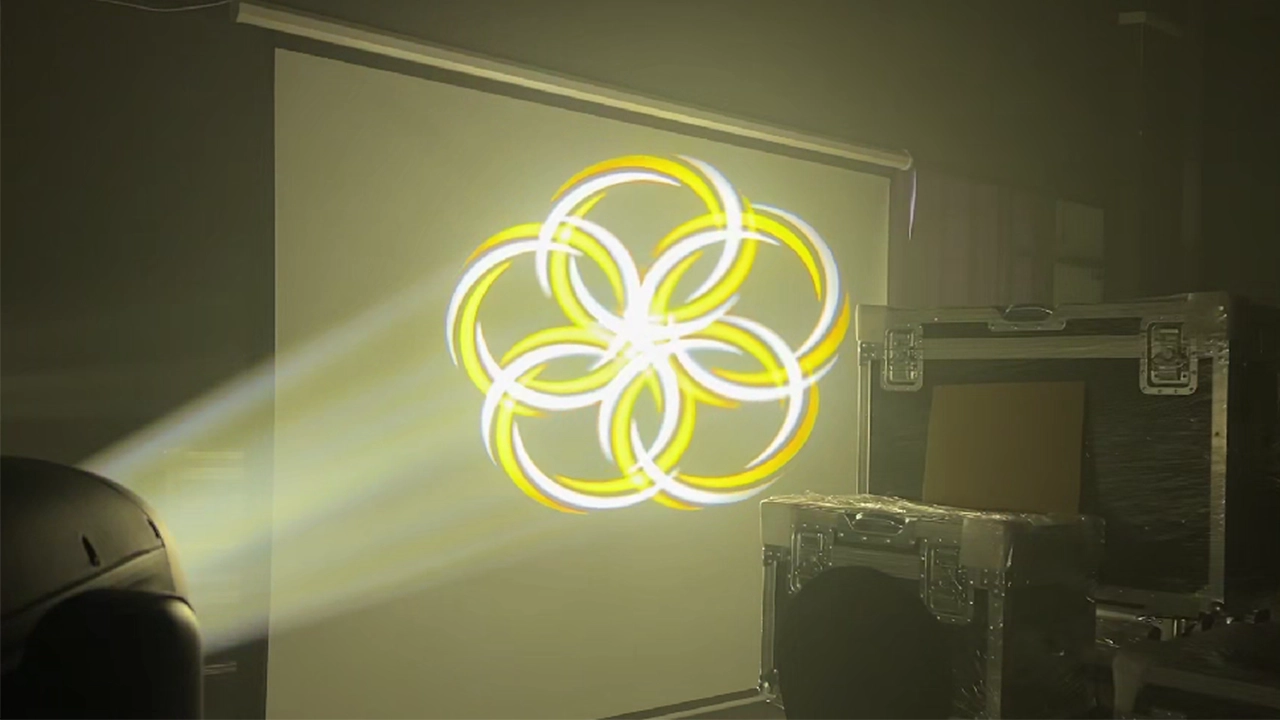

5 facet prism+rotating gobos
5 facet prism+rotating gobos
5 facet prism+rotating gobos
5 facet prism+rotating gobos

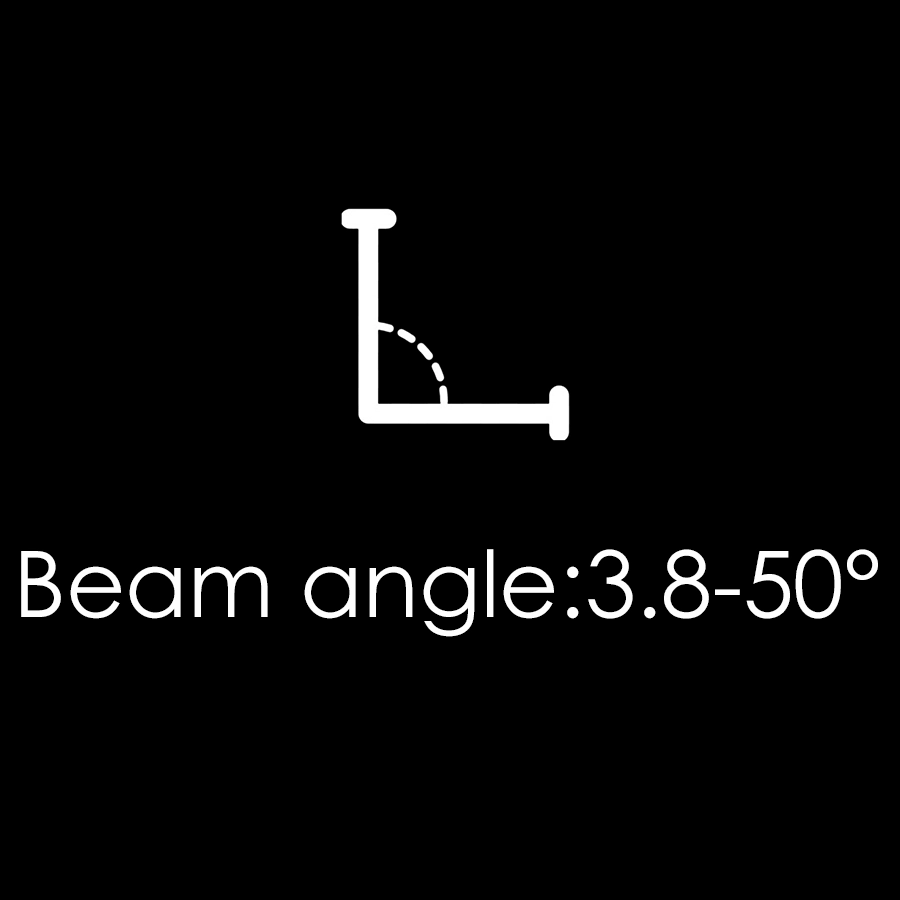

beam angle
beam angle
Features
APPLICATION
Outdoor Festival
Powerful beams cut through haze across massive festival stages.
Stadium Concert
Long-throw beams deliver high-impact looks across stadium-scale productions.
City Plaza
Wide zoom and framing shape architecture-focused outdoor event lighting.
Theme Park
Bright beams create immersive nighttime spectaculars around landmark attractions.
Heritage Show
Precise framing highlights façades while protecting architectural details.
Open Amphitheater
Strong output maintains visibility across large open-air performance venues.
Packaging & Logistic
Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
IP1000 BSWF
What is the zoom range of the IP1000 BSWF?
It offers a wide 3.8°–50° zoom range, allowing lighting designers to create narrow beam effects, sharp projections, and wide wash coverage with one moving head.
Is the IP1000 BSWF suitable for outdoor concerts and festivals?
Yes. The IP1000 BSWF features an IP65-rated waterproof housing made from die-cast aluminum and magnesium alloy, making it suitable for outdoor concerts, festivals, touring productions, and large-scale events.
About Customized Services
Do you provide ODM service?
Yes, Uplus provides comprehensive ODM services to customers and aftermarket partners.
Custom packaging service?
We can design the packaging according to your requirements.
Which product can be customized?
Our stage lights can be customized according to your needs, and we will try our best to meet your requirements.
