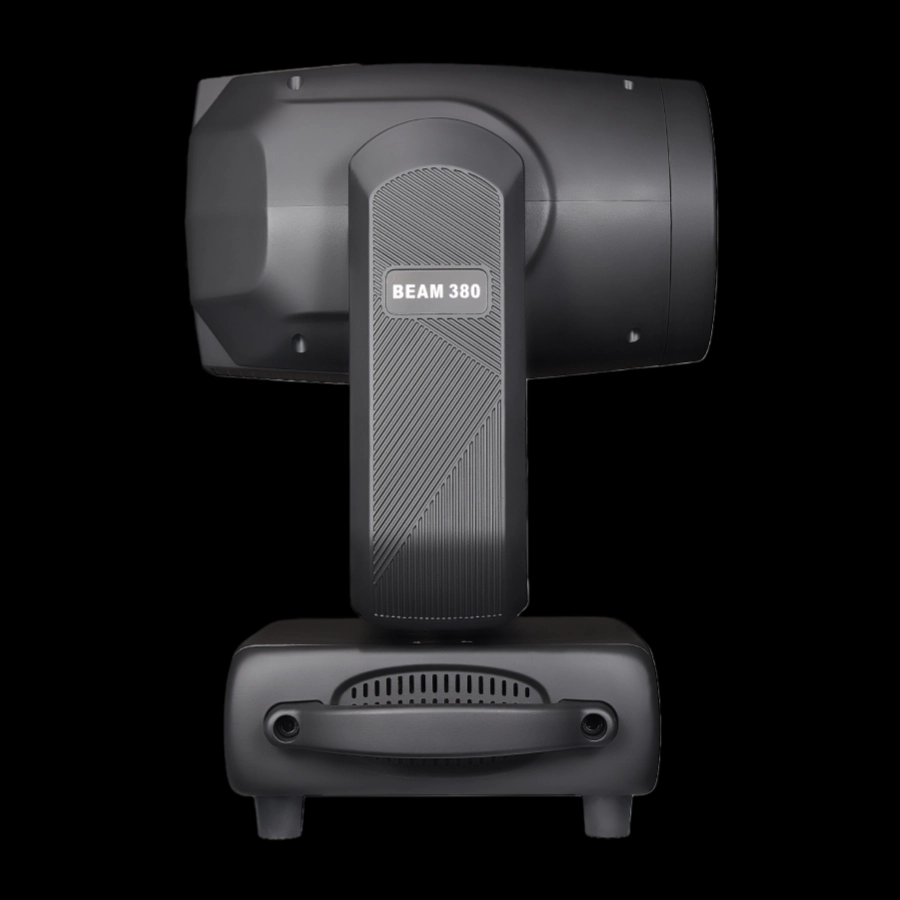

uplus-lighting-380w-beam-moving-head-side-profile - Uplus Lighting

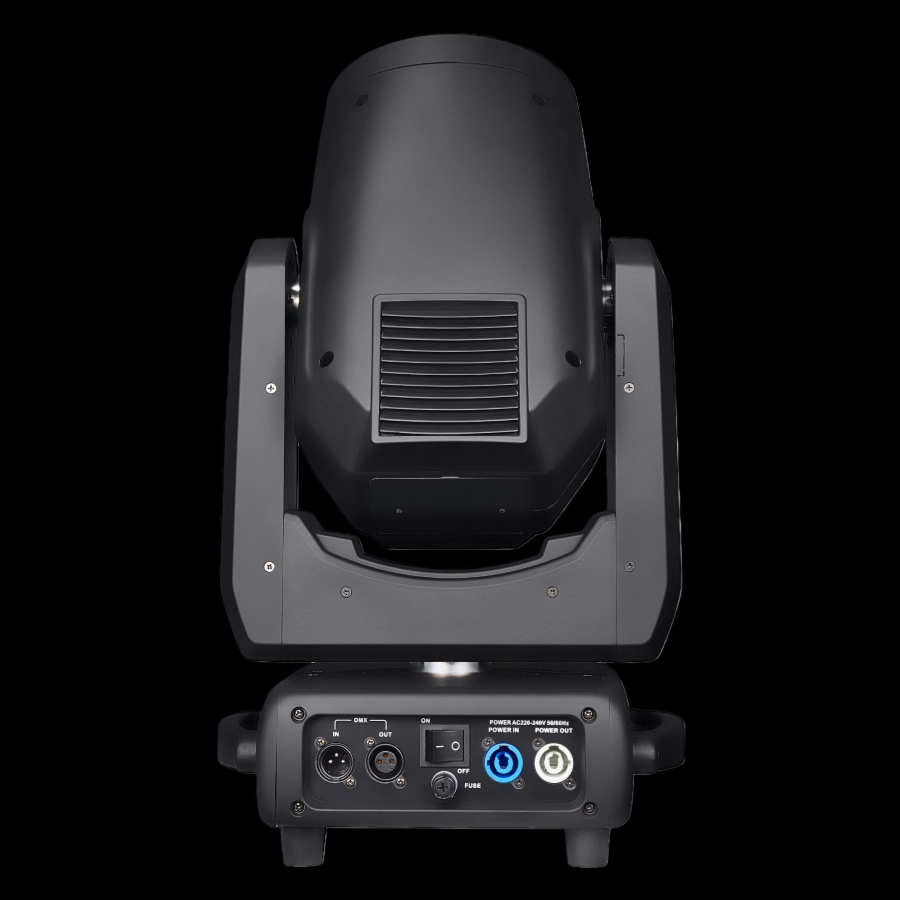

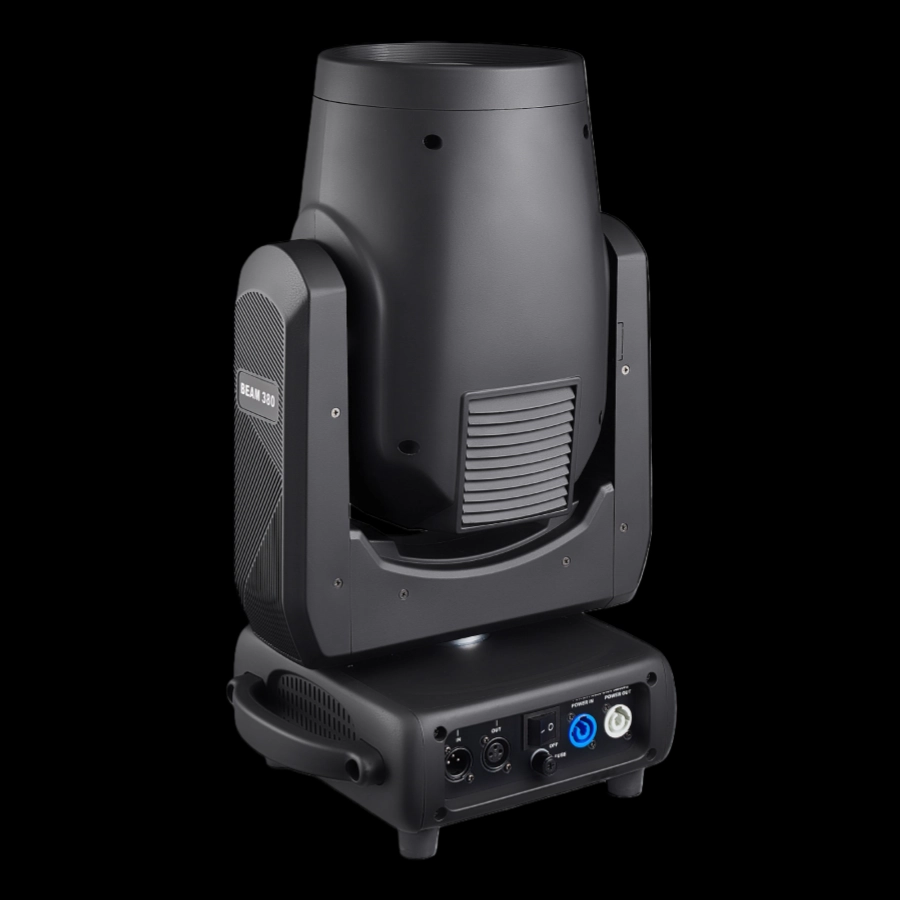

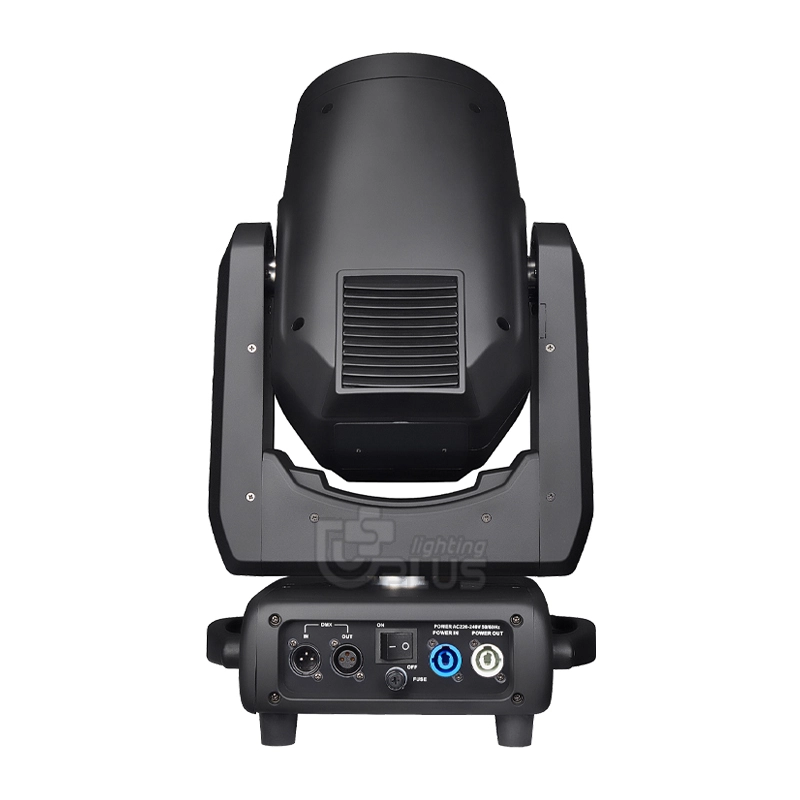

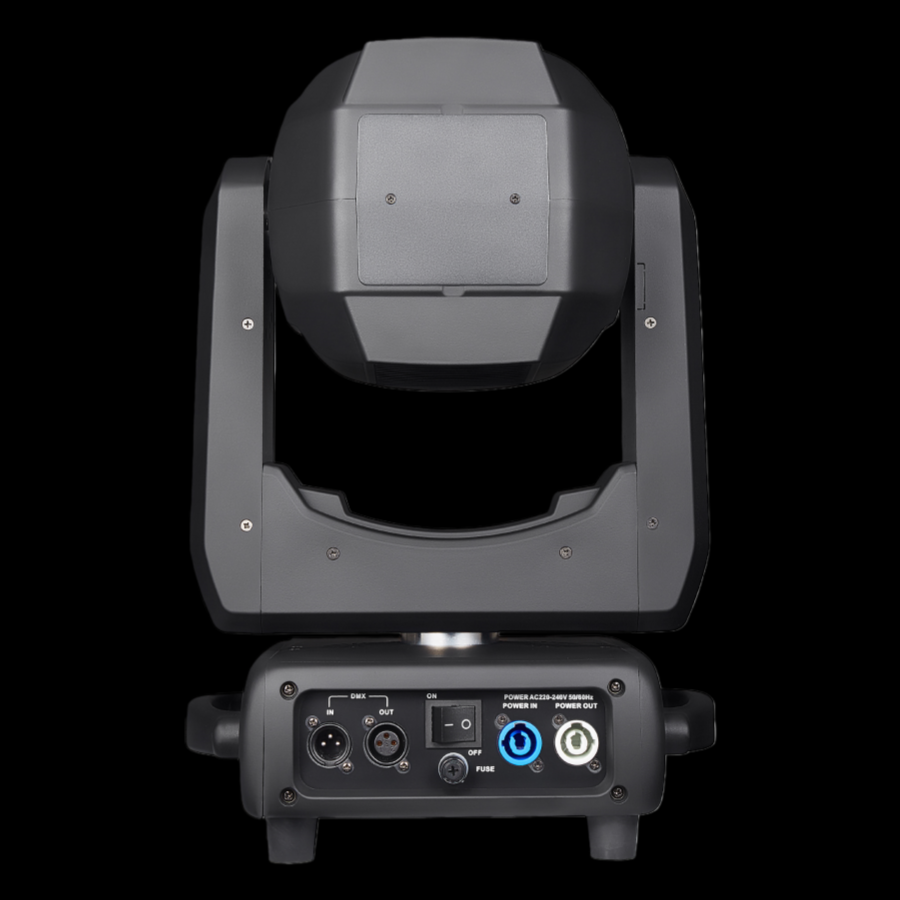

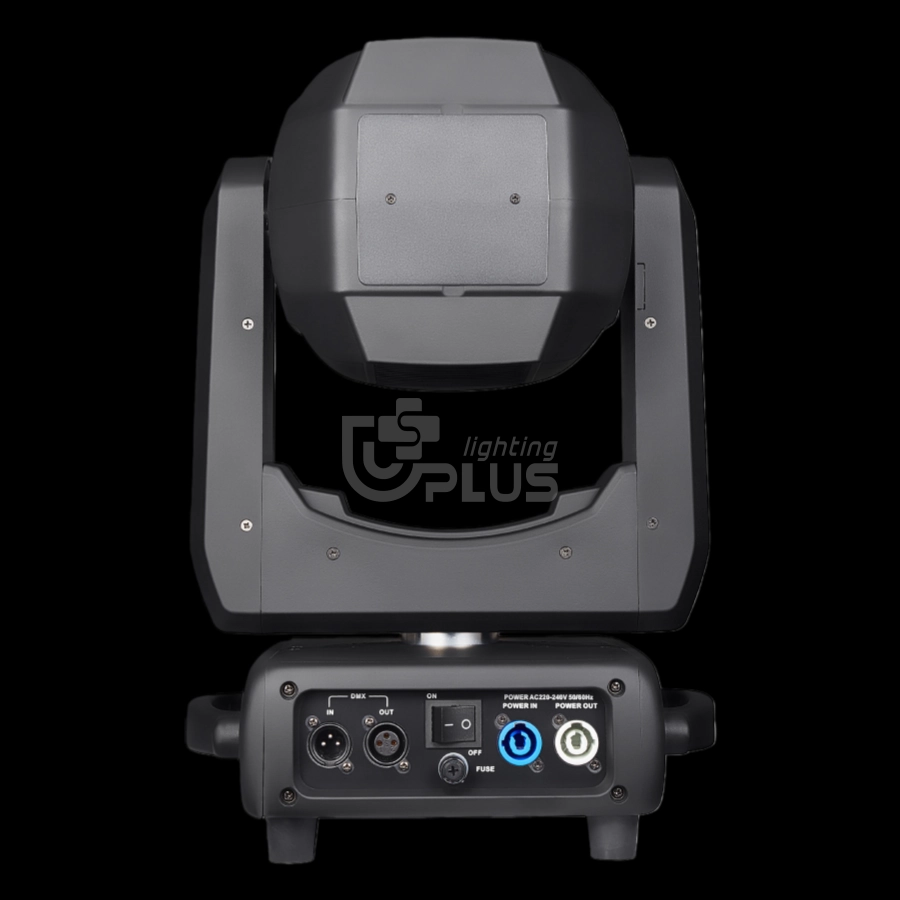

uplus-lighting-380w-beam-moving-head-rear-view - Uplus Lighting

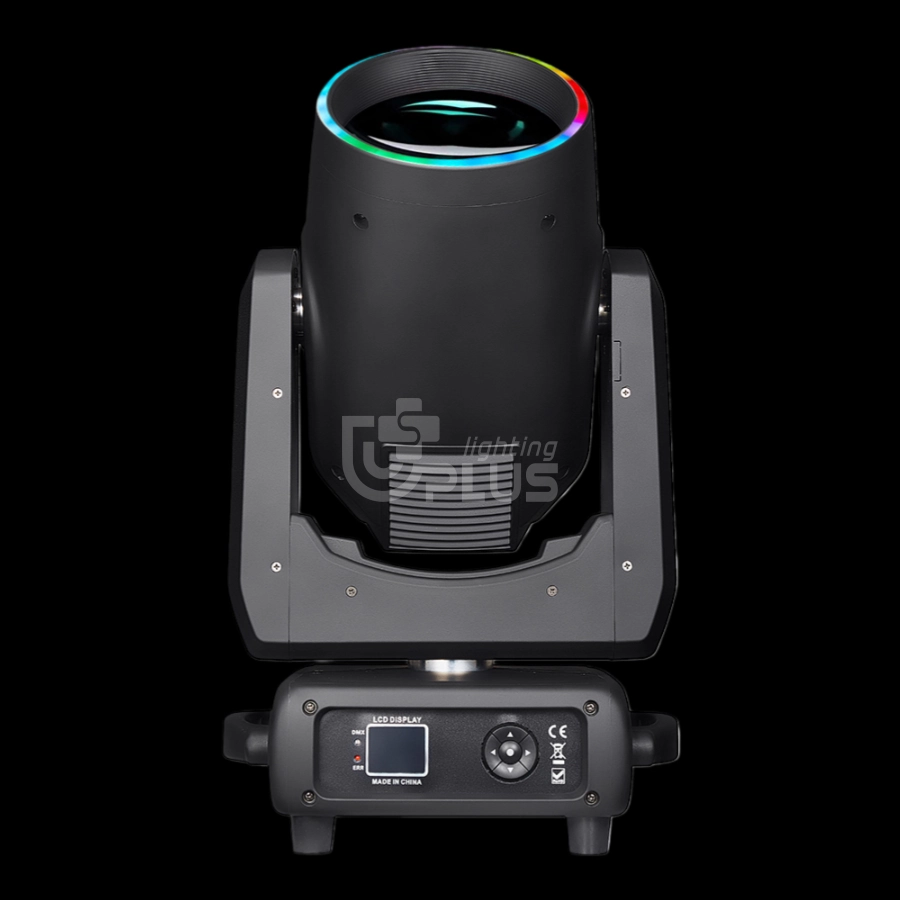

uplus-lighting-380w-beam-moving-head-front-view - Uplus Lighting

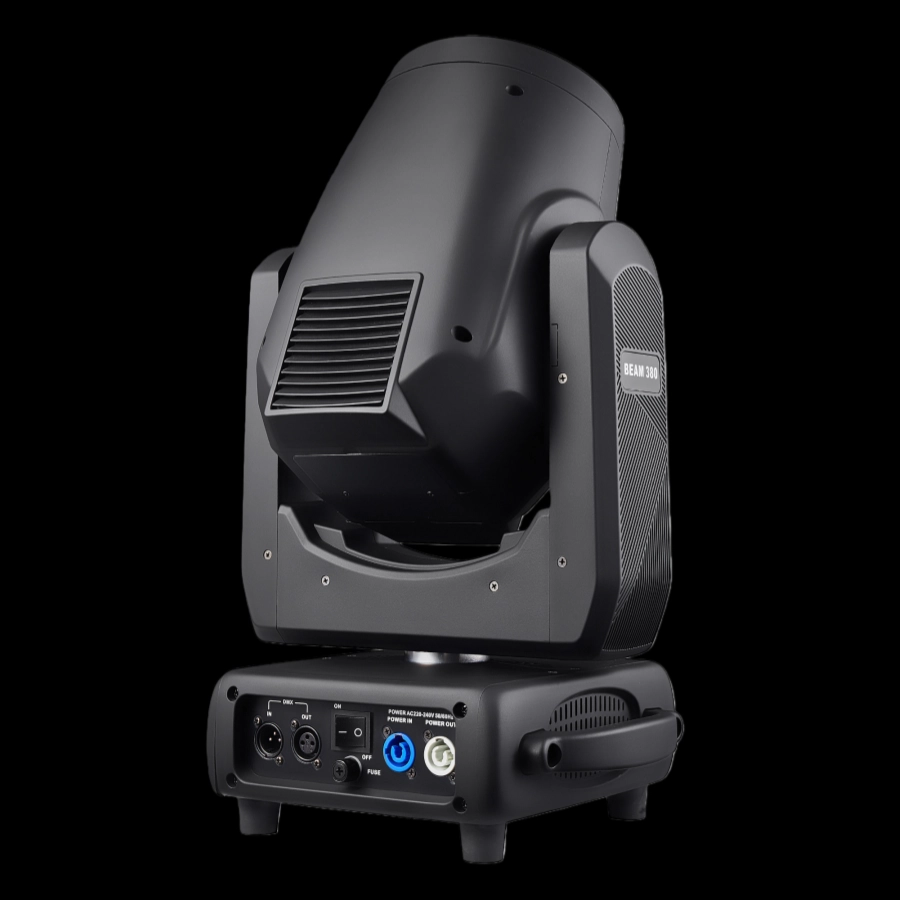

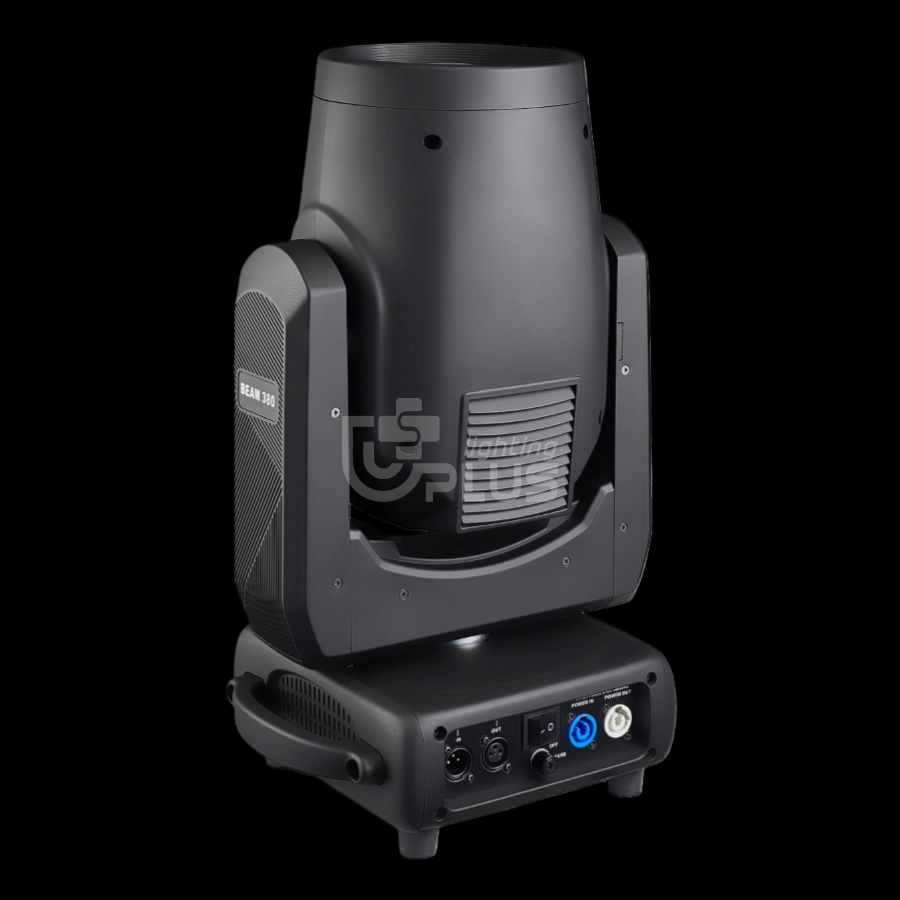

uplus-lighting-380w-beam-moving-head-side-angled-view - Uplus Lighting
uplus-lighting-250w-8r-beam-moving-head-side-angled-view - Uplus Lighting
uplus-lighting-380w-beam-moving-head-lens-front-view - Uplus Lighting
uplus-lighting-380w-beam-moving-head-front-optical-lens - Uplus Lighting
uplus-lighting-380w-beam-moving-head-side-profile - Uplus Lighting

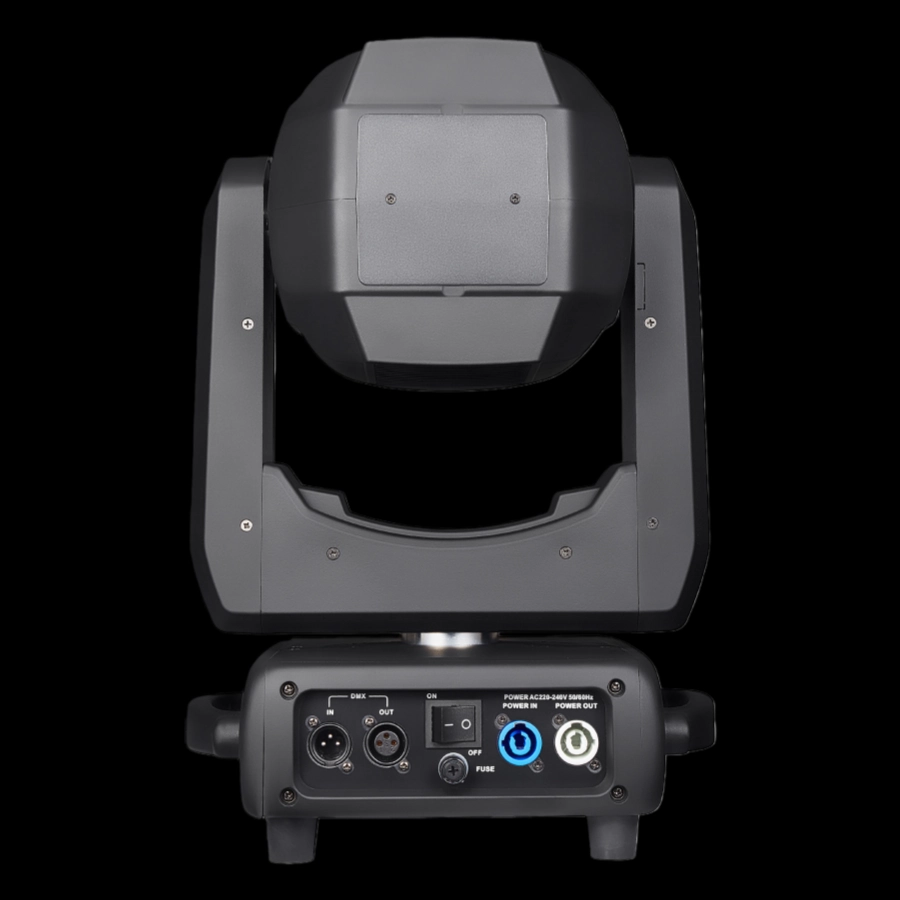

uplus-lighting-380w-beam-moving-head-rear-view - Uplus Lighting
uplus-lighting-380w-beam-moving-head-front-view - Uplus Lighting
uplus-lighting-380w-beam-moving-head-side-angled-view - Uplus Lighting
uplus-lighting-250w-8r-beam-moving-head-side-angled-view - Uplus Lighting

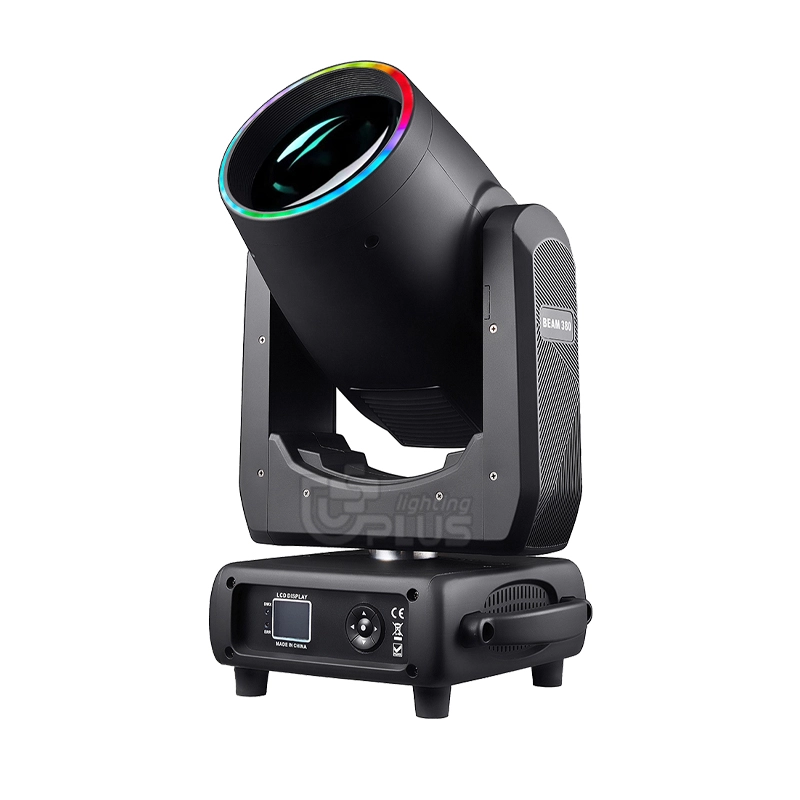

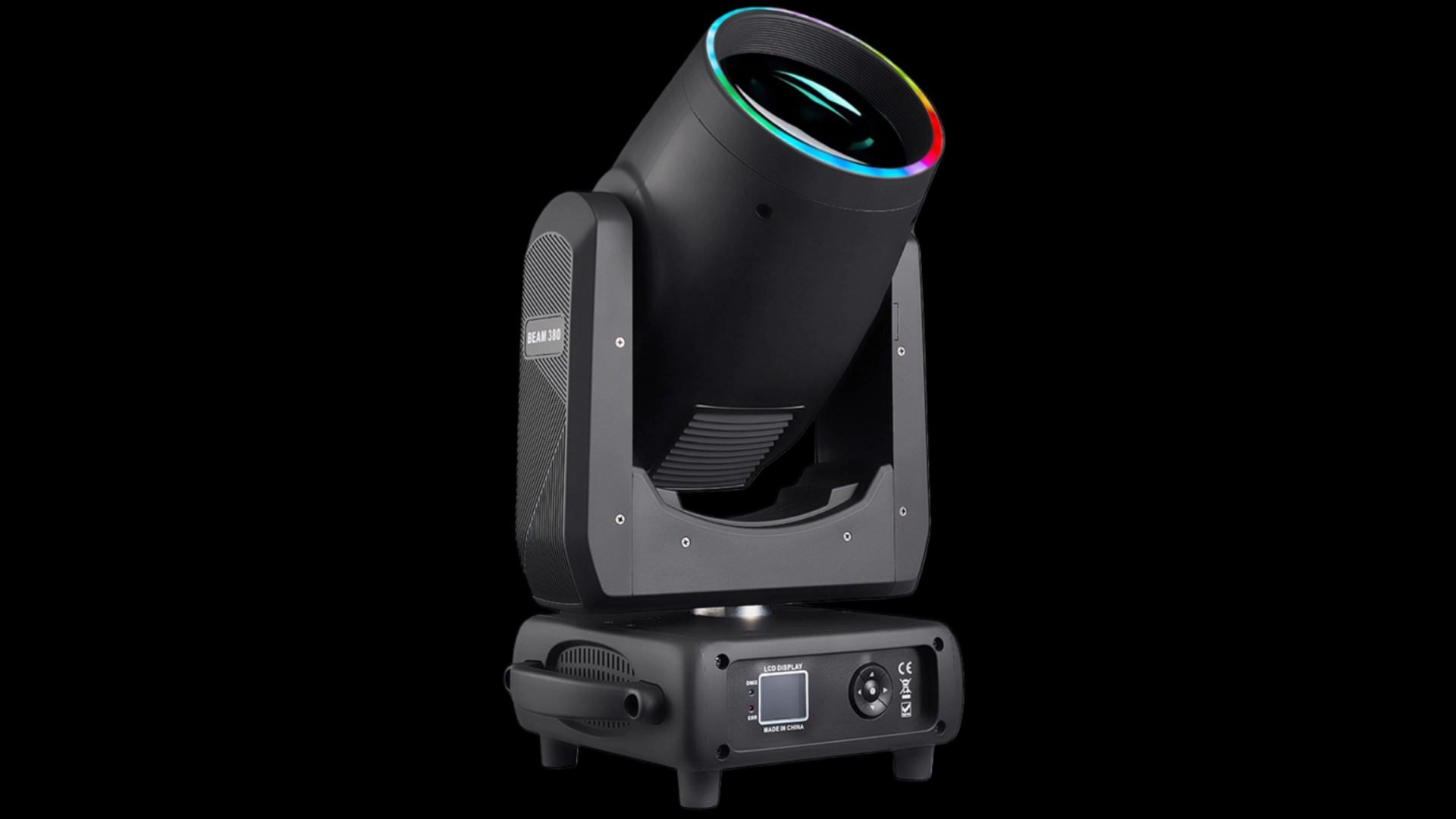

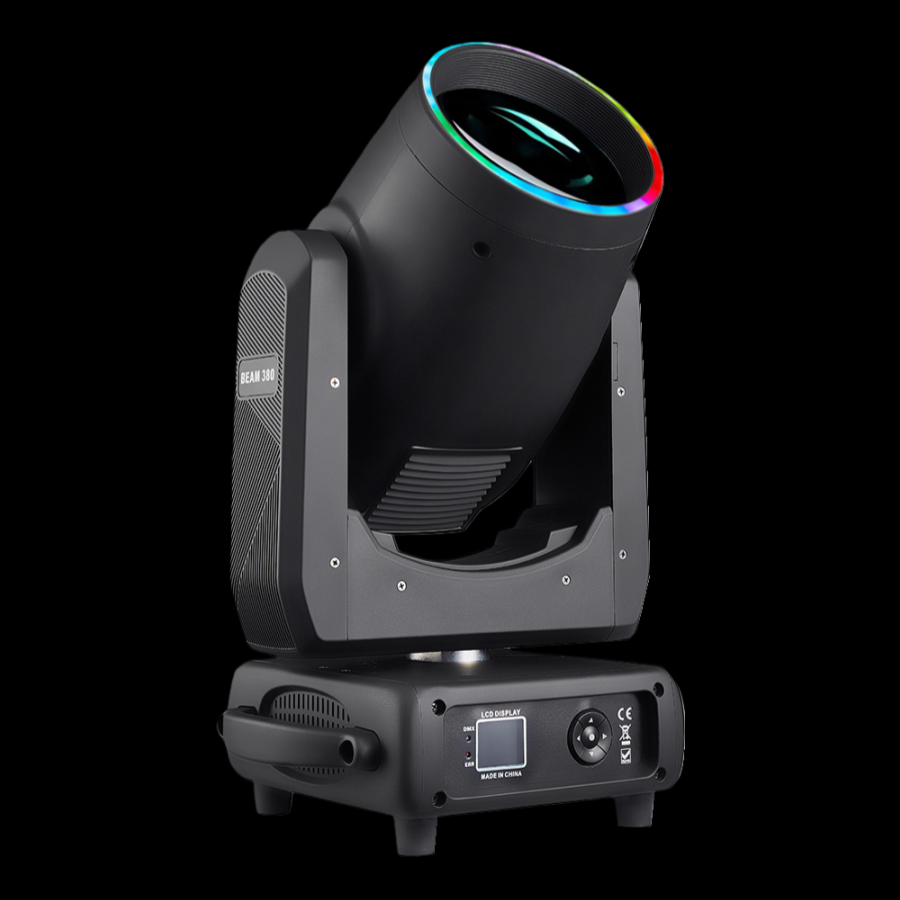

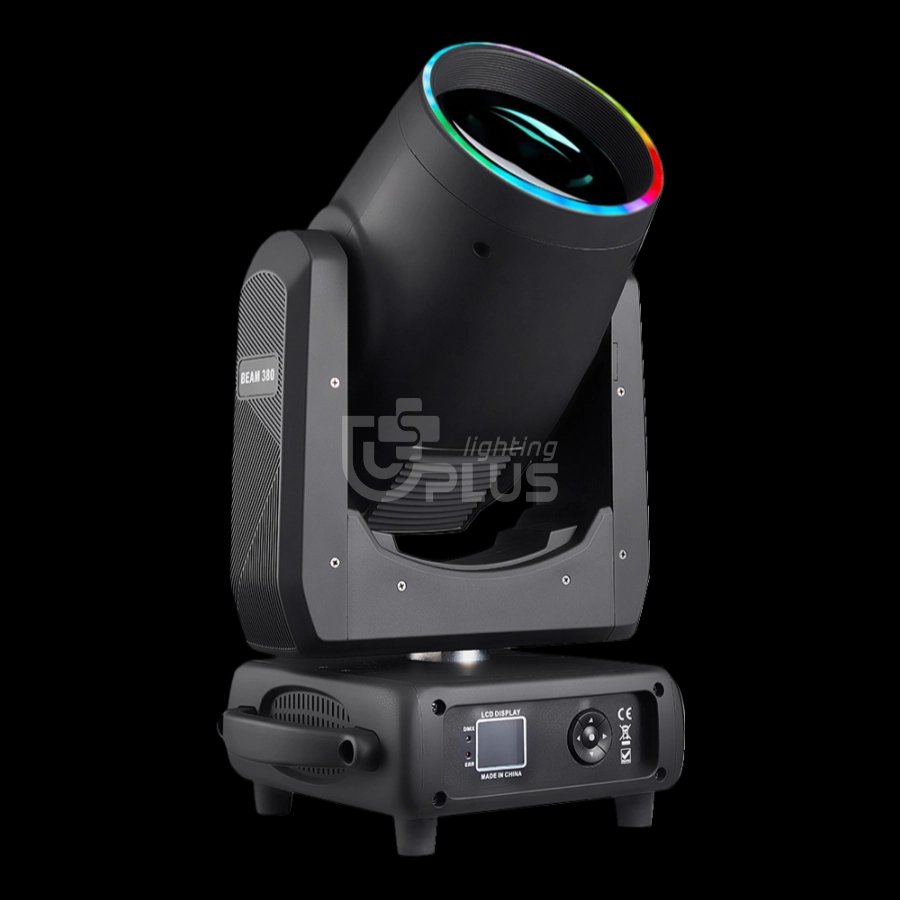

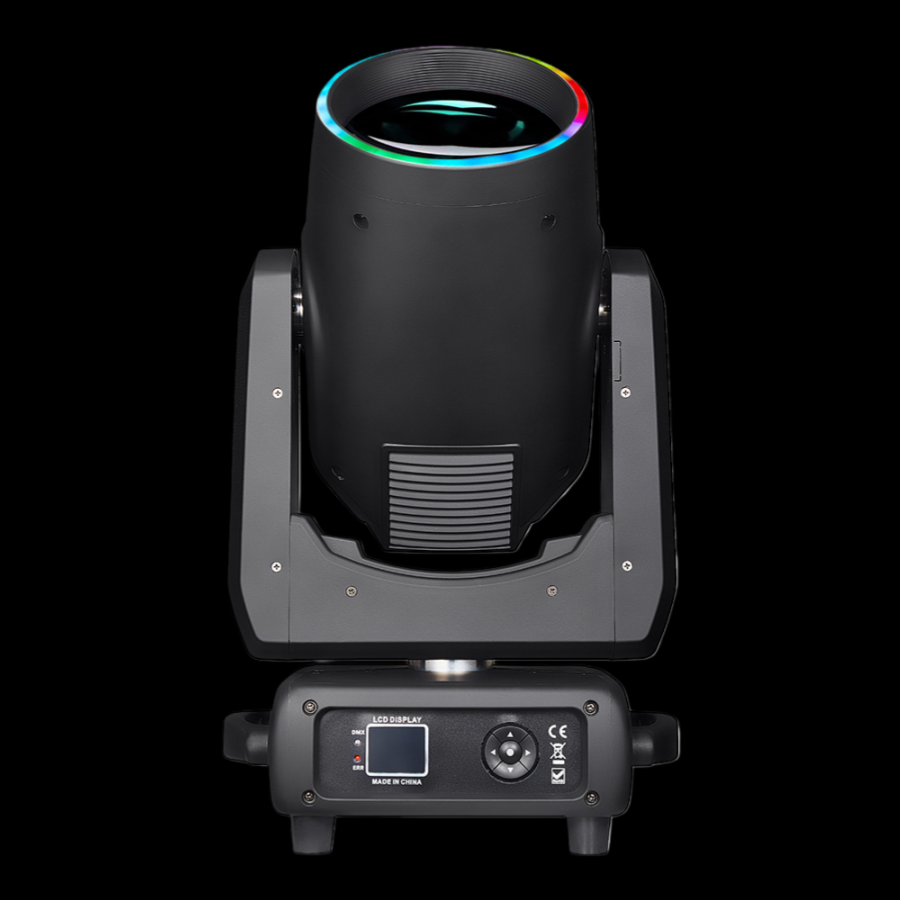

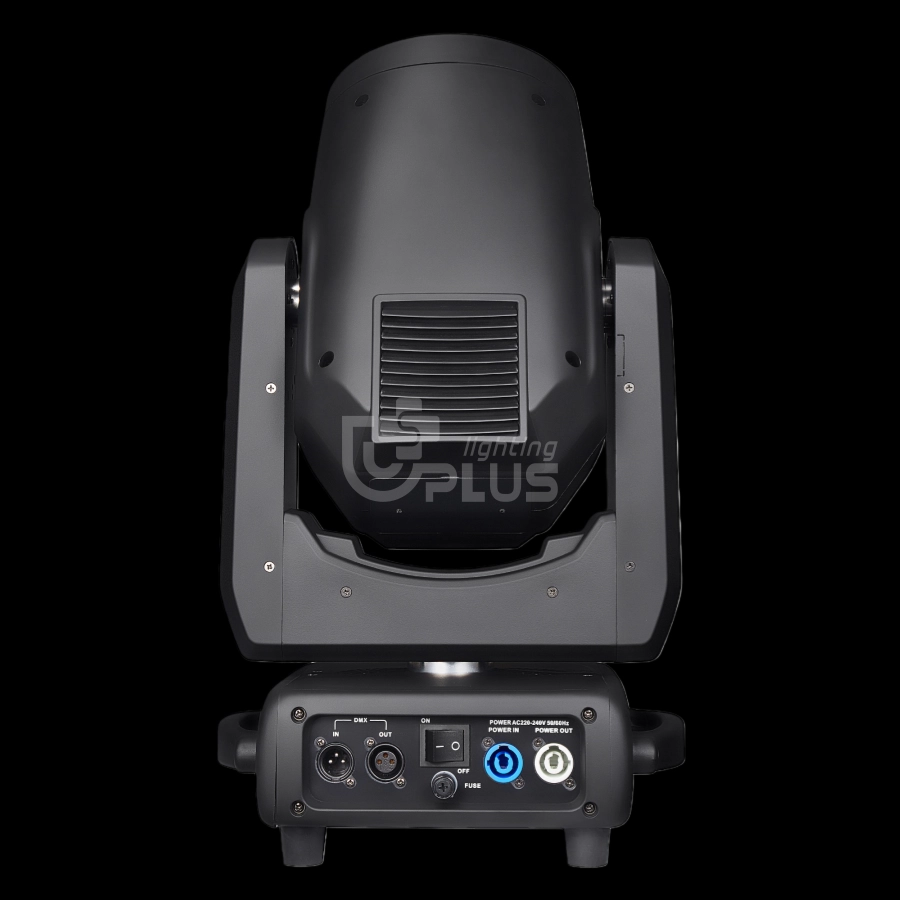

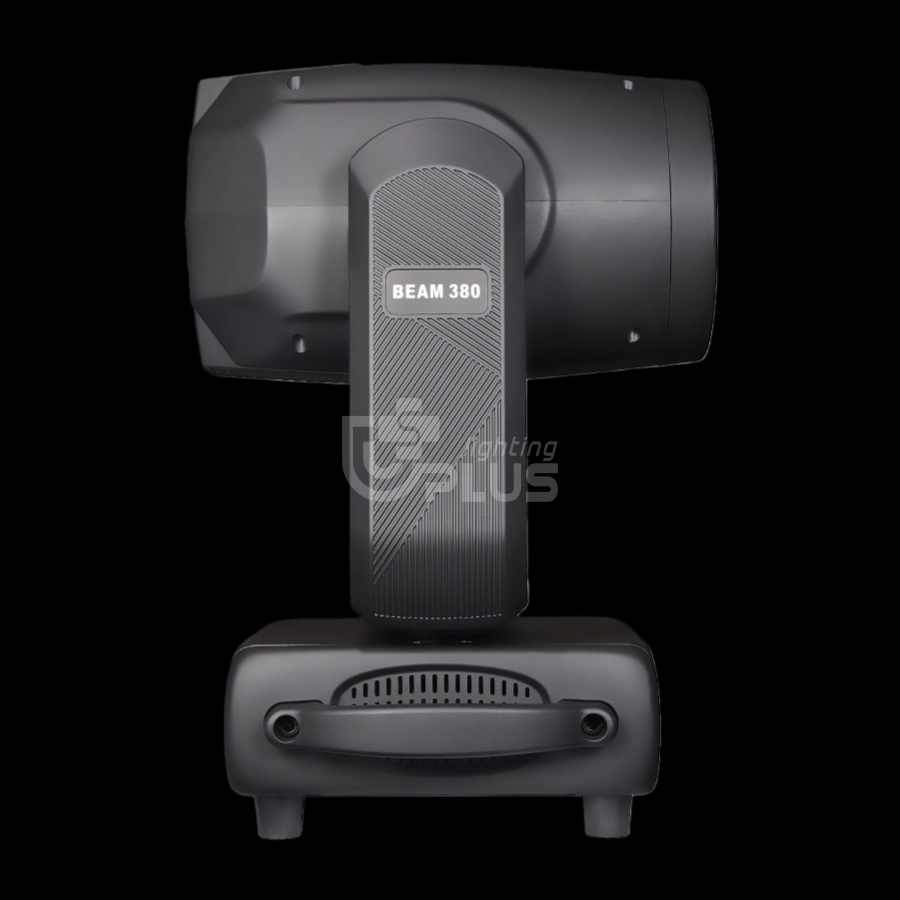

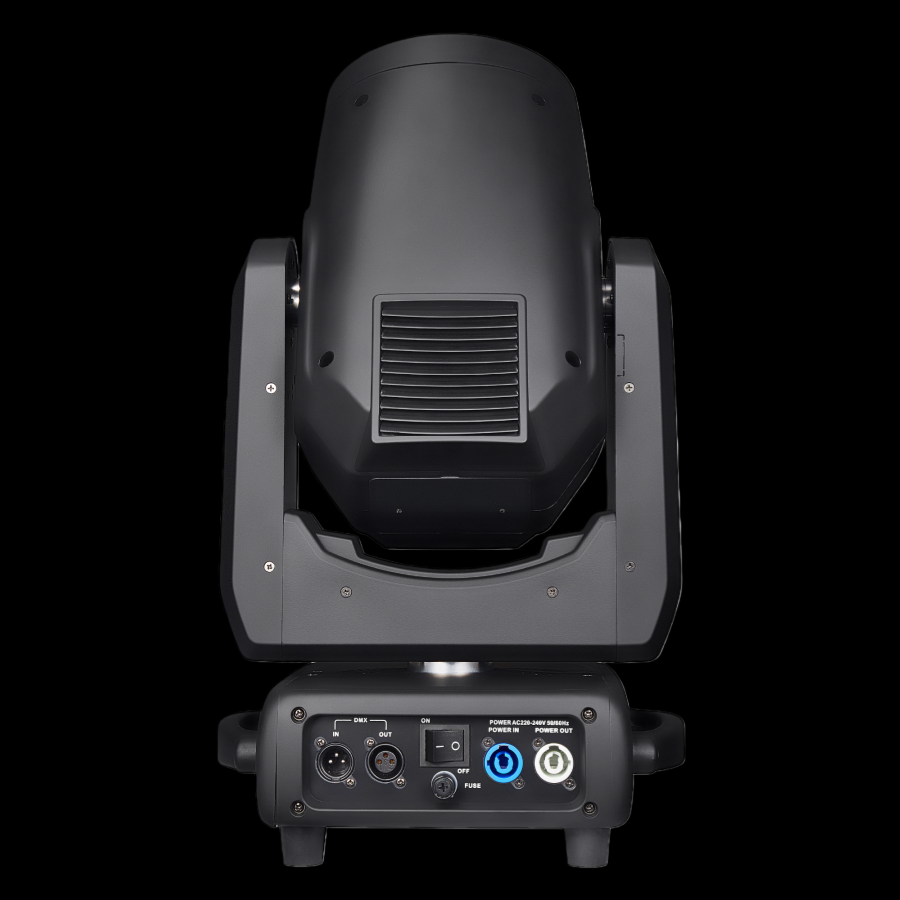

380 BEAM 380W beam moving head

The 380W beam moving head delivers a sharp and powerful beam effect with precise positioning and stable operation, making it suitable for creating beam effects for professional stages such as large concerts, music festivals, and stadium performances.

GET A FREE QUOTE ➜
GET THE PRODUCT CATALOG ➜
380 Beam.pdf
380 Beam with led ring.zip
INTRODUCTION
INTRODUCTION
SPECIFICATIONS
SPECIFICATIONS
EFFECT
EFFECT
LUX DATE & DIMENSION
LUX DATE & DIMENSION
FEATURES
FEATURES
APPLICATION
APPLICATION
PACKAGING & LOGISTIC
PACKAGING & LOGISTIC
FAQs
FAQs
380W beam moving head 11 - Uplus Lighting

Specifications

OPTICS

•Light source: 380W lamp+strips

•Power Consumption: 600W

•Beam angle: 2°

•Color Tempreture: 8500K

•Luminous flux: 7950lm

FEATURES

•Fixed gobo disk: 10 fixed gobos+4 glass gobos (total 14 gobos +white)
•Color wheel 1: 14 colors+open, rainbow effect; Adjustable rotation speed, bidirectional flowing effect and rainbow effect.
•Double Prism: 12 prism+48 honeycomb prisms, two prisms can be stacked and rotate independently in both directions, with adjustable rotation speed.
•Control: DMX512, Sound Control, Auto Run, Master-Slave
•DMX Channel: 16 CH/20CH
•Dimmer: 0-100% dimming
•Overheat protection
•LCD display
•Focus
•Frost
•IP20

SPECIFICATION

•Dimension:300*240*530 mm; NW:12 kgs

Effect

uplus-lighting-380-beam-white-narrow-beam-effect - Uplus Lighting
14 gobos+open
uplus-lighting-380-beam-white-narrow-beam-effect - Uplus Lighting
14 gobos+open
uplus-lighting-380-beam-green-purple-multicolor-effect - Uplus Lighting
prism1:12-face
uplus-lighting-380-beam-rgb-prism-lighting-effect - Uplus Lighting
prism1:12-face
uplus-lighting-380-beam-rainbow-multicolor-beam-effect - Uplus Lighting
prism2:48-face
uplus-lighting-380-beam-multicolor-prism-beam-effect - Uplus Lighting
prism2:48-face
uplus-lighting-380-beam-rainbow-prism-starburst-effect - Uplus Lighting
12 prism+48 prisms
uplus-lighting-380-beam-multicolor-prism-starburst-effect - Uplus Lighting
12 prism+48 prisms

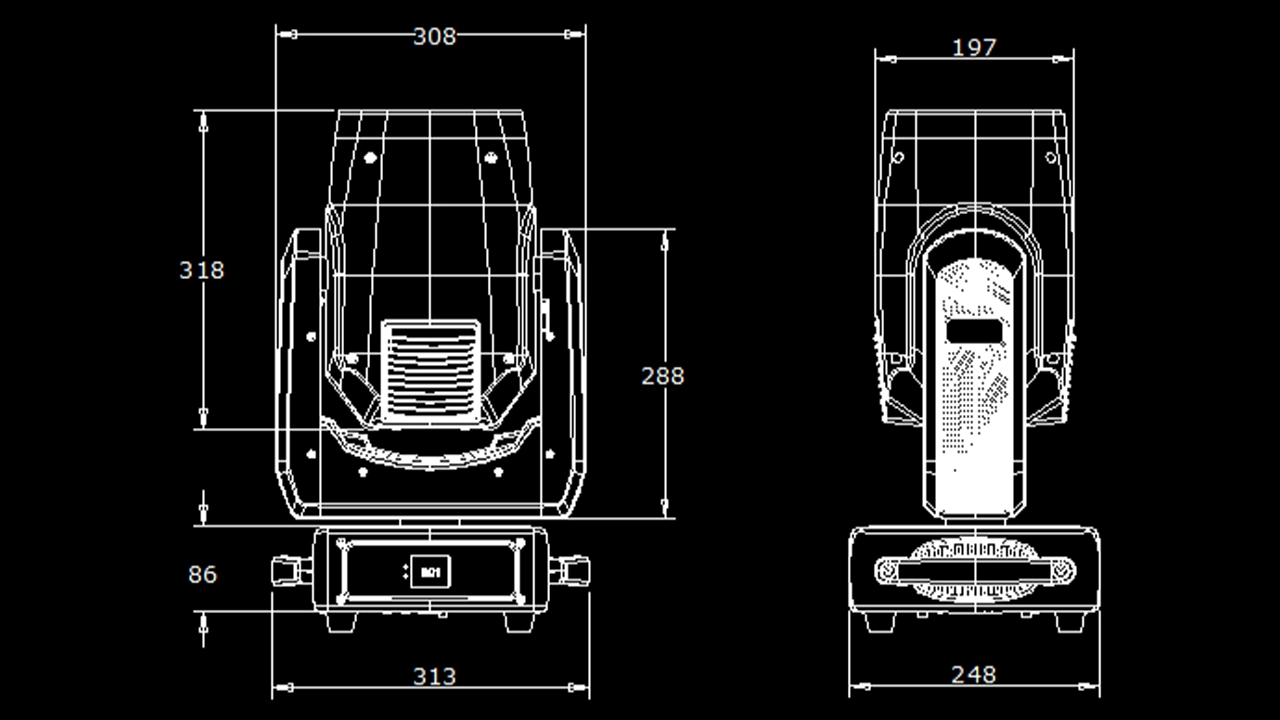

LUX Date & Dimension
uplus-lighting-380-beam-moving-head-technical-dimension-drawing - Uplus Lighting

Features

uplus-lighting-moving-head-380w-lamp-strips-light-source - Uplus Lighting
uplus-lighting-moving-head-2-degree-beam-angle - Uplus Lighting
uplus-lighting-moving-head-8500k-color-temperature - Uplus Lighting
uplus-lighting-moving-head-dimensions-300x240x530mm - Uplus Lighting
uplus-lighting-moving-head-weight-12kg - Uplus Lighting

APPLICATION

Courtyard-Balcony-Decoration - Uplus Lighting
Courtyard/Balcony Decoration
Lights up at dusk, projecting dynamic light and shadow patterns. Paired with greenery or outdoor furniture, it creates a warm and relaxing indoor/outdoor space.
Festival-Atmosphere-Decoration - Uplus Lighting
Festival Atmosphere Decoration
No wiring required. Simply place it at the entrance or on the lawn. RGB dynamic colors enhance the festive atmosphere.
Small-Outdoor-Parties - Uplus Lighting
Small Outdoor Parties/Camping
Decorate campsites and terrace parties. The waterproof design is unaffected by outdoor dew or light rain. Flowing light and shadow enhance the interactive atmosphere.
Shop-Window-Display - Uplus Lighting
Shop/Window Display
Place at entrances or in shop windows. Dynamic text and patterns attract passersby, suitable for attracting customers to restaurants, retail stores, and other offline stores.
Children's-Birthday-Parties - Uplus Lighting
Children's Birthday Parties/Small Events
Suitable for both indoor and outdoor use. Brightly colored dynamic lasers paired with cartoon patterns appeal to children.
Garden-Weddings - Uplus Lighting
Garden Weddings/Small Celebrations
Soft dynamic light and shadow are projected onto the venue. The waterproof feature is suitable for outdoor environments, creating a romantic atmosphere.

Packaging & Logistic

Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

What are the size and weight of the 380 BEAM?

The 380 BEAM measures 313 × 248 × 530 mm and weighs 12 kg, useful for rental, transport and installation planning.

What movement and control does the 380 BEAM support?

The 380 BEAM provides 540° pan, 250° tilt, and 16-channel DMX control.

Can the prisms on the 380 BEAM be combined?

Yes. The fixture includes a 12-facet prism and a 48-facet honeycomb prism, and the two prisms can be stacked.

What light source and beam angle does the 380 BEAM use?

The 380 BEAM uses a 380W lamp with a narrow 2° beam angle for concentrated beam effects.

What warranty do your products come with?

Our products come with a one-year warranty. During this period, if there are any problems with our products, we will provide customers with the necessary accessories and related services.
