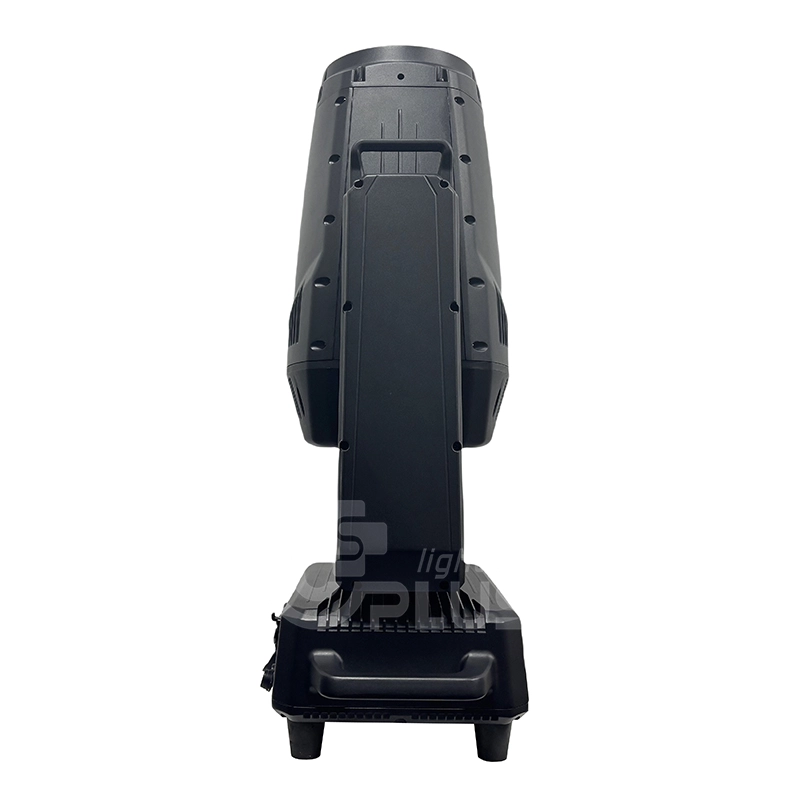

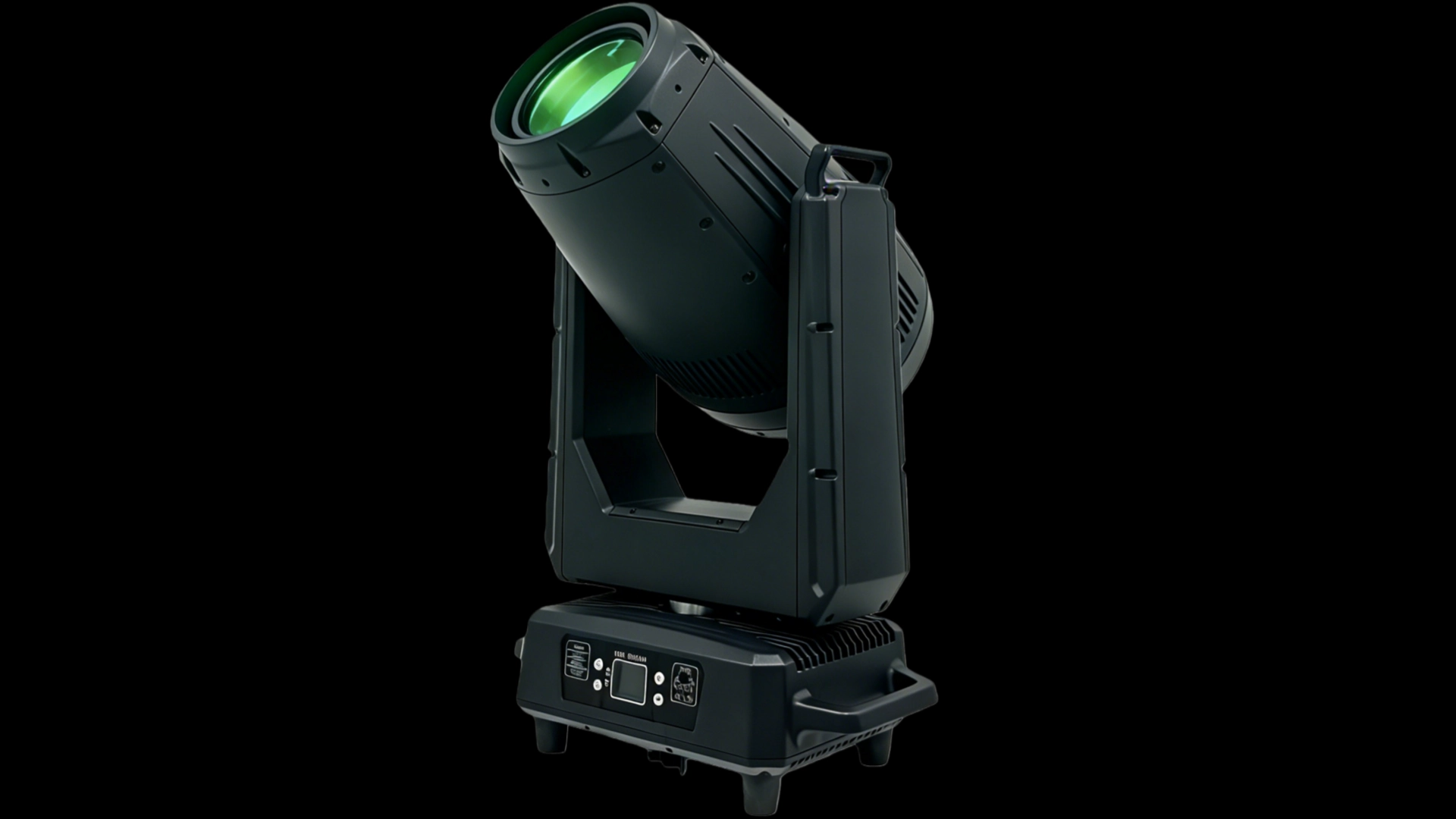

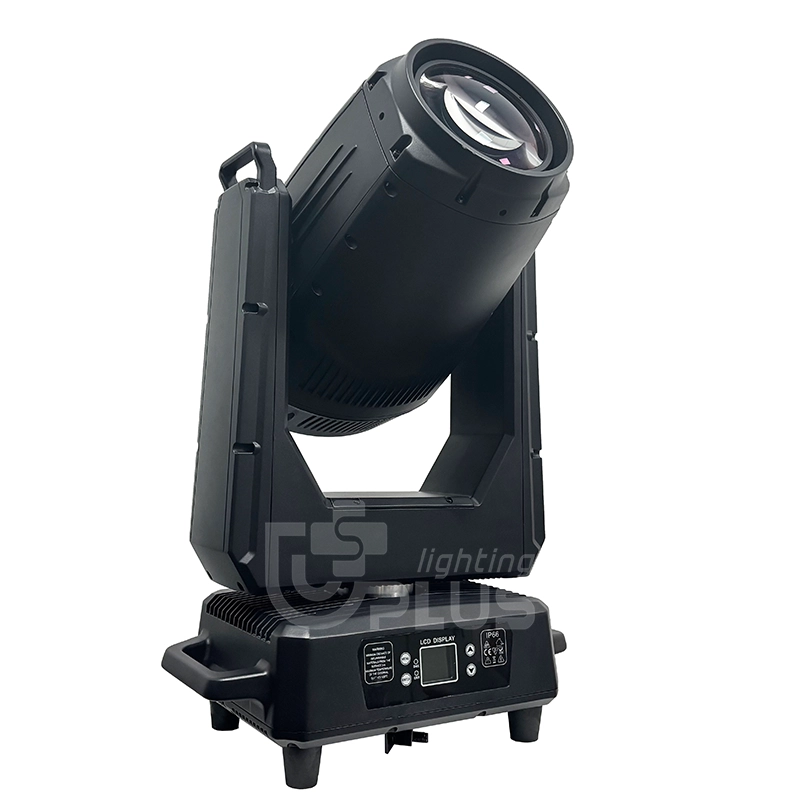

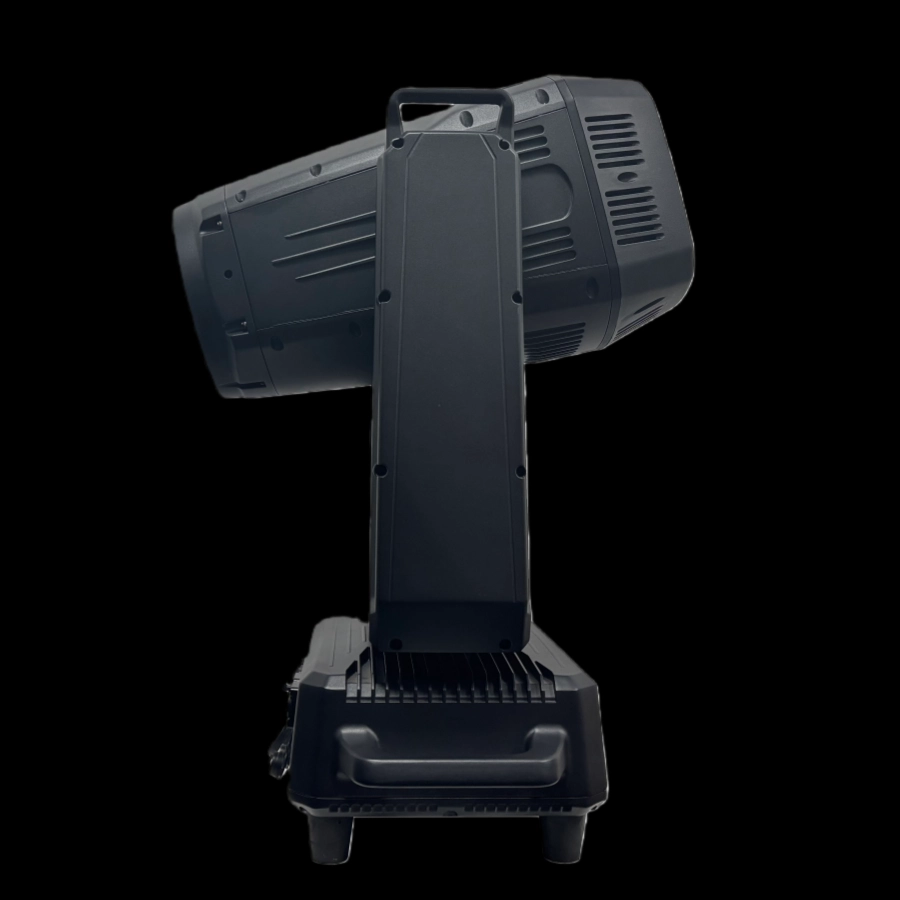

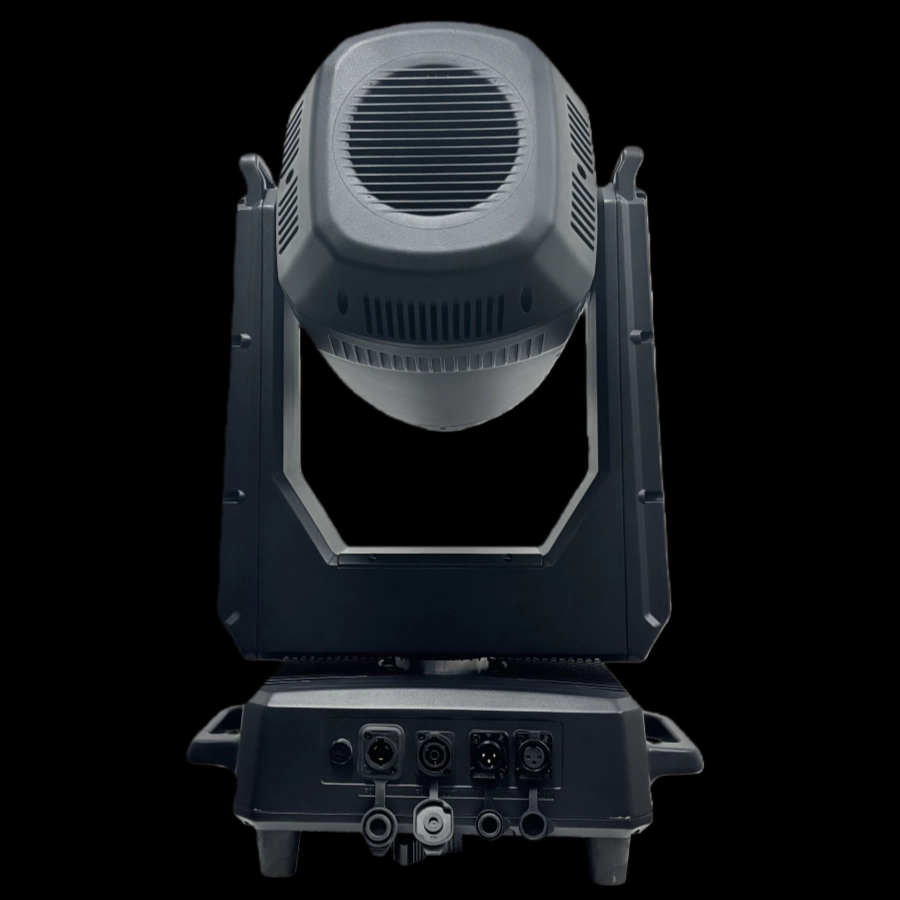

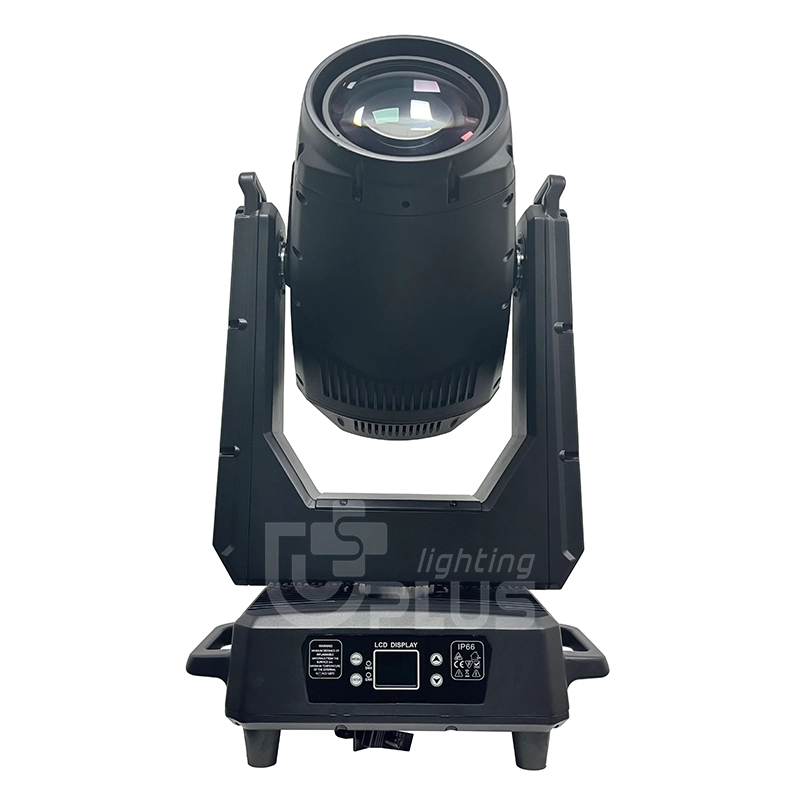

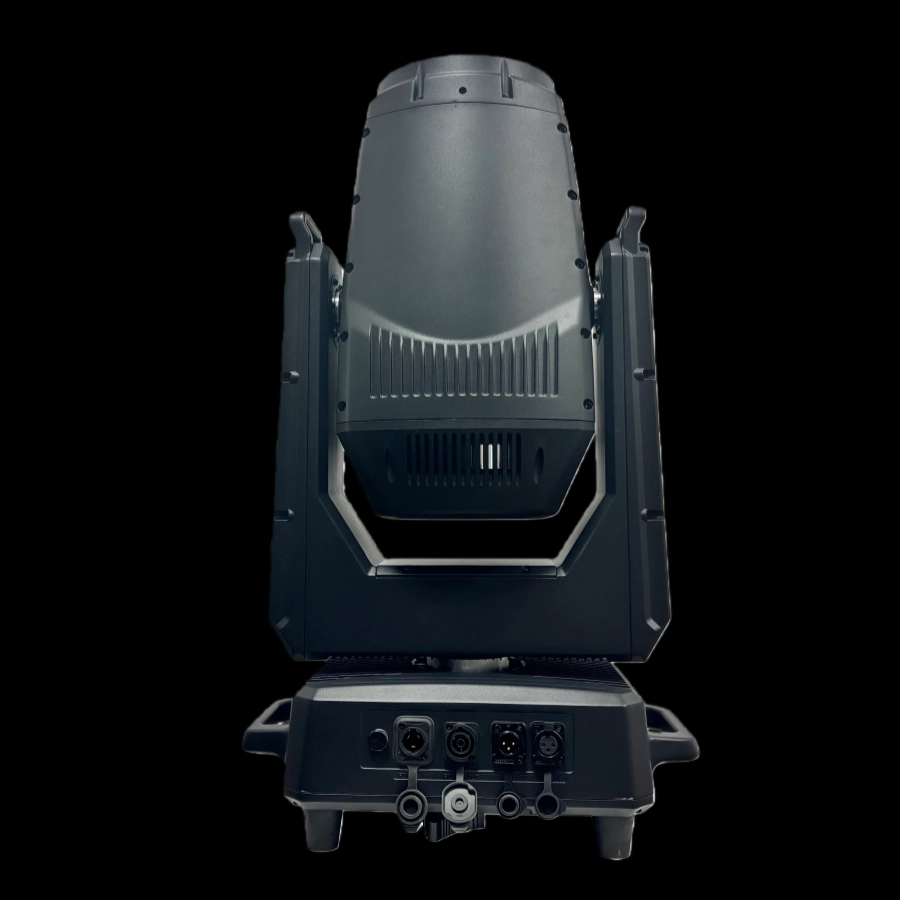

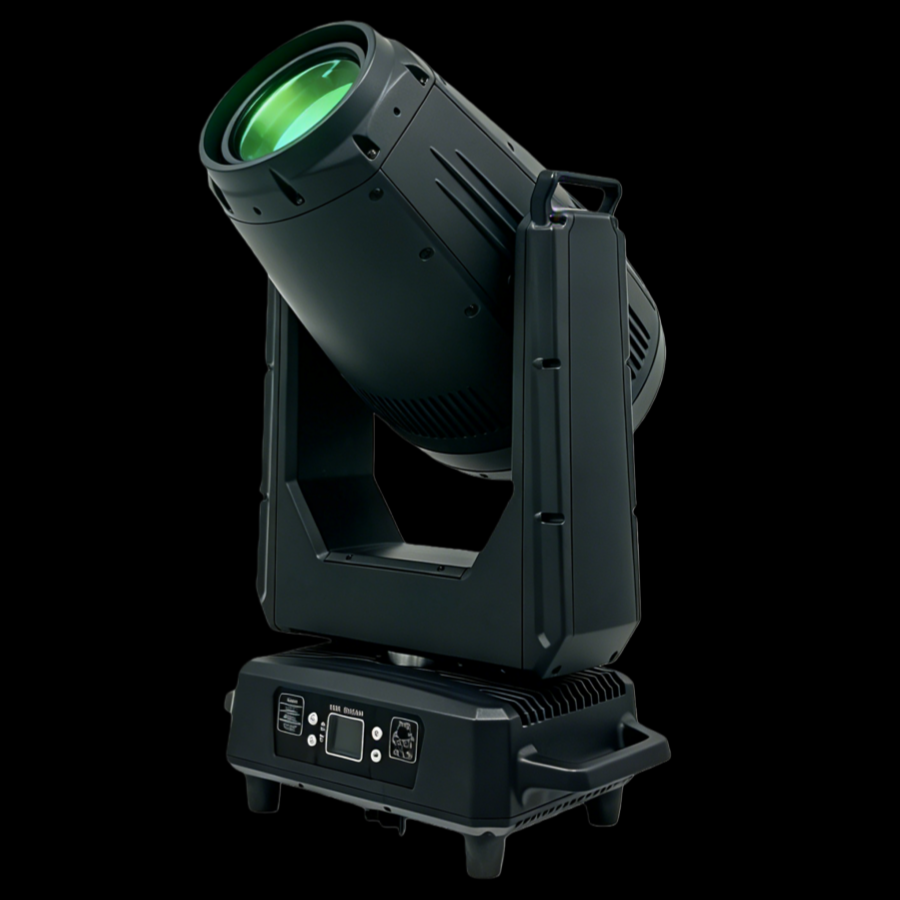

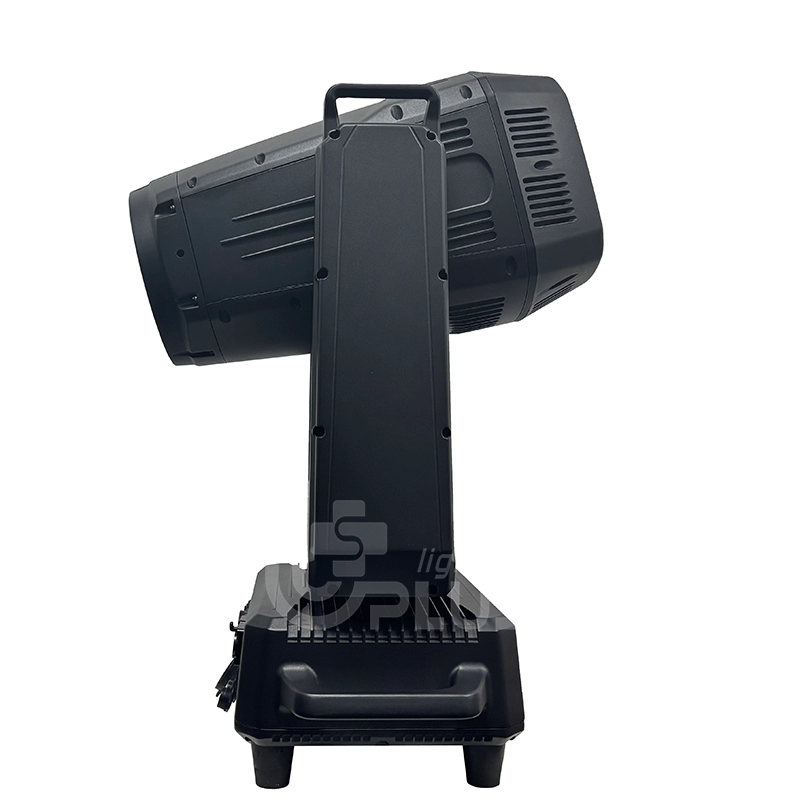

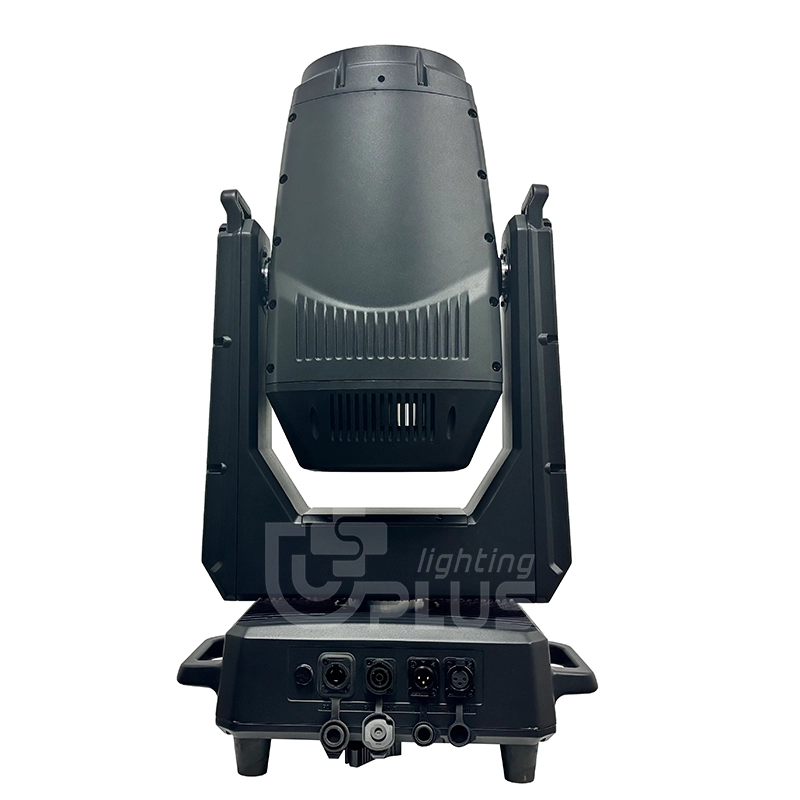

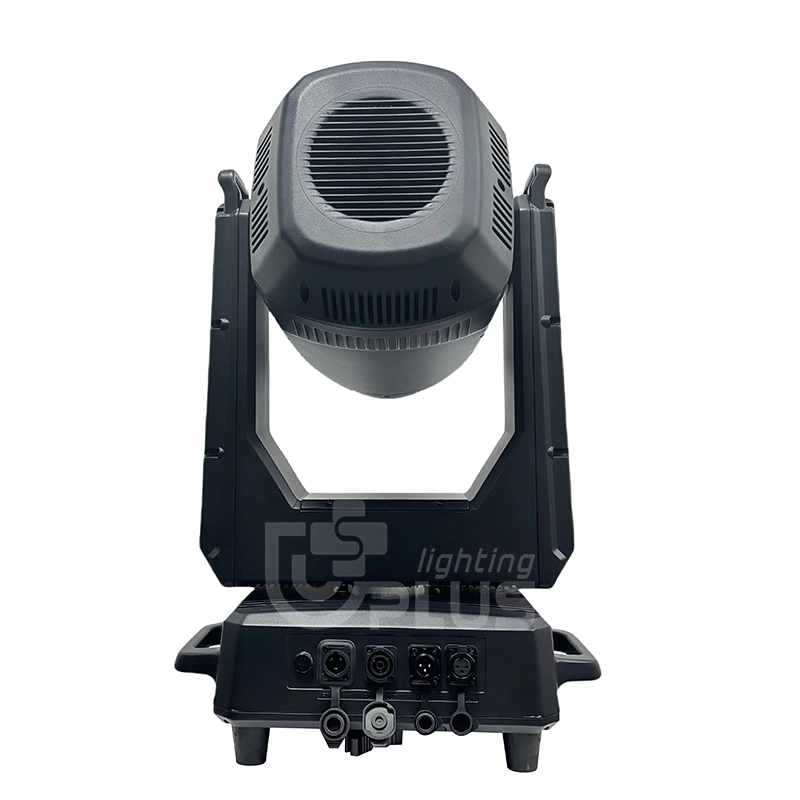

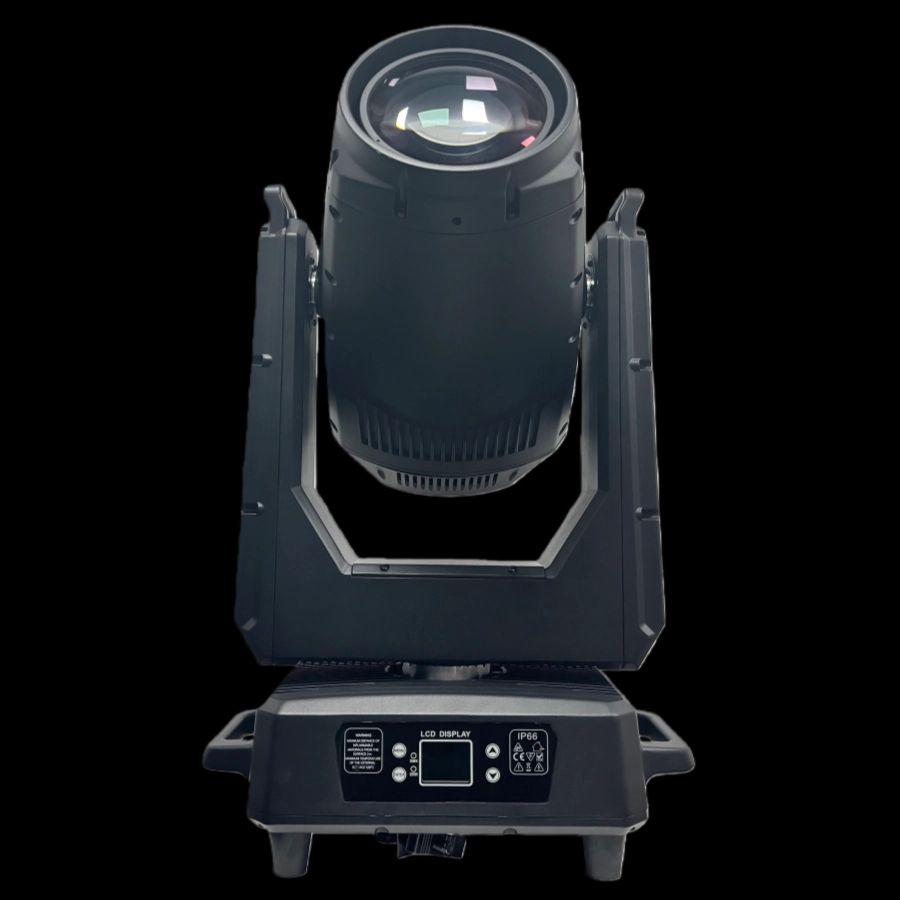

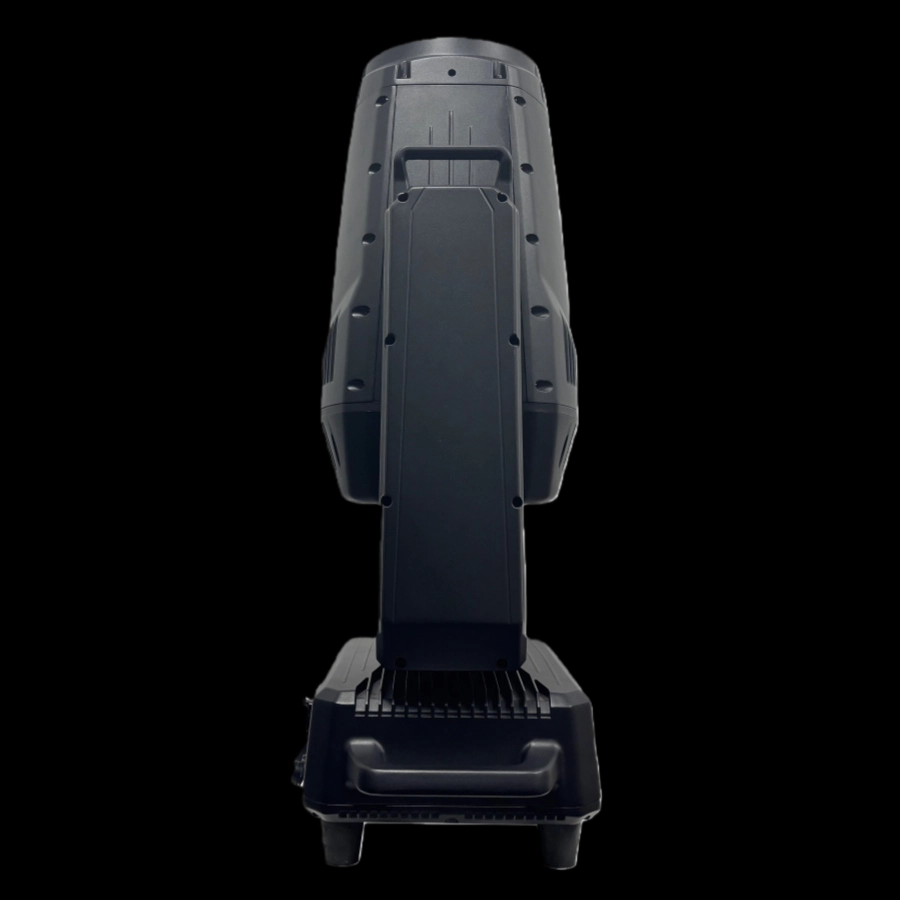

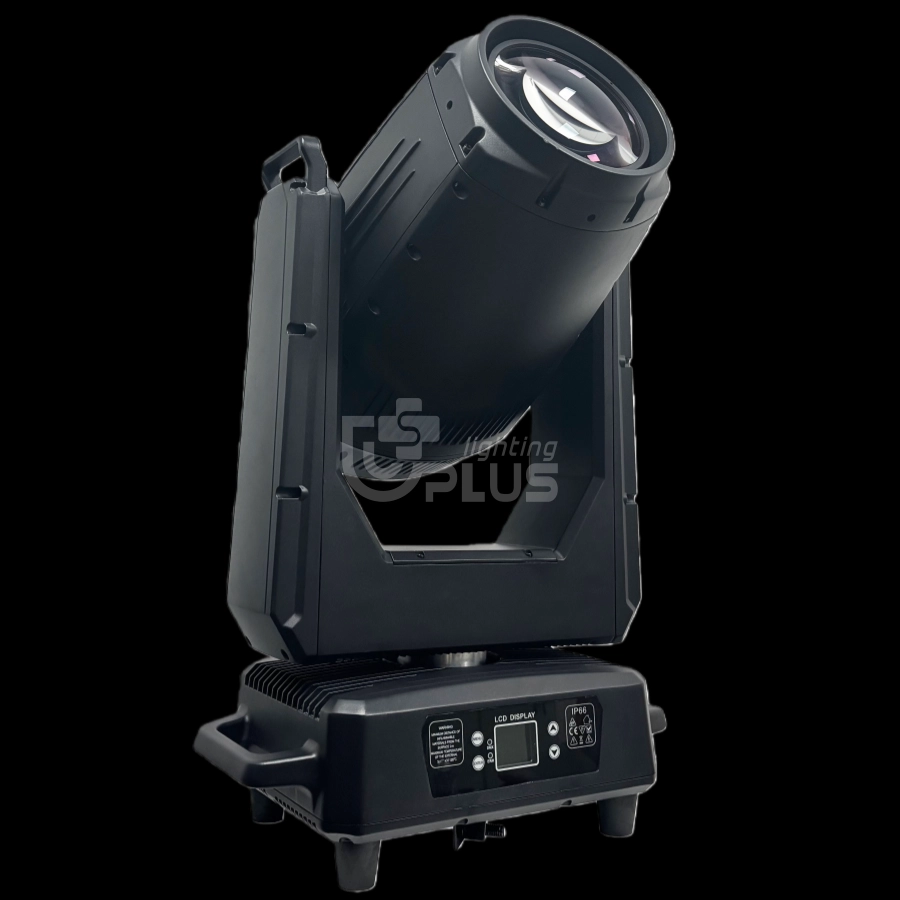

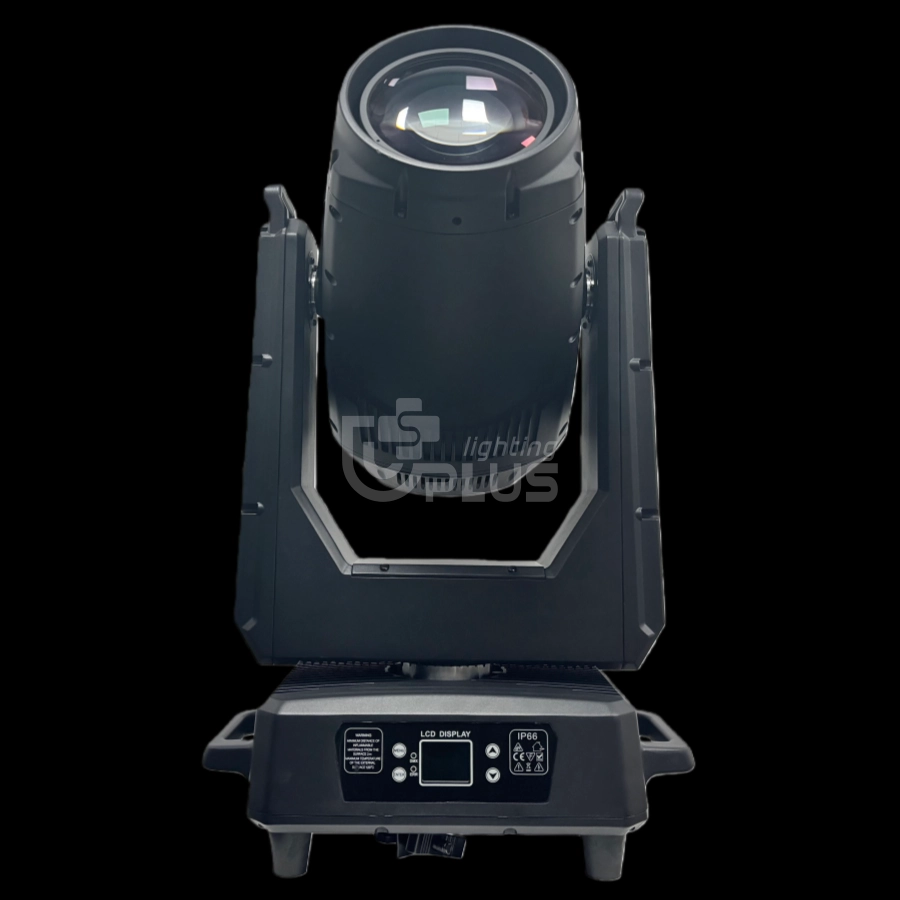

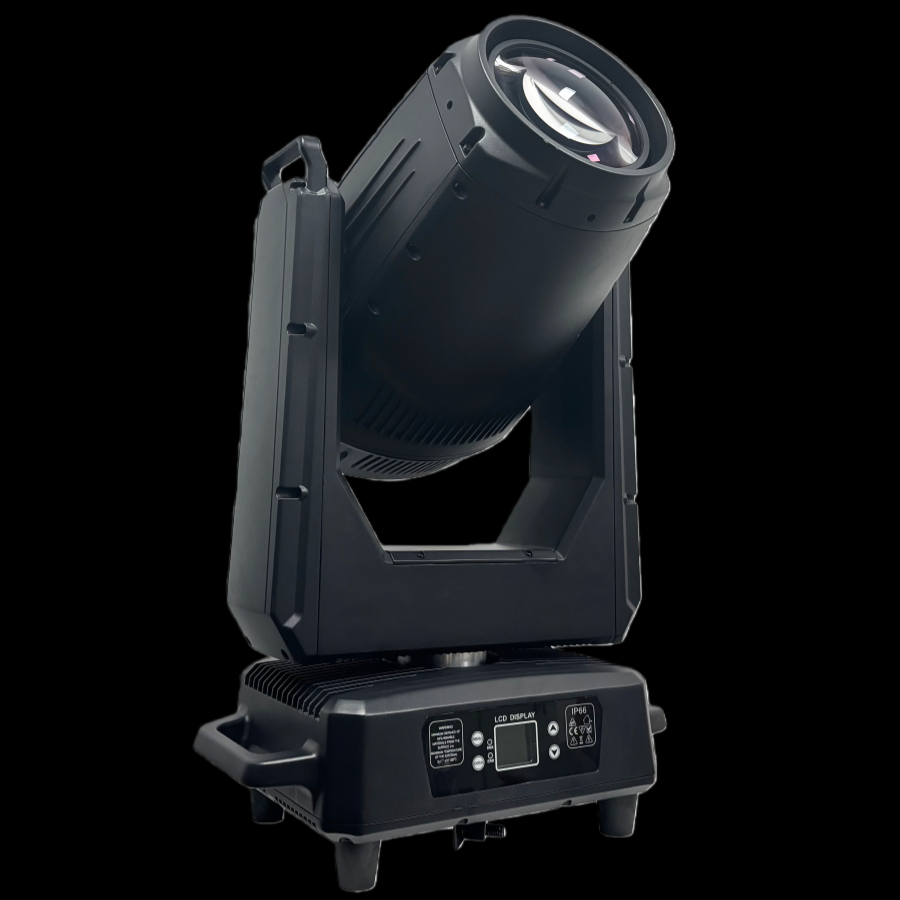

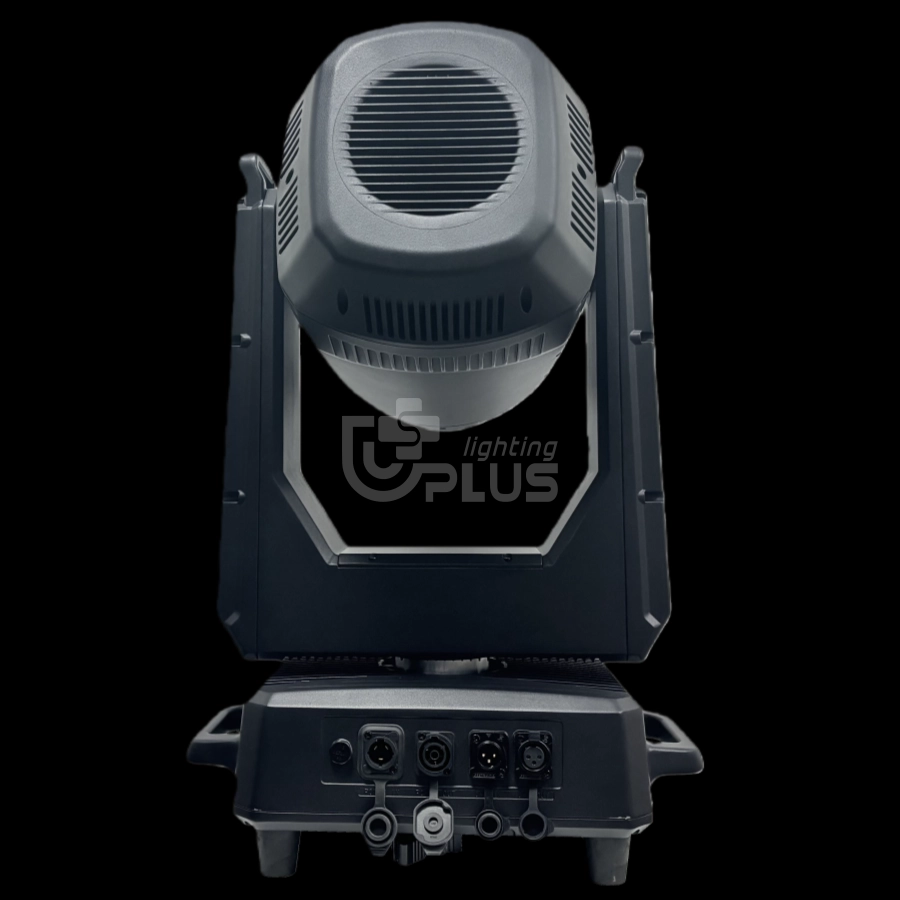

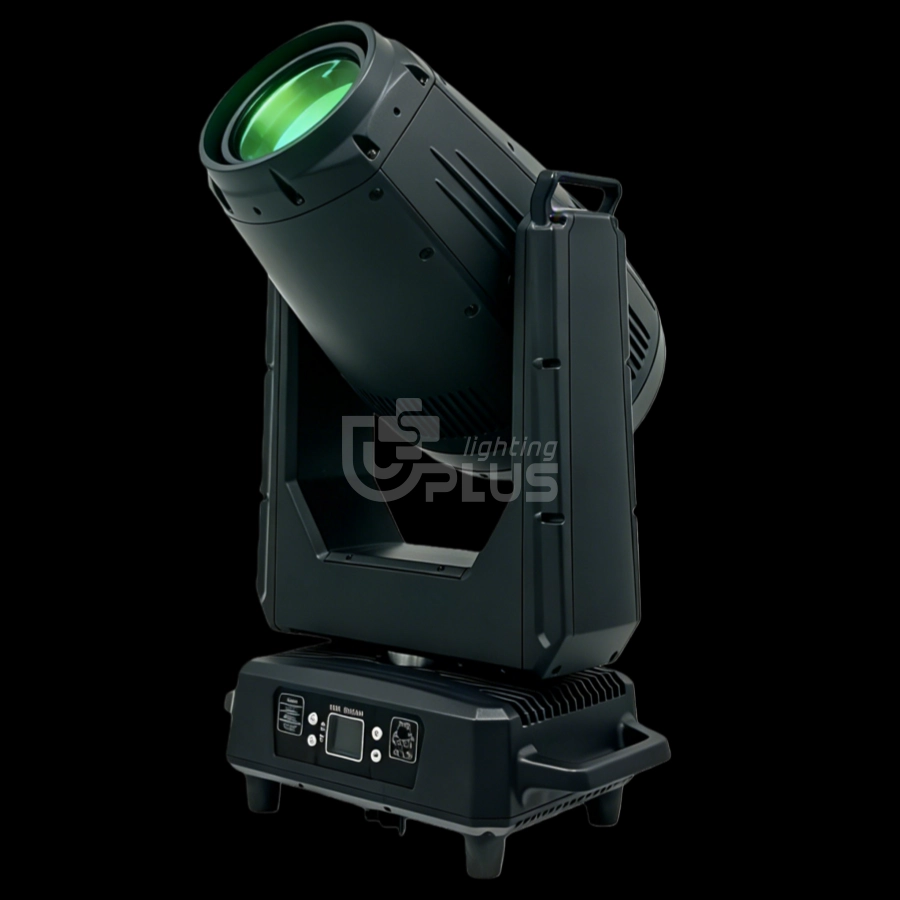

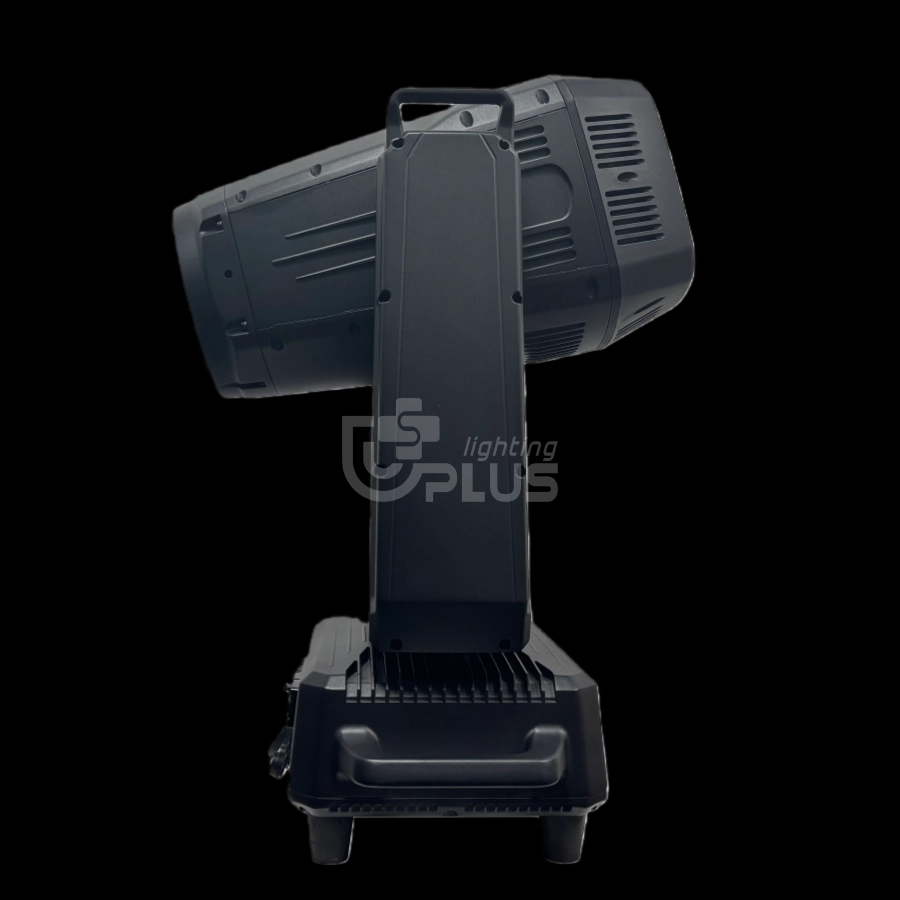

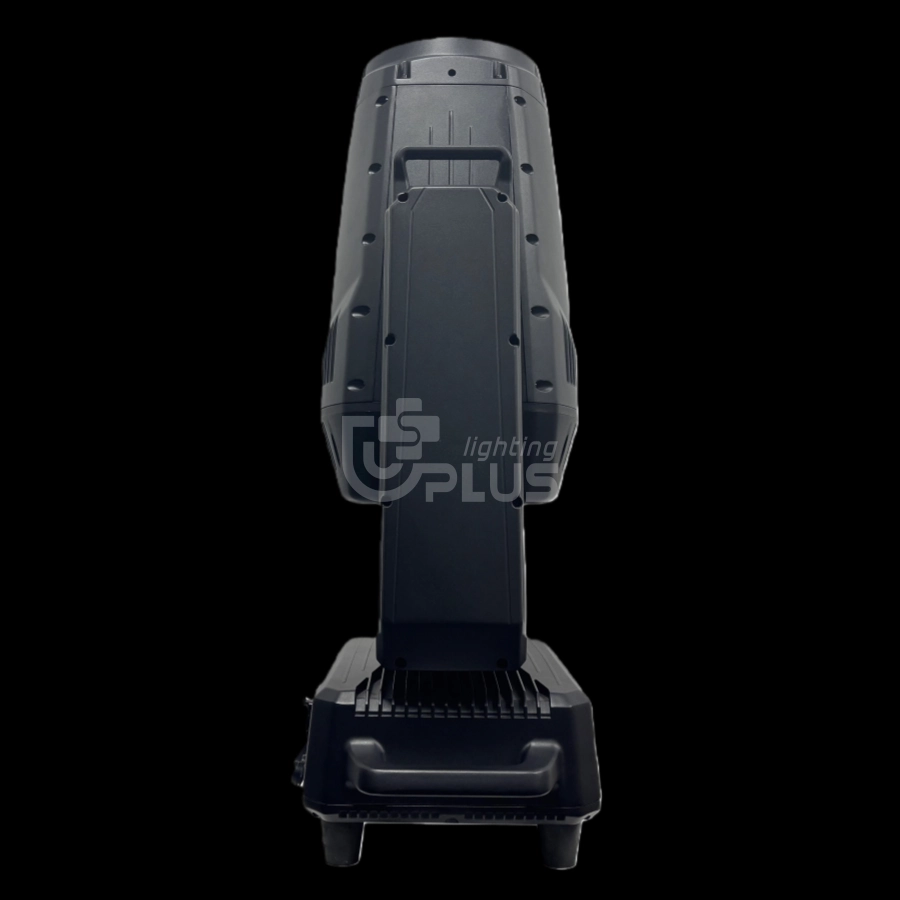

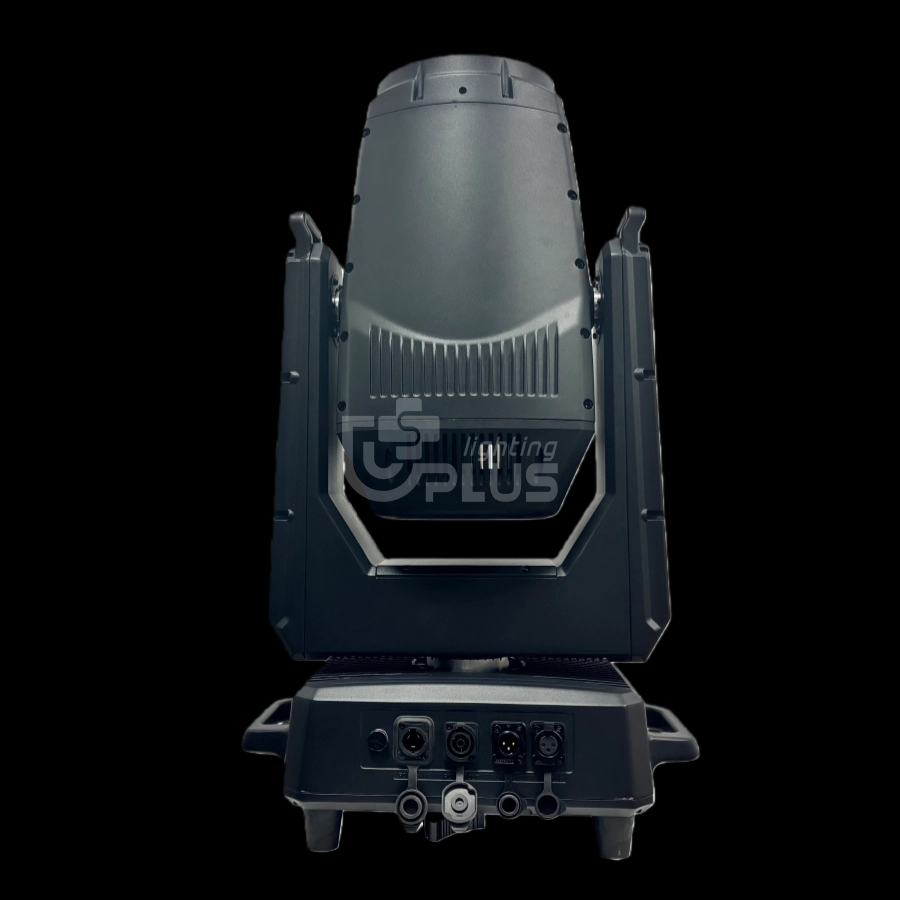

IP LED BSW600 IP65 600W BSW 3in1 led moving head with CMY
The IP65 600W BSW 3-in-1 led moving head with CMY features CMY color mixing, IP65 outdoor waterproof rating, and 600W high power, combining beam, color, and pattern effects for powerful and precise lighting. It is suitable for professional stage lighting for large-scale indoor and outdoor performances, music festivals, light shows, and other events.
Specifications
OPTICS
•Light source: 600W LED module
•Power Consumption: 650W
•Beam angle:4-36°
•Light output diameter: 138mm
FEATURES
•IP Rate: IP65
•Full body Magnesium alloy
•Control: DMX512/Auto Run/Master-Slave/Music/RDM
•DMX Channel: 23CH
•CTO color temperature: 3200-8000K adjustable

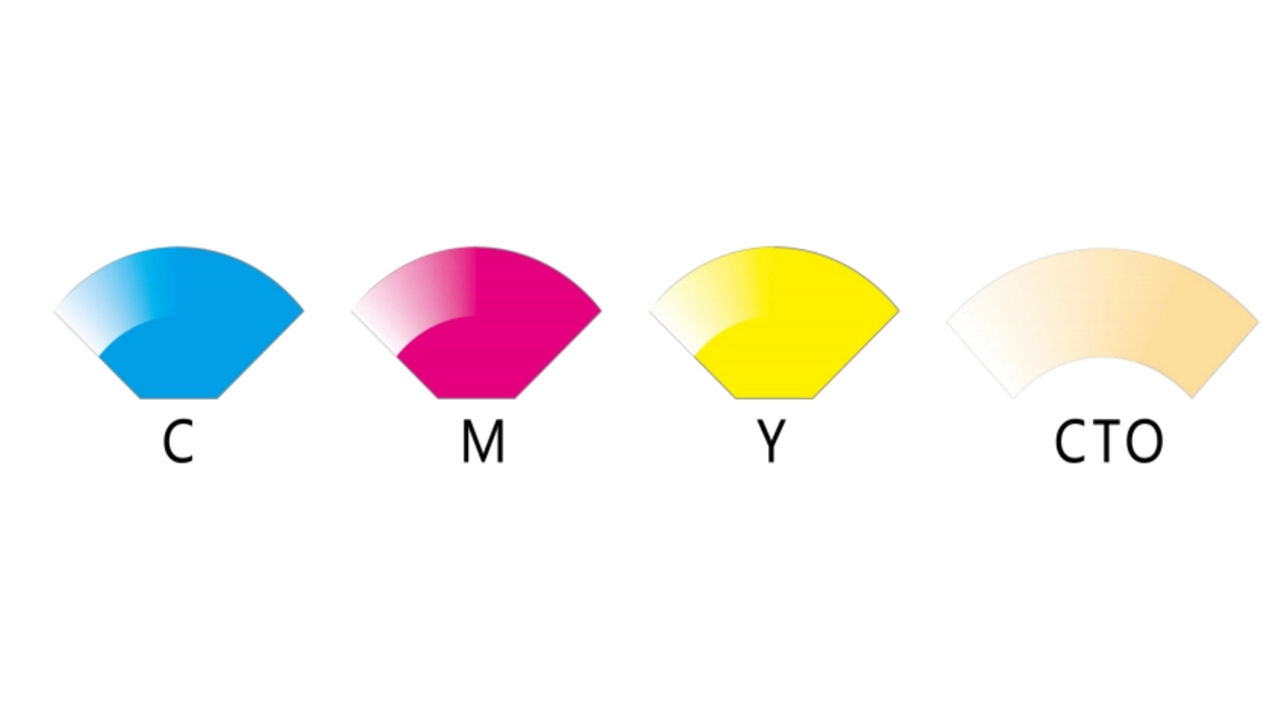

•Color mixing system: CMY infinite color mixing

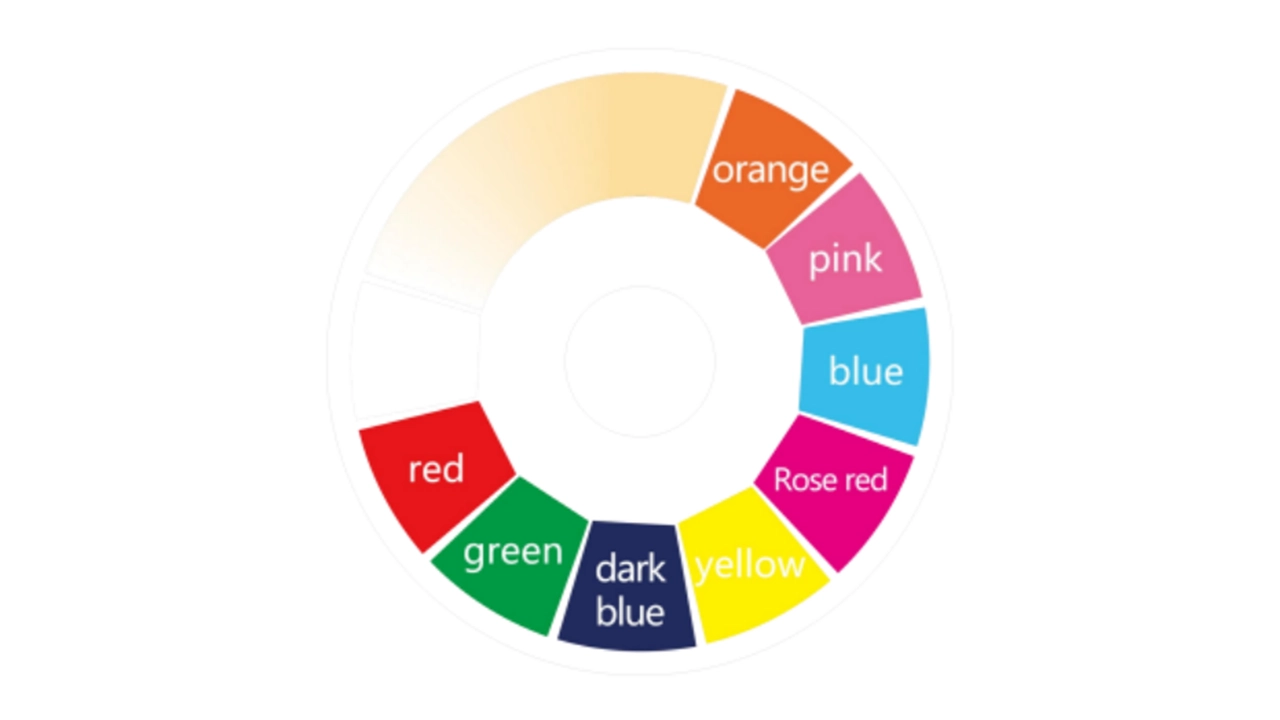

•Color: 8 colors + white light
•1 fixed gobo wheel: 11 gobos

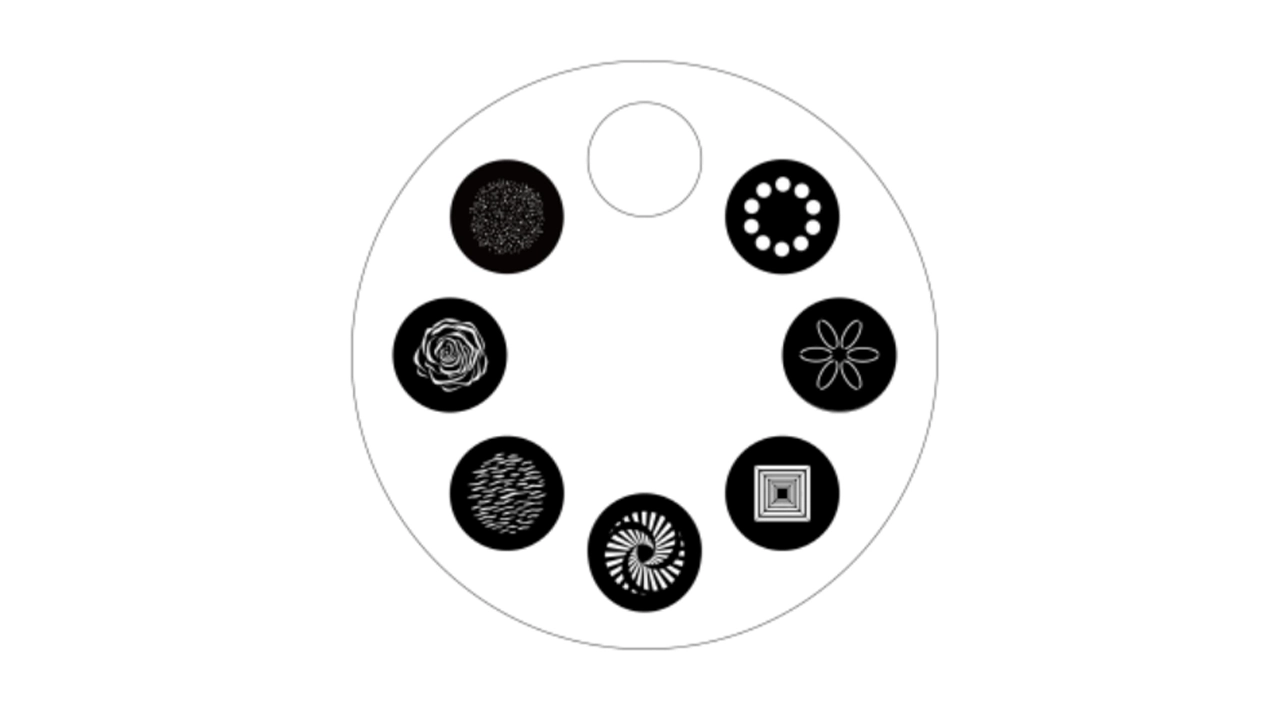

•1 rotating gobo wheel: 8 gobos
•Prism: 1 8-prism, 16-row mirror, can be superimposed and rotated independently
•Focus: electric focus
•Frost: independent fogging lens, light transmittance greater than 90%
•Dimmer: 0-100% linear dimmer
•Strobe: 0-20Hz, optional random strobe and pulse strobe
SPECIFICATION
•Dimension: 415*240*706mm; NW: 23kgs
Effect
Features
APPLICATION
Packaging & Logistic
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
Can I visit Uplus Lighting company onsite?
Of course, our company is located at No. 4, Xiaotang Middle Road, Jianggao Town, Baiyun District, Guangzhou, China. Welcome to visit our factory!
Are you a manufacturer or a trading company?
We come directly from the factory and also have a sales office in Baiyun, Guangzhou.
What is Uplus Lighting's main product for factories?
The main products provided by Uplus are stage lighting, related accessories, and consoles. Our products are suitable for many large-scale international performances, concerts, theaters, music festivals, TV programs, etc.
Can the prism effects on the IP LED BSW600 be combined?
Yes. It includes an 8-facet prism and a 16-row mirror effect, which can be superimposed and rotated independently.
What control and installation features does the IP LED BSW600 provide?
The fixture supports DMX512 and RDM with 23 channels. It weighs 23 kg and includes folding hooks for installation planning.
