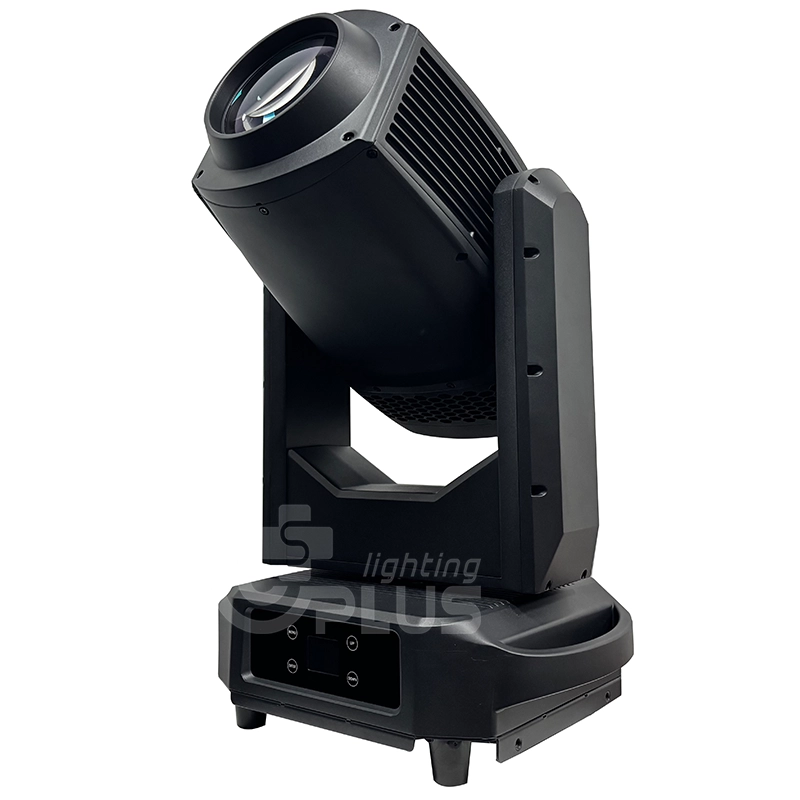

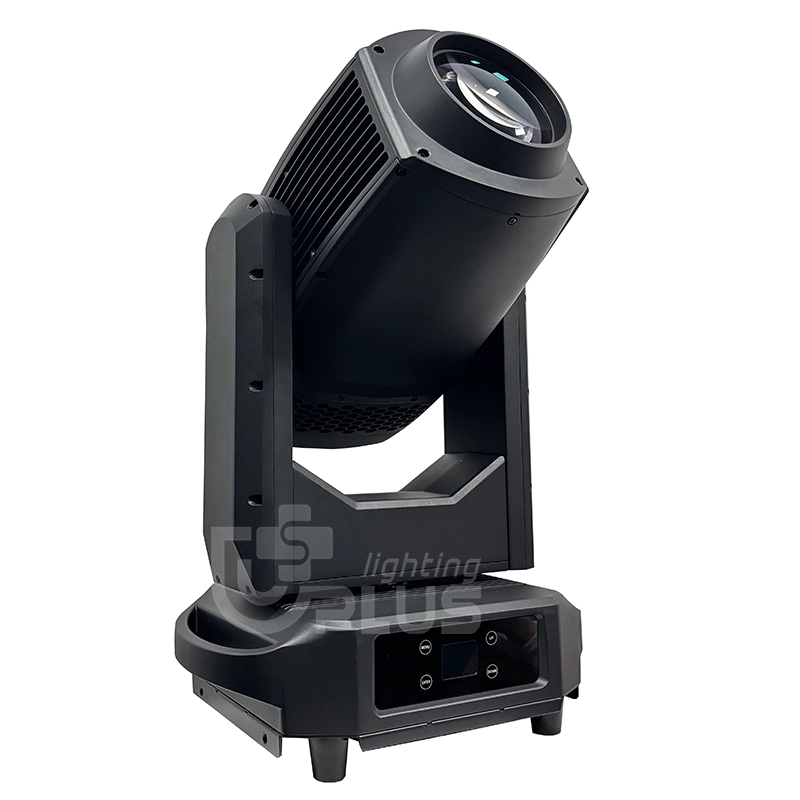

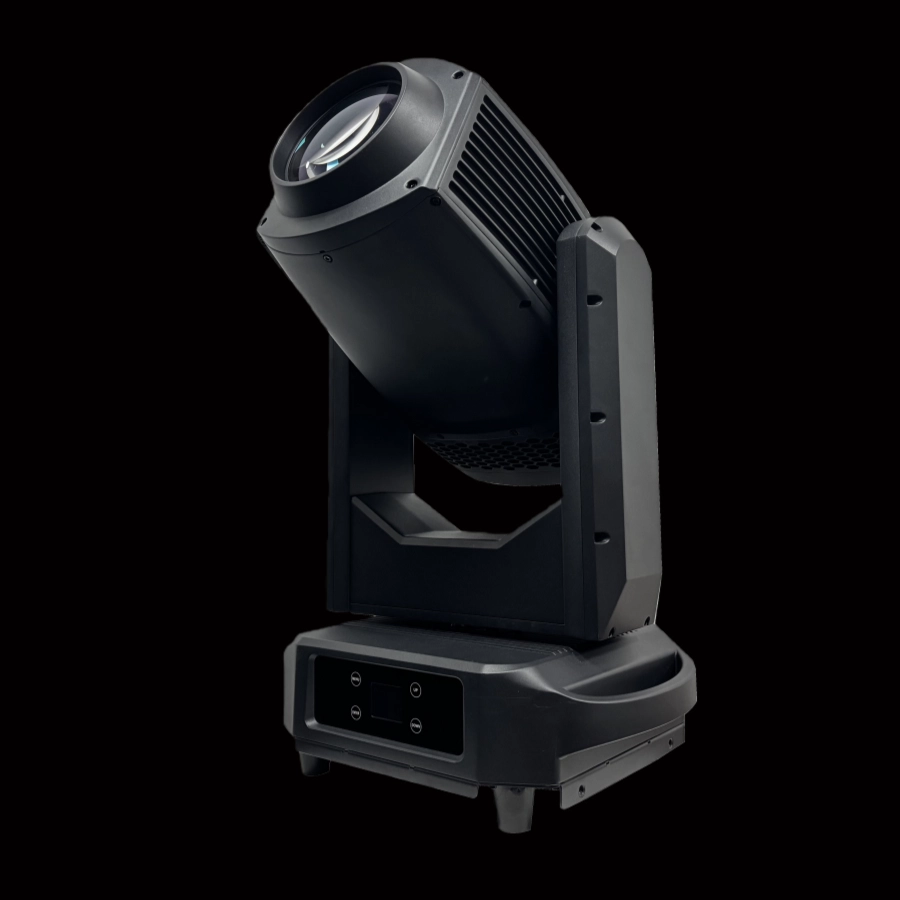

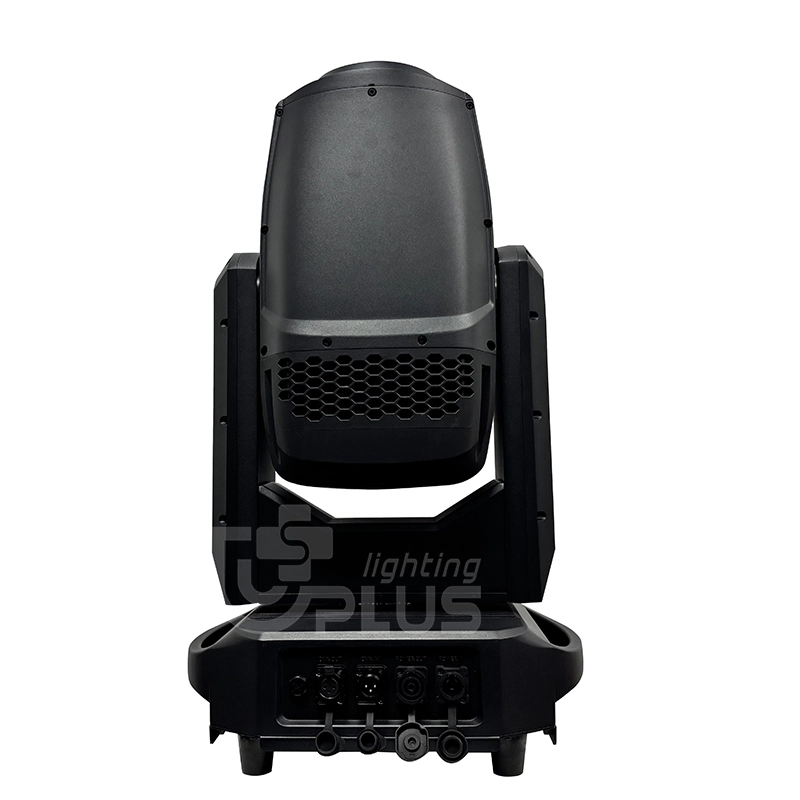

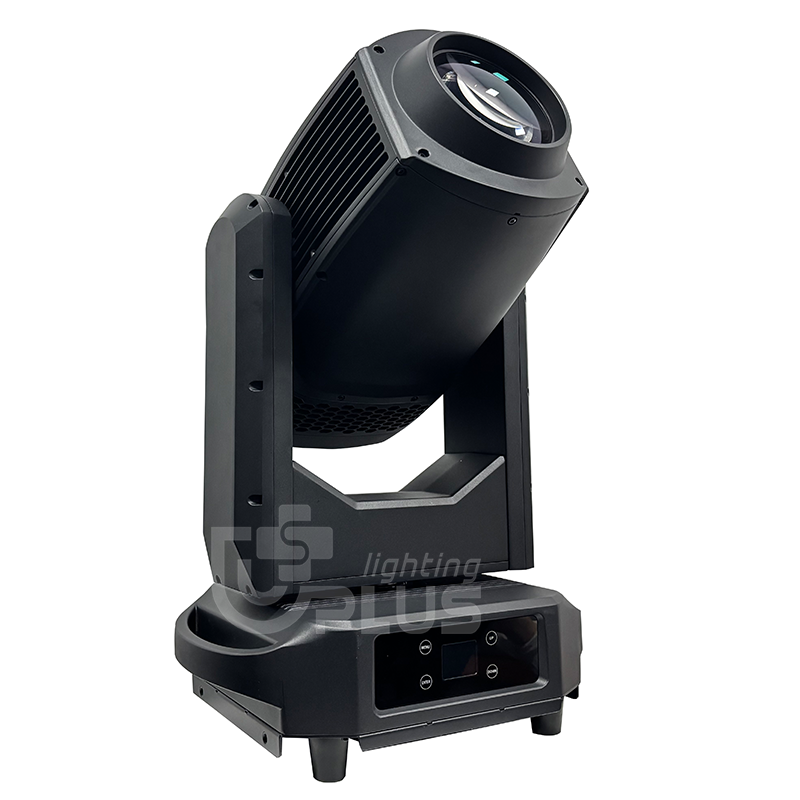

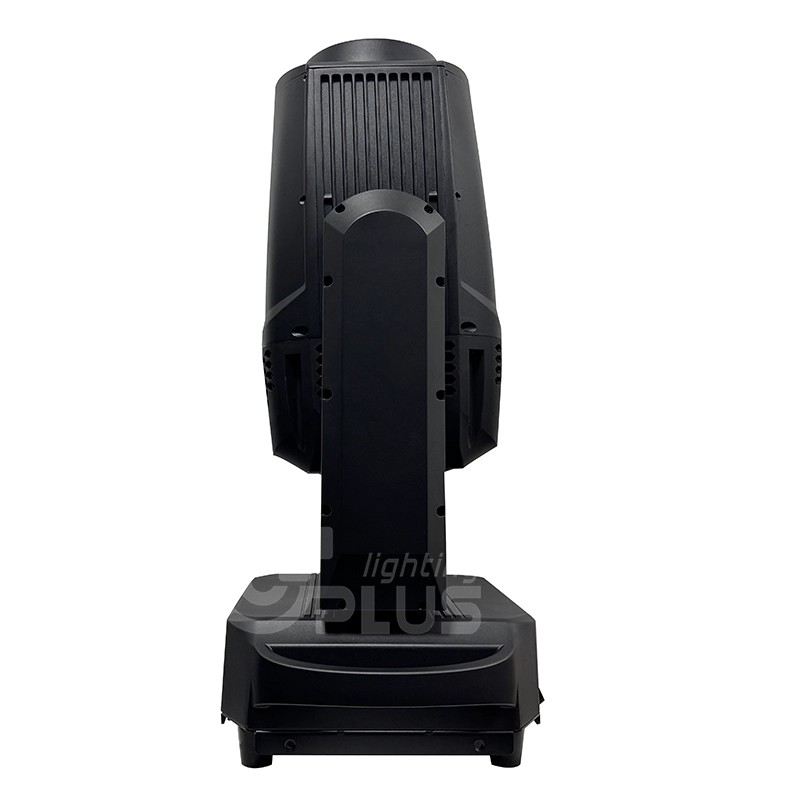

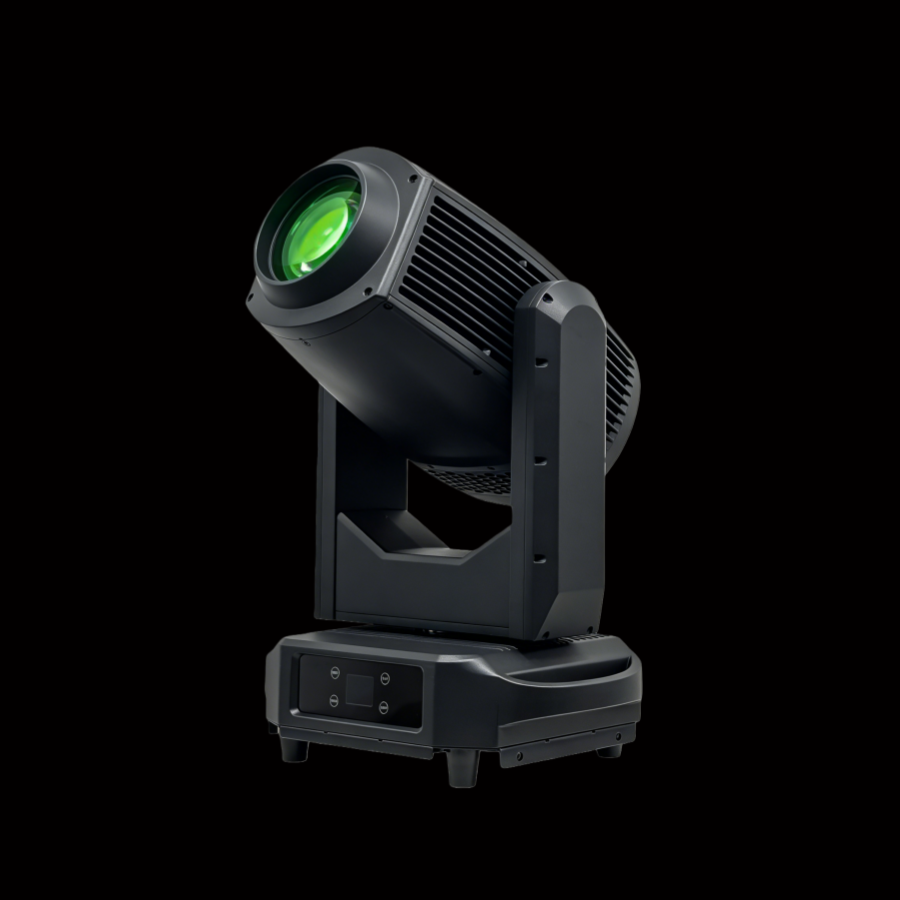

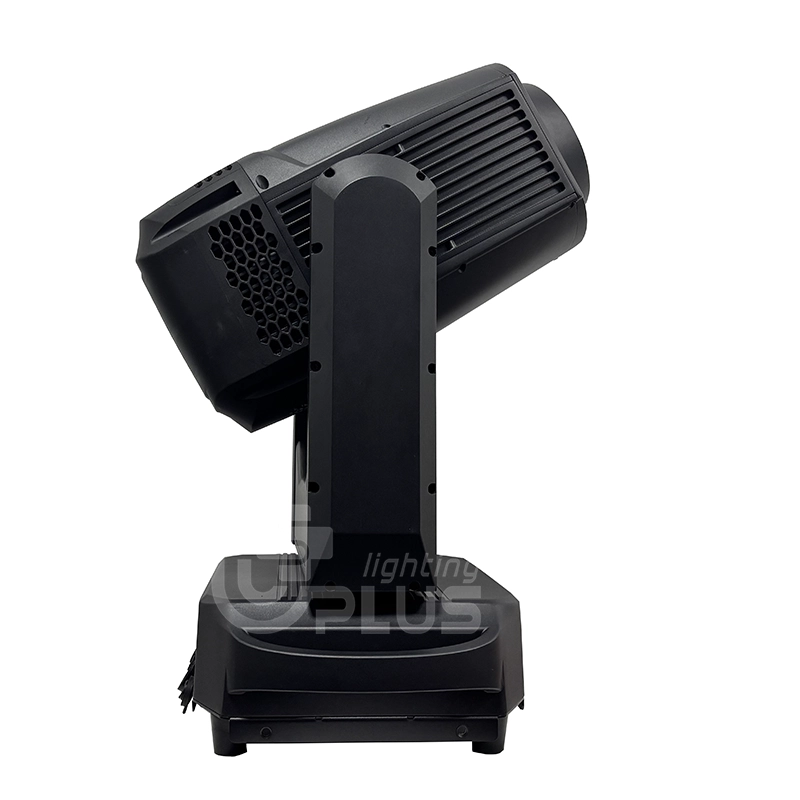

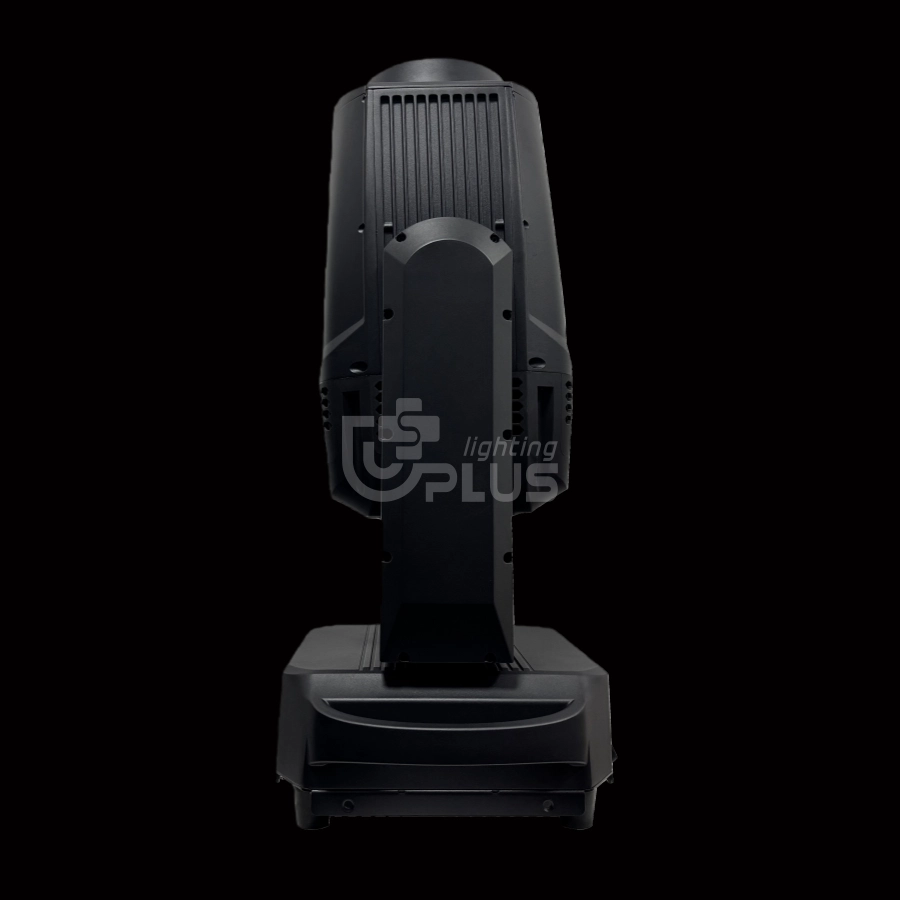

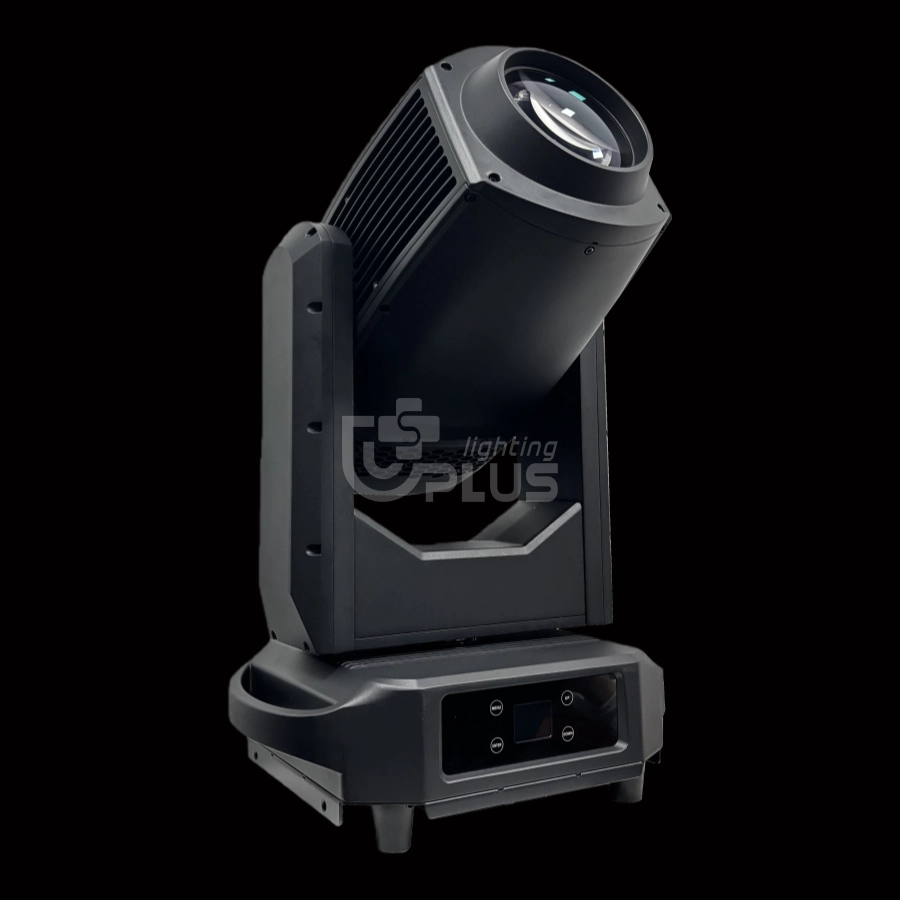

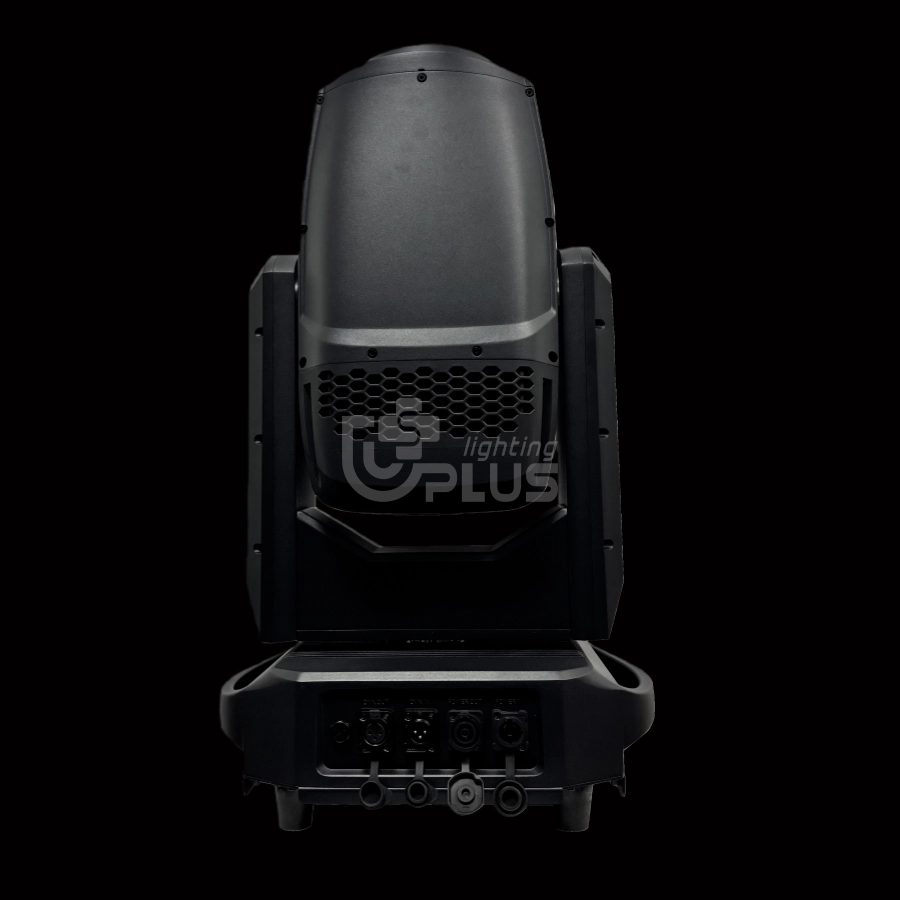

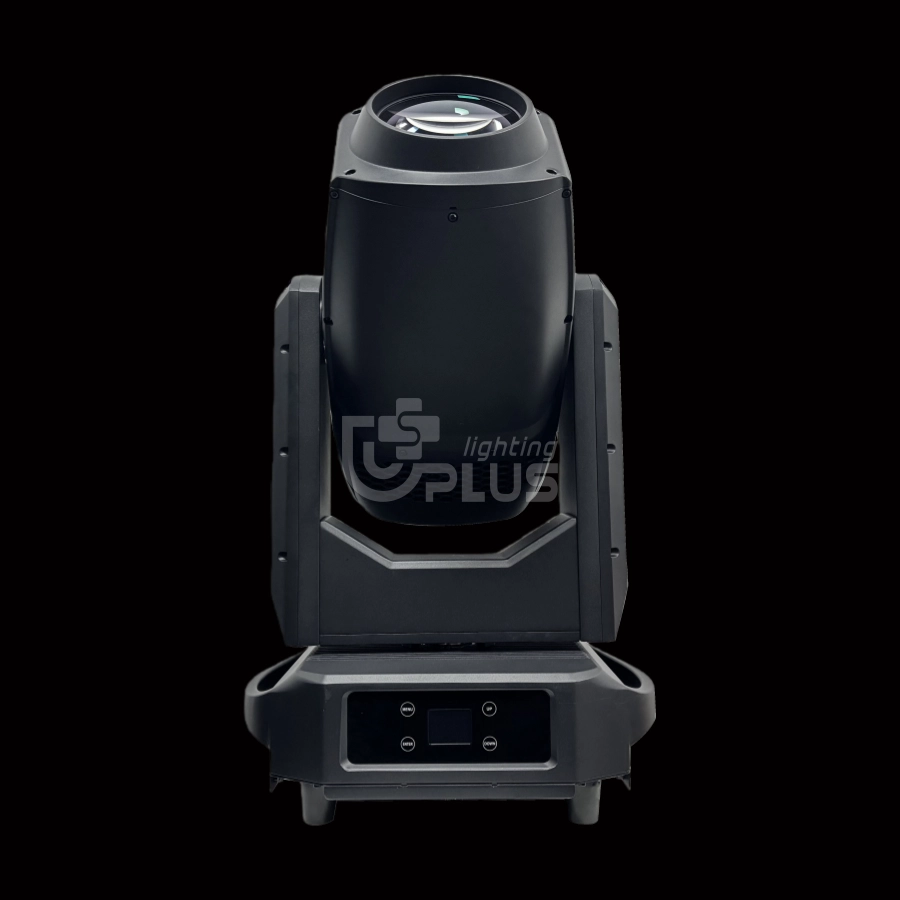

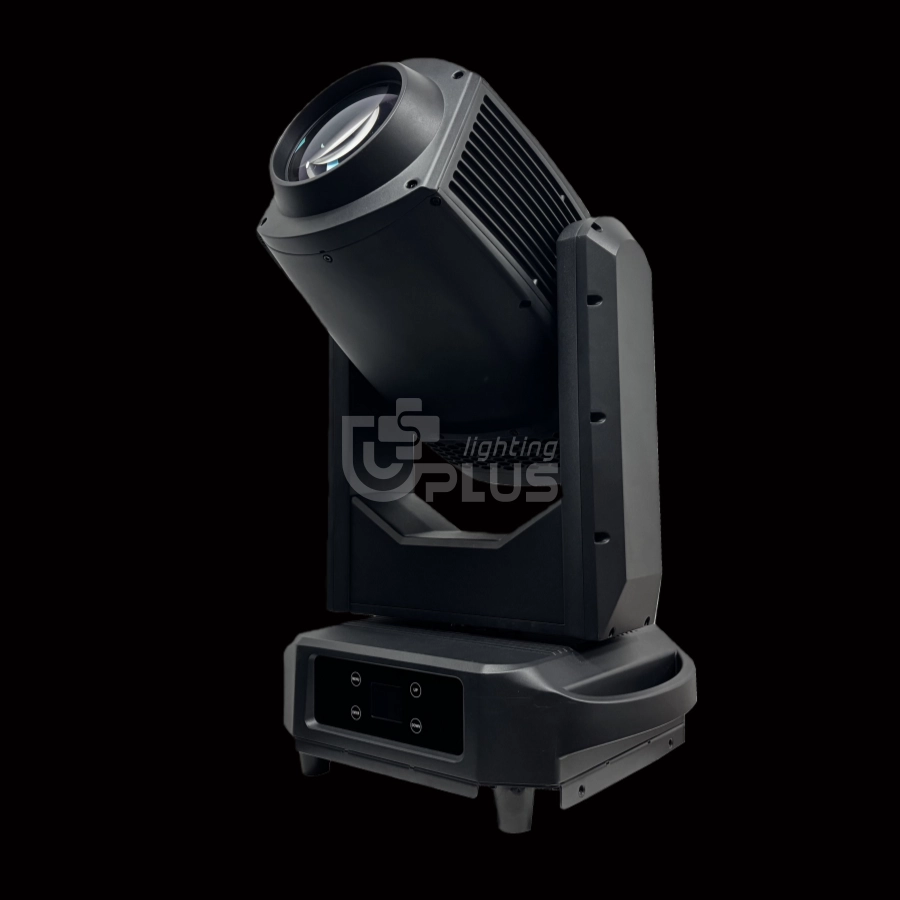

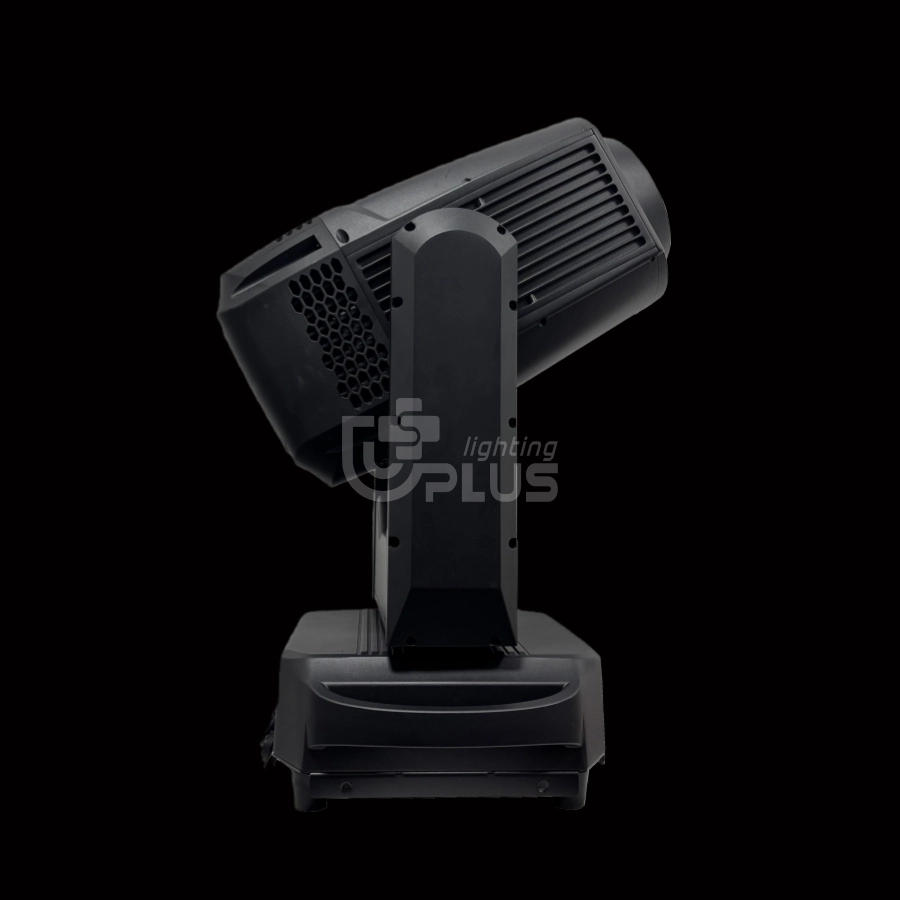

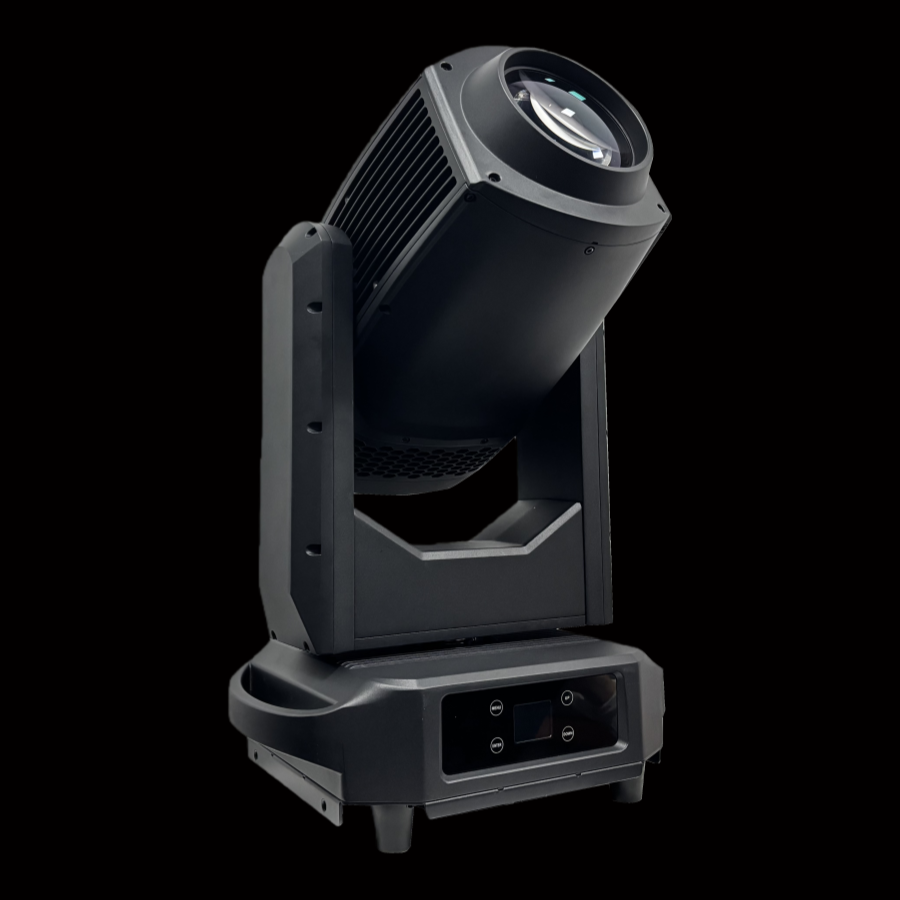

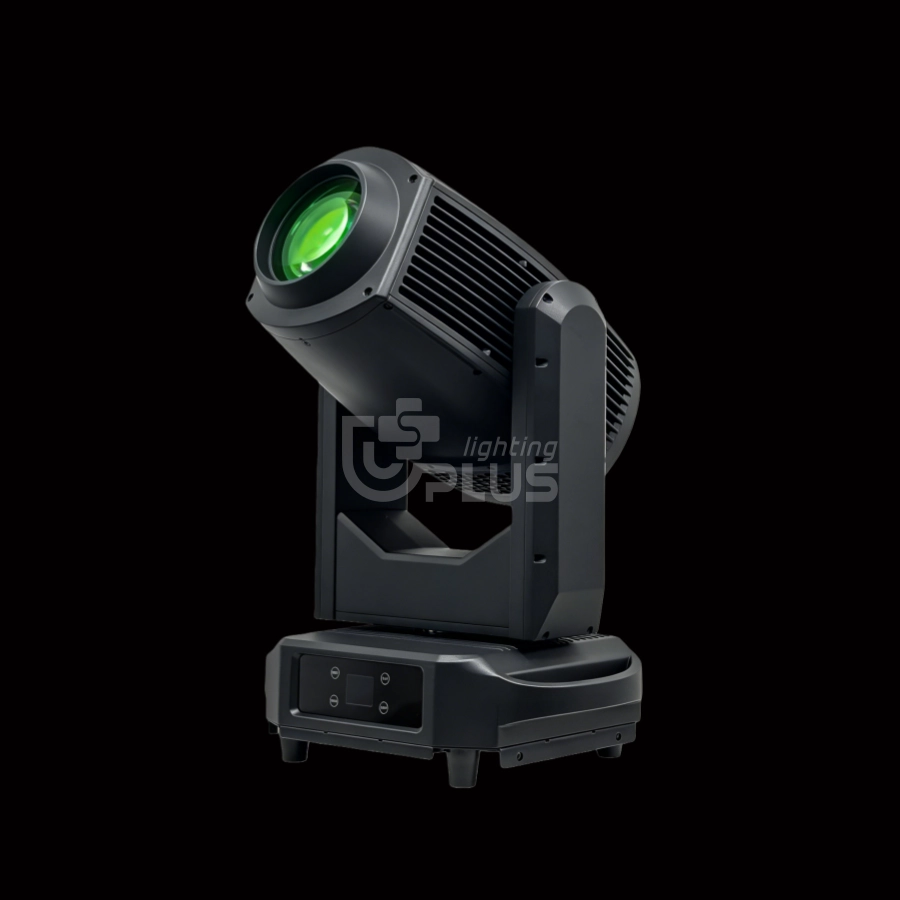

IP BSW 420 IP65 420W BSW 3in1 moving head with CMY
Specifications
OPTICS
•Light source: PHILIPS MSD Silver 420W/2 LL
•Zoom angle: 2°-31°
•Light output diameter: 140mm
FEATURES
•IP Rate: IP65
•All-magnesium alloy body with black baked finish
•Control: DMX512/Auto Run/Master-Slave/RDM
•DMX Channel: 20CH/28CH
•CMY+CTO color mixing system
•Color: 12 colors+ open
1 fixed gobo wheel: 16 gobos
1 rotating gobo wheel: 9 gobos
•Prism: 6-facet prism, 6-facet linear prism

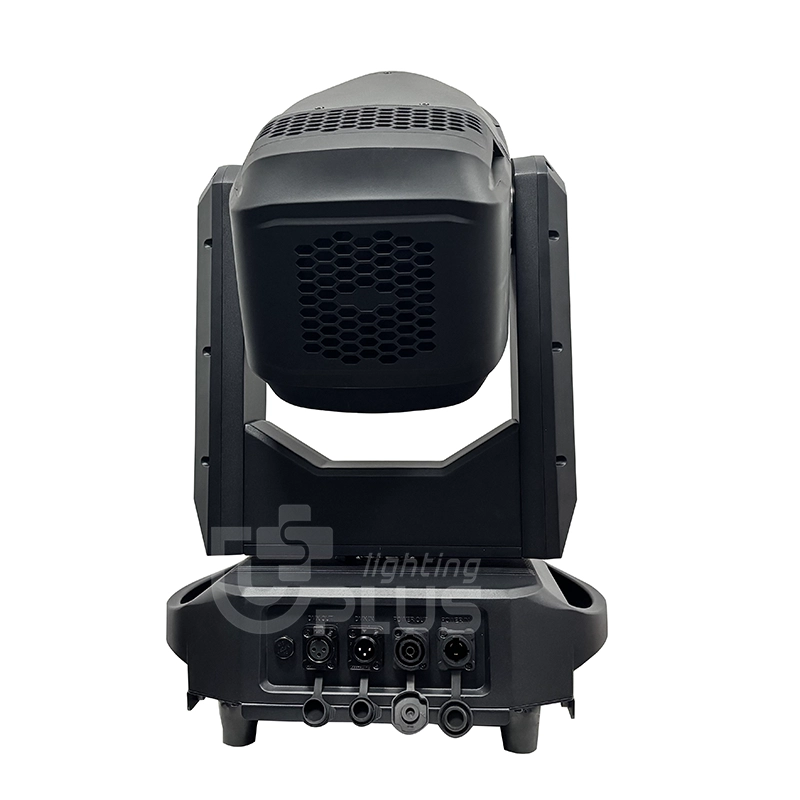

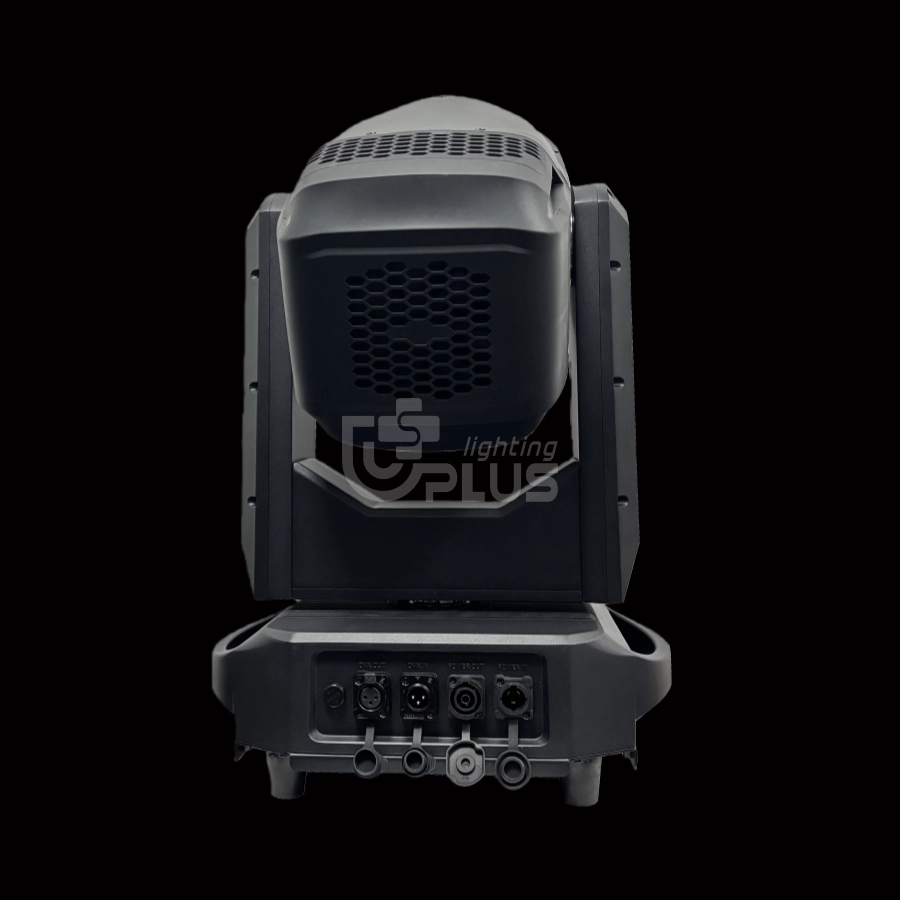

•Power connection: Waterproof power connector in/out
•Frost
•Dimmer: 0-100% smooth dimming
•Strobe: 1-20Hz
SPECIFICATION
•Dimension:709*386*290mm; NW: 27kgs
Effect
Features
APPLICATION
Packaging & Logistic
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
What prism effects does the IP BSW 420 support?
It includes an 8-facet prism and a 6-facet linear prism. Both prisms can rotate in both directions and can be superimposed.
Is the IP BSW 420 suitable for outdoor stage lighting?
Yes. The IP BSW 420 has an IP65 rating, a full magnesium-alloy body, and combines beam, spot and wash functions in one moving head.
What beam range does the IP BSW 420 provide?
The fixture offers a 2°–31° beam angle, allowing both narrow beam effects and wider spot or wash coverage.
What color and gobo options are available on the IP BSW 420?
The IP BSW 420 features linear CMY color mixing, two color wheels with 12 colors, plus 14 fixed gobos and 7 rotating gobos.
What is Uplus Lighting's main product for factories?
The main products provided by Uplus are stage lighting, related accessories, and consoles. Our products are suitable for many large-scale international performances, concerts, theaters, music festivals, TV programs, etc.
