IP1000 BSW 1000W waterproof BSW 3in1 moving head

UPLUS follows a structured quality-control process throughout production. Incoming materials are inspected before production, finished fixtures undergo at least 48 hours of aging testing, and products are checked by QC before packing. Waterproof models also undergo waterproof testing, while moving head fixtures are subject to hanging safety tests and high- and low-voltage testing. These procedures are especially important for rental companies that require reliable fixtures for repeated transportation, installation and outdoor operation.

The IP1000 BSW supports 26 / 28 / 39-channel DMX512 modes, allowing engineers and programmers to select the appropriate control level for different systems. It provides 540° pan, 270° tilt with 16-bit movement resolution, four dimming curves and smooth 0–100% linear dimming. With a net weight of 27.5 kg including the folding hook, the fixture is designed for professional truss mounting, touring systems and fixed stage-lighting installations.

UPLUS Lighting has more than 14 years of stage lighting manufacturing and export experience and operates its own production facility in Guangzhou. In addition to standard products such as the IP1000 BSW, UPLUS supports OEM orders and customized product development, helping distributors adapt products to different markets and customer requirements. The company also maintains a broad professional stage lighting product range for rental, touring, installation and project applications.

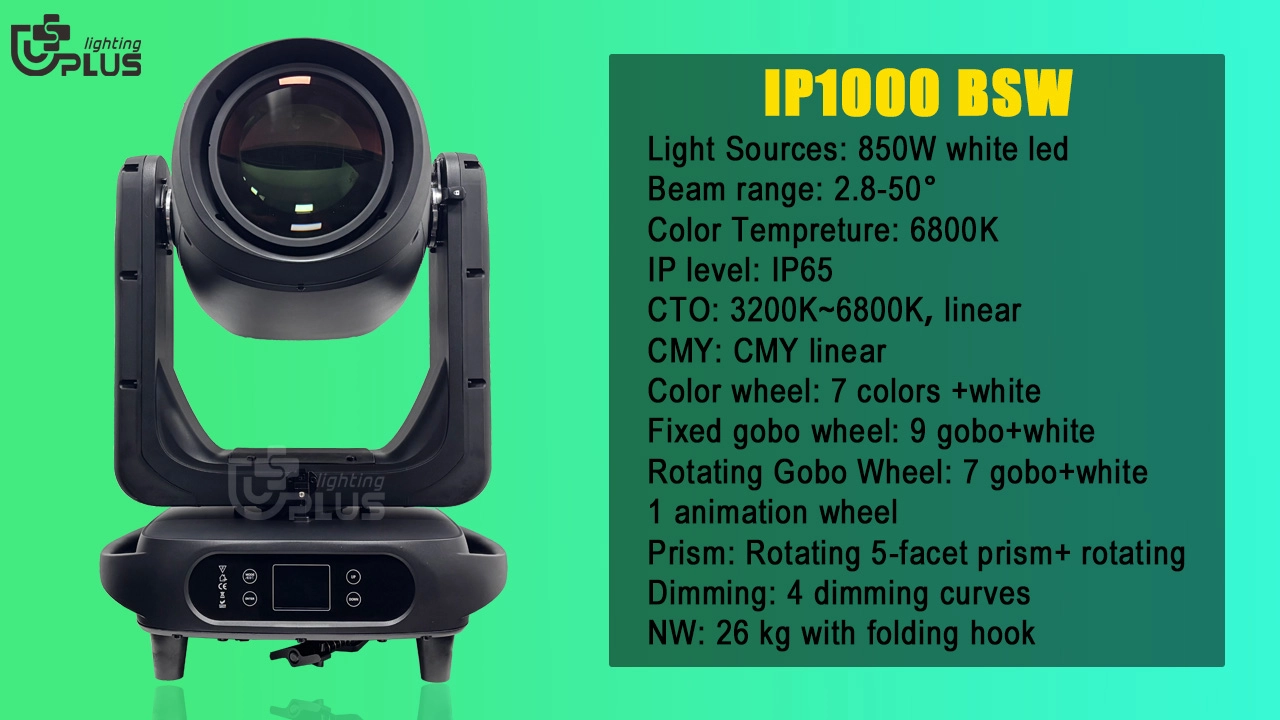

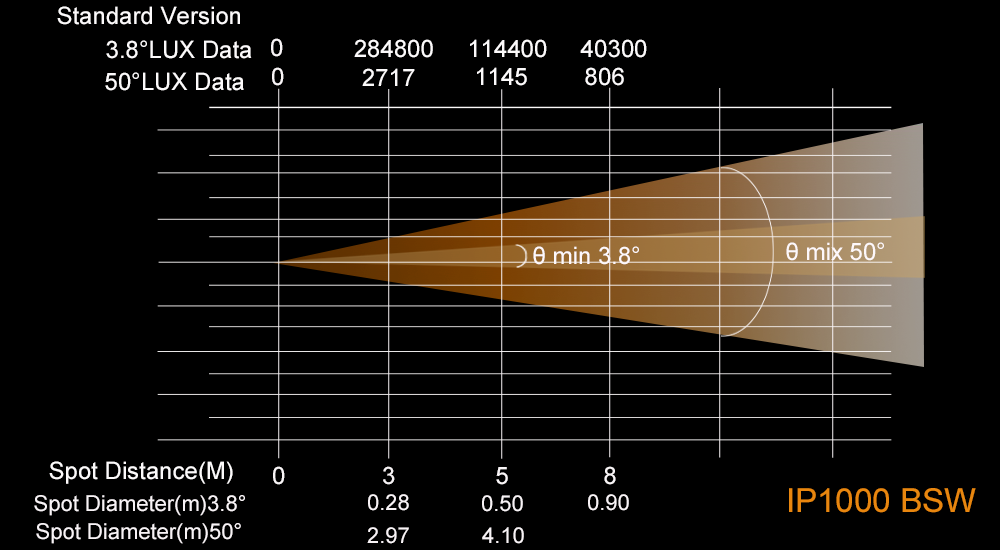

Lighting designers can use one fixture for Beam, Spot and Wash applications, reducing the need to change between different fixture types. The IP1000 BSW provides linear CMY mixing, 3200K–6800K CTO, 7 colors plus open, 9 fixed gobos, 7 rotating gobos, an animation wheel and a rotating 5-facet prism. Combined with the 3.8°–50° zoom, these functions allow designers to create narrow aerial beams, textured projections, dynamic effects and wide stage coverage.

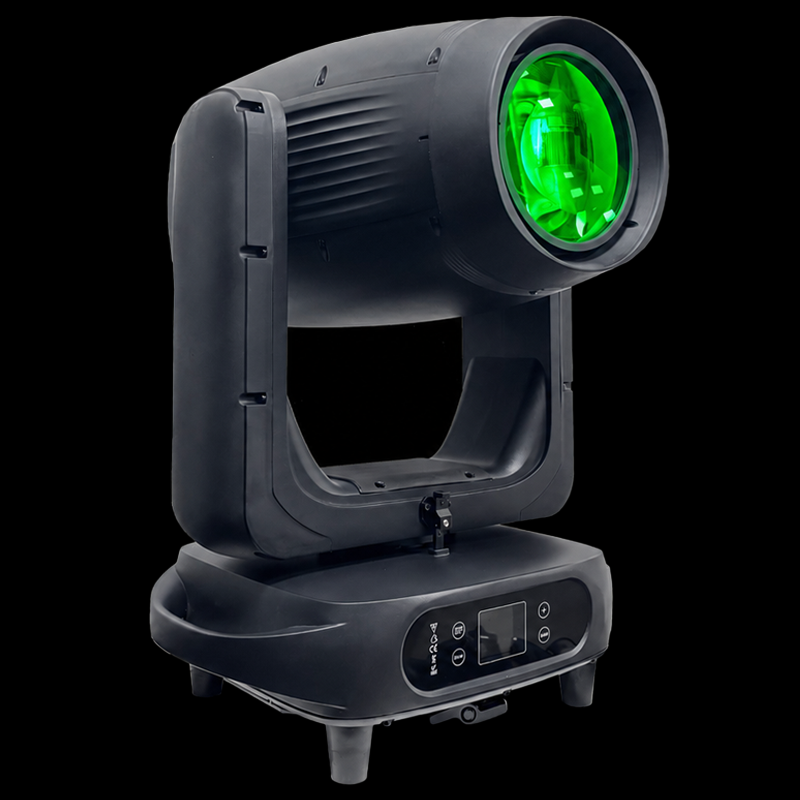

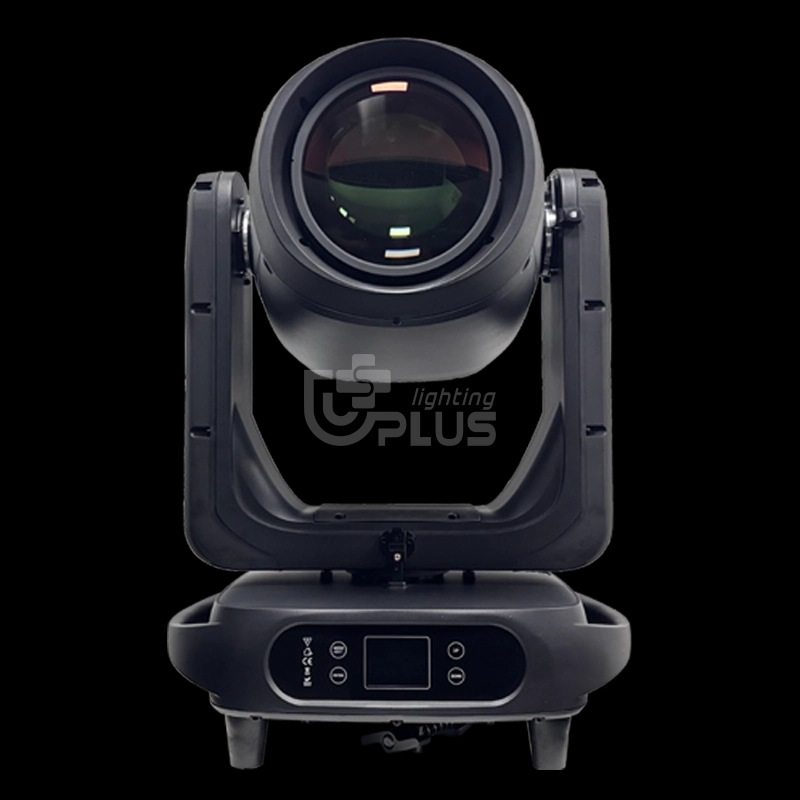

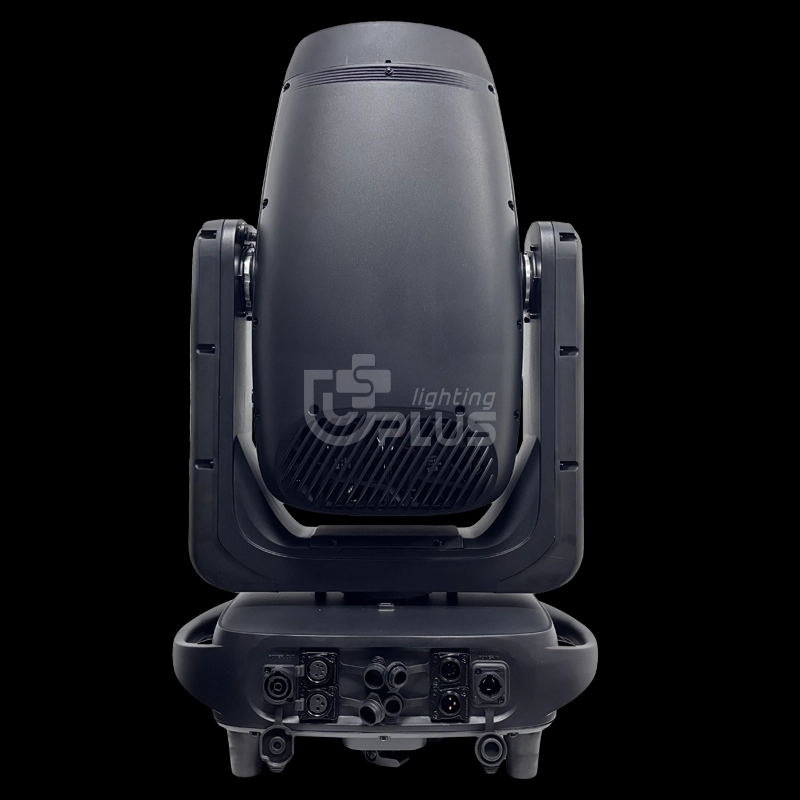

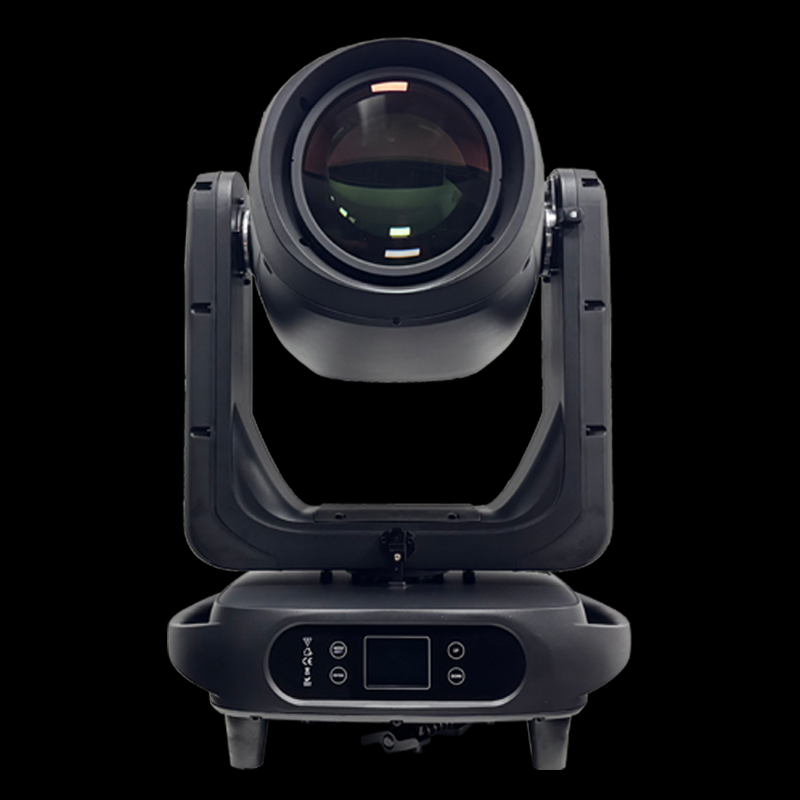

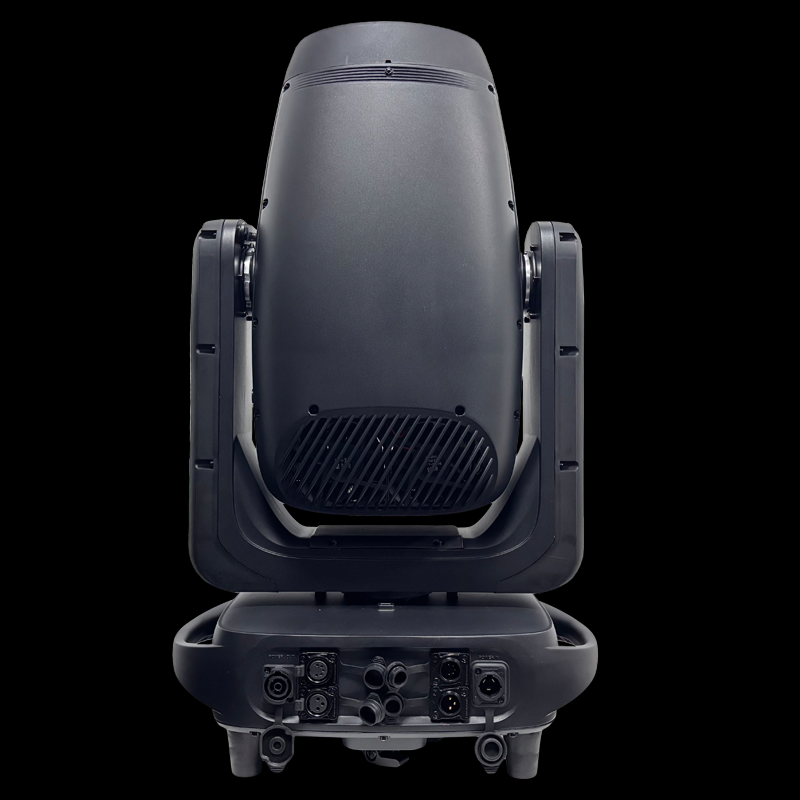

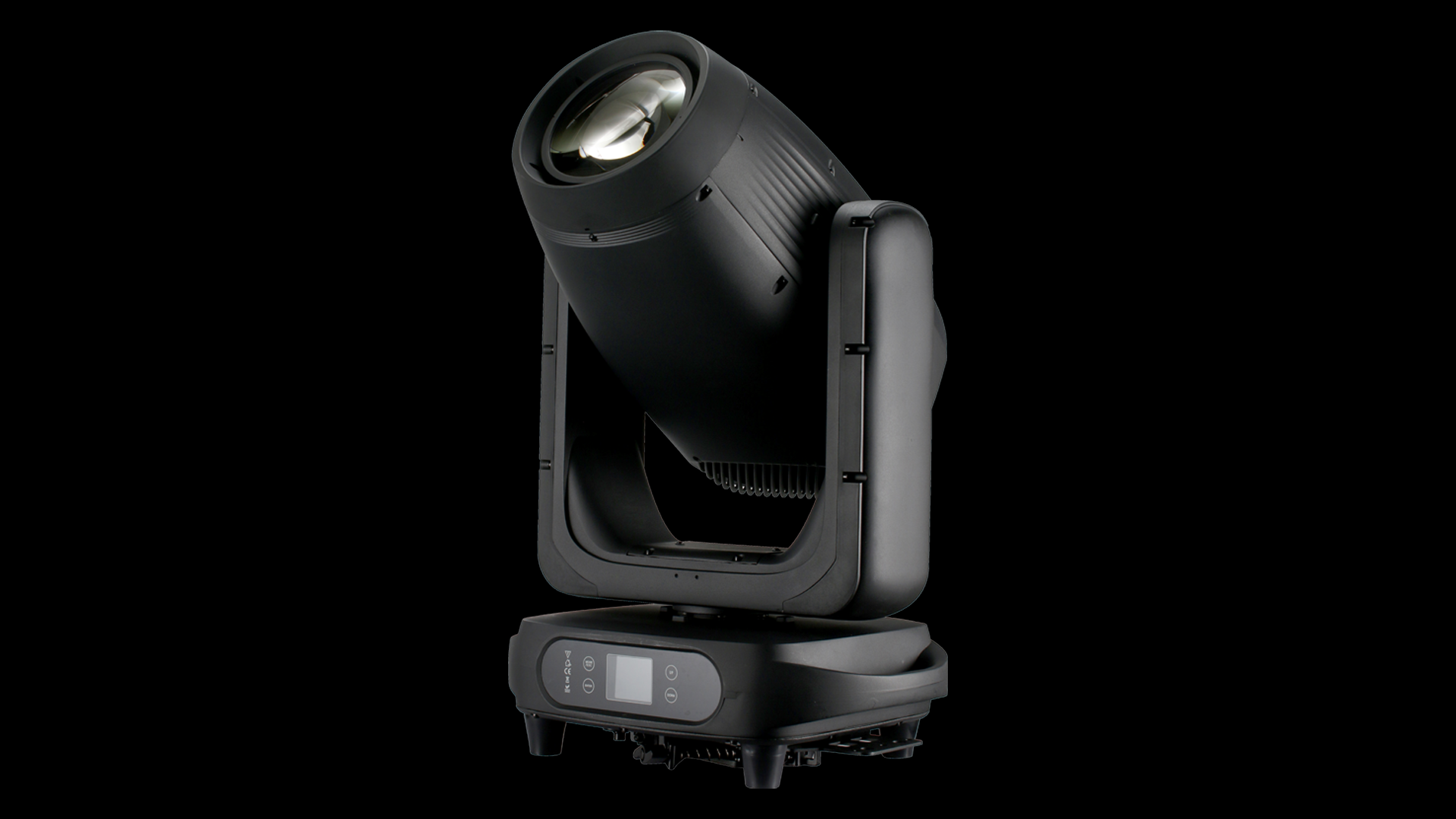

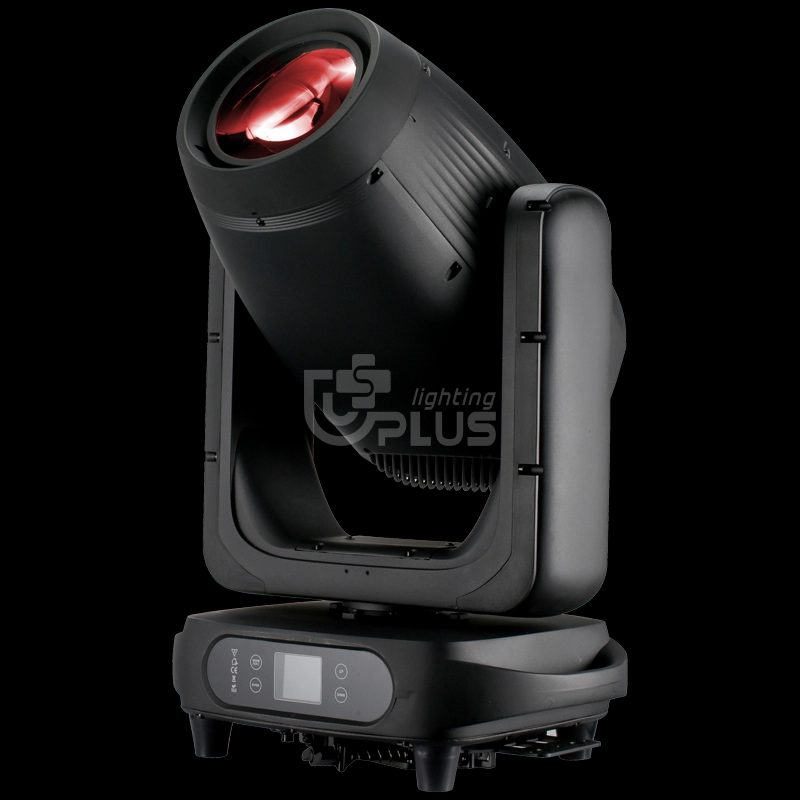

The UPLUS IP1000 BSW is an IP65 waterproof Beam, Spot and Wash 3-in-1 moving head designed for professional outdoor productions. It uses an 850W white LED, offers a wide 3.8°–50° zoom range, and features linear CMY color mixing, CTO adjustment from 3200K to 6800K, gobo effects, animation and prism effects. Its die-cast aluminum and aviation-grade magnesium alloy housing makes it suitable for concerts, festivals, touring productions, outdoor events and permanent entertainment installations.
