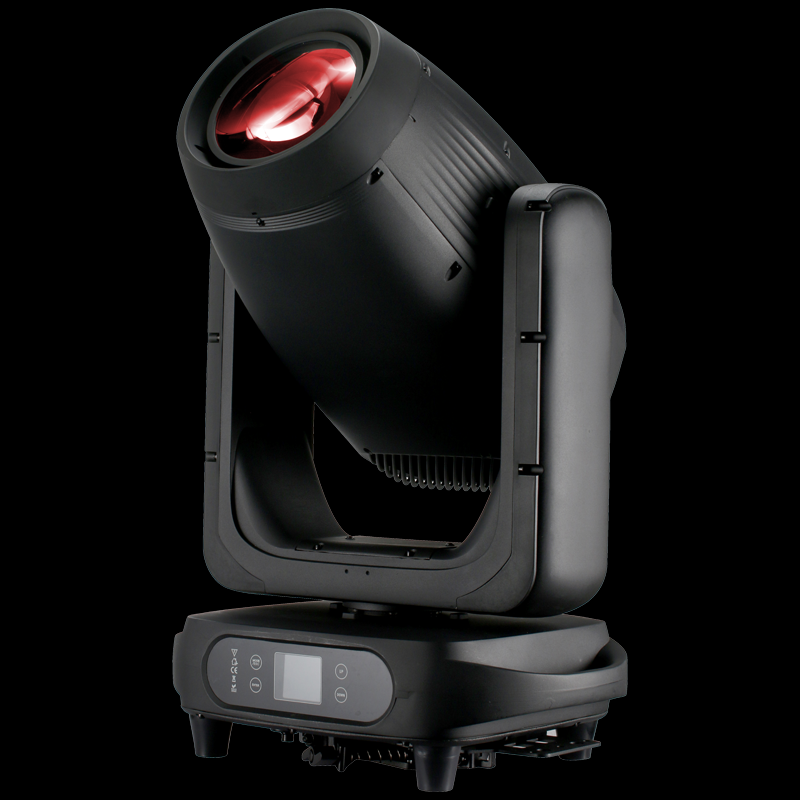

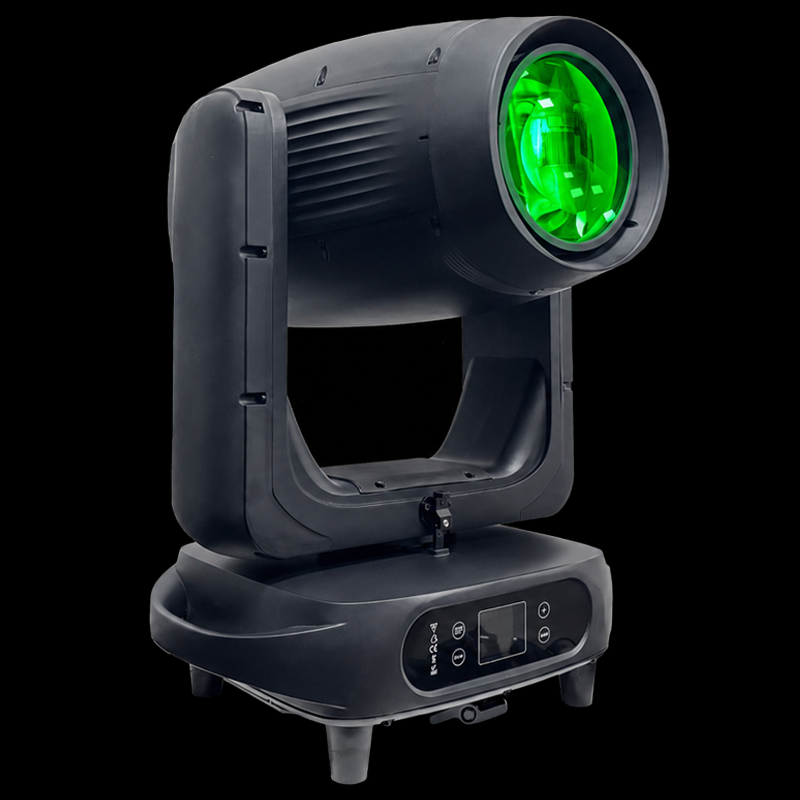

uplus-led-moving-head-side-angle-view - Uplus Lighting

uplus-moving-head-led-optical-lens-detail - Uplus Lighting

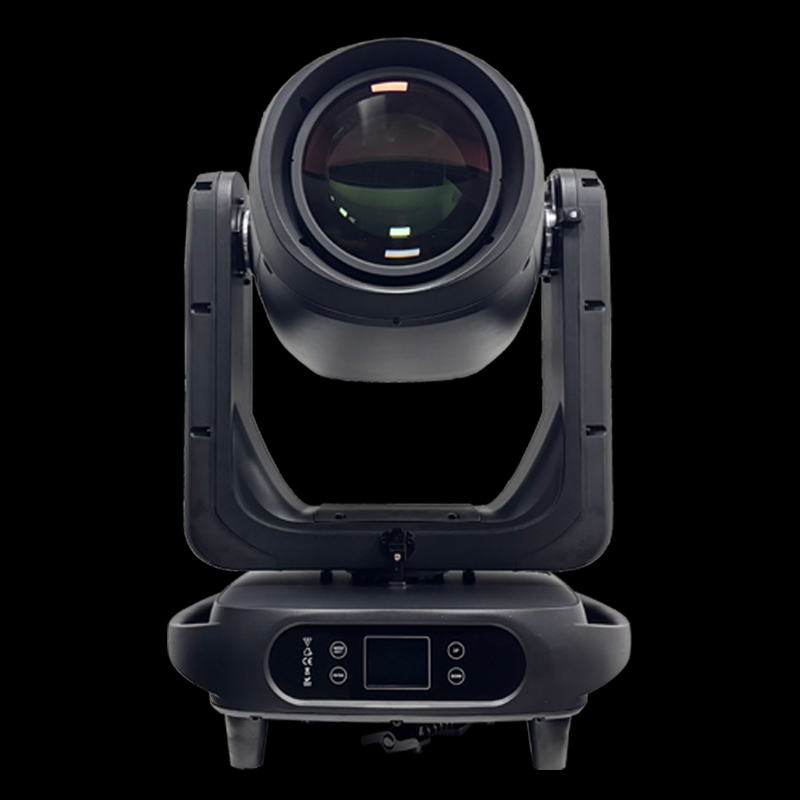

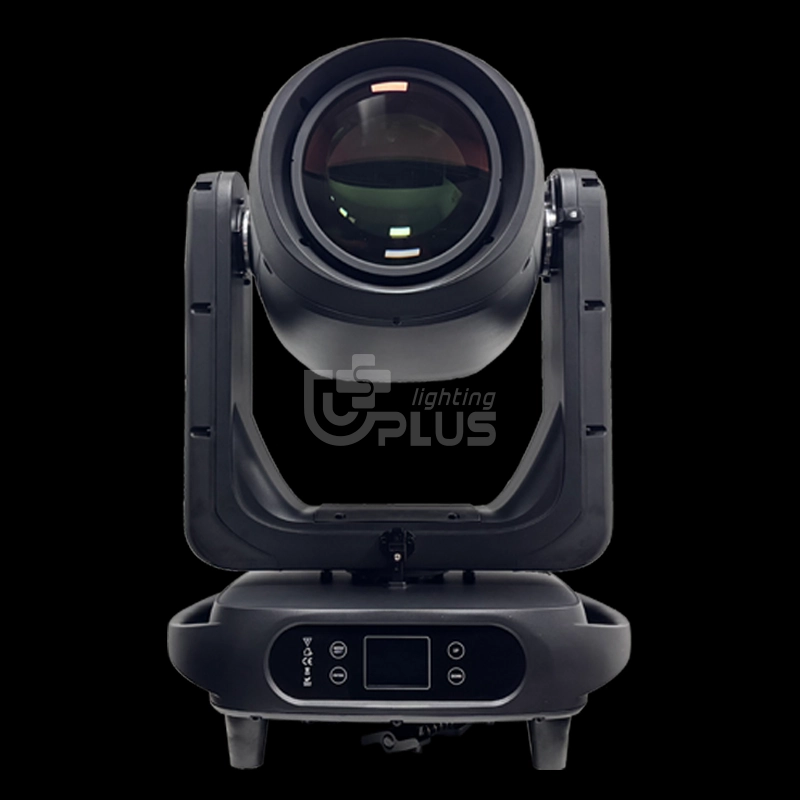

uplus-professional-led-moving-head-front-view - Uplus Lighting

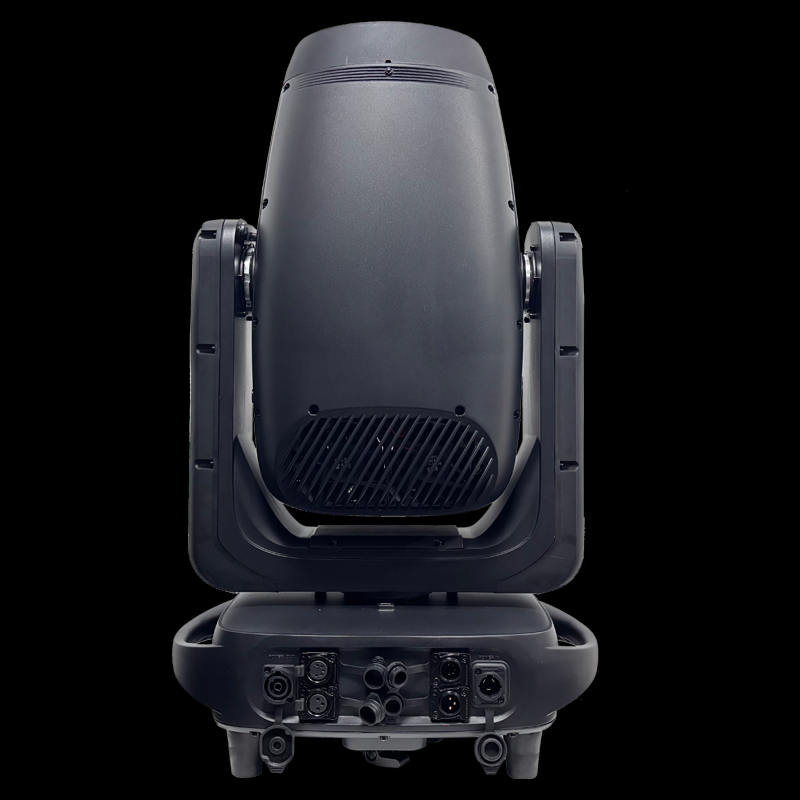

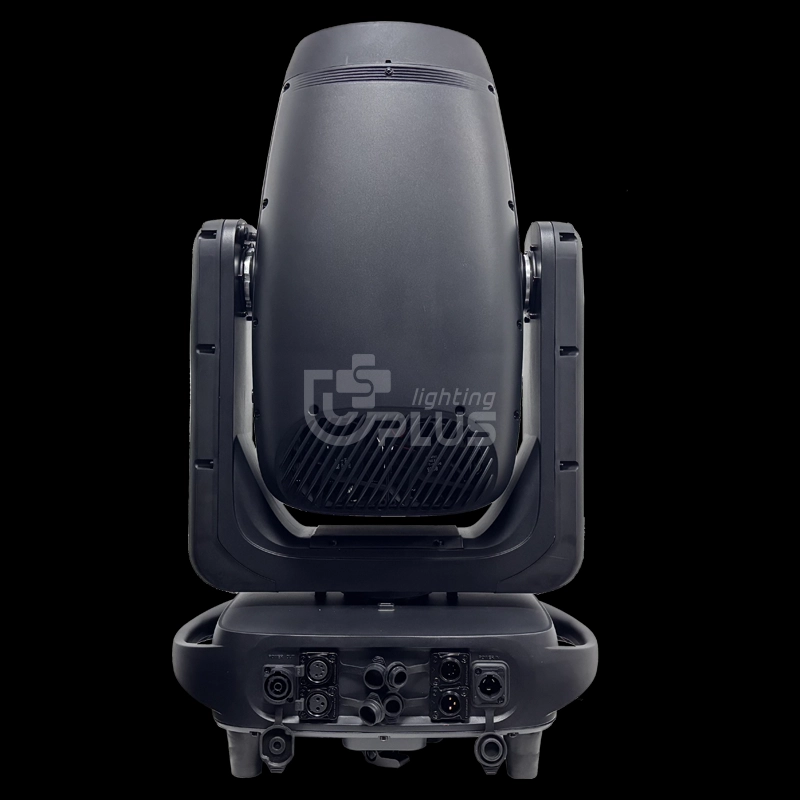

uplus-professional-moving-head-rear-view - Uplus Lighting

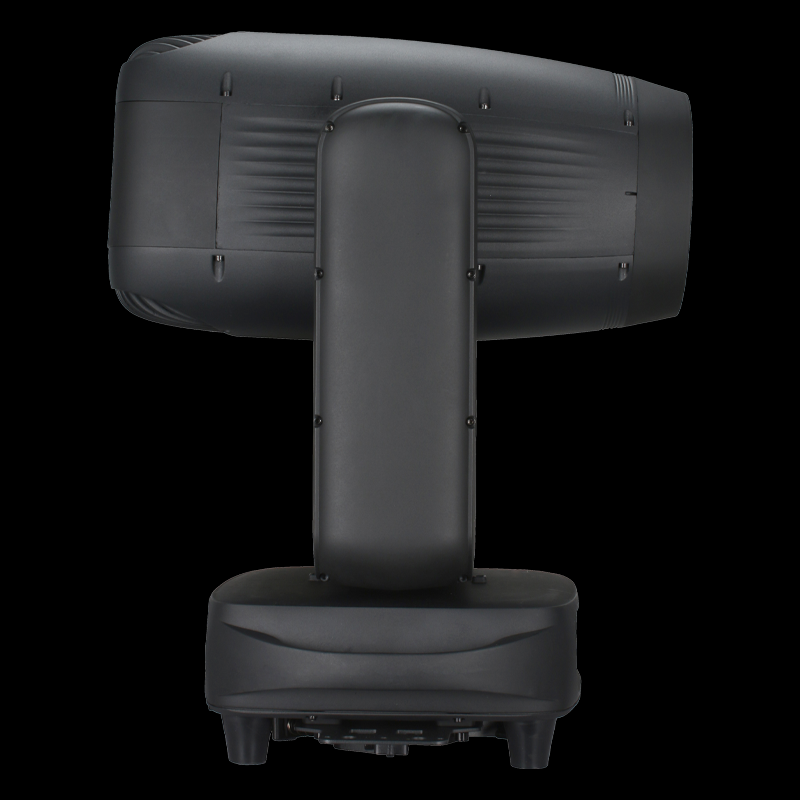

uplus-moving-head-light-rear-side-view - Uplus Lighting

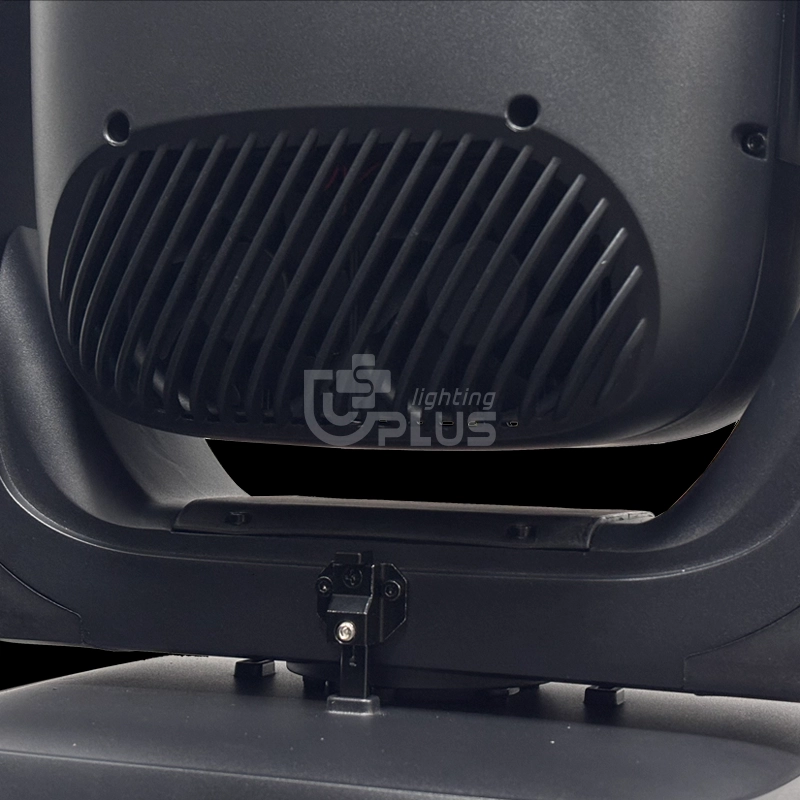

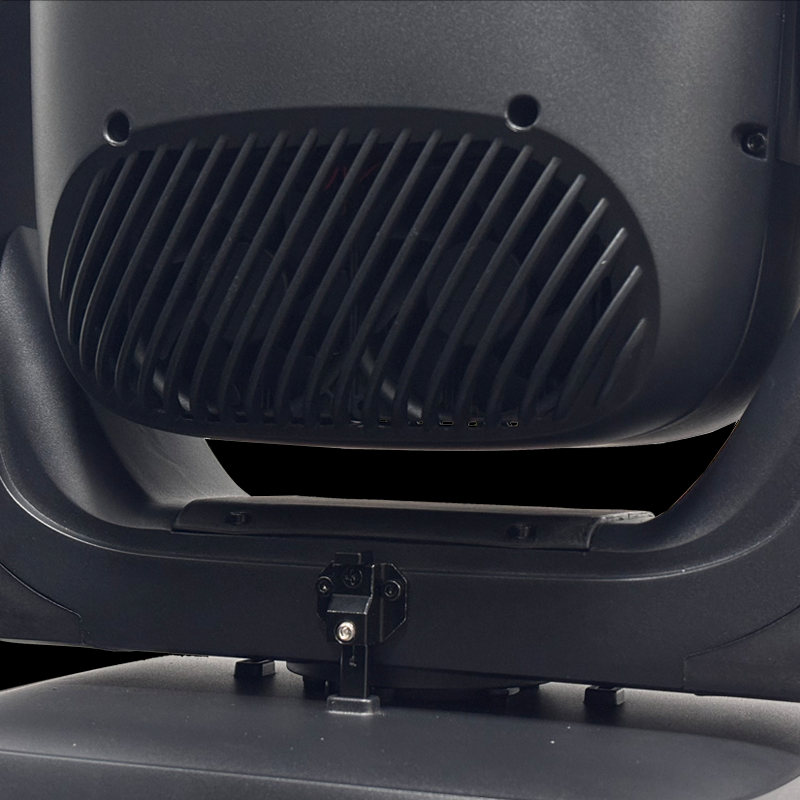

uplus-led-moving-head-base-cooling-system - Uplus Lighting

IP700 BSW 700W waterproof BSW 3in1 moving head

Q: Is the IP700 BSW suitable for outdoor concerts and festivals?

Yes. Its IP65 housing, 680W white LED, and 3.8°–50° zoom make it suitable for concerts, festivals, touring shows, and outdoor events.

Q: What can lighting designers achieve with the IP700 BSW?

It combines Beam, Spot, and Wash with CMY mixing, 3200K–6800K CTO, fixed and rotating gobos, animation, and a rotating 5-facet prism.

Q: Why is the IP700 BSW suitable for rental companies?

Its 3-in-1 design covers multiple applications with one fixture, while the IP65 housing supports frequent outdoor use and professional touring productions.

Q: What control features are available for lighting engineers?

The fixture supports 26/28/39CH DMX512 , 16-bit movement, 540° pan, 270° tilt, four dimming curves, and smooth 0–100% dimming.

700W Waterproof BSW 3-in-1 Moving Head combines beam, spot, and wash effects in one. IP-rated waterproof design, high-brightness output, precise control, ideal for outdoor & indoor stage events.

GET A FREE QUOTE ➜

GET THE PRODUCT CATALOG ➜

IP700BSW.pdf

INTRODUCTION

SPECIFICATIONS

EFFECT

LUX DATE & DIMENSION

FEATURES

APPLICATION

PACKAGING & LOGISTIC

FAQs

quote

700W waterproof BSW 3in1 moving head - Uplus Lighting

Specifications

OPTICS

•Light source: 680W White LED
•Max power consumption: 780W
•Beam angle: 3.8-50°
•Color Temperature: 6800K

FEATURES

•Body Materials:die-cast aluminum + aviation die-cast magnesium alloy
•Control mode: DMX512, RDM, self-walking, master-slave, sound control, built-in
•Channels: 26CH, 28CH，39CH
•Dimming: 4 dimming curves, 0~100% linear dimming
•CTO: 3200K~6800K, linear
•CMY: CMY linear
•Color wheel: 7 colors +white

•Fixed Gobo Wheel: 9 gobos+white

•Rotating Gobo Wheel: 7 gobos+white

•1 animation wheel
•Prism: Rotating 5-facet prism+ rotating

SPECIFICATION

•Dimension:418*299*654mm, NW:27.5 kg with folding hook

Effect

color wheel

CMY+CTO linear

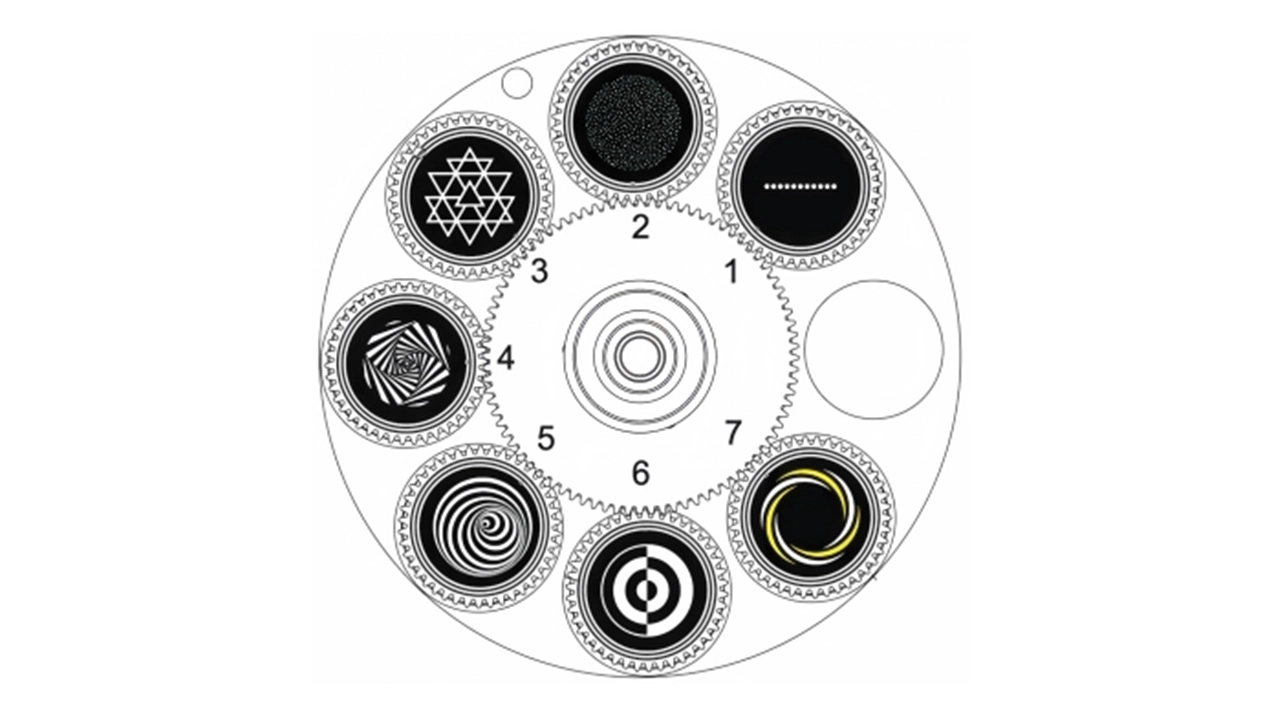

7 rotating gobo wheel

uplus-ip700-bsw-static-gobo-wheel - Uplus Lighting

9 fixed gobo wheel

uplus-ip700-bsw-animation-effect-wheel - Uplus Lighting

animation wheel

uplus-ip1000-bsw-wide-white-wash-effect - Uplus Lighting

Beam angle

uplus-ip1000-bsw-intense-white-stage-beam-effect - Uplus Lighting

Strobe

uplus-ip1000-bsw-green-stage-beam-effect - Uplus Lighting

7 colors+white

uplus-ip1000-bsw-green-orange-color-mixing-effect - Uplus Lighting

7 colors+white

uplus-ip1000-bsw-blue-stage-beam-effect - Uplus Lighting

CMY-cyan

uplus-ip1000-bsw-magenta-stage-beam-effect - Uplus Lighting

CMY-magenta

uplus-ip1000-bsw-yellow-stage-beam-effect - Uplus Lighting

CMY-yellow

uplus-ip1000-bsw-warm-white-stage-beam-effect - Uplus Lighting

CTO

uplus-ip1000-bsw-bright-white-beam-effect - Uplus Lighting

9 Fixed Gobos + white

uplus-ip1000-bsw-white-spot-beam-effect - Uplus Lighting

7 Rotating Gobos + white

uplus-ip1000-bsw-multiple-beam-prism-effect - Uplus Lighting

5-facet rotating gobo

LUX Date & Dimension

uplus-ip1000-bswf-dimensions-technical-drawing - Uplus Lighting

Features

uplus-ip700-bsw-600w-white-led-light-source - Uplus Lighting

uplus-ip1000-bsw-led-color-temperature-6500k - Uplus Lighting

uplus-ip1000-bswf-dimensions-418x299x654mm - Uplus Lighting

APPLICATION

Outdoor Festival

Powerful beams cut through haze across massive festival stages.

Stadium Concert

Long-throw beams deliver high-impact looks across stadium-scale productions.

City Plaza

Wide zoom and framing shape architecture-focused outdoor event lighting.

Theme Park

Bright beams create immersive nighttime spectaculars around landmark attractions.

IP1000 BSWF framing moving head for outdoor architectural lighting - Uplus Lighting

Heritage Show

Precise framing highlights façades while protecting architectural details.

IP1000 BSWF IP65 stage lights for open-air amphitheater productions - Uplus Lighting

Open Amphitheater

Strong output maintains visibility across large open-air performance venues.

Packaging & Logistic

Packaging

Cartons or flight cases.

Production Time

Depends on the production time required for the product.

Shipping

Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

Can't find your answer?

Learn more

IP700 BSW

What control features are available for lighting engineers?

The fixture supports 26/28/39CH DMX512, 16-bit movement, 540° pan, 270° tilt, four dimming curves, and smooth 0–100% dimming.

What can lighting designers achieve with the IP700 BSW?

It combines Beam, Spot, and Wash with CMY mixing, 3200K–6800K CTO, fixed and rotating gobos, animation, and a rotating 5-facet prism.

Is the IP700 BSW suitable for outdoor concerts and festivals?

Yes. Its IP65 housing, 680W white LED, and 3.8°–50° zoom make it suitable for concerts, festivals, touring shows, and outdoor events.

Why is the IP700 BSW suitable for rental companies?

Its 3-in-1 design covers multiple applications with one fixture, while the IP65 housing supports frequent outdoor use and professional touring productions.

Why choose UPLUS as an IP65 moving head supplier?

UPLUS is a professional stage lighting manufacturer with over 14 years of manufacturing and export experience, supporting OEM, customization, strict QC, aging tests, waterproof tests, and professional product inspection.
