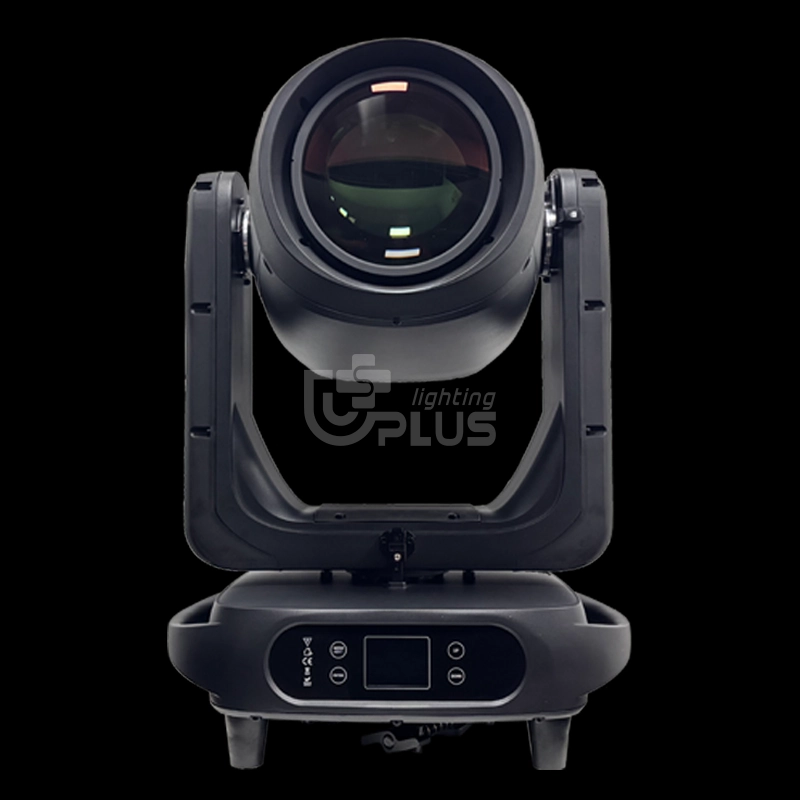

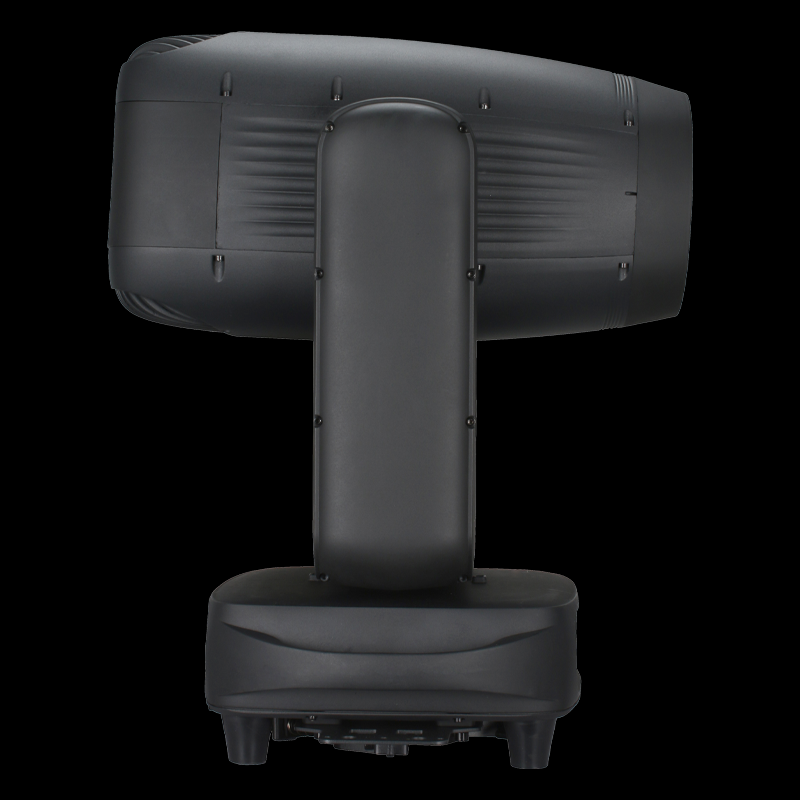

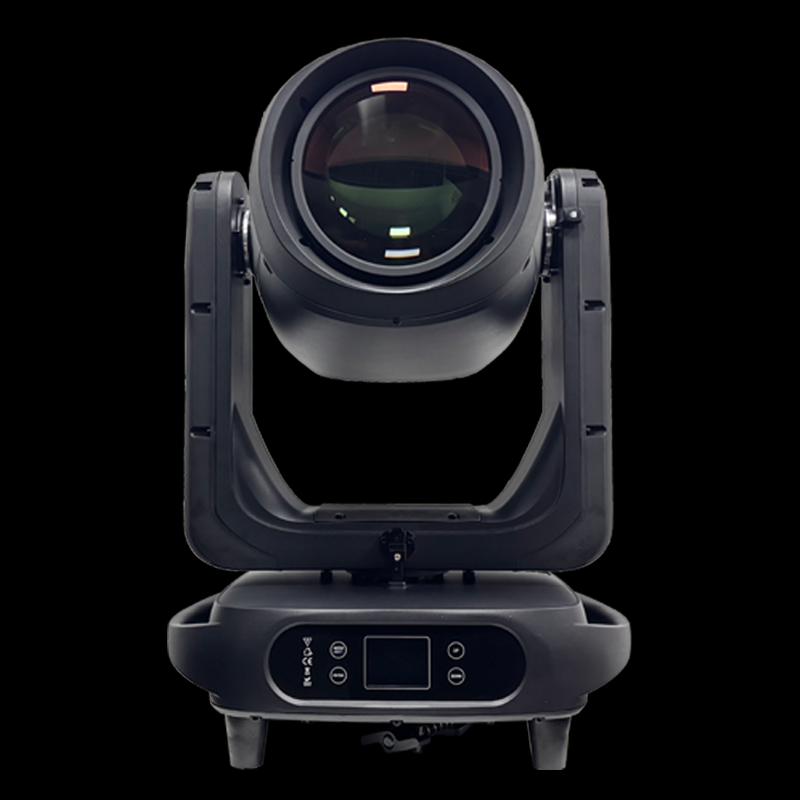

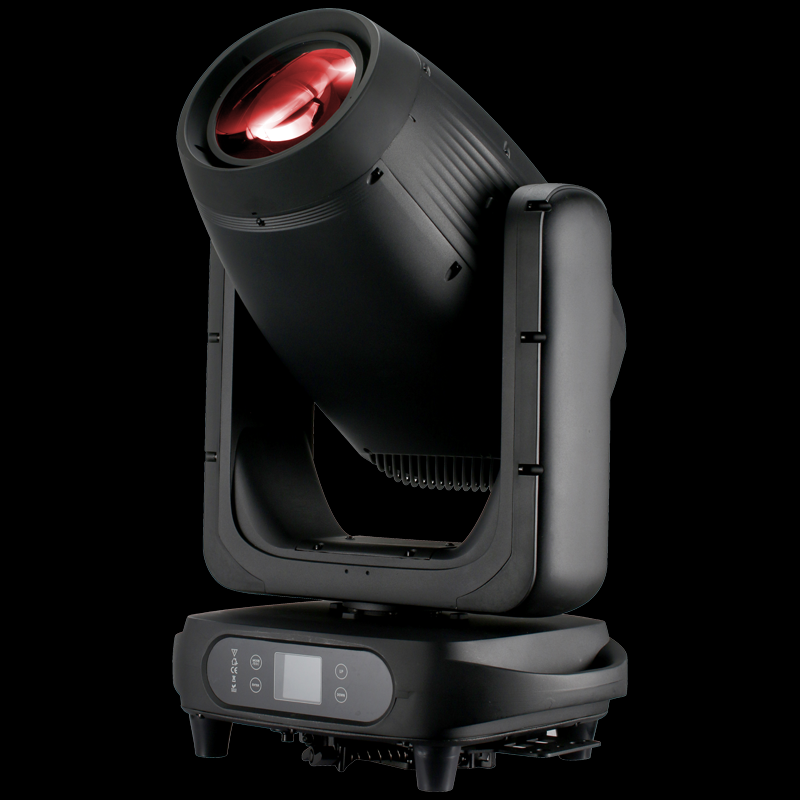

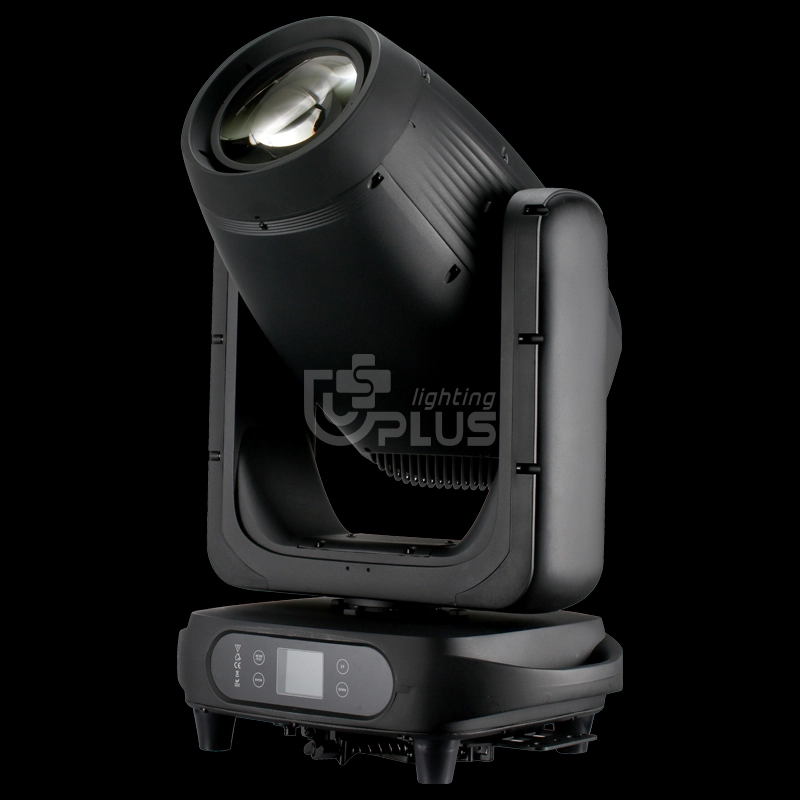

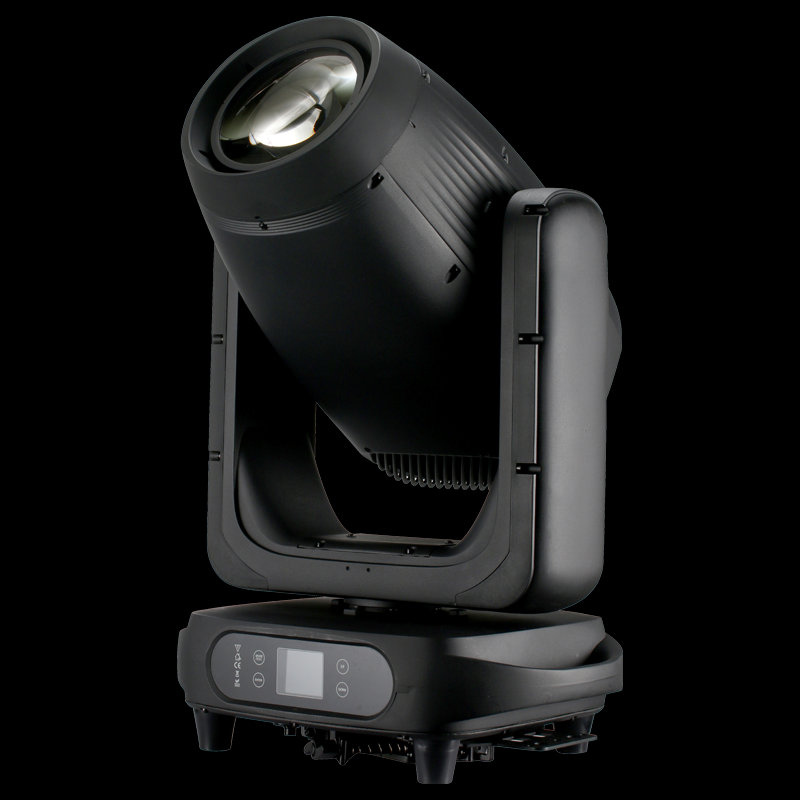

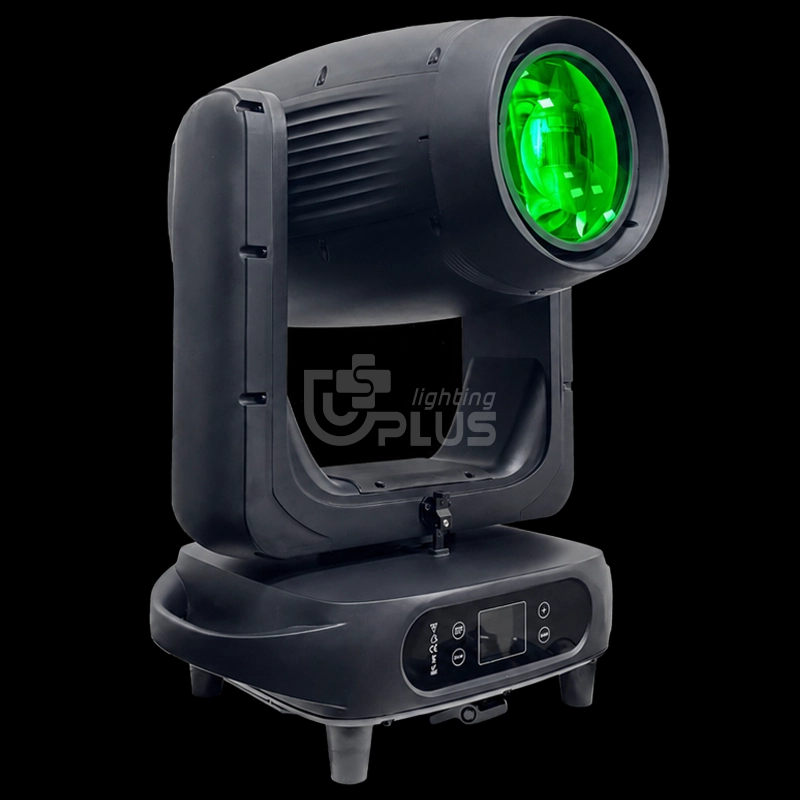

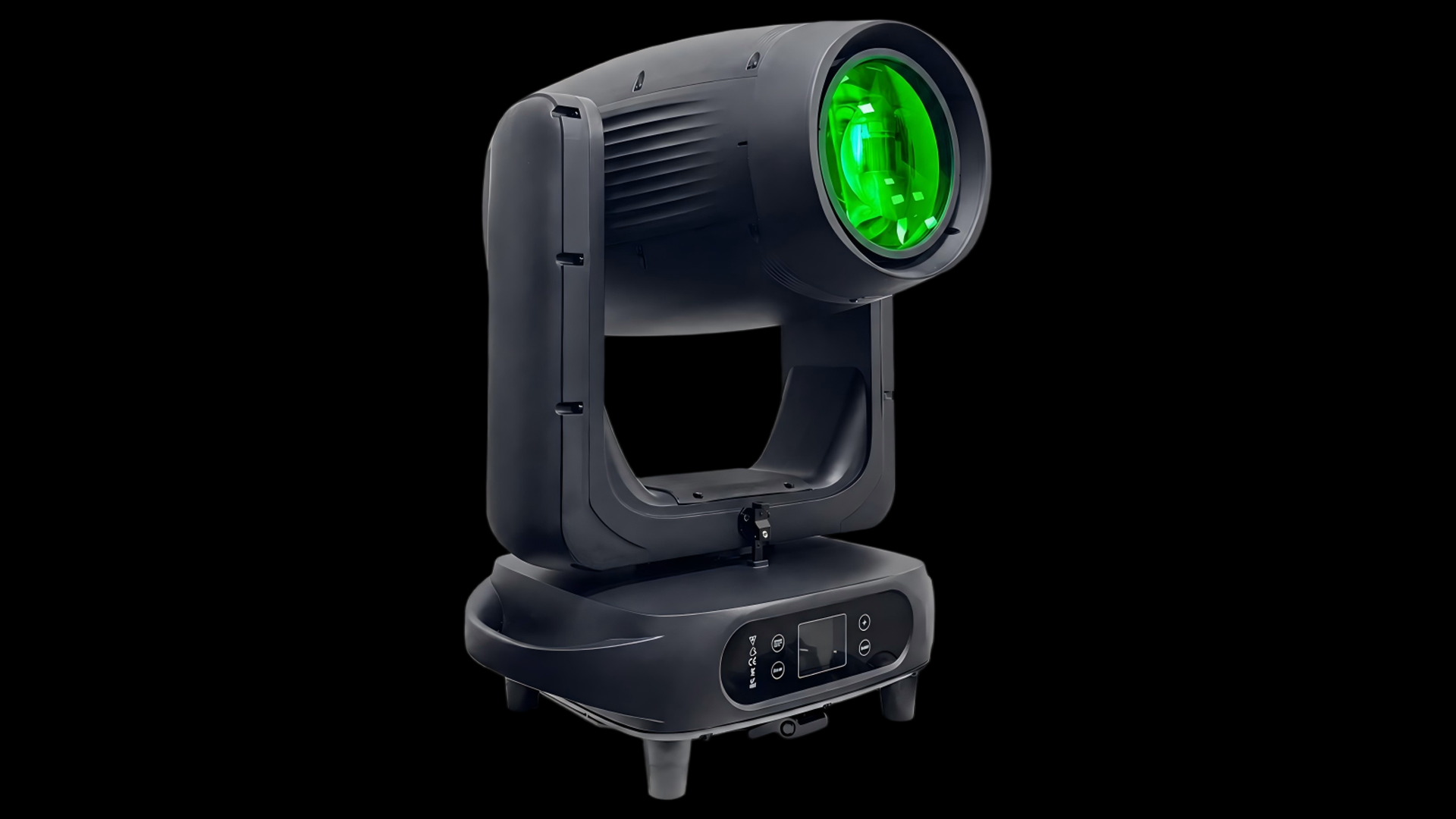

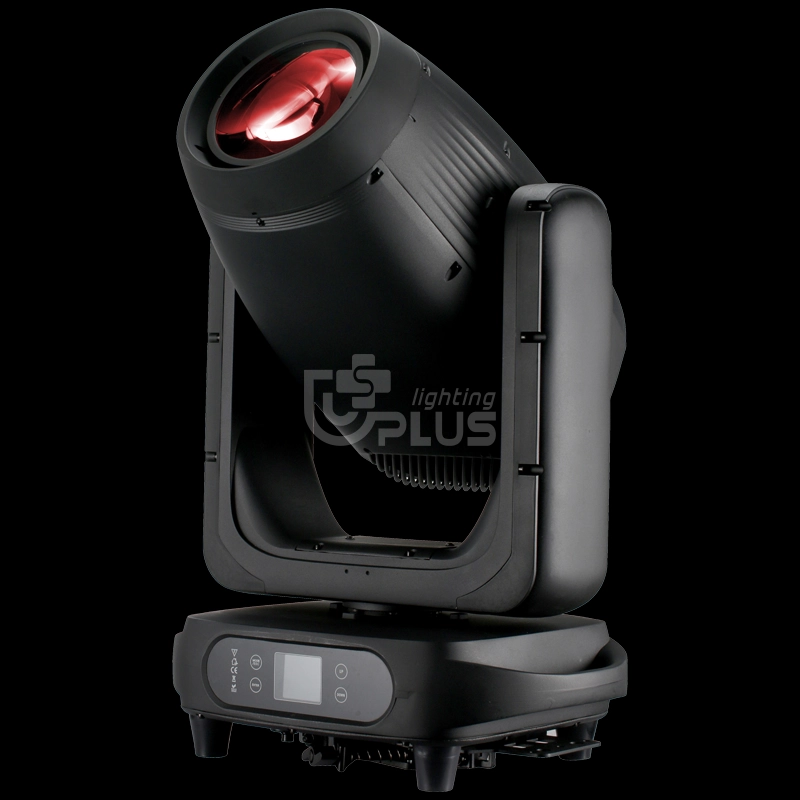

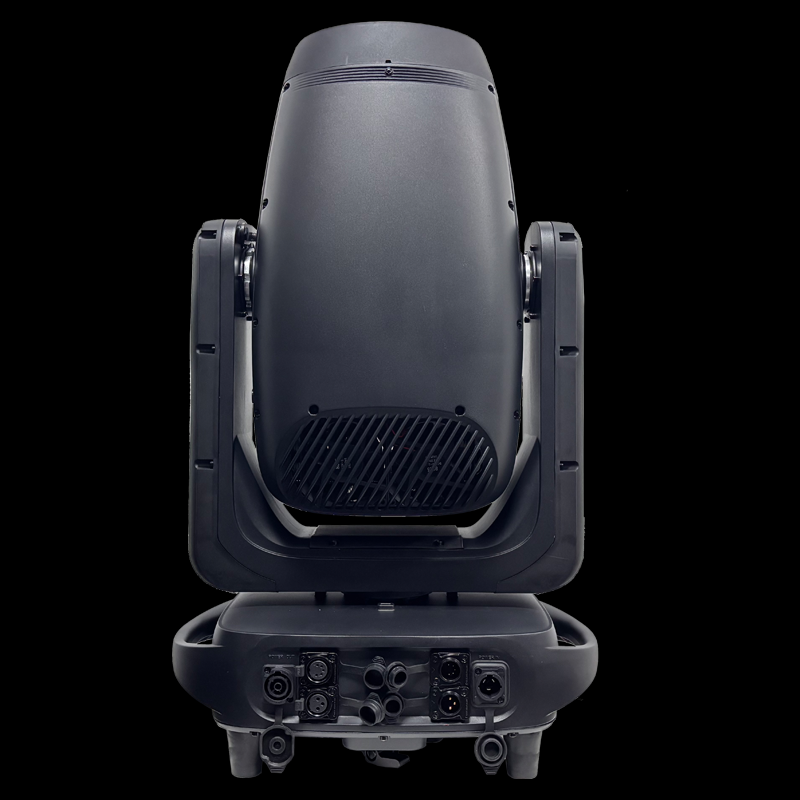

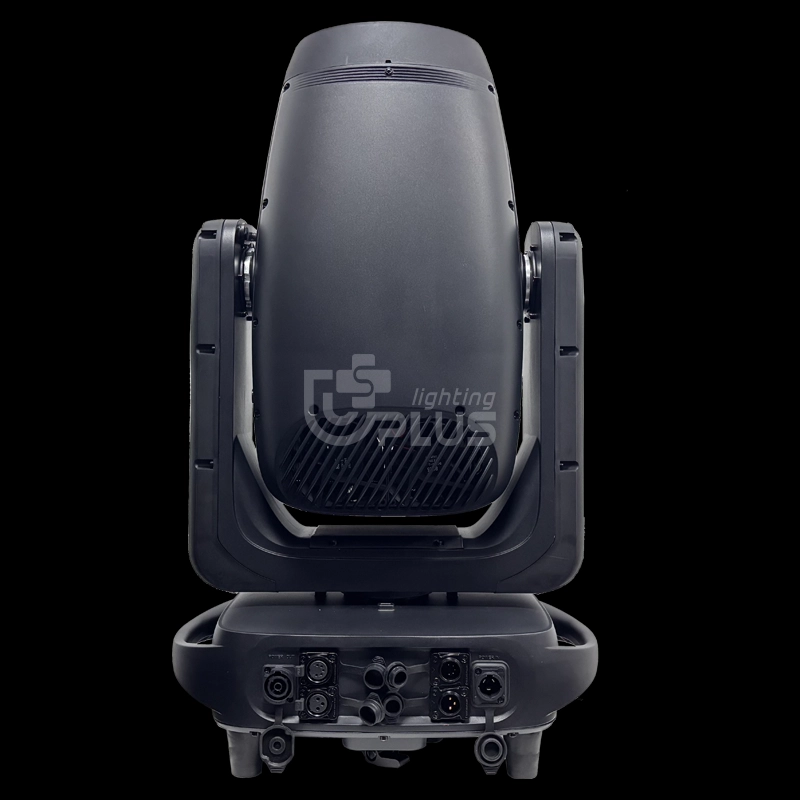

IP1000 BSWF PRO Pro 1000W waterproof BSWF 4in1 moving head
BSWF moving head IP65 stage light IP1000 BSWF PRO Pro 1000W by Uplus Lighting offers durable, waterproof performance with 4-in-1 functionality for versatile stage effects. Designed for reliable outdoor and indoor use, it ensures consistent lighting in demanding environments.
Specifications
OPTICS
•Light source: 850W White LED
•Max power consumption: 1080W
•Beam angle: 3.8-50°
•Color Temperature: 6800K
FEATURES
•Body Materials: die-cast aluminum+aviation die-cast magnesium alloy
•Control mode: DMX512, RDM, self-walking, master-slave, sound control, built-in
•Channels: DMX512 Channel
•Dimming: 4 dimming curves, 0~100% linear dimming
•CTO: 3200K~6800K, linear
•CMY: CMY linear
•Color wheel: 7 colors +white
•Fixed Gobo Wheel: 9 gobos+white
•Rotating Gobo Wheel: 7 gobos+white
•1 animation wheel
•Frost: 1 light atomizer + 1 heavy atomizer
•Prism:
prism1: Rotating 5-facet prism;
prism2: Rotating 4-face linear prism
•Cutting: 8 individually positionable framing blades ,Framing system rotation +/-90°
SPECIFICATION
•Dimension:418*299*654mm, NW:30.65 kg with folding hook
Effect
color wheel
CMY+CTO linear
7 rotating gobo wheel
9 fixed gobo wheel
Beam angle
Strobe
7 colors+white
7 colors+white
CMY-cyan

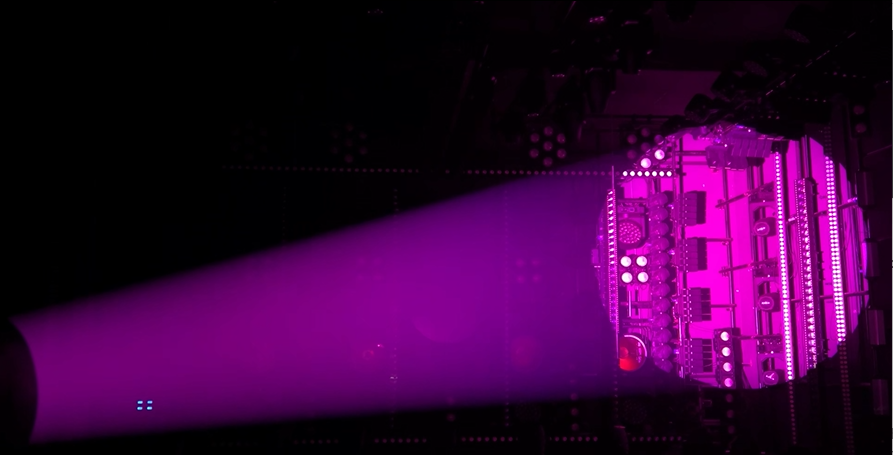

CMY-magenta
CMY-yellow
CTO

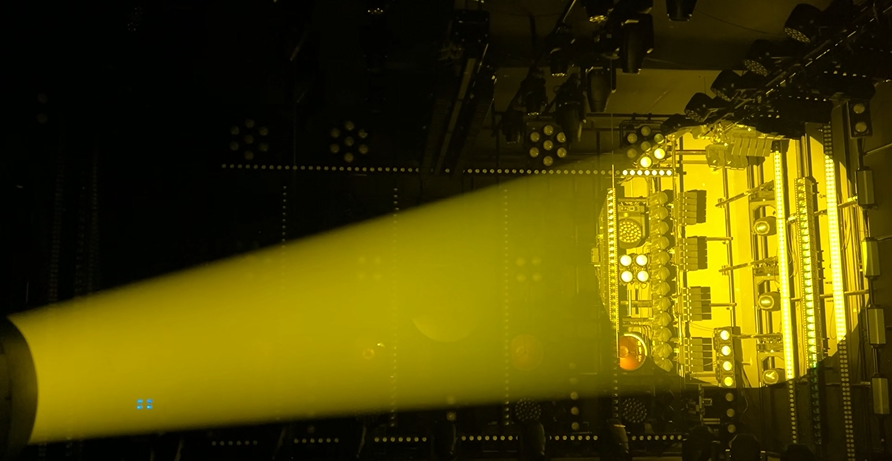

9 Fixed Gobos + white

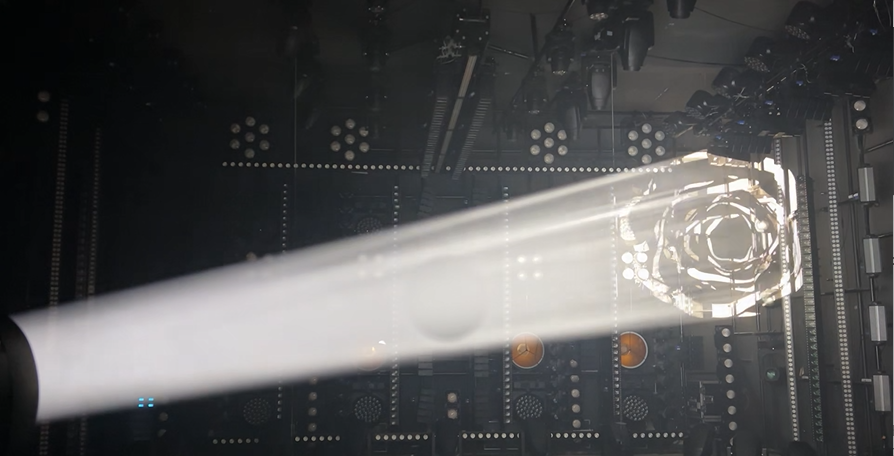

7 Rotating Gobos + white
5-facet rotating gobo
Features
APPLICATION
Outdoor Festival
Powerful beams cut through haze across massive festival stages.
Stadium Concert
Long-throw beams deliver high-impact looks across stadium-scale productions.
City Plaza
Wide zoom and framing shape architecture-focused outdoor event lighting.
Theme Park
Bright beams create immersive nighttime spectaculars around landmark attractions.
Heritage Show
Precise framing highlights façades while protecting architectural details.
Open Amphitheater
Strong output maintains visibility across large open-air performance venues.
Packaging & Logistic
Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
Abou Logistics and Payment
Can you ship to my country?
We ship worldwide, covering major markets such as Europe, North America, and Russia. Please confirm the customs clearance policy of your destination on the official website.
What payment methods do you accept?
Accepts T/T (Telegraphic Transfer), Alipay International, and PayPal. A 30% advance payment is required for some customized orders.
IP1000 BSWF PRO
Is the IP1000 BSWF PRO powerful enough for large outdoor concerts and touring productions?
Yes. The IP1000 BSWF PRO uses an 850W white LED with a maximum power consumption of 1080W. Combined with its 3.8°–50° zoom range, it can deliver concentrated beam effects as well as wider stage coverage. Its IP65-rated housing also makes it well suited for outdoor concerts, festivals, touring productions, rental fleets, and large-scale events.
What makes the IP1000 BSWF PRO useful for professional lighting designers?
The fixture combines Beam, Spot, Wash, and Framing functions in one moving head. It features linear CMY color mixing, 3200K–6800K CTO, 7 colors plus open, 9 fixed gobos, 7 rotating gobos, and an animation wheel. This gives designers a wide range of options for creating aerial beams, textured projections, color looks, stage washes, and precise key-light effects from a single fixture.
How advanced is the framing system for theater and project applications?
The IP1000 BSWF PRO features 8 individually positionable framing blades with ±90° framing system rotation. This allows lighting designers to precisely shape the beam, control unwanted spill, and highlight specific performers, scenery, architectural elements, or stage areas. It is especially useful for theaters, TV productions, corporate events, exhibitions, and fixed installations.
