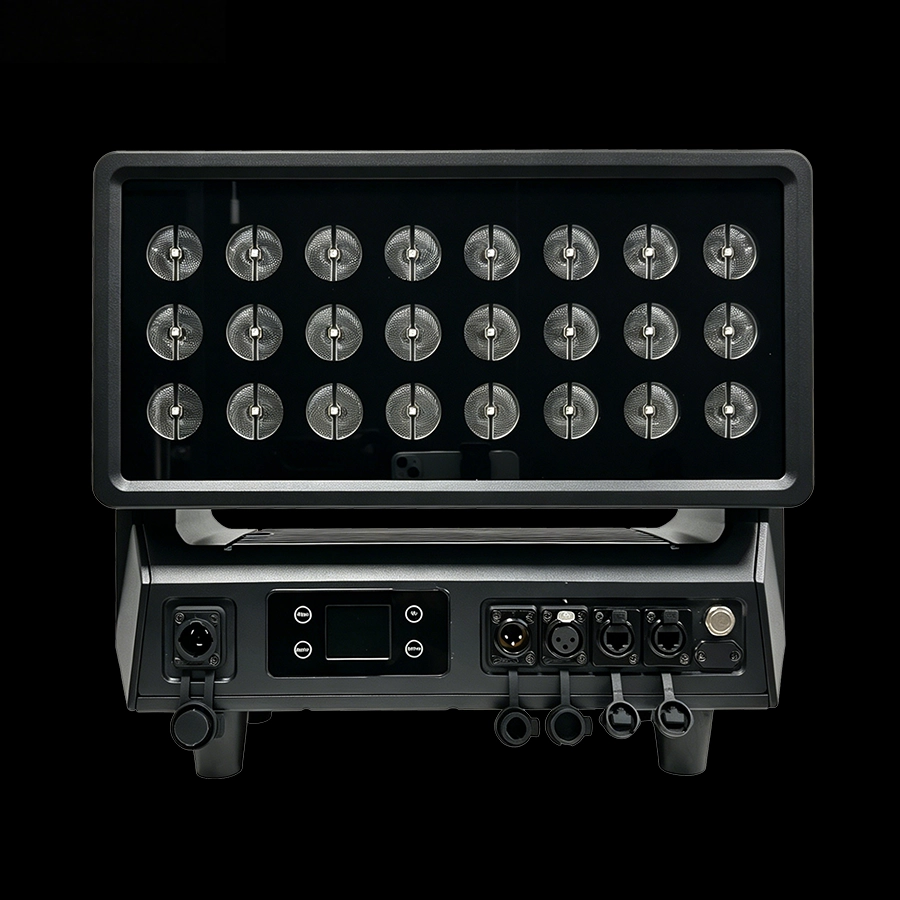

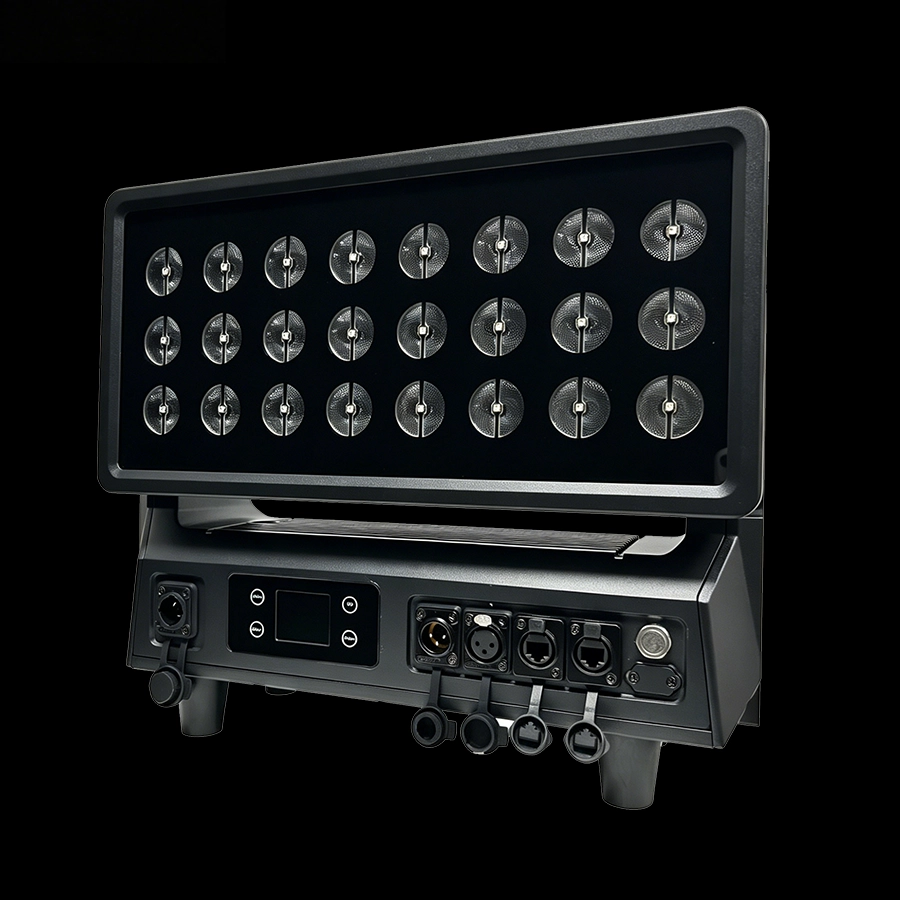

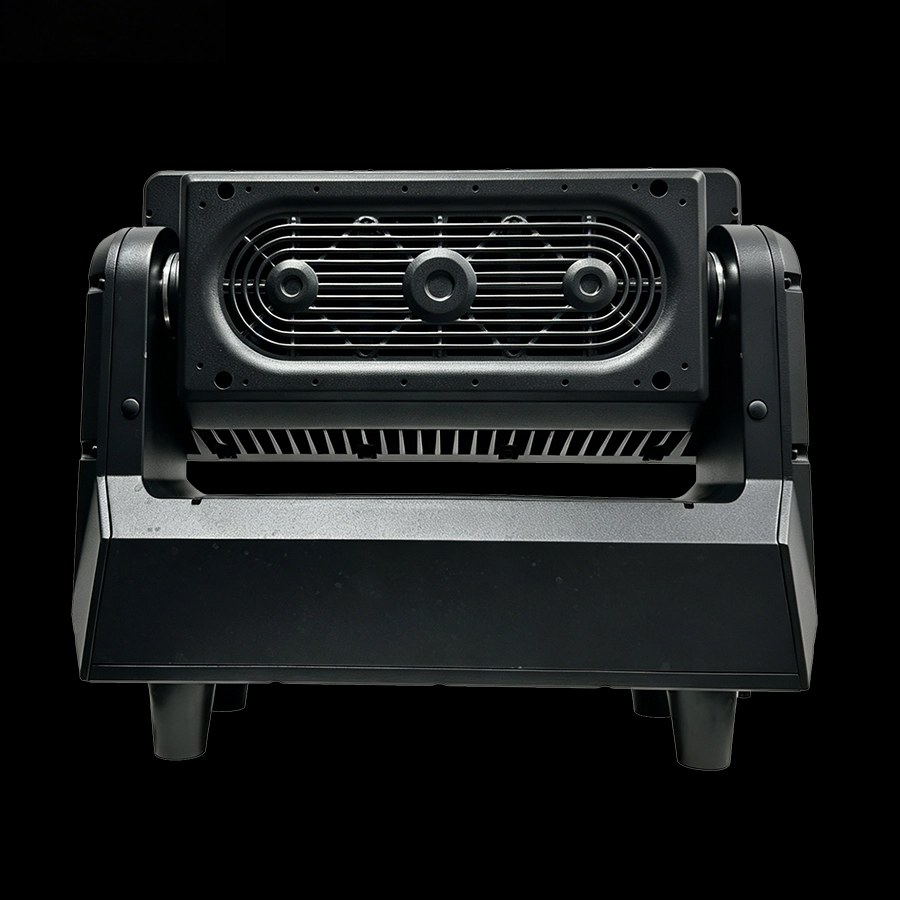

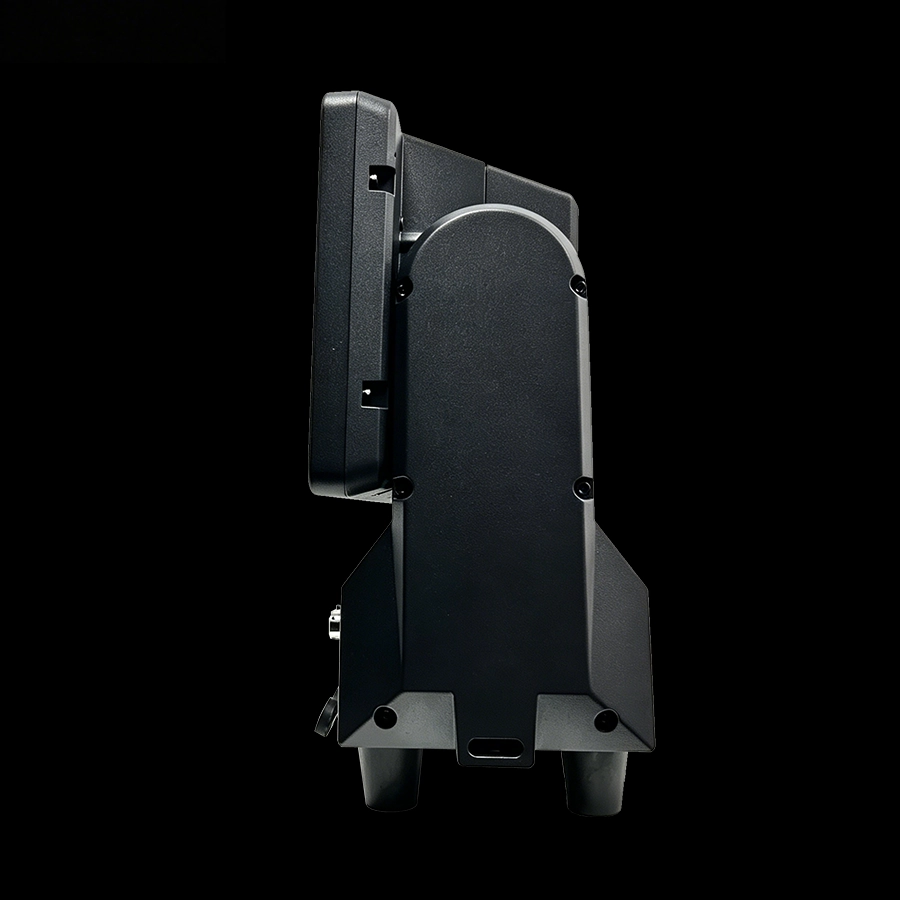

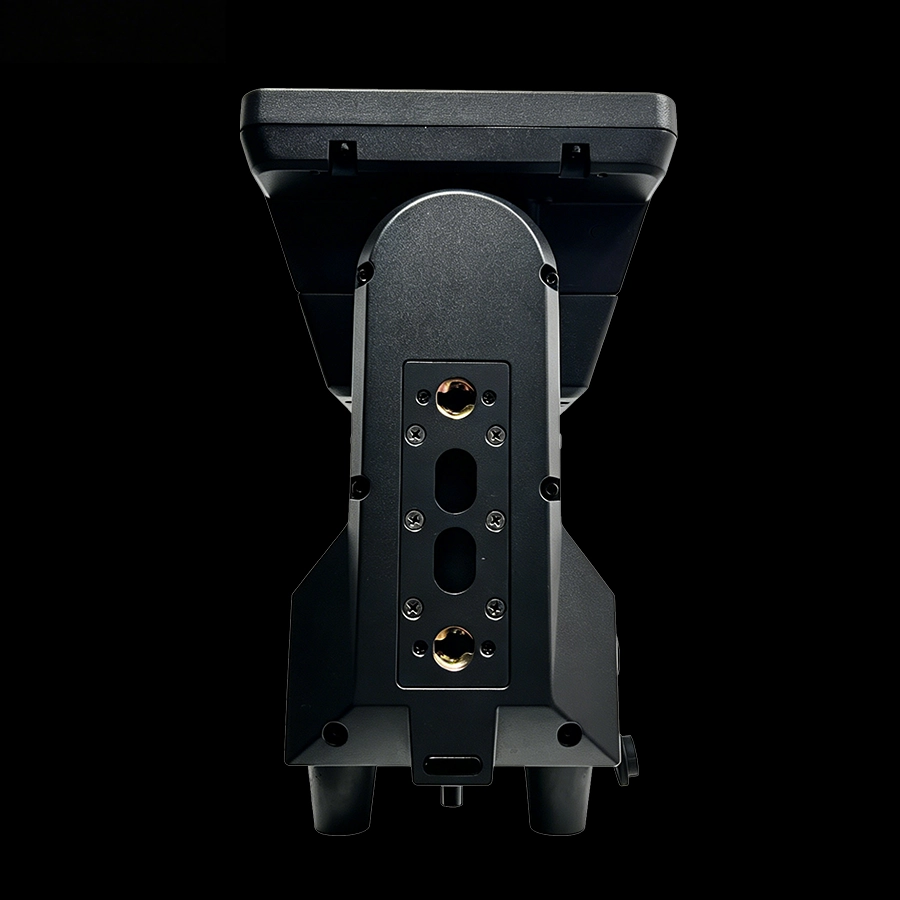

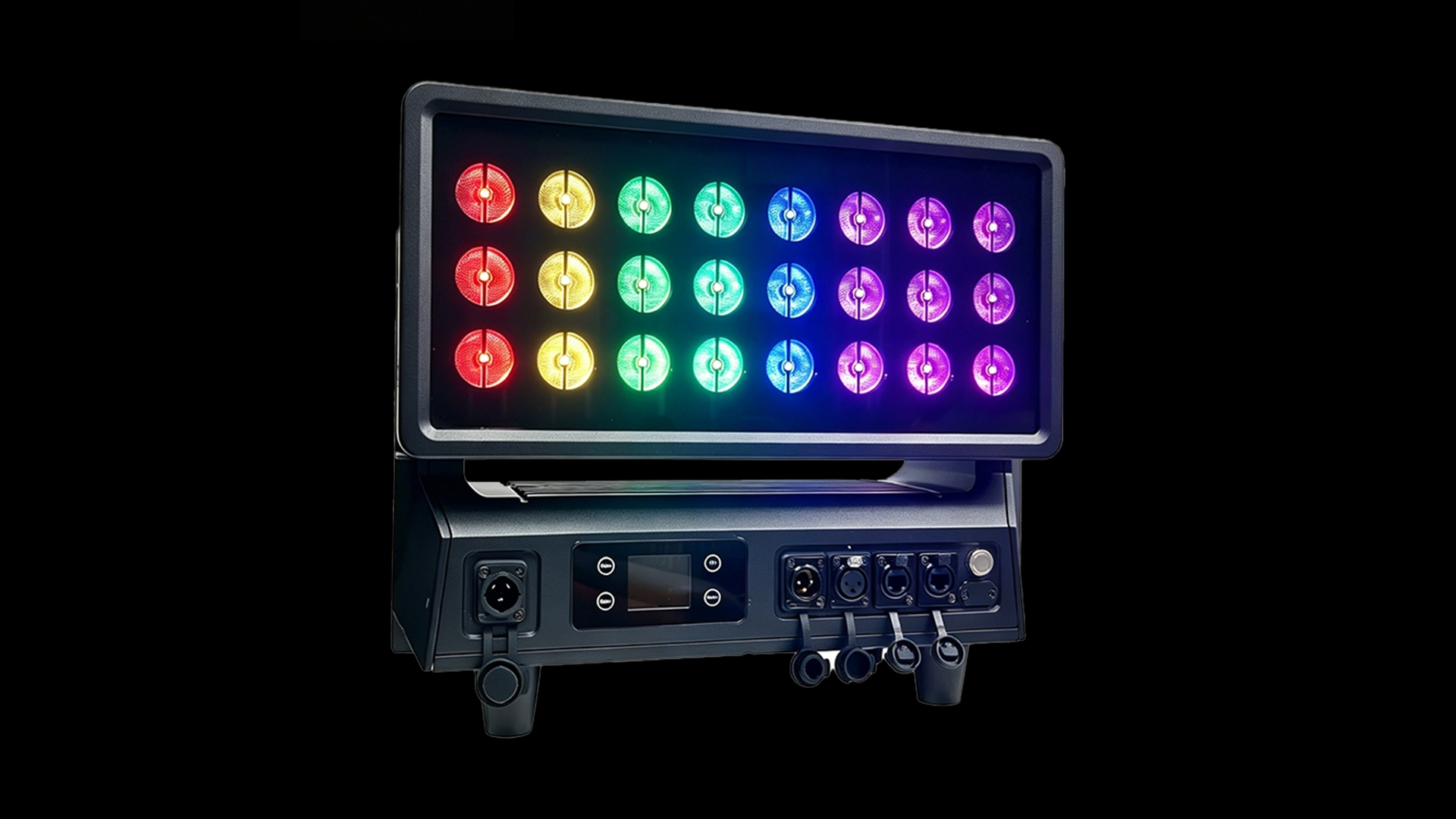

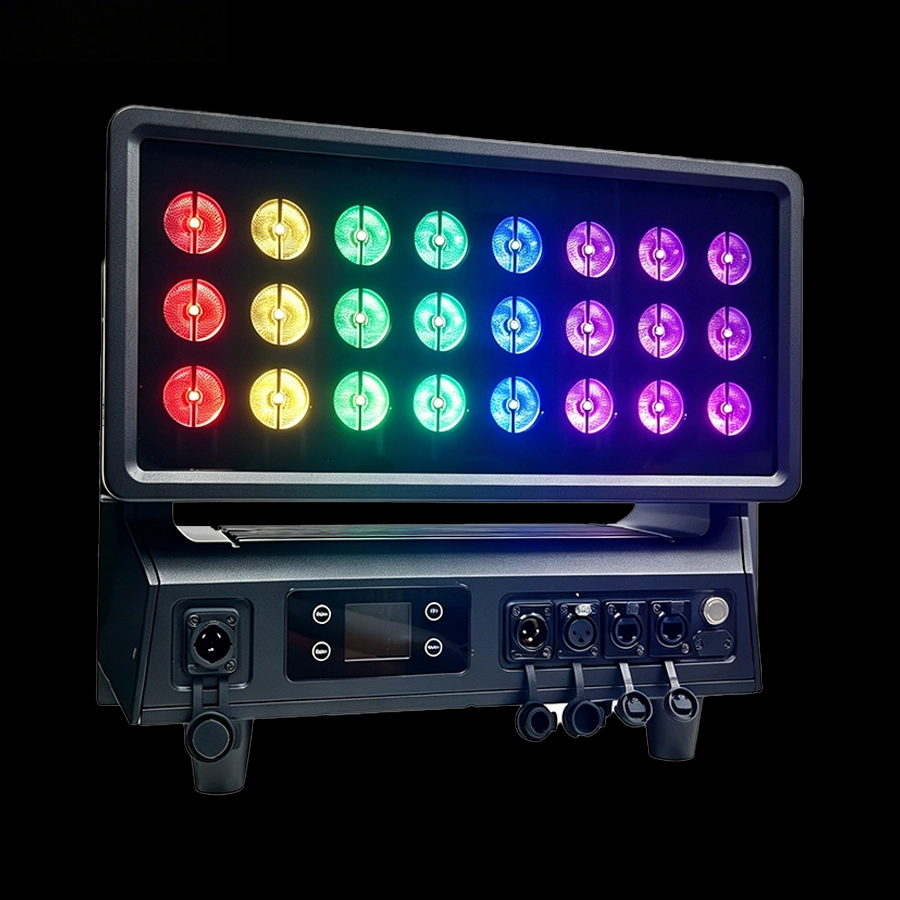

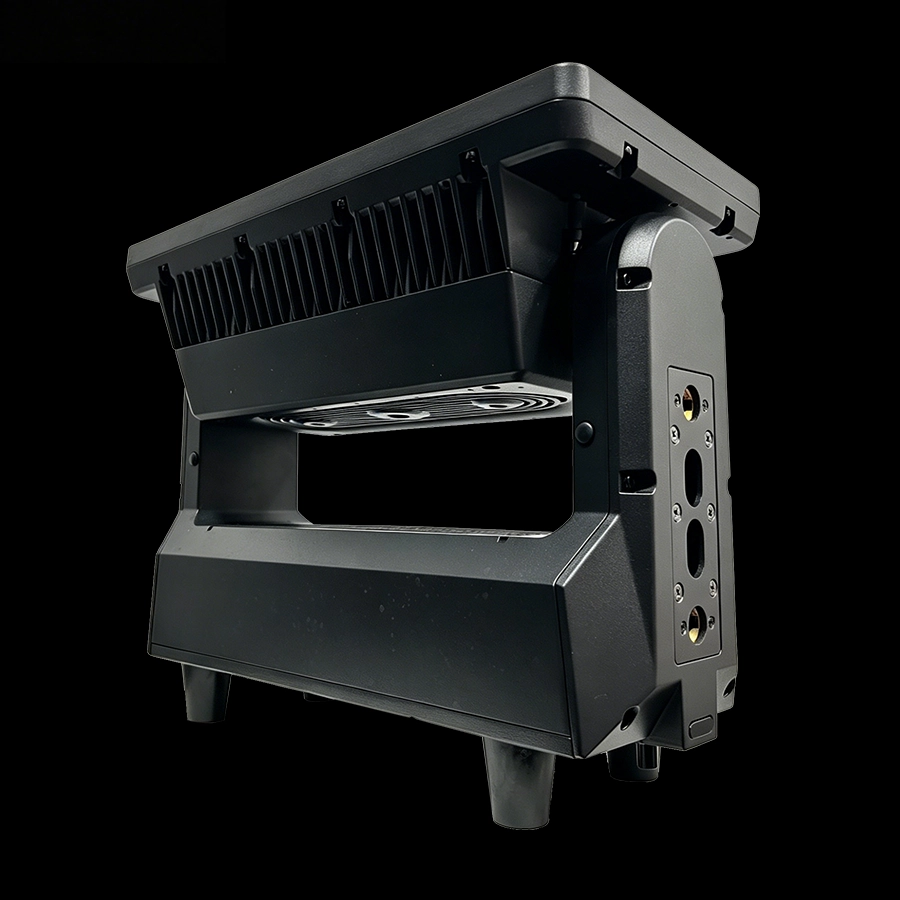

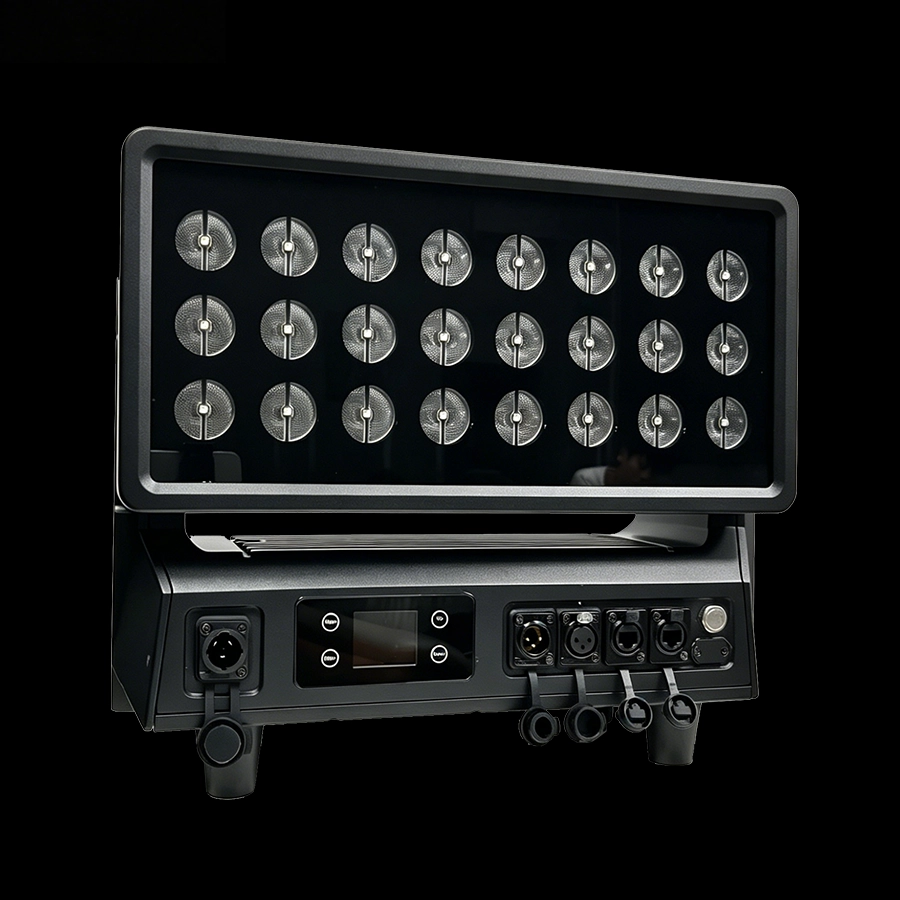

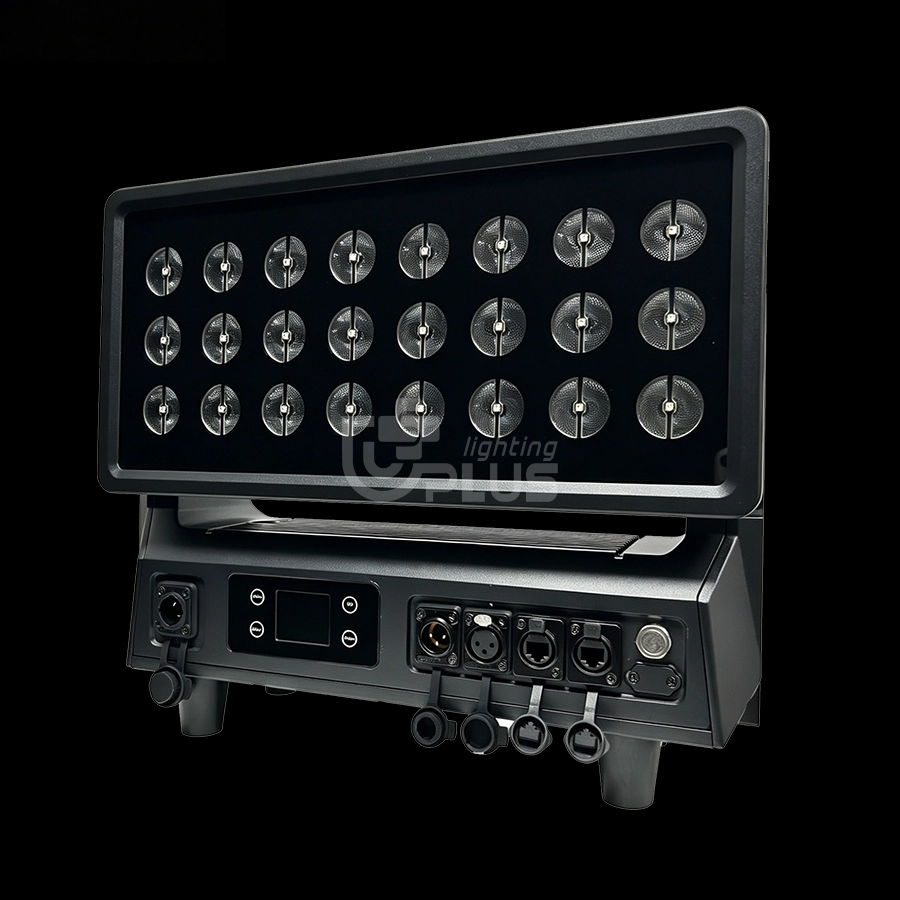

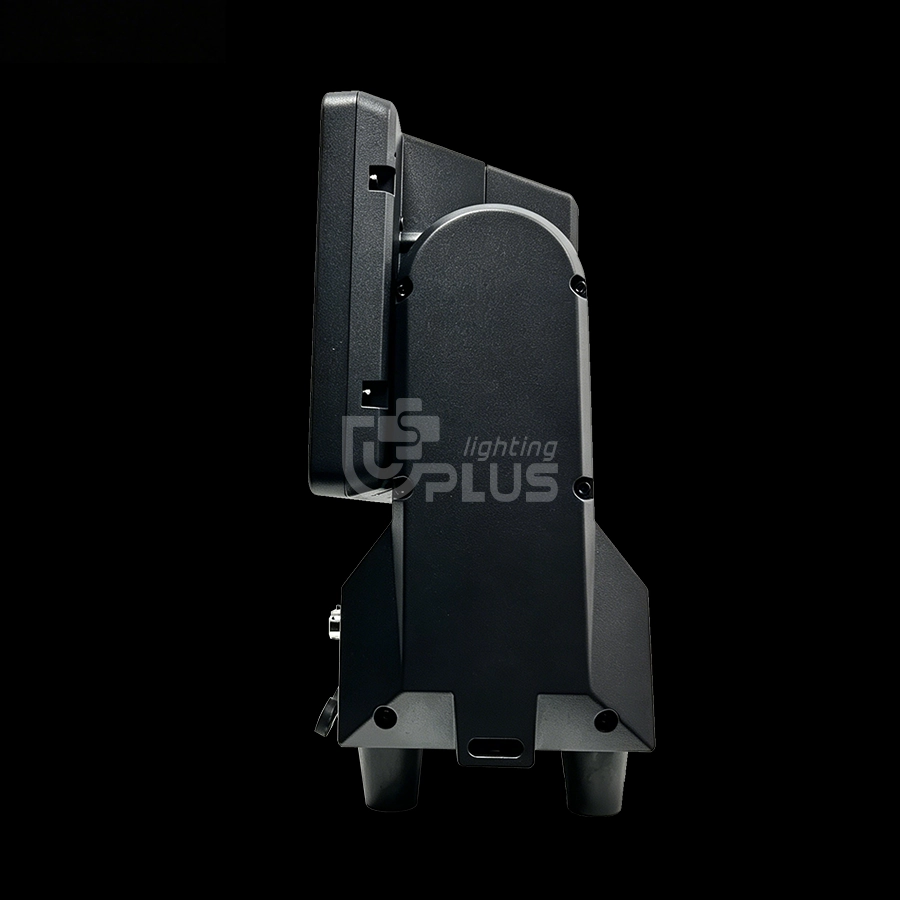

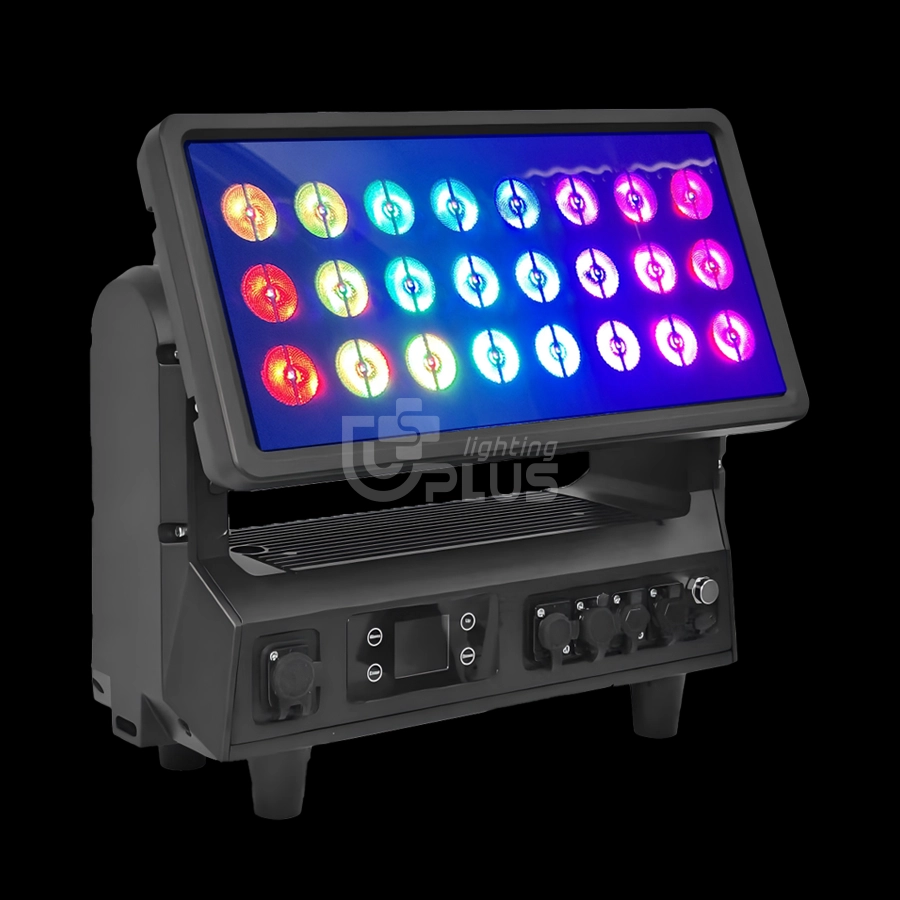

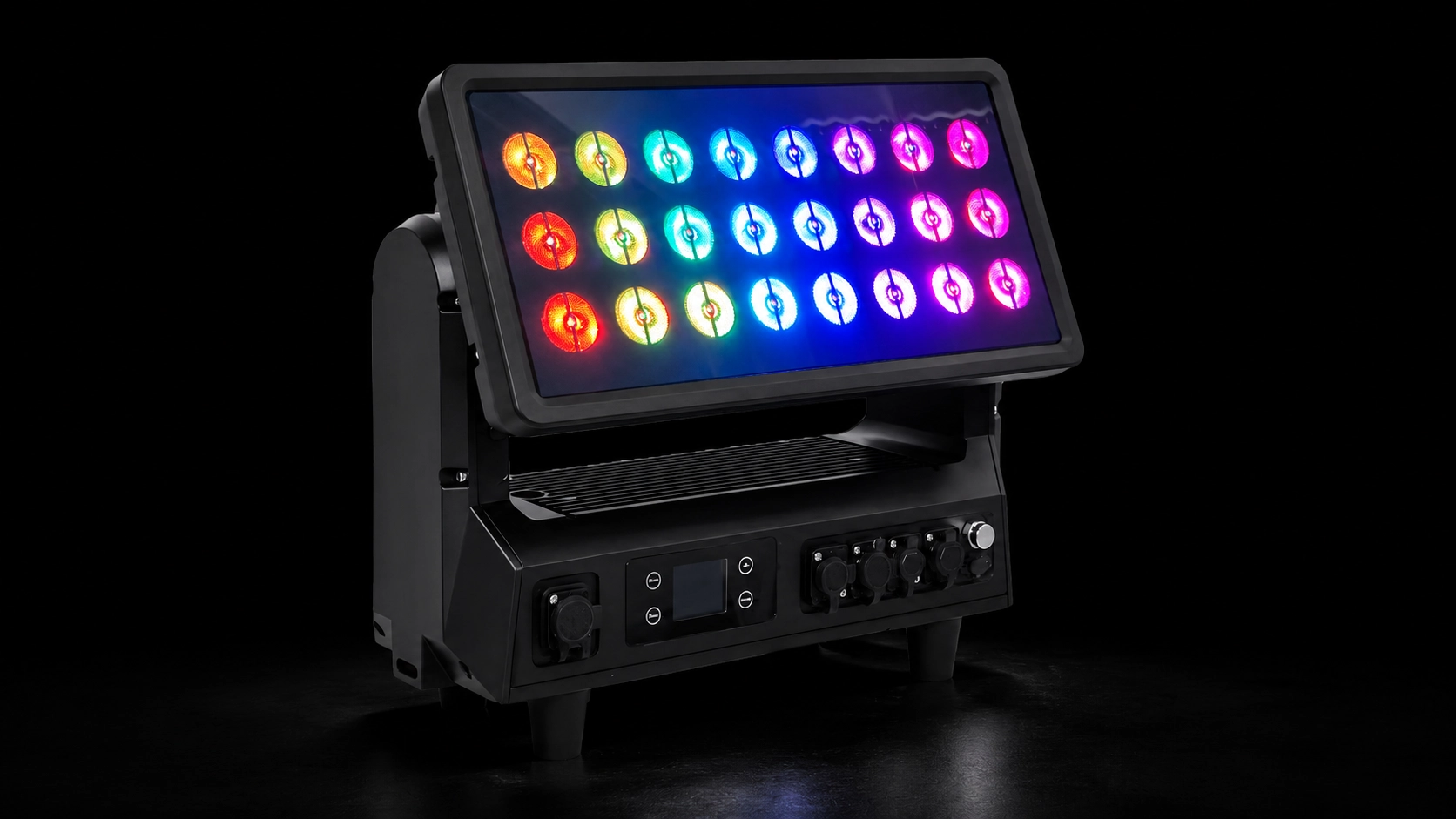

IP Strike 24 IP65 led wash moving light with dual-layer pixel effects
Moving Head Stage Lights from Uplus Lighting, the IP Strike 24 IP65 LED wash moving light delivers durable, weather-resistant performance with dual-layer pixel effects for dynamic visuals. Ideal for indoor and outdoor use, these stage lights moving head offer precise control and vibrant color mixing to enhance any event setup.
Specifications
OPTICS
•Light source: 24*50W RGBW 4in1 led/24*6w RGBW 4in1 led IP65
•Power consumption: 780W
•Input voltage：AC 100V ~ 240V 50/60Hz

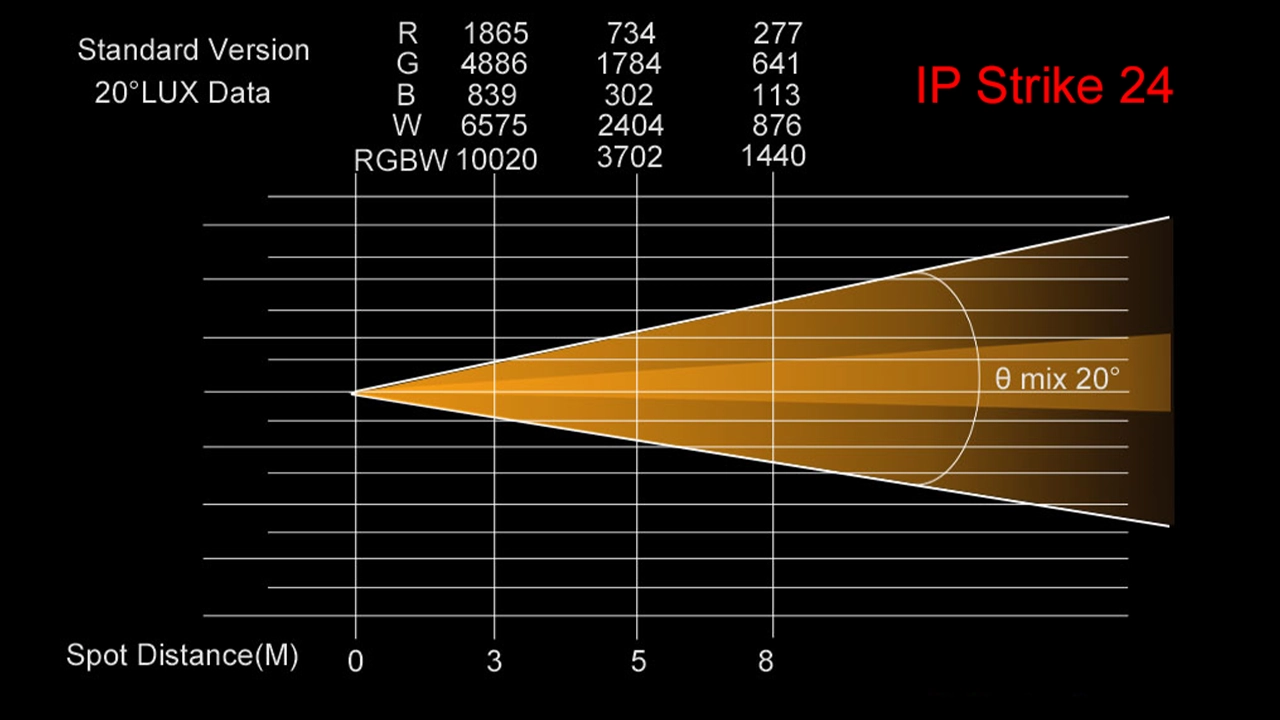

•Zoom angle: 20°
•Tilt: 180°
FEATURES
•Control: Art-Net, DMX, RDM, SACN
•DMX Channel: 29 / 222 / 314 / 30 / 144 / 192 / 240 / 288 / 72 / 96 / 120 CH
•Strobe：0-30Hz strobe
•Dimming: 0-100% 16-bit dimming; 4 modes
•IP rate: IP65
•Dimming: 0-100% 16-bit dimming; 4 modes
•IP rate: IP65
•Power In/Out: Waterproof power connector in/out
•Data In/Out: 3-pin or 5-pin waterproof XLR
•Optional accessories: ①.base plate ②. splicing partsSPECIFICATION

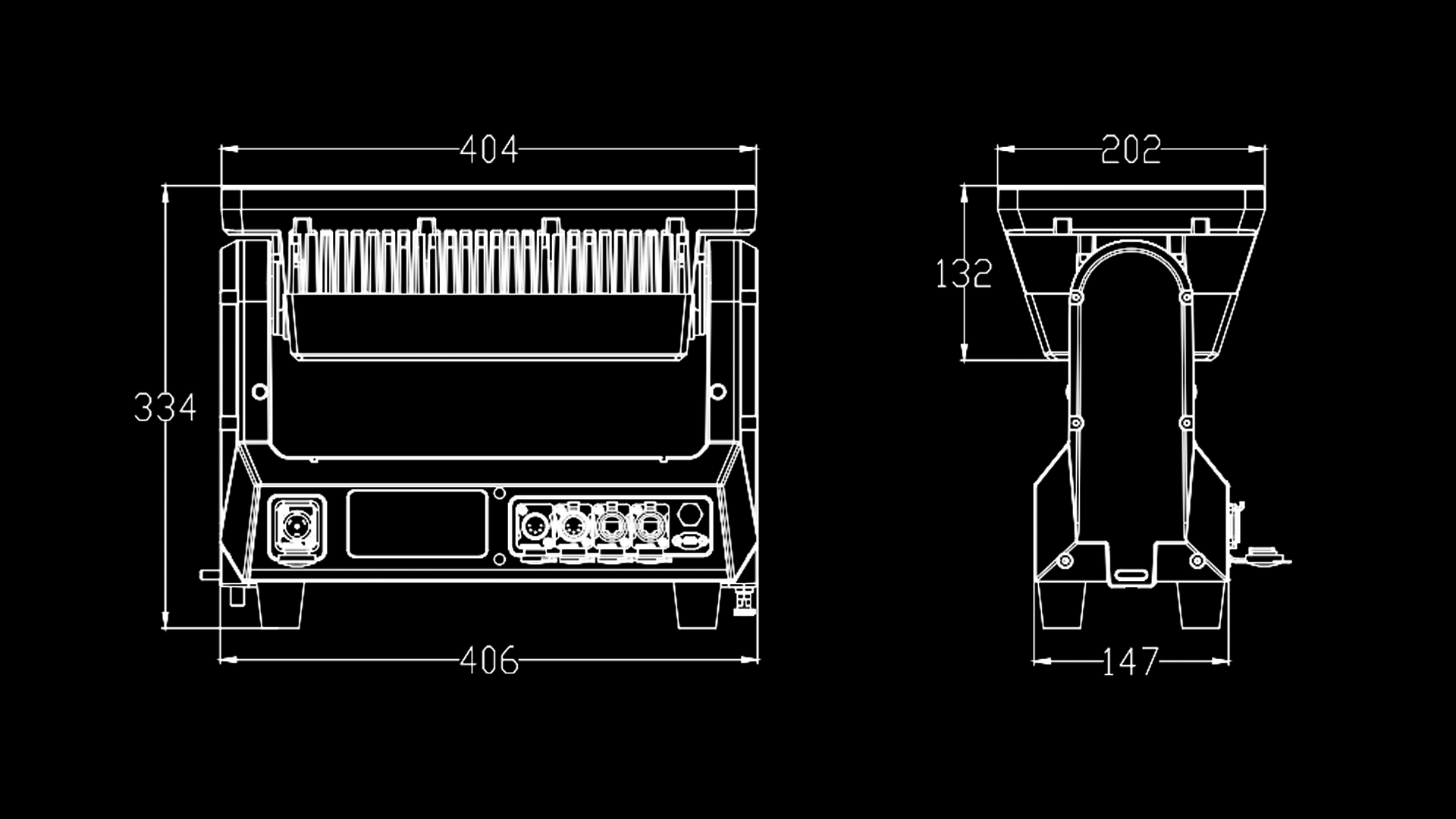

•Dimension: 406*202*334mm; NW: 11kg

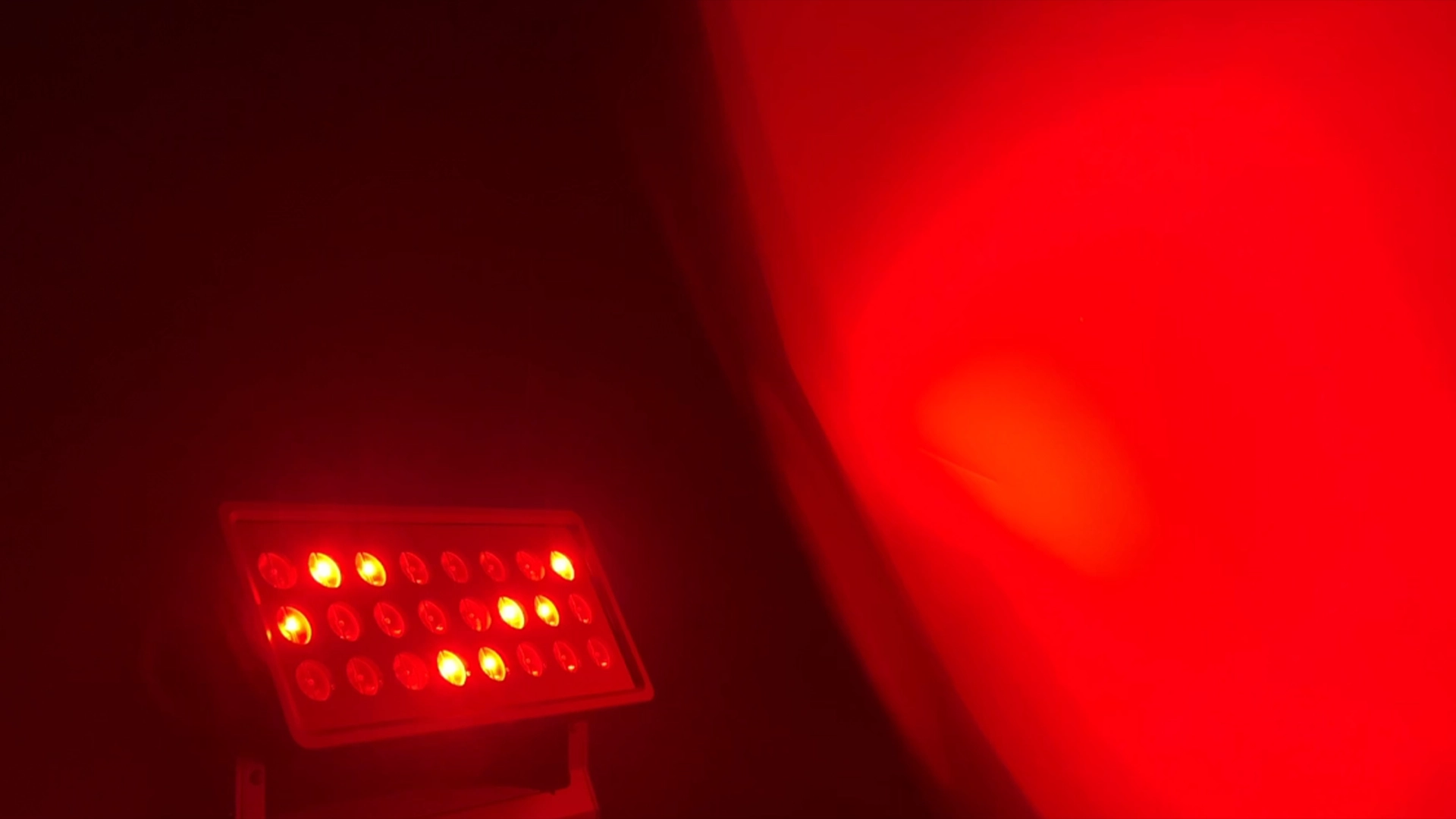

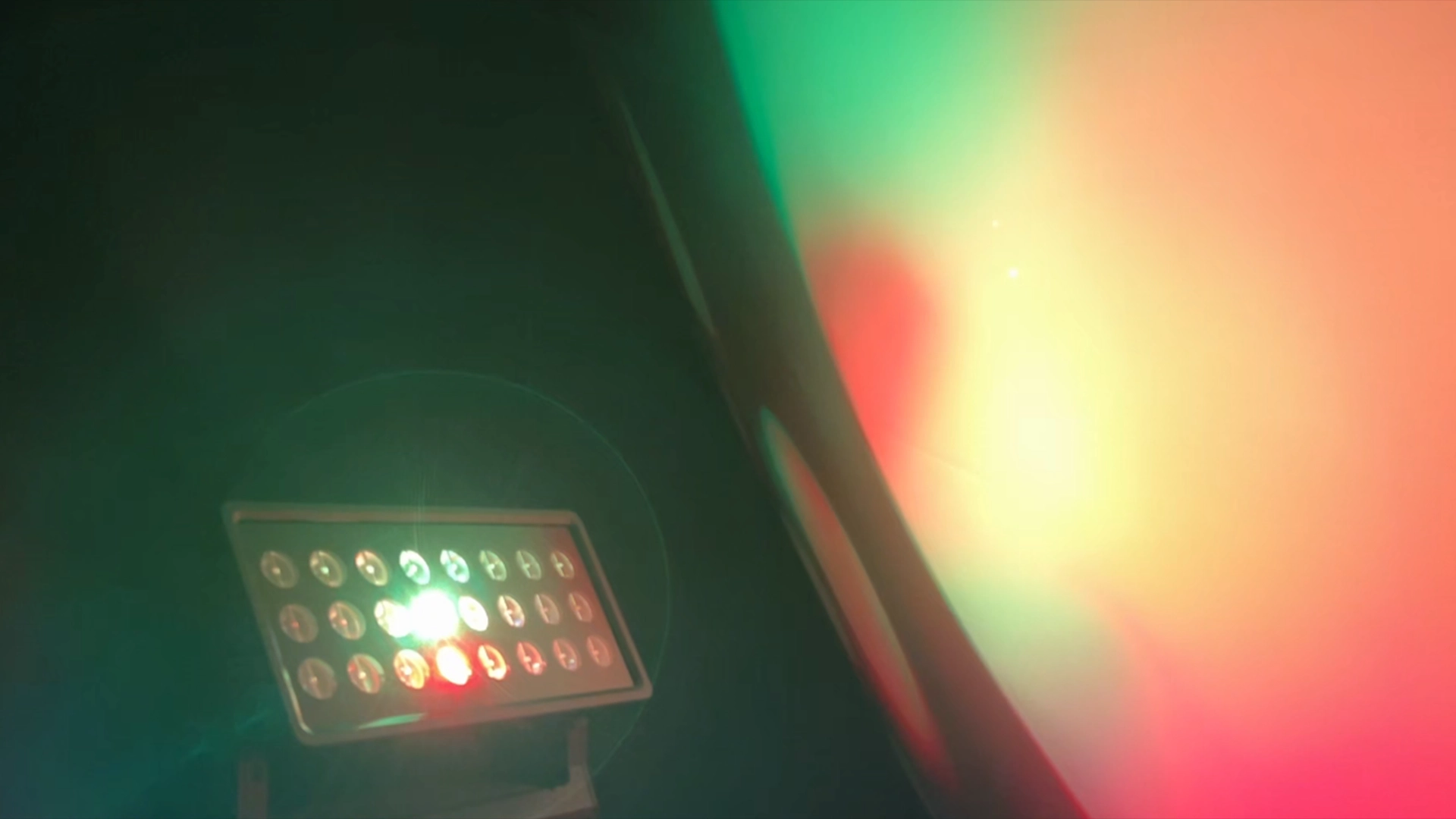

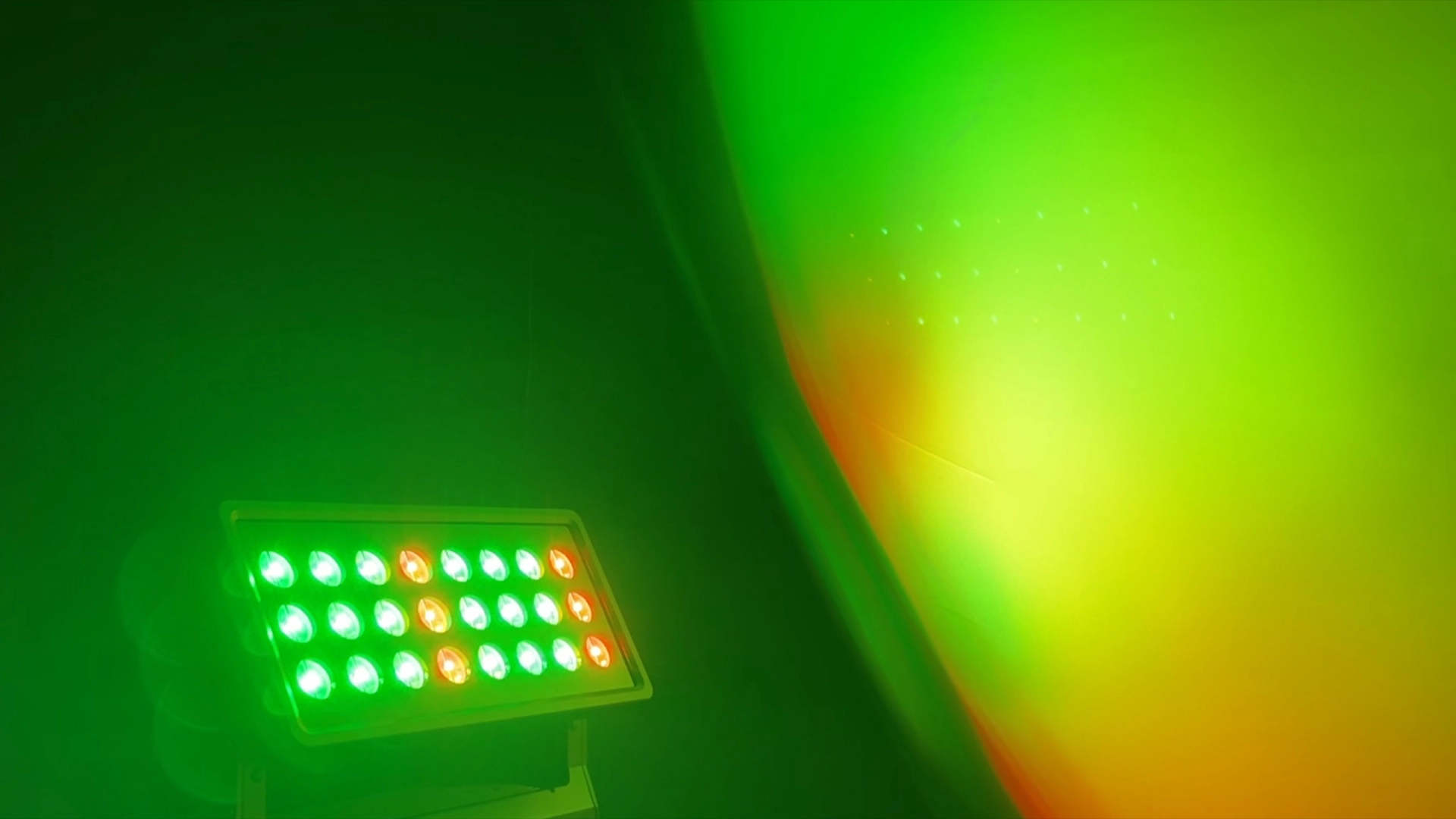

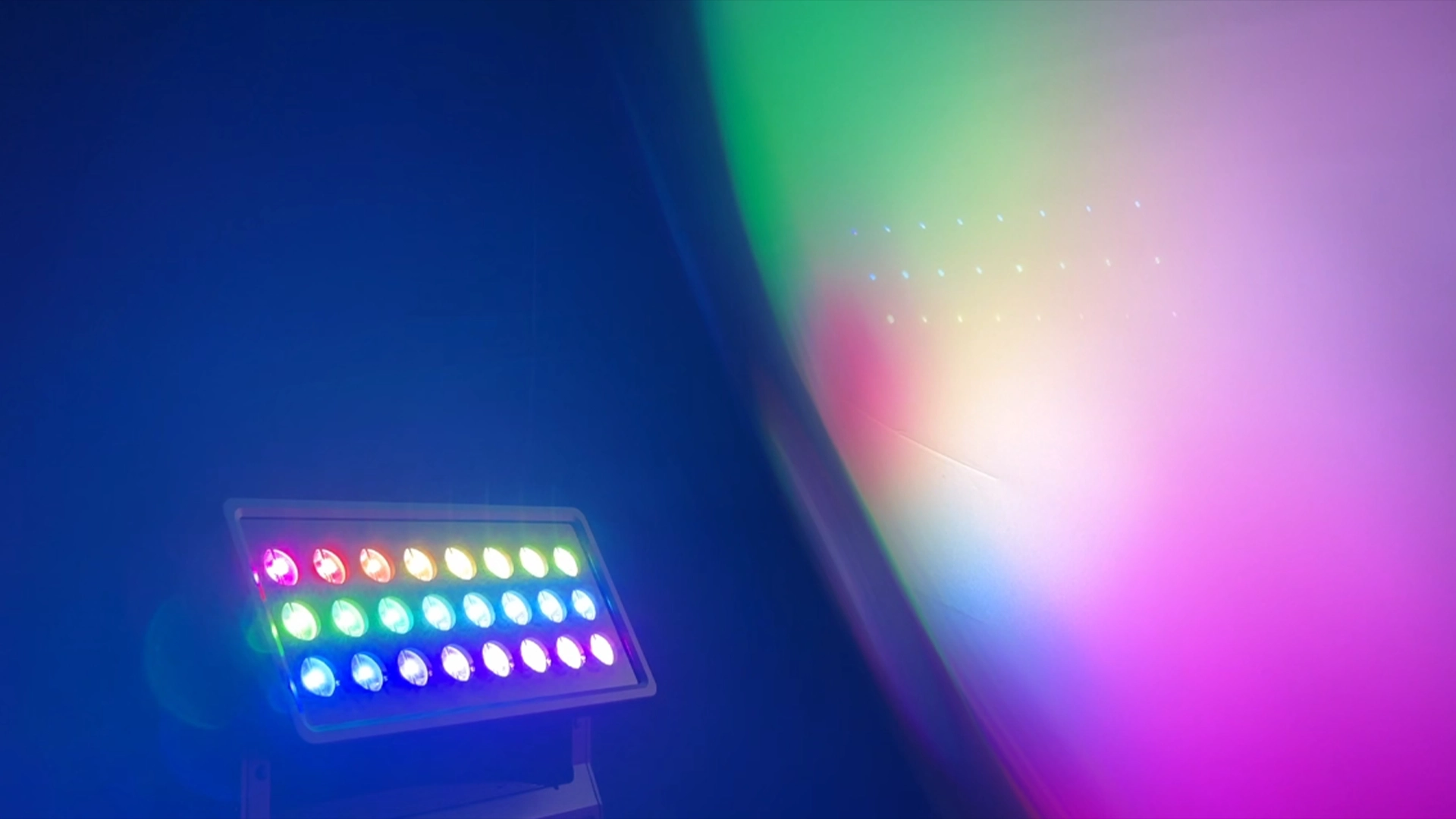

Effect
built-in effect
built-in effect
built-in effect
built-in effect
Features
APPLICATION

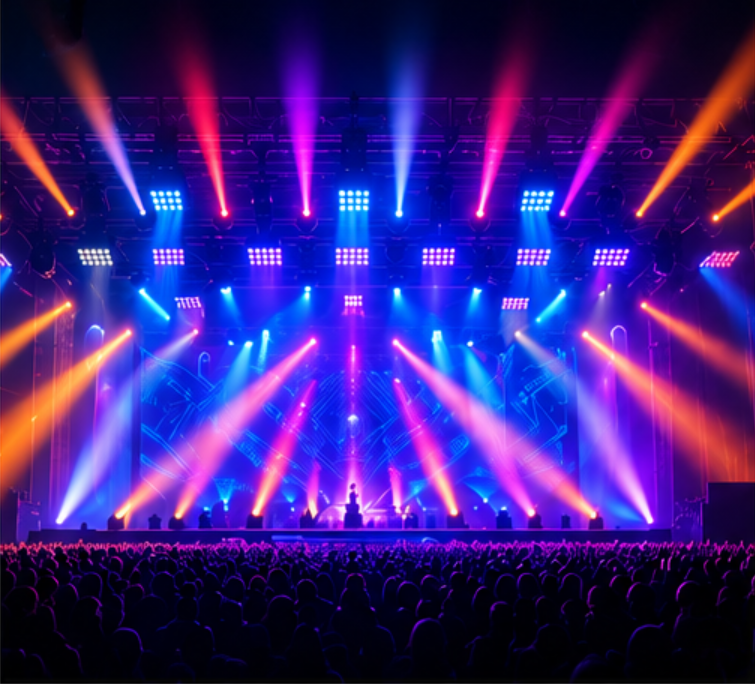

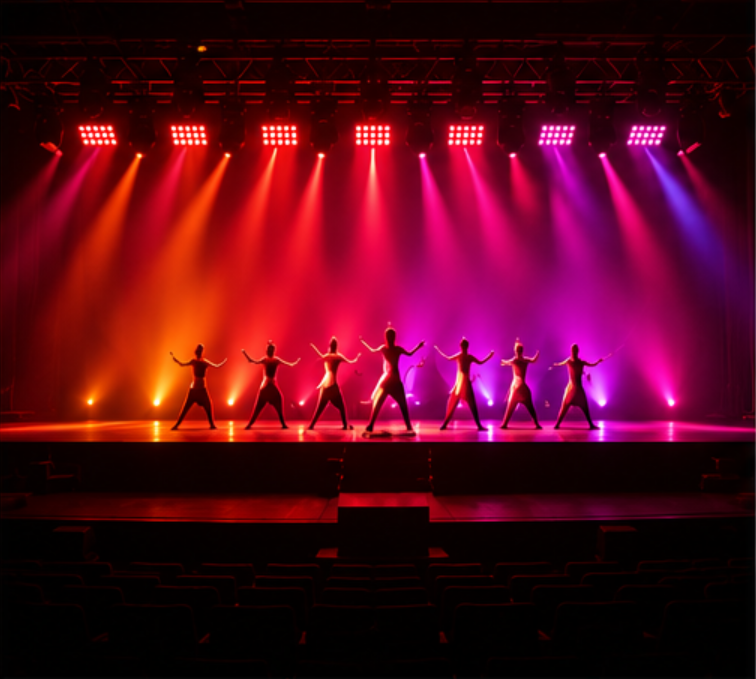

Concerts & Music Festivals
Create an immersive stage atmosphere with vibrant, wide-area wash and pixel effects.
Architectural & Building Lighting
Robust IP65 design for stunning facade and landscape illumination.

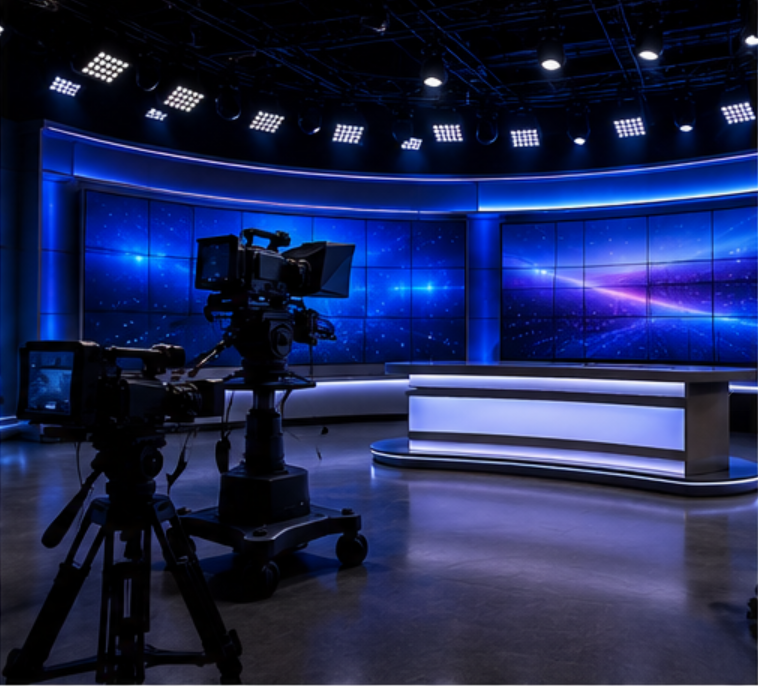

TV Studio & Broadcast
Flicker-free, high brightness, ideal for professional studio and stage shows.
Theater & Performing Arts
Smooth color mixing for theater, dance and live performances.
Live Evnets & Corporate Shows
Perfect for exhibitions, gala and indoor/outdoor events.

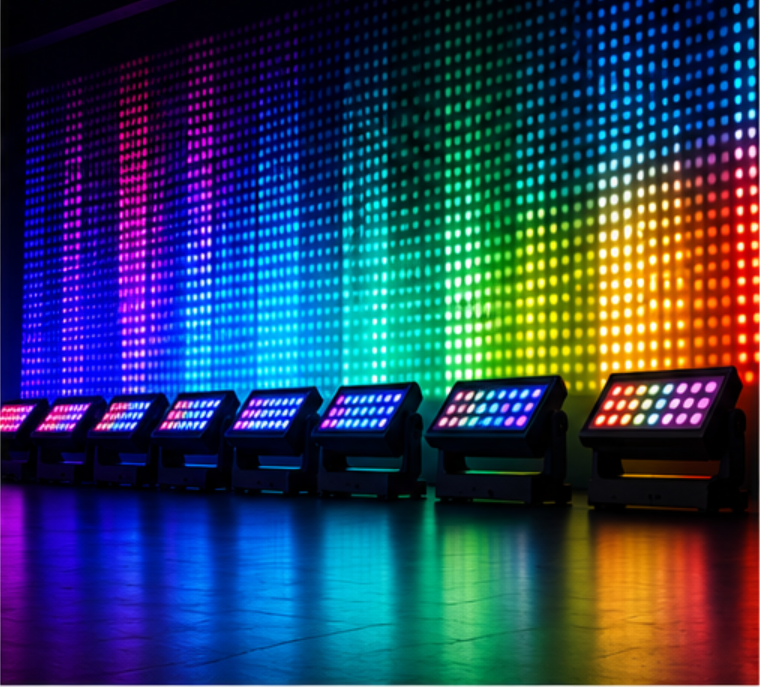

Stage Desgin & Creative Projects
Powerful pixel mapping for dynamic visual effects and creative freedom.
Packaging & Logistic
Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
IP Strike 24
What control protocols does the IP Strike 24 support?
The IP Strike 24 supports DMX-512, RDM and Art-Net, with multiple DMX modes for different levels of pixel control.
What lighting effects does the IP Strike 24 provide?
The IP Strike 24 uses 24×50W RGBW LEDs plus 24×6W RGBW LEDs, creating dual-layer wash and pixel effects in one fixture.
What connections and installation specifications does the IP Strike 24 use?

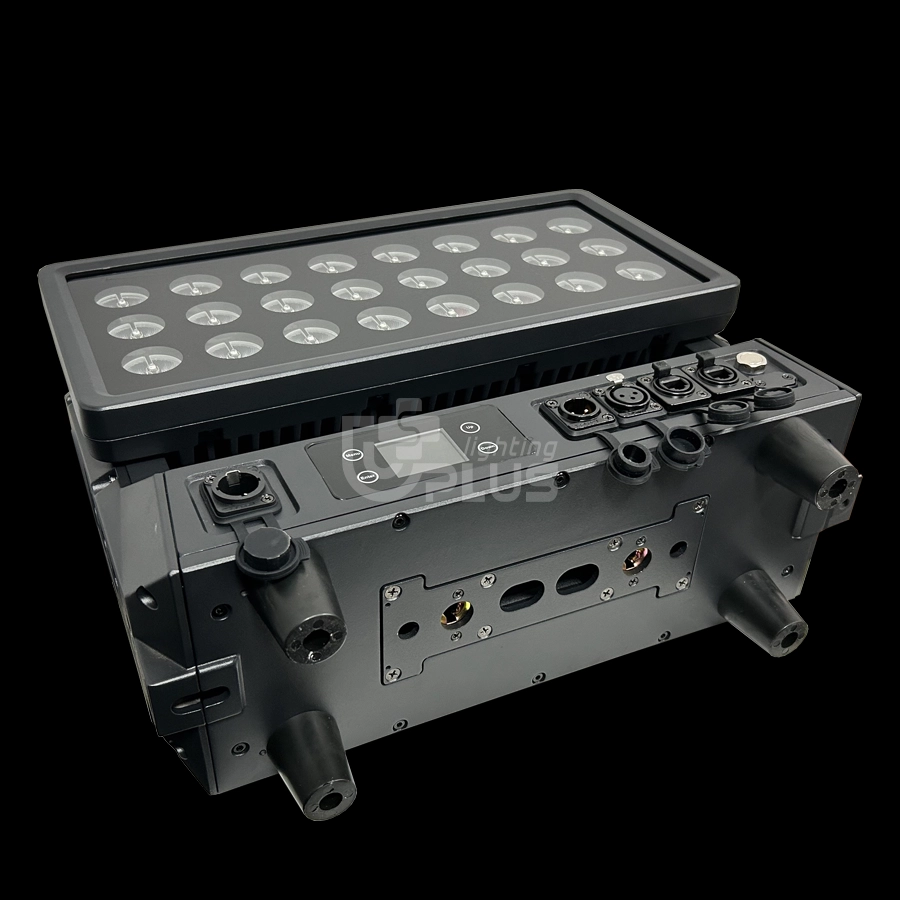

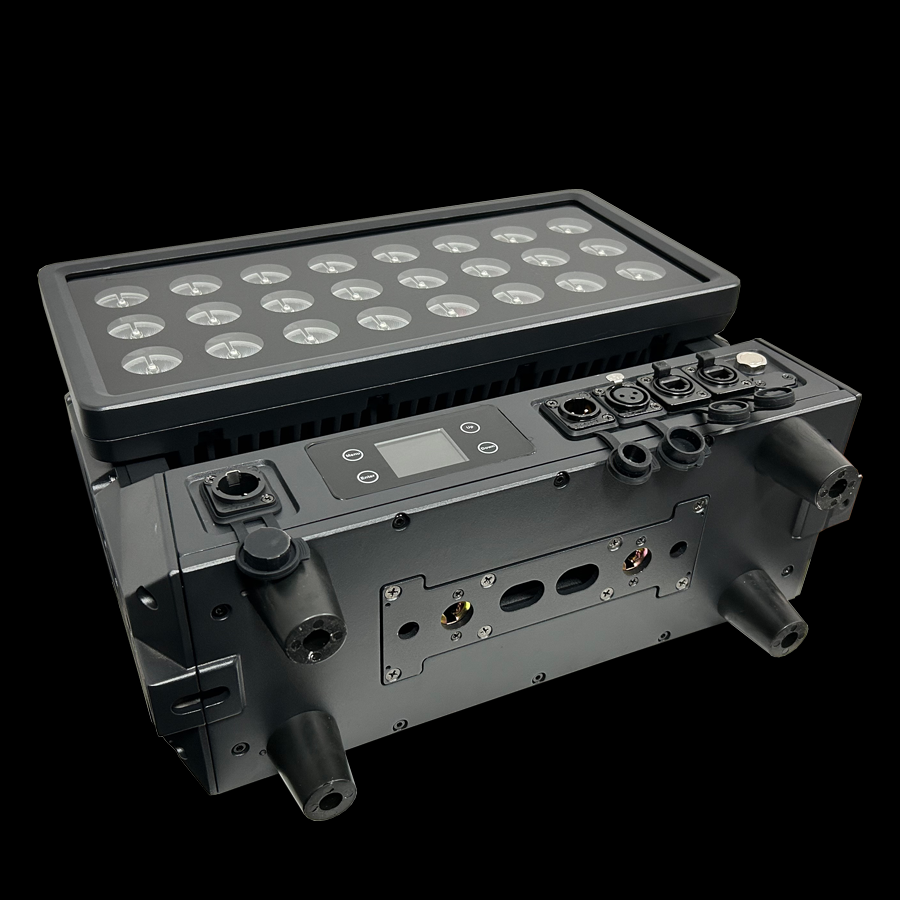

It features Seetronic 3-pin and 5-pin XLR DMX In/Out plus PowerCON True1 input. The fixture measures 406 × 202 × 334 mm and weighs 11 kg.
About Customized Services
Custom packaging service?
We can design the packaging according to your requirements.
Do you provide ODM service?
Yes, Uplus provides comprehensive ODM services to customers and aftermarket partners.
