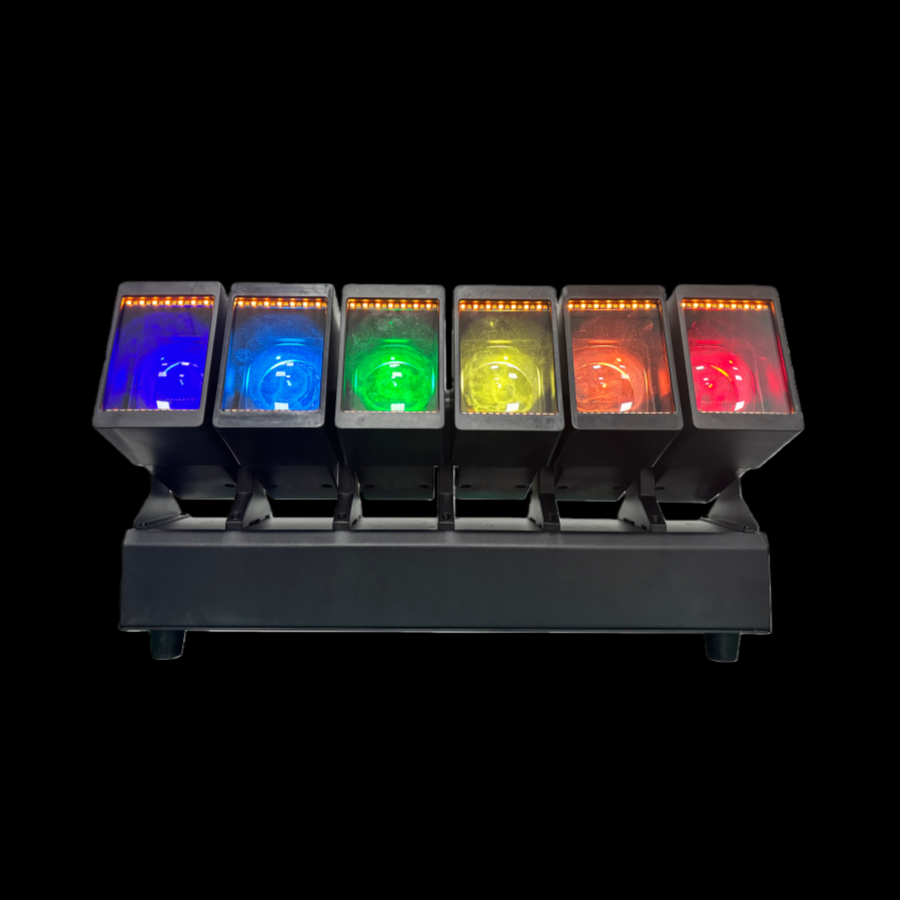

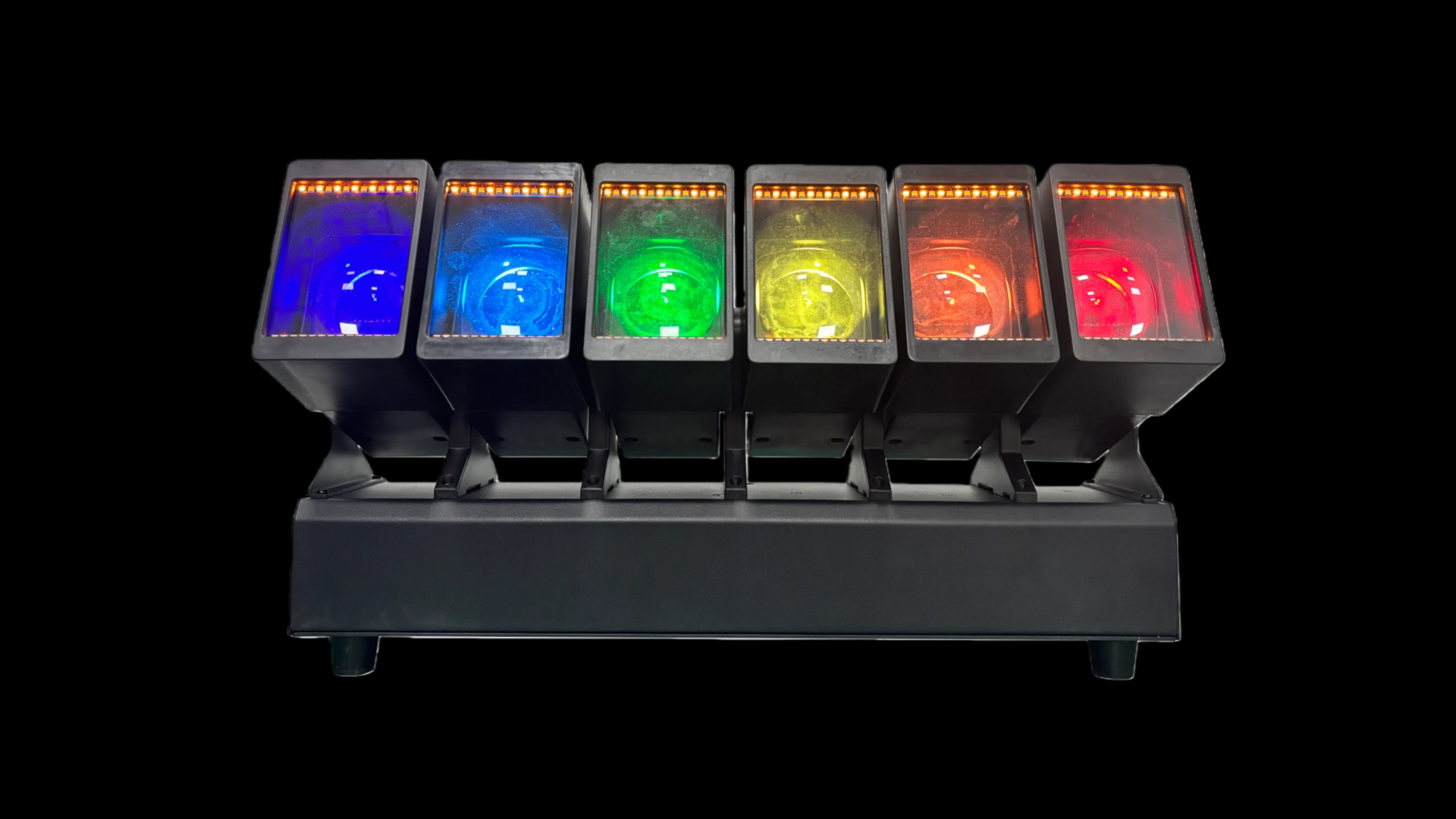

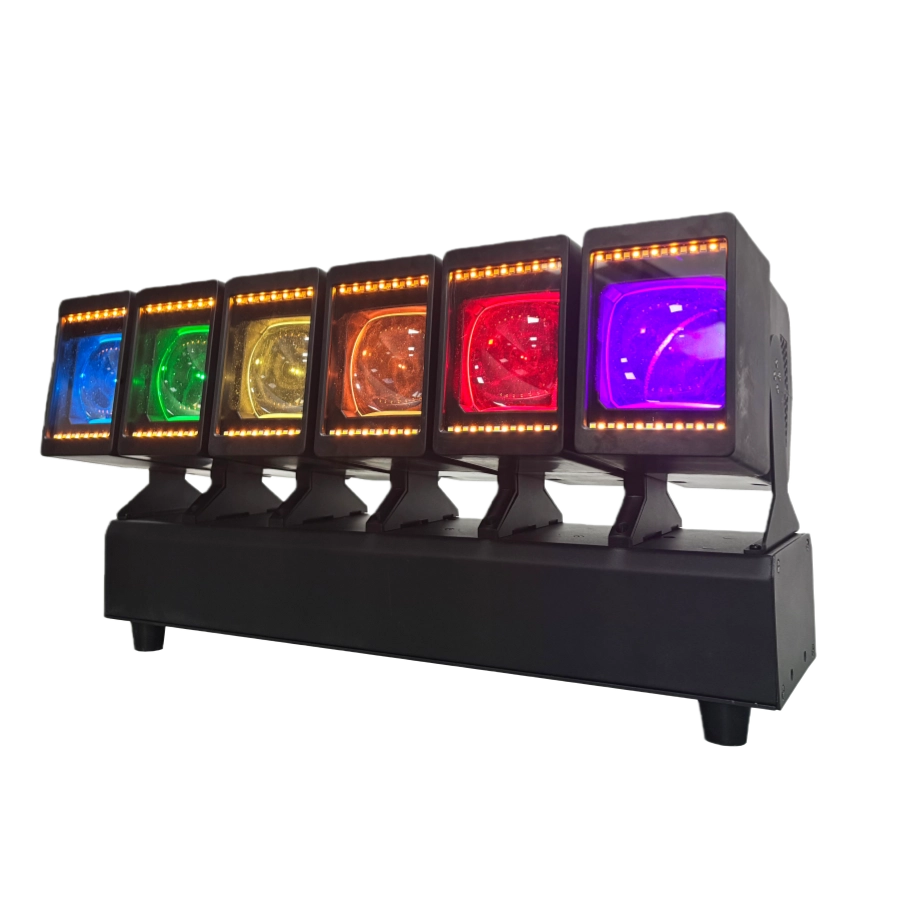

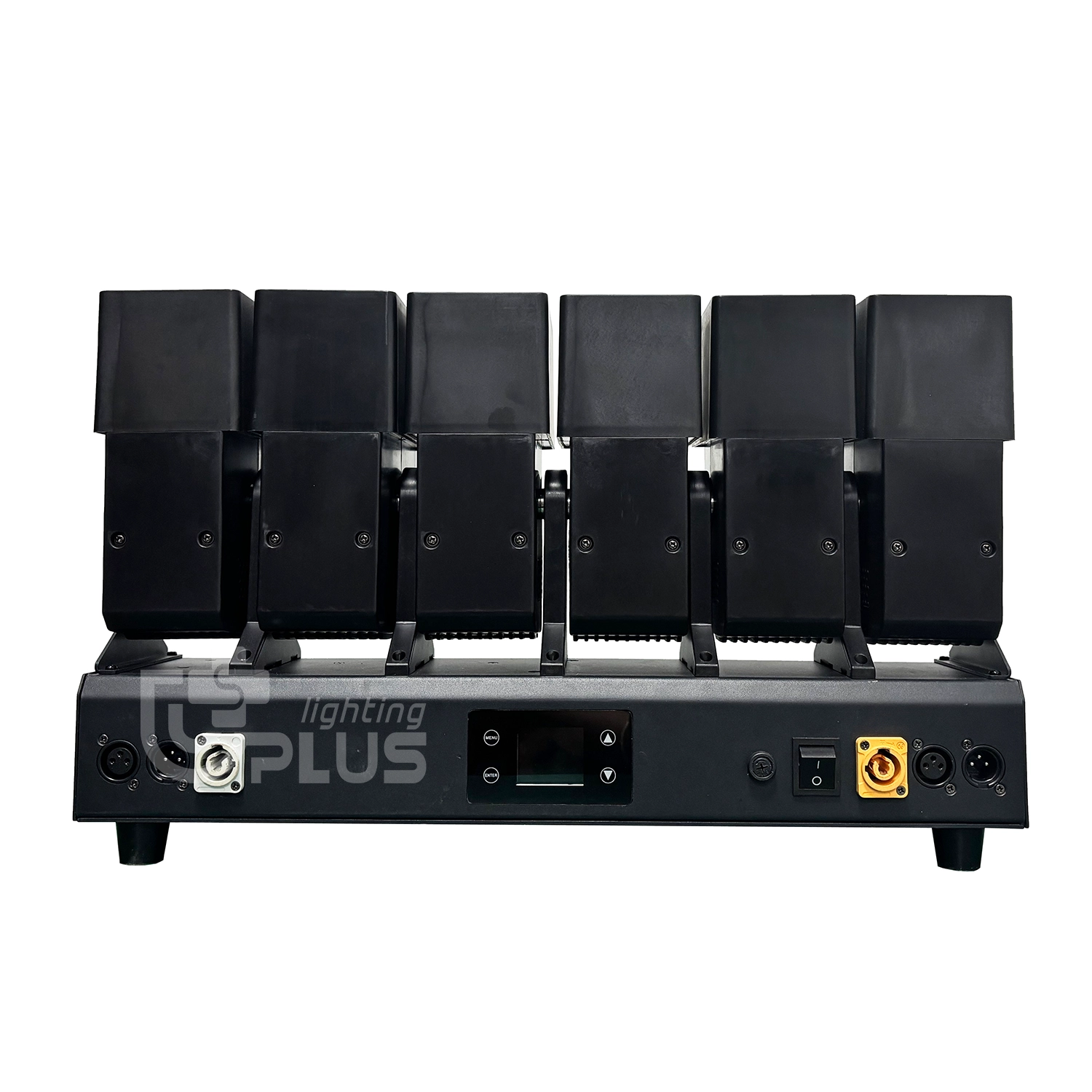

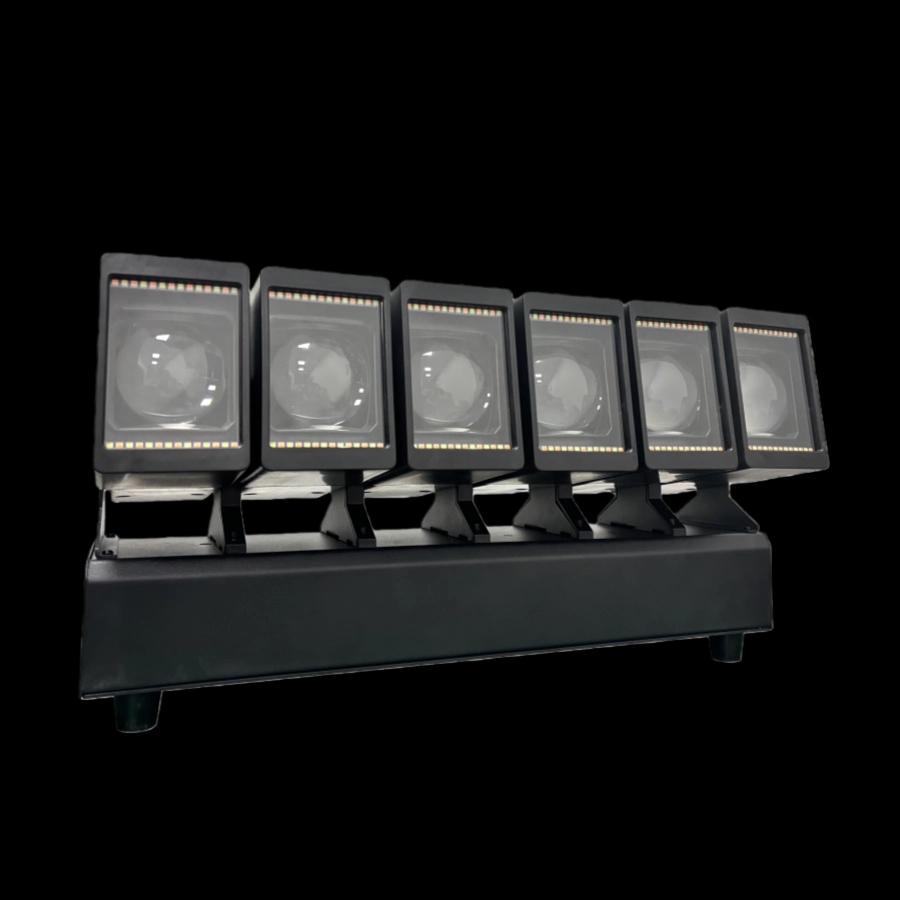

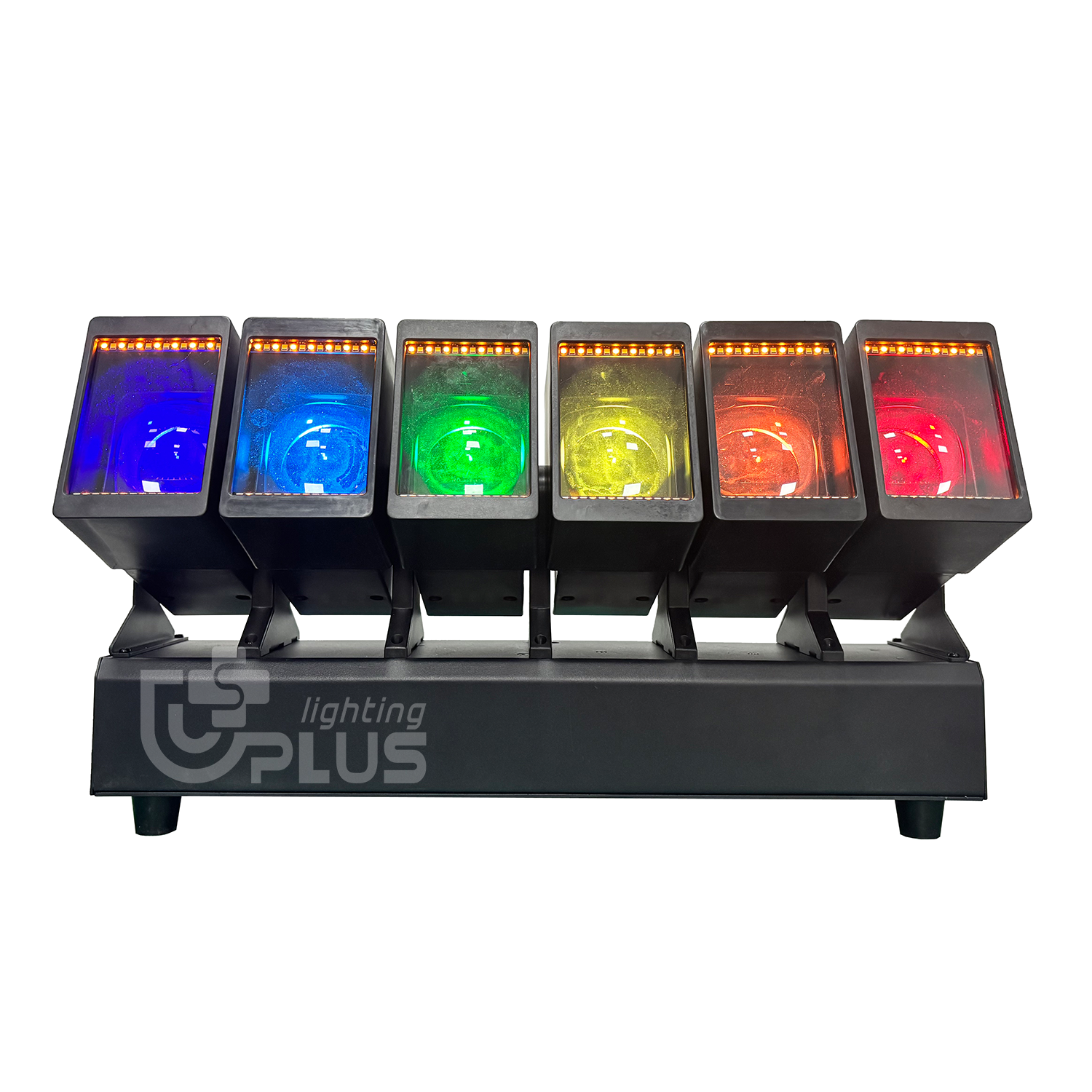

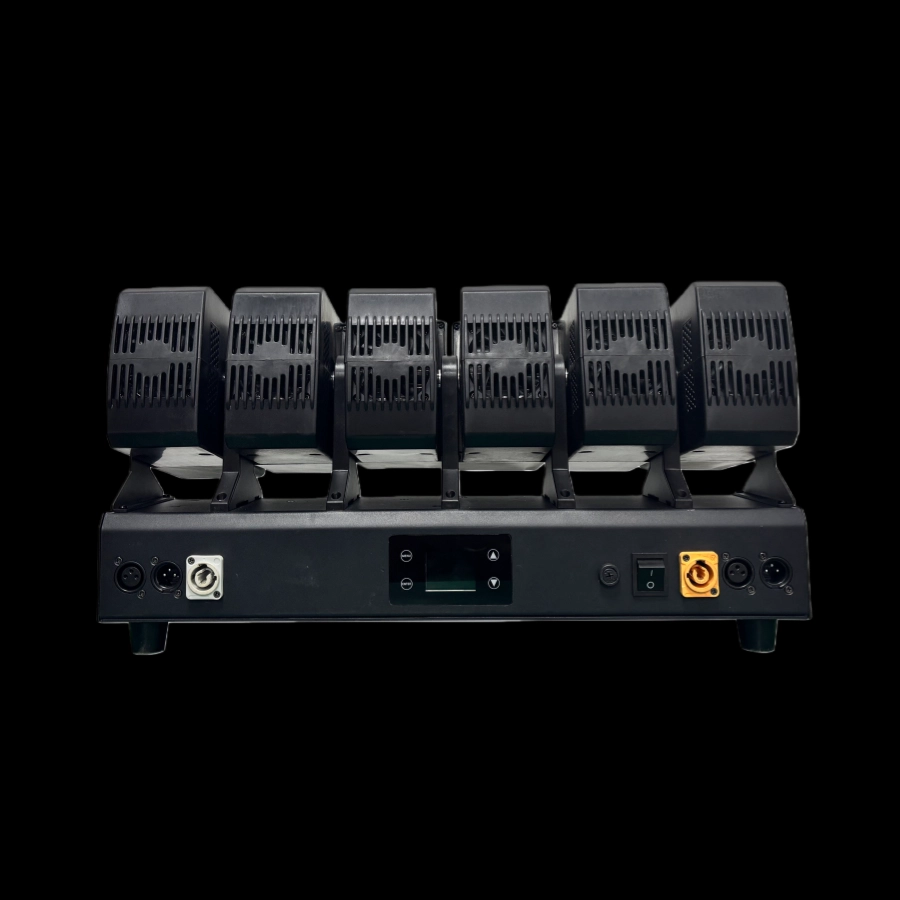

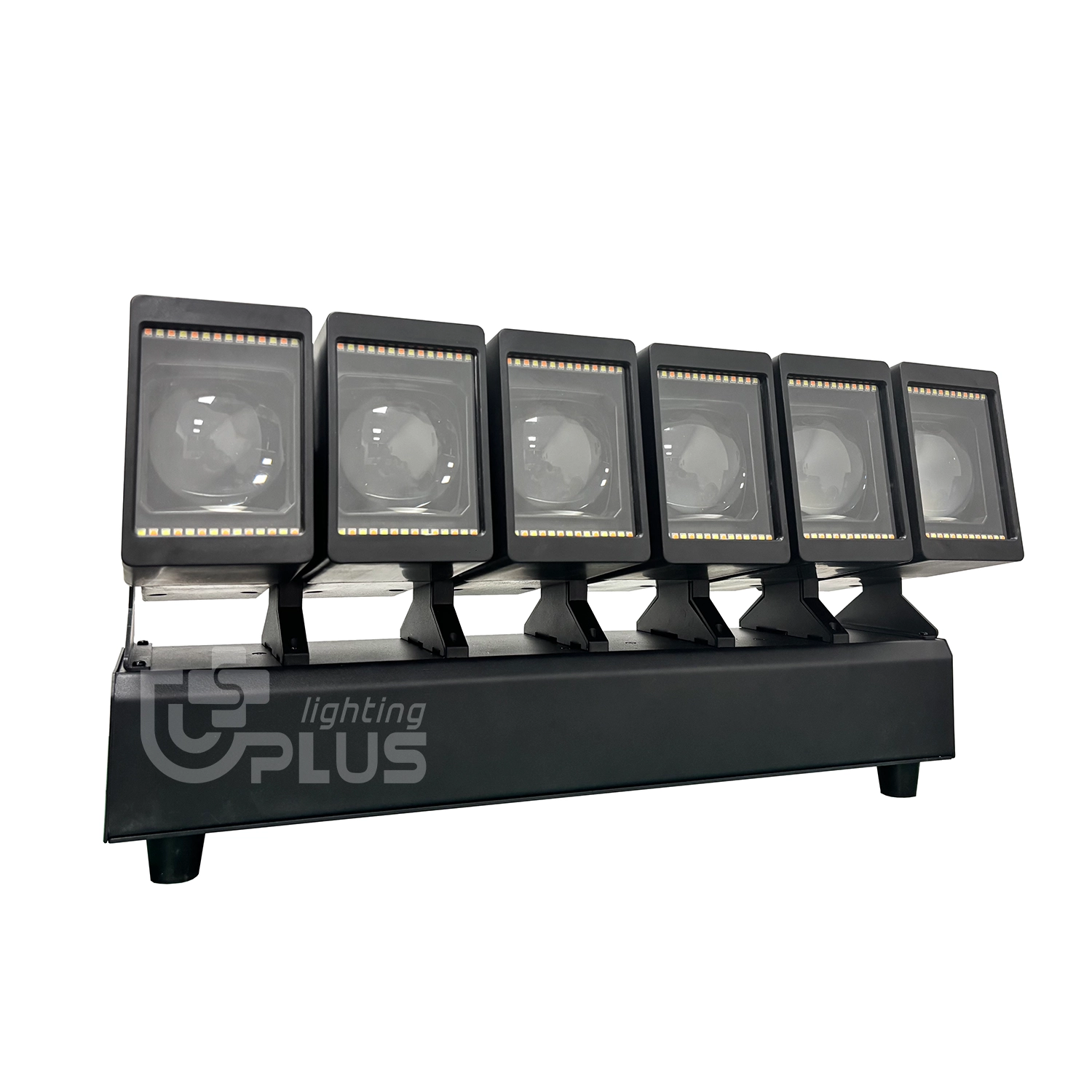

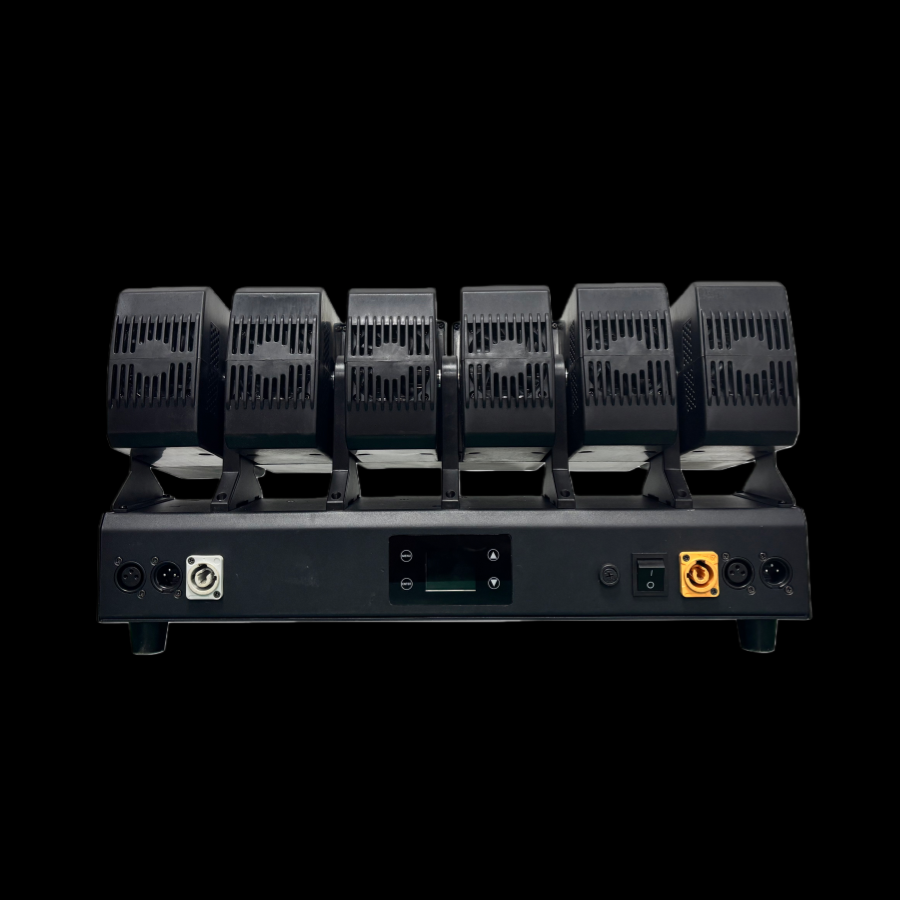

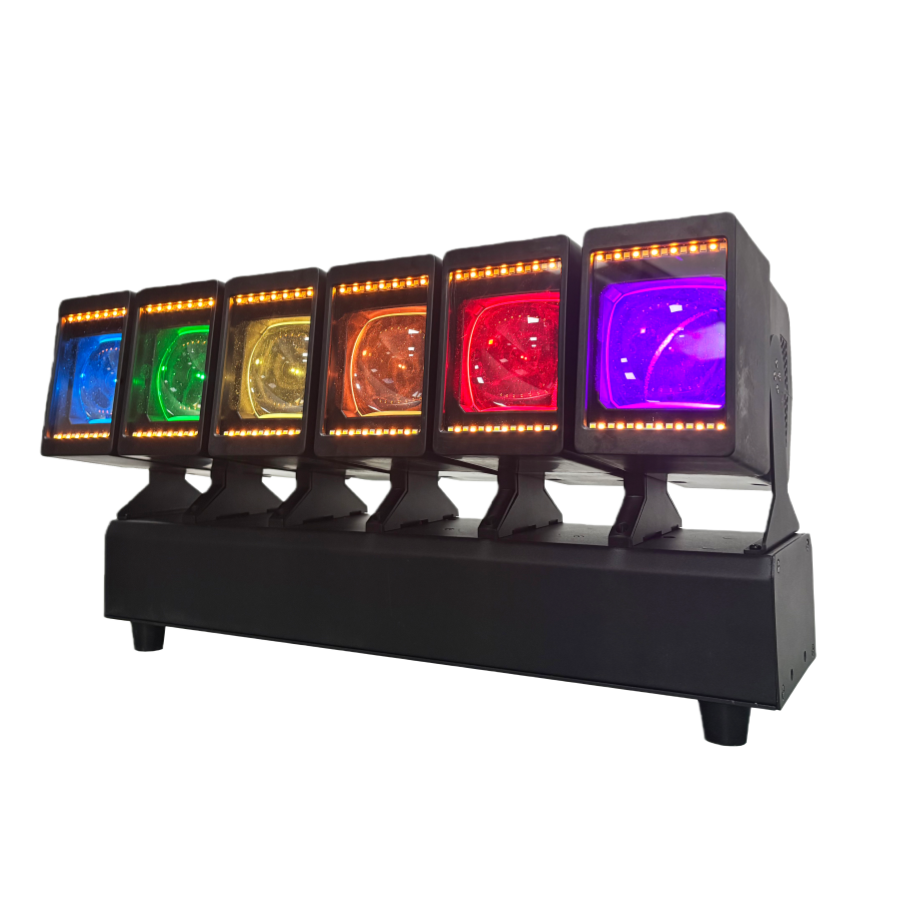

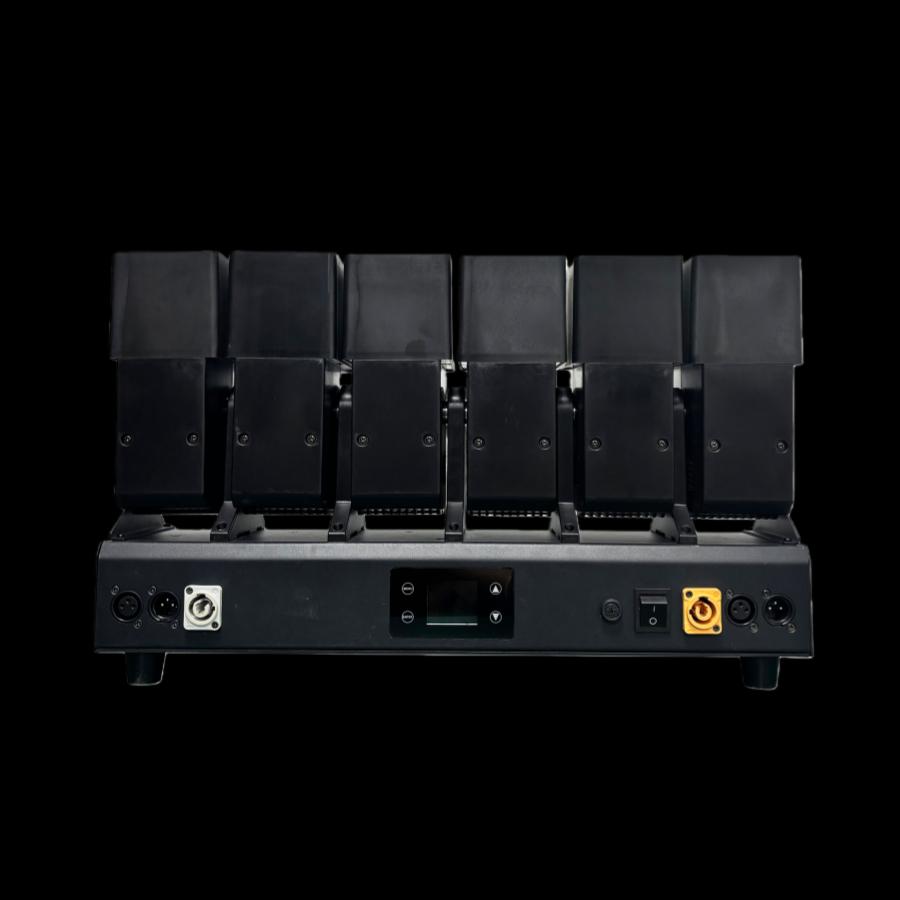

PIX-B660 6*60W Pixel zoom bar moving head
The 6*60W Pixel zoom bar moving head is equipped with six 60W high-power LEDs, supporting independent light control at the pixel level for each LED. Combined with flexible zoom function, it can present rich dynamic light and shadow effects. It is easy to install and deploy, and is suitable for creating atmosphere in indoor scenes such as medium-sized stages, bar parties, and immersive exhibition halls.
Specifications
OPTICS
•Light Source:
-Main LED: 6x60W RGBW LED
-Strip LED: 72x2W warm white+72x2W cold white LED
•Power Consumption: 400W
•Beam Angle: 2.8°-31°
•Field Angle: 5°-60°
FEATURES
•Control: DMX512, self-propelled, master-slave, voice control, with RDM function.
•DMX Channel: 21/51/55/75CH
•Dimming: 0-100% smooth dimming; outstanding strobe effect with variable speed
•IP20 rated
•Dimmer: 0-100% smooth linear dimming
•Features: Sharp and saturated beam effect
•Motorized zoom /Pixel control effect
•Outstanding color mixing effect
SPECIFICATION

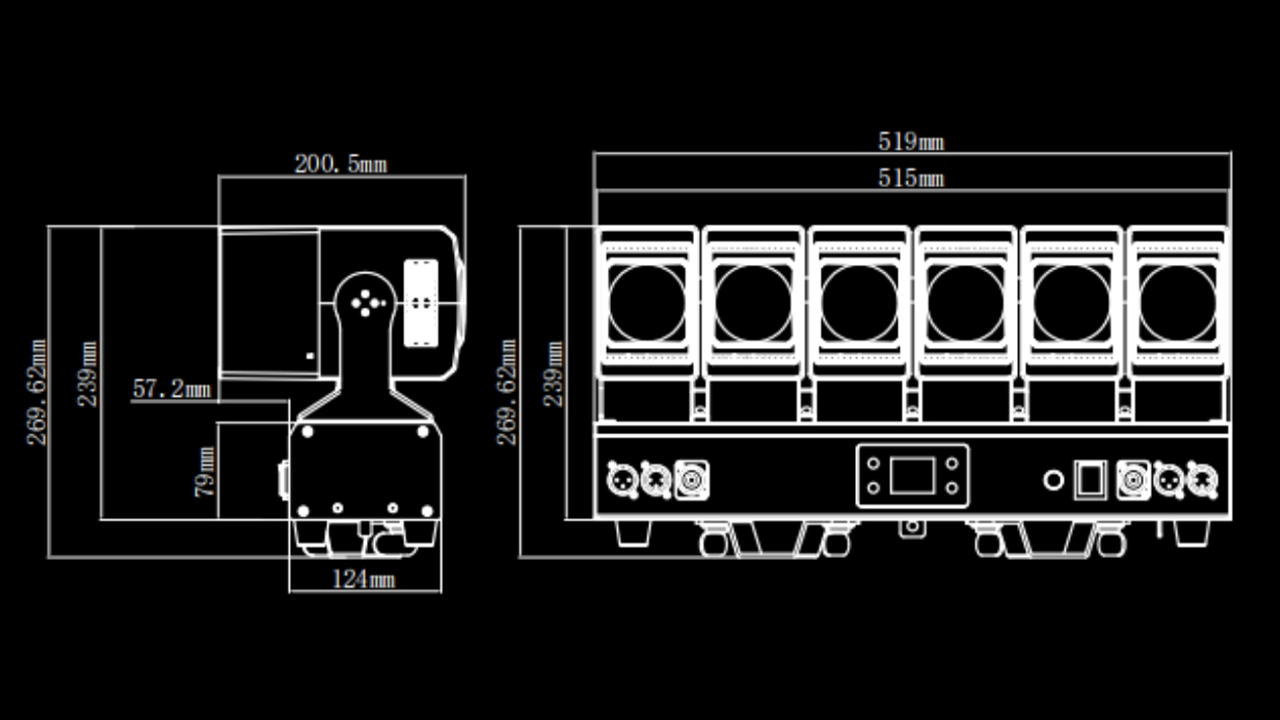

•Dimension: 519*200*269mm; NW: 14.6kgs

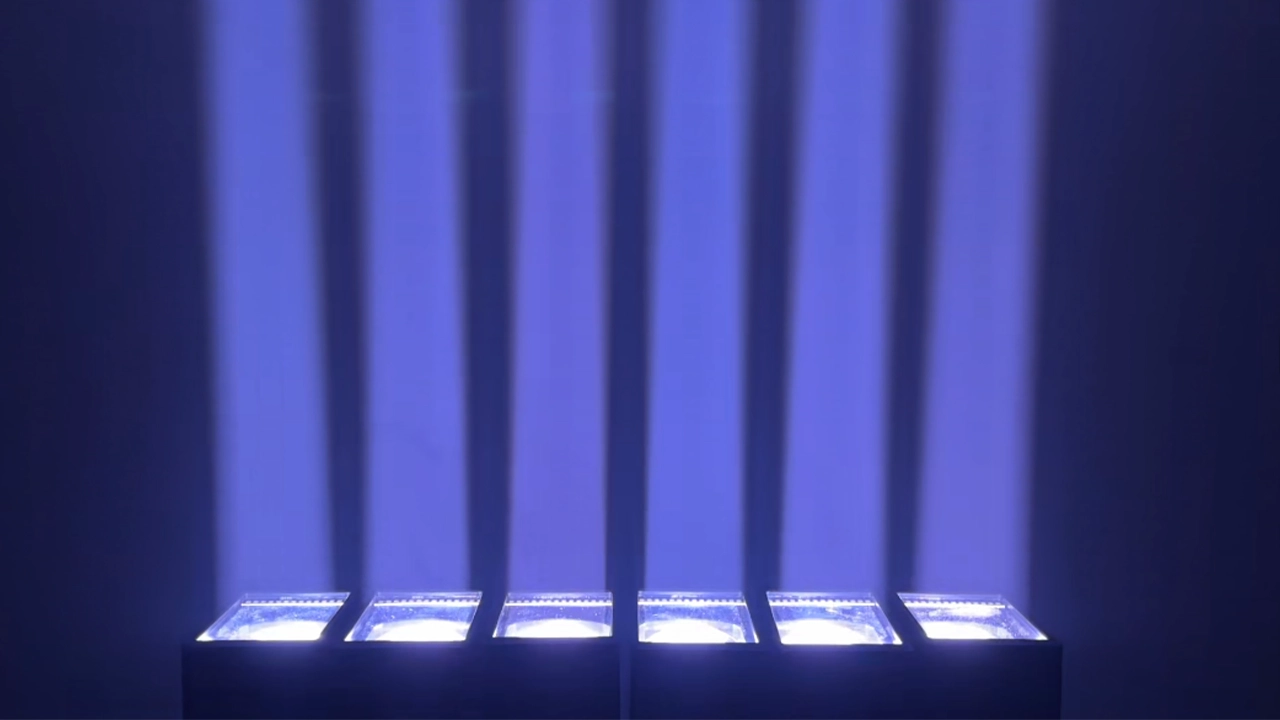

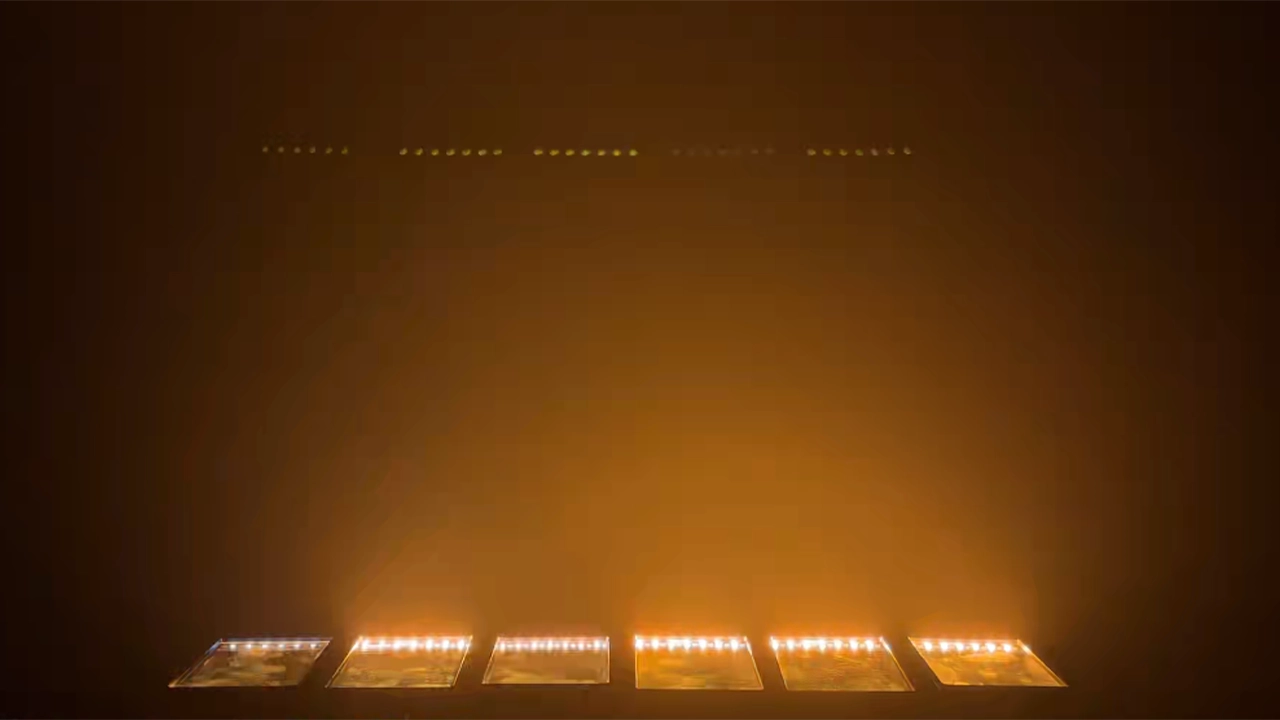

Effect
Features
APPLICATION
Packaging & Logistic
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
What movement range does the PIX-B660 support?
The PIX-B660 provides 202° tilt movement, allowing dynamic bar movement and repositioning during stage programming.
What are the size and weight of the PIX-B660 for rental planning?
The PIX-B660 measures 519 × 200 × 269 mm and weighs 14.6 kg, useful for transport, rigging and rental inventory planning.
What control modes and DMX channels are available on the PIX-B660?
It supports DMX512, RDM, Auto Run, Master-Slave and Music control, with 21/51/55/75-channel modes.
Are you a manufacturer or a trading company?
We come directly from the factory and also have a sales office in Baiyun, Guangzhou.
What is Uplus Lighting's main product for factories?
The main products provided by Uplus are stage lighting, related accessories, and consoles. Our products are suitable for many large-scale international performances, concerts, theaters, music festivals, TV programs, etc.
