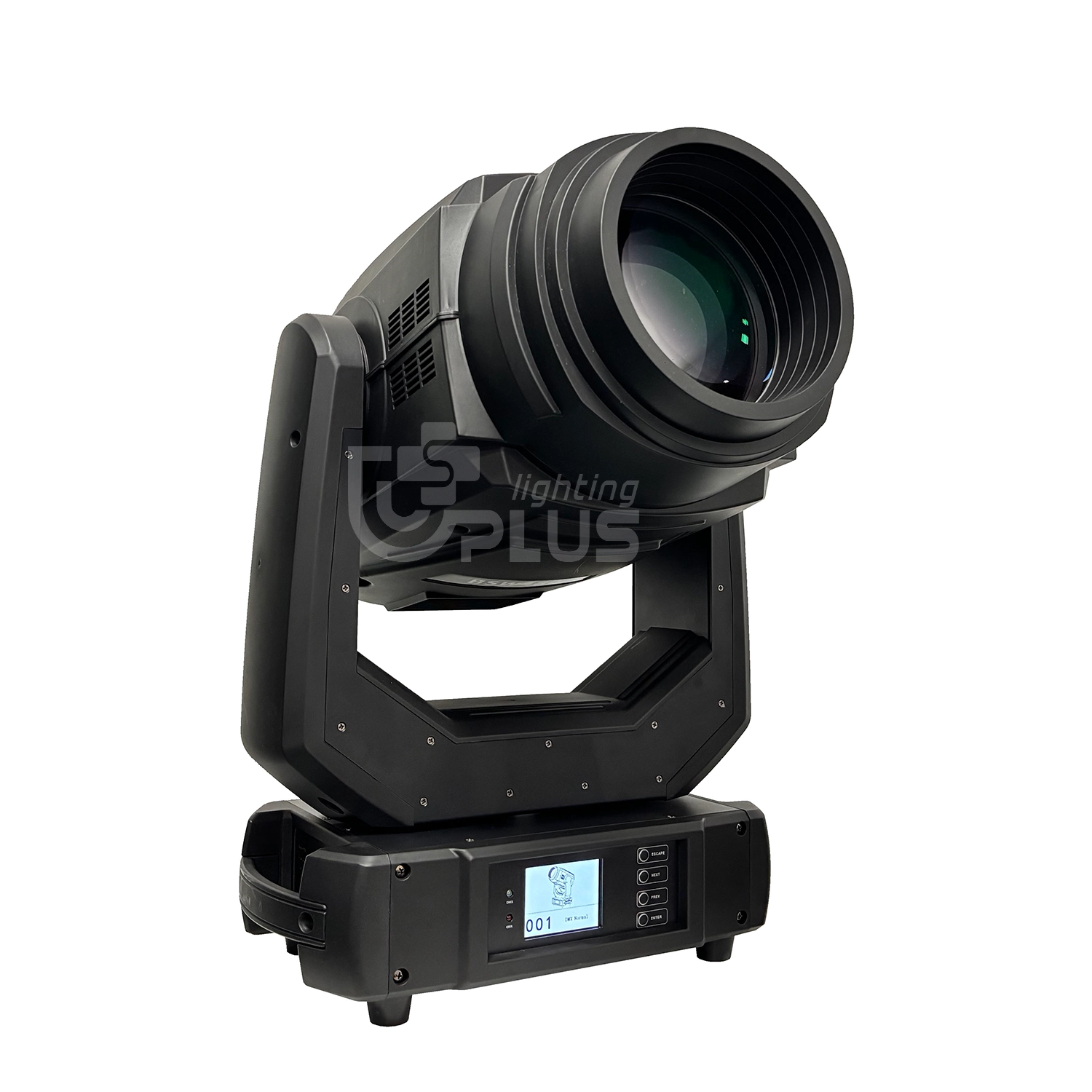

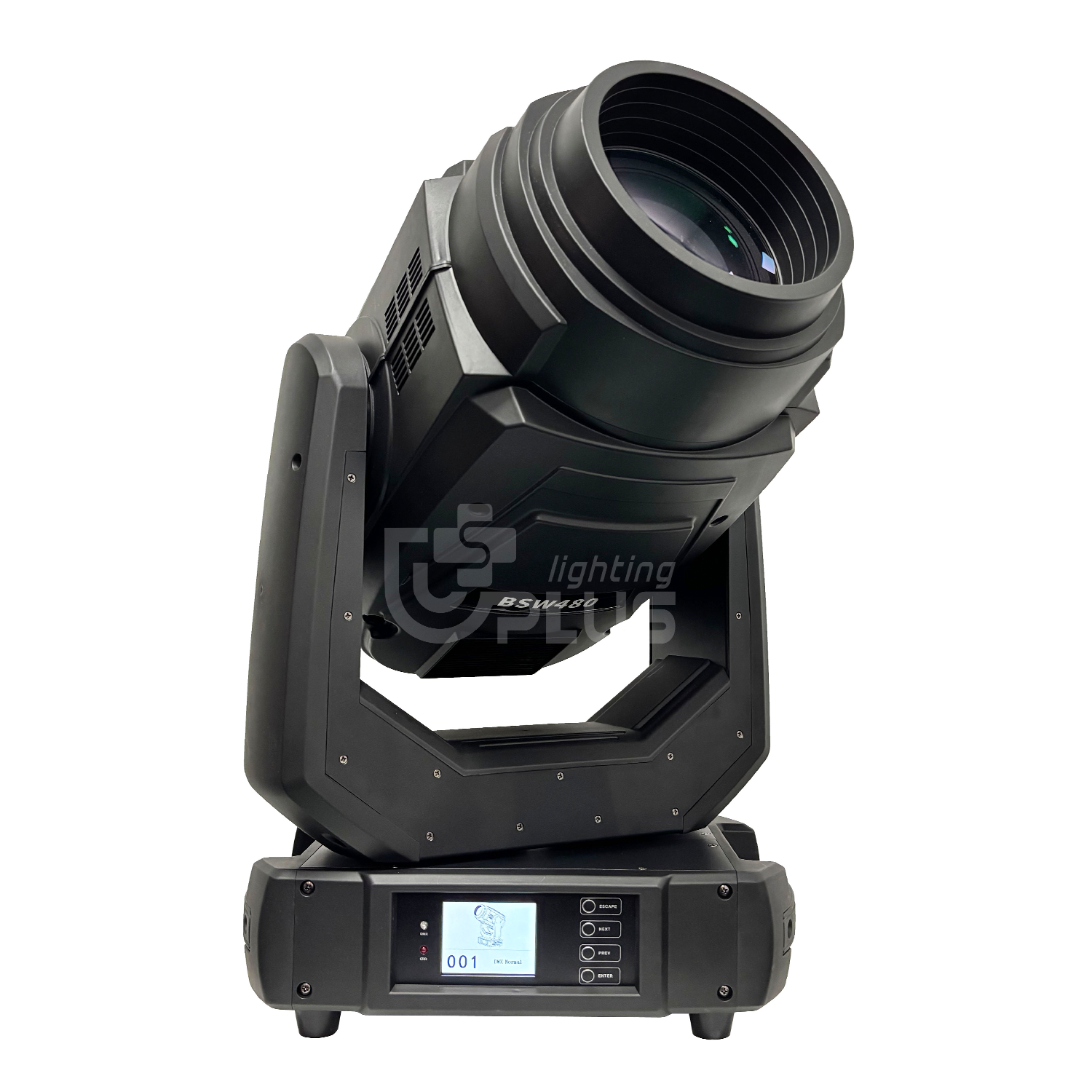

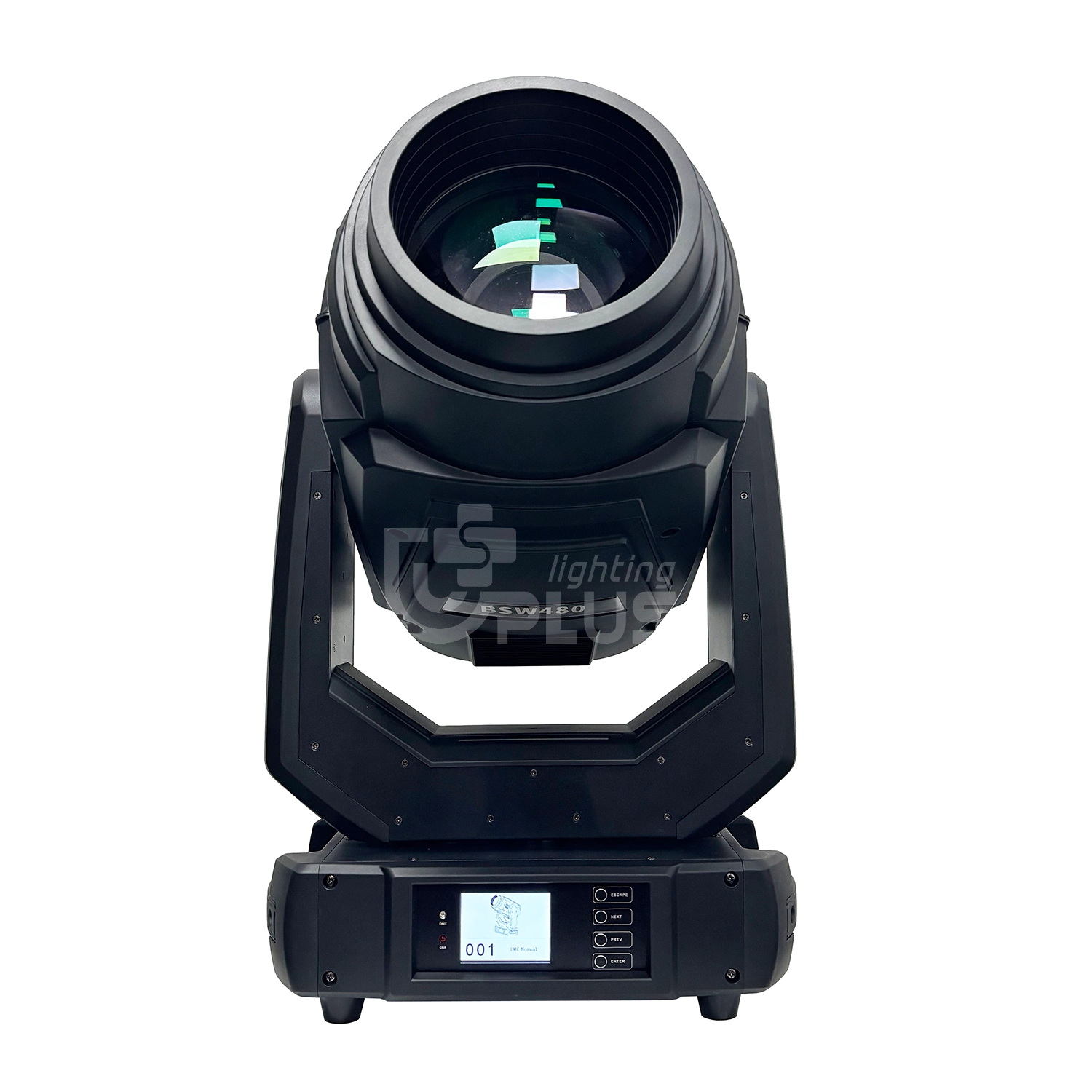

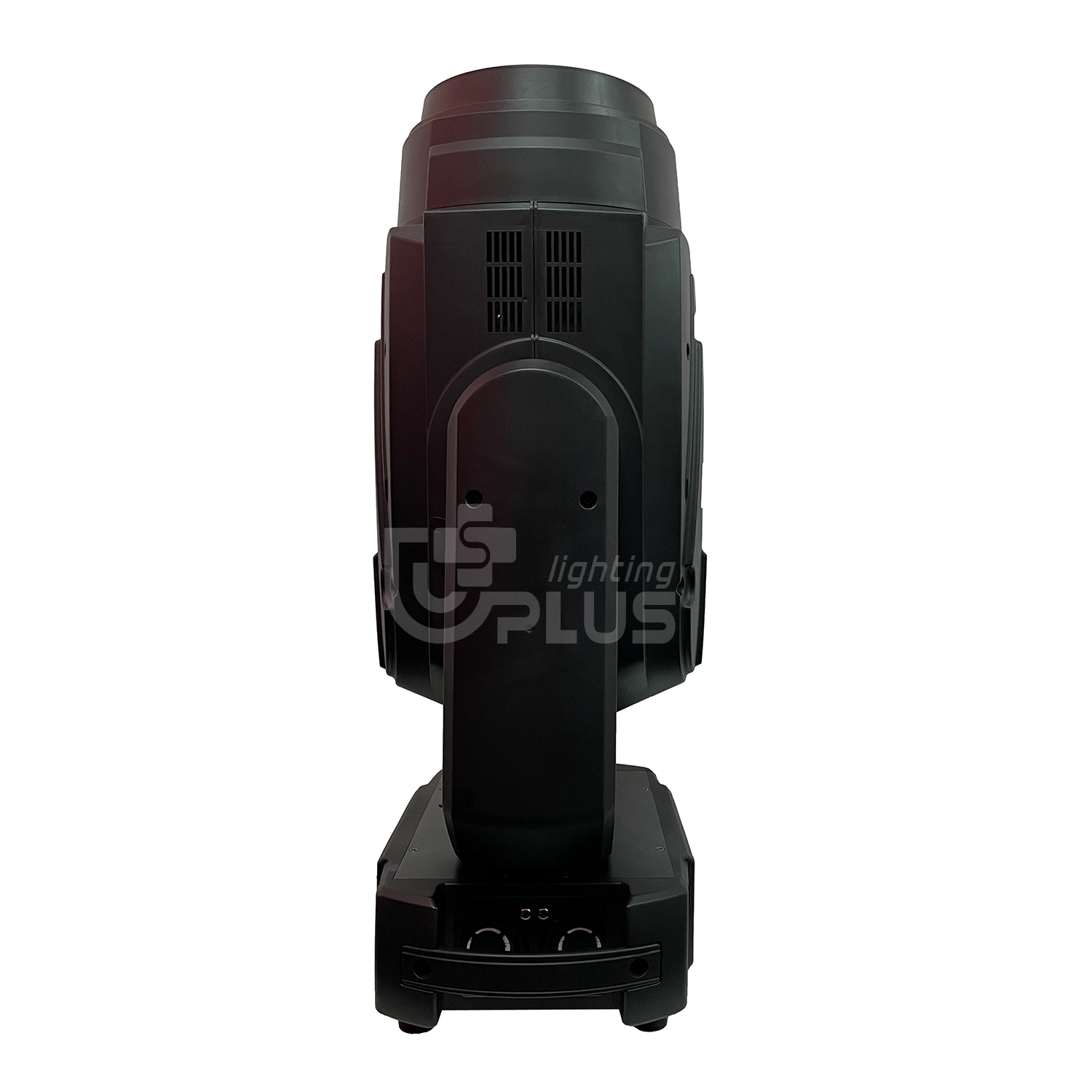

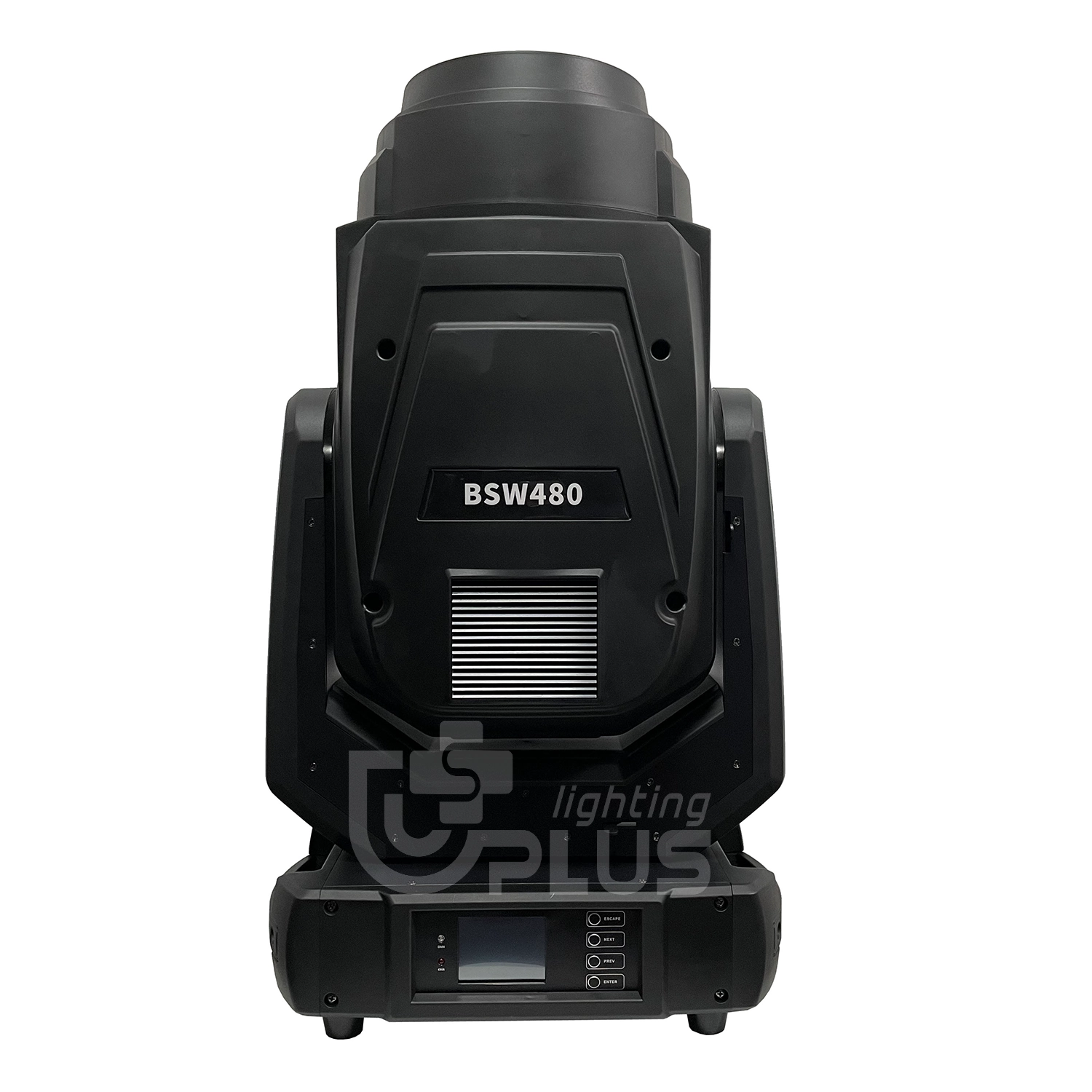

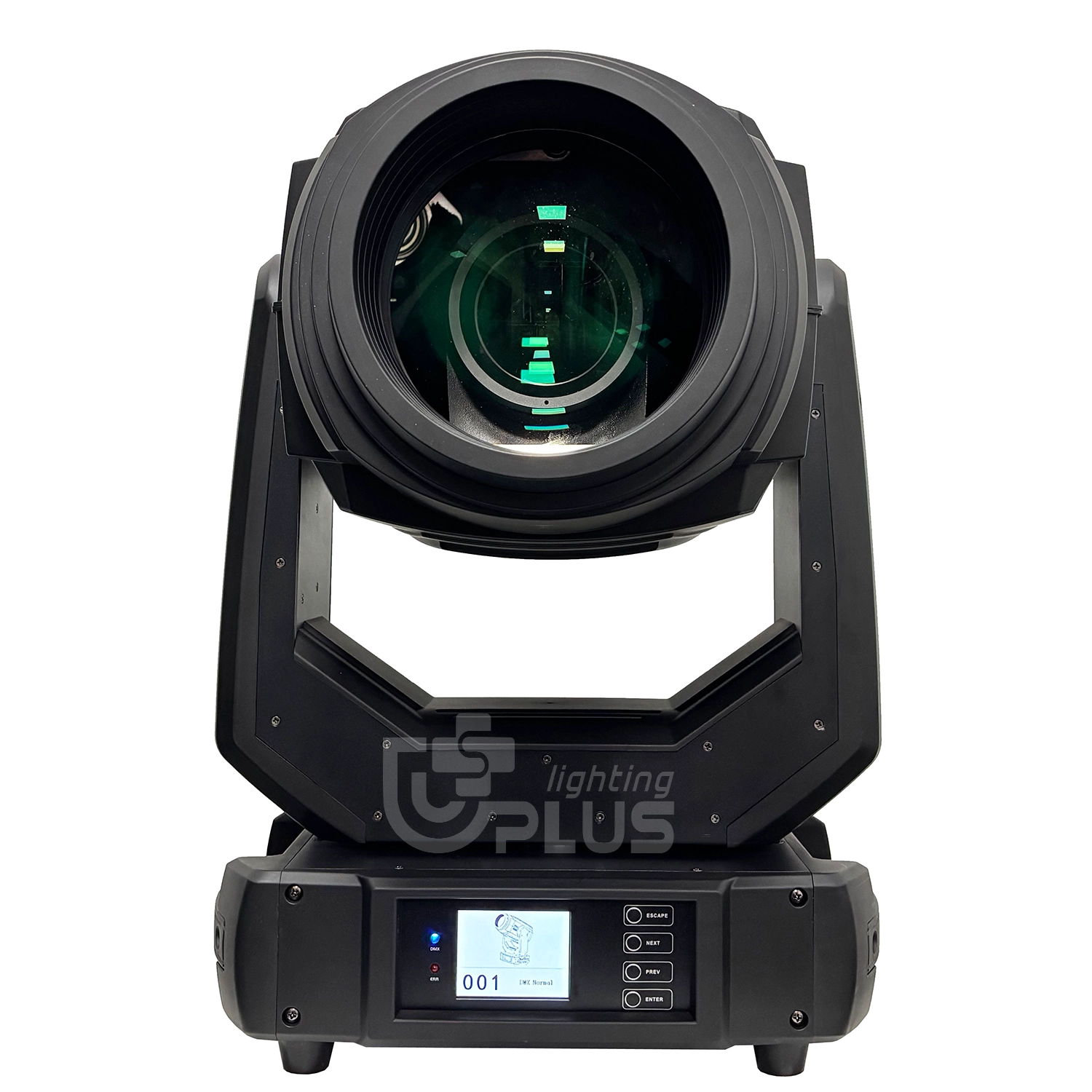

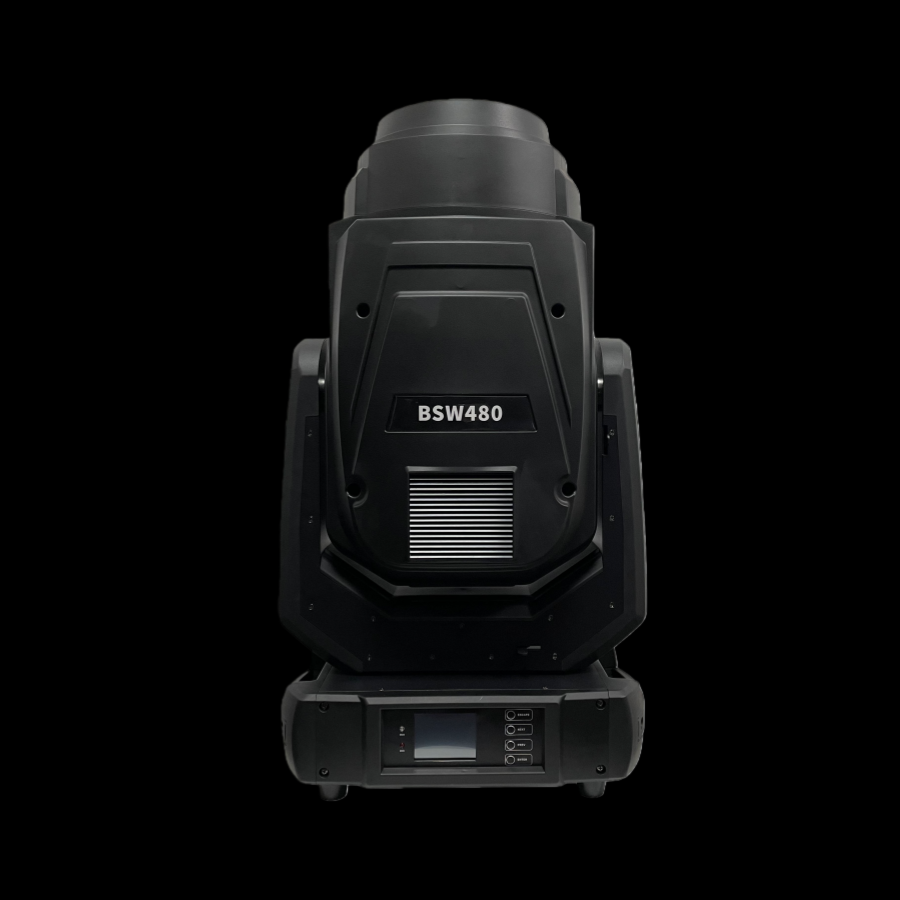

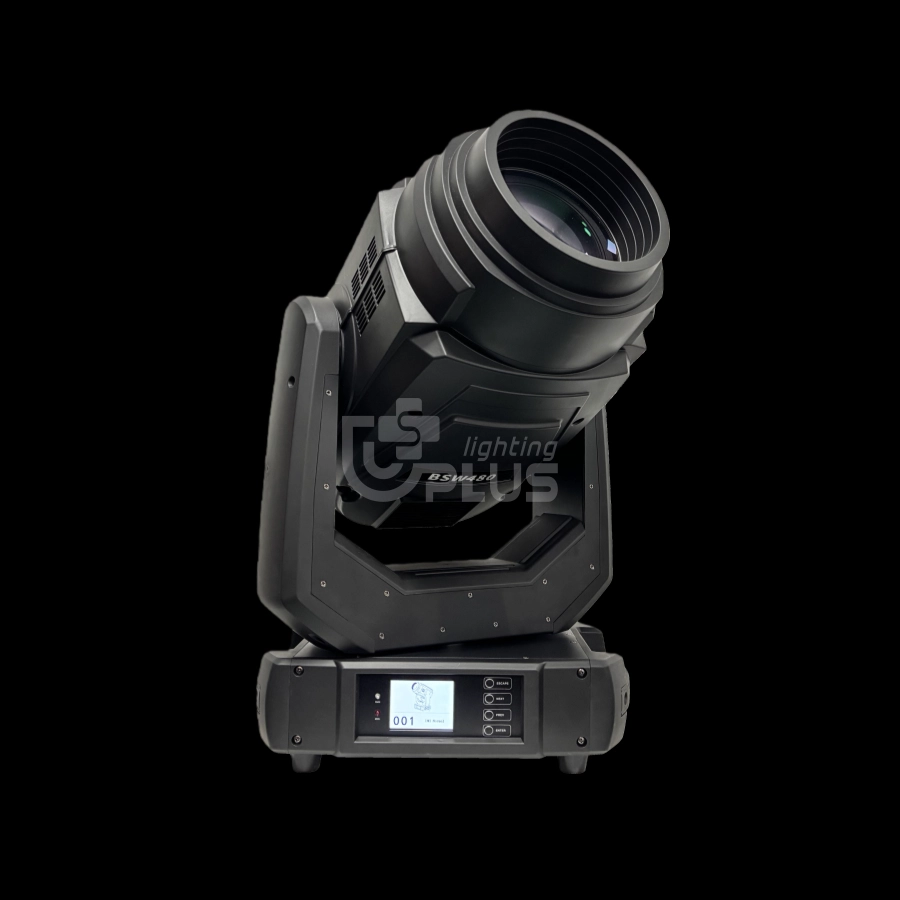

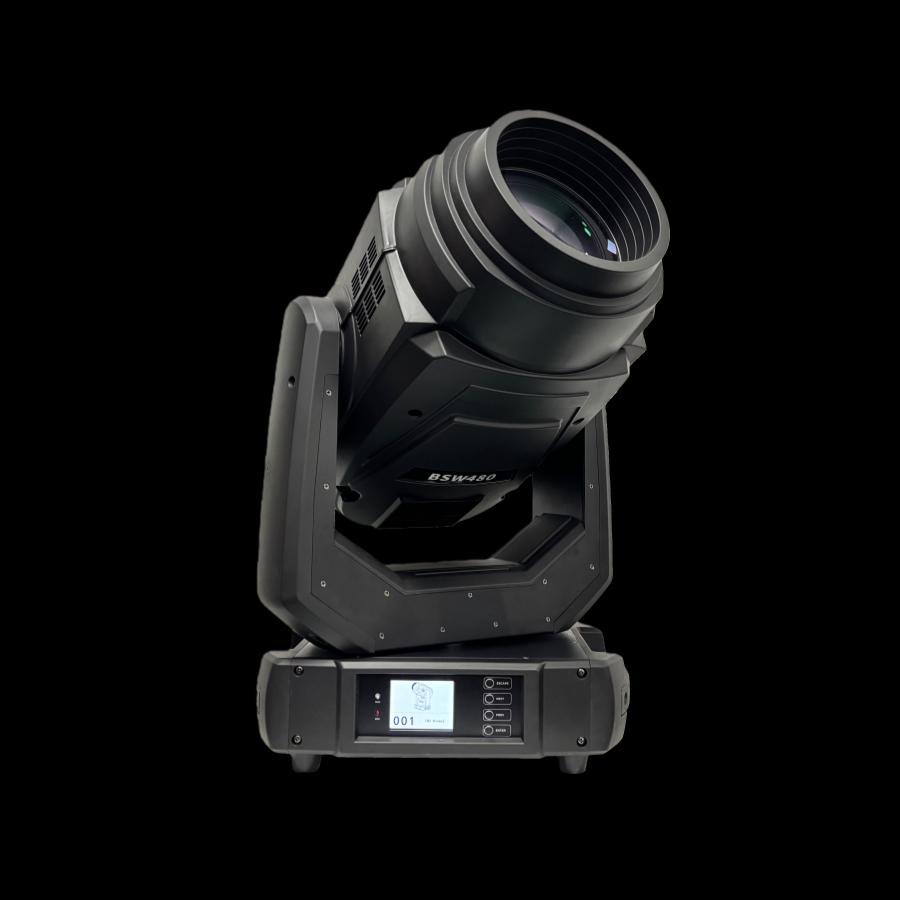

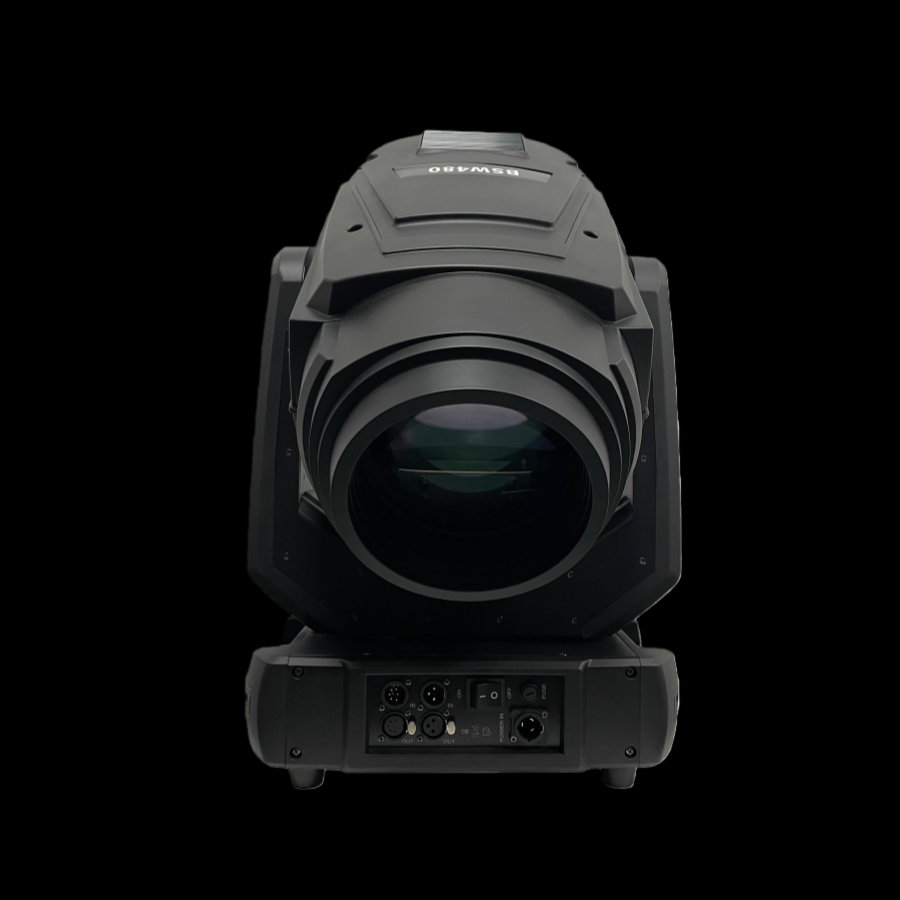

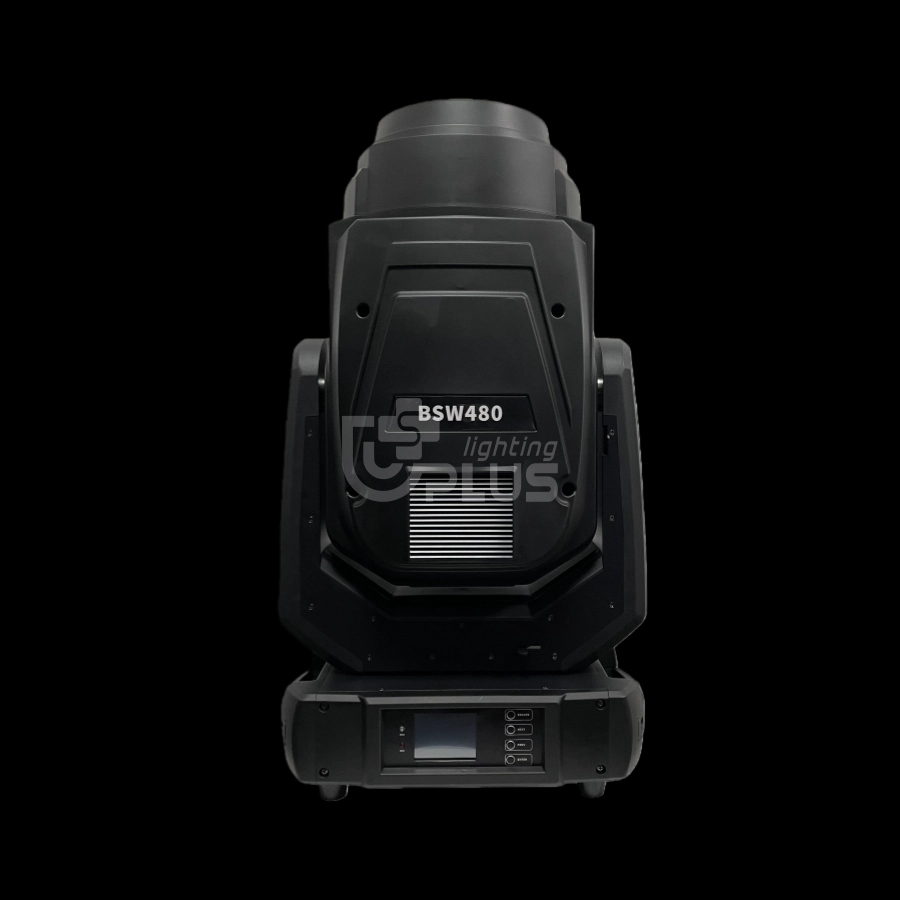

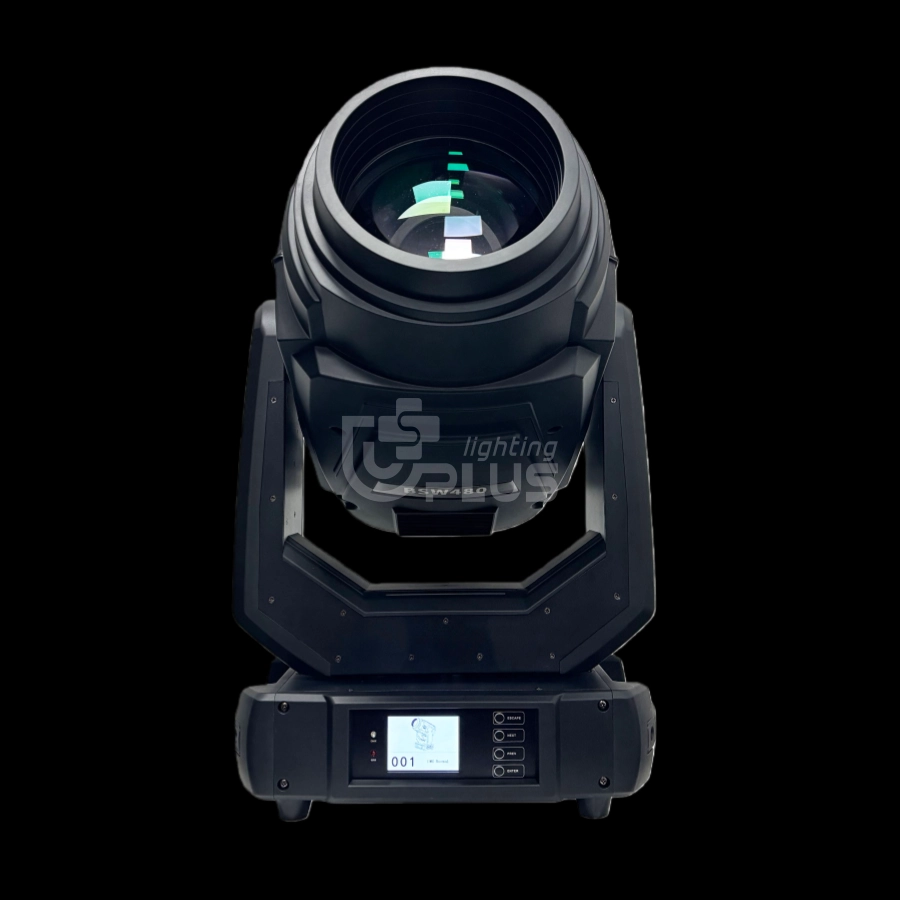

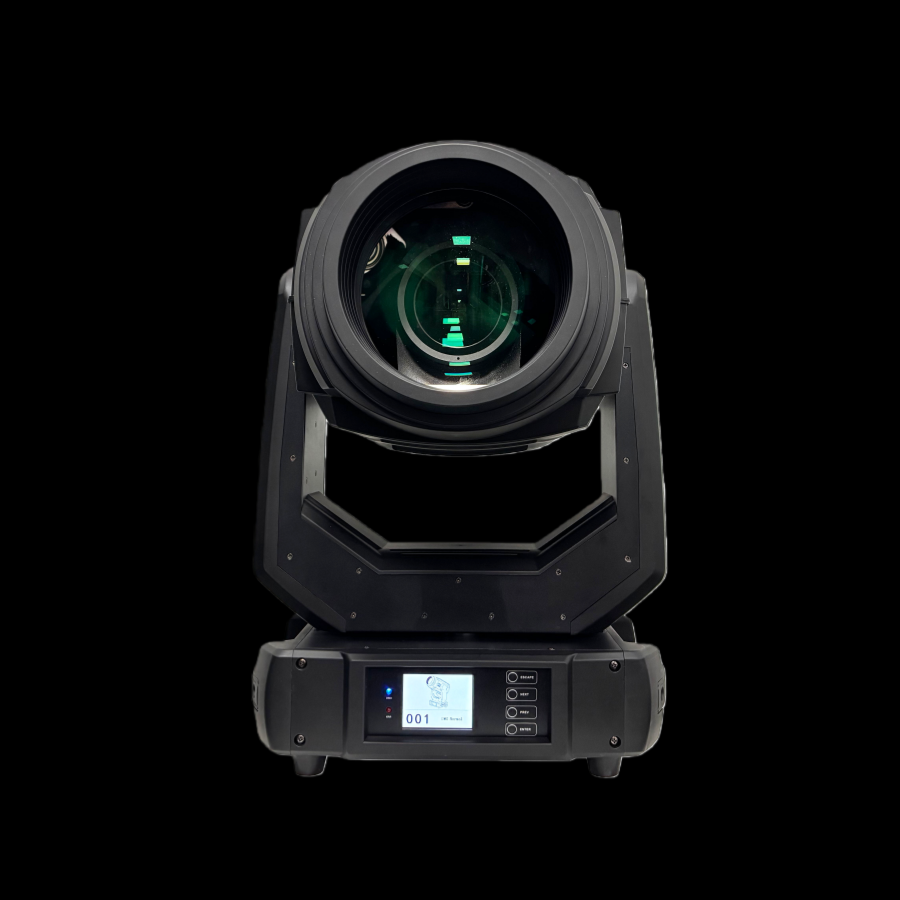

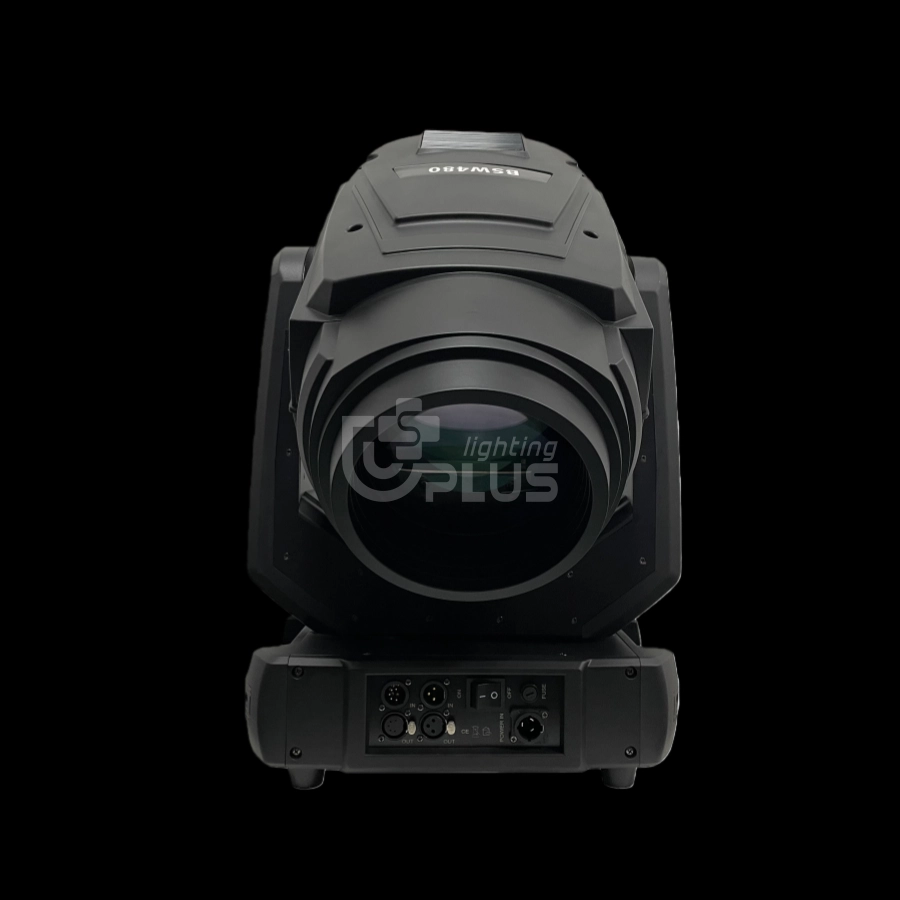

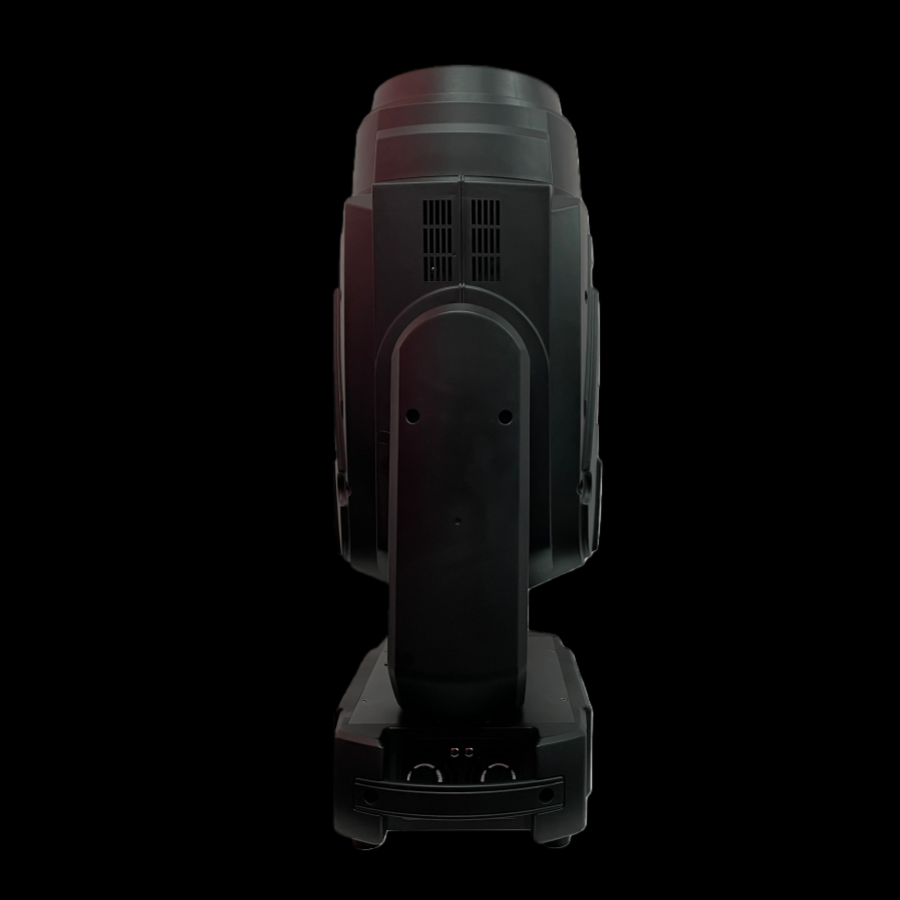

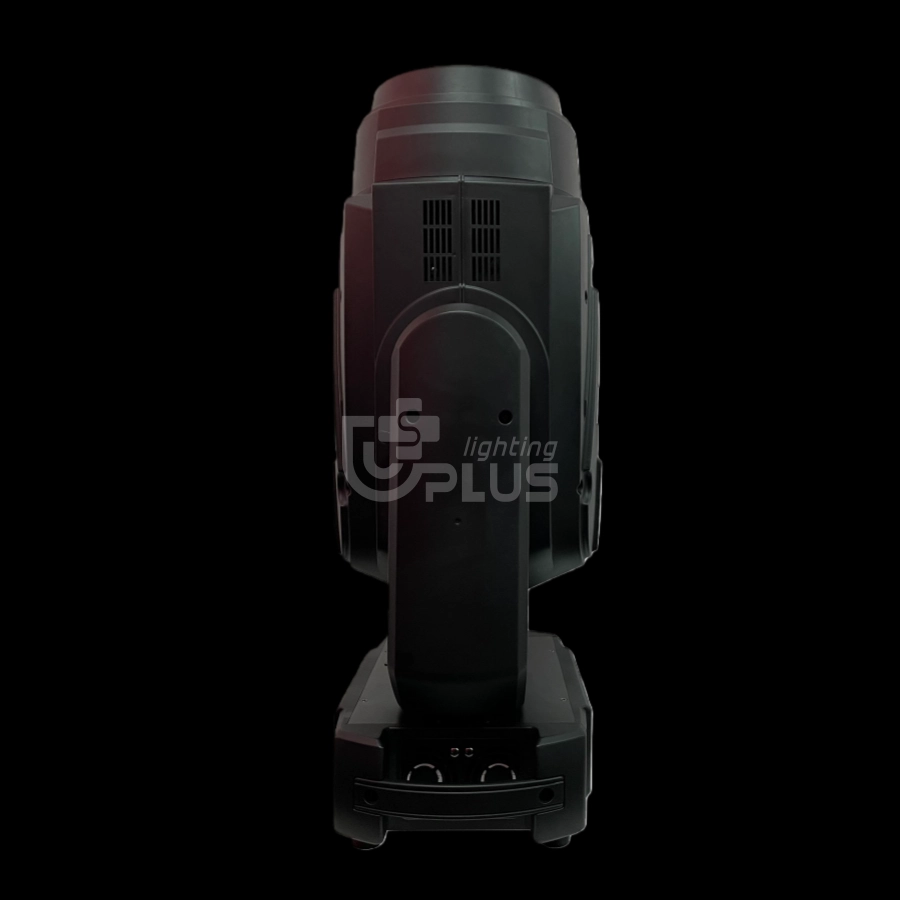

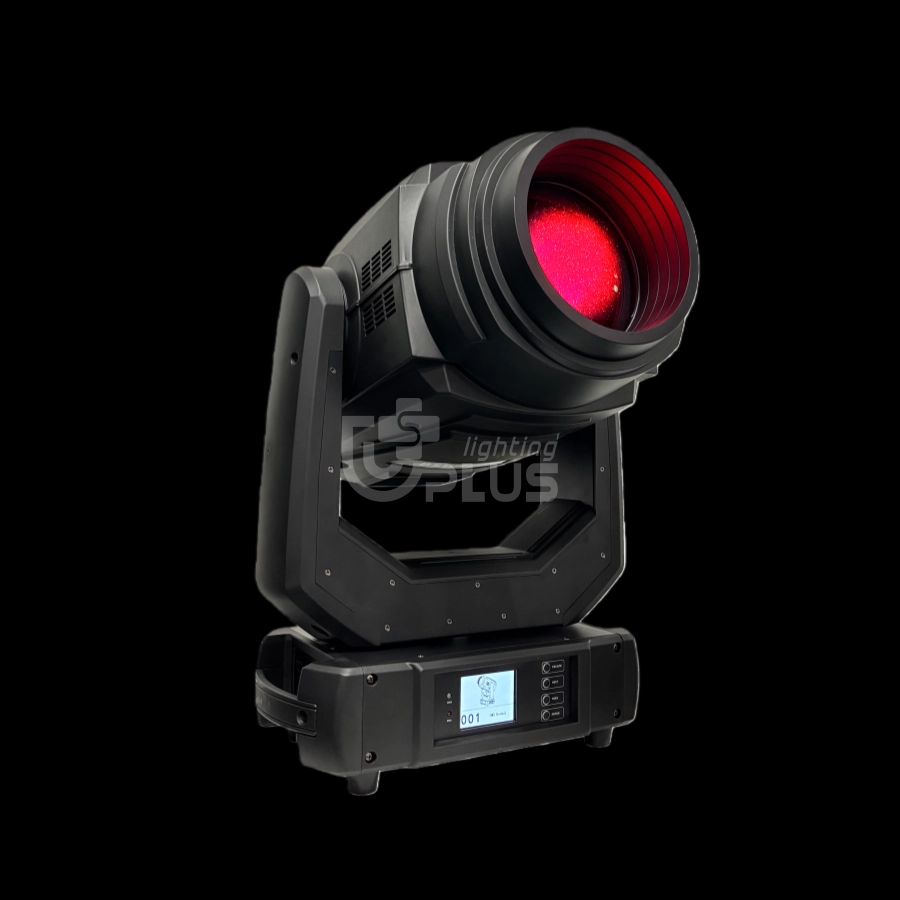

BSW480 480W BSW 3-in-1 moving head
The 480W BSW 3-in-1 moving head integrates three major lighting effects: beam, pattern, and wall washing. Its ultra-high power output delivers strong penetration, precise light control, and smooth switching of light effects, making it suitable for professional scenarios such as large-scale concerts, cultural tourism live shows, and venue performances.
Specifications
OPTICS
•Light source: PHILIPS-MSD Silver 480W LL
•Power Consumption: 800W
•Color temperature: 7800K
•Life span: 4000 hours
•Beam angle: 1.6 ° - 44 °
FEATURES
•Control: DMX512, master-slave, sound control, RDM, DMX software upgrade
•Channel mode: 34,39 CH
•Color Wheel: 13 colors + open, with rainbow effect
Virtual Colour wheel(Linear CMY)
66 preset colours
•Fixed gobo wheel: 10 gobos & 4 beam reducers + open, with rotation and running water effect
•Rotating gobo wheel: 9 gobos+open
•Animation Wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
•Prism: Prism 1: Rotating 6-facet linear Prism 2: 8-facet circular
•Frost, Focus
SPECIFICATION
•Dimension: 230*386*673mm; NW: 21.5kgs
Effect
Features
APPLICATION
Packaging & Logistic
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
Are you a manufacturer or a trading company?
We come directly from the factory and also have a sales office in Baiyun, Guangzhou.
Can I visit Uplus Lighting company onsite?
Of course, our company is located at No. 4, Xiaotang Middle Road, Jianggao Town, Baiyun District, Guangzhou, China. Welcome to visit our factory!
What is Uplus Lighting's main product for factories?
The main products provided by Uplus are stage lighting, related accessories, and consoles. Our products are suitable for many large-scale international performances, concerts, theaters, music festivals, TV programs, etc.
What light source and beam range does the BSW480 use?
The BSW480 uses a PHILIPS MSD Silver 480W LL lamp with a 1.6°–44° beam angle, covering narrow beam and wider spot/wash effects.
What payment methods do you accept?
Accepts T/T (Telegraphic Transfer), VTB(Russia), CHINA MINSHENG BANKING, BANK OF CHINA, and PayPal. A 30% advance payment is required for some customized orders.
