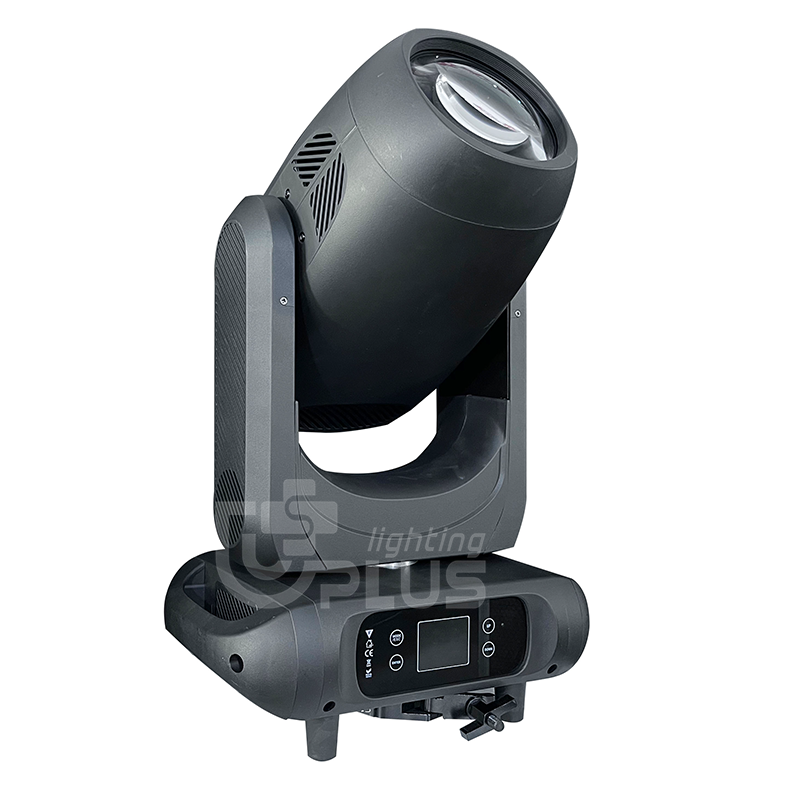

BSW390 390W BSW 3-in-1 moving head with CMY CTO
The 390W BSW 3-in-1 moving head with CMY CTO features CMY color mixing and CTO color temperature adjustment, delivering a powerful 390W output. It combines beam, color, and pattern effects into one, providing precise and rich lighting effects, making it suitable for core lighting for professional performances such as large stages, concerts, and venue events.
Specifications
OPTICS
•Light source: Osram SIRIUS HRI 382W lamp
•Color temperature: 7500K
•Zoom angle: 2.5°-50°
•CTO: 3200K~7500K, linear
FEATURES
•Control: DMX 512/ Master-slave/Self-propelled/RDM
•DMX Channels: 26/36 CH
•Color wheel 1: 5color wheels +white
•Color wheel 2: 5color wheels +white
•Gobo:
1 fixed gobo wheel: 13 gobo+ open
1 rotating gobo wheel:7 gobos+open
•Prism: Prism 1: 8 face prisms Prism 2: 6 face linear prisms
•Dimming: 0-100% linear dimming
•Frost
SPECIFICATION
•Dimension: 360*235*608mm Weight 19KG
Effect
Features
APPLICATION
Packaging & Logistic
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
What control and installation features does the BSW390 offer?
The BSW390 supports DMX512 and RDM with 26/36-channel modes. It weighs 19 kg and includes a folding hook for installation.
What light source does the BSW390 moving head use?
The BSW390 uses an OSRAM 382 lamp and combines beam, spot and wash functions in one fixture.
What beam angle does the BSW390 support?
The BSW390 provides a 2.5°–50° beam angle, allowing both narrow beam effects and wider stage coverage.
What color system is available on the BSW390?
The fixture features CMY + CTO color mixing plus two color wheels, each with 5 colors + white.
Our service?
We have a professional team that can provide and customize products for you.
Get a Free Quote
If you have any comments or good suggestions, please leave us a message, later our professional staff will contact you as soon as possible.
1000W Waterproof BSWF 4-in-1 Moving Head combines beam, spot, wash, and frame effects in one. IP-rated waterproof design, high-brightness output, precise control, ideal for outdoor & indoor stage events.
The MINI 500W LED BSWF 4-in-1 moving head with CMY features CMY color mixing, a 500W high-power mini body, and integrates four effects: beam, color, pattern, and fog. It delivers precise and rich lighting effects, making it suitable for core lighting in professional scenarios such as stage performances and venue events.

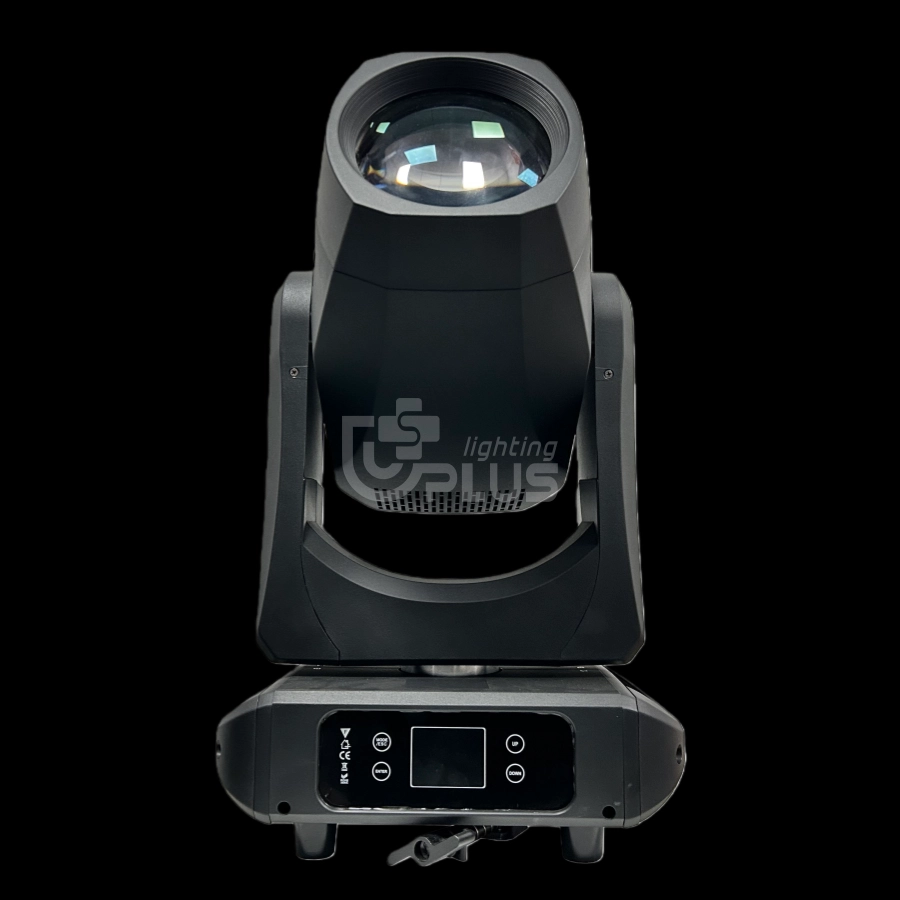

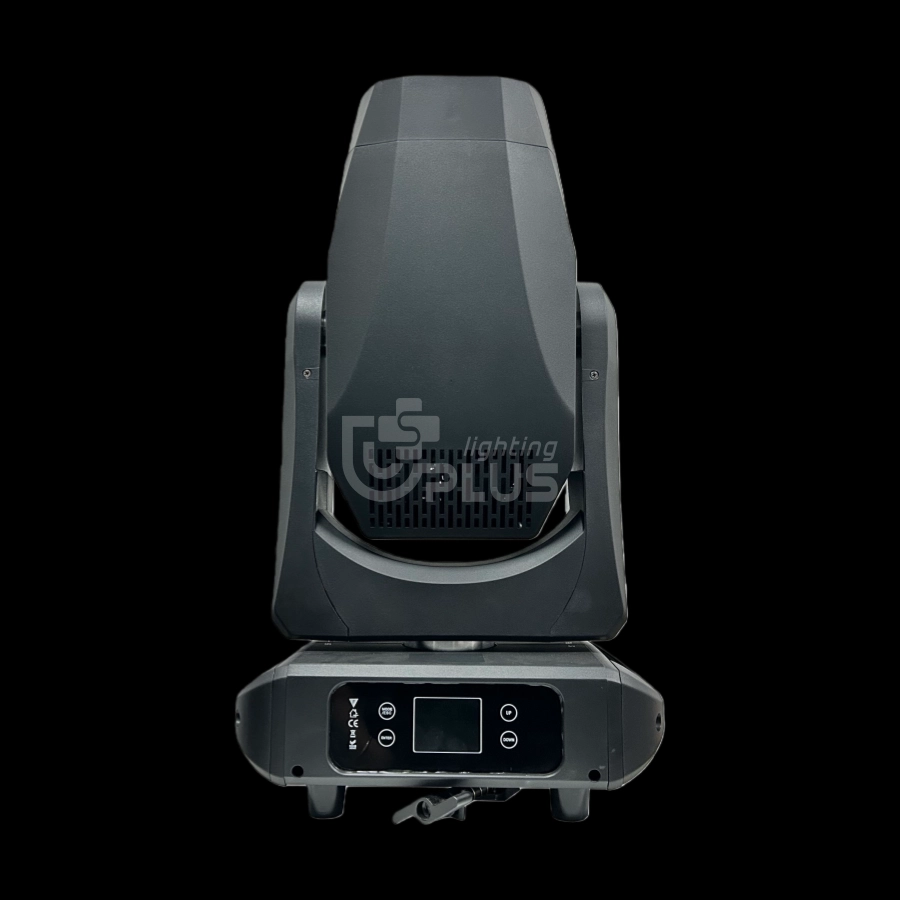

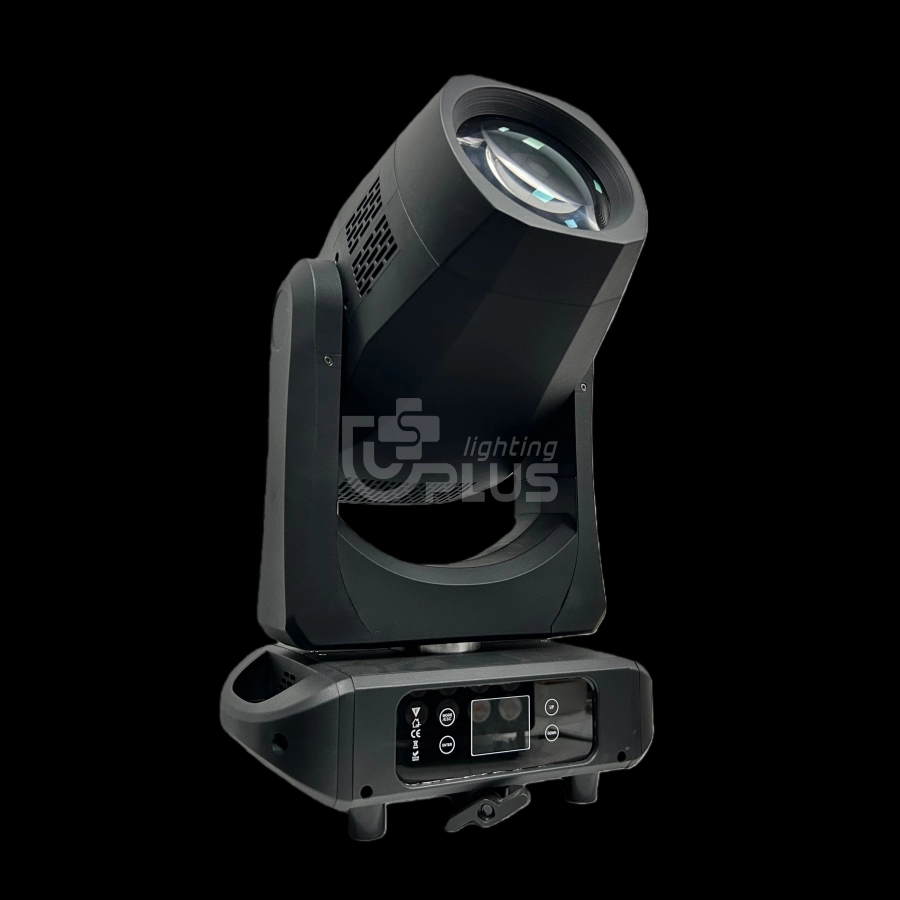

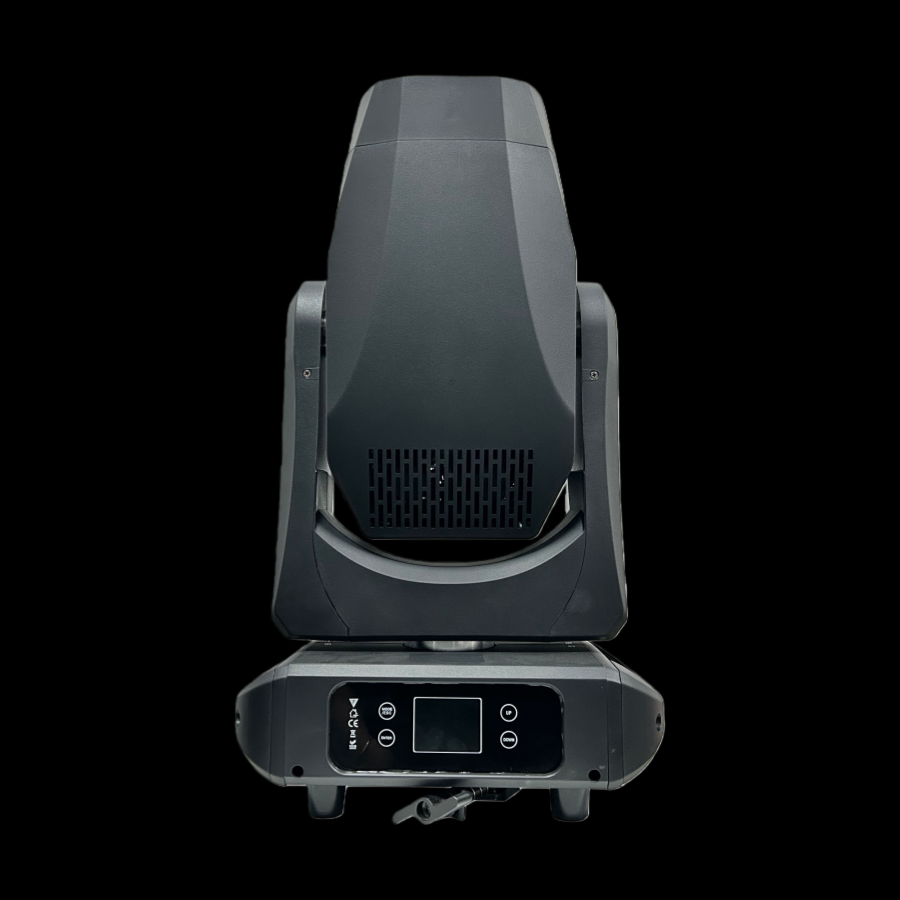

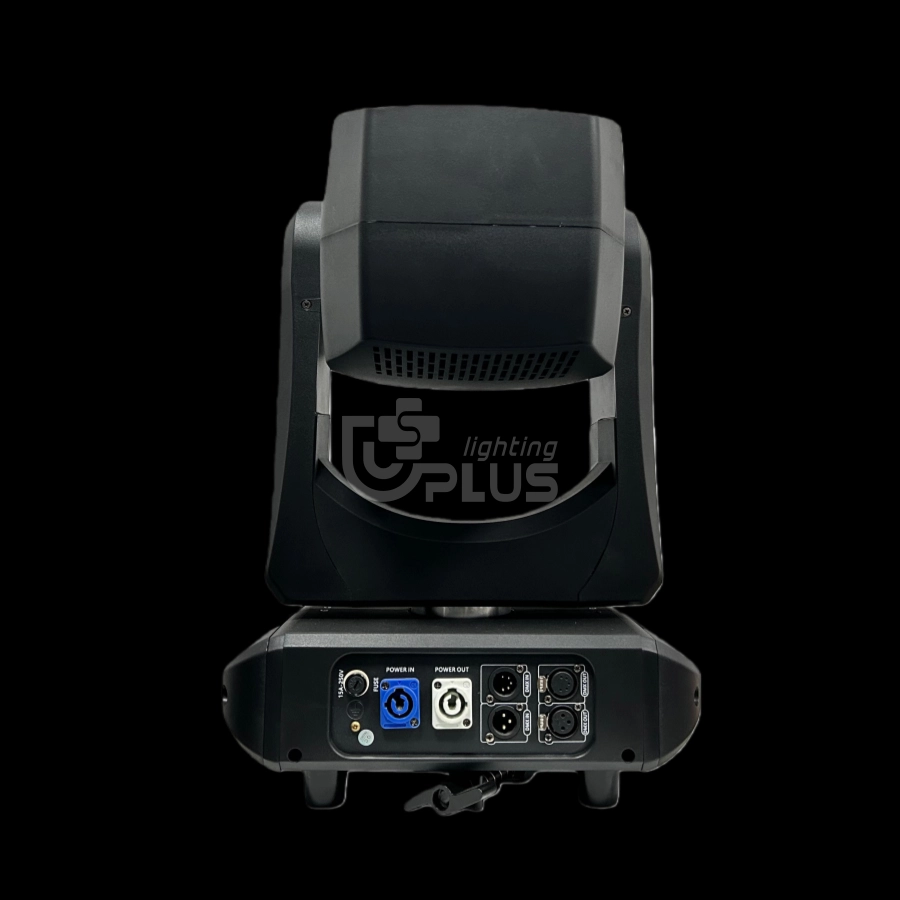

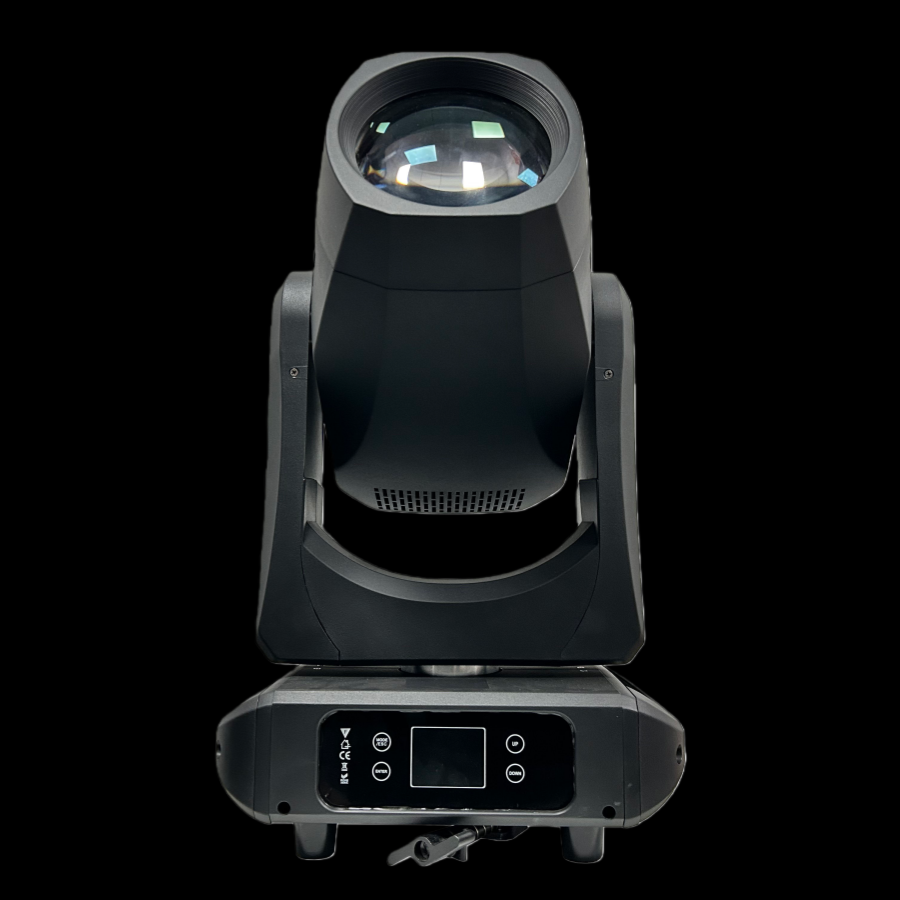

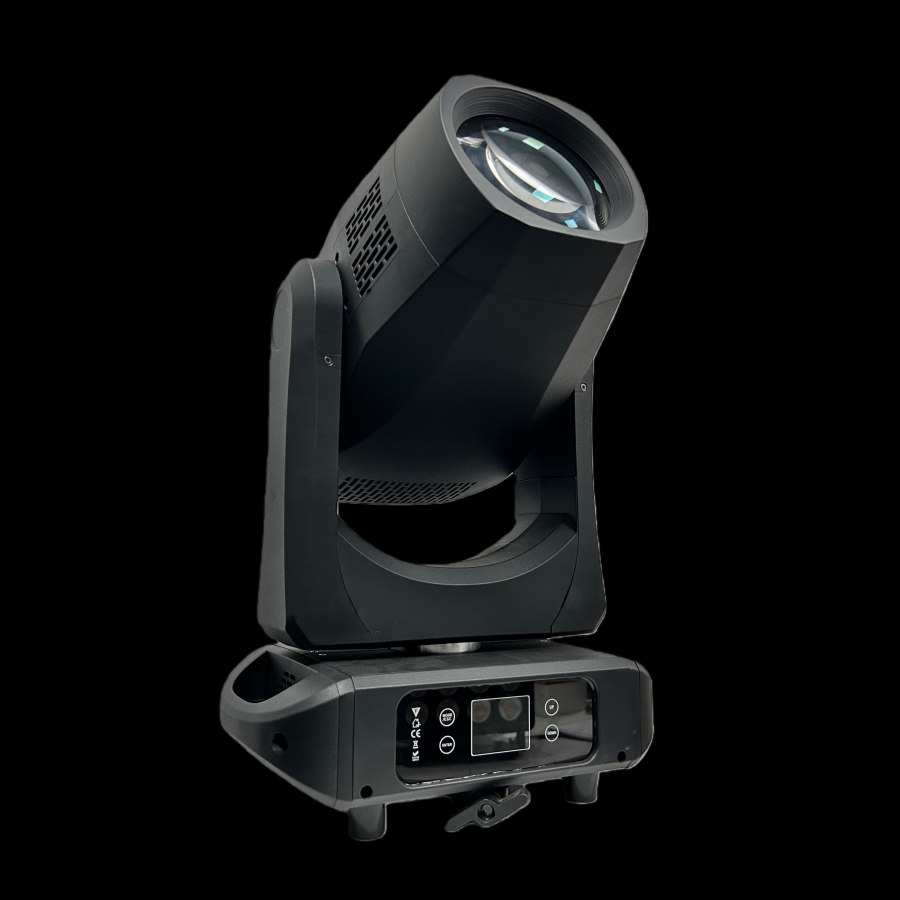

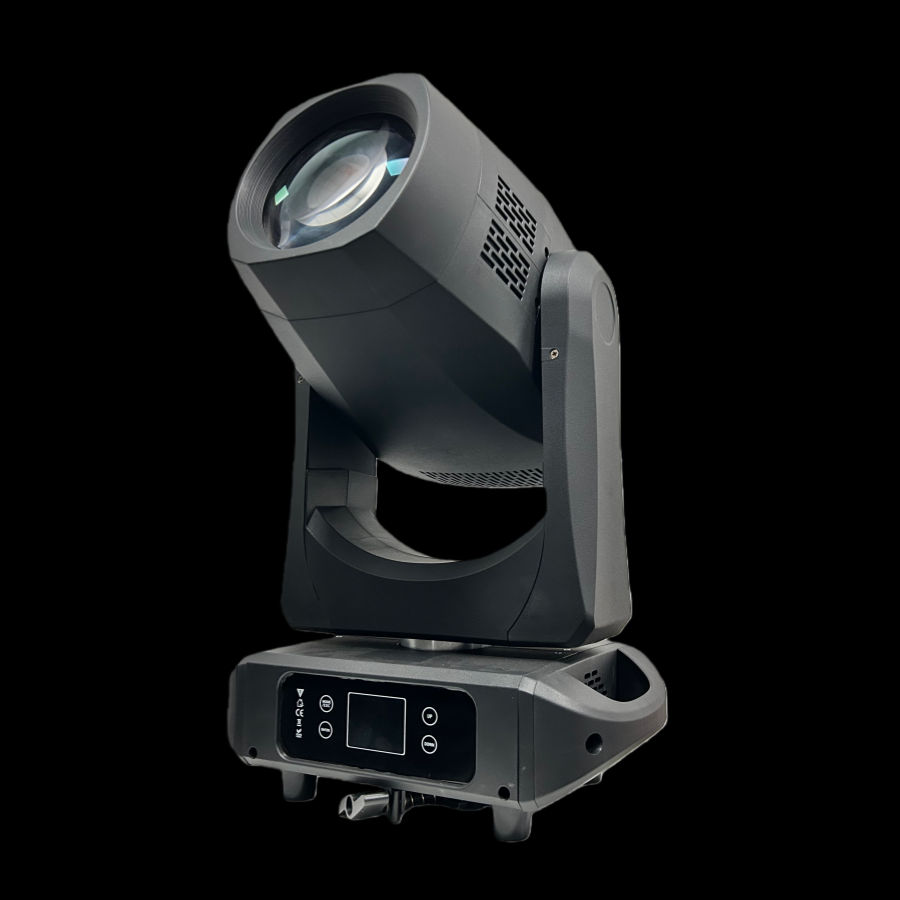

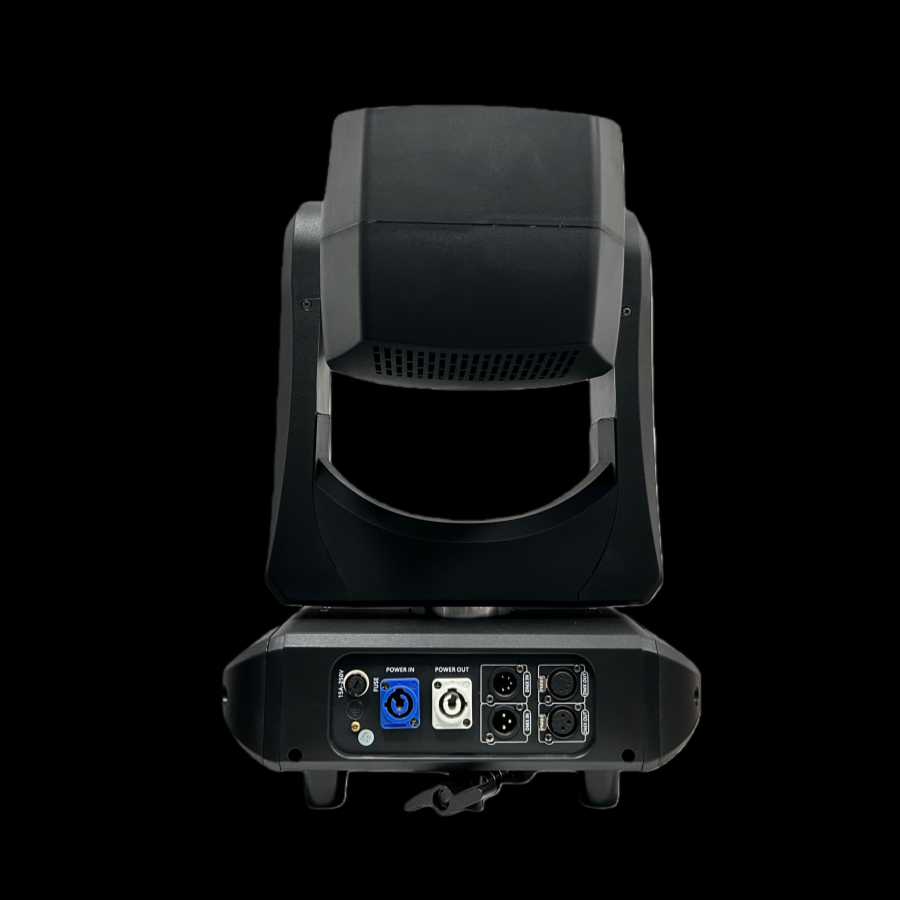

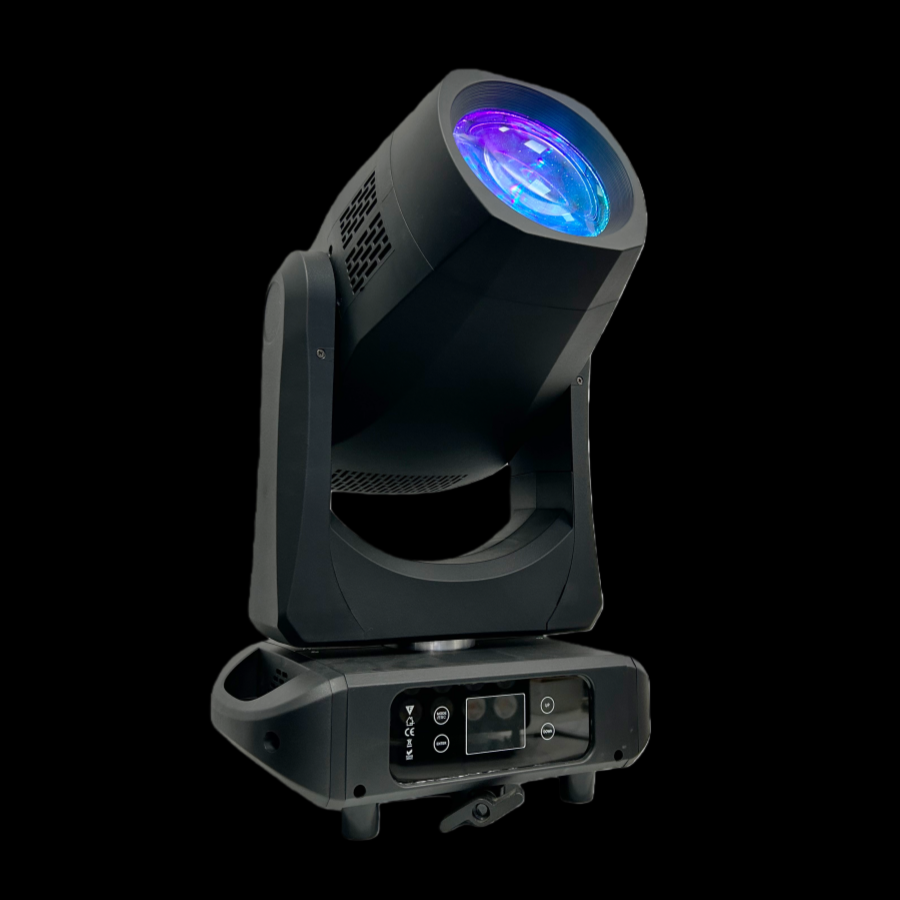

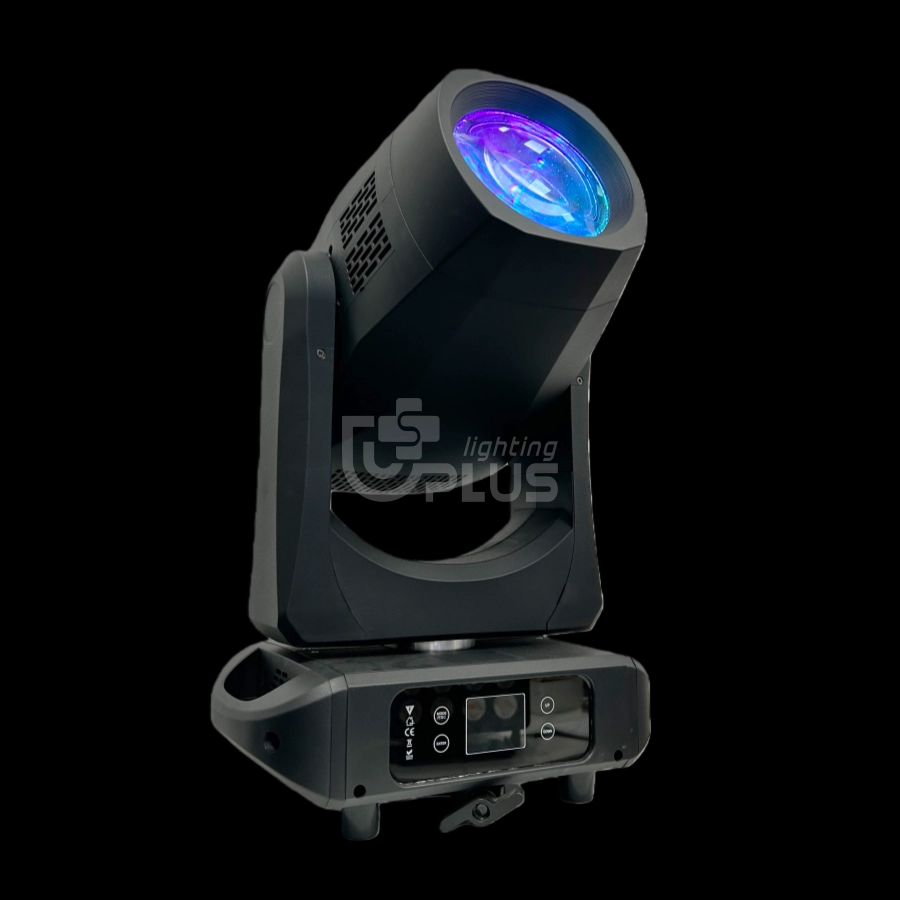

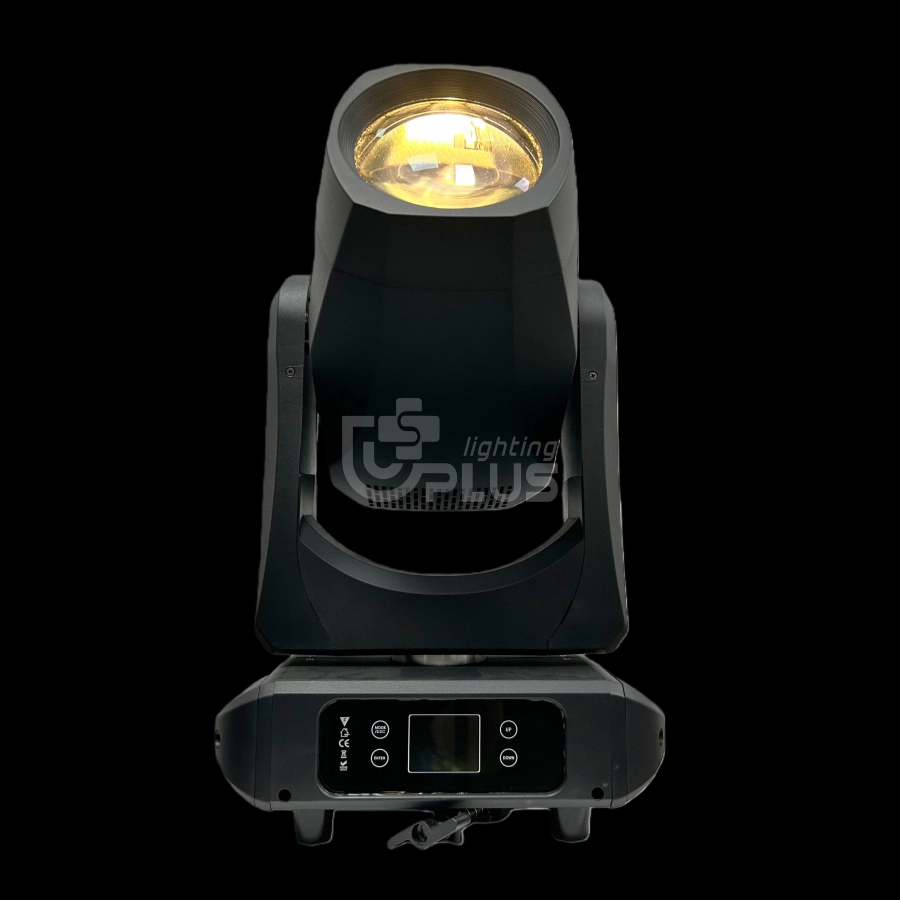

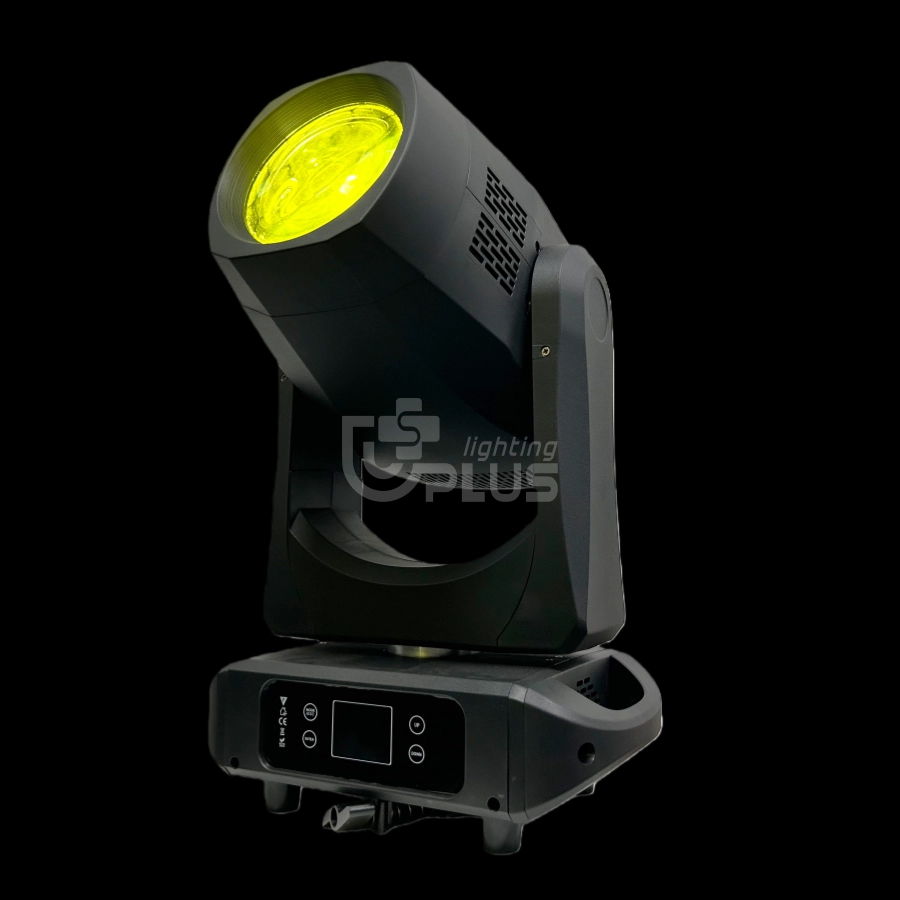

The 420W LED BSW 3-in-1 moving head with CMY & CTO features CMY color mixing and CTO color temperature adjustment, 420W high-power output, and integrates three core functions: beam, color, and pattern. It delivers precise and rich light effects, making it suitable for professional performance scenarios such as large stages, concerts, and light shows.
