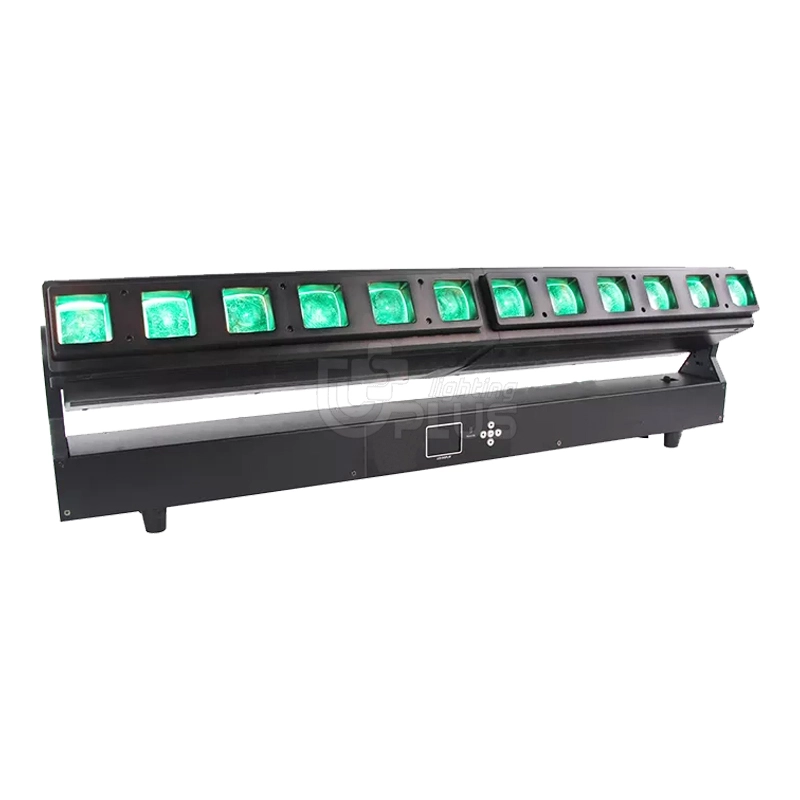

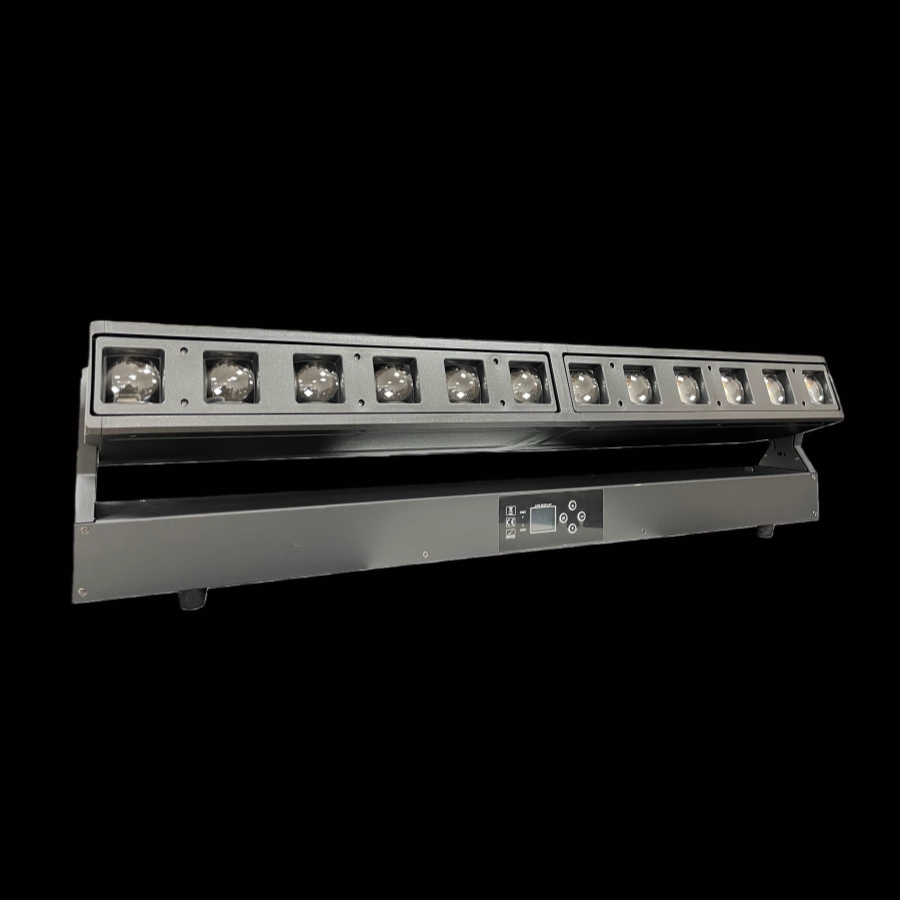

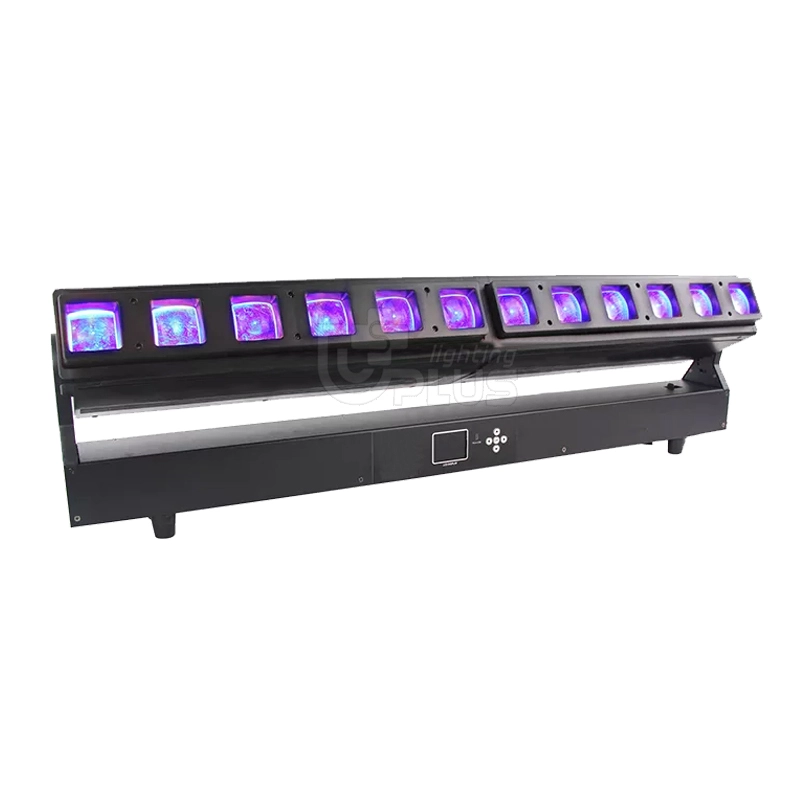

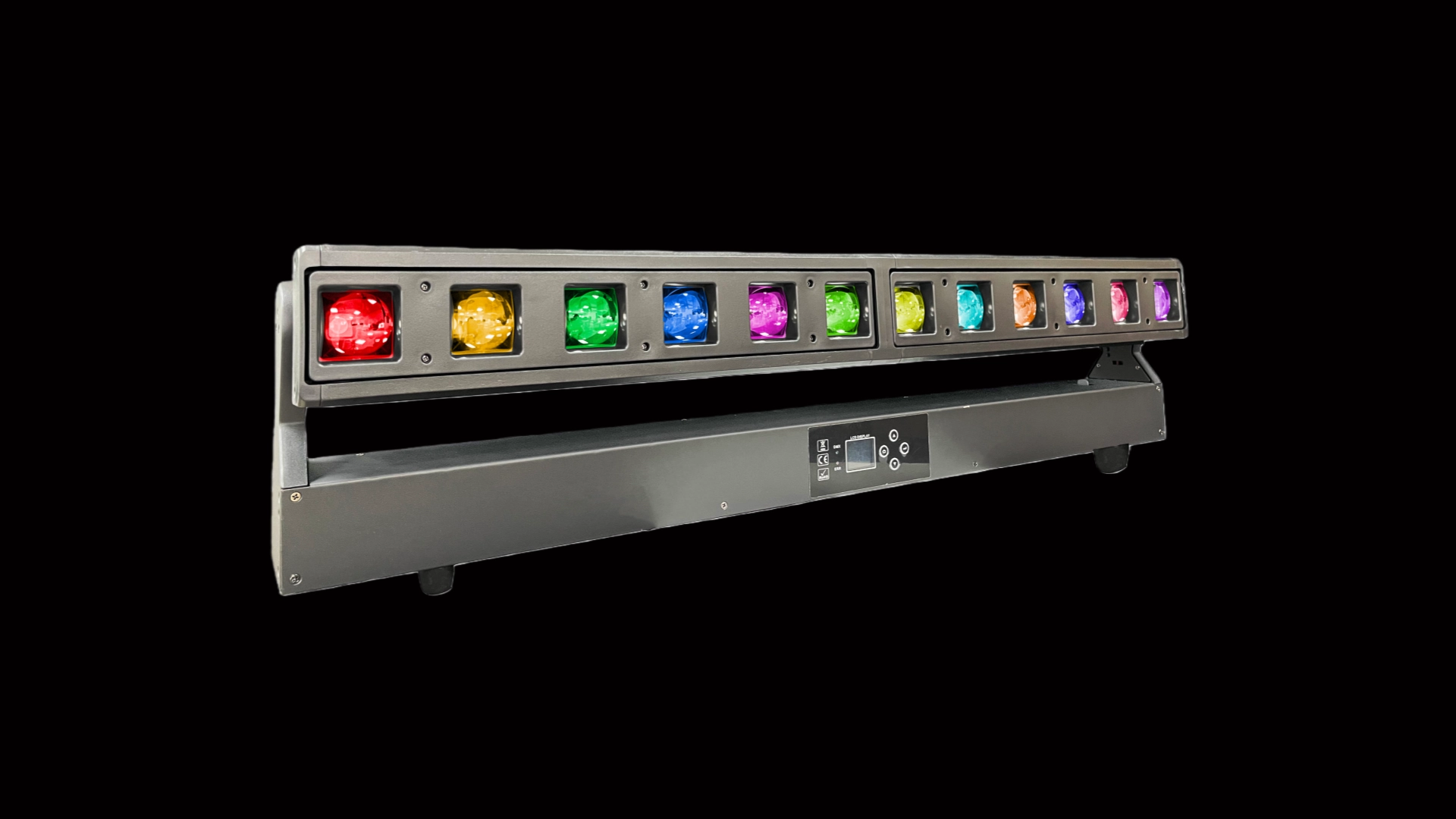

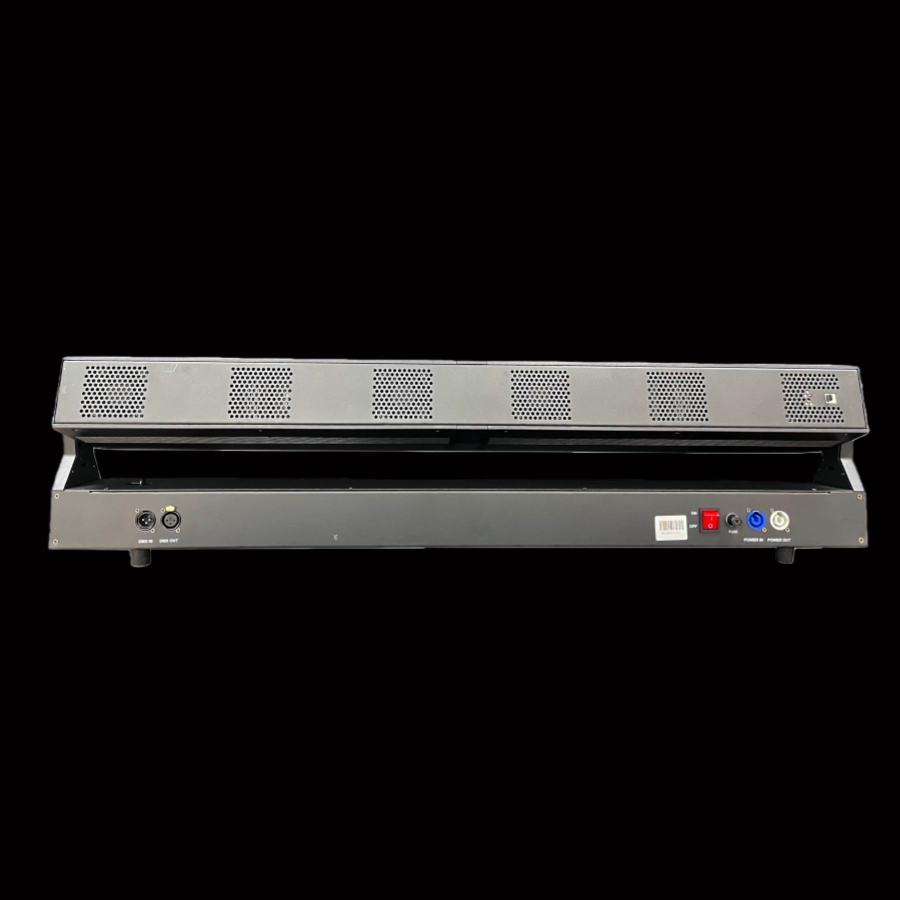

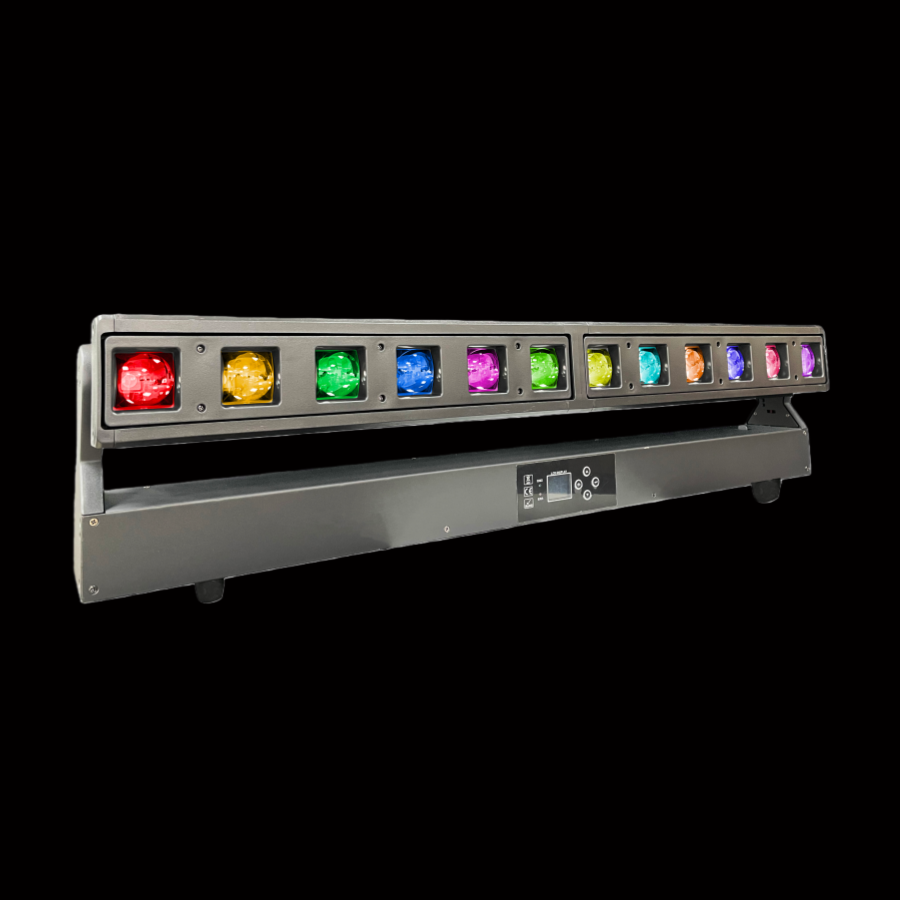

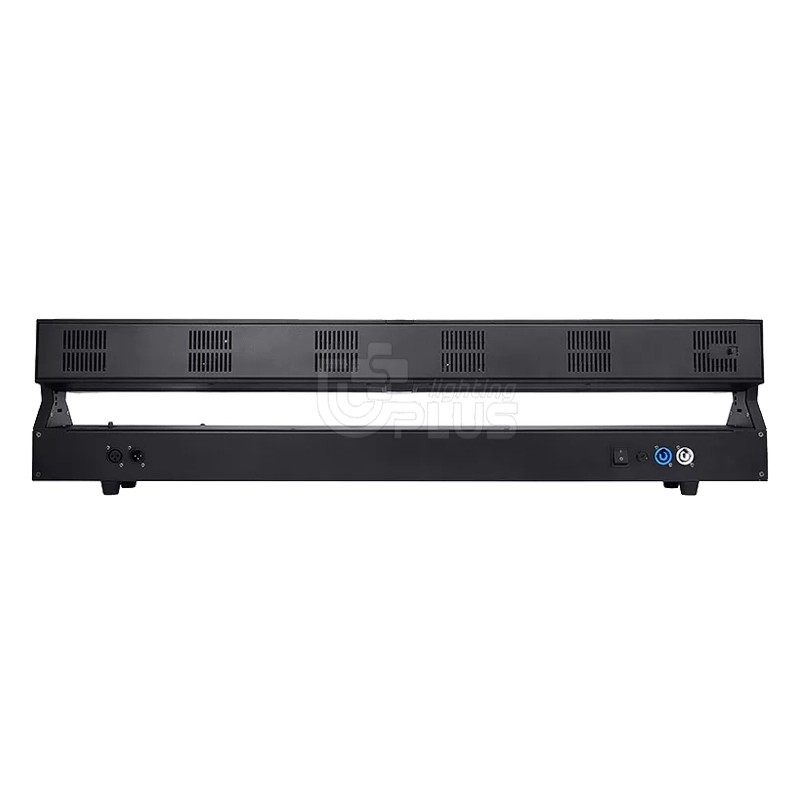

MH 12X40 PIXEL BAR 12*40W Pixel zoom bar moving head
The 12*40W pixel zoom moving head light strip features independent light control for each LED, supports precise pixel-level adjustment and wide-range zoom, and offers rich lighting effects. It is suitable for stages, bars, cultural and tourism lighting, and other scenarios to create dynamic light and shadow effects.
Specifications
OPTICS
•Light source:12*40W RGBW 4 in 1
•Power Consumption: 580W
•Zoom angle: 5°-45°
FEATURES
•Control: DMX512/Auto Run/Master-Slave/Music/RDM
•DMX Channels: 20/57 channels
•Strobe: Fast electric strobe 1 ~ 20 Hz
•Dimming: 0-100% linear dimming
•Display: LCD display
SPECIFICATION

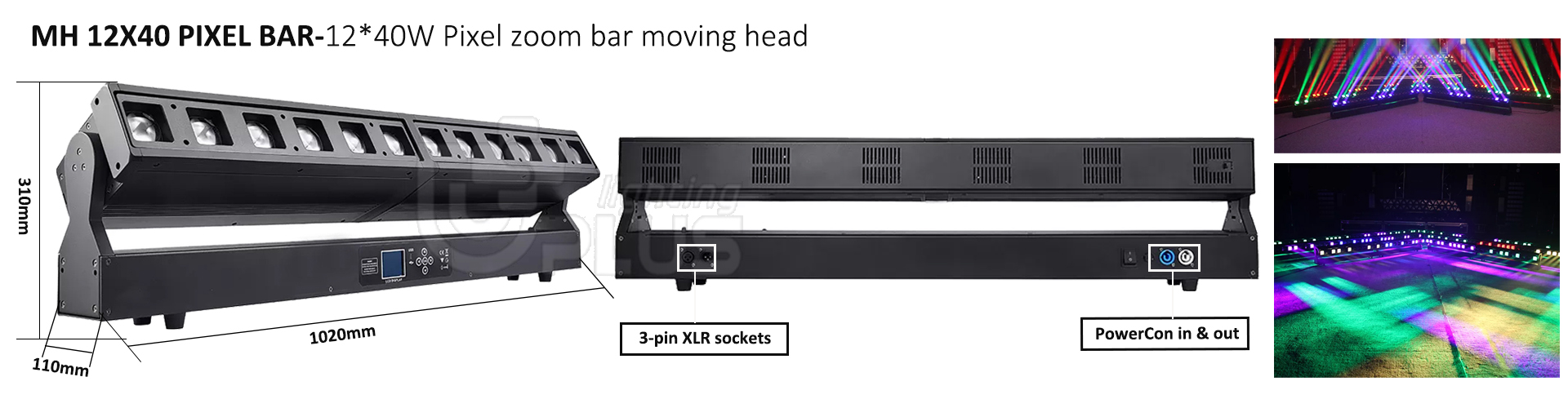

•Dimension:1020*100*300mm; NW: 14.5 kg

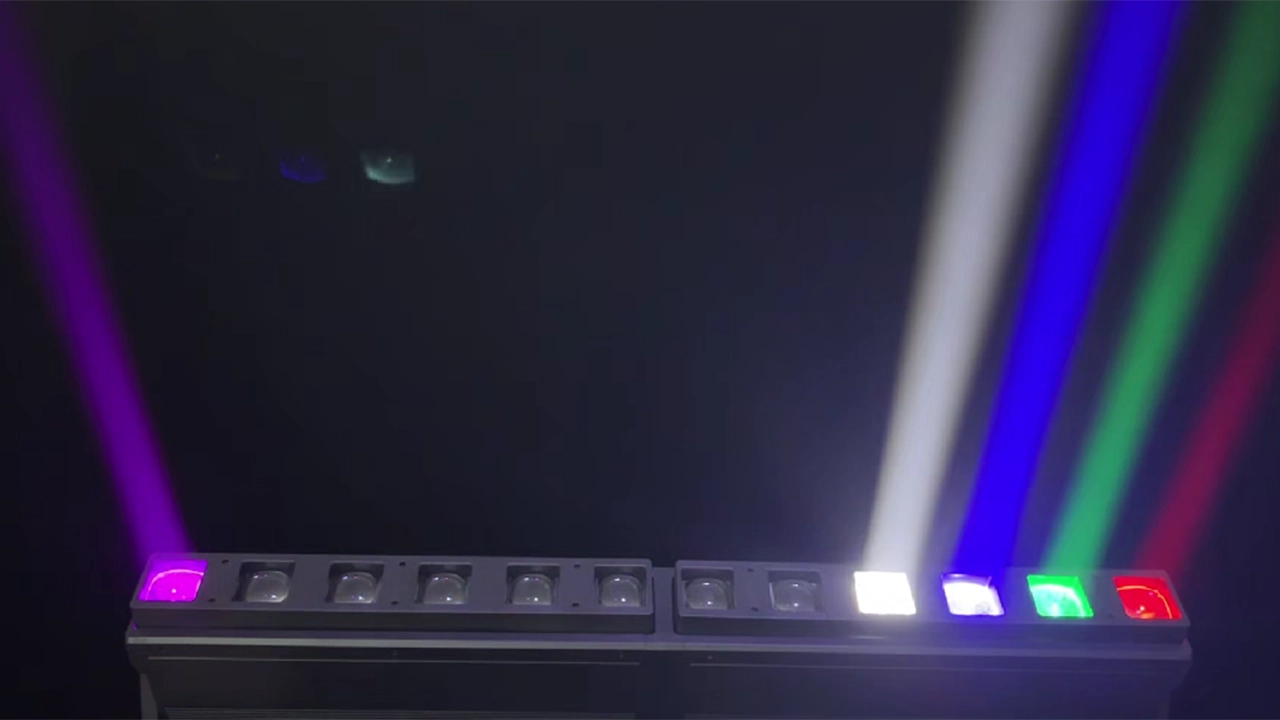

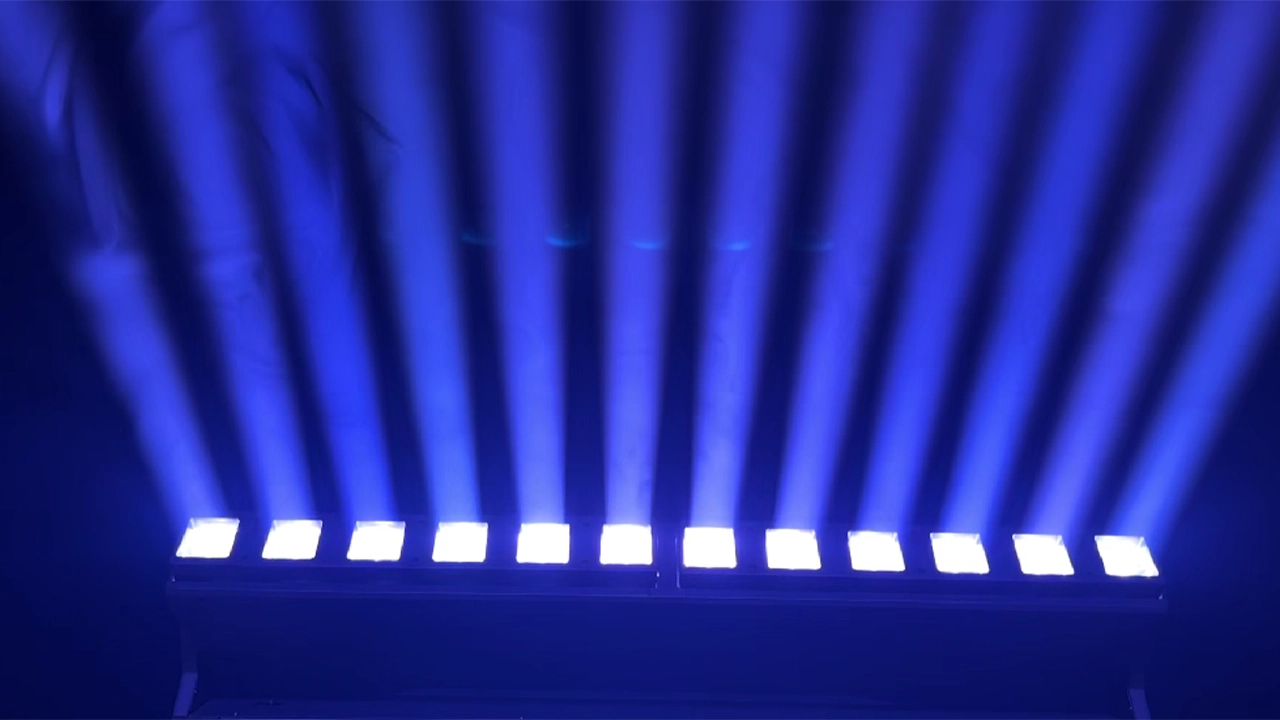

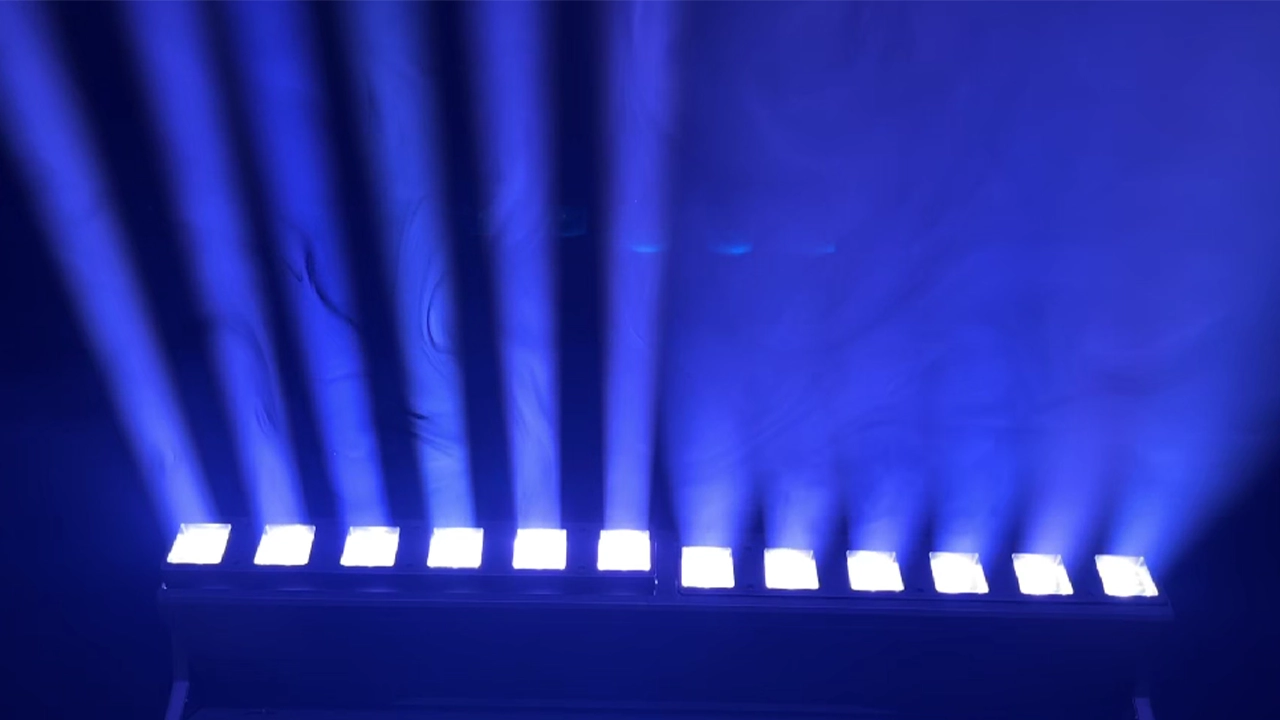

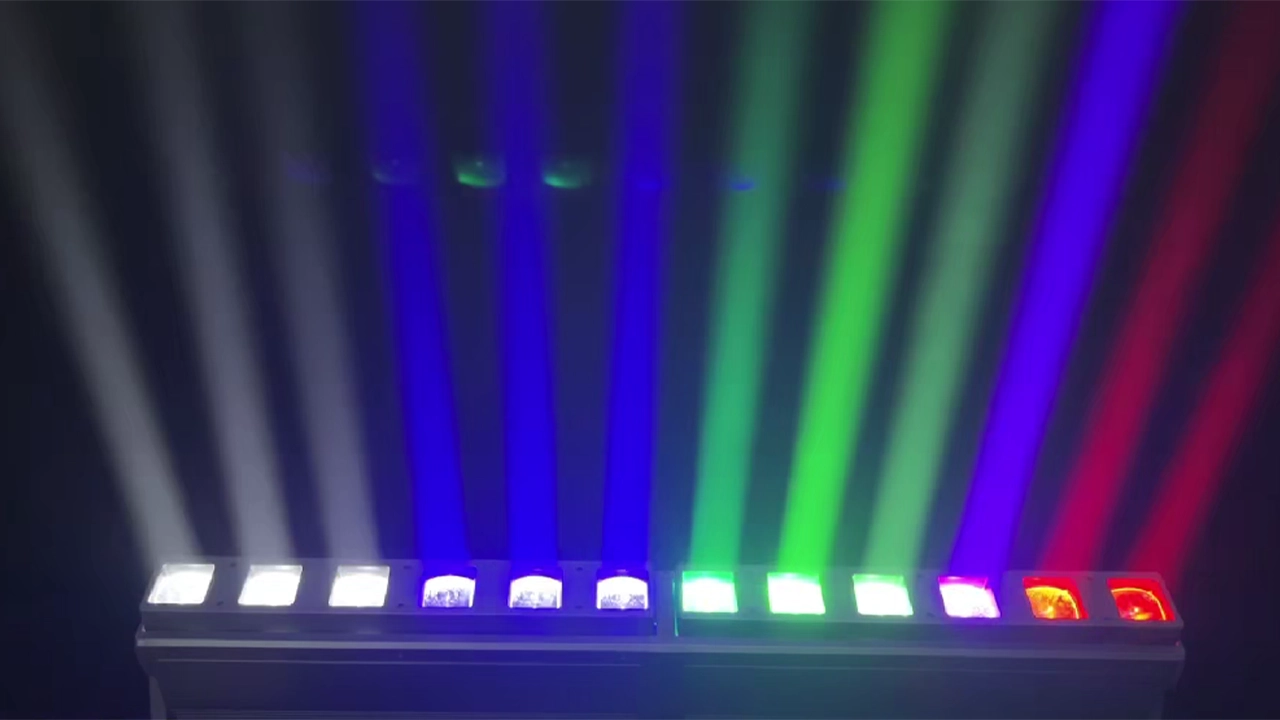

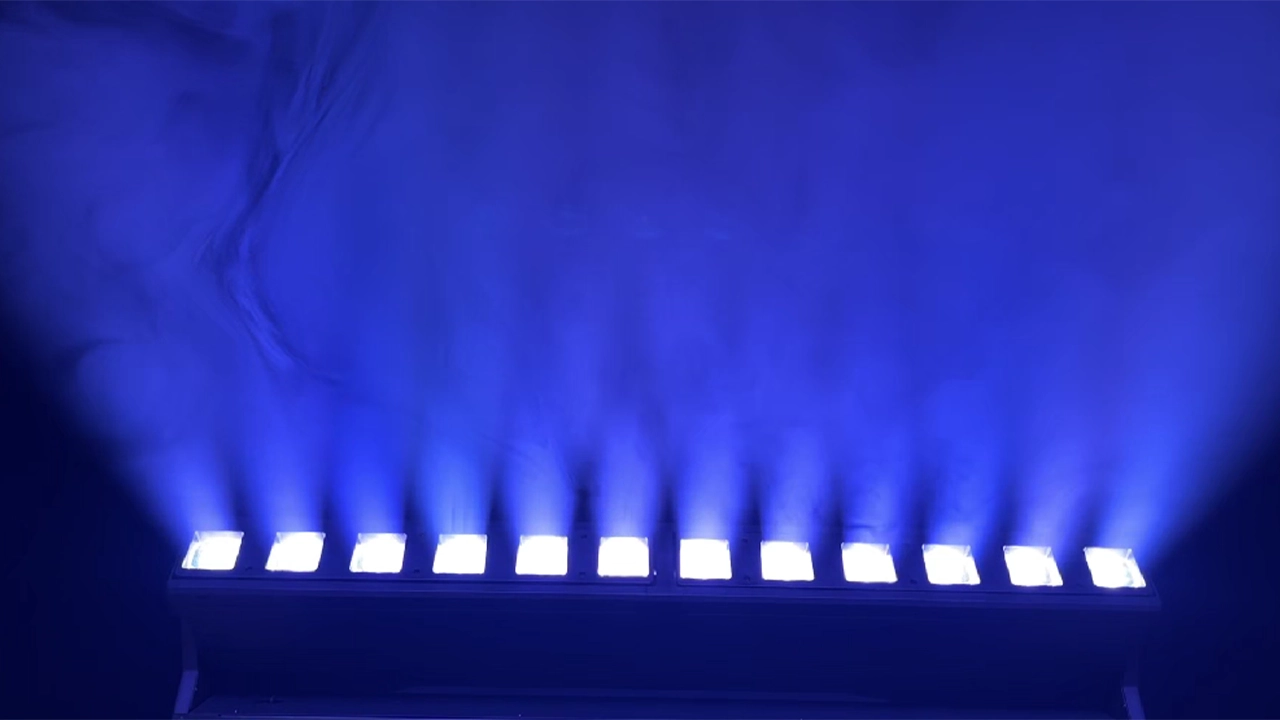

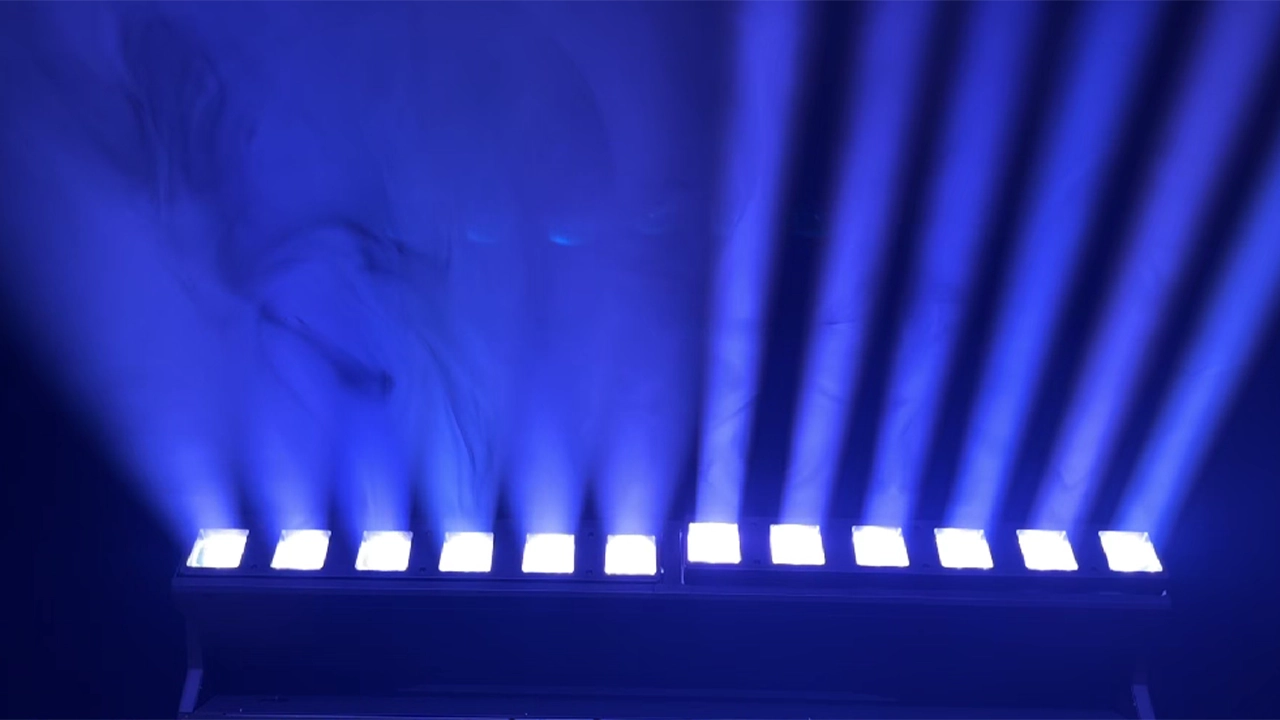

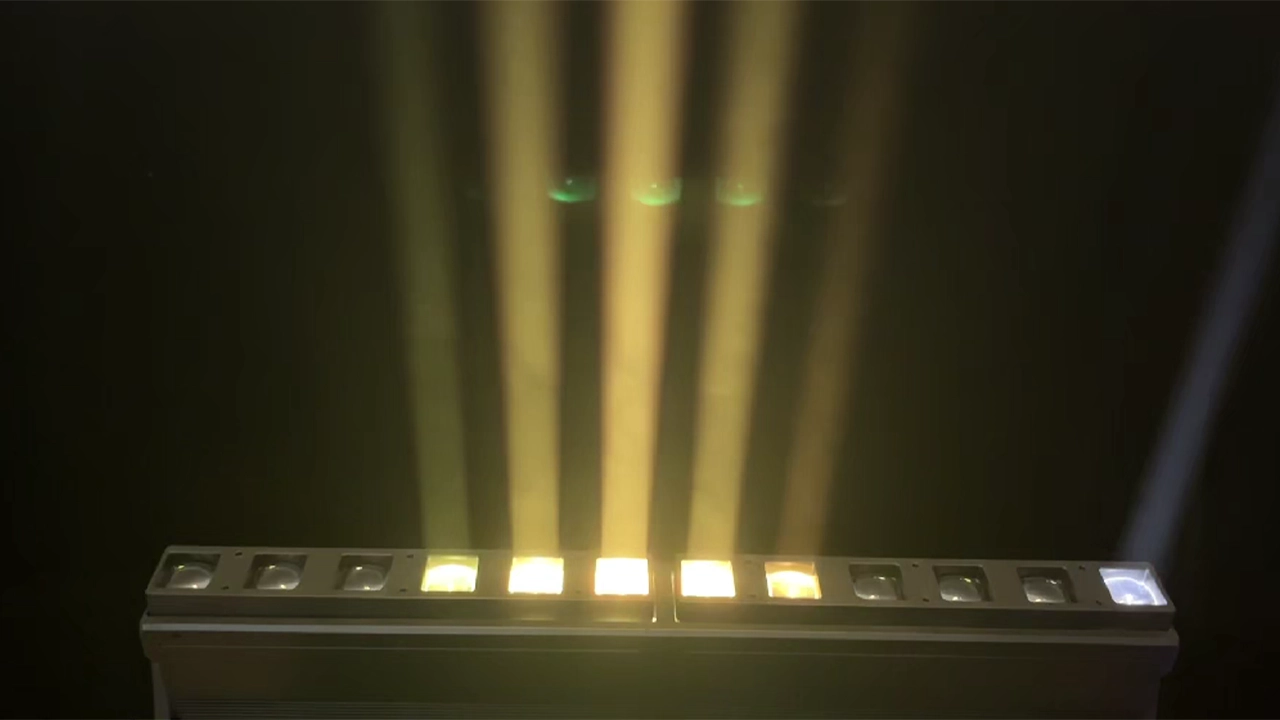

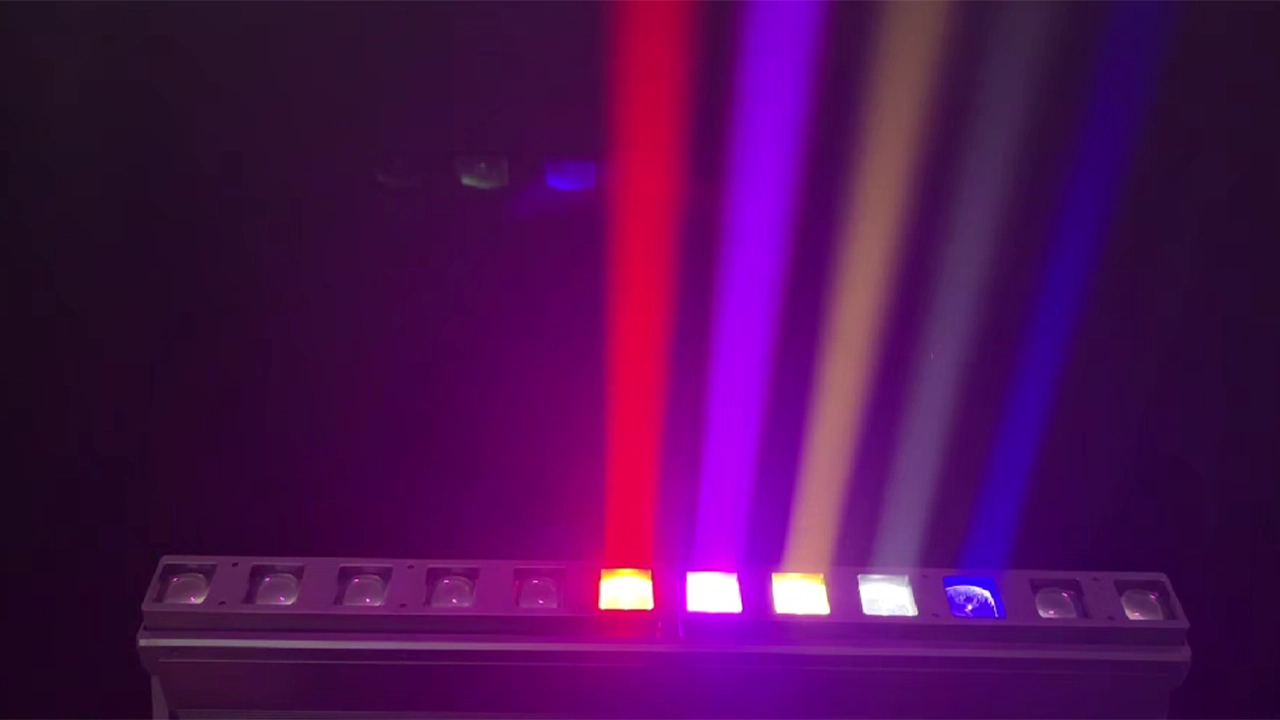

Effect
Features
APPLICATION
Packaging & Logistic
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
Can each LED be controlled individually on the MH 12X40 PIXEL BAR?
Yes. The fixture supports single light source control, allowing more detailed pixel and color programming.
What zoom and focusing functions does the MH 12X40 PIXEL BAR provide?
The MH 12X40 PIXEL BAR offers a 5°–45° zoom range with sectional independent focus control for more flexible beam shaping.
Which product can be customized?
Our stage lights can be customized according to your needs, and we will try our best to meet your requirements.
Custom packaging service?
We can design the packaging according to your requirements.
Do you provide ODM service?
Yes, Uplus provides comprehensive ODM services to customers and aftermarket partners.
