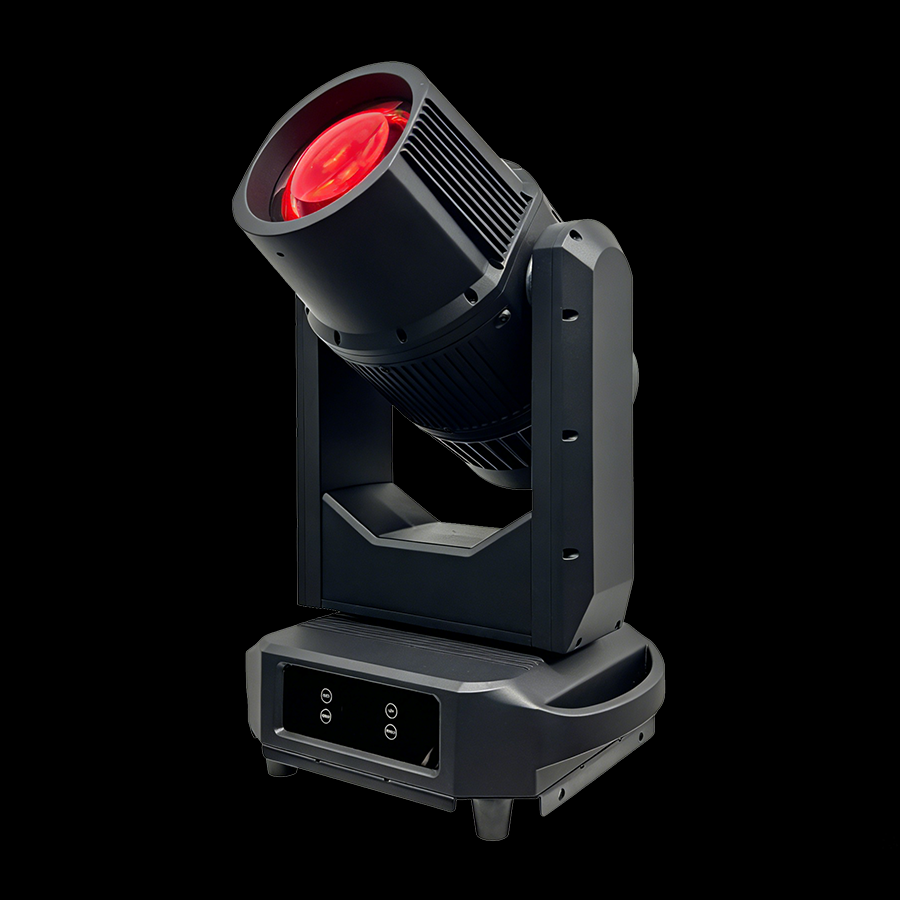

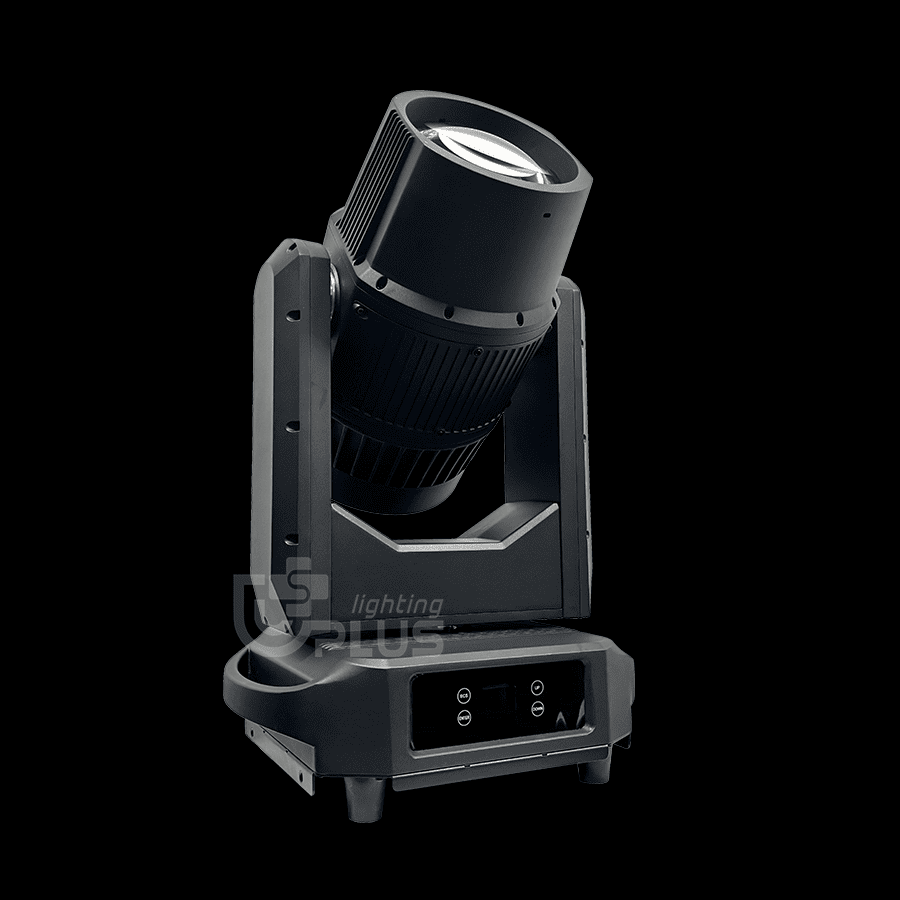

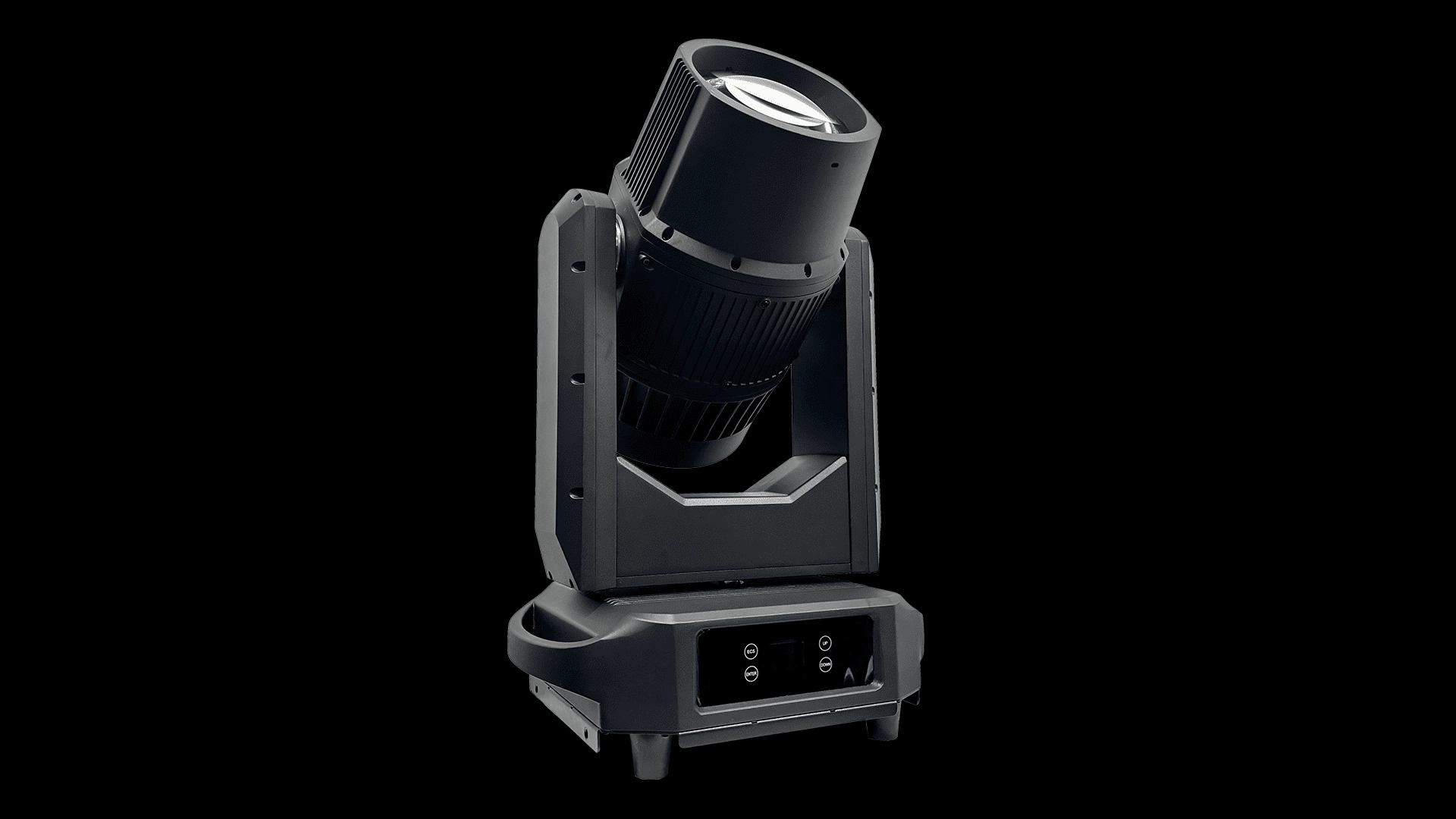

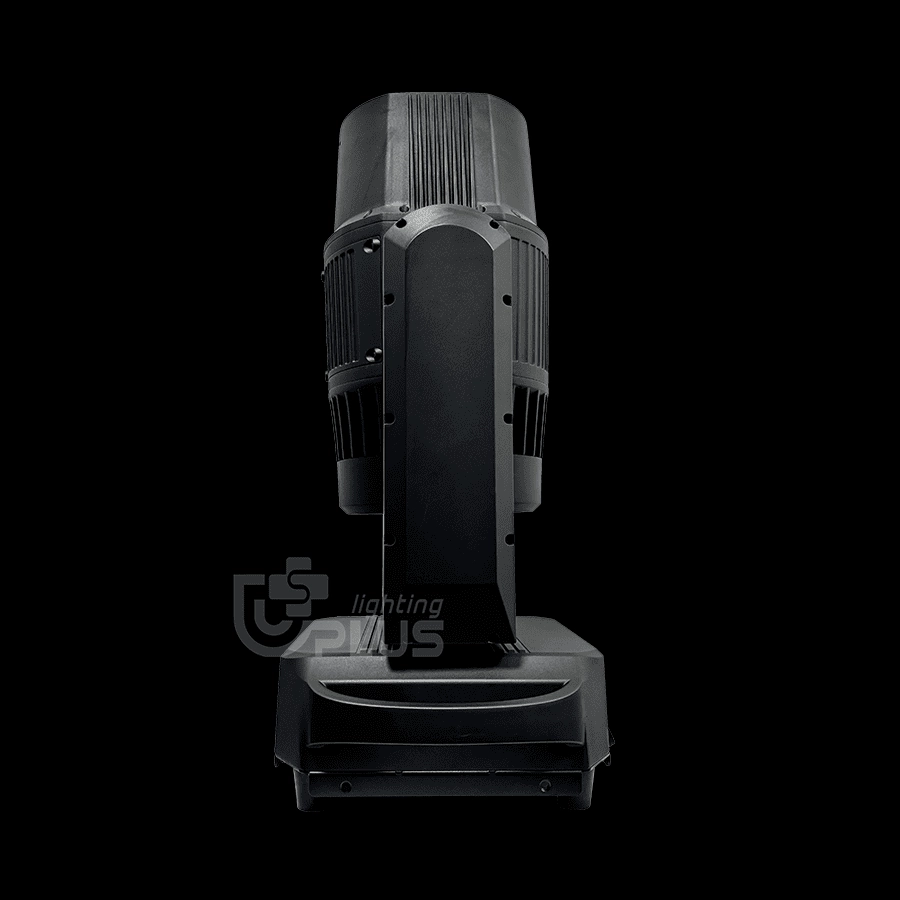

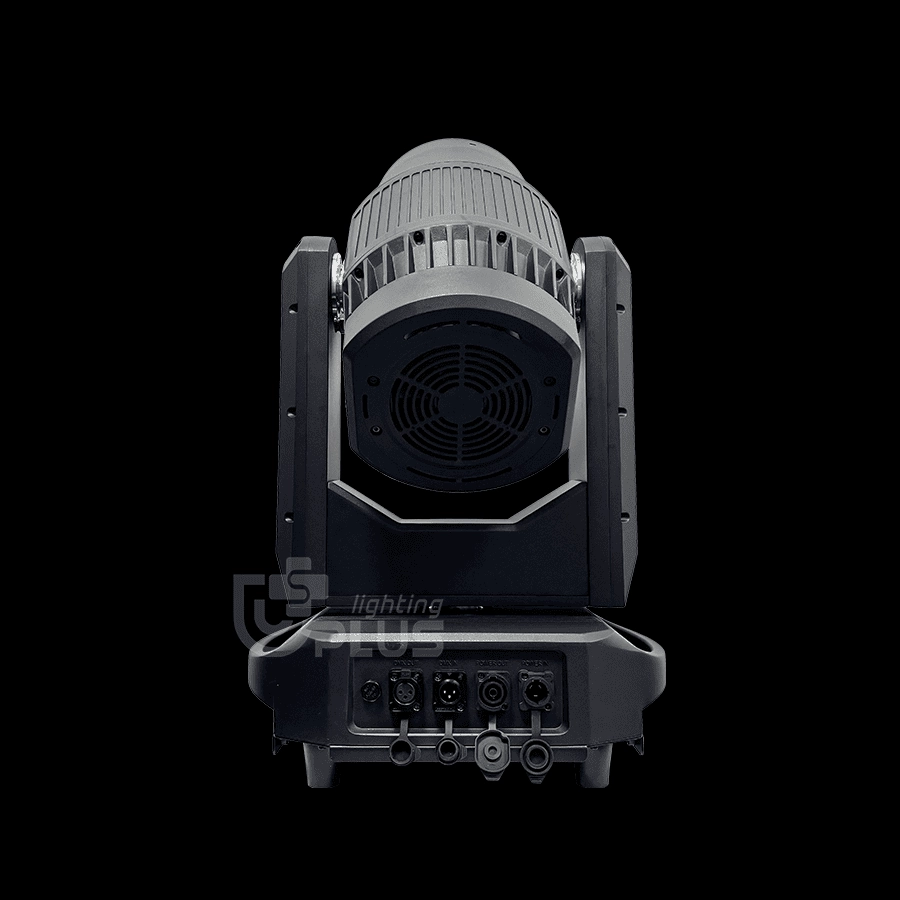

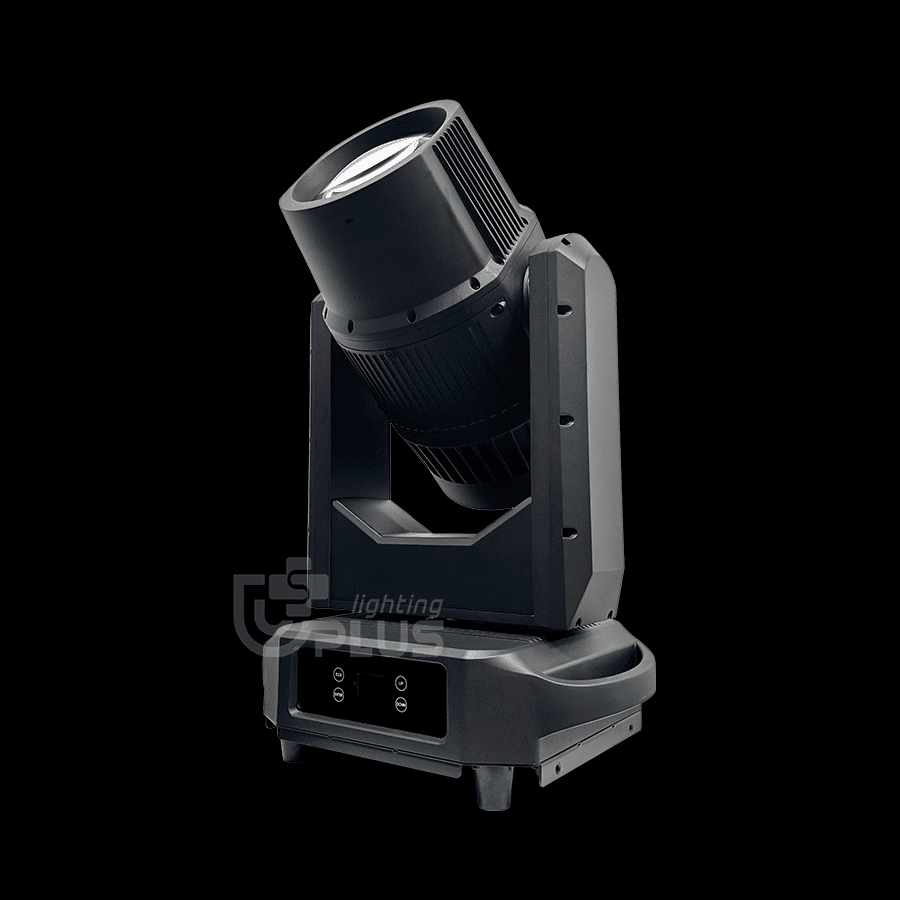

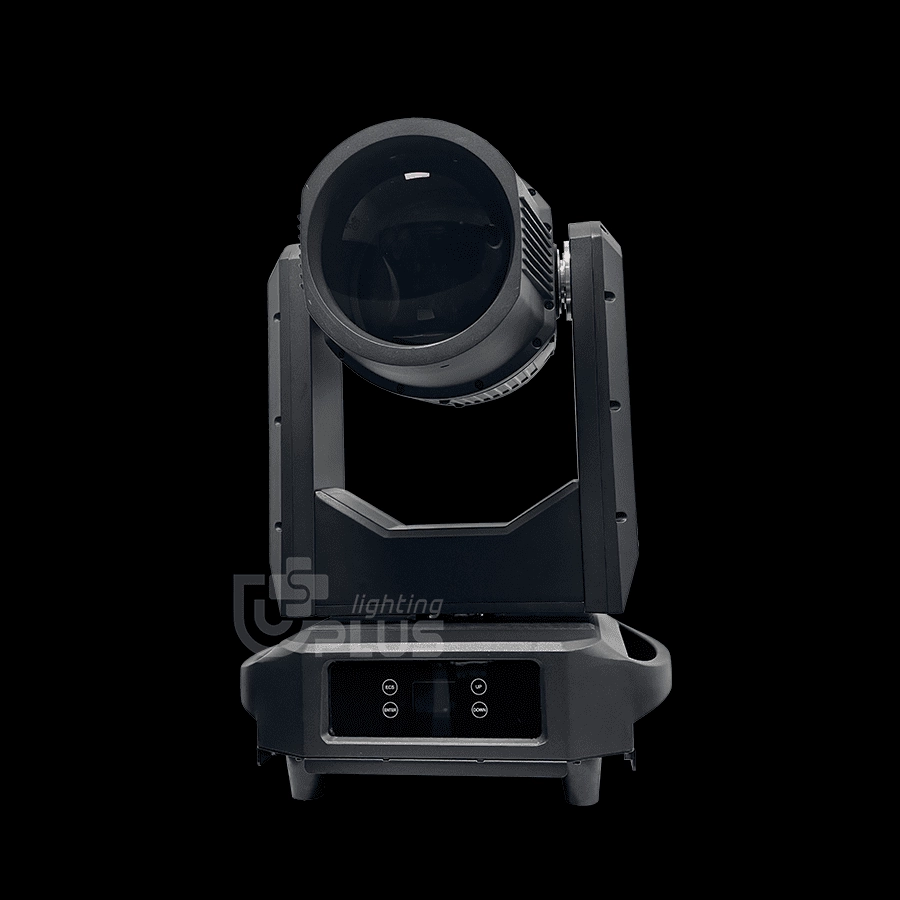

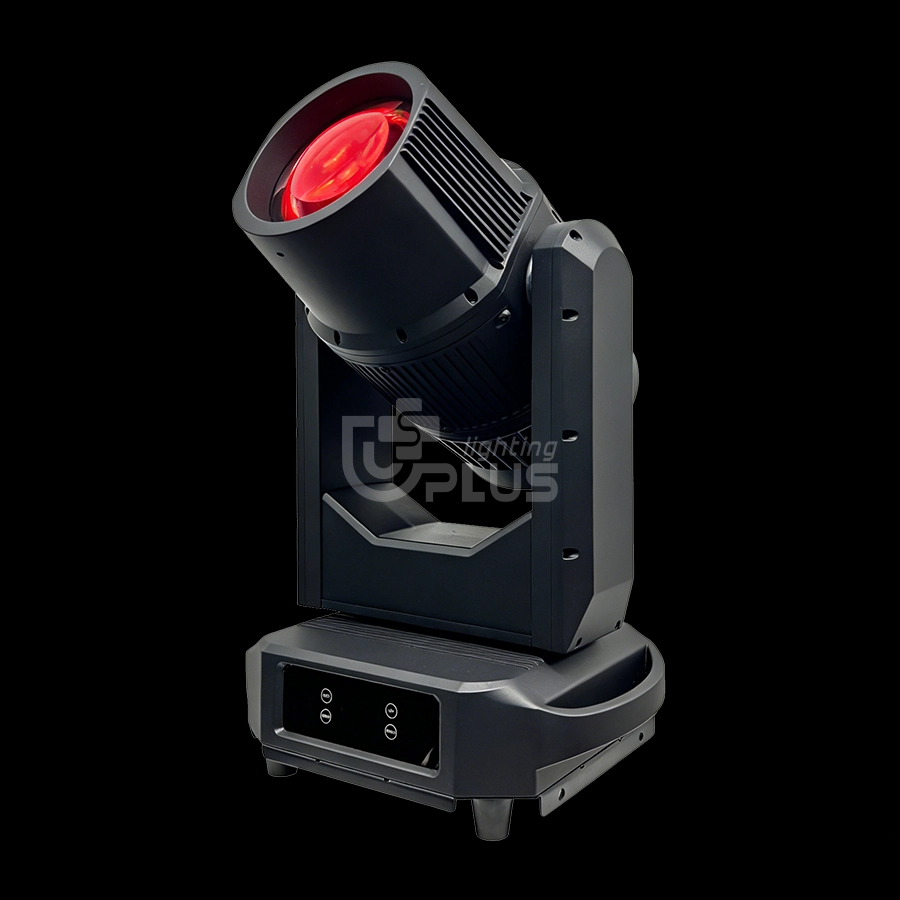

IP BEAM 420 IP65 420W beam moving head
The IP65 420W beam moving head delivers a sharp, powerful beam with long range and strong penetration. IP65 dust and water resistant, it's suitable for complex outdoor environments and supports 360° flexible head movement, along with various dynamic lighting effects and dimming/flicker functions.
Compatible with DMX512/self-propelled mode, it features efficient heat dissipation and durability, making it suitable for outdoor scenarios such as performances, celebrations, and lighting effects.
Specifications
OPTICS
• Light source: Philips MSD Silver 420W/LL
• Power Consumption: 600W
• Beam angle: 1.7°
• Light output diameter: 180mm
• Color temperature:7800±500K
FEATURES
• IP Rate: IP65
• PAN: 540° / TILT: 270°
• All-magnesium alloy body with black baked finish
• Control: DMX512 / Master-Slave / Auto Run / RDM
• DMX Channel: 21CH
• Color:
Linear CMY color mixing;
2 Color Wheels with 12 Colors
• 1 fixed gobo wheel: 17 gobos
• Prism: 8-facet prism / 24-facet prism / 6-facet linear prism
• Focus: 0-100% Electronic High-Definition Focus
• 1 Frost Filter
• Dimmer: 0-100% Smooth Dimming
• Strobe: 0-20 Hz
SPECIFICATION
• Dimension: 694*386*290mm; NW: 25 kg
Effect

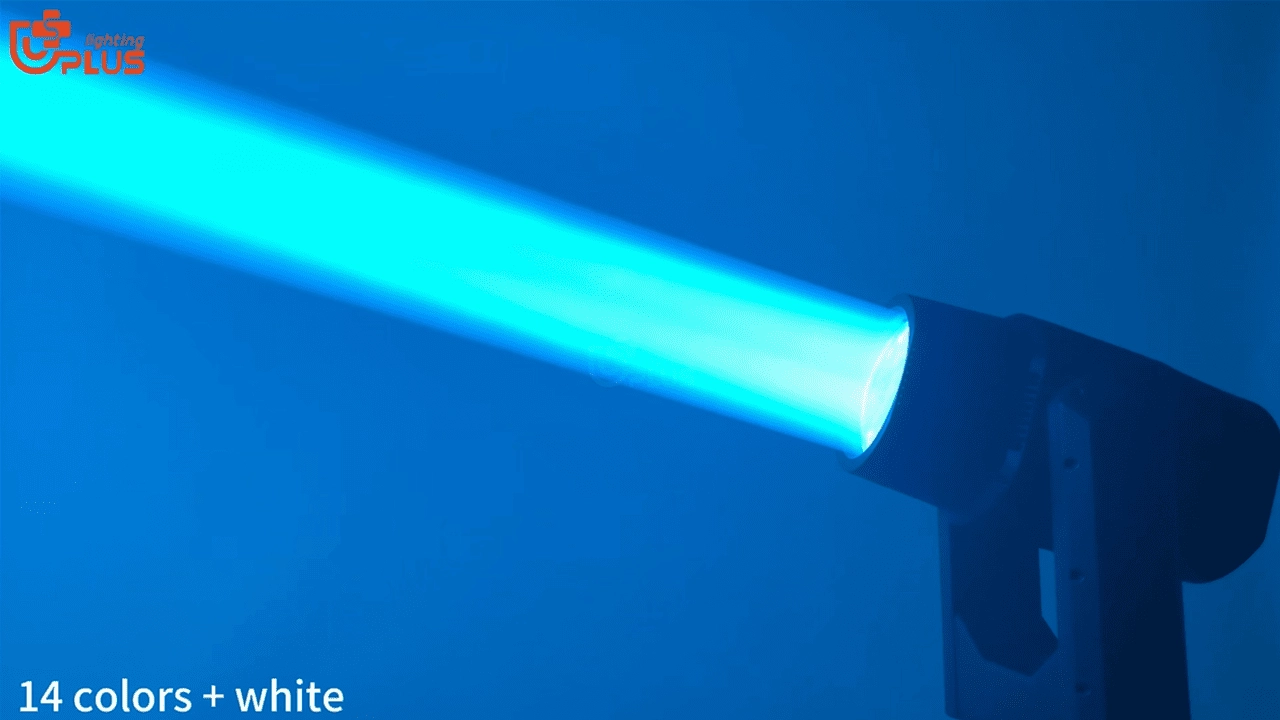

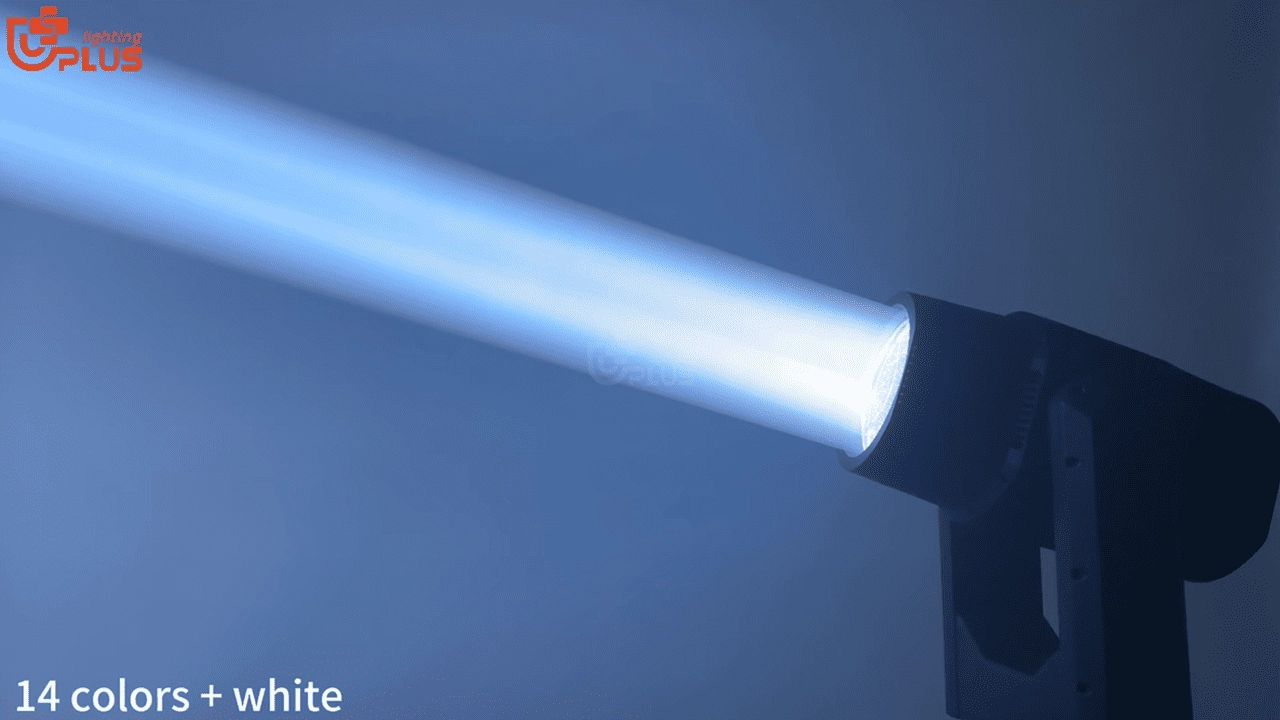

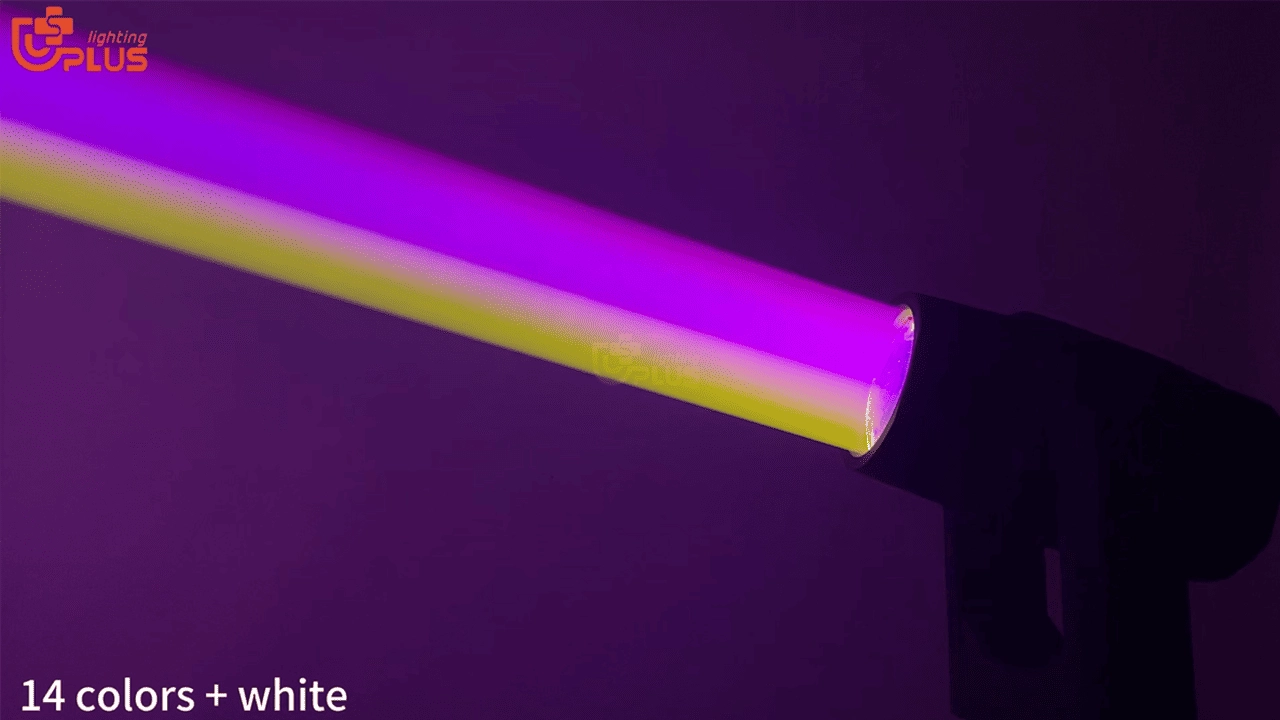

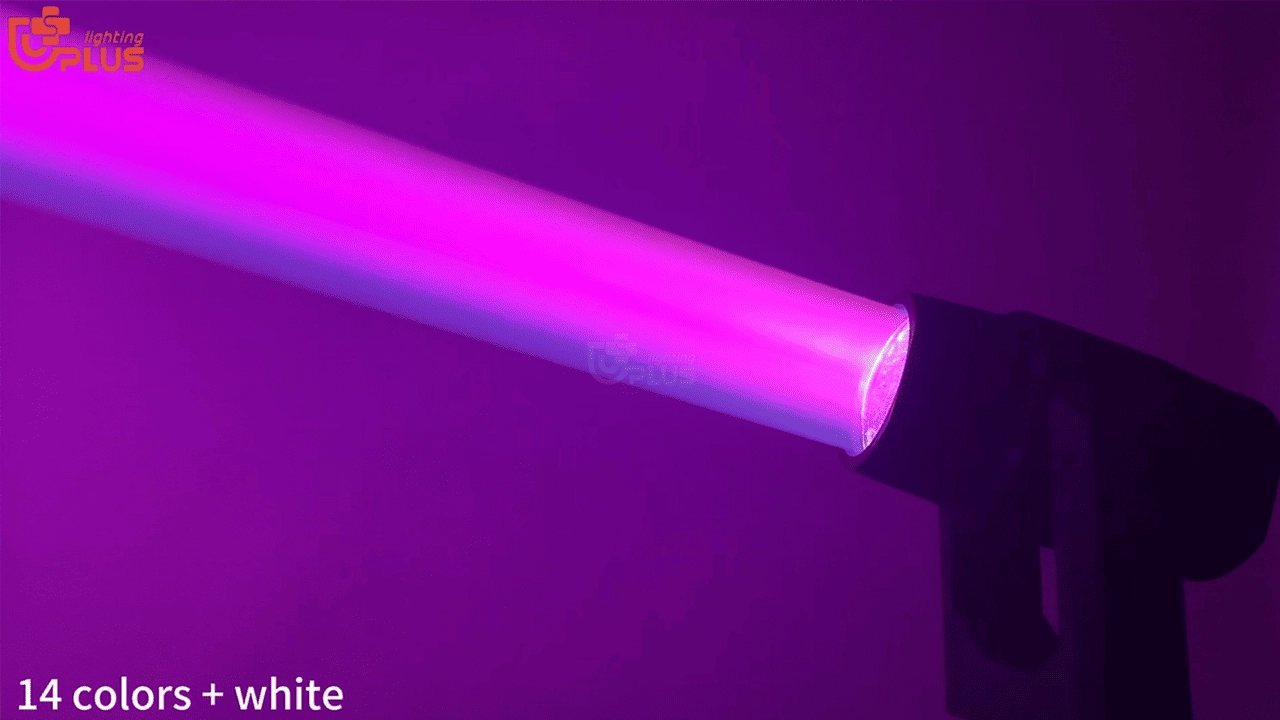

Color wheel 1
Color wheel 1
Color wheel 2
Color wheel 2
CMY-C
CMY-M
CMY-Y
17 Fixed gobos
17 Fixed gobos

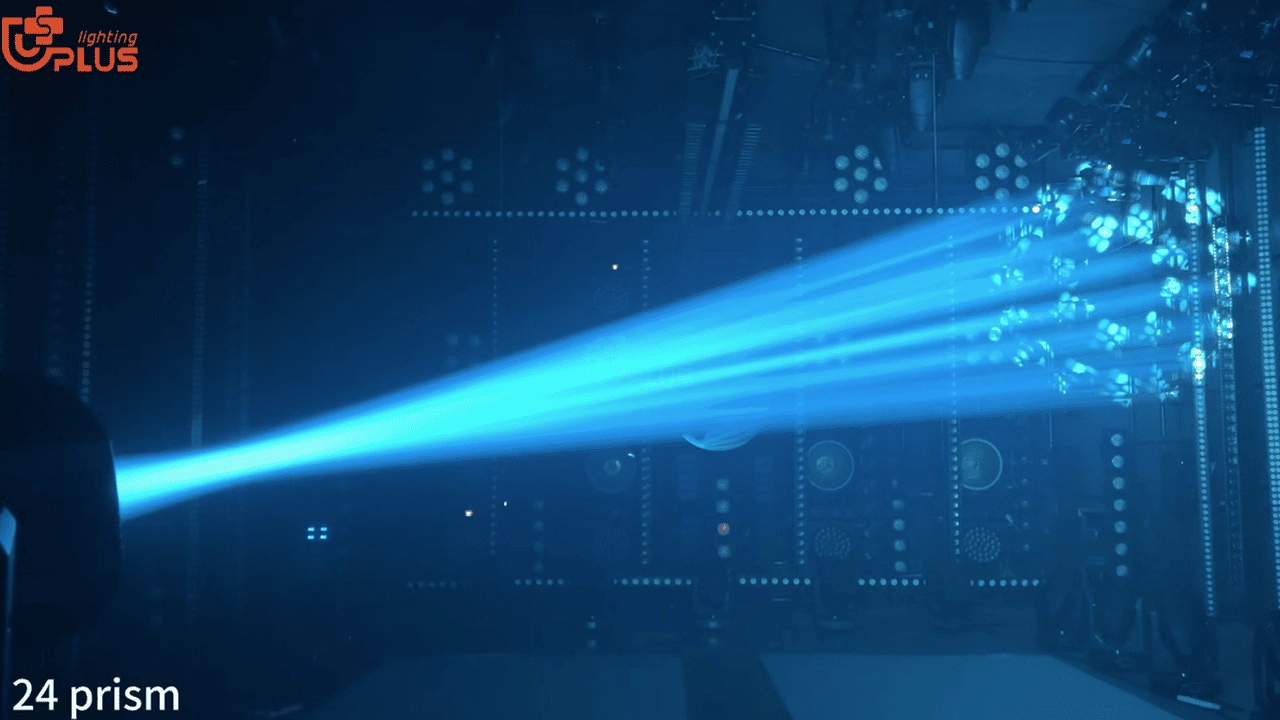

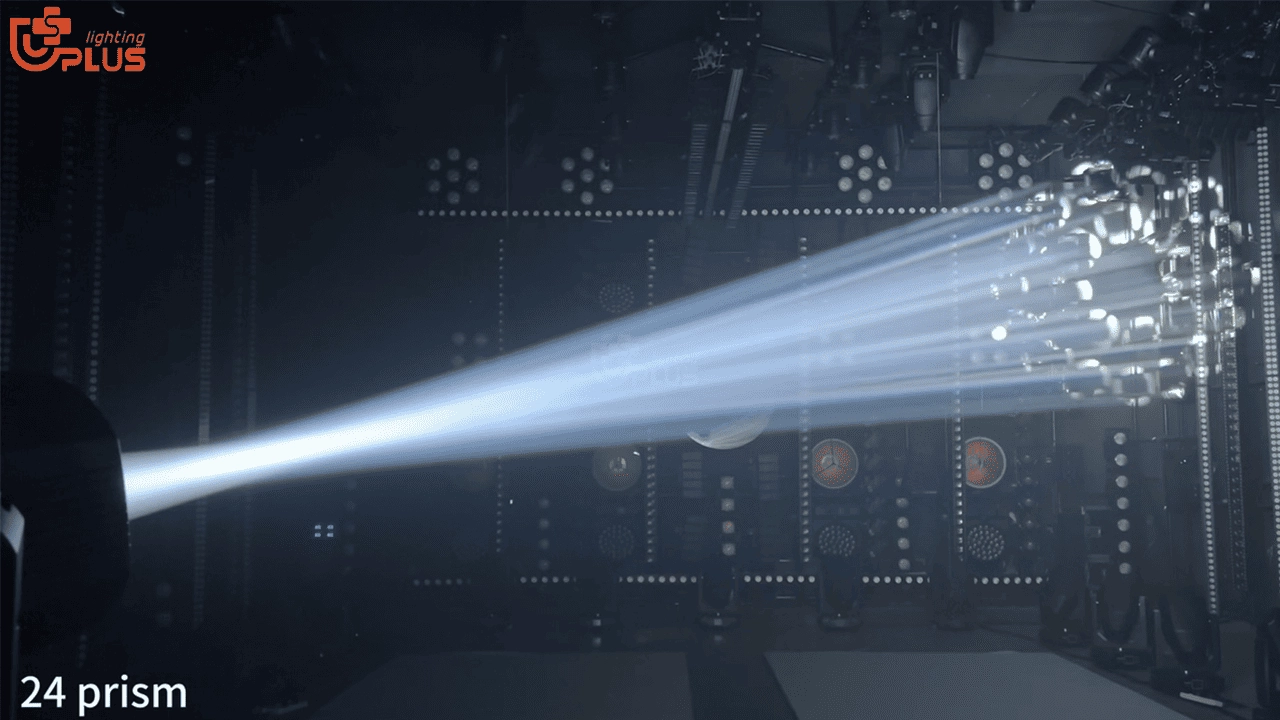

24-facet prism
24-facet prism

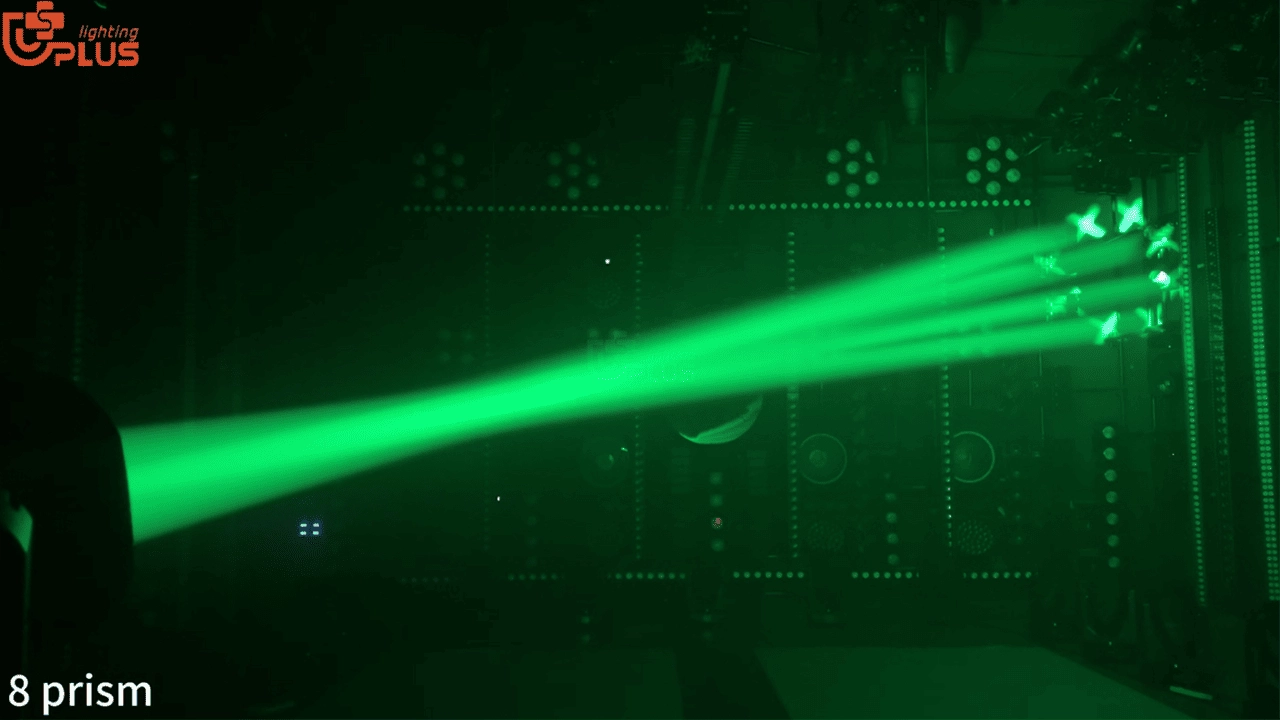

8-facet prism
8-facet prism
6-facet linear prism
6-facet linear prism
frost
Features
APPLICATION
Outdoor Concerts
Powerful 1.7° beams deliver long-range visibility and dramatic aerial effects for large outdoor stages.
Theater Stage
Sharp, focused beams create strong visual depth and precise aerial effects for professional stage performances.
Architectural Lighting
Long-range beams create dramatic sky effects and enhance large outdoor architectural spaces.
Arena Shows
Powerful narrow beams deliver long-distance visibility and dynamic aerial patterns across large indoor venues.
City Skyline
Long-range beams create striking sky effects and enhance large-scale architectural lighting displays.
Fashion Runway
Precise narrow beams create a clean, dramatic runway atmosphere while highlighting the full length of the performance space.
Packaging & Logistic
Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
IP BEAM 420
Can IP65 protection withstand outdoor environments such as heavy rain and sandstorms?
It can directly withstand heavy rain and sandstorms and operates stably in complex outdoor environments.
Is the oscillation angle adjustment flexible and precise?
360° omnidirectional adjustment with smooth, uninterrupted angle adjustment and precise positioning.
Can multiple lights achieve synchronized oscillation and lighting effects?
Supports DMX512 or master-slave mode linkage, ensuring synchronized operation across multiple lights without deviation.
What about the beam range and penetration?
With a powerful 420W output, the beam is sharp and strong, with a long range and outstanding penetration.
Will it overheat during continuous use?
Built-in high-efficiency heat dissipation system ensures no overheating risk during prolonged high-intensity operation, guaranteeing stability and reliability.
