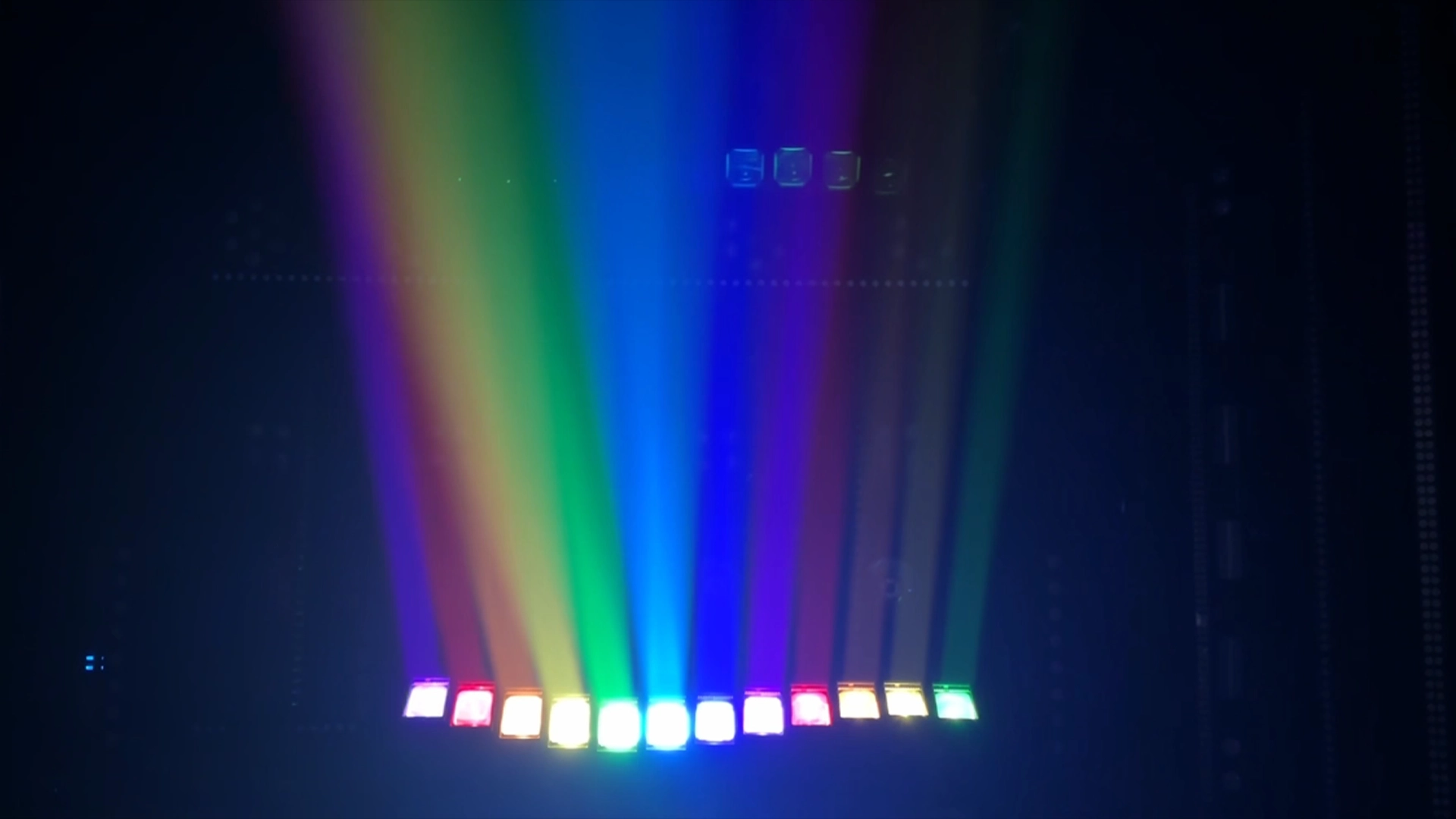

uplus-ip-pix1260-rgbw-led-pixel-bar-individual-pixel-control - Uplus Lighting

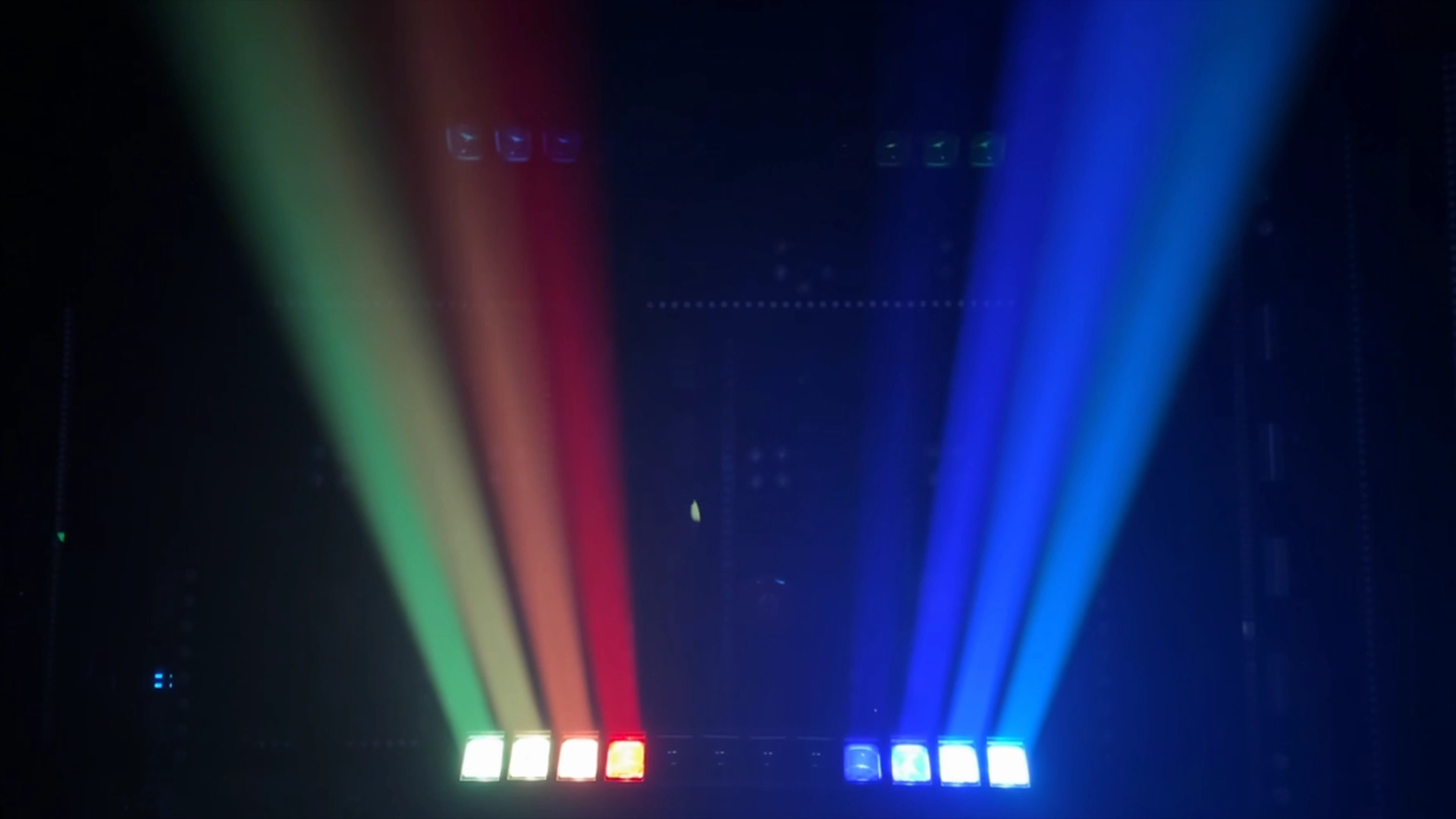

uplus-ip-pix1260-rgbw-moving-head-pixel-bar-color-mixing-effect - Uplus Lighting

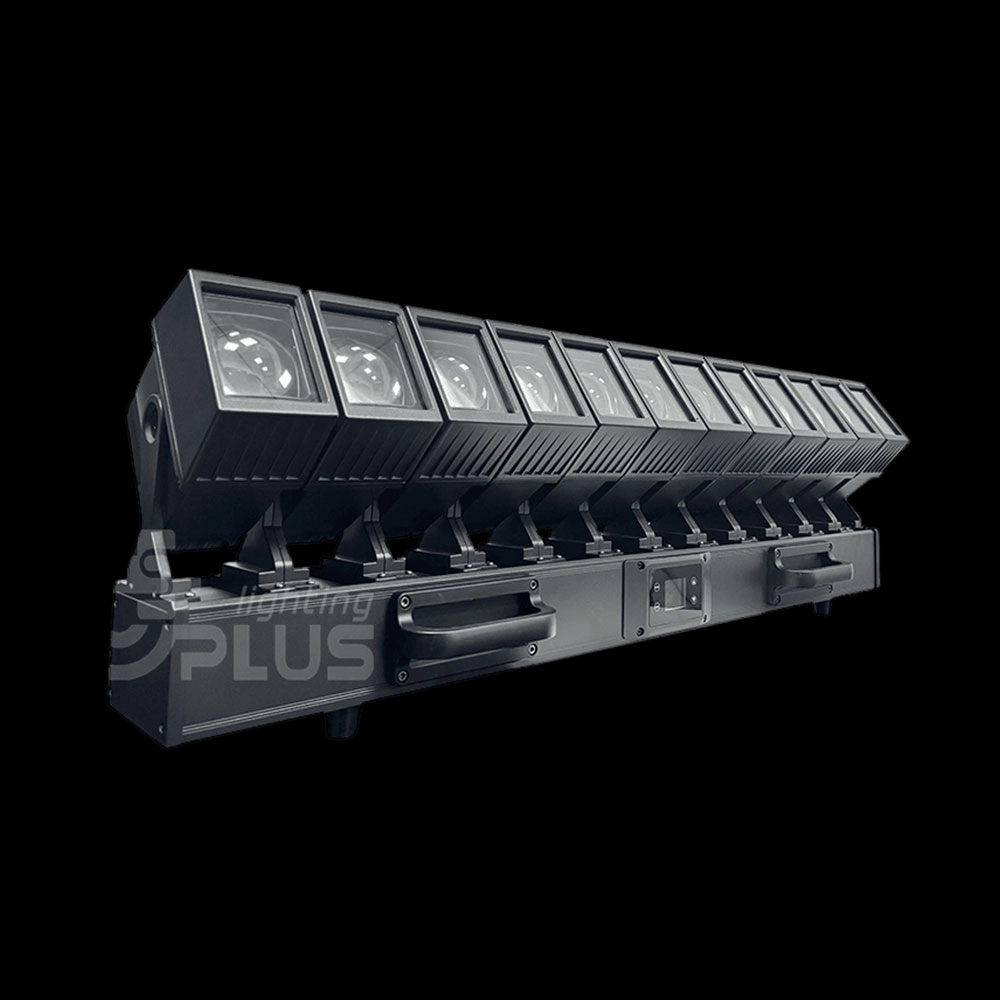

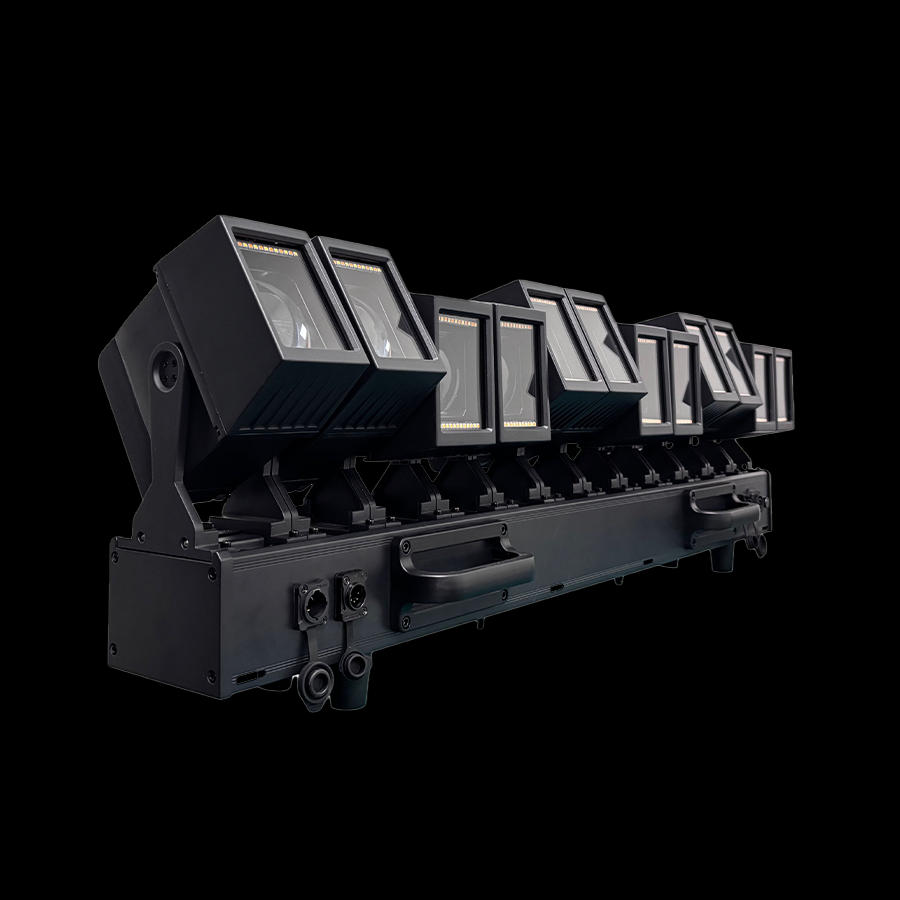

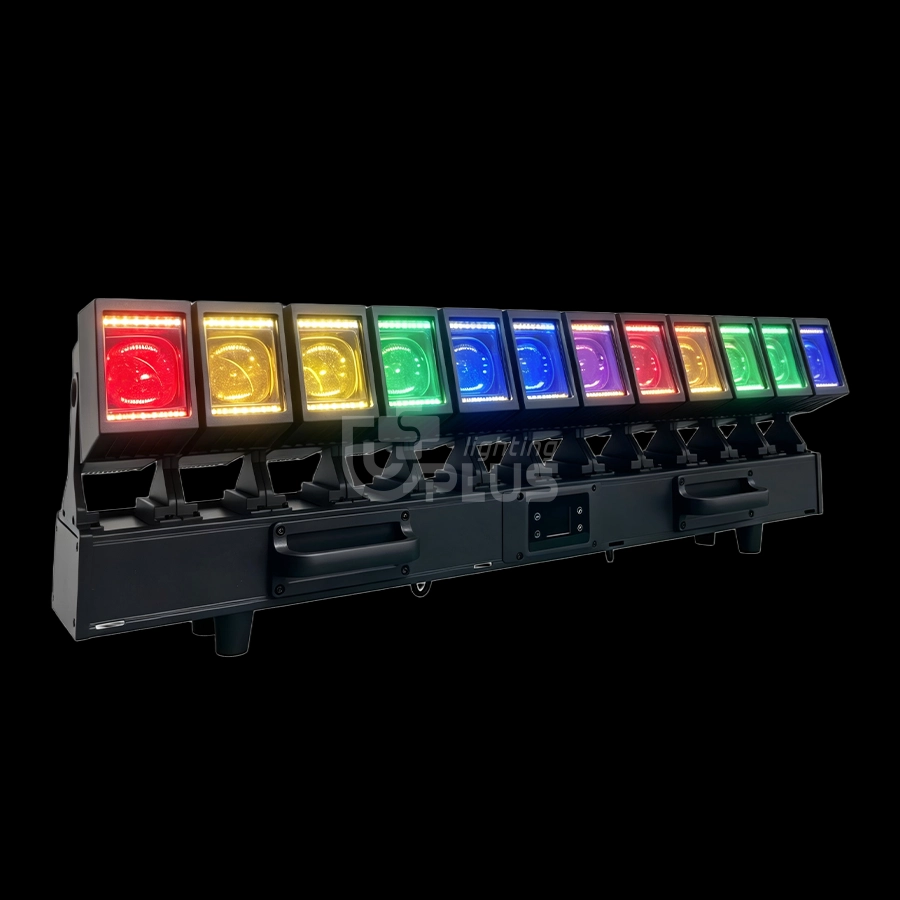

uplus-ip-pix1260-ip65-led-moving-head-bar-side-angle-view - Uplus Lighting

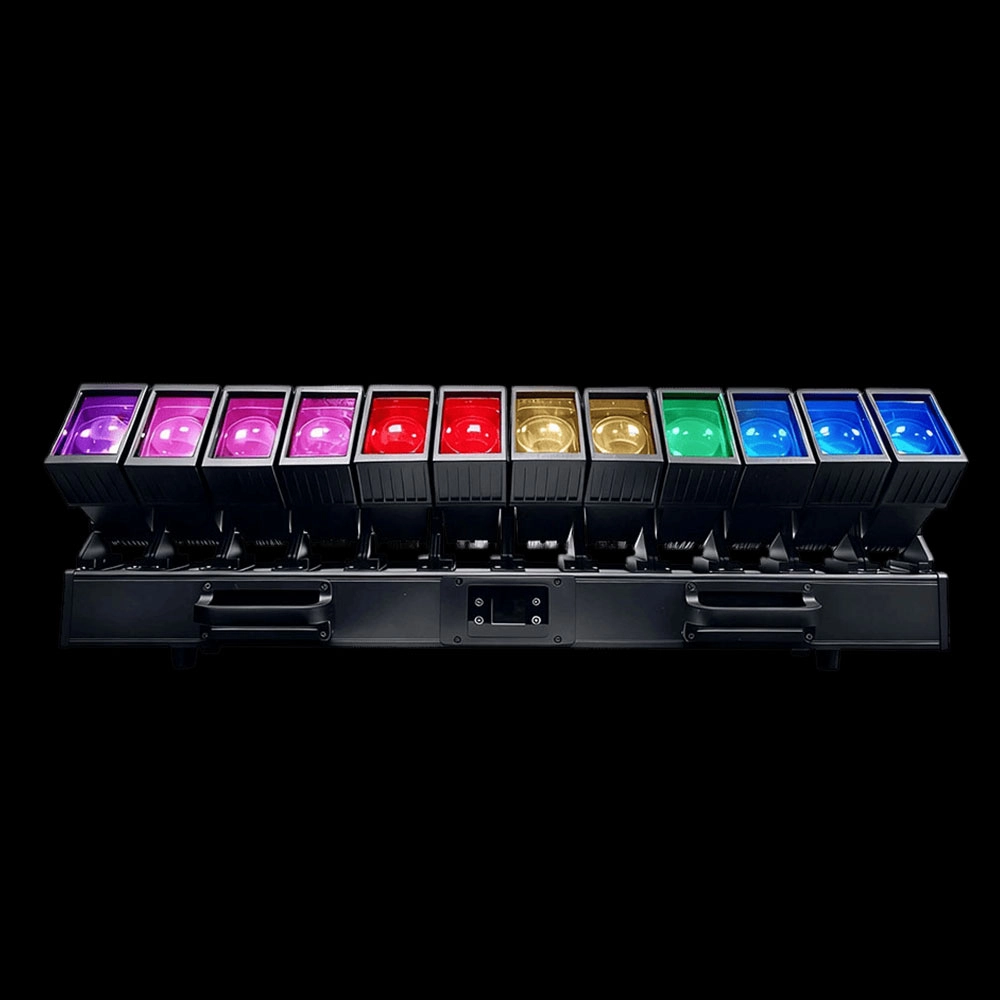

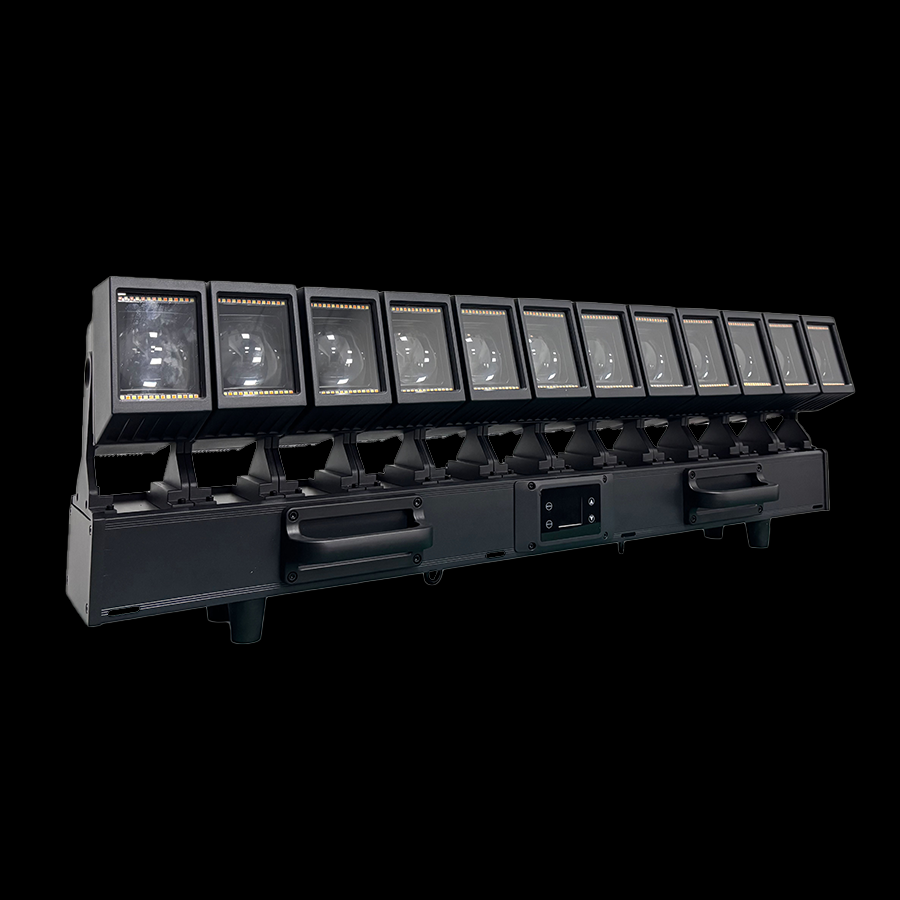

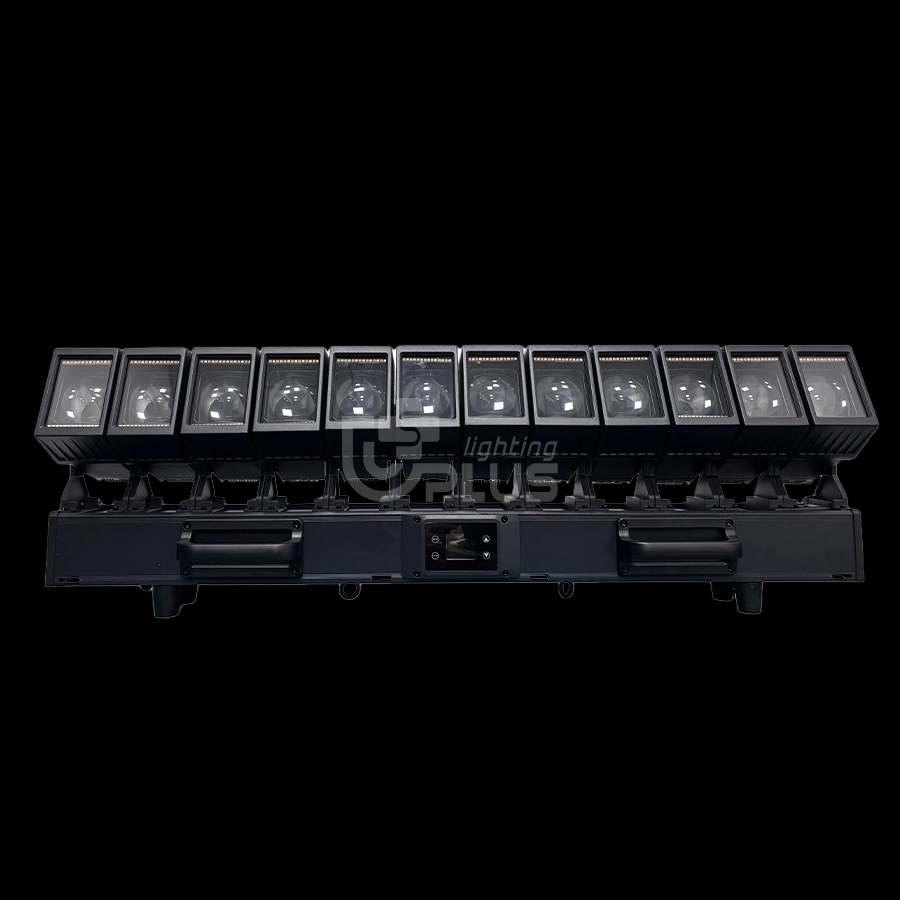

uplus-ip-pix1260-12x60w-led-moving-head-pixel-bar-front-view - Uplus Lighting

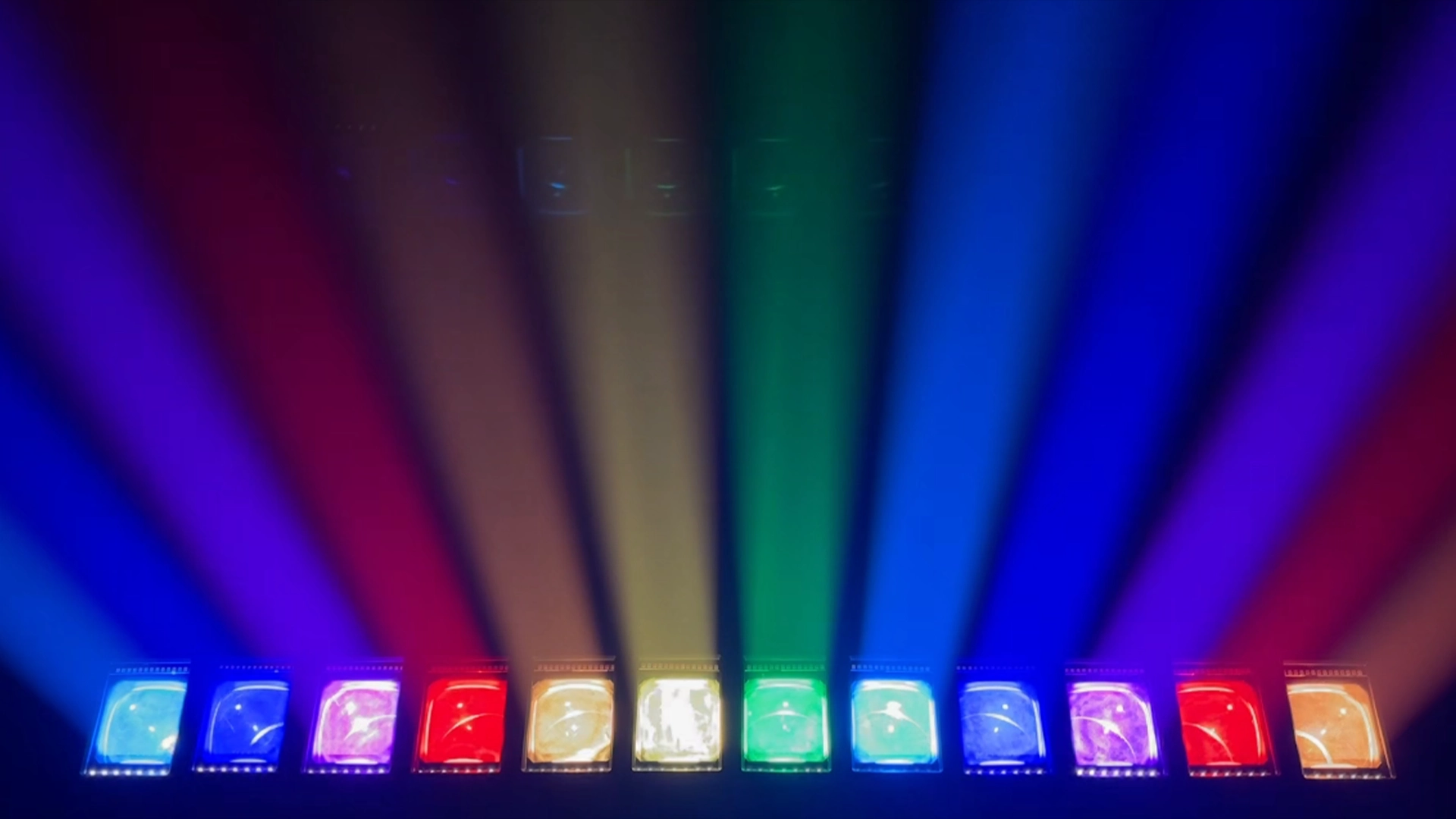

uplus-ip-pix1260-waterproof-led-pixel-bar-light-source-detail - Uplus Lighting

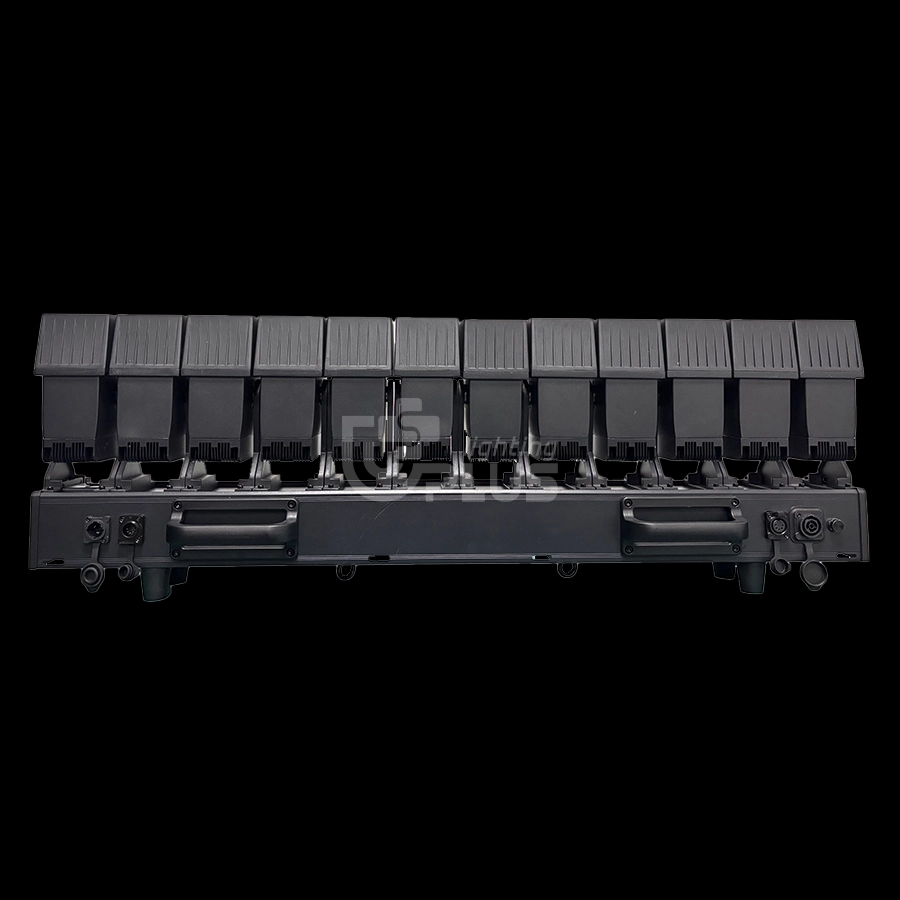

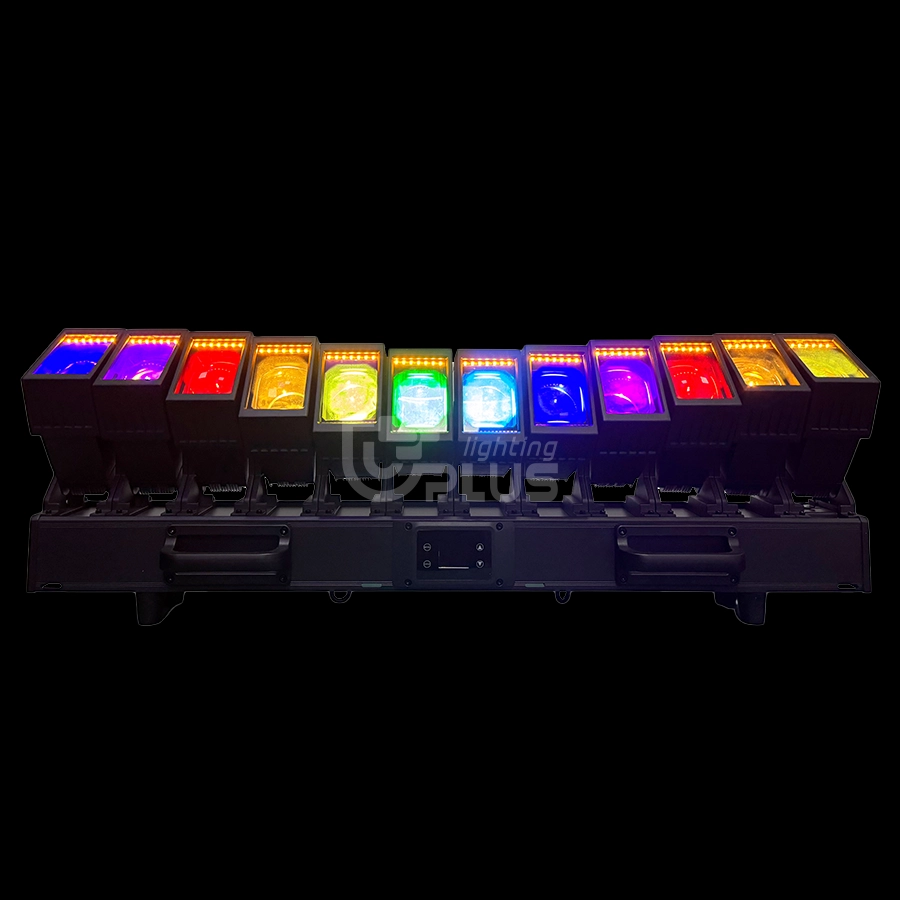

uplus-ip-pix1260-moving-head-pixel-bar-housing-design - Uplus Lighting

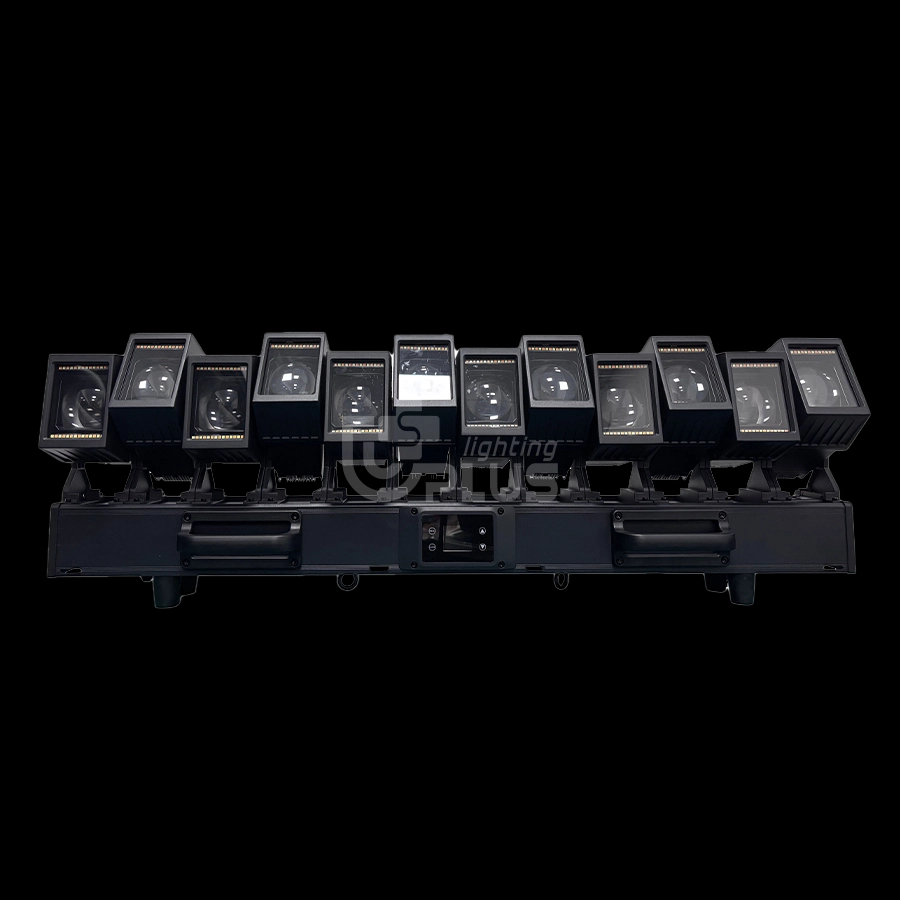

uplus-ip-pix1260-led-moving-head-pixel-bar-front-light-source-view - Uplus Lighting
undefined
uplus-ip-pix1260-rgbw-led-pixel-bar-individual-pixel-control - Uplus Lighting
uplus-ip-pix1260-rgbw-moving-head-pixel-bar-color-mixing-effect - Uplus Lighting

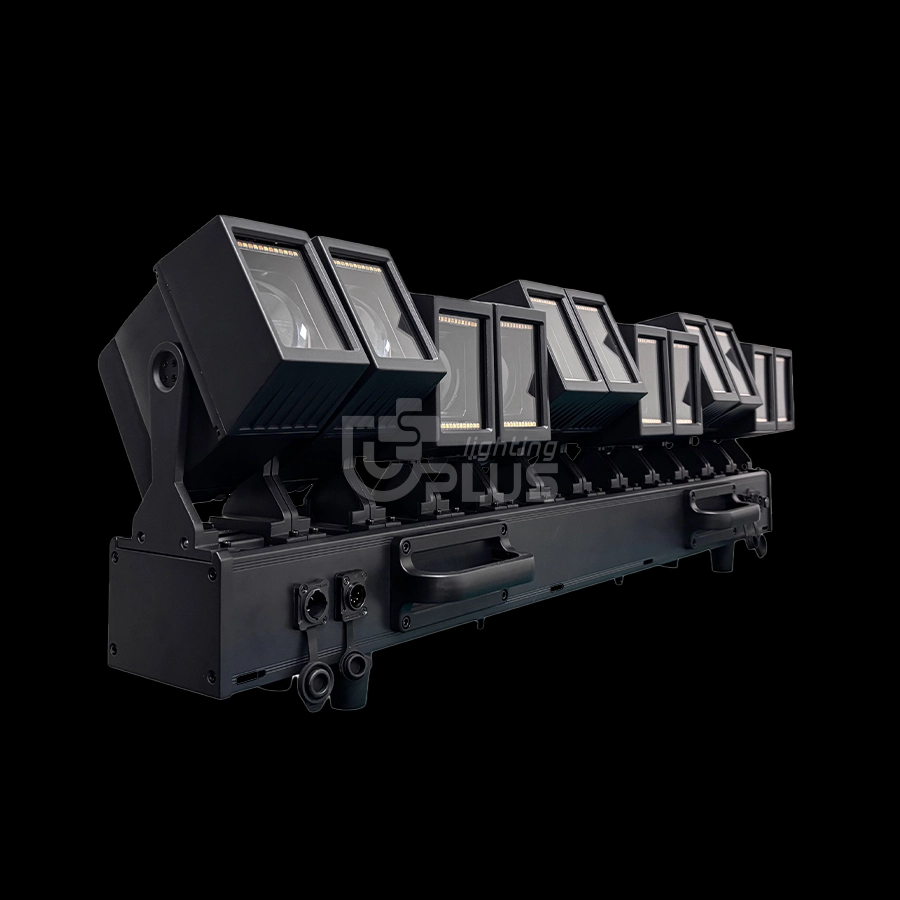

uplus-ip-pix1260-ip65-led-moving-head-bar-side-angle-view - Uplus Lighting
uplus-ip-pix1260-12x60w-led-moving-head-pixel-bar-front-view - Uplus Lighting
uplus-ip-pix1260-waterproof-led-pixel-bar-light-source-detail - Uplus Lighting

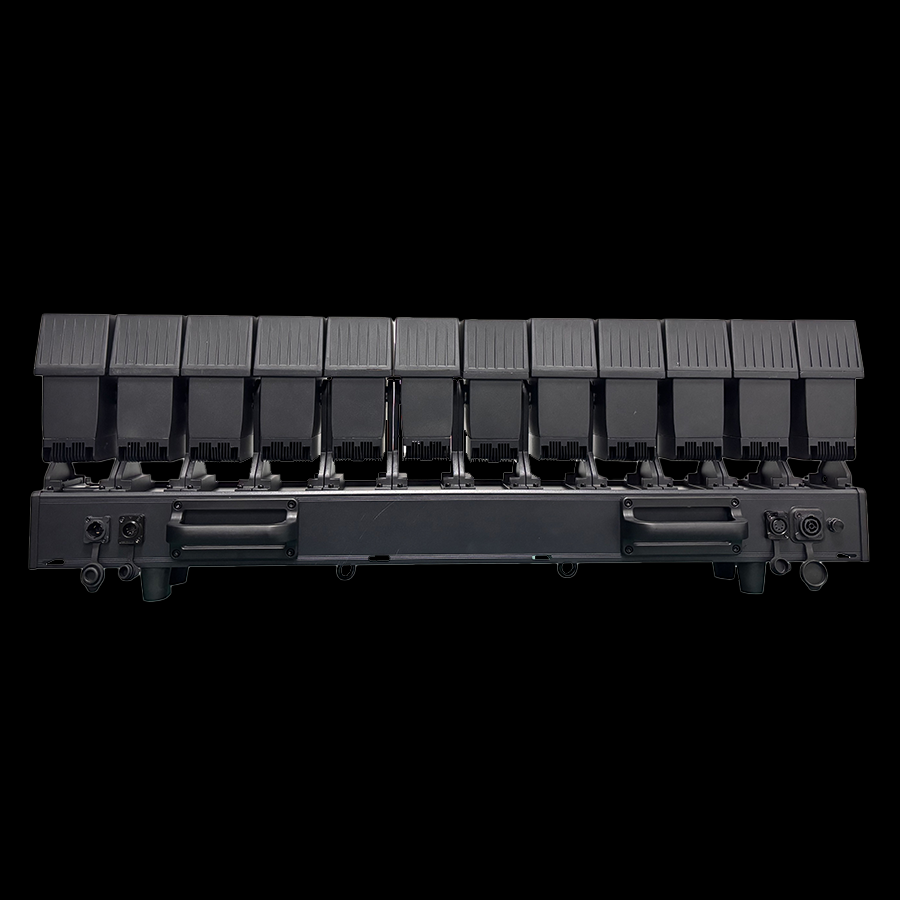

uplus-ip-pix1260-moving-head-pixel-bar-housing-design - Uplus Lighting

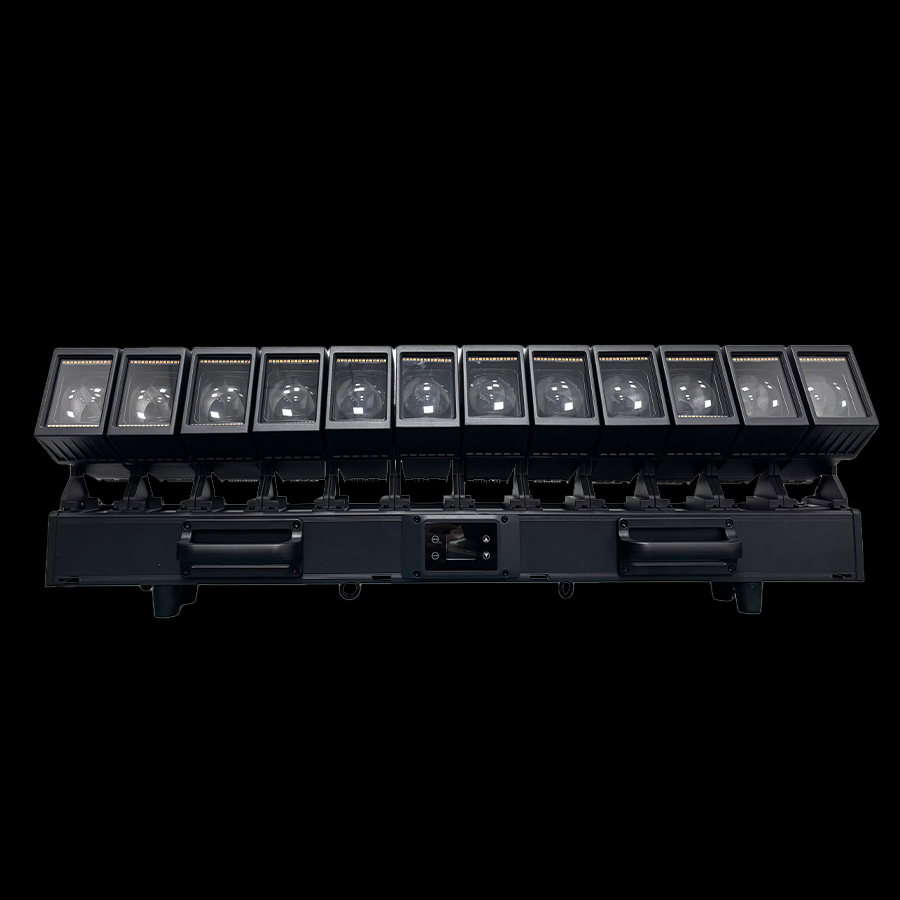

uplus-ip-pix1260-led-moving-head-pixel-bar-front-light-source-view - Uplus Lighting

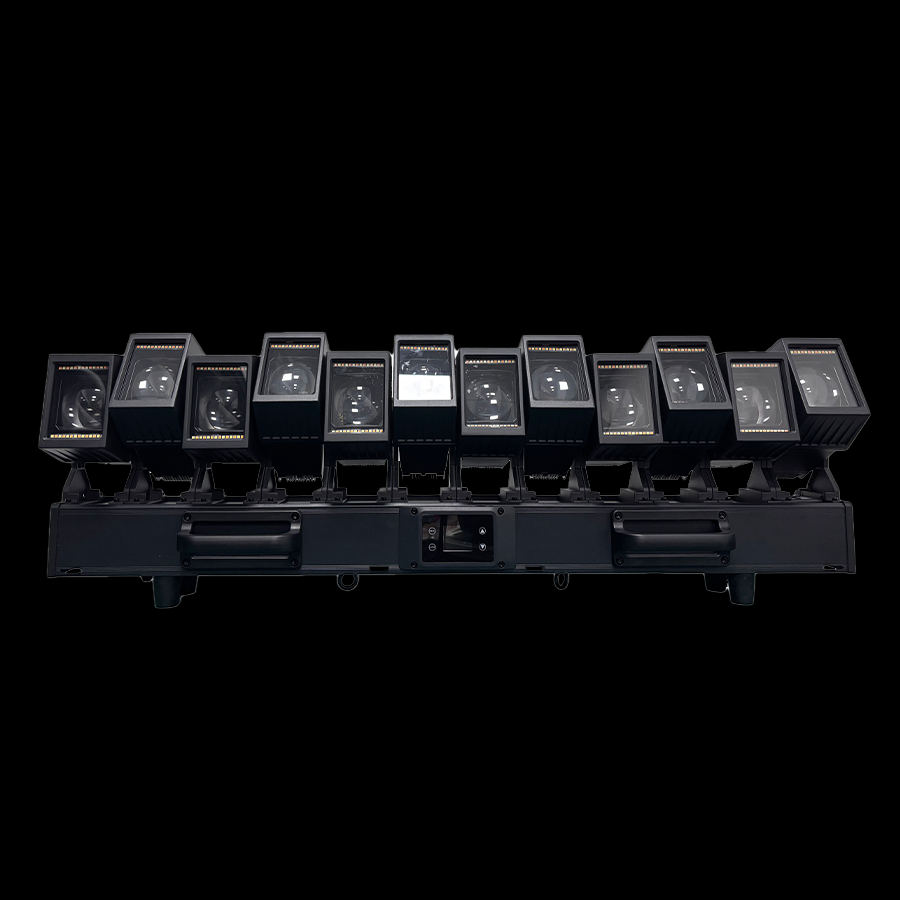

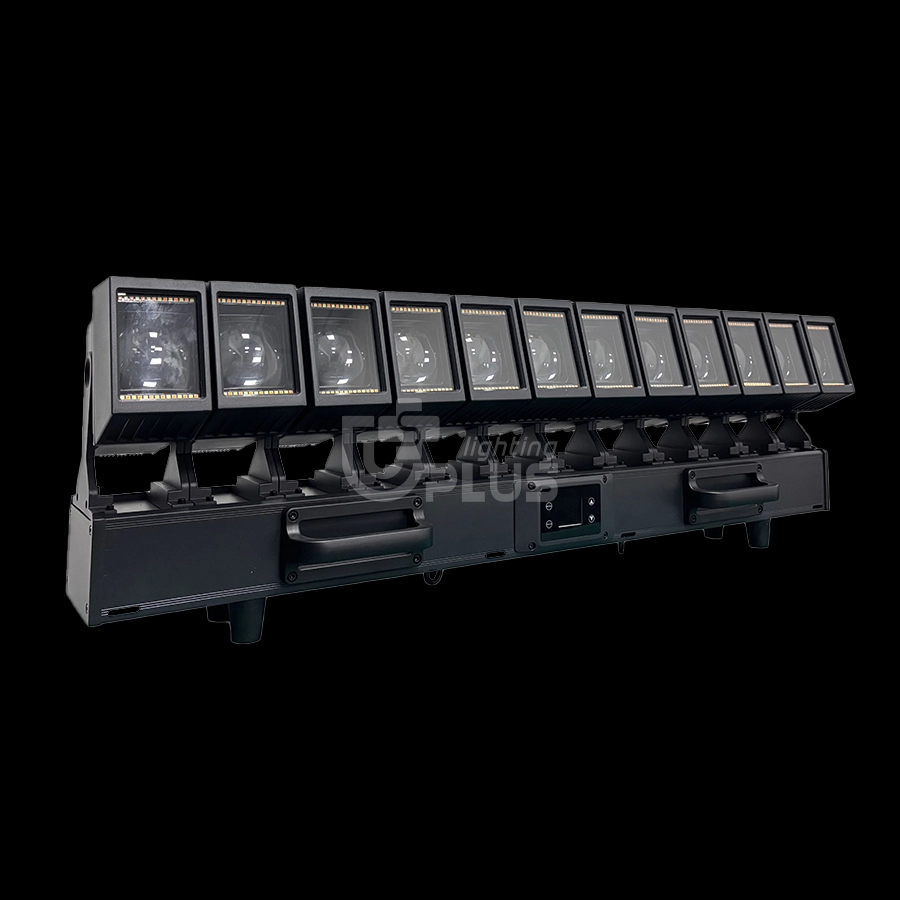

IP-PIX1260 IP65 12*60W Pixel Zoom Bar Moving Head

This IP65 12x60W pixel zoom bar beam moving head light is a revolutionary product in modern professional stage and architectural landscape lighting. It cleverly combines high-density pixel light sources, powerful beam effects, flexible mechanical movement, and professional outdoor protection.



Designed for high-end applications that demand ultimate visual effects and reliability, it is the perfect creative tool for lighting designers, whether they are creating stunning outdoor music festivals, dazzling architectural facades, or immersive television studios.

GET A FREE QUOTE ➜
GET THE PRODUCT CATALOG ➜
IP-PIX1260.pdf
IP-PIX1260.zip
INTRODUCTION
INTRODUCTION
SPECIFICATIONS
SPECIFICATIONS
EFFECT
EFFECT
LUX DATE & DIMENSION
LUX DATE & DIMENSION
FEATURES
FEATURES
APPLICATION
APPLICATION
PACKAGING & LOGISTIC
PACKAGING & LOGISTIC
FAQs
FAQs

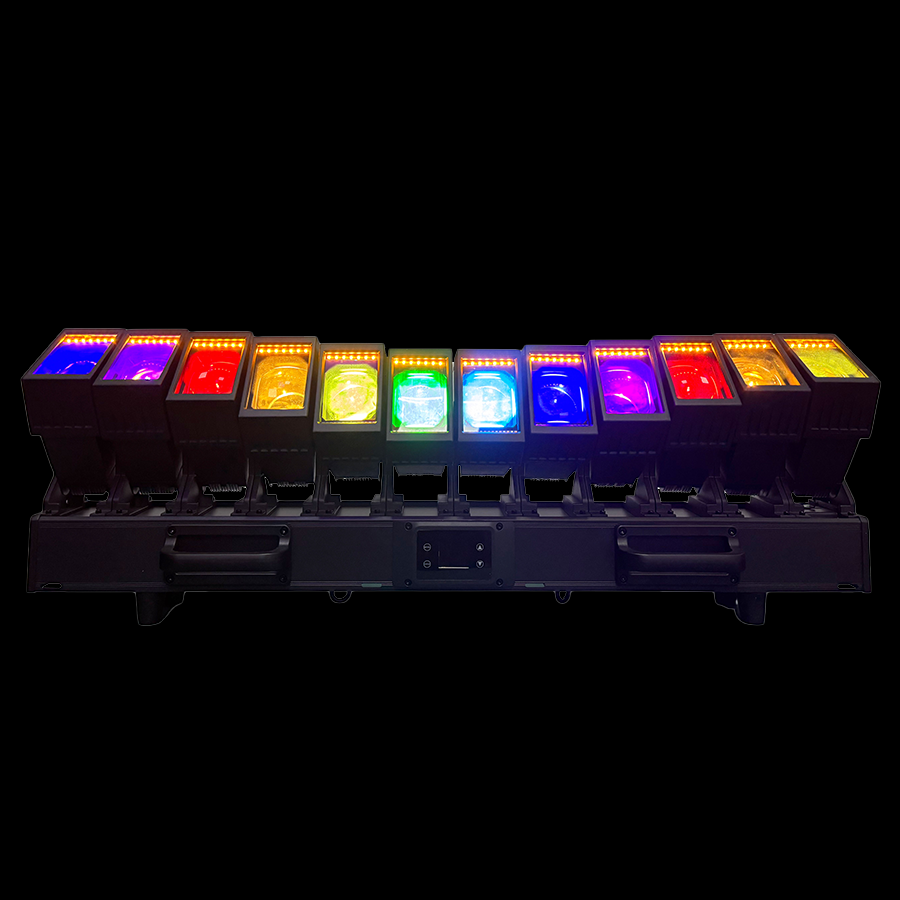

uplus-ip-pix1260-ip65-rgbw-led-pixel-bar-colorful-front-view - Uplus Lighting

Specifications

OPTICS

⦁ Voltage: AC100~240V 50 / 60 HZ
⦁ Power:900W
⦁ Light Source :12x60W RGBW LED
⦁ Srobe Section (optional):
   168 pcs 1W 1800K LEDs
   168 pCs 1W 650OK LEDs
⦁ Beam Angle: 3-15°

FEATURES

⦁ Control mode: DMX512, self-travel, master-slave, voice control, with RDM function.
⦁ channel:CH20.CH169A.CH169B.CH53.CH101.CH155.CH179 CH227
⦁ Dimming: 32bit 0~100% Linear dimming

⦁ Features: single swing + staining + beam
⦁ Operating temperature: -30 degrees ~50 degrees
⦁ Floribe frequency: 1-30 HZ
⦁ Appearance: metal, black
⦁ Connection mode: DMX512 input / output / power input / output.
⦁ IP grade: IP65

SPECIFICATION

⦁ Dimensions: 1000 * 332 * 219MM;Weight:30.5kg

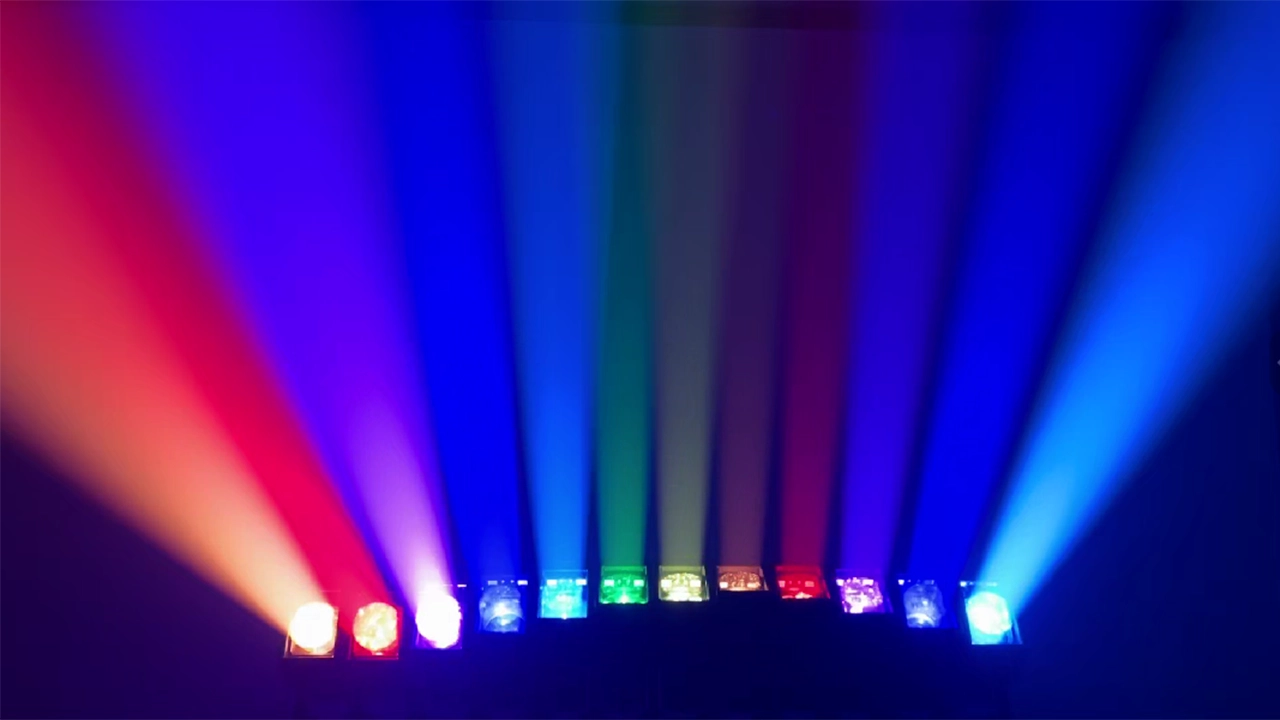

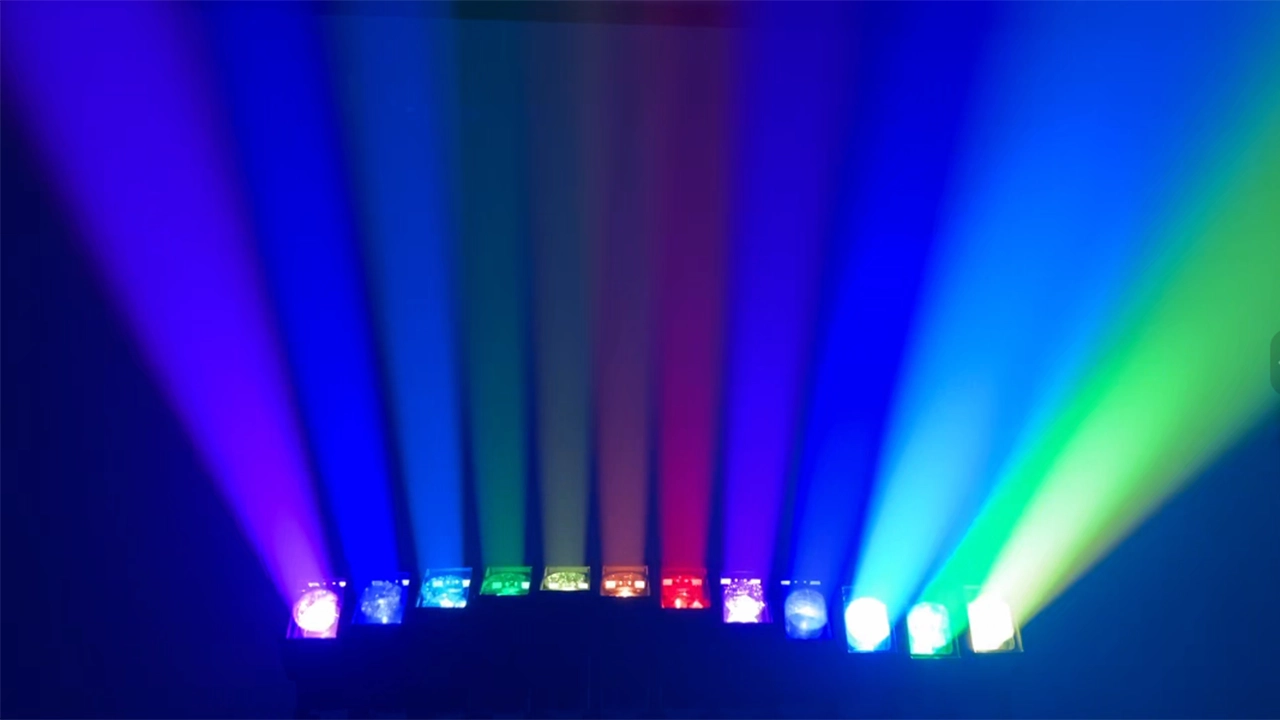

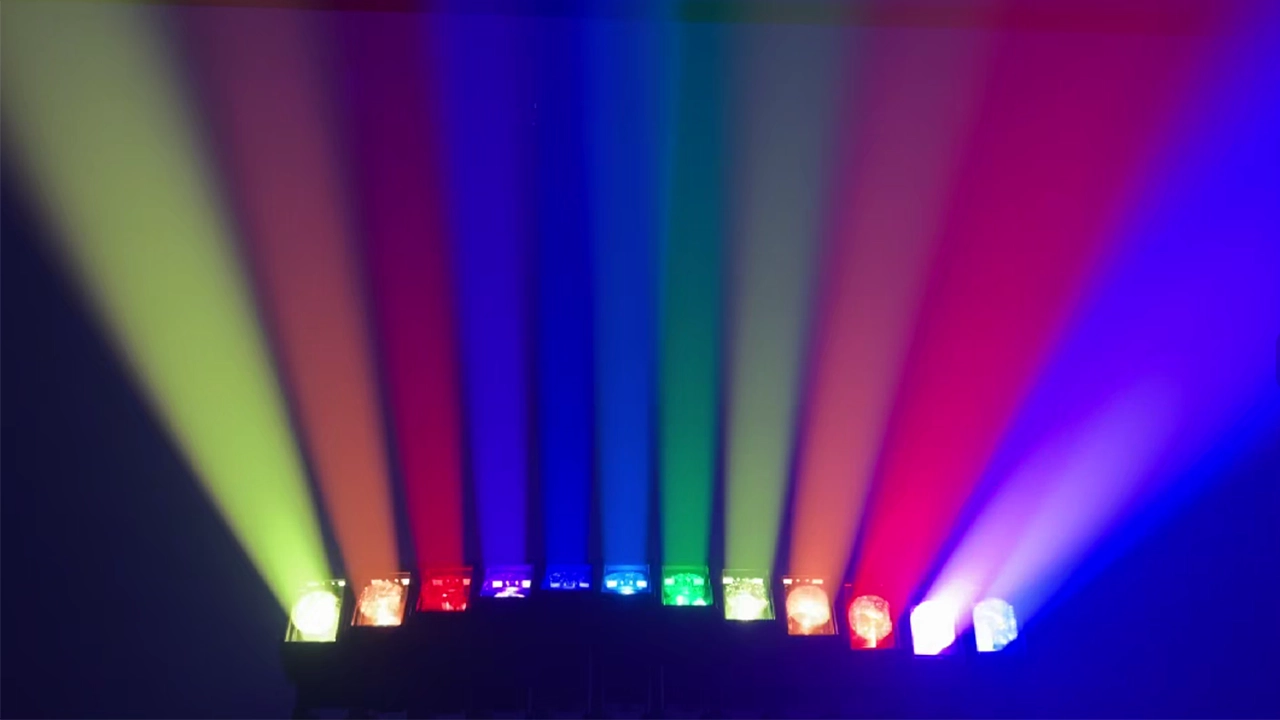

Effect

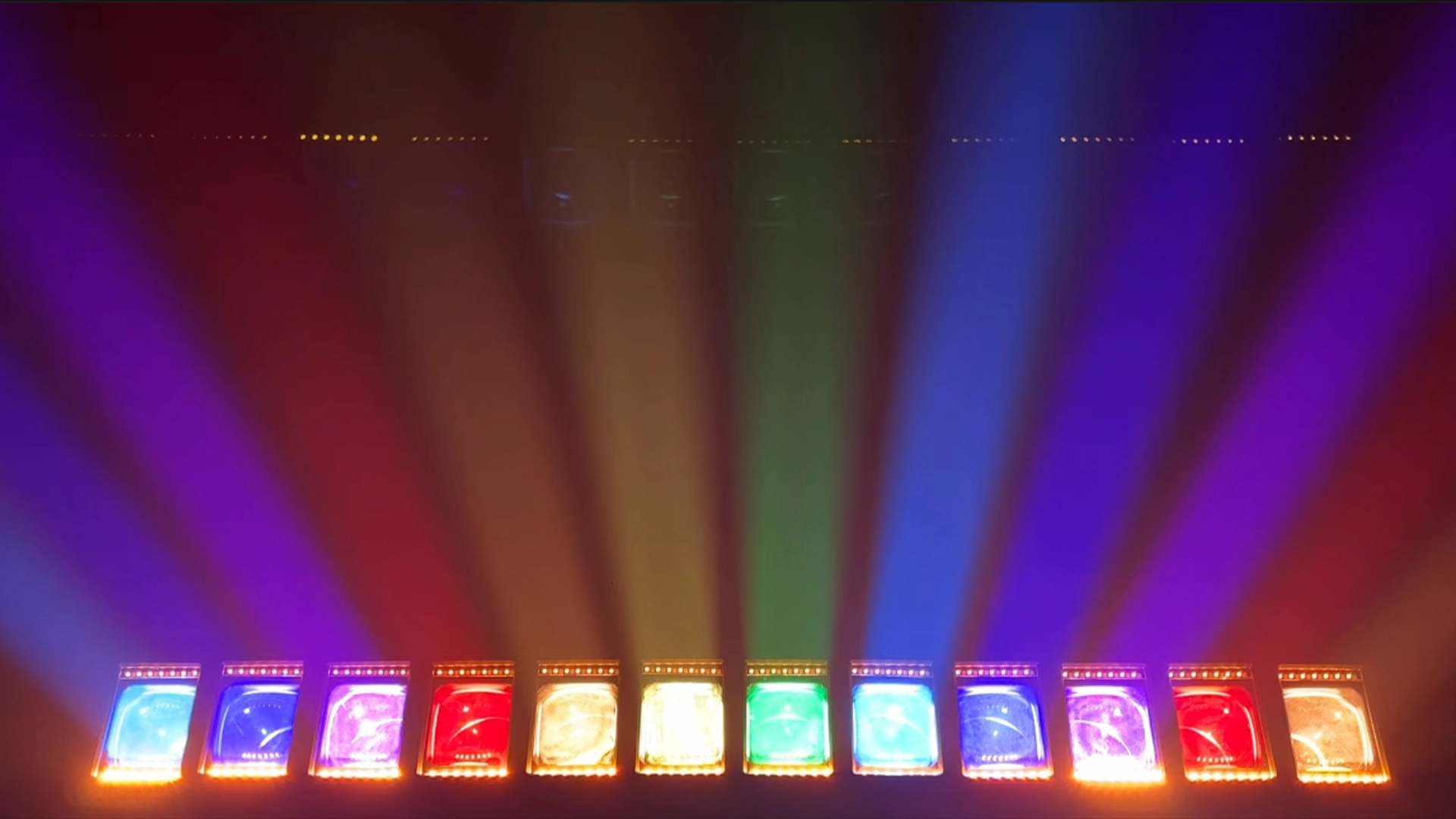

uplus-ip-pix1260-12x60w-led-pixel-bar-multicolor-pixel-effect - Uplus Lighting
tilt pixel effect
uplus-ip-pix1260-moving-head-pixel-bar-rainbow-beam-effect - Uplus Lighting
tilt pixel effect
uplus-ip-pix1260-led-moving-head-bar-vertical-color-beam-effect - Uplus Lighting
tilt pixel effect
uplus-ip-pix1260-rgbw-pixel-bar-diagonal-multicolor-beam-effect - Uplus Lighting
tilt pixel effect
uplus-ip-pix1260-led-pixel-bar-multicolor-vertical-beam-effect - Uplus Lighting
main light built-in effect
uplus-ip-pix1260-rgbw-led-pixel-bar-colorful-beam-lighting-effect - Uplus Lighting
main light built-in effect
uplus-ip-pix1260-rgbw-moving-head-bar-dual-color-beam-effect - Uplus Lighting
main light built-in effect
uplus-ip-pix1260-rgbw-moving-head-pixel-bar-multicolor-beam-effect - Uplus Lighting
main light built-in effect
uplus-ip-pix1260-led-pixel-bar-white-strobe-lighting-effect - Uplus Lighting
strip light built-in effect
uplus-ip-pix1260-led-pixel-bar-amber-wash-lighting-effect - Uplus Lighting
strip light built-in effect
uplus-ip-pix1260-moving-head-pixel-bar-rainbow-beam-effect - Uplus Lighting
main light+strip light built-in effect
uplus-ip-pix1260-led-pixel-bar-individual-pixel-control-effect - Uplus Lighting
main light+strip light built-in effect

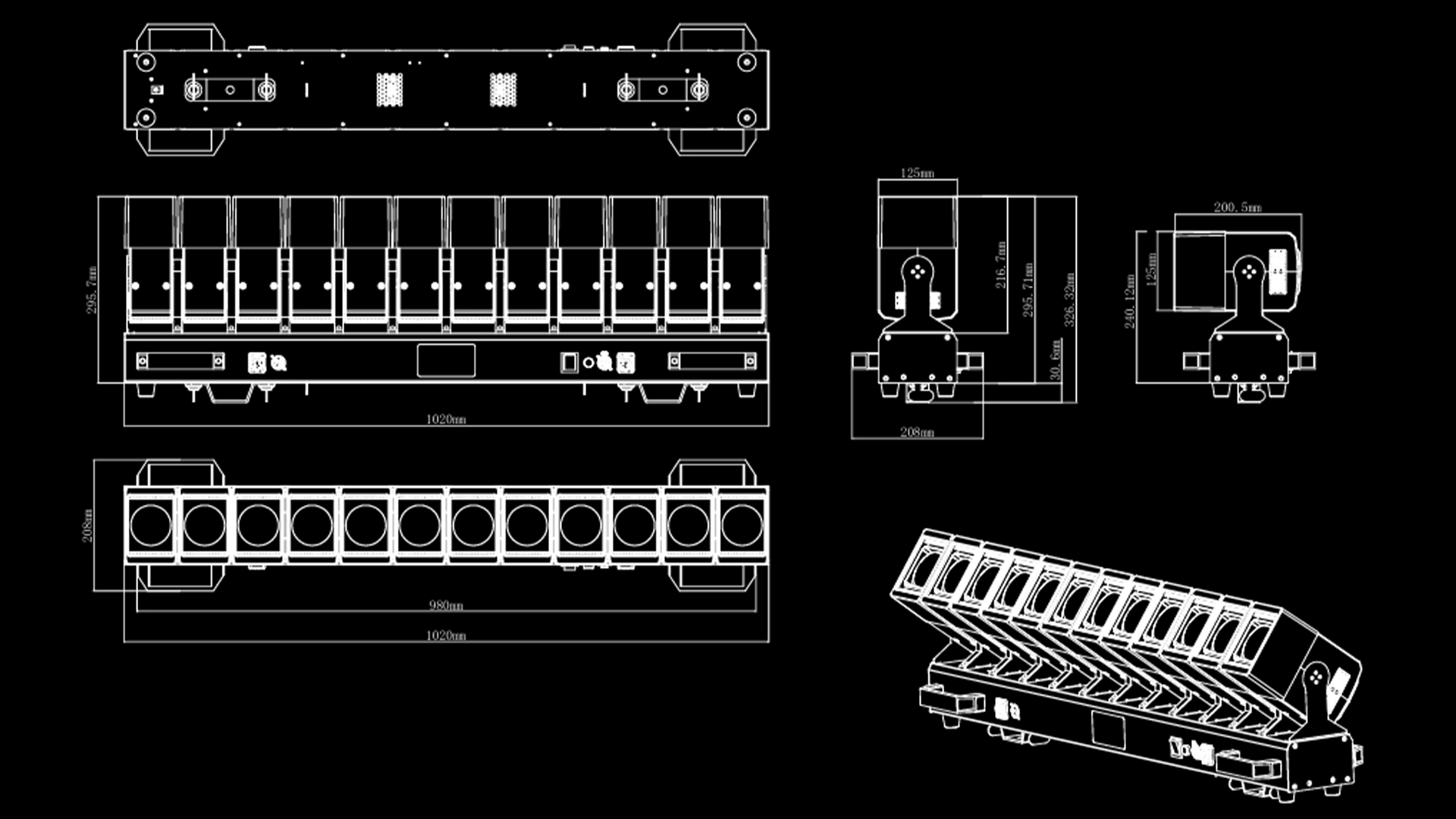

LUX Date & Dimension

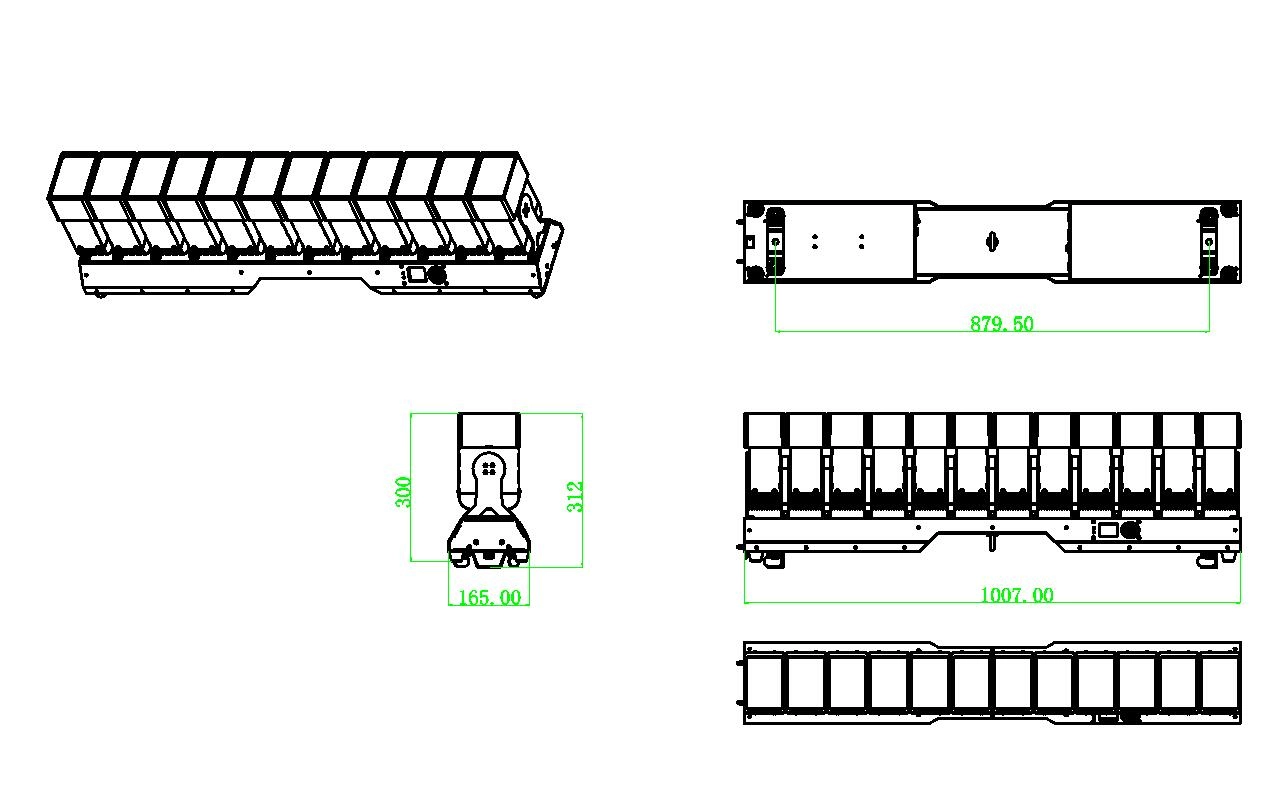

uplus-ip-pix1260-led-pixel-moving-head-bar-dimensions-diagram - Uplus Lighting

Features

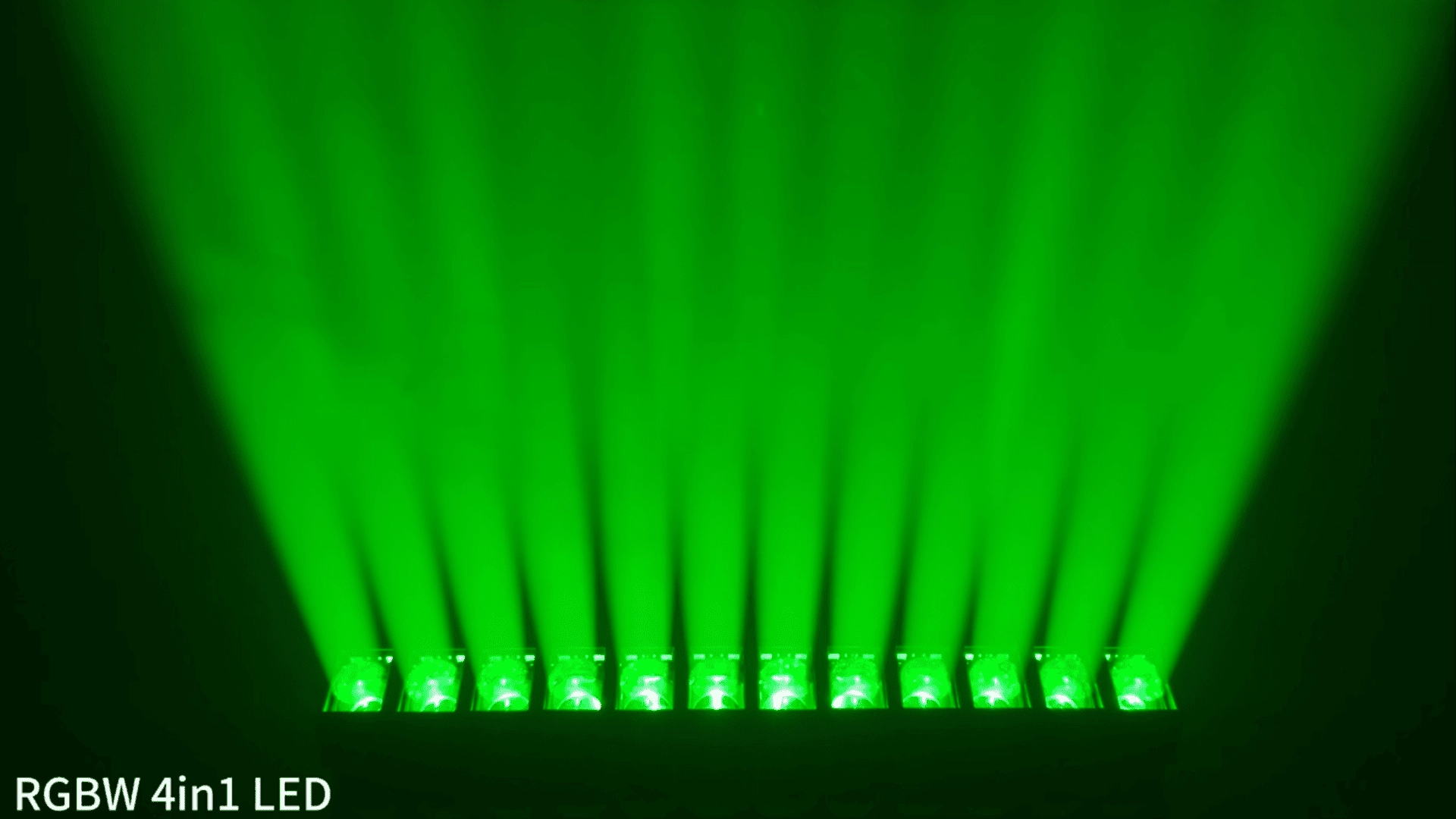

uplus-ip-pix1260-12x60w-rgbw-led-pixel-bar-light-source - Uplus Lighting

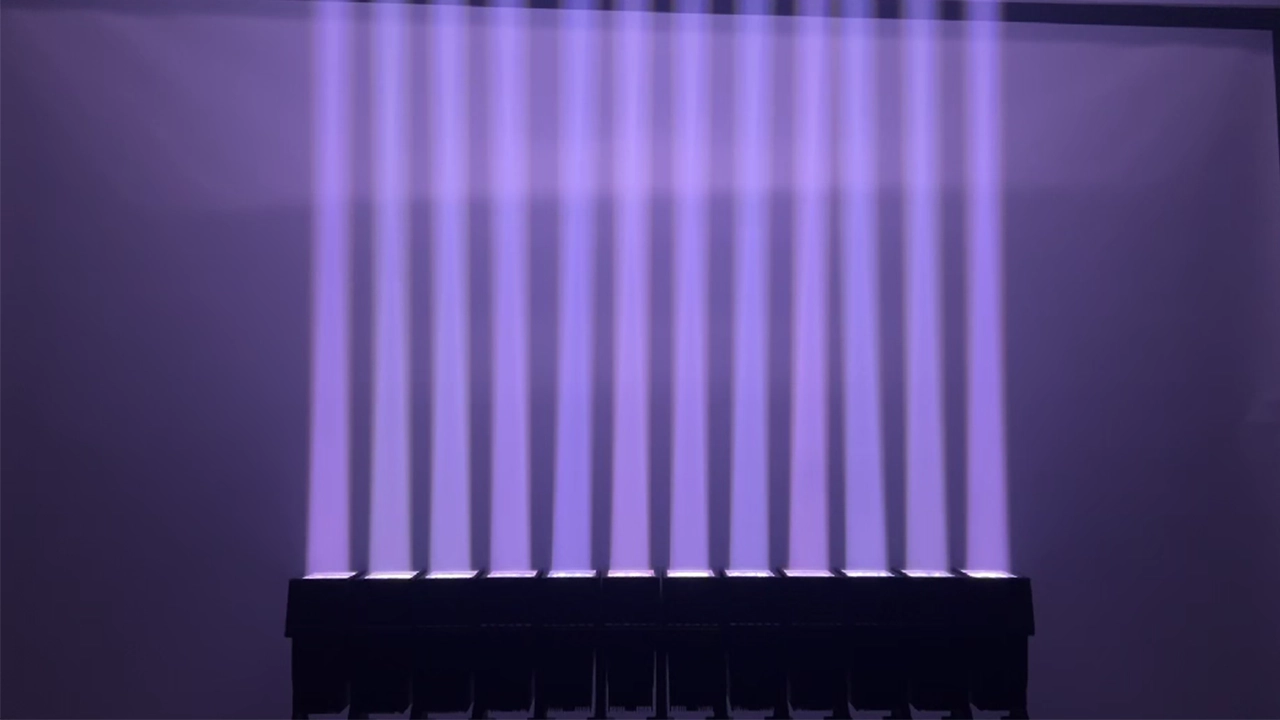

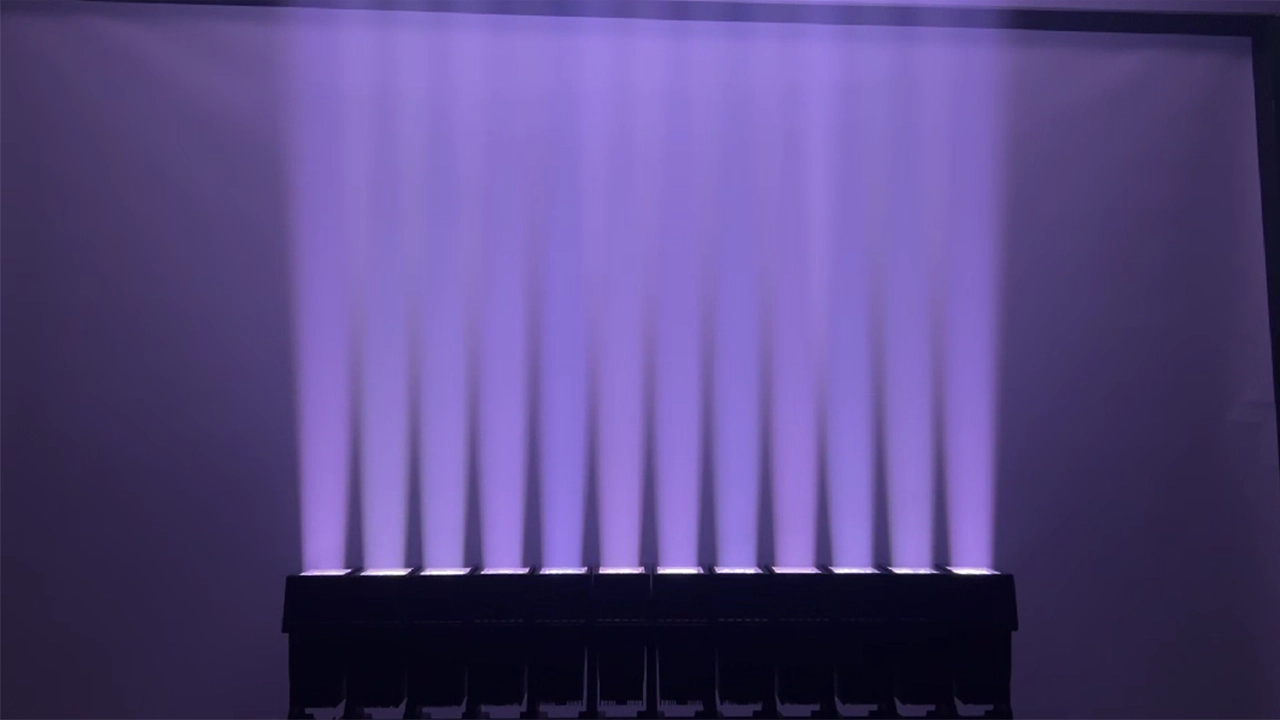

uplus-ip-pix1260-led-pixel-bar-3-15-degree-beam-angle - Uplus Lighting
uplus-ip-pix1260-led-moving-head-pixel-bar-product-dimensions - Uplus Lighting
uplus-ip-pix1260-ip65-moving-head-pixel-bar-net-weight - Uplus Lighting

APPLICATION

stage performance - Uplus Lighting
Large-scale outdoor events
Music festivals, celebrations, opening ceremonies, fashion shows.
Architectural-lighting - Uplus Lighting
Architectural lighting
Building facade coloring, landmark lighting, bridge landscape lighting.
TV Studios - Uplus Lighting
TV Studios
Use as background matrix walls or effect lighting to enhance the sense of stage depth.
Clubs & Bars - Uplus Lighting
Clubs/nightclubs
Create a dynamic, immersive entertainment atmosphere.
Theaters & Opera Houses - Uplus Lighting
Rental and performances
Provide rental companies with a selection of powerful, reliable, and effective lighting.

Packaging & Logistic

Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

What is Uplus Lighting's main product for factories?

The main products provided by Uplus are stage lighting, related accessories, and consoles. Our products are suitable for many large-scale international performances, concerts, theaters, music festivals, TV programs, etc.

Are you a manufacturer or a trading company?

We come directly from the factory and also have a sales office in Baiyun, Guangzhou.

Our service?

We have a professional team that can provide and customize products for you.

What are the size and weight of the IP-PIX1260?

The IP-PIX1260 measures 1000 × 219 × 332 mm and weighs 30.5 kg, useful for rental, touring and installation planning.

What control modes are available on the IP-PIX1260?

It supports DMX512, RDM, Auto Run, Master-Slave and Music control, with multiple DMX channel configurations.
