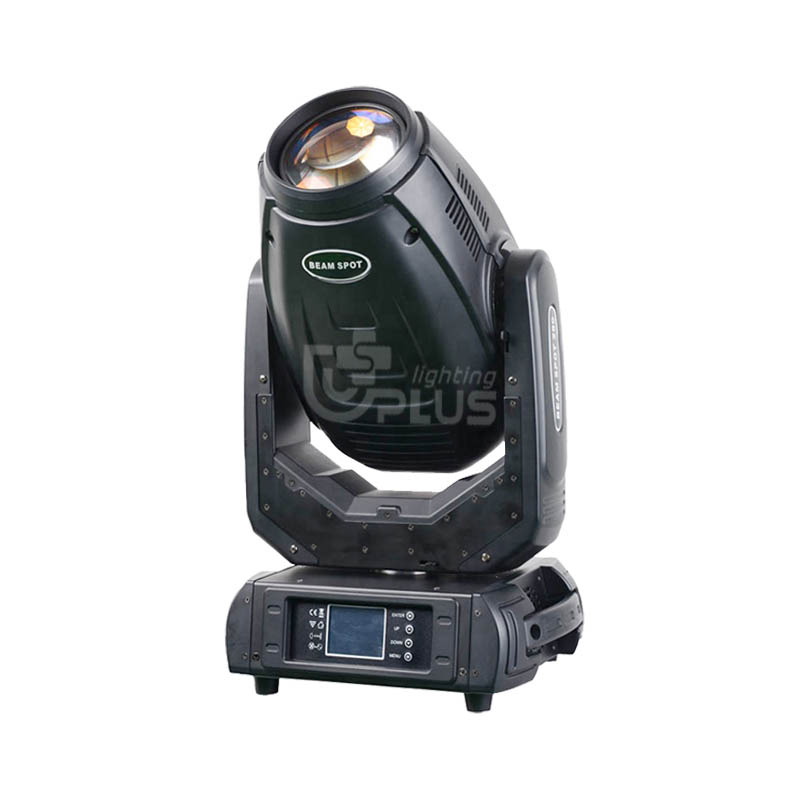

uplus-lighting-280w-bsw-3in1-moving-head-front-angled-view - Uplus Lighting
uplus-lighting-280w-bsw-3in1-moving-head-side-profile - Uplus Lighting
uplus-lighting-280w-bsw-3in1-moving-head-opposite-side-view - Uplus Lighting
uplus-lighting-280w-bsw-3in1-moving-head-optical-lens-angled-view - Uplus Lighting

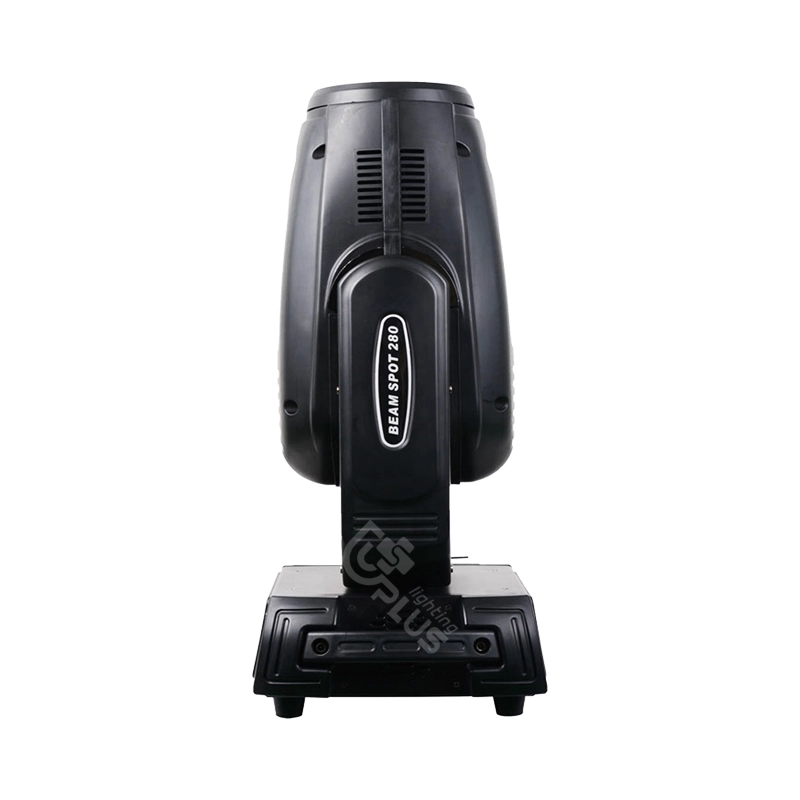

uplus-lighting-280w-bsw-3in1-moving-head-rear-housing-view - Uplus Lighting
uplus-lighting-280w-bsw-3in1-moving-head-front-product-view - Uplus Lighting
undefined
uplus-lighting-280w-bsw-3in1-moving-head-front-angled-view - Uplus Lighting
uplus-lighting-280w-bsw-3in1-moving-head-side-profile - Uplus Lighting
uplus-lighting-280w-bsw-3in1-moving-head-opposite-side-view - Uplus Lighting
uplus-lighting-280w-bsw-3in1-moving-head-optical-lens-angled-view - Uplus Lighting
uplus-lighting-280w-bsw-3in1-moving-head-rear-housing-view - Uplus Lighting
uplus-lighting-280w-bsw-3in1-moving-head-front-product-view - Uplus Lighting

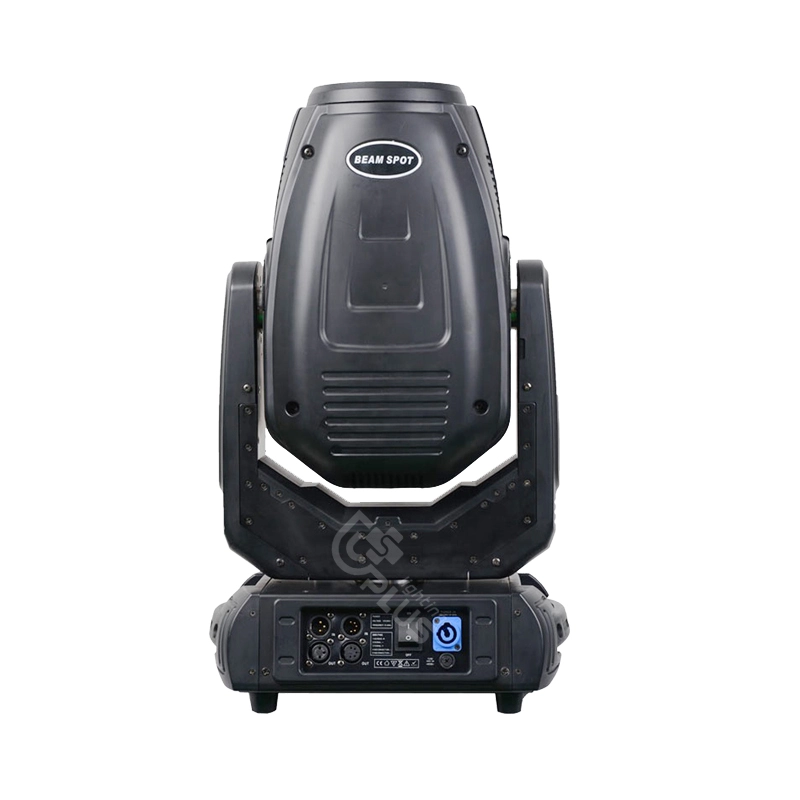

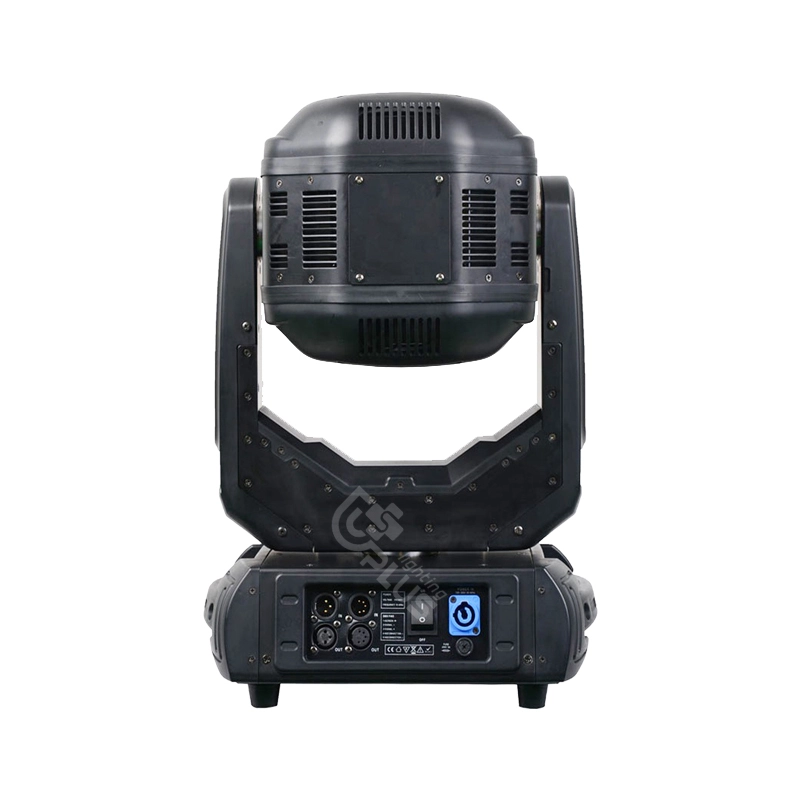

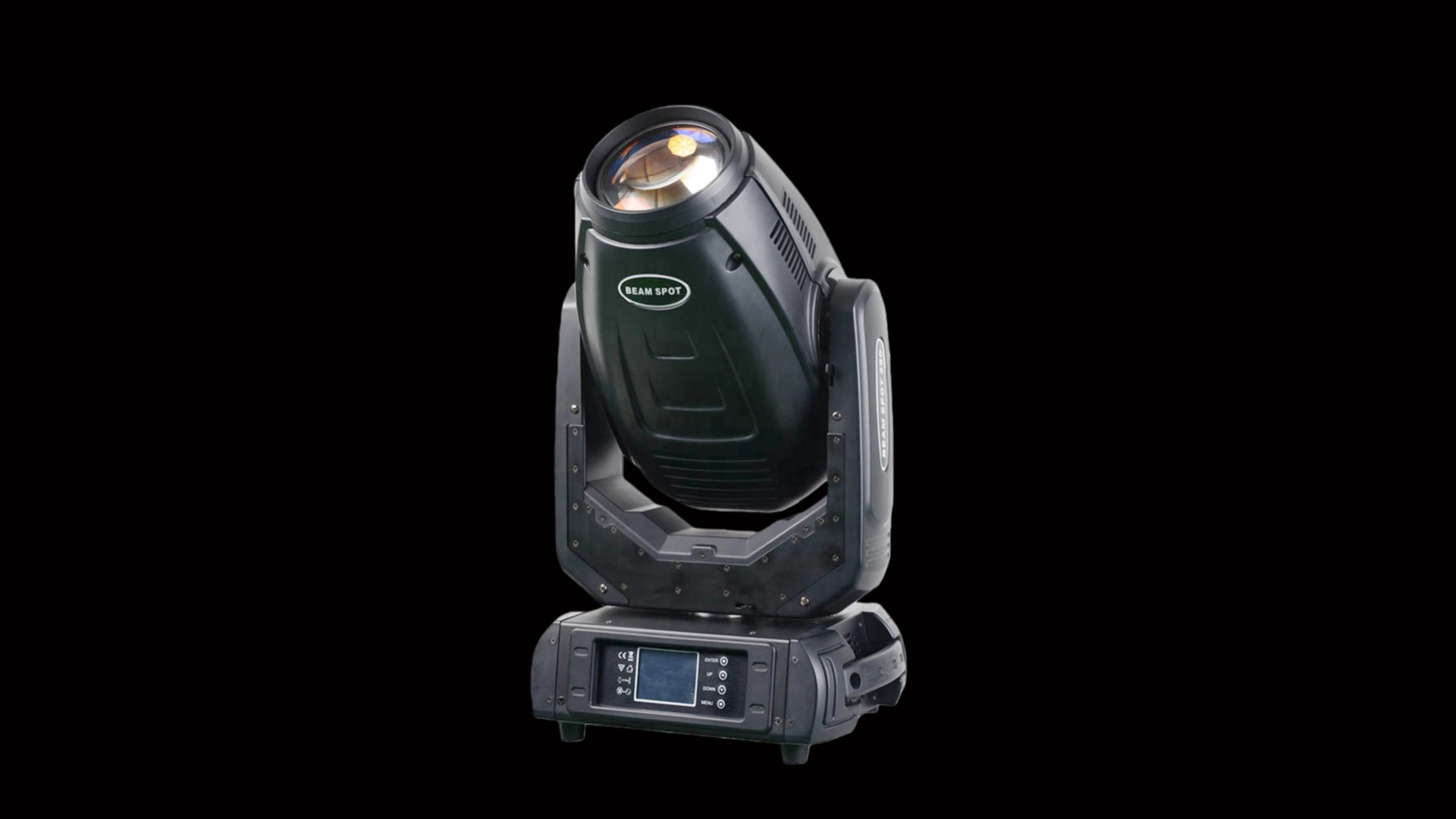

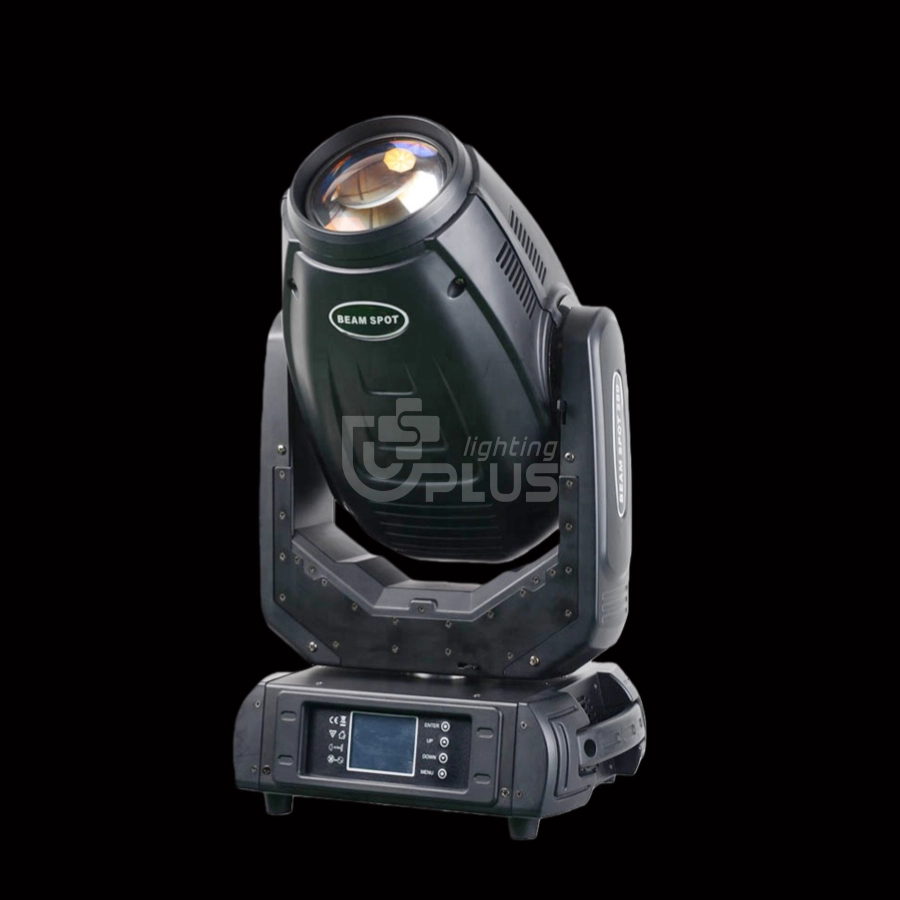

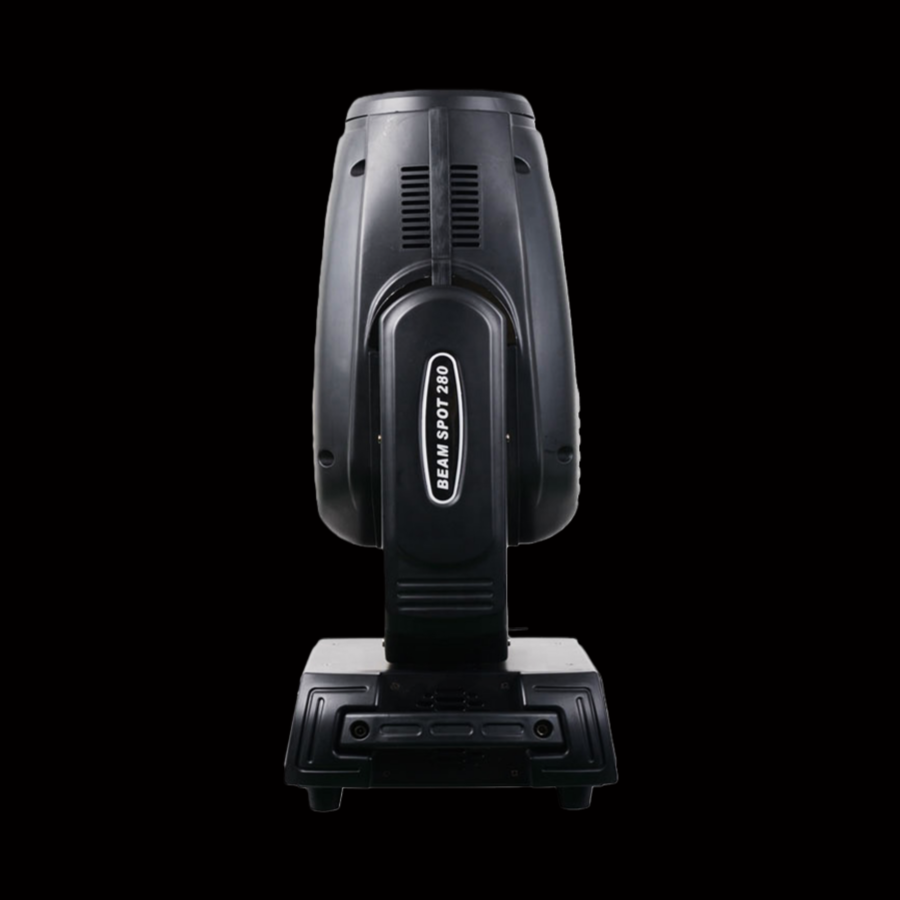

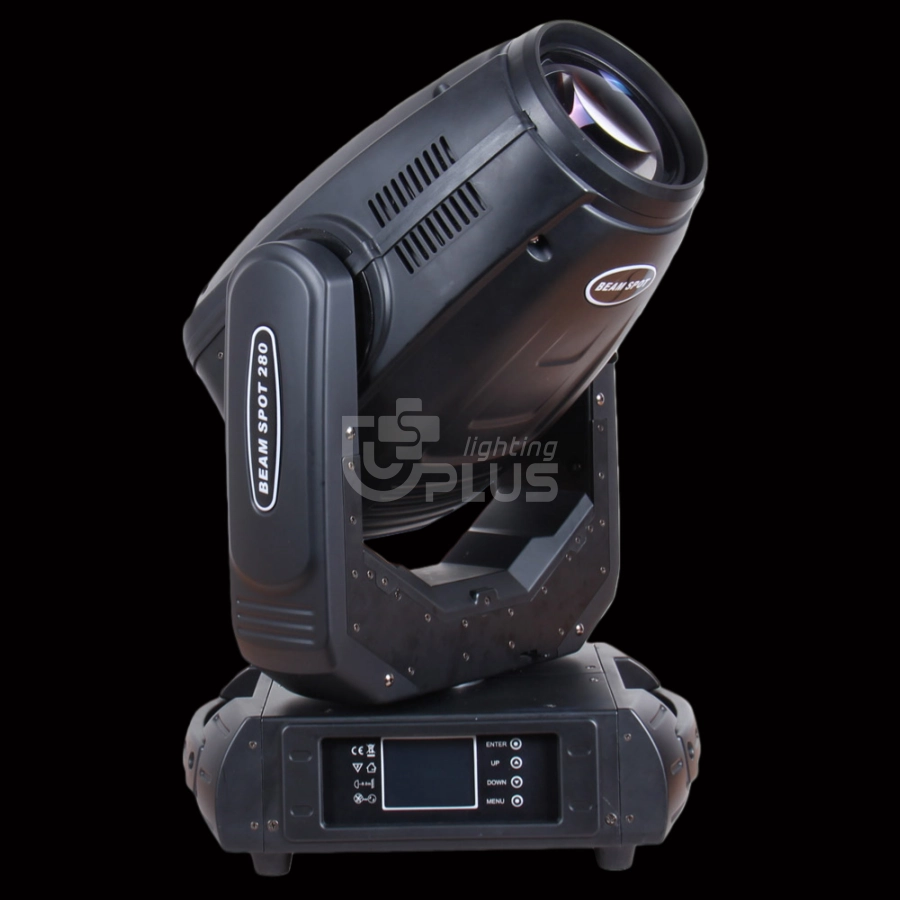

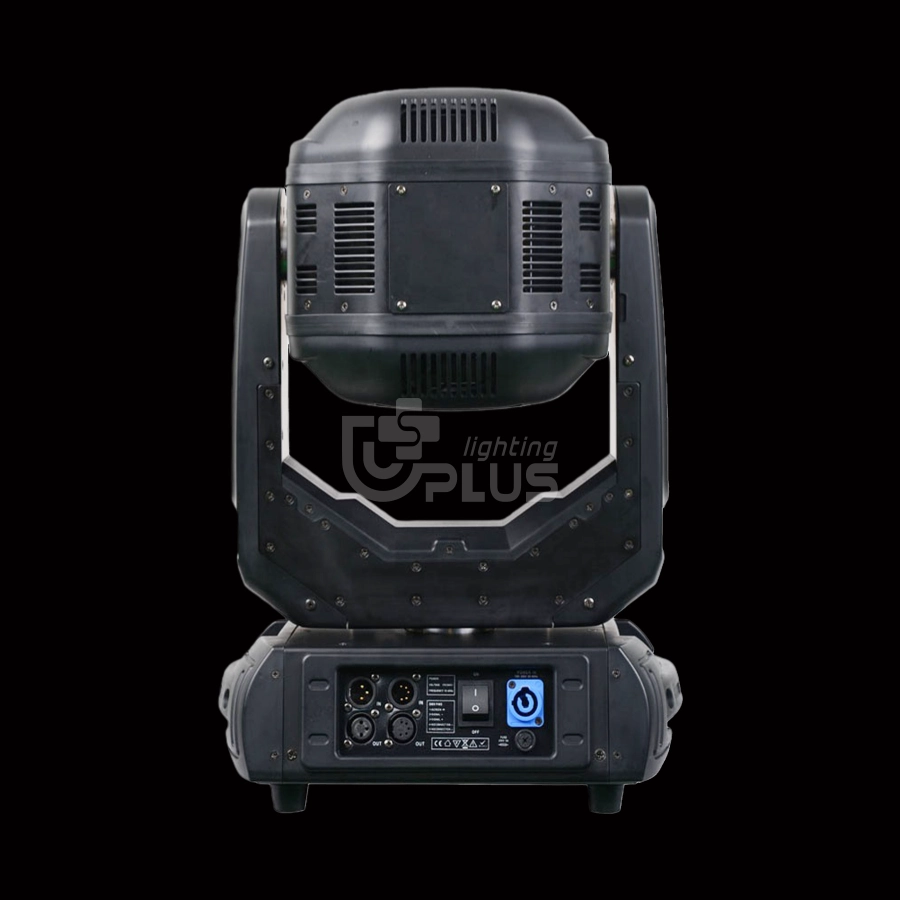

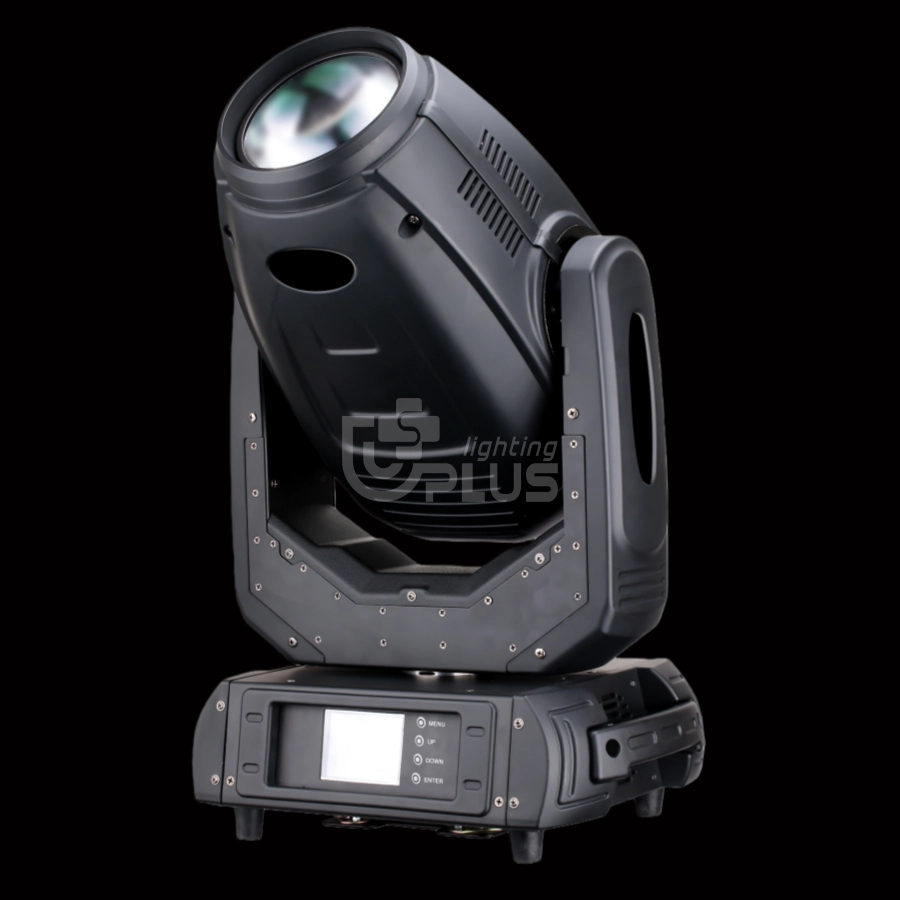

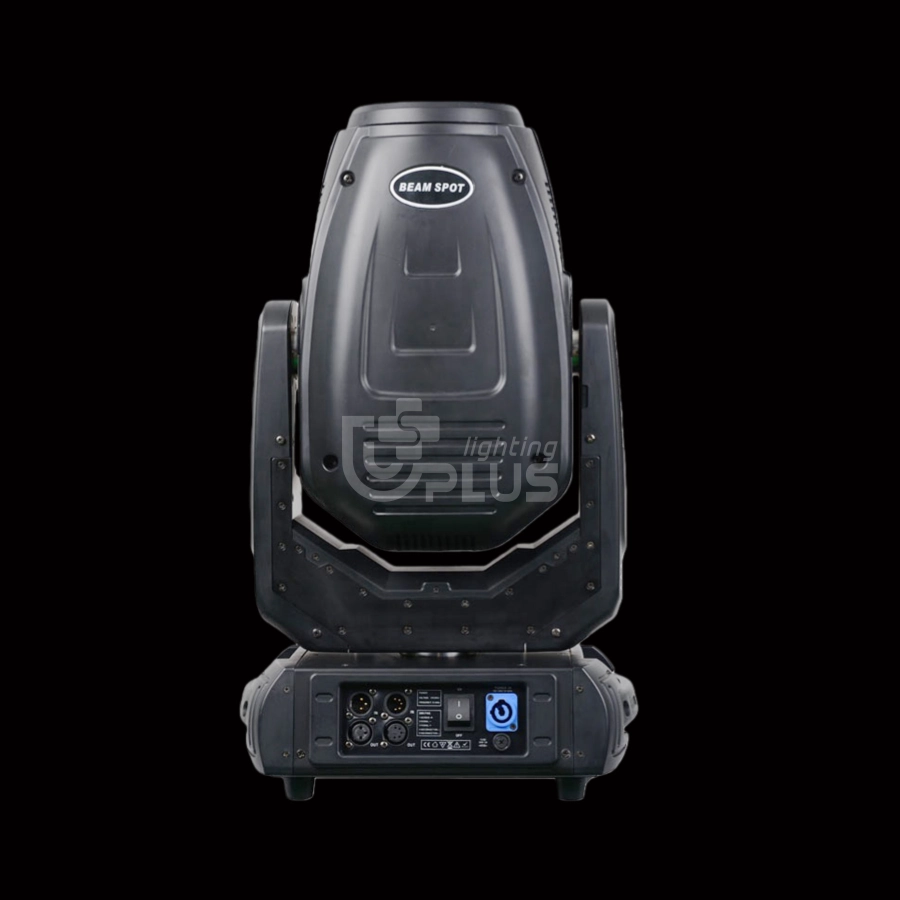

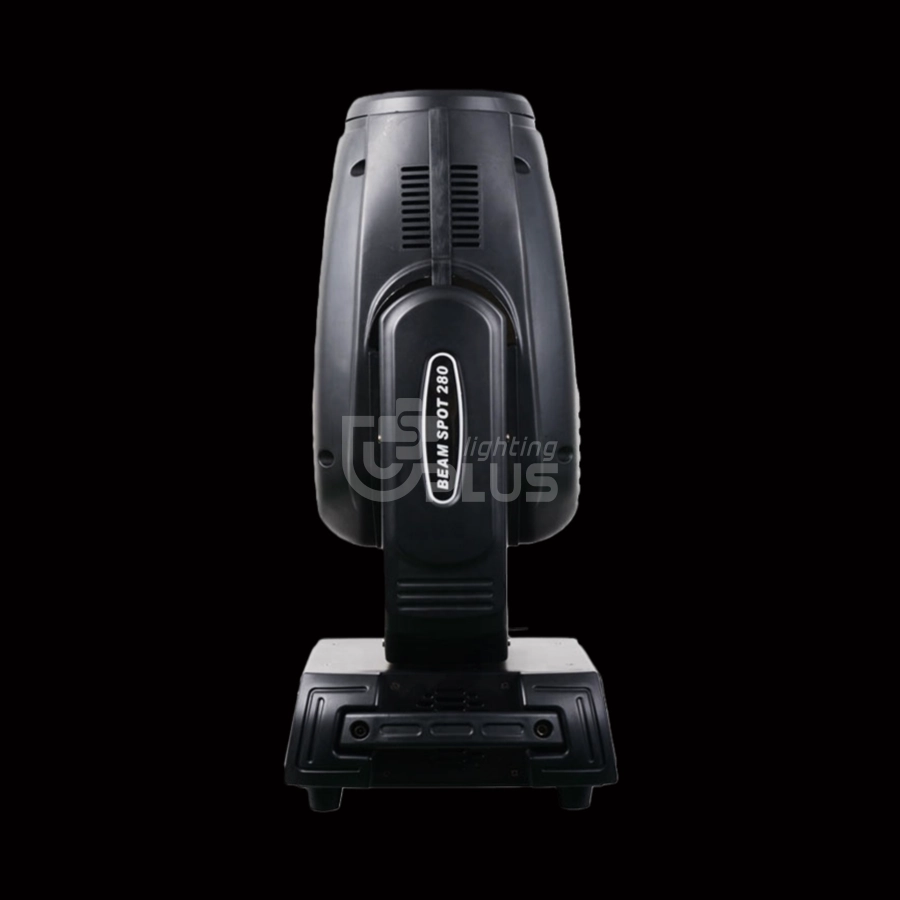

BSW280 280W BSW 3-in-1 moving head

The 280W BSW 3-in-1 moving head light integrates three core functions: beam, color, and pattern. Its high-definition optical system delivers powerful and uniform light. Supporting DMX512/RDM control and high-precision head-scanning, it features a multi-pattern disc and dual prisms, making it suitable for various large and medium-sized performances, cultural tourism light shows, and other professional stage scenarios.

GET A FREE QUOTE ➜
GET THE PRODUCT CATALOG ➜
BSW 280 - ROBE channel.pdf
BSW 280.zip
INTRODUCTION
INTRODUCTION
SPECIFICATIONS
SPECIFICATIONS
EFFECT
EFFECT
LUX DATE & DIMENSION
LUX DATE & DIMENSION
FEATURES
FEATURES
APPLICATION
APPLICATION
PACKAGING & LOGISTIC
PACKAGING & LOGISTIC
FAQs
FAQs
uplus-lighting-280w-bsw-3in1-moving-head-front-optical-lens - Uplus Lighting

Specifications

OPTICS

• Light source: 280W lamp
• Power Consumption: 420W
• Zoom angle: 2.5°~20°
• Color Tempreture: 8500K

FEATURES

• Control: DMX512,Auto, Sound active, Master/slave,RDM
• DMX Channel: 16/24 channels
• Color wheel: 13 colors+white
• Gobo:
1 fixed gobo wheels (14 gobo+white)
1 rotating gobo wheel (9 gobo+white)
• Prism: double prism, 8 face prism+ 6 face prism
• Focus: linear adjustment
• With Frost
• Dimming: 0-100% linear dimming

SPECIFICATION

• Dimension: 386*365*589 mm; NW:19 kg

Effect

uplus-lighting-bsw280-white-narrow-beam-effect - Uplus Lighting
zoom angle
uplus-lighting-bsw280-white-focused-beam-effect - Uplus Lighting
zoom angle
uplus-lighting-bsw280-white-diagonal-gobo-projection - Uplus Lighting
6 prism
uplus-lighting-bsw280-white-linear-gobo-pattern - Uplus Lighting
6 prism
uplus-lighting-bsw280-white-square-gobo-projection - Uplus Lighting
8 prism
uplus-lighting-bsw280-white-snowflake-gobo-effect - Uplus Lighting
8 prism
uplus-lighting-bsw280-blue-yellow-multiple-beam-effect - Uplus Lighting
8 prism
uplus-lighting-bsw280-green-radial-prism-beam-effect - Uplus Lighting
8 prism

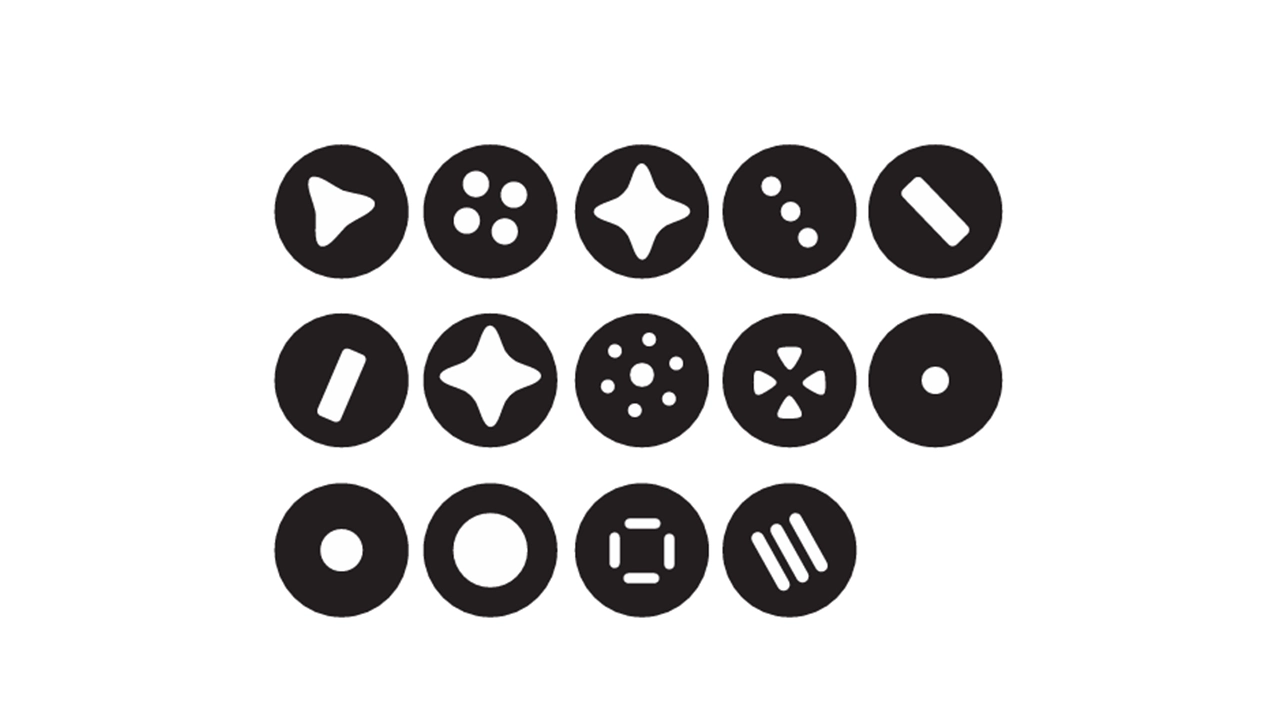

uplus-lighting-bsw280-moving-head-fixed-gobo-patterns - Uplus Lighting
gobo

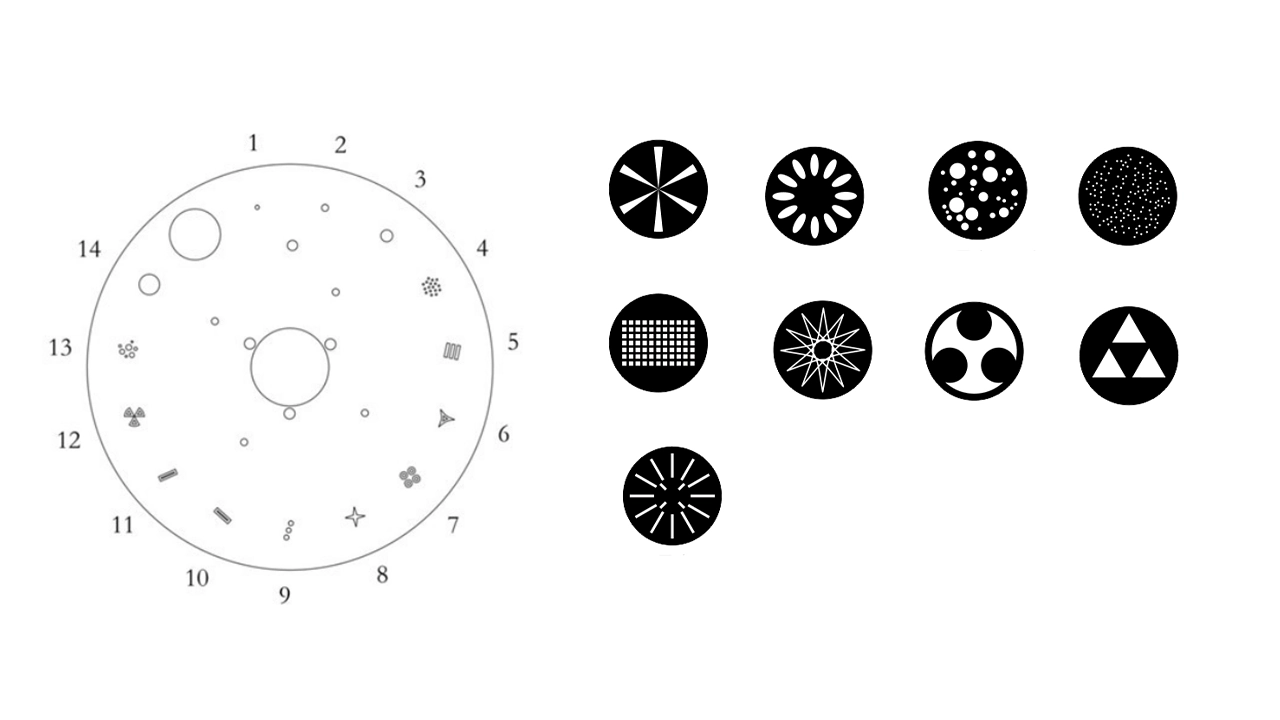

uplus-lighting-bsw280-moving-head-gobo-pattern-wheel-diagram - Uplus Lighting
gobo

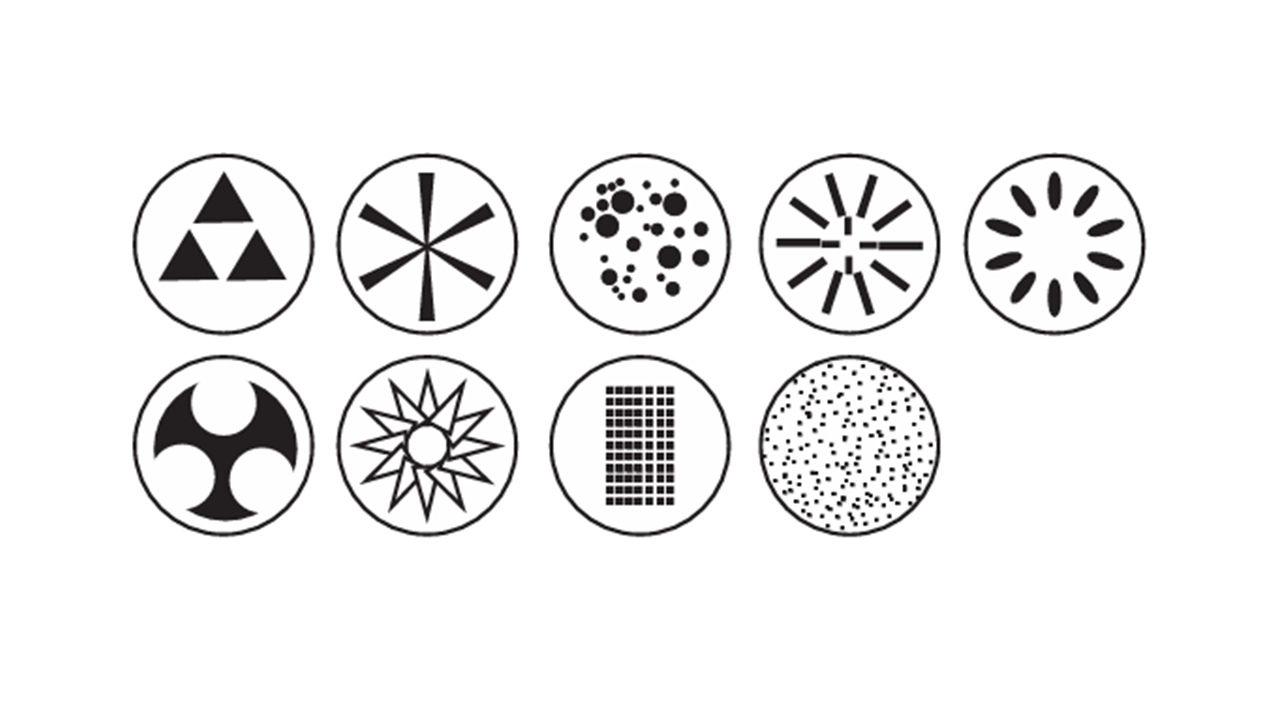

uplus-lighting-bsw280-moving-head-rotating-gobo-wheel-diagram - Uplus Lighting
ratating gobo

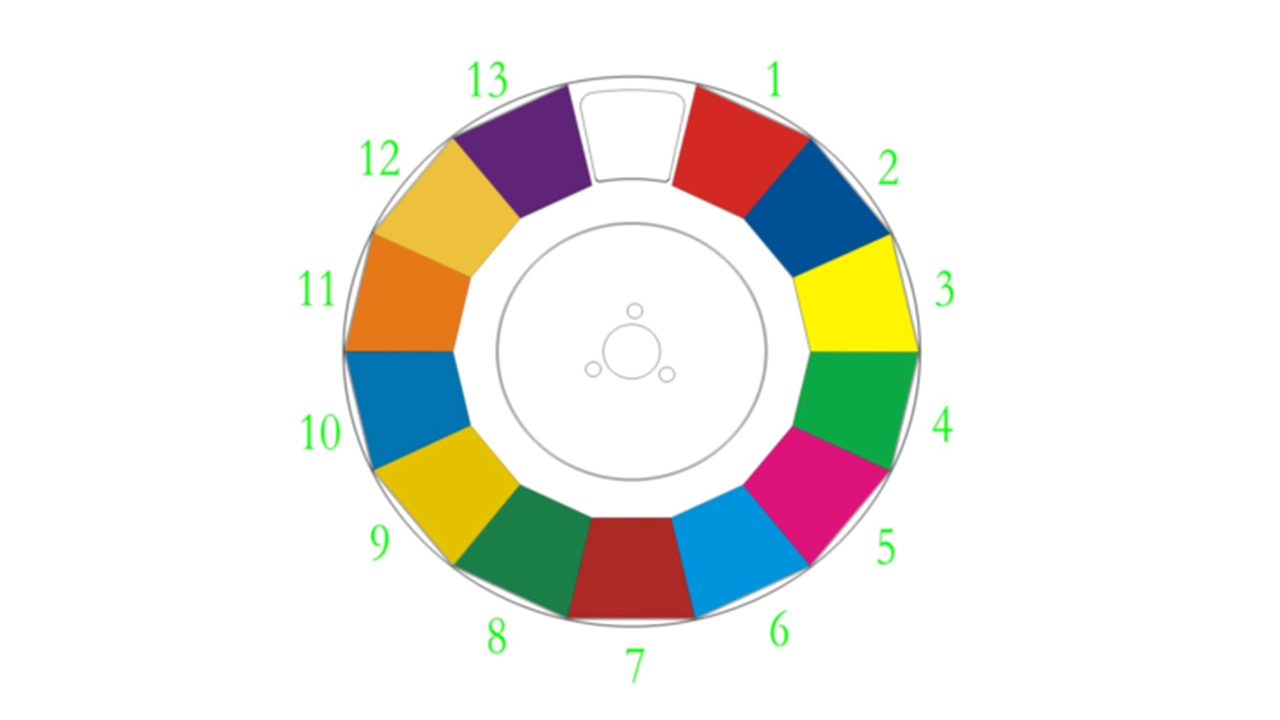

uplus-lighting-bsw280-moving-head-color-wheel-diagram - Uplus Lighting
color
LUX Date & Dimension
uplus-lighting-bsw280-moving-head-dimension-drawing - Uplus Lighting

Features

uplus-lighting-280w-moving-head-lamp-source - Uplus Lighting
uplus-lighting-moving-head-2-5-20-degree-zoom-angle - Uplus Lighting
uplus-lighting-stage-light-color-temperature-8500k - Uplus Lighting
uplus-lighting-moving-head-dimensions-386x365x589mm - Uplus Lighting
uplus-lighting-moving-head-weight-19kg - Uplus Lighting

APPLICATION

Courtyard-Balcony-Decoration - Uplus Lighting
Courtyard/Balcony Decoration
Lights up at dusk, projecting dynamic light and shadow patterns. Paired with greenery or outdoor furniture, it creates a warm and relaxing indoor/outdoor space.
Festival-Atmosphere-Decoration - Uplus Lighting
Festival Atmosphere Decoration
No wiring required. Simply place it at the entrance or on the lawn. RGB dynamic colors enhance the festive atmosphere.
Small-Outdoor-Parties - Uplus Lighting
Small Outdoor Parties/Camping
Decorate campsites and terrace parties. The waterproof design is unaffected by outdoor dew or light rain. Flowing light and shadow enhance the interactive atmosphere.
Shop-Window-Display - Uplus Lighting
Shop/Window Display
Place at entrances or in shop windows. Dynamic text and patterns attract passersby, suitable for attracting customers to restaurants, retail stores, and other offline stores.
Children's-Birthday-Parties - Uplus Lighting
Children's Birthday Parties/Small Events
Suitable for both indoor and outdoor use. Brightly colored dynamic lasers paired with cartoon patterns appeal to children.
Garden-Weddings - Uplus Lighting
Garden Weddings/Small Celebrations
Soft dynamic light and shadow are projected onto the venue. The waterproof feature is suitable for outdoor environments, creating a romantic atmosphere.

Packaging & Logistic

Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

Who should I contact if I receive a damaged item?

If you receive a damaged item, please take a photo and send it to us. We will then confirm with the logistics company whether it is a shipping issue or a problem with our product packaging. After verification, we will resend the product or provide compensation.

How do I select the appropriate product?

Please send us an inquiry or tell us your purpose and location, and we will provide you with the appropriate product as soon as we receive your information.

What warranty do your products come with?

Our products come with a one-year warranty. During this period, if there are any problems with our products, we will provide customers with the necessary accessories and related services.

What focus, frost and dimming functions does the BSW280 support?

It provides linear focus adjustment, frost, and 0–100% linear dimming for beam shaping and intensity control.

What control options and installation specifications does the BSW280 have?

The BSW280 supports DMX512 and RDM with 16/24-channel modes. It measures 386 × 365 × 589 mm and weighs 19 kg.
