Product Introduction | Three MINI740

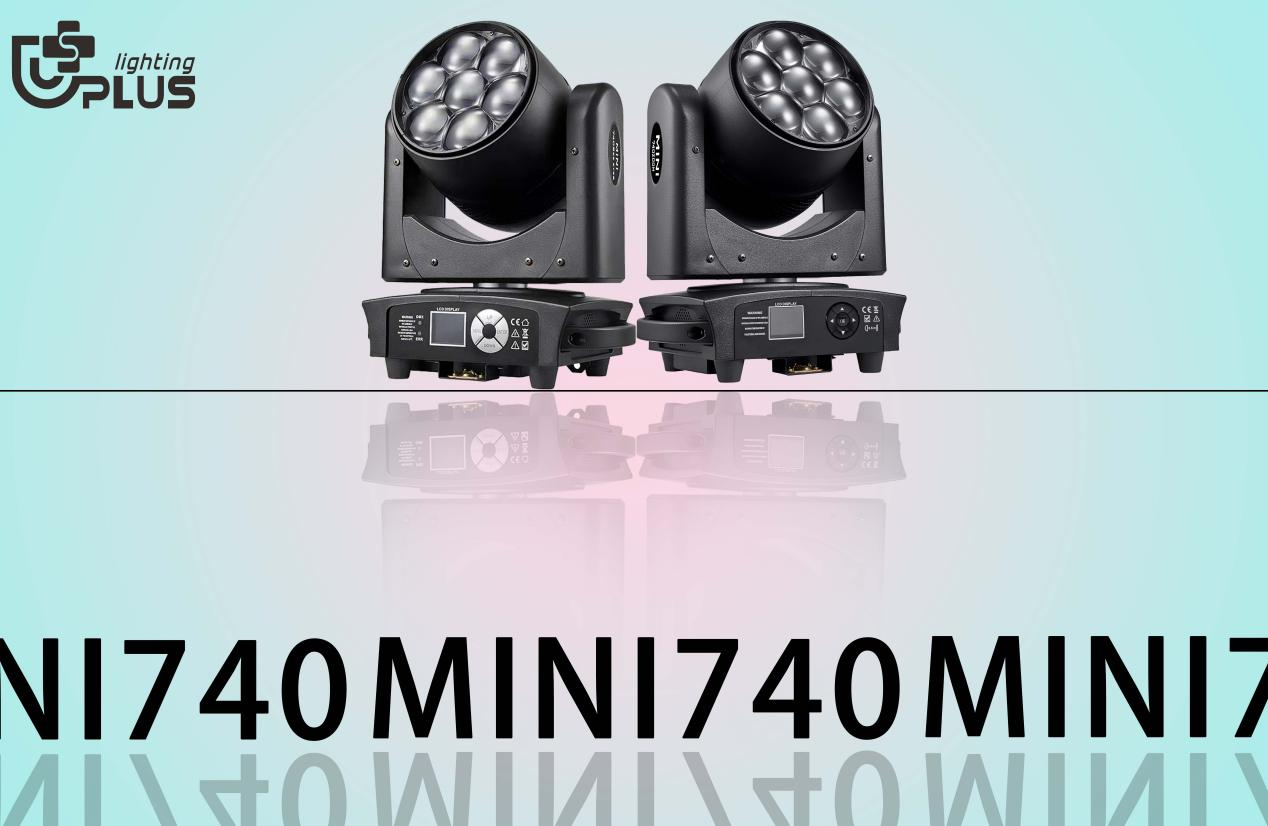

Uplus Lighting is making waves in the world of stage lighting with its latest innovation, the MINI740 series . This series consists of three distinct versions of the MINI 7*40W B-eye moving head, with the third version rapidly gaining popularity among customers. These compact and versatile lighting fixtures are renowned for their comprehensive functions and user-friendly operation. In this article, we will delve into the differences and unique features of these three remarkable MINI740 variants.

Introduction

Uplus Lighting ‘ MINI740 series offers a versatile range of lighting solutions designed to cater to a variety of stage lighting needs. While all three versions share similar performance capabilities, they are tailored to meet specific lighting requirements. Let’s take a closer look at each version:

Version 1

Version 1 of the MINI740 is a powerhouse of features. The MINI740 is equipped with the following features:

• LED Source : 7*40W RGBW 4-in-1 LED
• Zoom Angle : 4.5°-45°
• Functions : Wash, beam, bee eye, and pixel effect
• Dimmer : 0-100% linear dimmer
• Pan : 540°+16 bit fine
• Tilt : 270°+16 bit fine
• Display : LCD colorful display
• IP Rating : IP20
• Dimensions : 340 273 170mm; NW: 5.75 kg

Version 2

Version 2 of the MINI740 offers the following specifications:

• LED Source : 7*40W RGBW 4-in-1 LED
• Zoom Angle : 4.5°-45°
• Functions : Zoom wash and LED full-on effect
• Strobe : 0-25Hz
• Dimmer : 0-100% linear dimmer
• Pan : 540°+16 bit fine
• Tilt : 270°+16 bit fine
• Display : LCD colorful display
• IP Rating : IP20
• Dimensions : 340 273 170mm; NW: 5.75 kg

Version 3

The third and final version of the MINI740 series offers unique features that set it apart. The third version of the MINI740 offers these amazing features:

• LED Source : 7*40W RGBW 4-in-1 LED
• Zoom Angle : 4.5°-45°
• DMX Socket : 5-pin or 3-pin optional
• Power Connector : Power Con True1 IN/OUT
• Dimmer : 0-100% linear dimmer
• Pan : 540°+16 bit fine
• Tilt : 270°+16 bit fine
• Display : LCD colorful display
• LED Ring Control Effect
• IP Rating : IP20
• Dimensions : 340 273 170mm; NW: 5.75 kg

Differences between the Three Mini Wash Lamps

Shell

One of the notable differences between these three versions is the design of their shells. Versions 1 and 2 share a nearly identical shell design, whereas version 3 distinguishes itself with different front buttons and rear connection ports.

Functionality

Each version of the MINI740 offers a unique set of functions:

• Version 1 : Combines Zoom, B-eye/Led pixel effect for dynamic lighting.
• Version 2 : Specializes in Zoom wash and LED full-on effects.
• Version 3 : Stands out with the Clay Paky mini-B Aqua copy and LED ring control effect, offering a different lighting experience.

The Bottom Line

In conclusion, Uplus Lighting’ MINI740 series offers a variety of options to cater to different lighting needs. Whether you’re looking for dynamic effects, wash lighting, or special control features, these mini-wash lamps have it all. Feel free to consult with us for more information and discover how these innovative lighting solutions can elevate your stage productions.

Welcome to consult for more stage lighting !
