What Is The Function Of Pixel LED? Complete Guide For Stage Pixel Moving Head Light
1. Introduction: What is Pixel LED Light?
Pixel LED light is an intelligent lighting fixture that adopts dot matrix pixel control technology. Each LED bead can be independently controlled to realize color changing, dimming, dynamic flowing effects. Different from ordinary LED lights, pixel LED lights can form diverse line and surface light effects through pixel combination, which is widely used in stage performance, bar entertainment, architectural lighting and other scenarios. For professional stage lighting, For professional stage lighting applications, the
IP-PIX1260 IP65 Pixel Zoom Bar Moving Head combines pixel control, auxiliary LED strips, motorized zoom, and moving head effects to create dynamic lighting designs for concerts, festivals, and outdoor events.
2. Core Functions of Pixel LED Lights
To clearly answer what the function of pixel LED is, we summarize its core practical functions combined with stage lighting usage scenarios:

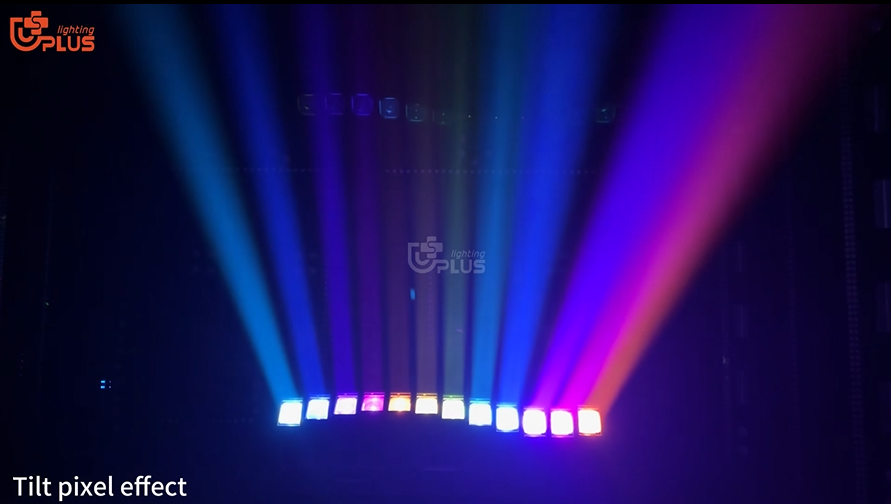

2.1 Independent Pixel Control & Dynamic Light Effect
The most fundamental function of pixel LED is single-point independent control. Each LED pixel can adjust brightness, hue and saturation separately. It supports dynamic effects such as color gradient, strobing, running water, pixel jumping, which creates layered and vivid visual effects for stage performances. It can simulate text, pattern and dynamic animation to enrich stage expression.
For large-scale stage productions,
professional pixel moving head light bars allow lighting designers to combine multiple fixtures and create synchronized color chases, dynamic pixel patterns, and coordinated lighting effects.

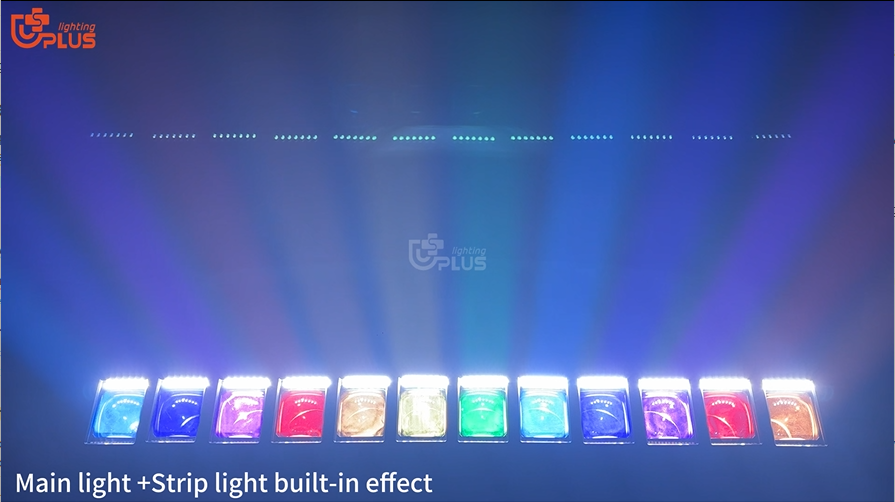

2.2 Auxiliary Light Strip Supplementary Lighting
Professional pixel LED moving head lights are equipped with auxiliary light strips. The auxiliary light strip plays a key role in filling light, eliminating dark areas on the stage, optimizing light uniformity, and improving the overall softness of the lighting. It cooperates with the main beam to realize dual lighting of main light and auxiliary light, suitable for complex stage atmosphere creation.
2.3 Zoom & Beam Angle Adjustment
Pixel LED moving head lights support electric zoom function. The adjustable beam angle can switch between narrow beam spotlight and wide-angle wash light freely. Narrow beam focuses on highlighting key characters and stage details, while wide beam realizes large-area uniform dyeing to meet diverse lighting needs of different performance links.
When selecting
professional moving head lights for stage productions, lighting designers should consider zoom range, beam angle, light output, movement capabilities, and control compatibility.
2.4 Intelligent Automatic Reset Function
High-end pixel LED stage lights are built with automatic homing function. When the device is powered on, restarted or interrupted, the lamp head can automatically return to the initial preset position. This function avoids manual debugging, reduces equipment failure rate, improves construction efficiency, and ensures stable operation in long-term performances.
2.5 Multiple Control Modes & Compatibility
Pixel LED lights support mainstream stage lighting control systems, including DMX512, master-slave linkage, automatic operation, music sound control and RDM remote control. It is compatible with various stage control equipment, realizing synchronous linkage with stage music, rhythm and performance actions. For detailed DMX channel configurations, fixture setup, and operating instructions, refer to the
IP-PIX1260 user manual available through the UPLUS Lighting download center.
2.6 Waterproof & Durable Outdoor Lighting
Industrial-grade pixel LED lights adopt IP65 waterproof rating, which is dust-proof, rain-proof and corrosion-resistant. It can work stably in high temperature, low temperature and humid outdoor environments, suitable for outdoor concerts, scenic spot lighting and architectural landscape decoration.

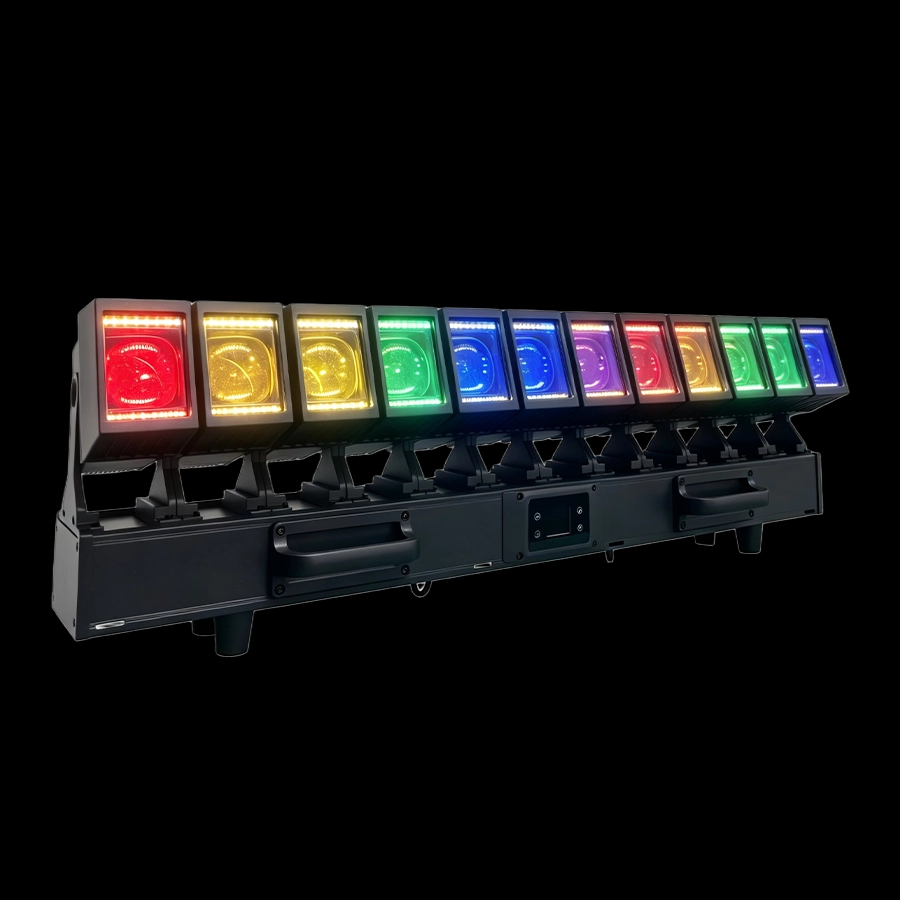

3. Product Overview: IP-PIX1260 IP65 Pixel Zoom Bar Moving Head
IP-PIX1260 is a high-power professional pixel LED moving head light launched for commercial stage lighting. It integrates pixel control, auxiliary light strip, automatic reset, electric zoom and multiple control functions. It is one of the cost-effective stage lighting devices in the market.
3.1 Detailed Product Parameters
|
Parameter Item
|
Specific Specification
|
|
Product Model
|
IP-PIX1260
|
|
Protection Grade
|
IP65
|
|
Light Source
|
Wash: 12*60W RGBW 4in1 LED; Aux light: 168pcs*1W 1800K LED + 168pcs*1W 6500K LED
|
|
Power Consumption
|
900W
|
|
Beam Angle
|
3°-15° Adjustable Zoom
|
|
Tilt Rotation Range
|
180°
|
|
DMX Channel
|
20/169A/169B/53/101/155/179/227CH
|
|
Display Screen
|
LCD HD Display
|
|
Control Mode
|
DMX512/Auto Run/Master-Slave/Music/RDM
|
|
Product Size
|
1000*219*332mm
|
|
Net Weight
|
30.5kgs
|
|
Core Special Functions
|
Auxiliary Light Strip, Automatic Homing Reset
|
3.2 Unique Advantages of IP-PIX1260
3.2.1 Dual Light Source Design, Super Light Efficiency
Equipped with 12pcs high-power 60W RGBW four-in-one main lamp beads, matching warm white (1800K) and cold white (6500K) auxiliary LED beads. The dual light source realizes seamless integration of main lighting and supplementary lighting. The color rendering is high, the light is soft without glare, meeting the lighting requirements of different scenes.
3.2.2 Wide Rotation & Flexible Zoom
The lamp head supports 180° tilt rotation, covering a full range of stage lighting angles. 3-15° electric zoom can switch spotlight and floodlight freely, which is suitable for close-up character lighting and large-area stage dyeing.
3.2.3 Rich Channels & Strong Compatibility
Multiple DMX channel modes are optional to meet the programming needs of complex light effects. It supports RDM remote debugging, which simplifies the operation steps of lighting engineers and improves programming efficiency.
3.2.4 IP65 Waterproof & Sturdy Structure
Industrial IP65 waterproof grade, effectively blocking dust and rainwater. The metal shell is wear-resistant and drop-resistant, which can adapt to harsh outdoor and indoor performance environments, with long service life. Lighting designers exploring different pixel bar configurations can also compare other models, such as the IP-Matrix 800 pixel zoom bar, through the
UPLUS professional stage lighting product catalog
4. Common Application Scenarios of Pixel LED Lights
-
Stage Performance: Concerts, theatrical performances, talent shows, using pixel dynamic effects to create shocking stage atmosphere.
-
Entertainment Venues: Bars, nightclubs, KTV, with music sound control function to realize synchronous light rhythm switching.
-
Wedding & Ceremony: Wedding banquets, opening ceremonies, using soft auxiliary light to create romantic and solemn lighting atmosphere.
-
Outdoor Landscape: Architectural outline lighting, scenic spot night scene, outdoor party, relying on IP65 waterproof performance for long-term outdoor use.
-
Commercial Exhibition: Exhibition halls, shopping mall activities, dynamic pixel lights to attract audience attention and enhance commercial display effect.
- For concerts, music festivals, entertainment venues, and outdoor events, outdoor pixel lighting fixtures offer flexible programming and dynamic visual effects for different stage layouts and lighting designs.
5. FAQ About Pixel LED Lights
Q1: What is the biggest difference between pixel LED light and ordinary LED light?
Ordinary LED lights can only realize overall color change and brightness adjustment, while pixel LED lights support single lamp bead independent control. It can create dynamic pixel effects such as running water, jumping and animation. Besides, professional pixel moving head lights are equipped with auxiliary light strips and automatic reset functions, which are more suitable for professional stage use.
Q2: What is the use of the auxiliary light strip of IP-PIX1260?
The auxiliary light strip is composed of 1800K warm white and 6500K cold white LED beads. It is used for stage light filling, eliminating dark dead corners, improving light uniformity, and matching the main light to create layered and three-dimensional lighting effects, avoiding single and harsh stage light.
Q3: How does the automatic reset function work?
After the equipment is powered on, restarted or abnormally shut down, the built-in intelligent sensor will automatically identify the position and reset the lamp head to the initial factory preset angle. It does not require manual adjustment, greatly reducing post-maintenance costs and ensuring consistent lighting effects of each performance.
Q4: Is IP-PIX1260 suitable for outdoor use?
Yes. This product has an IP65 waterproof and dustproof rating, which can resist rain, dust and low temperature. It can work stably in outdoor concerts, scenic lighting and other open-air scenarios, with strong environmental adaptability.
Q5: What control methods does IP-PIX1260 support?
It supports five mainstream control modes: DMX512 professional console control, automatic operation, master-slave synchronous linkage, music sound control and RDM remote debugging. It is compatible with all mainstream stage lighting control systems, easy to operate and debug.
6. Conclusion
To sum up, the core functions of pixel LED include independent pixel dynamic control, auxiliary light filling, zoom adjustment, intelligent control, waterproof and durable performance. As a high-end pixel LED moving head light, IP-PIX1260 integrates all excellent functions of pixel LED lights, with high power, rich control channels, automatic reset and dual light source design. It is an ideal lighting equipment for stage performances, entertainment venues and outdoor landscape engineering. If you need high-quality, stable and cost-effective pixel LED stage lights, IP-PIX1260 will be your best choice.
Looking for professional pixel LED moving head lights for your next concert, music festival, or touring production?
Contact UPLUS Lighting to learn more about the IP-PIX1260, compare technical specifications, and request a customized quotation for your stage lighting project.
