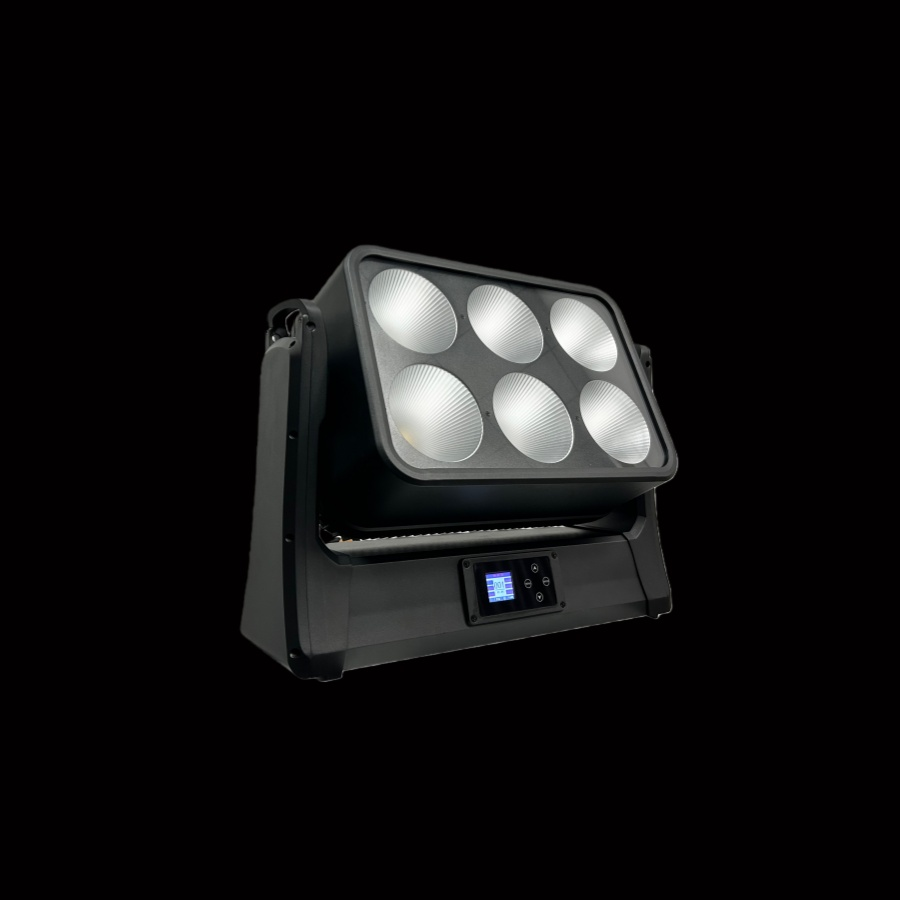

IP65 6x200W Wash Blinder Moving Head RGBW — Durable Outdoor Wash & Blinder

The IP65 6x200W Wash Blinder Moving Head RGBW is engineered for outdoor concerts, touring, and large-scale events where powerful wash light and blinder effects must withstand weather and heavy use. This hybrid fixture pairs six 200W high-output LEDs with RGBW color mixing, an IP65 dust-and-water rating, and professional control compatibility to deliver reliable brightness, wide color gamut, and simplified integration for rental companies and venues seeking robust outdoor stage lighting solutions. For full product specifications and purchasing, view the IP65 6x200W Wash Blinder Moving Head RGBW from Uplus Lighting.

How to choose a weatherproof moving head for outdoor concerts?

What makes an IP65 rating essential for outdoor stage lighting?

Choose IP65-certified fixtures when exposure to rain, dust, and spray is expected, because IP65 indicates protection against low-pressure water jets and complete dust ingress protection. For technical context on IP ratings and standard definitions, see the detailed explanation of the IP Code (Ingress Protection) which clarifies why IP65 is commonly specified for outdoor lighting.

How does 6x200W RGBW configuration impact brightness and color mixing?

Six 200W LEDs provide very high luminous output with robust beam punch for front and back-of-house effects, while RGBW color mixing ensures vibrant hues plus accurate whites for skin tones and theatrical needs. When selecting fixtures, prioritize verified LED power and beam optics to match audience distance and venue scale, reducing the number of units required and lowering rental footprint.

How to compare wash vs blinder performance in one fixture?

Evaluate lumen output, beam spread, and built-in blinder intensity: a true wash–blinder hybrid offers both even field illumination (soft edges) and high-intensity burst capability for audience-eye catching. Check manufacturer photometrics and real show footage where possible; third-party lighting guides like stage lighting references provide background on how wash and blinder functions are applied in live production.

Why does DMX and network control matter for a wash blinder moving head?

How to integrate your fixture with DMX512 or Art-Net systems?

Professional moving heads must support DMX512 (and preferably Art-Net/sACN) for seamless channel mapping and remote control; this enables precise color, pan/tilt, dimming, and pixel-like effects. For authoritative standards on DMX protocols and interoperability, consult the DMX512 technical overview which explains channel addressing and common control practices.

What control modes should you expect from a hybrid wash/blinder?

Expect multi-mode operation: standalone programs, master/slave clustering, DMX channel modes (simple and extended), and RDM for remote device management. These modes let rental and production teams optimize channel usage, reduce setup time, and perform live overrides or blackout commands during events.

How to plan channel counts and universes for large rigs?

Map channel requirements early—an extended moving head mode may consume dozens of DMX channels per fixture; plan universes accordingly to avoid split-control complexity. Use Ethernet-based protocols like Art‑Net for large arrays to minimize cable runs and use reliable switches; PLASA and industry best practices outline professional networked lighting setups at PLASA Professional Lighting Guidance.

How to maintain and protect IP65 moving heads for reliable touring?

How often should you perform routine cleaning and inspection?

Perform visual inspections before and after each tour or event day, and schedule a full maintenance check every 3–6 months depending on usage intensity. Routine tasks include lens cleaning, verifying ingress seals, checking gaskets, and testing connectors to maintain the IP65 rating and consistent photometric output.

What common faults occur in outdoor fixtures and how to troubleshoot them?

Common issues include moisture ingress at worn seals, overheating from blocked ventilation paths, and control signal interruptions due to damaged DMX cabling. Troubleshooting starts with power and protocol verification, checking LED module temperatures, and replacing worn gaskets—documented preventive maintenance reduces unscheduled downtime significantly.

How to store and transport fixtures to preserve IP protection?

Use flight cases with custom foam, desiccant packets, and ventilation breaks during long storage; avoid stacking that compresses seals. For touring, record serial numbers, firmware versions, and maintenance logs to speed up onsite service and warranty claims.

How to specify the IP65 6x200W Wash Blinder Moving Head RGBW for rental and installation?

What power, mounting, and safety requirements should you document?

Document the fixture’s rated voltage range, power draw, and recommended circuit protection when planning installs—correct power provisioning prevents voltage drop and thermal derating. Always specify certified clamps, M10/M12 safety cables, and rigging hardware per local regulations for overhead installations to meet venue safety codes.

How to calculate coverage and the number of fixtures needed?

Base counts on audience distance, desired lux levels, and beam angle; high-output 6x200W wash blinders reduce unit counts for large stages. Use photometric layouts and manufacturer IES files to simulate coverage and ensure even color mixing across the stage.

How to balance total cost of ownership vs upfront price for rental fleets?

Factor in durability (IP65 rating), LED lifetime, warranty, and serviceability; weatherproof hybrids often lower operating costs by avoiding frequent replacements and enabling both wash and blinder roles. Consider fixtures with modular parts and global service support to shorten repair cycles and maximize uptime.

Uplus Lighting, established in Guangzhou in 2012, specializes in high-end stage lighting products for theaters, concerts, and large events, offering OEM support and global distribution. For product details, pricing, or custom orders, contact Uplus Lighting directly through the product page or customer service to discuss specifications and lead times.

Frequently Asked Questions

• What is the LED configuration and power of this fixture?
  The fixture uses six 200W LED engines (6x200W) delivering high luminous output. This configuration enables strong blinder bursts and powerful wash coverage for large venues.
• How does an IP65 rating affect outdoor use?
  IP65 ensures dust-tight construction and protection against low-pressure water jets, making it suitable for outdoors. For formal definitions, review the IP Code explanation.
• Can this moving head be controlled over standard lighting networks?
  Yes, it supports DMX512 protocols and commonly integrates with Art‑Net/sACN networks for large rigs. Professional control compatibility simplifies integration with consoles and networked systems.
• How often should I schedule maintenance on outdoor fixtures?
  Schedule full maintenance every 3–6 months depending on usage and environment. Regular checks of seals, optics, and connectors extend service life and preserve IP65 performance.
• Is this fixture suitable for touring and rental companies?
  Yes—its robust IP65 housing and hybrid wash/blinder function make it ideal for touring. Durable design and modular service access reduce turnaround times for rental fleets.
• How do I estimate how many units I need for a 20m wide stage?
  Start with photometric simulations using the fixture’s IES files and factor in beam angle and desired lux; typical high-output wash blinder layouts require fewer fixtures than standard wash lights. Contact Uplus Lighting for layout assistance and IES data.

For quotations, technical drawings, or to request an IES file and lead time, contact Uplus Lighting customer service via the product page: IP65 6x200W Wash Blinder Moving Head RGBW. Our team provides OEM options, warranty details, and fast responses for global shipping and support.

Further reading: detailed industry practices are available from the stage lighting overview on Wikipedia, professional guidance at PLASA, and DMX technical background at DMX512 documentation.
