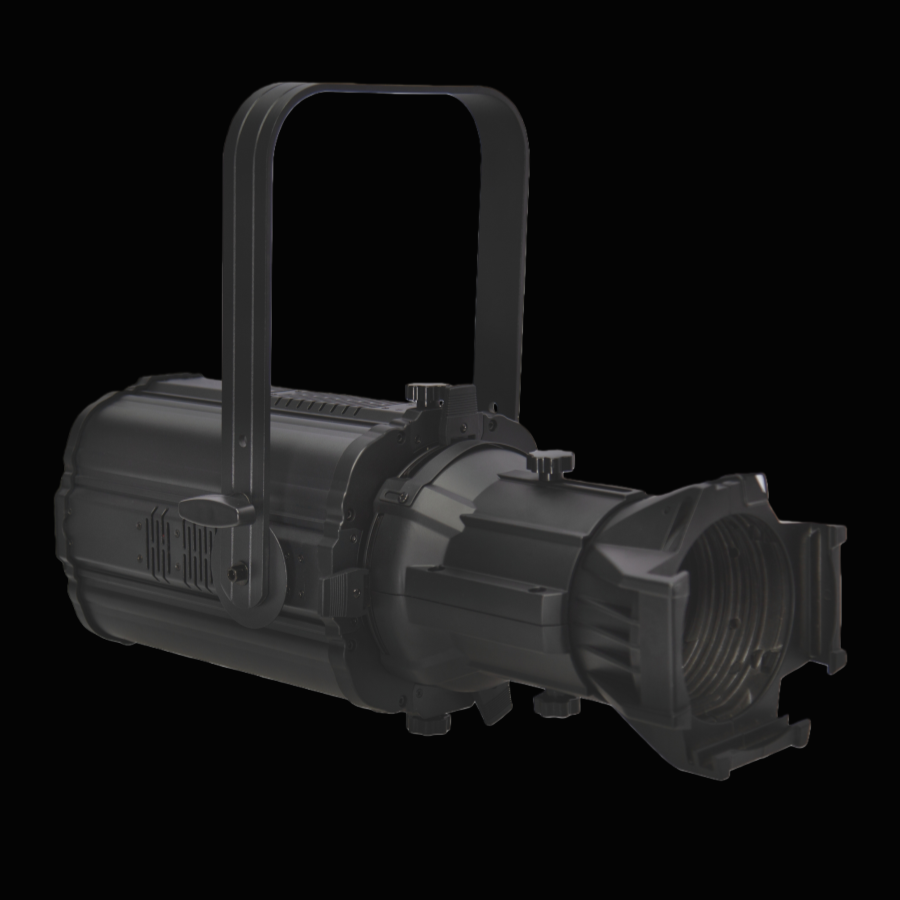

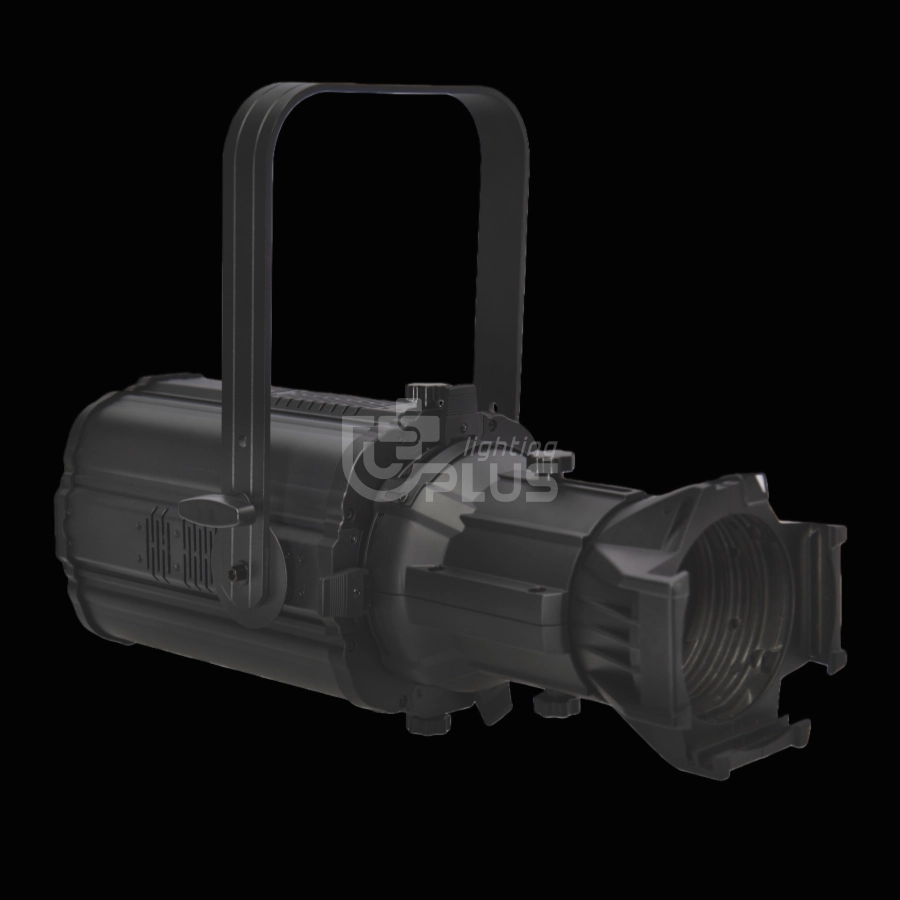

LED-PF-FIX led profile spot light with fix angle

LED profile spot light with fixed angle LED, featuring a fixed-focus angle design, sharp and uniform light spot, clear imaging without blurring edges, suitable for fixed-point outline and pattern projection in theaters, studios, and stages.

INTRODUCTION
INTRODUCTION
SPECIFICATIONS
SPECIFICATIONS
EFFECT
EFFECT
LUX DATE & DIMENSION
LUX DATE & DIMENSION
FEATURES
FEATURES
APPLICATION
APPLICATION
PACKAGING & LOGISTIC
PACKAGING & LOGISTIC
FAQs
FAQs

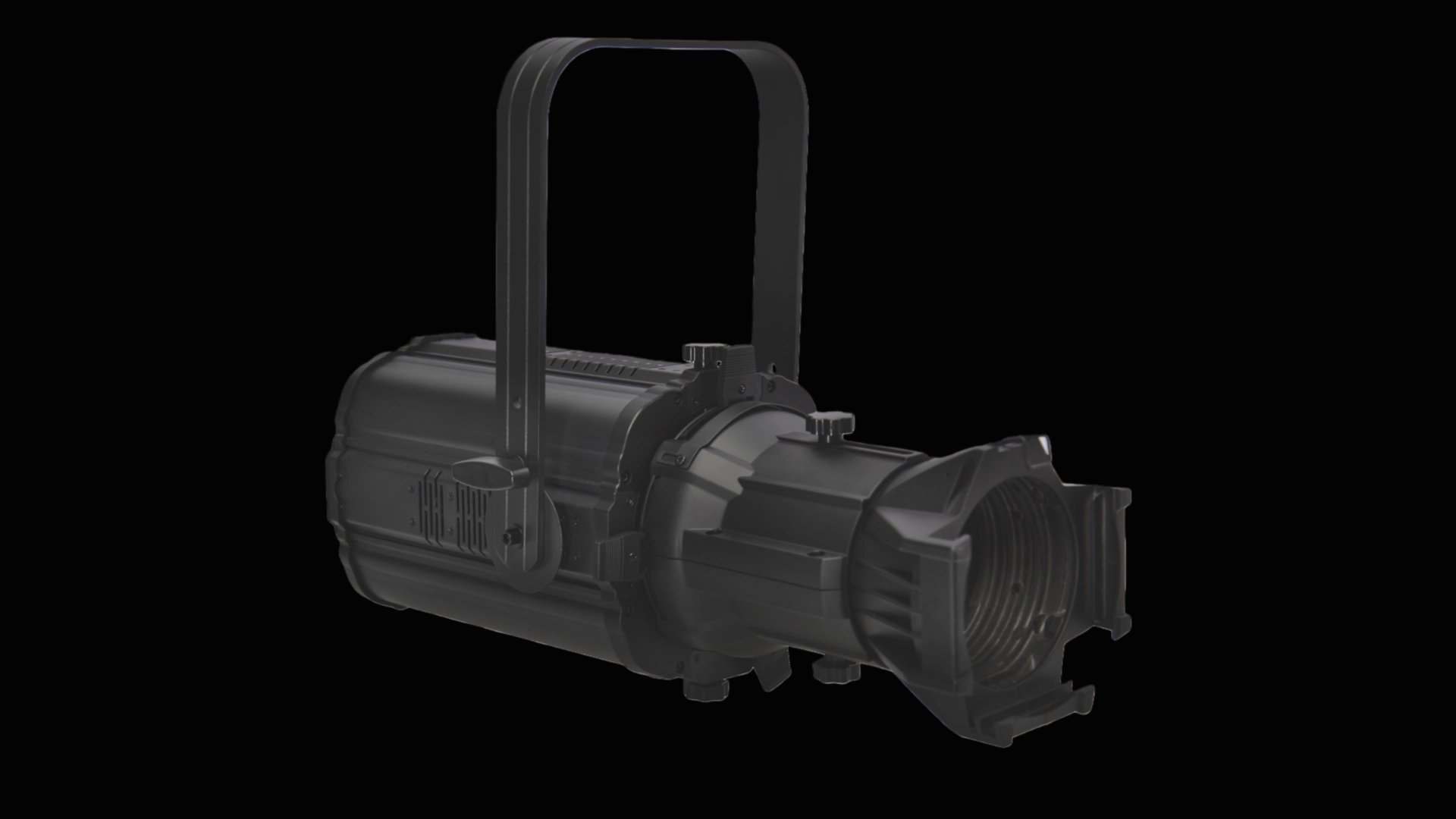

led profile spot light with fix angle 2 - Uplus Lighting

Specifications

OPTICS

•LED Source:1xCOB (Cool white +Warm white 2 IN 1 )200W LED

•Power Consumption:200W
•Voltage:AC 100-240V 50/60Hz
•Beam Angle :Beam angle 19°(Beam angle 26°,36°,50°available)

FEATURES

•Control:1 . DMX512 2 .RDM 3. Master/Slave Operation

•DMX Channels:7CH/4CH( available)
•Connection:PowerCON IN & OUT; 3-Pin DMX In& Out (5 -Pin DMX available)
•IP Rating:IP20
•Working Temperature:-20℃-40℃(-4 °F-104 °F)

SPECIFICATION

•Dimensions ( LxWxH):68.8X34X21 .3cm;Weight:12 . 1Kg

Effect

LUX Date & Dimension

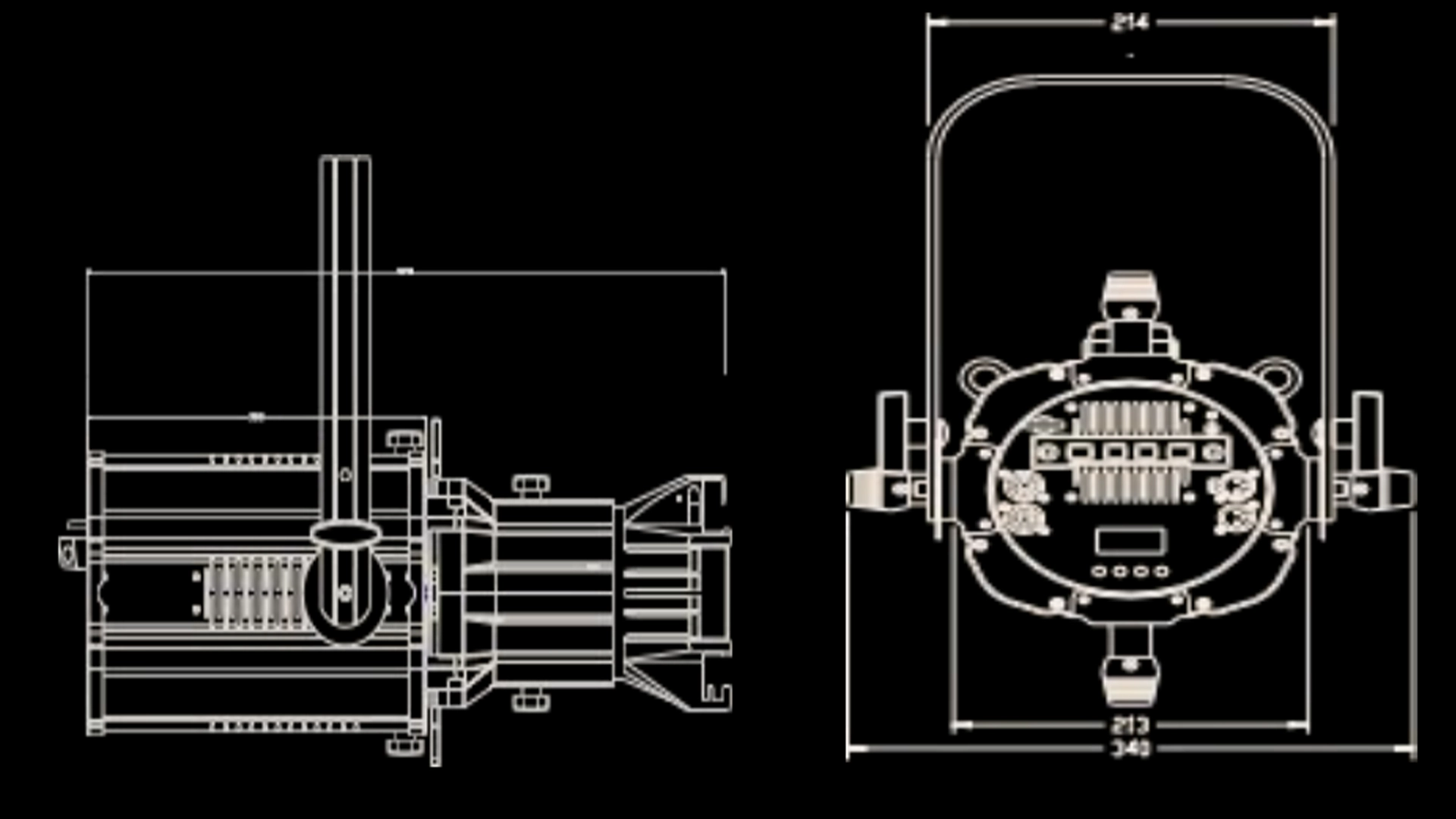

uplus-led-pf-fix-profile-spotlight-technical-dimensions-diagram - Uplus Lighting

Features

uplus-led-pf-fix-200w-400w-led-light-source-options - Uplus Lighting
uplus-led-pf-fix-profile-spotlight-fixed-lens-angle-options - Uplus Lighting
uplus-led-pf-fix-theatre-profile-light-product-dimensions - Uplus Lighting
uplus-led-pf-fix-profile-spotlight-12-1kg-net-weight - Uplus Lighting

APPLICATION

Courtyard-Balcony-Decoration - Uplus Lighting
Courtyard/Balcony Decoration
Lights up at dusk, projecting dynamic light and shadow patterns. Paired with greenery or outdoor furniture, it creates a warm and relaxing indoor/outdoor space.
Festival-Atmosphere-Decoration - Uplus Lighting
Festival Atmosphere Decoration
No wiring required. Simply place it at the entrance or on the lawn. RGB dynamic colors enhance the festive atmosphere.
Small-Outdoor-Parties - Uplus Lighting
Small Outdoor Parties/Camping
Decorate campsites and terrace parties. The waterproof design is unaffected by outdoor dew or light rain. Flowing light and shadow enhance the interactive atmosphere.
Shop-Window-Display - Uplus Lighting
Shop/Window Display
Place at entrances or in shop windows. Dynamic text and patterns attract passersby, suitable for attracting customers to restaurants, retail stores, and other offline stores.
Children's-Birthday-Parties - Uplus Lighting
Children's Birthday Parties/Small Events
Suitable for both indoor and outdoor use. Brightly colored dynamic lasers paired with cartoon patterns appeal to children.
Garden-Weddings - Uplus Lighting
Garden Weddings/Small Celebrations
Soft dynamic light and shadow are projected onto the venue. The waterproof feature is suitable for outdoor environments, creating a romantic atmosphere.

Packaging & Logistic

Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

What focusing and dimming features does the LED-PF-FIX support?

The fixture supports manual focus adjustment and 0–100% linear dimming with four dimming curves. It also provides a CRI of Ra≥90.

Is the LED-PF-FIX designed for indoor stage installations?

Yes. The LED-PF-FIX uses a die-cast aluminum IP20 housing and includes PowerCon input/output. It measures 64.7 × 30 × 21.4 cm and weighs 11 kg.

What light source and lens options does the LED-PF-FIX provide?

The LED-PF-FIX is available with a 200W or 400W LED light source and optional fixed lenses of 19°, 26°, 36°, or 50°.

Custom packaging service?

We can design the packaging according to your requirements.

Which product can be customized?

Our stage lights can be customized according to your needs, and we will try our best to meet your requirements.
