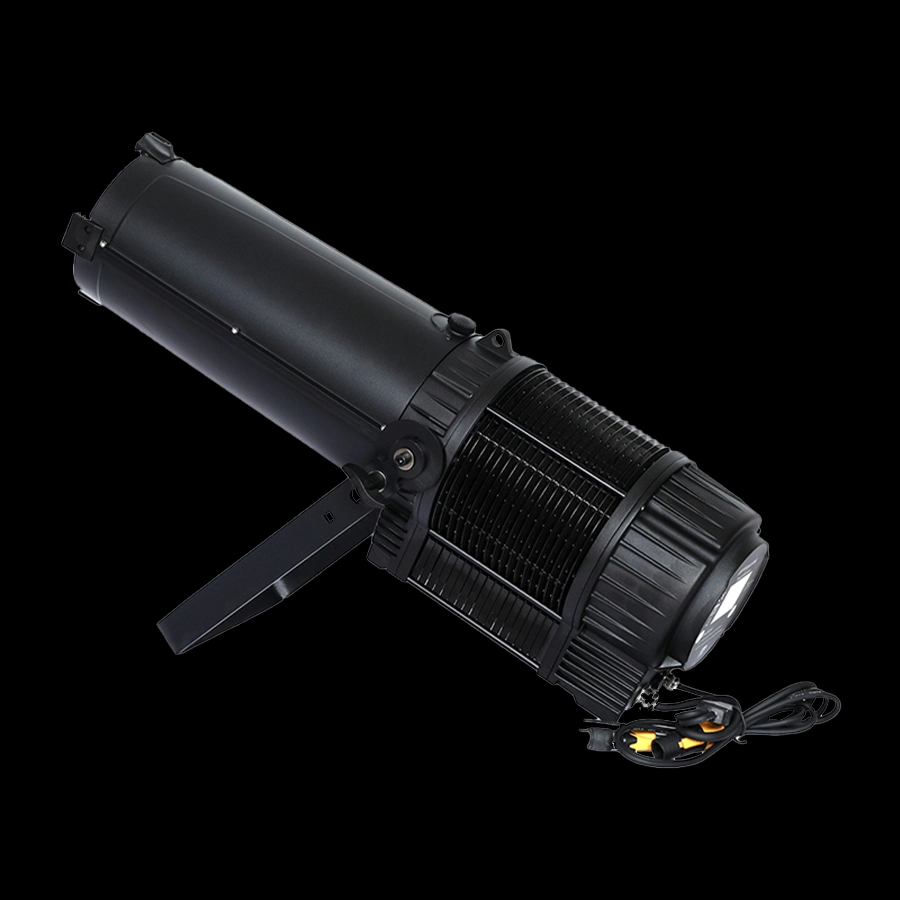

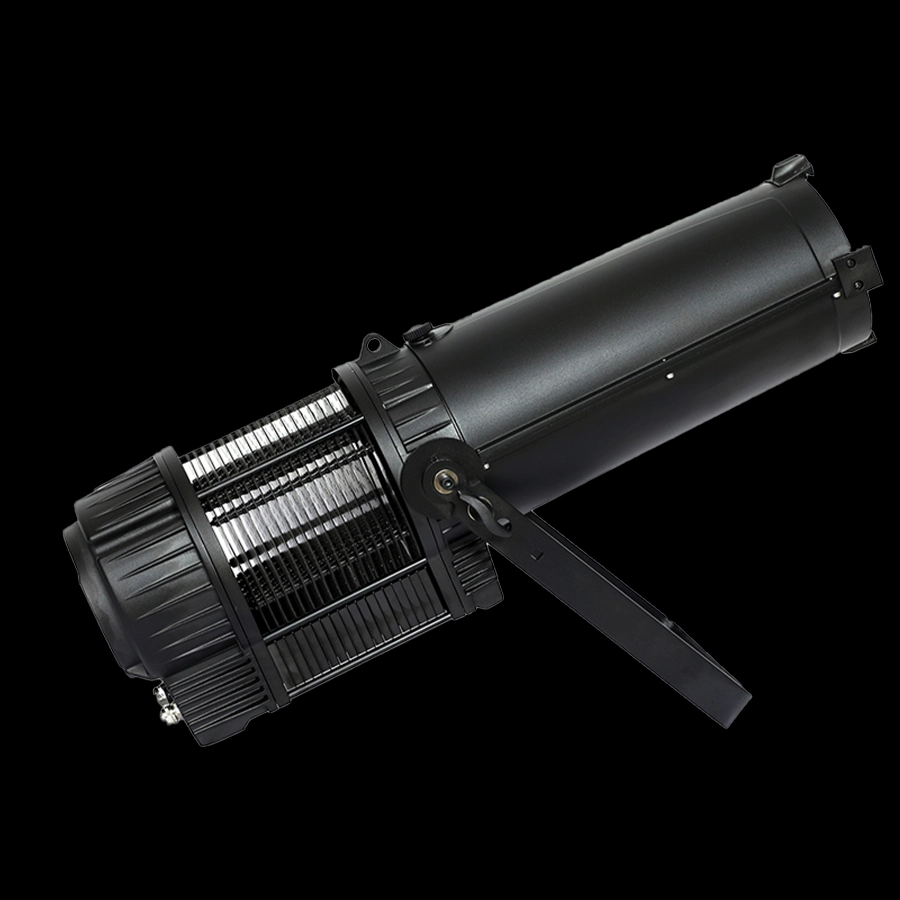

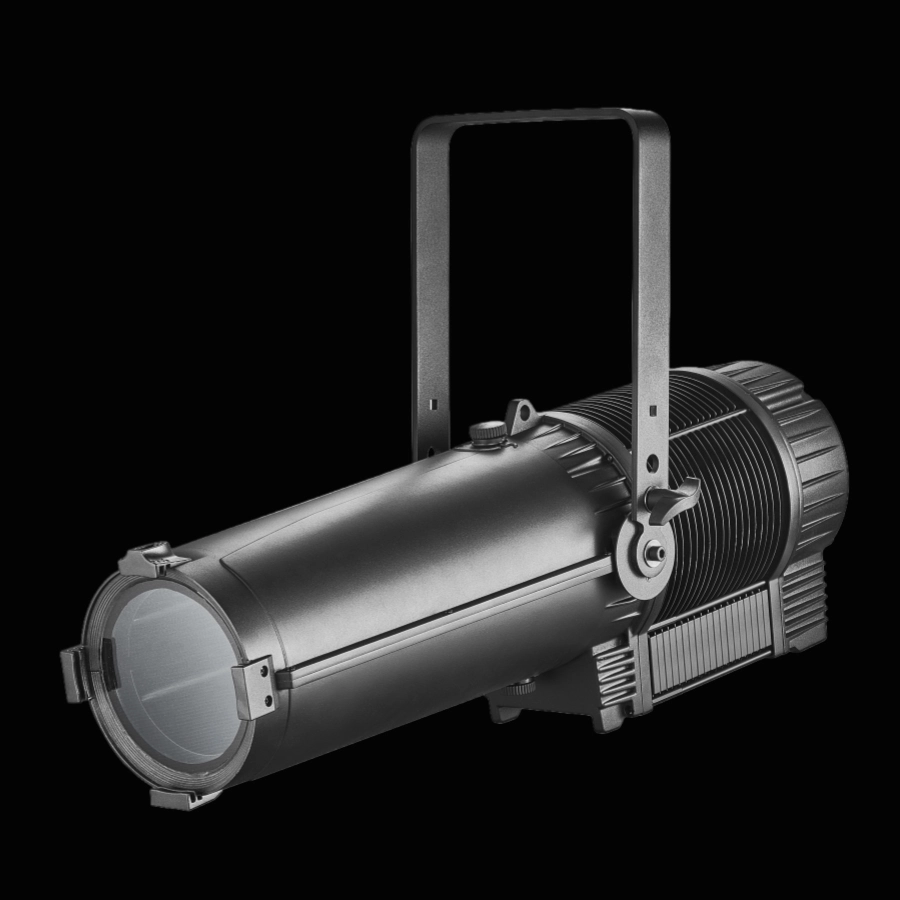

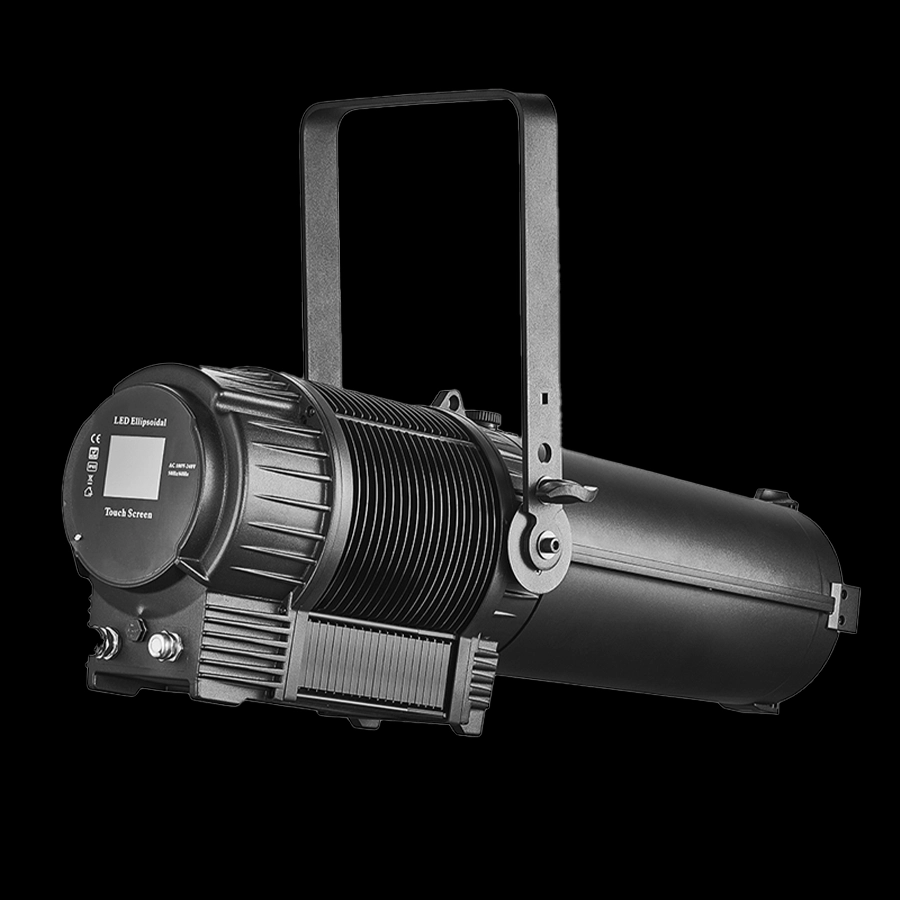

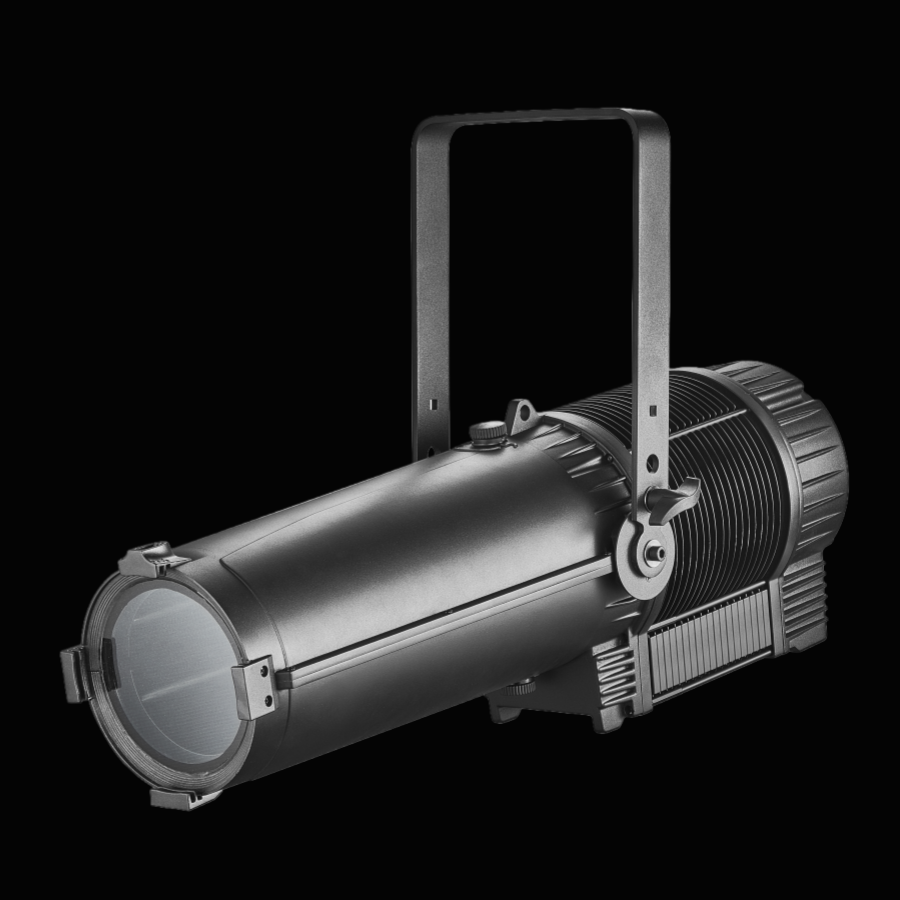

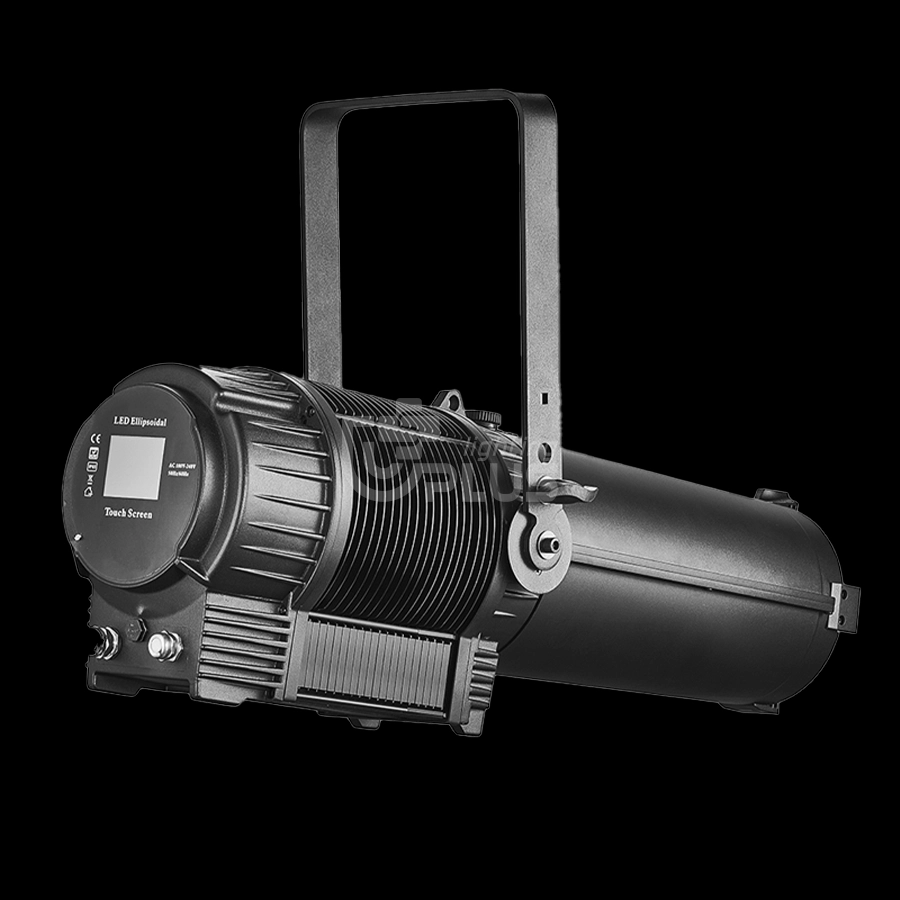

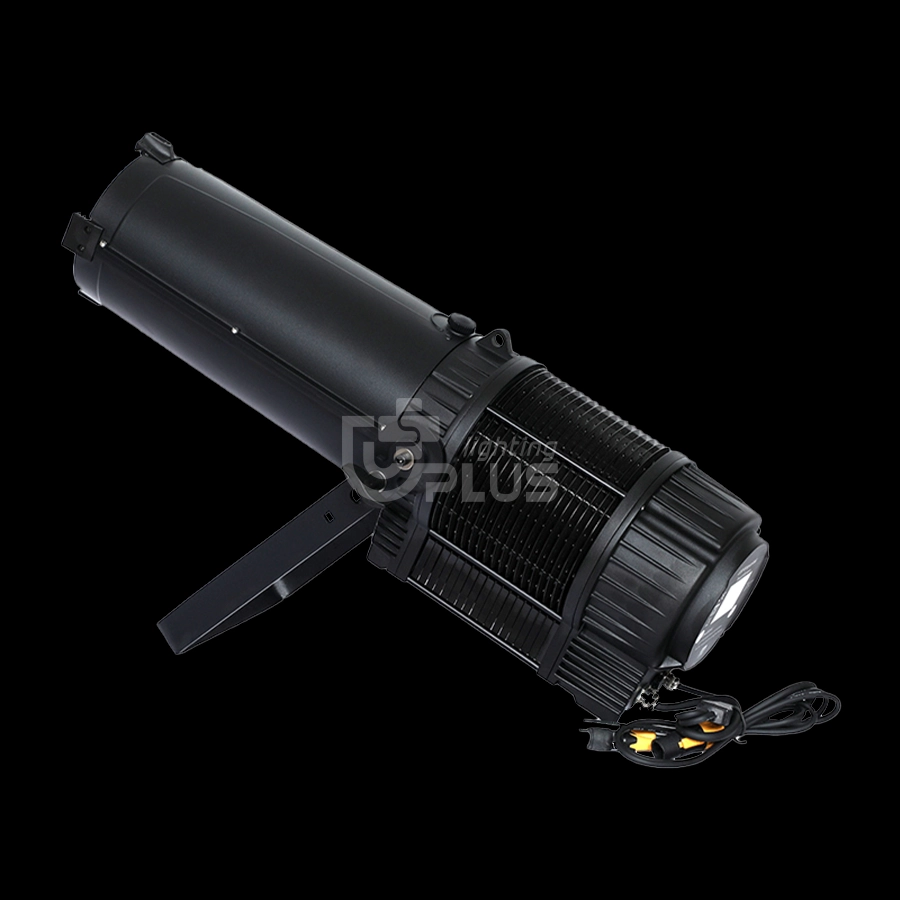

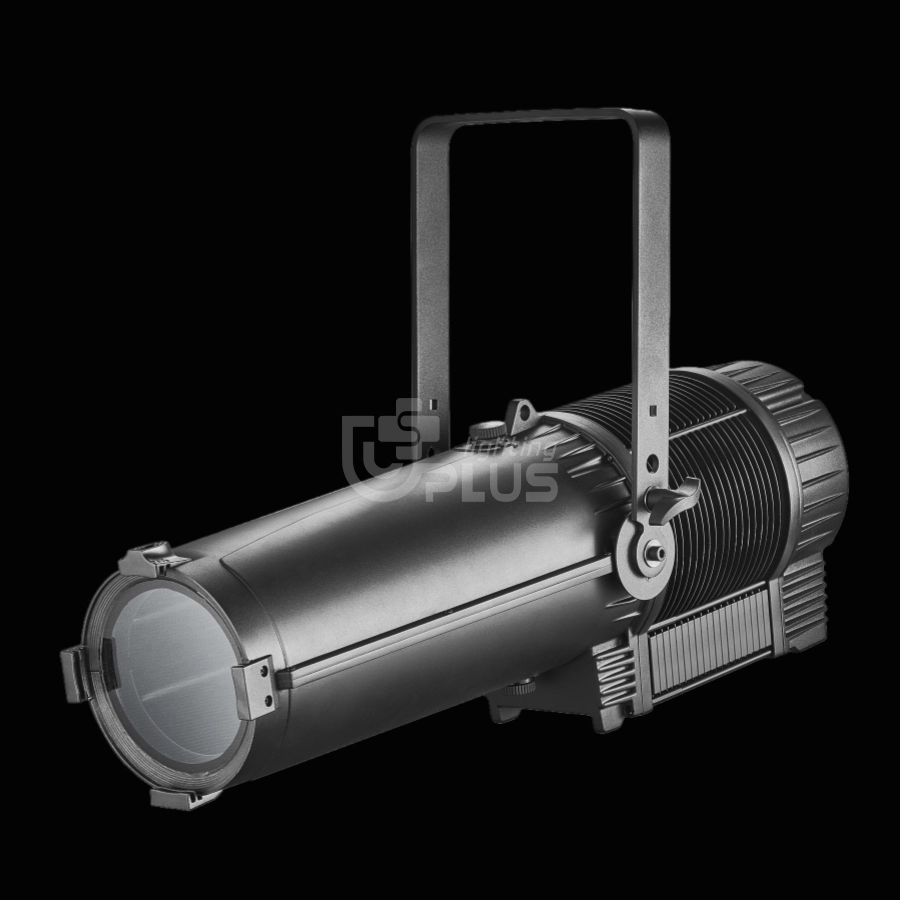

LED PROFILE 300Z 300W waterproof led profile spot light with zoom

300W waterproof LED profile spotlight with zoom. This 300W waterproof LED zoom imaging light features IP65 protection, flexible zoom, and a sharp, uniform light spot, making it suitable for outdoor stages, theaters, and engineering lighting applications.

GET A FREE QUOTE ➜
GET THE PRODUCT CATALOG ➜
LED PROFILE 300Z 5in1.pdf
LED PROFILE 300Z.zip
LED PROFILE 300Z.zip
LED PROFILE 300Z.zip
INTRODUCTION
INTRODUCTION
SPECIFICATIONS
SPECIFICATIONS
EFFECT
EFFECT
LUX DATE & DIMENSION
LUX DATE & DIMENSION
FEATURES
FEATURES
APPLICATION
APPLICATION
PACKAGING & LOGISTIC
PACKAGING & LOGISTIC
FAQs
FAQs

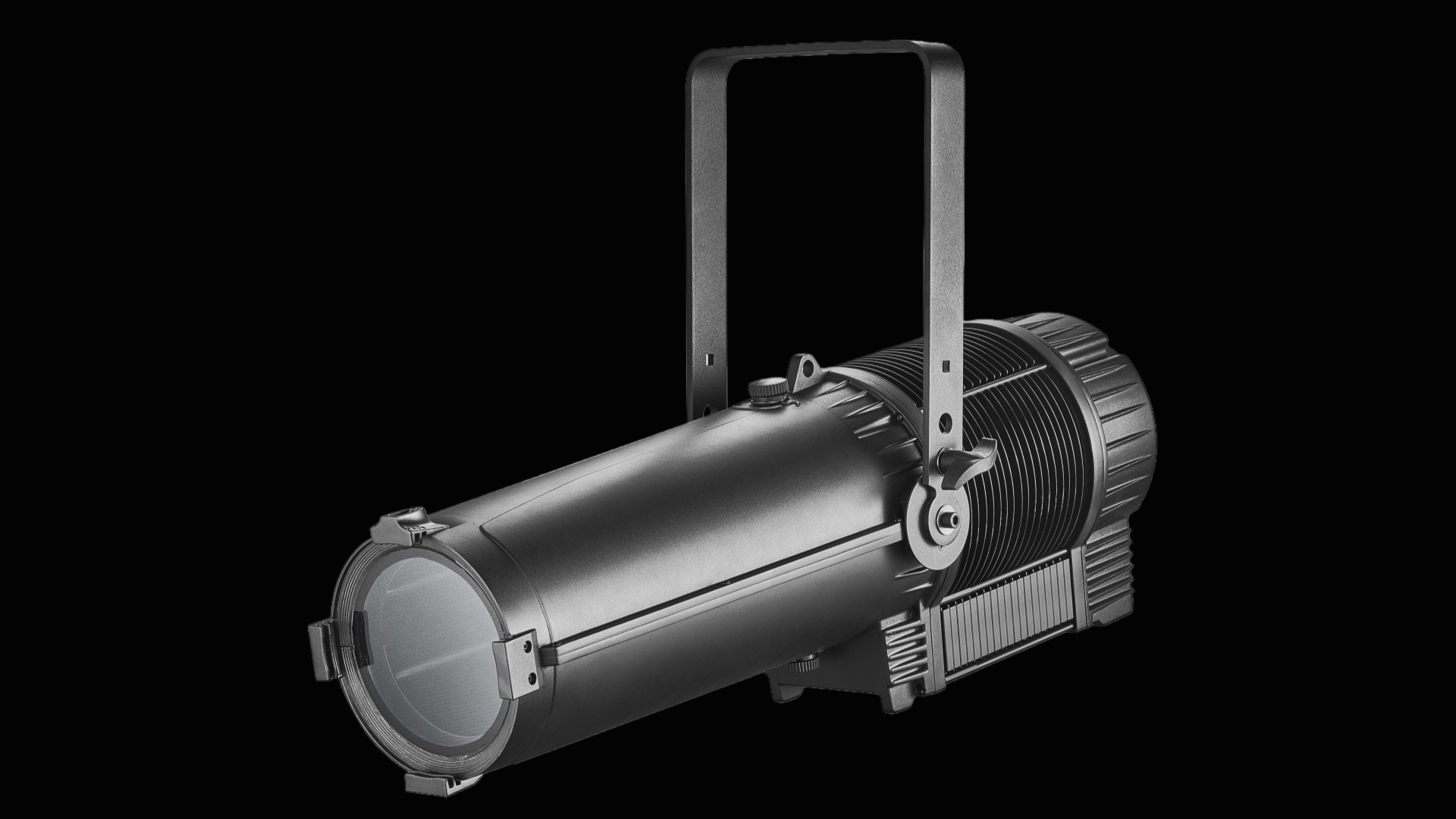

300W waterproof led profile spot light with zoom  2 - Uplus Lighting

Specifications

OPTICS

•Light Source: 300W White or RGBAL 5in1 led

•Power Consumption: 300W

•RGBAL led version color temperature from 2,700 to 12,000K

•Color Rendering Index(CRI): CRI >=90

•Beam Angle: 15° to 30°

•Zoom Function: Auto zoom

•Focus: Auto

•Shutter controlled by DMX (auto cutting to any shapes)

•Iris: optional

•Gobo holder: optional

FEATURES

•Dimming Curve: 4 kinds dimming curve

•PWM: 500HZ - 25000HZ optional

•Strobe :1-25times/sec

•Technology: High-quality optical system , glass reflector

•Light body: Die casting Aluminum

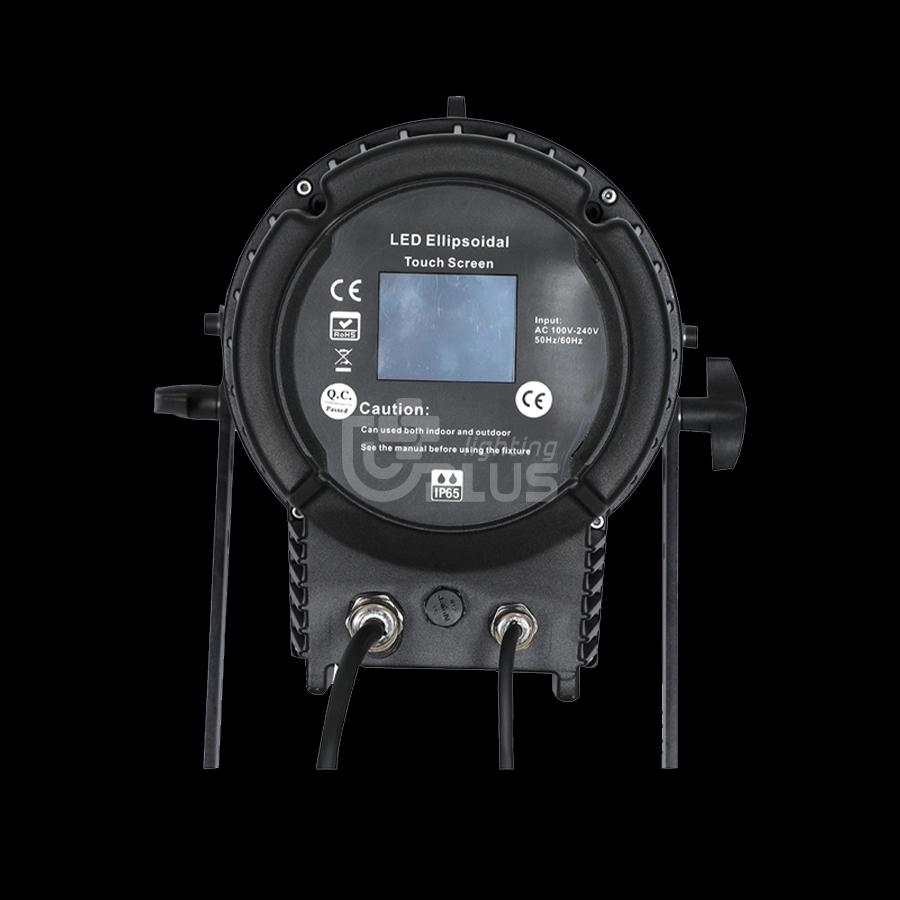

•Touch screen: LCD with touch screen

•Feature of housing: High quality fireproof ,corrosion-resistance, Oxidation resistance

•Control Protocol: RDM / DMX

•Control System: DMX, Auto run and Master/Slave

•Cooling system: Fan-less no noise

•IP Grade: IP65

SPECIFICATION

•Dimension: 767*297*273mm; NW: 16.5 kg

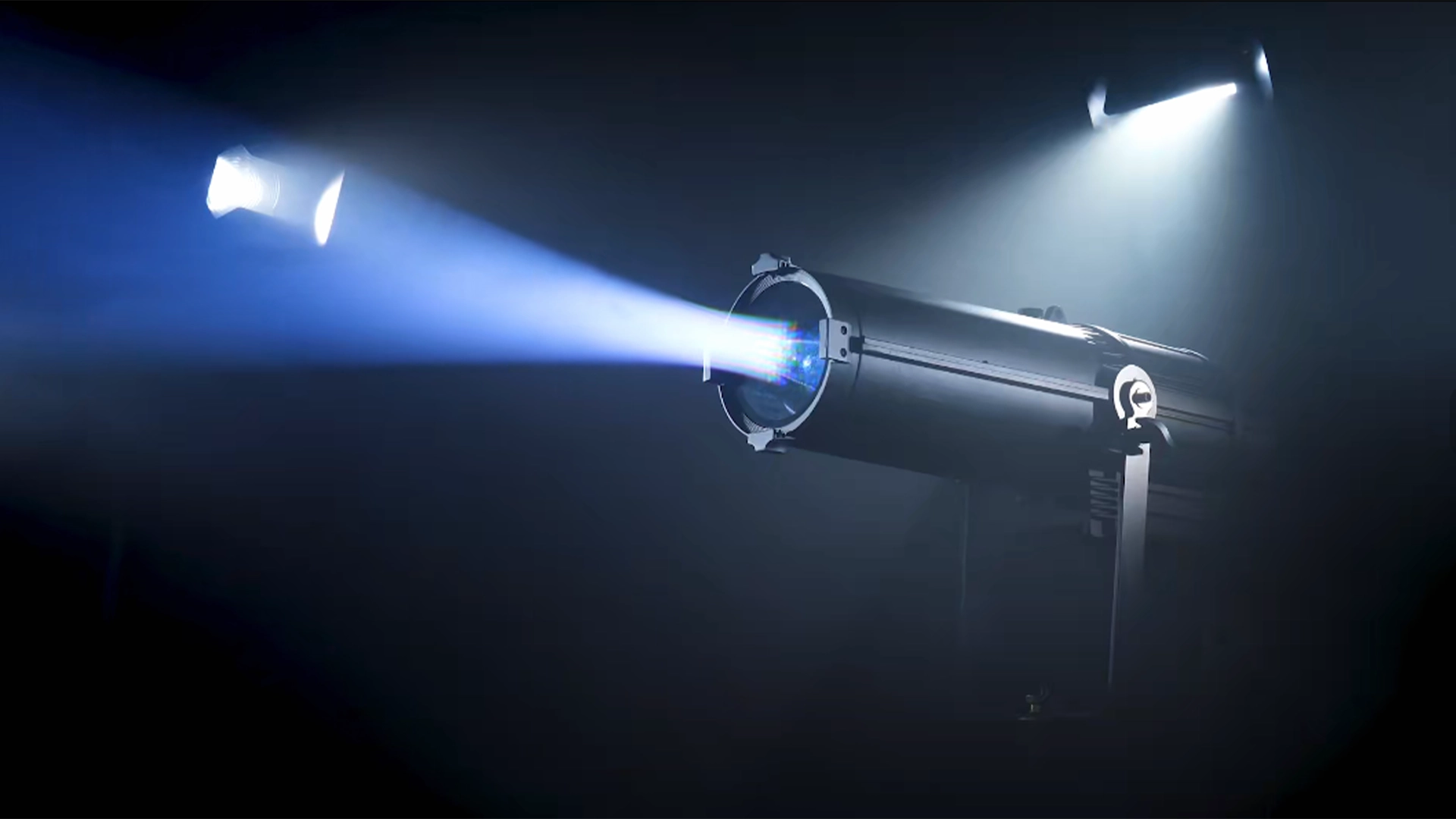

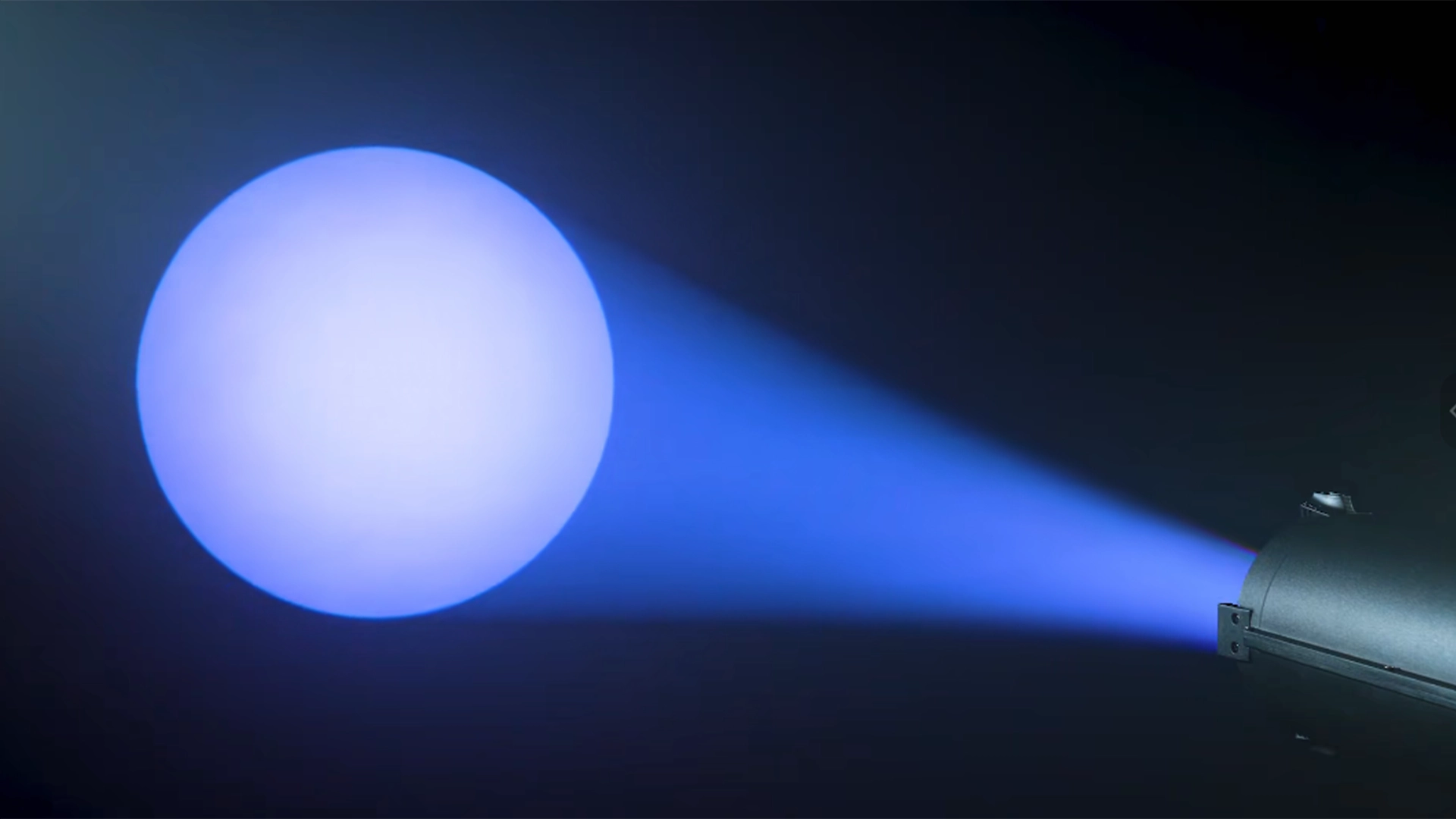

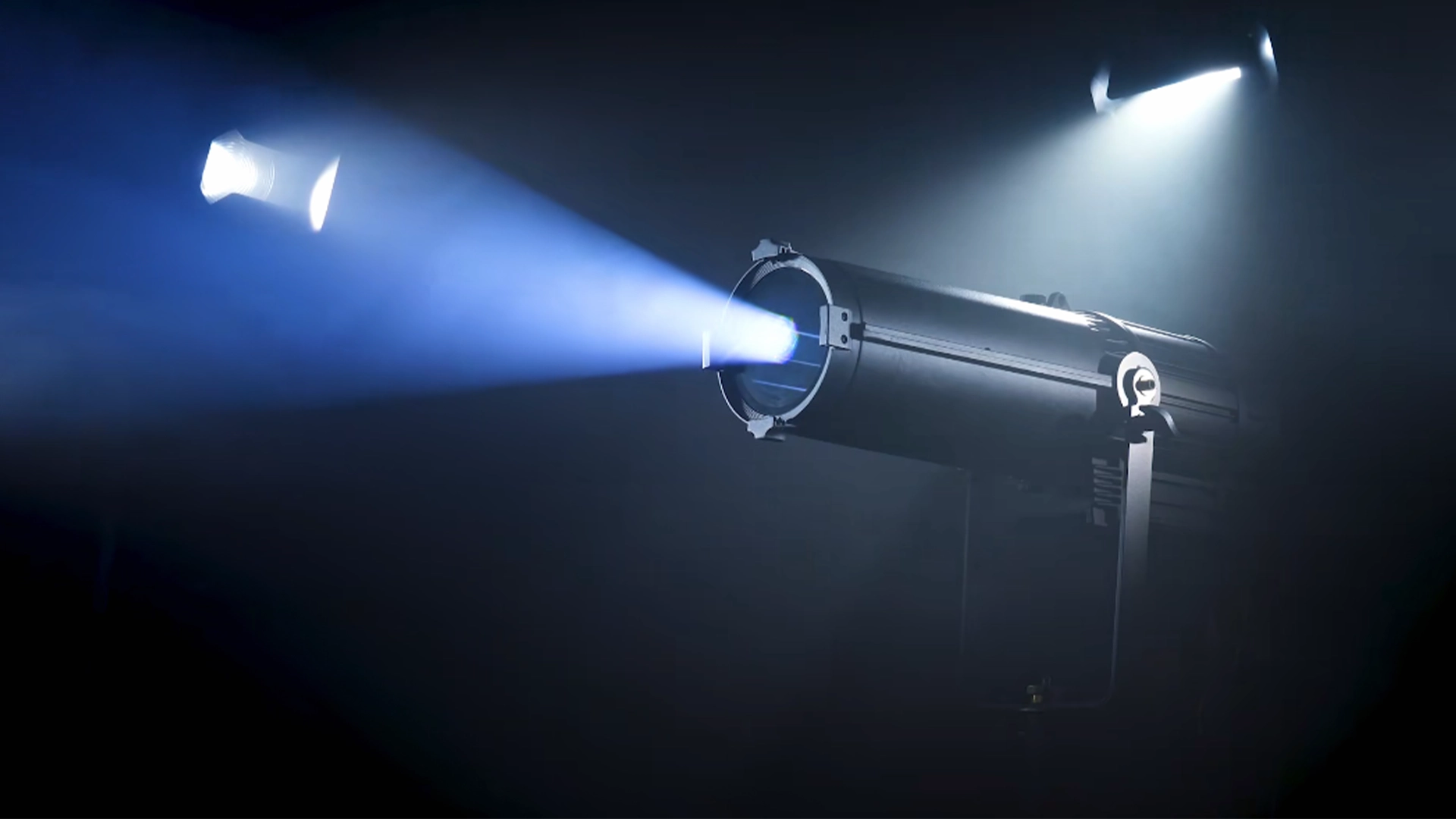

Effect

uplus-300w-waterproof-led-profile-spotlight-red-beam-effect - Uplus Lighting

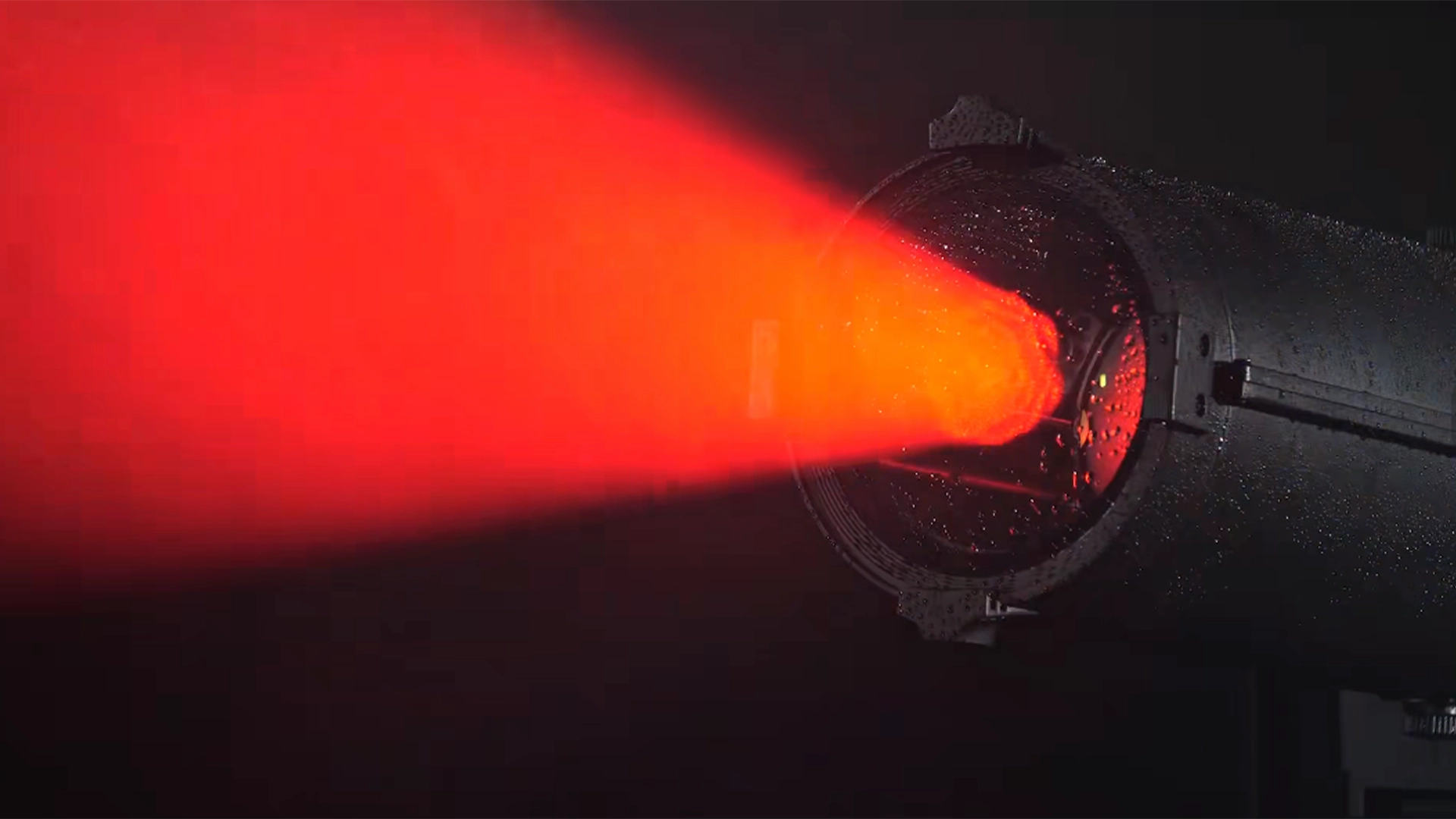

red

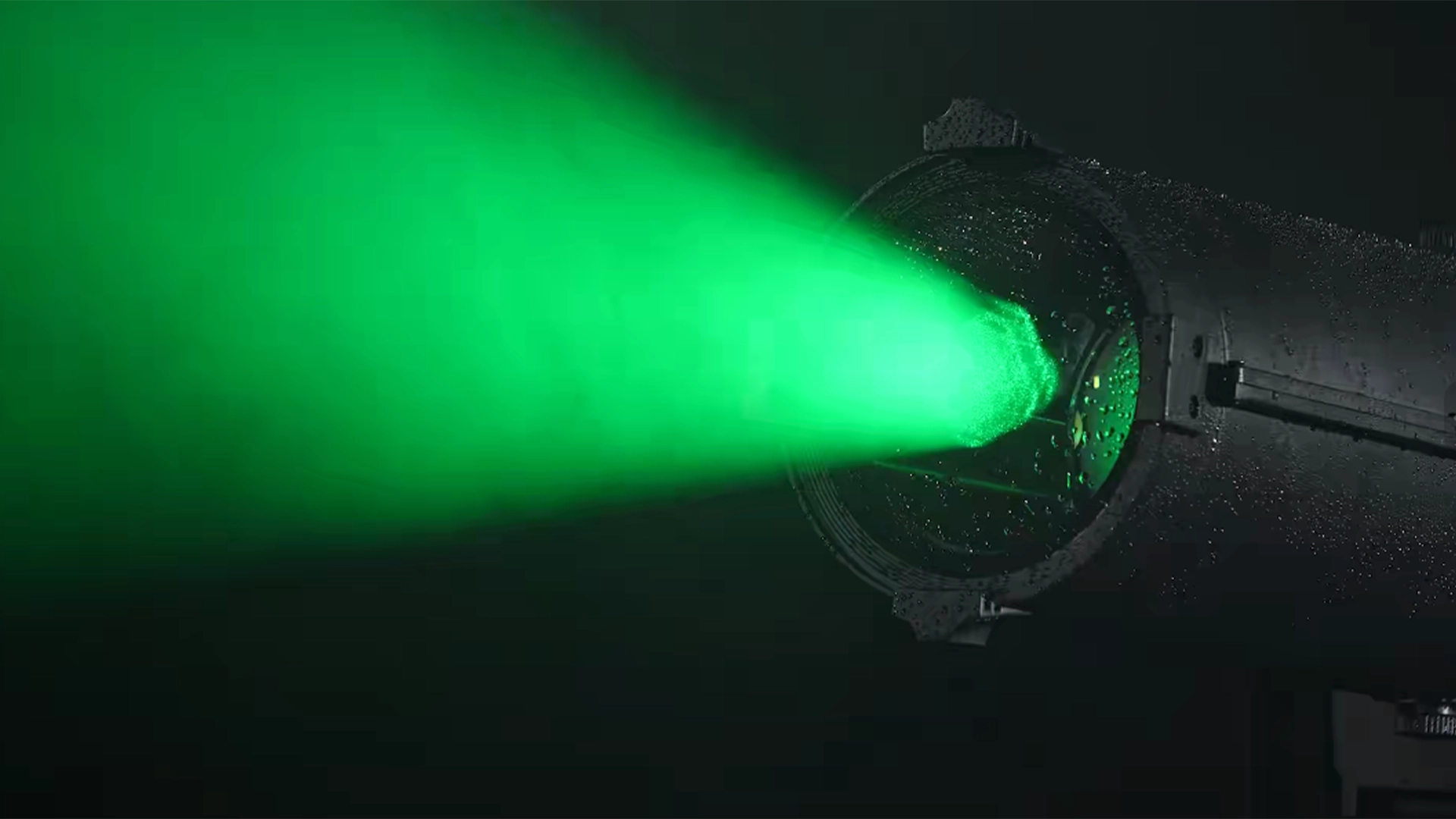

uplus-300w-waterproof-led-profile-spotlight-green-beam-effect - Uplus Lighting
green

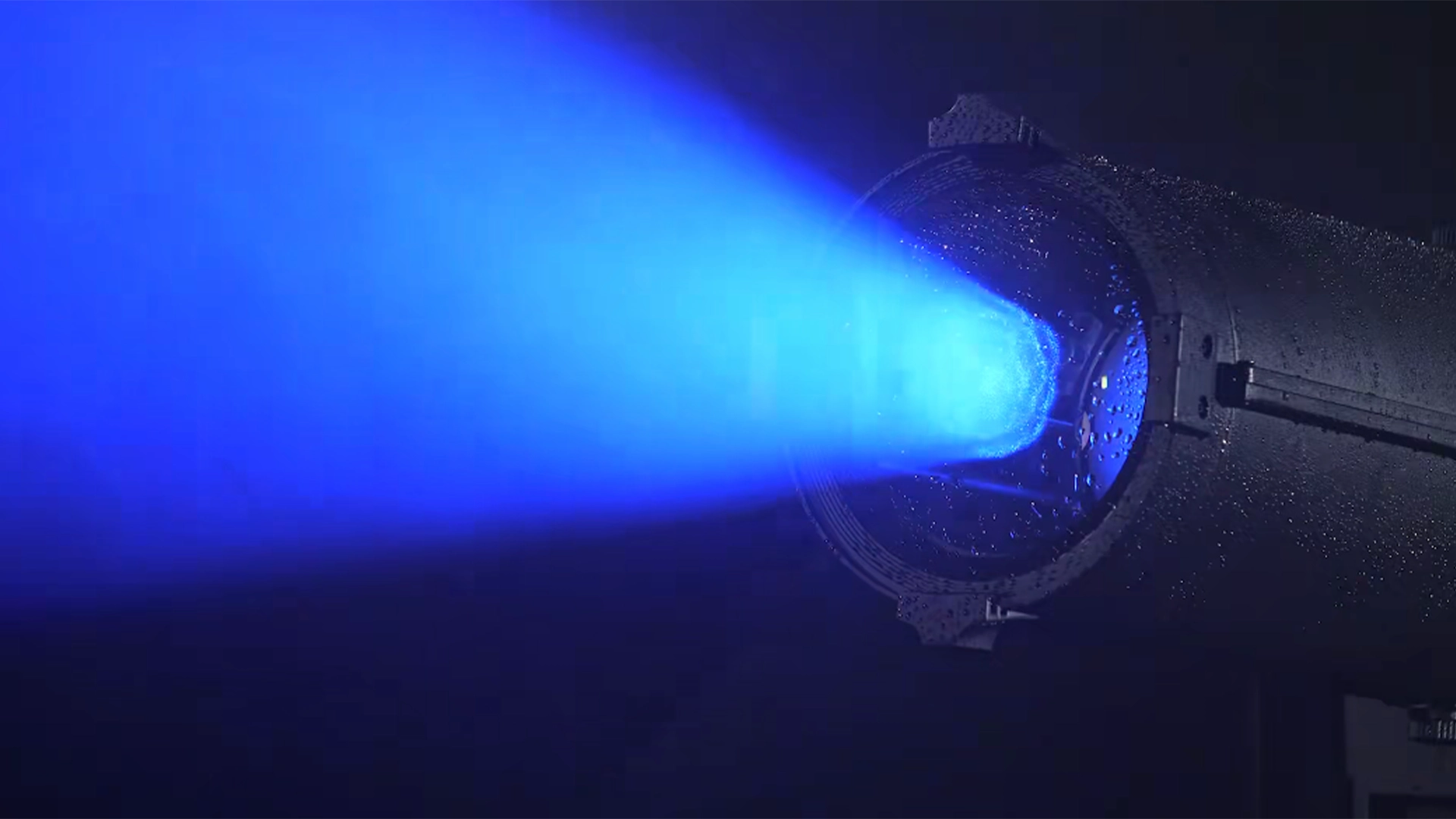

uplus-300w-waterproof-led-profile-spotlight-blue-beam-effect - Uplus Lighting
blue
uplus-300w-waterproof-led-profile-spotlight-amber-beam-effect - Uplus Lighting

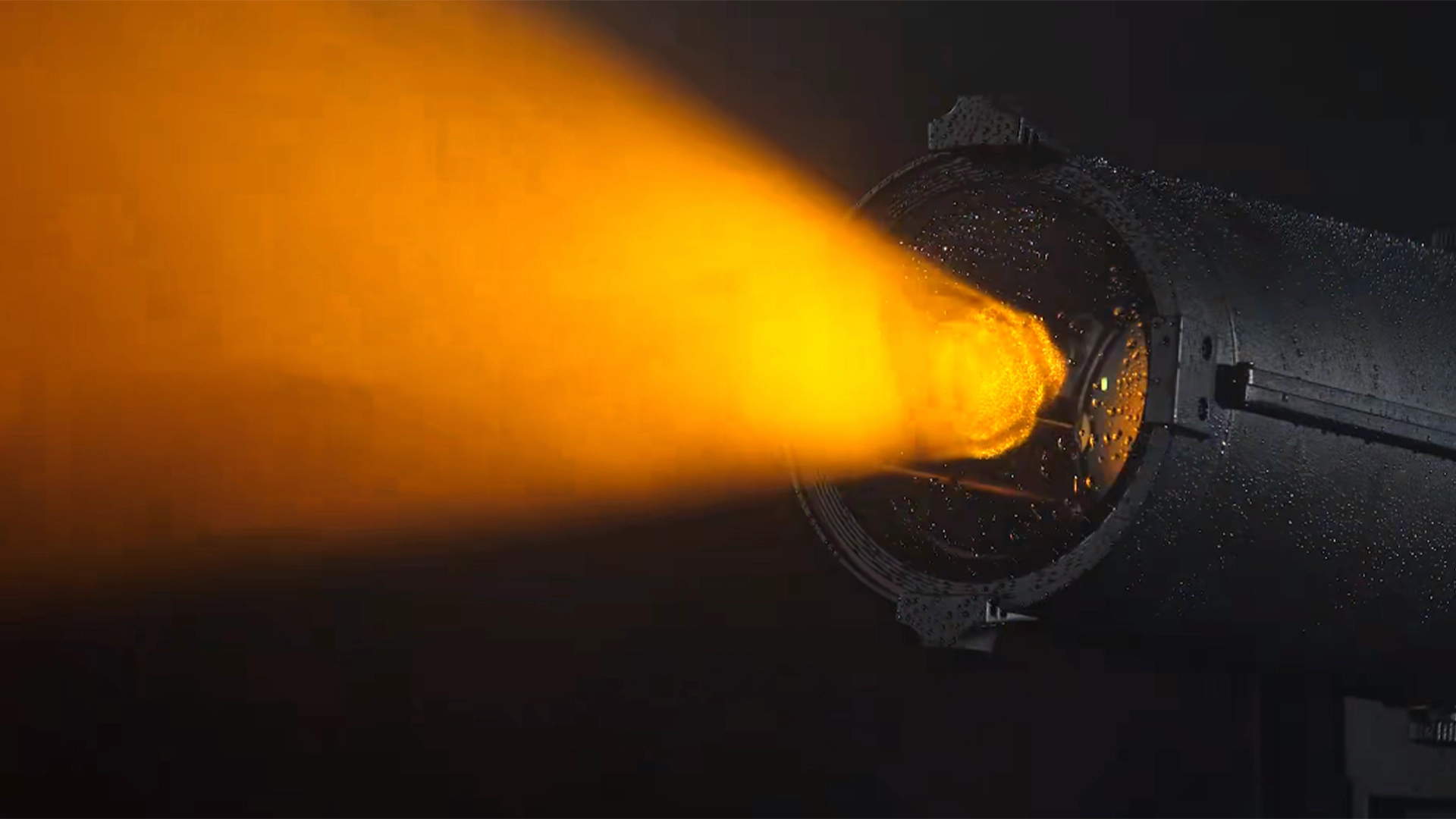

amber
uplus-300w-waterproof-led-profile-light-white-side-beam-effect - Uplus Lighting
beam angle
uplus-300w-waterproof-led-profile-spotlight-white-beam-effect - Uplus Lighting
beam angle
uplus-300w-waterproof-led-profile-spotlight-blue-circle-projection - Uplus Lighting

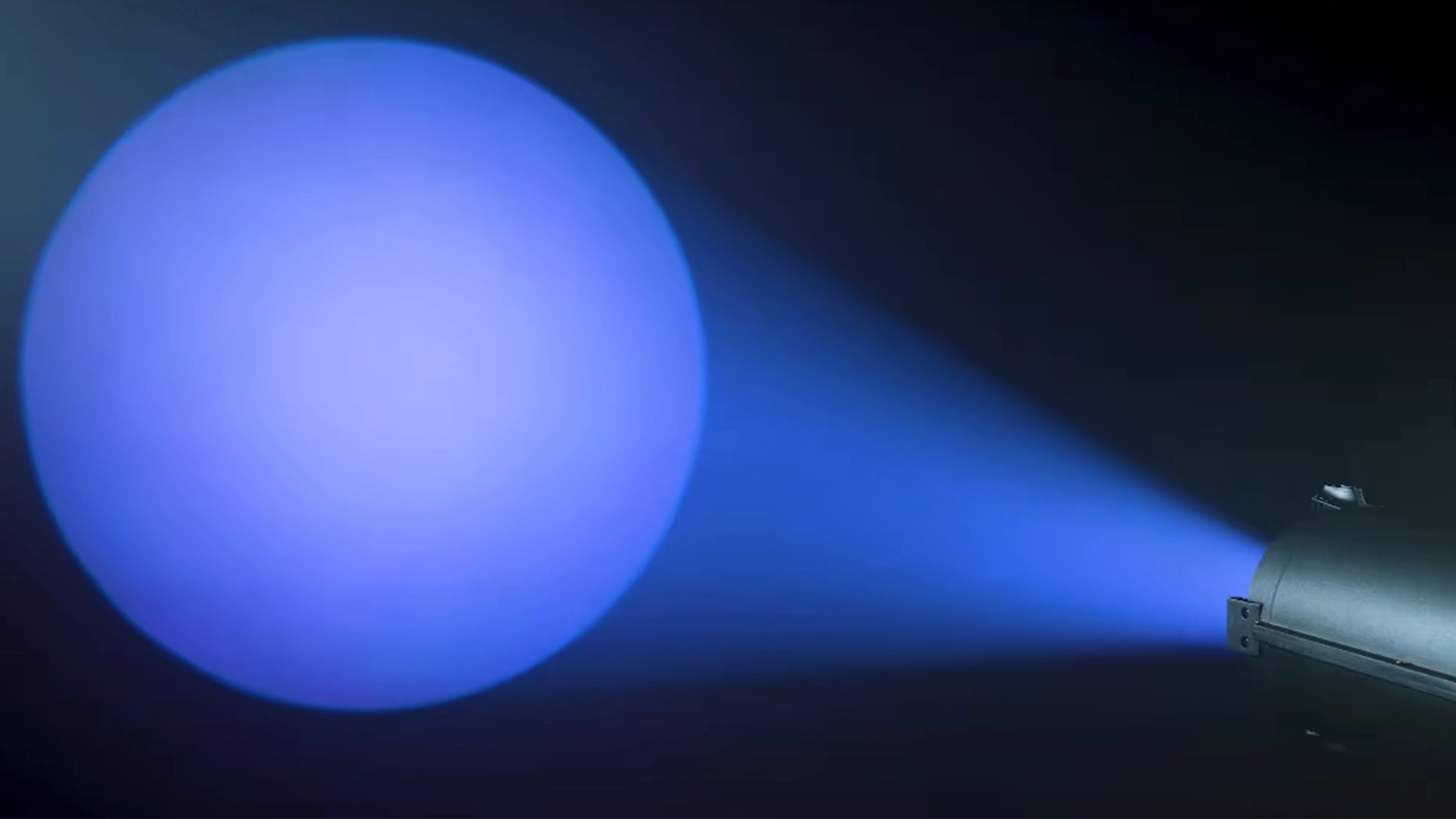

beam angle
uplus-300w-waterproof-led-profile-light-blue-spot-projection - Uplus Lighting
beam angle

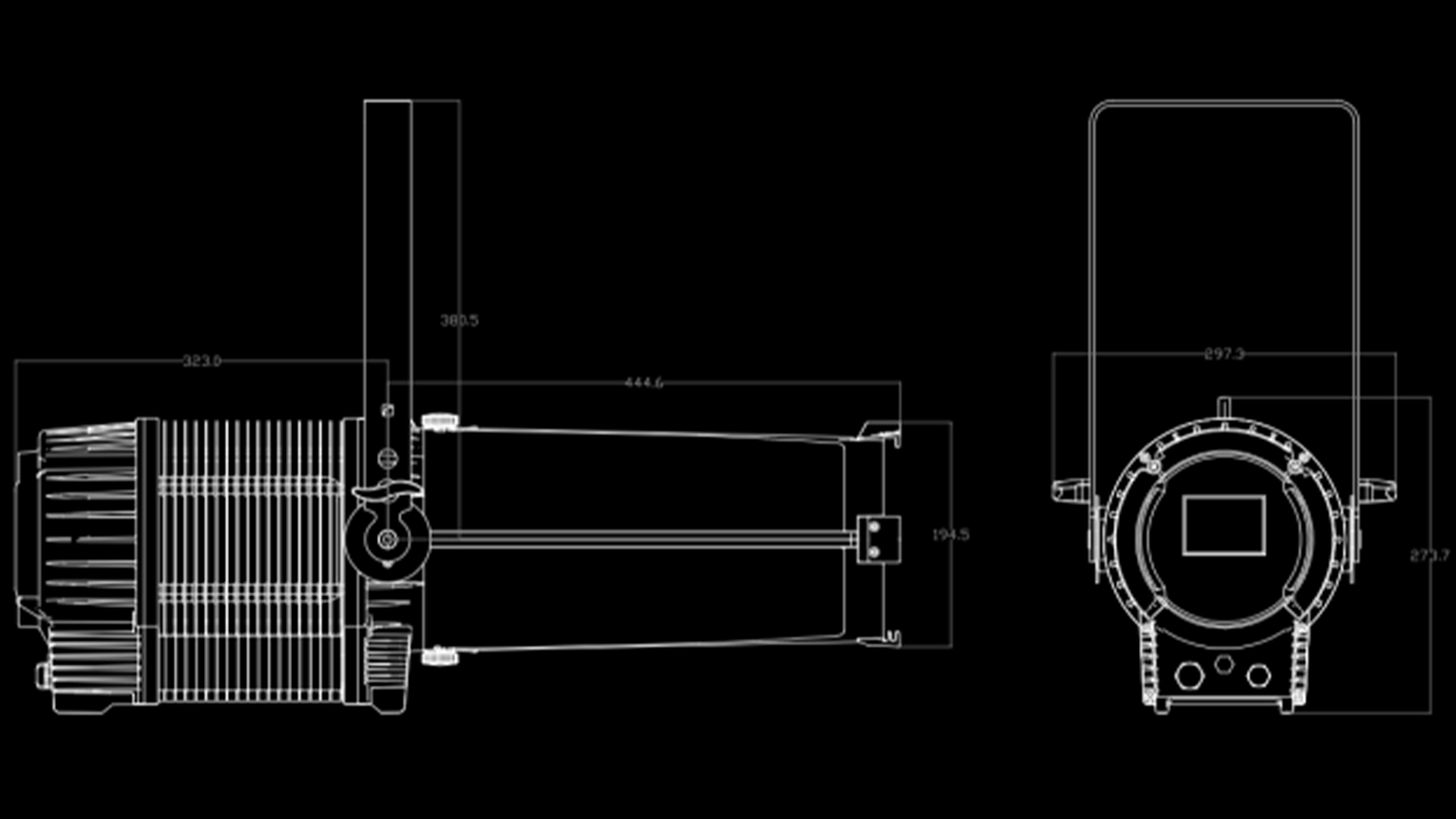

LUX Date & Dimension
uplus-led-profile-300z-theatre-spotlight-technical-dimensions-diagram - Uplus Lighting

Features

uplus-led-profile-300z-300w-white-rgbal-led-light-source - Uplus Lighting
uplus-300w-waterproof-led-profile-light-15-30-degree-beam-angle - Uplus Lighting
uplus-led-profile-300z-stage-spotlight-product-dimensions - Uplus Lighting
uplus-led-profile-300z-stage-spotlight-16-5kg-net-weight - Uplus Lighting

APPLICATION

Courtyard-Balcony-Decoration - Uplus Lighting
Courtyard/Balcony Decoration
Lights up at dusk, projecting dynamic light and shadow patterns. Paired with greenery or outdoor furniture, it creates a warm and relaxing indoor/outdoor space.
Festival-Atmosphere-Decoration - Uplus Lighting
Festival Atmosphere Decoration
No wiring required. Simply place it at the entrance or on the lawn. RGB dynamic colors enhance the festive atmosphere.
Small-Outdoor-Parties - Uplus Lighting
Small Outdoor Parties/Camping
Decorate campsites and terrace parties. The waterproof design is unaffected by outdoor dew or light rain. Flowing light and shadow enhance the interactive atmosphere.
Shop-Window-Display - Uplus Lighting
Shop/Window Display
Place at entrances or in shop windows. Dynamic text and patterns attract passersby, suitable for attracting customers to restaurants, retail stores, and other offline stores.
Children's-Birthday-Parties - Uplus Lighting
Children's Birthday Parties/Small Events
Suitable for both indoor and outdoor use. Brightly colored dynamic lasers paired with cartoon patterns appeal to children.
Garden-Weddings - Uplus Lighting
Garden Weddings/Small Celebrations
Soft dynamic light and shadow are projected onto the venue. The waterproof feature is suitable for outdoor environments, creating a romantic atmosphere.

Packaging & Logistic

Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

What light source and zoom range does the LED PROFILE 300Z provide?

The LED PROFILE 300Z is available with a 300W white LED or RGBAL 5-in-1 LED and provides a 15°–30° zoom range.

What control and outdoor-use features does the LED PROFILE 300Z have?

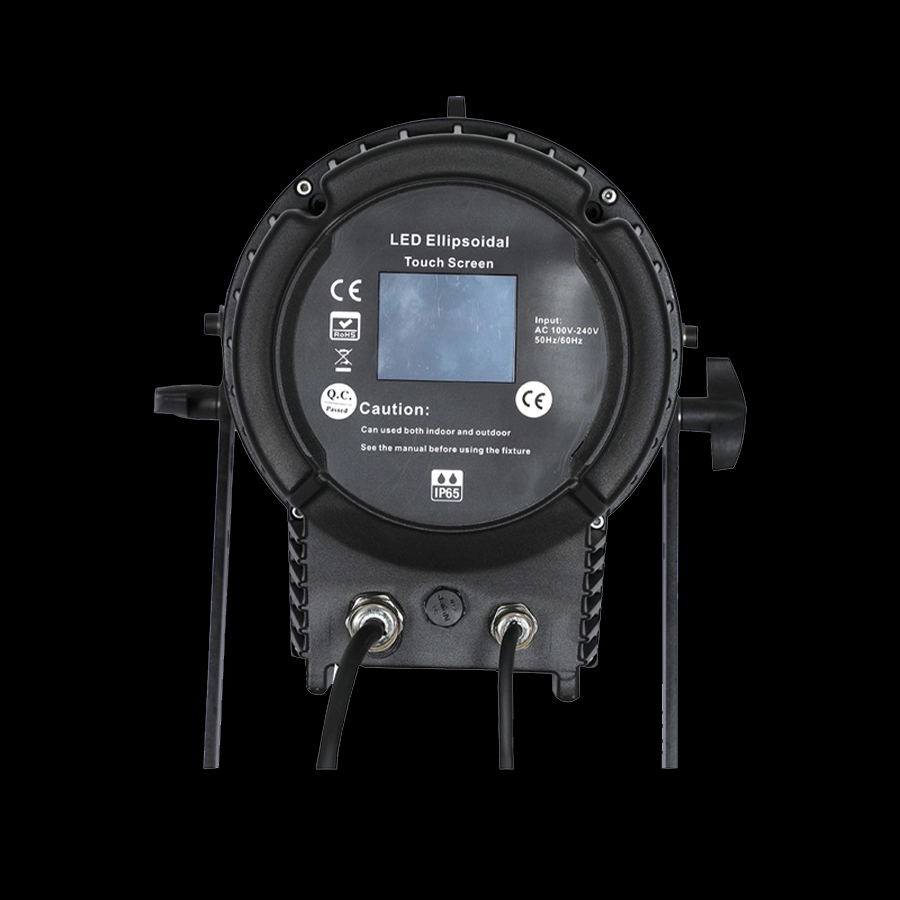

The LED PROFILE 300Z supports RDM, with 1/16CH for the white LED version and 5/24CH for the color LED version. It uses an IP65 die-cast aluminum housing, LCD display, fanless design, and PowerCon input/output.

What color, dimming, and framing features does the LED PROFILE 300Z support?

The RGBAL version supports 2700K–12,000K color temperature adjustment, while the fixture provides CRI Ra≥90, 0–100% linear dimming with four dimming curves, manual focus, and DMX-controlled shutter cutting. An iris and gobo holder are optional.

Customer Feedback & Improvement

Feedback channel: Customers can make suggestions to our sales staff regarding product quality, service experience or functional requirements.

Quick response

All your requests will be answered within 8 working hours.

Tags
Theatre Light
Theatre Light
Theatre Stage Lighting
Theatre Stage Lighting

Get a Free Quote

If you have any comments or good suggestions, please leave us a message, later our professional staff will contact you as soon as possible.

Name must not exceed 100 characters.
Invalid email format or length exceeds 100 characters. Please re-enter.
Please enter a valid phone number!
Country must not exceed 100 characters.
Company Name must not exceed 150 characters.
Content must not exceed 3000 characters.
You may also like
uplus-lighting-4100w-pixel-wash-panel-multicolor-front-view - Uplus Lighting
PIX-B400 4*100W pixel wash panel light
Uplus Lighting’s 4*100W Pixel Wash Panel Light delivers vibrant, even illumination ideal for theatre stage lighting. Designed for dynamic effects, this theatre light enhances every performance with rich colors and precise pixel control. Elevate your stage visuals with reliable, professional lighting solutions.
PIX-B400 4*100W pixel wash panel light
uplus-lighting-retro-bar-560w-led-amber-side-view - Uplus Lighting
R560 Retro Bar 5*60W Led Retro bar light

The Retro Bar 5*60W LED bar light is a retro-style long bar stage light equipped with five 60W high-brightness LEDs. It combines a classic appearance with diverse lighting effects, supports DMX512 multi-channel control, 0-100% linear dimming, and strobe function, and can achieve music synchronization and automatic operation modes. Lightweight and easy to install, it is suitable for indoor bars, nightclubs, clubs, and small stage performances, easily creating a retro atmosphere and dynamic lighting effects.

R560 Retro Bar 5*60W Led Retro bar light
uplus-100w-led-panel-light-side-angle-view - Uplus Lighting
Panel 100 100W LED panel light

100W LED panel light: The light is soft and even with moderate brightness, making it suitable for live streaming, photography, small studios, and stage lighting.

Panel 100 100W LED panel light
MINI FPF-MZ 主图1 - Uplus Lighting

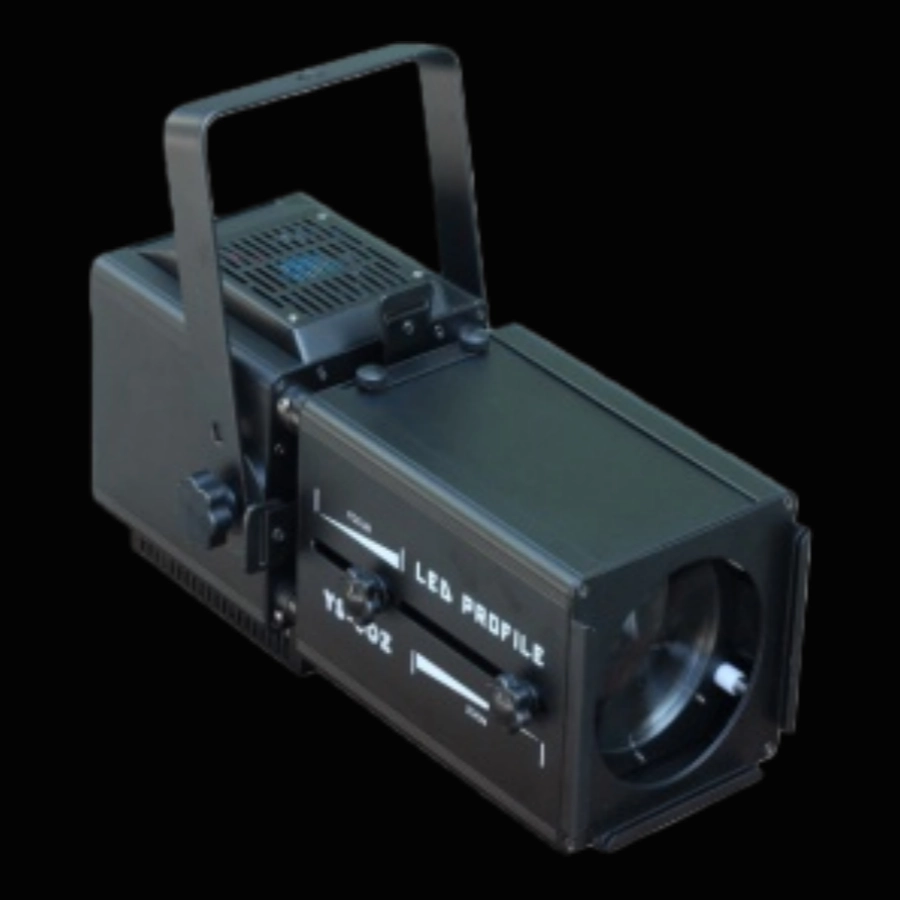

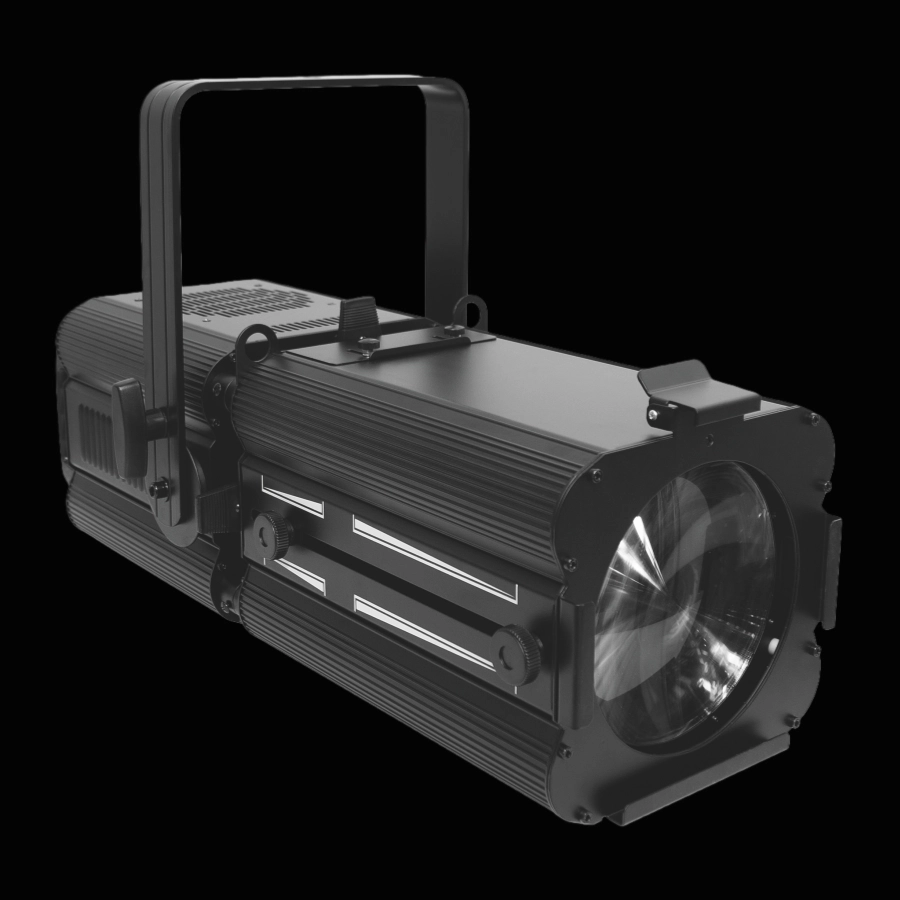

MINI FPF-MZ 60W led profile light with manaul zoom
