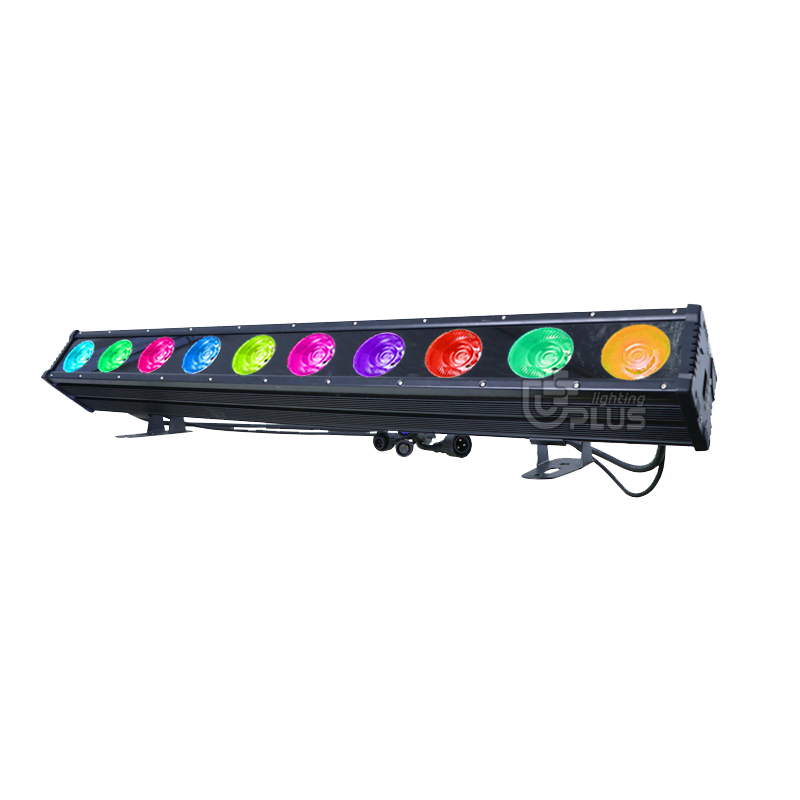

uplus-lighting-outdoor-10x45w-cob-led-bar-multicolor-front-view - Uplus Lighting
uplus-lighting-outdoor-10x45w-cob-led-bar-multicolor-front-view - Uplus Lighting

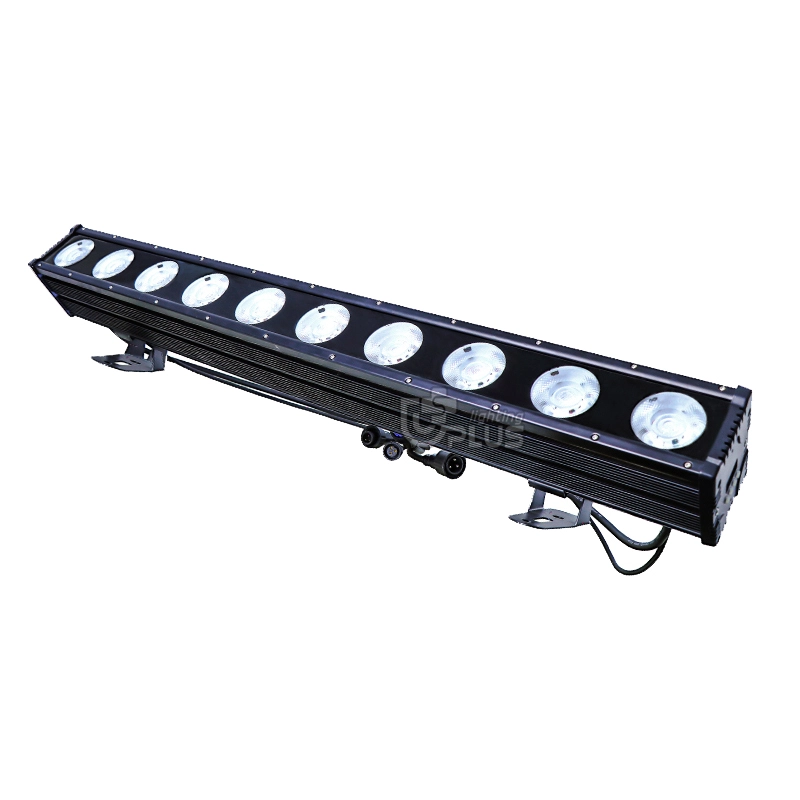

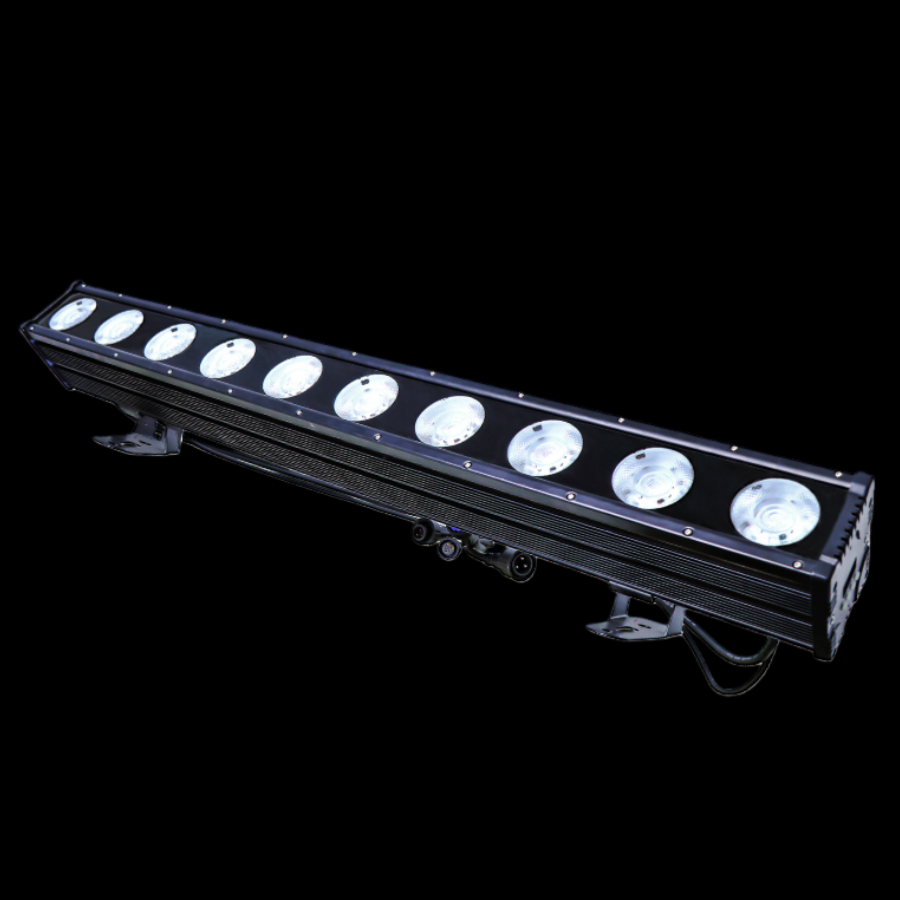

uplus-lighting-outdoor-10x45w-cob-led-bar-white-led-angled-view - Uplus Lighting
uplus-lighting-outdoor-10x45w-cob-led-bar-white-led-angled-view - Uplus Lighting

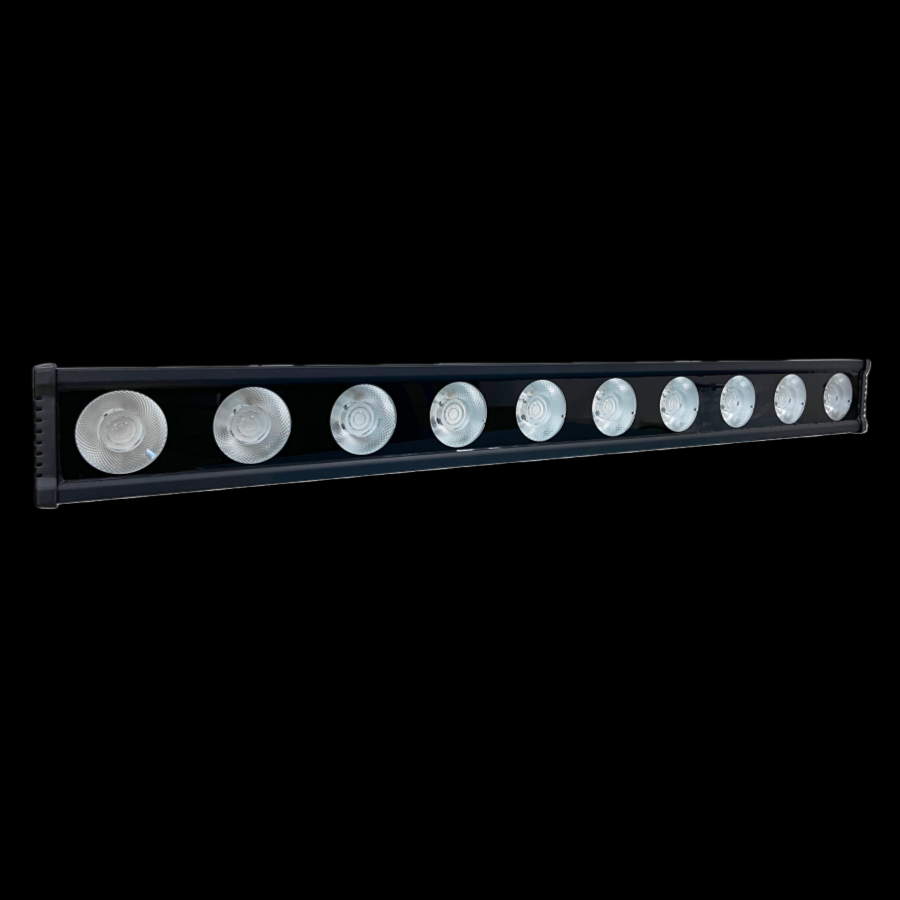

uplus-lighting-outdoor-10x45w-cob-led-bar-unlit-front-view - Uplus Lighting

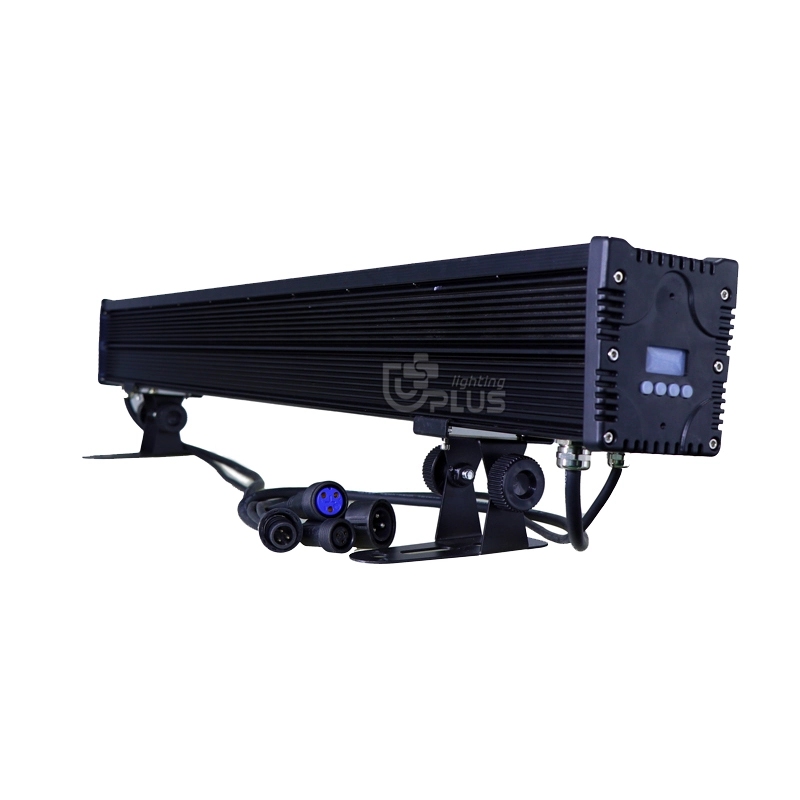

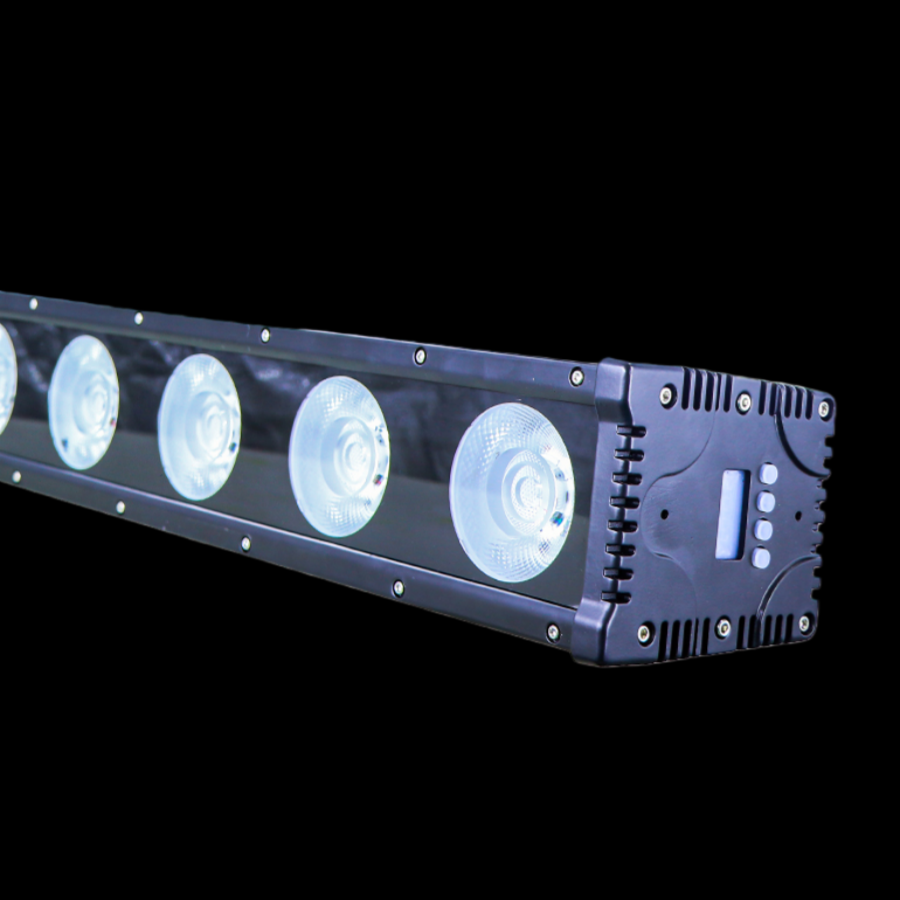

uplus-lighting-outdoor-10x45w-cob-led-bar-side-profile - Uplus Lighting

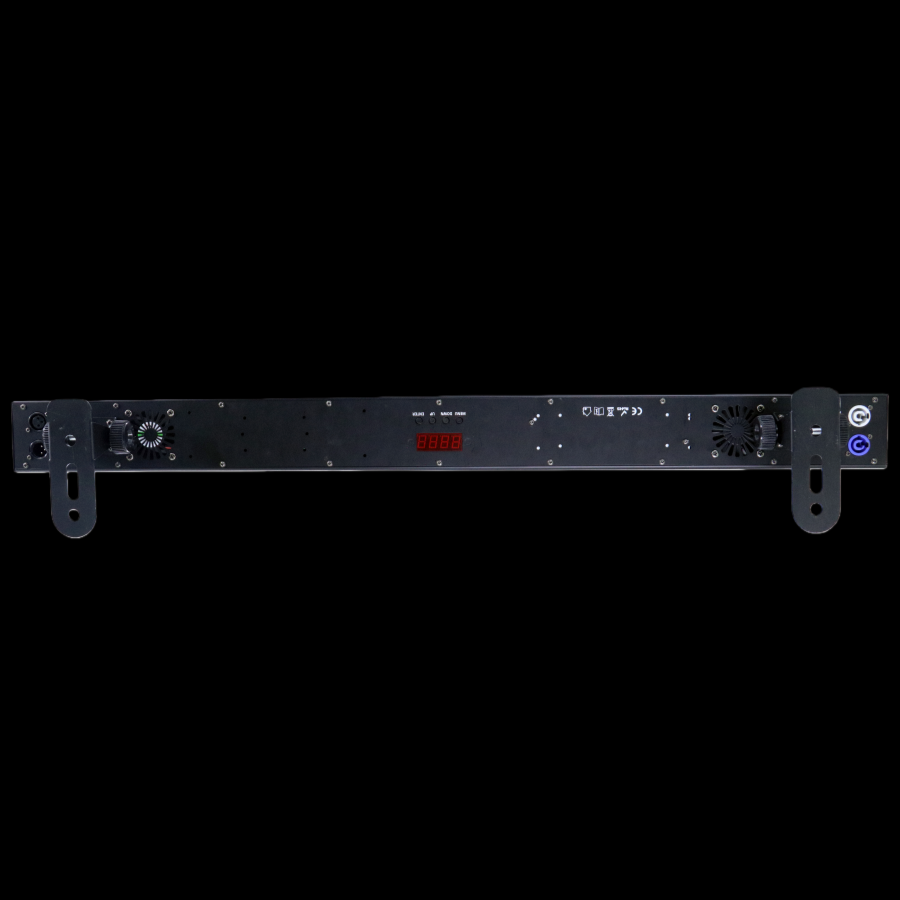

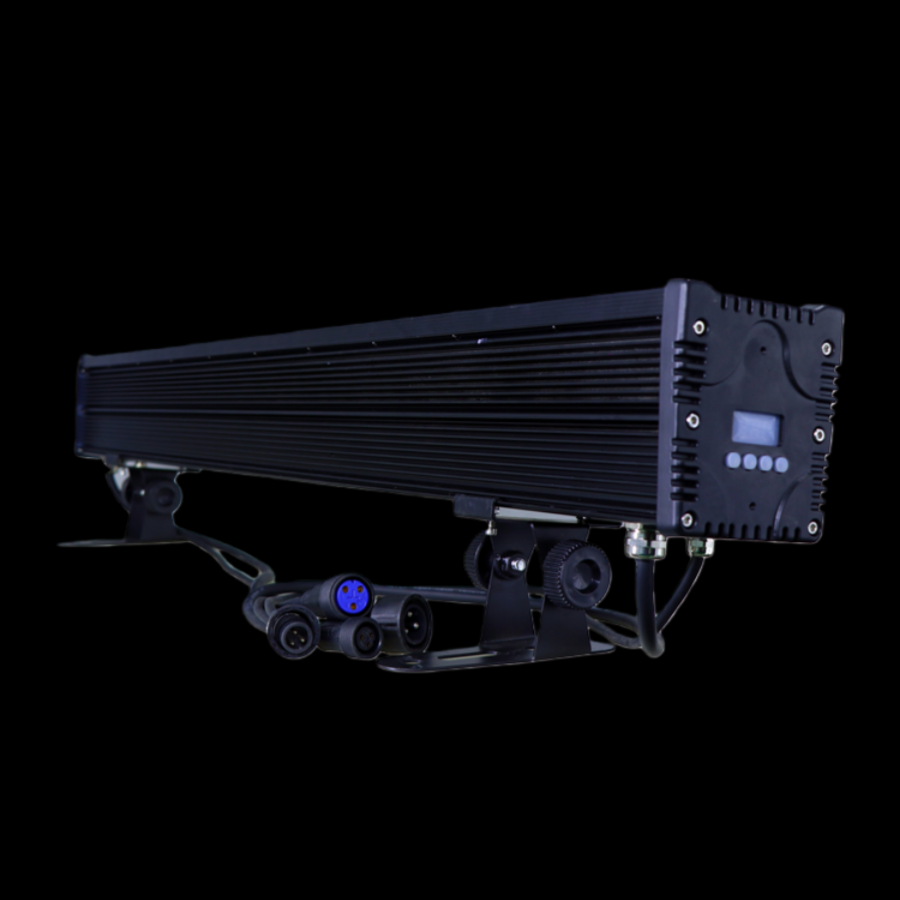

uplus-lighting-outdoor-14x10w-cob-led-bar-rear-control-panel - Uplus Lighting

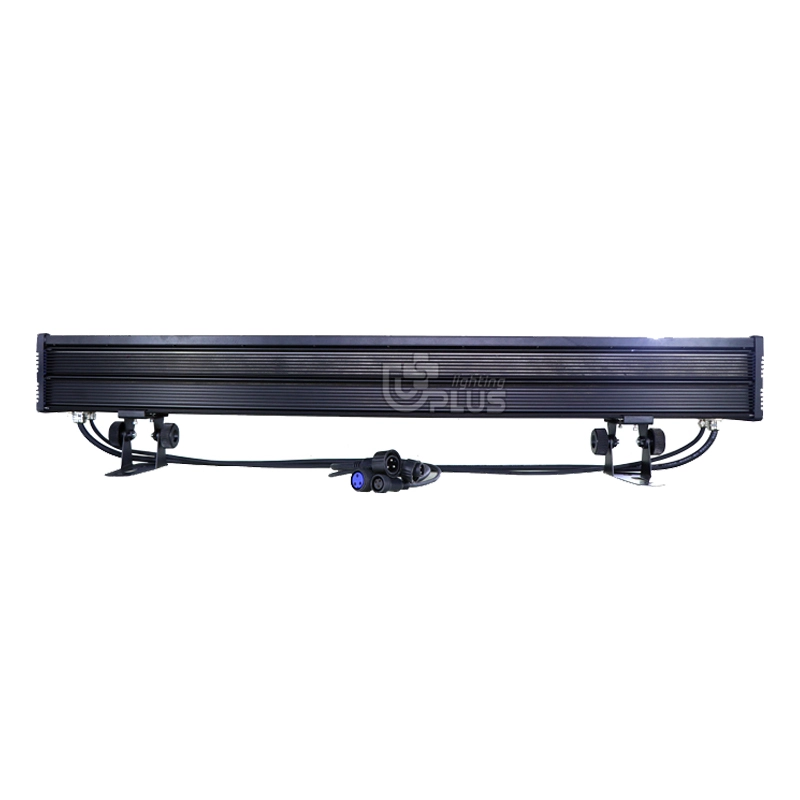

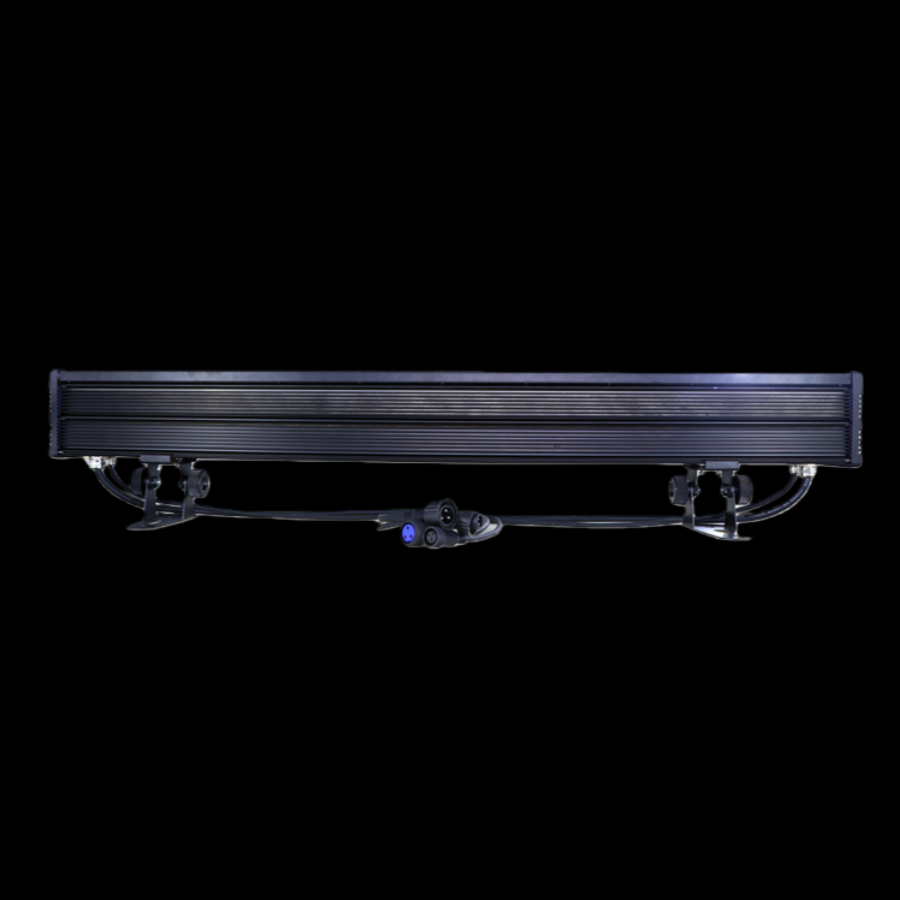

uplus-lighting-outdoor-10x45w-cob-led-bar-rear-housing-view - Uplus Lighting
uplus-lighting-outdoor-10x45w-cob-led-bar-multicolor-front-view - Uplus Lighting
uplus-lighting-outdoor-10x45w-cob-led-bar-multicolor-front-view - Uplus Lighting
uplus-lighting-outdoor-10x45w-cob-led-bar-white-led-angled-view - Uplus Lighting
uplus-lighting-outdoor-10x45w-cob-led-bar-white-led-angled-view - Uplus Lighting
uplus-lighting-outdoor-10x45w-cob-led-bar-unlit-front-view - Uplus Lighting
uplus-lighting-outdoor-10x45w-cob-led-bar-side-profile - Uplus Lighting
uplus-lighting-outdoor-14x10w-cob-led-bar-rear-control-panel - Uplus Lighting
uplus-lighting-outdoor-10x45w-cob-led-bar-rear-housing-view - Uplus Lighting

IP 10X45 COB BAR Outdoor 10x45W COB Pixel BAR

The Outdoor 10x45W COB Pixel BAR is a high-brightness outdoor COB pixel light strip equipped with 10 45W RGBW four-in-one COB LEDs. Each LED supports independent pixel control, enabling delicate dynamic color gradients and zoned light and shadow effects. It has an IP65 protection rating, strong rain and dust resistance, and is compatible with DMX512/RDM and master-slave control modes. It offers flexible installation and splicing, making it suitable for large-scale cultural and tourism landscape lighting, dynamic light and shadow shows on building facades, outdoor stage background rendering, and other scenarios.

INTRODUCTION
INTRODUCTION
SPECIFICATIONS
SPECIFICATIONS
EFFECT
EFFECT
LUX DATE & DIMENSION
LUX DATE & DIMENSION
FEATURES
FEATURES
APPLICATION
APPLICATION
PACKAGING & LOGISTIC
PACKAGING & LOGISTIC
FAQs
FAQs
Outdoor 10x45W COB Pixel BAR 11 - Uplus Lighting

Specifications

OPTICS

•Light Source: Integrated 45W *10pcs COB RGB 3in1 LED
•Power Consumption: 450W
•Beam Angle: 25°(10°, 36°optional)

FEATURES

•Each LED can be controlled individualy
•Display: LCD display
•Control Mode: DMX512,Master/Slave,Auto,Sound Active,RDM
•DMX Channel: 6/14/44 DMX Channels
•Dimmer: 0-100% smooth linear adjustment
•Strobe: High speed strobe effect with 1-25 flashes per second
•Cooling mode: Fan cooling(Temperature control)
•Fan Control: Adjust fan control according to temperature
•IP Rate: IP65

SPECIFICATION

•Dimension: 1008*105*185mm,( include stand bracket)
•Dimension: 1008*105*115mm,(not include stand bracket)
•NW: 8.8 kg

Effect

uplus-lighting-ip-10x45-cob-bar-rainbow-multicolor-wash-effect - Uplus Lighting
pixel control
uplus-lighting-ip-10x45-cob-bar-red-green-wash-effect - Uplus Lighting
pixel control
uplus-lighting-ip-10x45-cob-bar-rgb-multicolor-beam-effect - Uplus Lighting
pixel control
uplus-lighting-ip-10x45-cob-bar-yellow-blue-wash-effect - Uplus Lighting
pixel control
LUX Date & Dimension
uplus-lighting-ip-10x45-cob-bar-front-angled-product-view - Uplus Lighting

Features

uplus-lighting-10x45w-rgb-3in1-cob-led-light-source - Uplus Lighting
uplus-lighting-led-stage-light-25-degree-beam-angle - Uplus Lighting
uplus-lighting-led-stage-light-dimensions-1000x105x185mm - Uplus Lighting
uplus-lighting-led-stage-light-weight-8-8kg - Uplus Lighting

APPLICATION

Courtyard-Balcony-Decoration - Uplus Lighting
Courtyard/Balcony Decoration
Lights up at dusk, projecting dynamic light and shadow patterns. Paired with greenery or outdoor furniture, it creates a warm and relaxing indoor/outdoor space.
Festival-Atmosphere-Decoration - Uplus Lighting
Festival Atmosphere Decoration
No wiring required. Simply place it at the entrance or on the lawn. RGB dynamic colors enhance the festive atmosphere.
Small-Outdoor-Parties - Uplus Lighting
Small Outdoor Parties/Camping
Decorate campsites and terrace parties. The waterproof design is unaffected by outdoor dew or light rain. Flowing light and shadow enhance the interactive atmosphere.
Shop-Window-Display - Uplus Lighting
Shop/Window Display
Place at entrances or in shop windows. Dynamic text and patterns attract passersby, suitable for attracting customers to restaurants, retail stores, and other offline stores.
Children's-Birthday-Parties - Uplus Lighting
Children's Birthday Parties/Small Events
Suitable for both indoor and outdoor use. Brightly colored dynamic lasers paired with cartoon patterns appeal to children.
Garden-Weddings - Uplus Lighting
Garden Weddings/Small Celebrations
Soft dynamic light and shadow are projected onto the venue. The waterproof feature is suitable for outdoor environments, creating a romantic atmosphere.

Packaging & Logistic

Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

What is Uplus Lighting's main product for factories?

The main products provided by Uplus are stage lighting, related accessories, and consoles. Our products are suitable for many large-scale international performances, concerts, theaters, music festivals, TV programs, etc.

Our service?

We have a professional team that can provide and customize products for you.

Are you a manufacturer or a trading company?

We come directly from the factory and also have a sales office in Baiyun, Guangzhou.

Is the IP 10X45 COB BAR suitable for outdoor stage and rental use?

The IP 10X45 COB BAR has an IP65 rating, measures 1008 × 105 × 185 mm, and weighs 8.8 kg, making it suitable for outdoor stage, rental, and installation setups.

What beam angle and control options does the IP 10X45 COB BAR provide?

The fixture has a standard 25° beam angle, with 10° and 36° options available. It supports DMX512, RDM, Auto Run, Master-Slave, and Sound Active control with 6/14/44-channel modes.
