What Does 420 LED BSW Do? Full Features, Functions & Applications Guide

Introduction to 420 LED BSW Moving Head Light

The 420 LED BSW is a professional 3-in-1 (Beam, Spot, Wash) LED moving head light designed for commercial stage lighting, event performances, wedding ceremonies, live concerts, and entertainment venues. Integrated with premium 420W white LED light source, CMY color mixing system and CTO color temperature adjustment function, this multi-functional stage light combines beam sharpness, pattern projection, and soft wash lighting effects in one compact device.

Unlike single-function stage lights, the 420W LED BSW 3-in-1 moving head eliminates the need for multiple lighting devices, delivering diverse, dynamic, and high-brightness lighting effects with stable performance and flexible control. It has become a mainstream lighting fixture for professional stage lighting engineers and event rental companies worldwide.

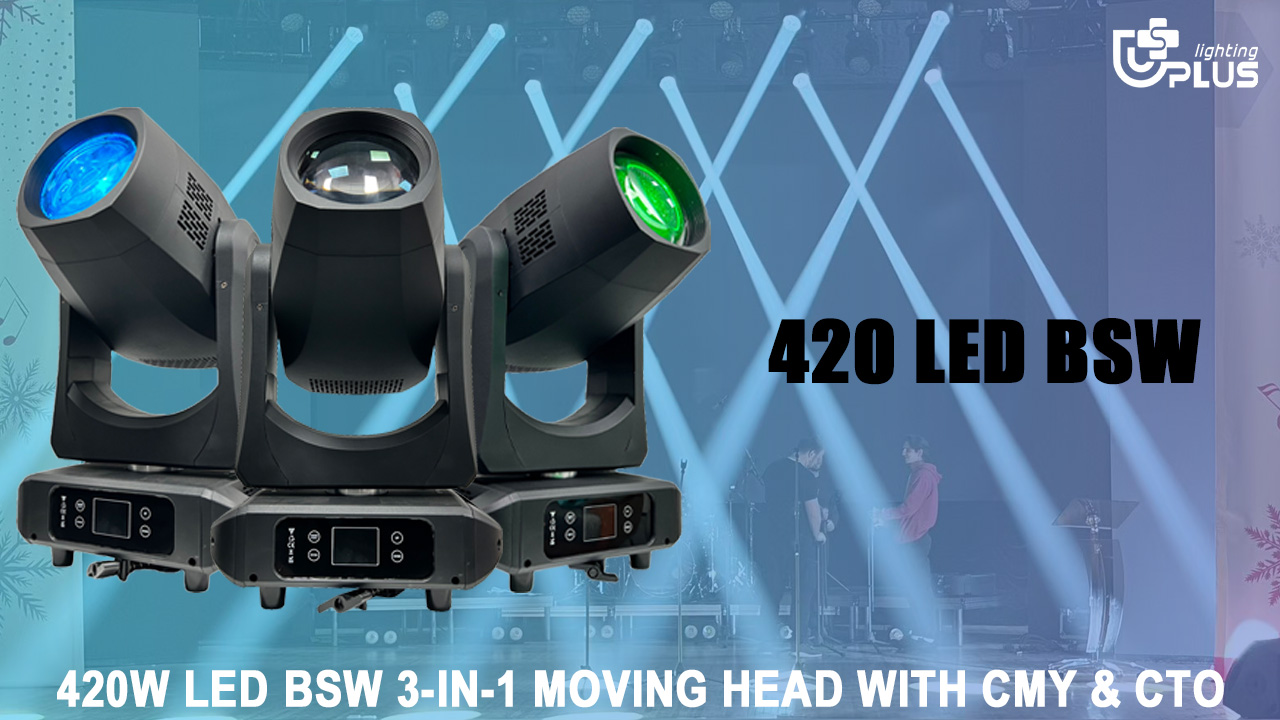

6.24-2

What Exactly Does 420 LED BSW Do? Core Functions Explained

The core value of the 420 LED BSW lies in its three-in-one integrated lighting capability and rich professional lighting effects. Below is a detailed breakdown of its key functions and working principles:

1. 3-in-1 BSW Integrated Lighting (Beam + Spot + Wash)

As a classic BSW hybrid moving head light, it perfectly realizes three core lighting modes switching freely:

Beam Mode: Outputs ultra-sharp, high-concentration narrow beams with strong penetration, creating stunning aerial beam effects for stage opening, rhythm beats, and dynamic scene switching.
Spot Mode: Delivers clear and precise pattern projection, presenting delicate gobos and clear textures to highlight stage key areas, character performances, and stage details.

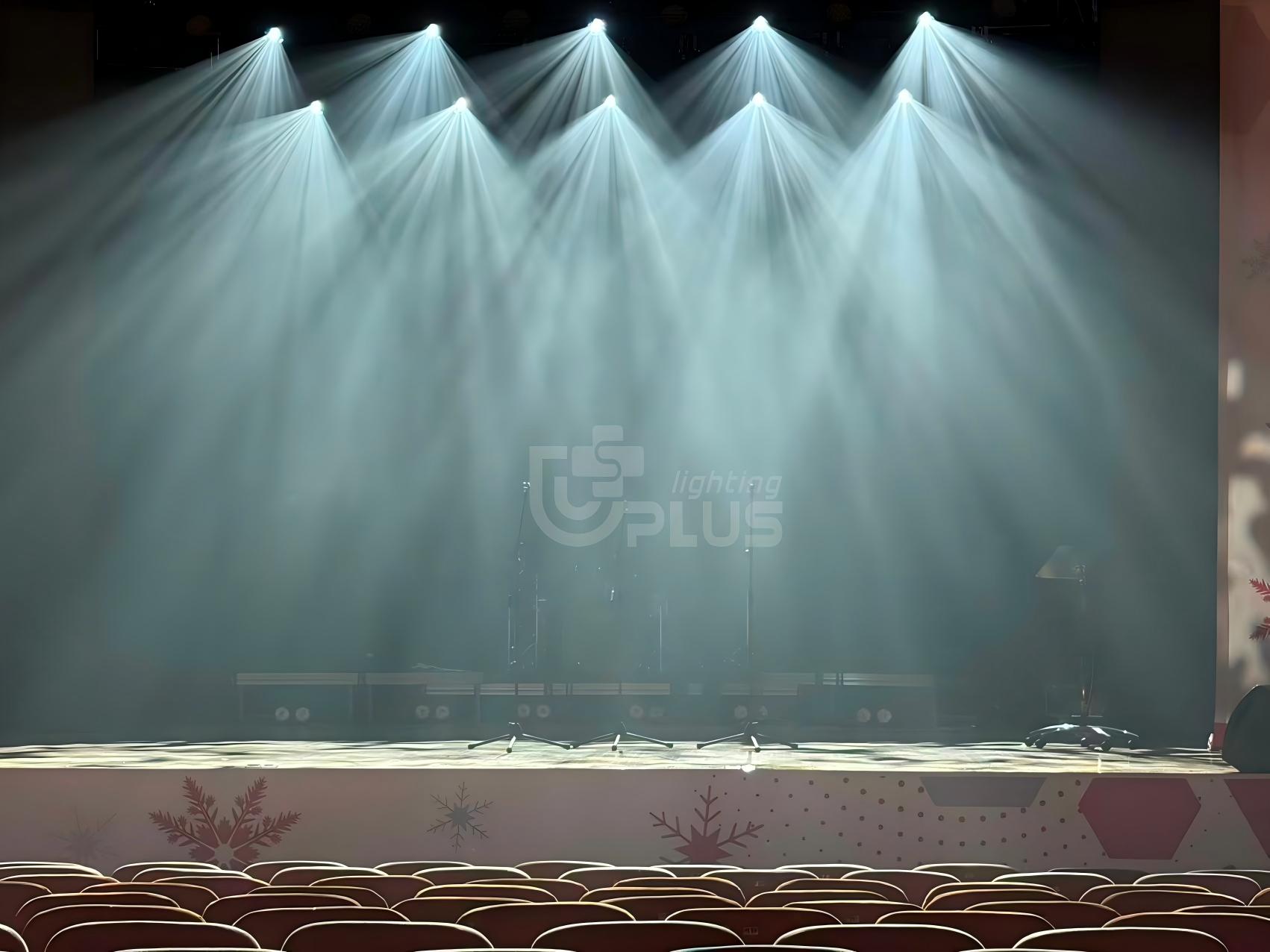

Wash Mode: Provides uniform, soft, and wide-range flood lighting to fill the entire stage space, balance overall brightness, and create immersive ambient lighting atmosphere.

2. Professional CMY Color Mixing & CTO Color Temperature Adjustment

Equipped with advanced CMY (Cyan, Magenta, Yellow) linear color mixing system and CTO color temperature correction function, the 420 LED BSW supports seamless color gradient and precise color tuning. It can produce countless rich color combinations without color breakpoints, solving the problem of single color of traditional stage lights. The CTO function accurately adjusts white light color temperature, adapting to different stage scene needs from cold white to warm white, ensuring natural and professional lighting presentation for various performances.

3. Versatile Gobo Pattern Effects

This 420W LED moving head is equipped with dual gobo systems to meet diverse pattern effect needs:

Fixed Gobo Plate: Features 11 fixed patterns plus white light output, with unique half-color effect, supporting stable pattern projection and soft layered lighting.
Rotating Gobo Wheel: Comes with 7 pluggable glass gobos and white circle effect, supporting 360° rotating gobo, gobo shaking and dynamic flowing effects. The pluggable design allows users to replace custom gobos freely for personalized stage creativity.

4. Dual Prism Dynamic Special Effects

Built-in 5-face prism and linear prism dual prism structure, the 420 LED BSW can generate super dynamic multi-angle light splitting effects. The combination of two prisms creates rich layered light beams and chaotic dynamic effects, greatly enhancing the stage visual impact, which is essential for dynamic parts of concerts, bar performances and party events.

5. Precise Zoom & Focus Control

It supports a 3°-48° motorized zoom angle range, covering narrow beam long-distance projection and wide-angle large-area washing lighting. Adopting a clear linear adjustment focusing system, the light spot can achieve ultra-clear focusing without blurring, ensuring both long-distance beam sharpness and short-distance pattern definition. Equipped with a frost lens, it can soften hard light spots to form uniform astigmatism effects, switching freely between hard and soft light.

6. Smooth Dimming & Stable Control System

The 0-100% linear dimming system realizes stepless brightness adjustment, avoiding stroboscopic and flickering problems, ensuring smooth light transition. It supports standard DMX512 (36/25 CH) and RDM remote control protocol, compatible with all professional stage lighting controllers. Users can program custom lighting sequences, realize automatic running, voice control and synchronous linkage with stage music, with high control accuracy and strong compatibility.

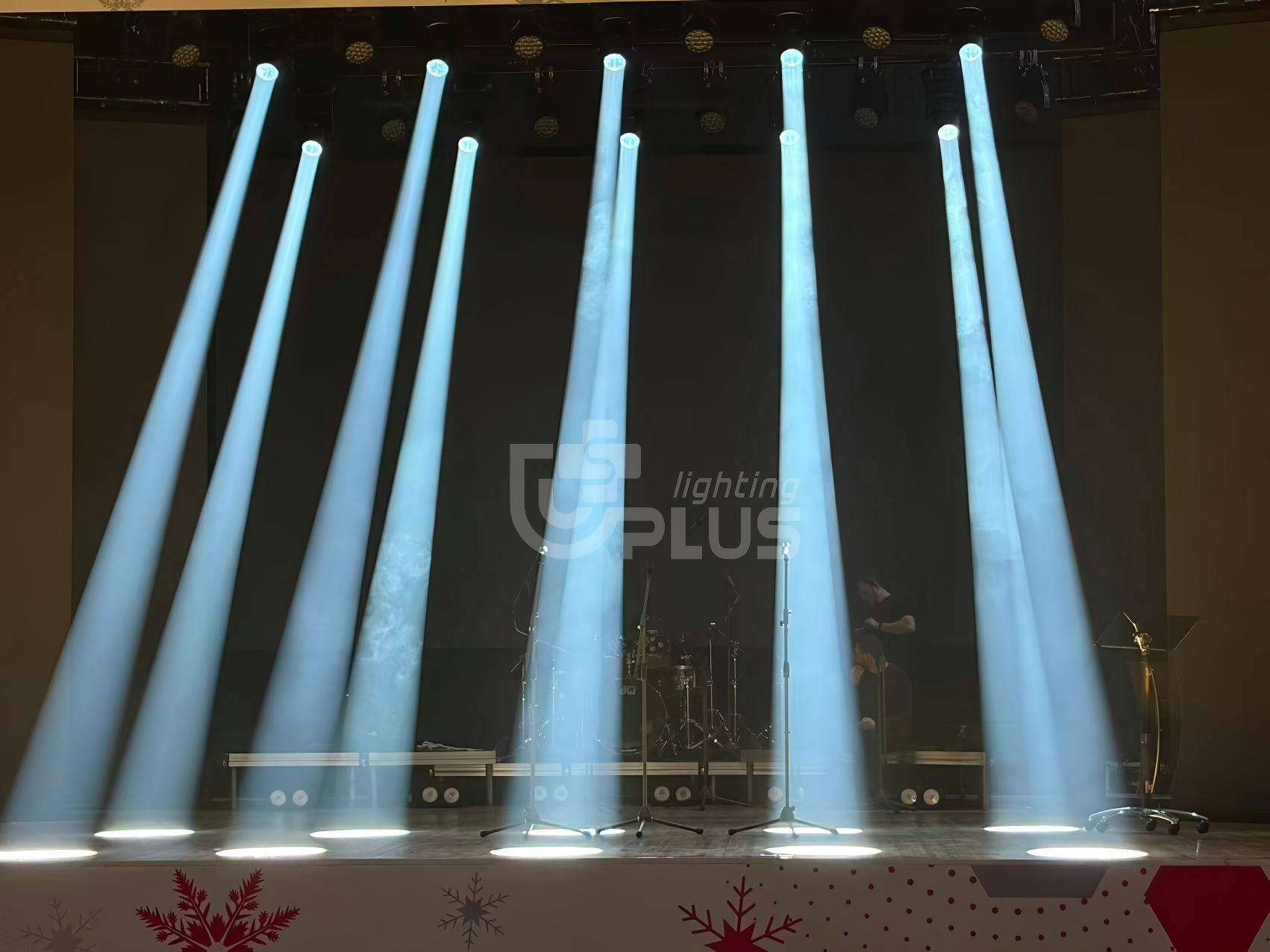

微信图片_20251226092640(1)

Full Technical Parameters of 420W LED BSW 3-in-1 Moving Head

Here are the complete official specifications of the 420 LED BSW light for your reference:

Light Source: 420W High-power White LED
Zoom Angle: 3°-48° Adjustable
Color System: 8 color plates + white light, half-color effect support, CMY full-color mixing + CTO color temperature adjustment
Fixed Gobo: 11 fixed patterns + white light, gobo shaking effect
Rotating Gobo: 7 pluggable glass gobos + white circle, rotatable and replaceable
Prism Effect: 5 face prism + Linear prism dual effects
Focus System: Linear precise adjustment focus
Soft Light Device: Built-in frost lens
Dimming Range: 0-100% Linear stepless dimming
Control Protocol: DMX512 (36/25 Channels) / RDM Remote control
Product Dimension: 360*235*608mm (L*W*H)
Net Weight: 17.4kg (with folding hook)

Main Application Scenarios of 420 LED BSW Light

Benefiting from its multi-functionality, compact structure and stable performance, the 420W LED BSW 3-in-1 moving head is widely used in various professional lighting scenarios:

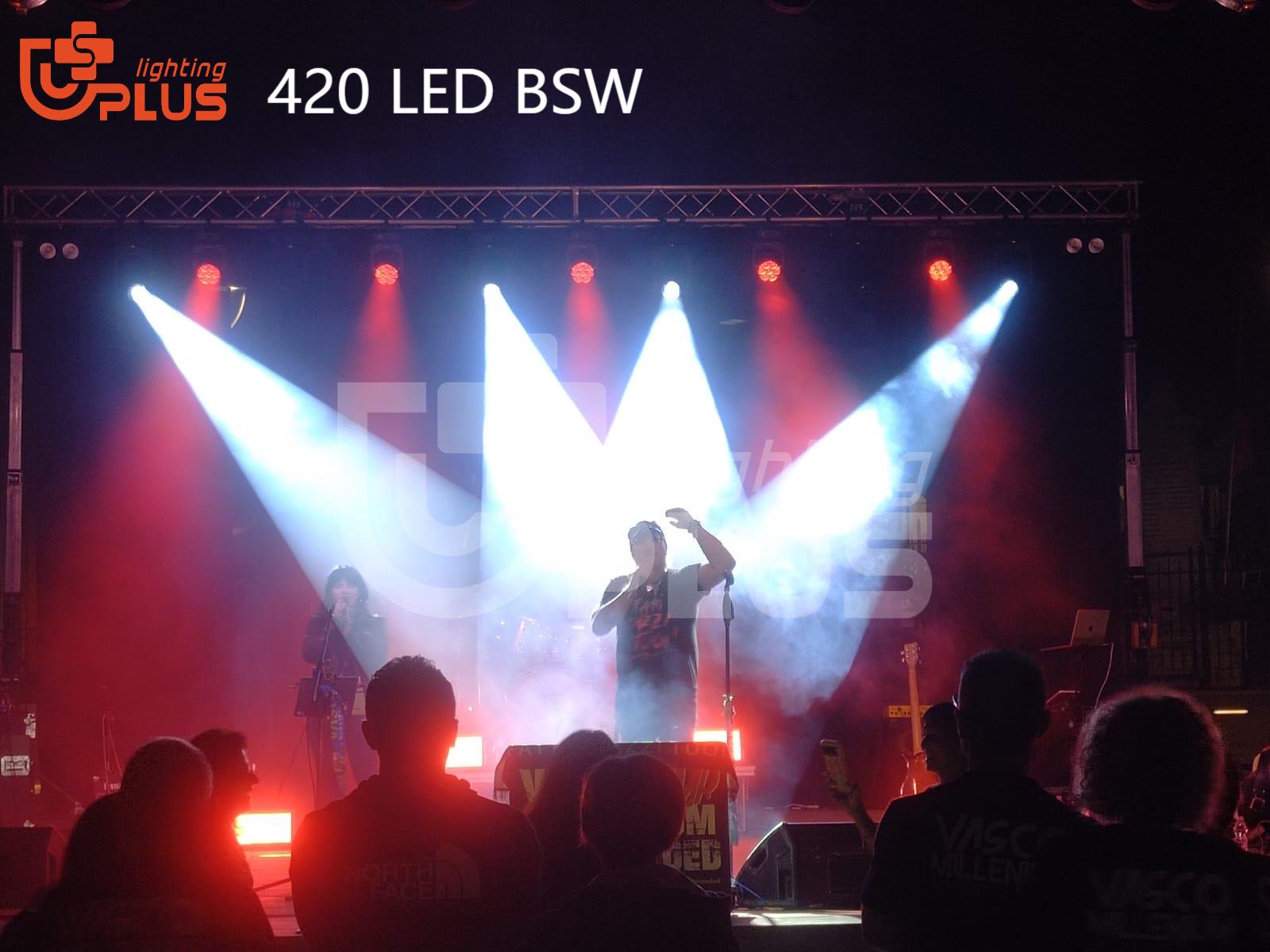

Stage Performances: Concerts, theatrical performances, talent shows, and variety shows to create dynamic beam and pattern effects
Event Ceremonies: Wedding ceremonies, opening ceremonies, anniversary celebrations, and corporate events for ambient lighting and highlight rendering
Entertainment Venues: Bars, nightclubs, KTVs, and party rooms to match music rhythm and create dynamic atmosphere
Exhibition & Stage Rental: Professional stage rental companies, exhibition halls, and studio shooting with high cost performance and easy installation

FAQ About 420 LED BSW Moving Head Light

Q1: What is 420 LED BSW used for?

The 420 LED BSW is a professional 3-in-1 stage moving head light, mainly used for stage beam effects, pattern projection and ambient wash lighting. It is widely used in weddings, concerts, bars, corporate events and various live performances to create dynamic and immersive stage lighting effects.

Q2: What does BSW stand for in stage lighting?

BSW stands for Beam, Spot, Wash. It means the light integrates three core stage lighting functions in one device, which can switch sharp beam, precise spot pattern and soft wash lighting freely, realizing multi-scene lighting demands without multiple devices.

Q3: What are the advantages of 420W LED BSW with CMY & CTO?

The CMY color mixing system provides infinite seamless color gradients for rich and natural color presentation. The CTO function adjusts white light color temperature precisely to adapt to different scene tones. Compared with traditional color wheel lights, it has no color jump, higher color restoration, and more professional stage lighting effect.

Q4: Is the 420 LED BSW easy to install and operate?

Yes. This light comes with a folding hook for quick installation and fixation. It supports standard DMX512 and RDM control, compatible with mainstream lighting controllers. With linear dimming and focusing design, it is easy to debug and operate, suitable for both professional engineers and novice operators.

Q5: How many control channels does the 420W BSW moving head have?

It supports two control channel modes: 25 channels and 36 channels. The 25CH mode is suitable for simple lighting programming and daily use, while the 36CH mode supports more detailed effect adjustment, meeting professional high-precision stage lighting creation needs.
