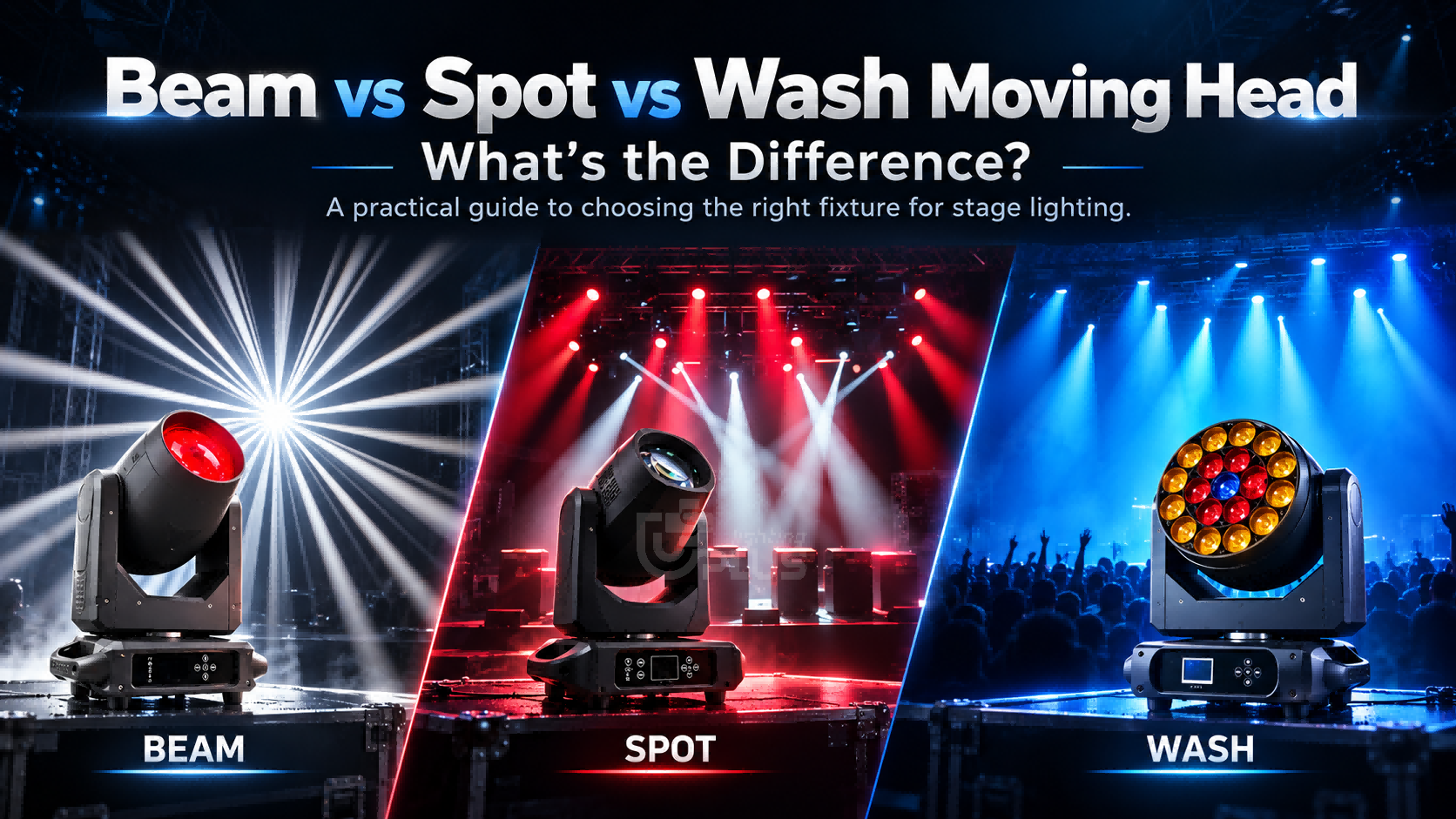

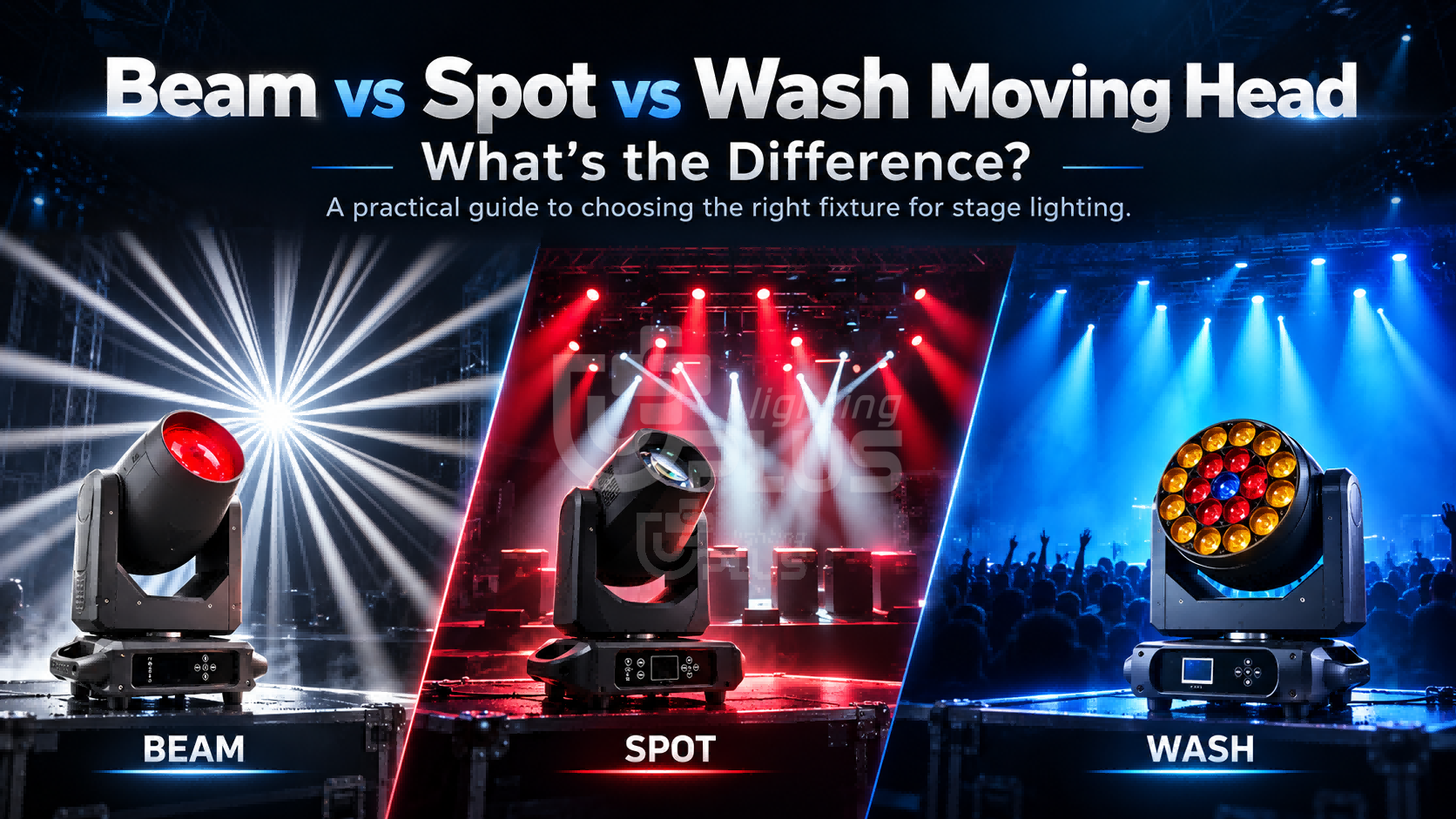

Beam vs Spot vs Wash Moving Head: What’s the Difference?

Beam vs Spot vs Wash Moving Head Lights

When choosing a moving head light for stage lighting, three of the most common types are Beam, Spot, and Wash.

Although they may look similar from the outside, their optical systems and applications are very different. Understanding these differences helps lighting designers, rental companies, distributors, and project engineers select the right fixture for each stage or event.

What Is a Beam Moving Head?

A beam moving head is designed to create a narrow and concentrated shaft of light.

Beam fixtures normally use a very small beam angle, allowing the light to remain visually defined over longer distances. They are commonly combined with gobos and prisms to create aerial effects.

Typical features:

• Narrow beam angle
• Concentrated light beam
• Prism effects
• Gobos and color wheels
• Fast pan and tilt movement

Common applications:
Concerts, festivals, nightclubs, live shows, touring productions, and large stages.

Beam moving heads are especially useful when the lighting design requires visible aerial beams and dynamic movement.

What Is a Spot Moving Head?

A spot moving head is designed for controlled projection.

Compared with a beam fixture, a spot generally produces a wider and more defined light field. It is commonly equipped with gobos, focus, color effects, and sometimes an iris or animation system.

Typical features:

• Defined light projection
• Fixed and rotating gobos
• Motorized focus
• Color wheel or color mixing
• Prism and iris options

Common applications:
Theaters, concerts, corporate events, stage productions, clubs, and touring shows.

Spot fixtures are a good choice when designers need to project gobos, patterns, textures, or clearly focused lighting effects.

What Is a Wash Moving Head?

A wash moving head produces a wider and softer field of light.

Instead of creating a narrow shaft or projected pattern, wash fixtures are mainly used to illuminate larger areas of the stage with smooth colors.

Many LED wash moving heads use RGBW, RGBL, or other multi-color LED systems, allowing designers to create a wide range of colors without mechanical color wheels.

Typical features:

• Wide beam coverage
• Smooth color mixing
• Zoom function
• Soft beam edges
• Pixel control on some models

Common applications:
Concert stages, theaters, TV studios, events, clubs, architectural lighting, and background illumination.

Wash moving heads are commonly used for performer lighting, stage coloring, scenery illumination, and general stage coverage.

Beam vs Spot vs Wash: Main Differences

What Is a BSW Moving Head?

A BSW moving head combines Beam, Spot, and Wash functions in one fixture.

Instead of using three separate lights, a BSW fixture can provide a narrow beam, projected spot effects, and wider wash coverage through one optical system.

For example, a BSW moving head may include:

• Motorized zoom
• CMY color mixing
• Fixed and rotating gobos
• Prism
• Frost
• Motorized focus

This makes BSW fixtures useful for rental companies, touring productions, theaters, concerts, and multi-purpose venues where fixture flexibility is important.

Some models also add framing shutters, creating a BSWF moving head — Beam, Spot, Wash, and Framing.

How Do You Choose Between Beam, Spot, and Wash?

The right choice depends on what you want the fixture to do.

Choose a Beam moving head when narrow aerial beams and prism effects are the priority.

Choose a Spot moving head when you need gobos, patterns, focus, and controlled projection.

Choose a Wash moving head when you need smooth color mixing and wide stage coverage.

Choose a BSW moving head when you want multiple optical functions from a single fixture.

For larger projects, lighting designers normally combine several fixture types rather than relying on only one.
