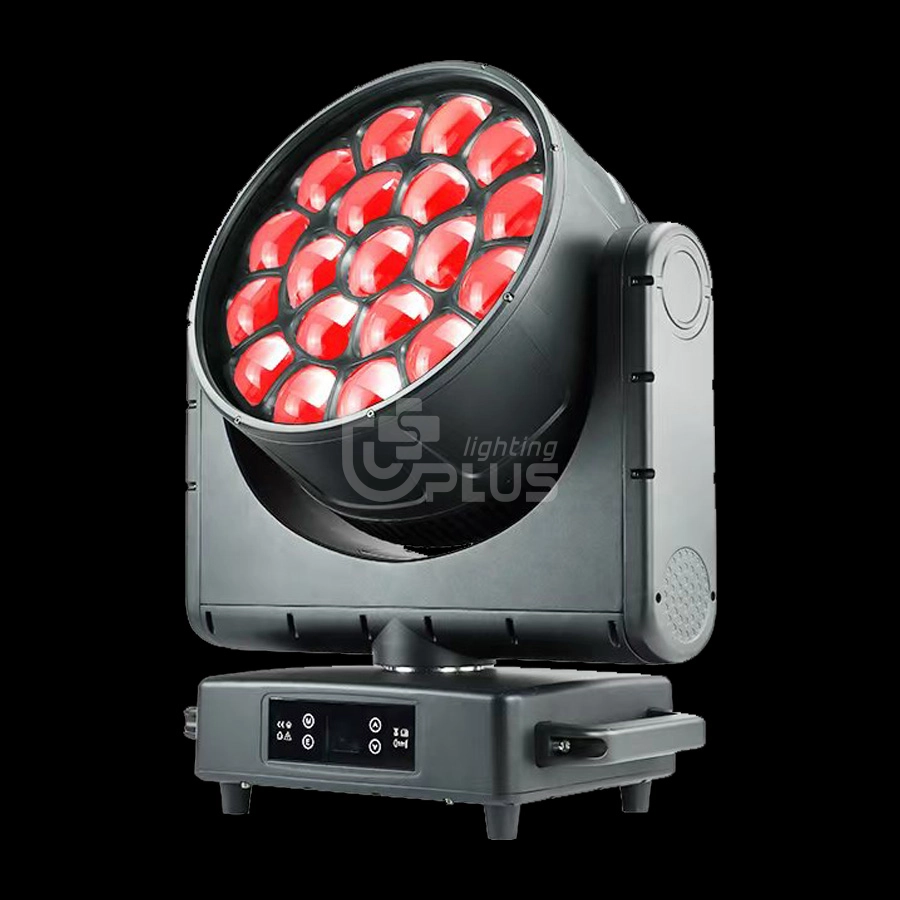

uplus-lighting-ip-wash1980-red-moving-head-zoom-circle-front-light - Uplus Lighting

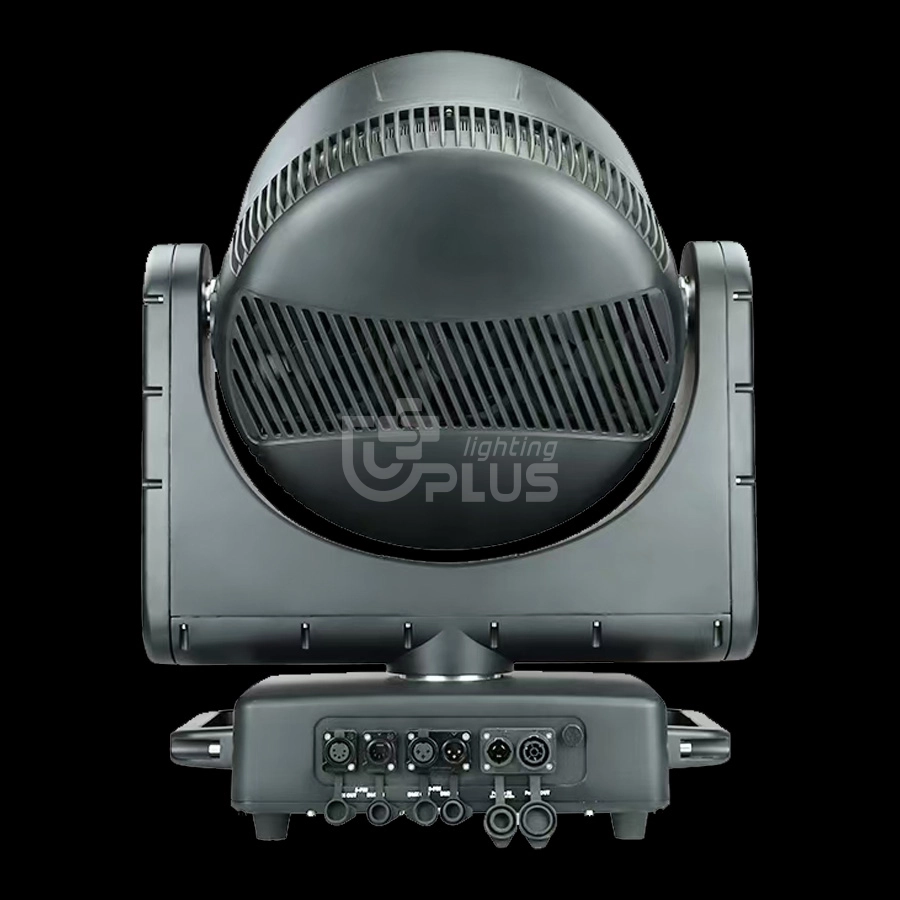

uplus-lighting-ip-wash1980-moving-head-zoom-circle-back-light - Uplus Lighting
IP-WASH1980 (1) - Uplus Lighting
IP-WASH1980 (3) - Uplus Lighting
IP-WASH1980 (6) - Uplus Lighting
IP-WASH1980 (5) - Uplus Lighting
IP-WASH1980 (7) - Uplus Lighting
undefined
uplus-lighting-ip-wash1980-moving-head-zoom-circle-front-light - Uplus Lighting
uplus-lighting-ip-wash1980-red-moving-head-zoom-circle-front-light - Uplus Lighting
uplus-lighting-ip-wash1980-moving-head-zoom-circle-back-light - Uplus Lighting
IP-WASH1980 (1) - Uplus Lighting
IP-WASH1980 (3) - Uplus Lighting
IP-WASH1980 (6) - Uplus Lighting
IP-WASH1980 (5) - Uplus Lighting
IP-WASH1980 (7) - Uplus Lighting

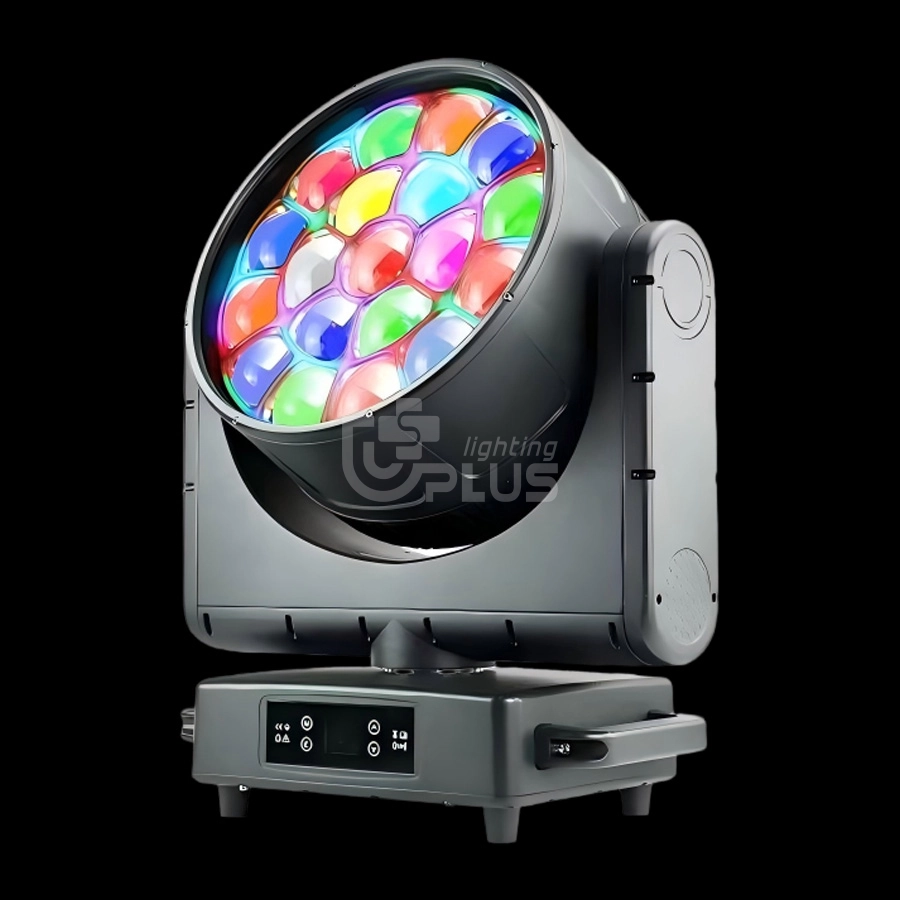

IP-WASH1980 IP66 19*80W Wash zoom moving head with circle light

IP66 19*80W Wash Zoom Moving Head with 19 high-power LEDs, combining wall washing and color correction with a ring light effect. 6-50° wide zoom range, supports multiple dynamic lighting effects and flexible head movement.



IP66 waterproof and dustproof for harsh outdoor conditions, multi-mode control and efficient heat dissipation, suitable for both indoor and outdoor professional scenarios.

GET A FREE QUOTE ➜
GET THE PRODUCT CATALOG ➜
IP-WASH1980.pdf
IP-WASH1980 MA.zip
INTRODUCTION
INTRODUCTION
SPECIFICATIONS
SPECIFICATIONS
EFFECT
EFFECT
LUX DATE & DIMENSION
LUX DATE & DIMENSION
FEATURES
FEATURES
APPLICATION
APPLICATION
PACKAGING & LOGISTIC
PACKAGING & LOGISTIC
FAQs
FAQs
uplus-lighting-ip-wash1980-moving-head-zoom-circle-front-light-cover-01 - Uplus Lighting

Specifications

OPTICS

• Light source: 19*80W RGBW LED
• Power Consumption: 1500W
• Zoom angle: 6°–50°

FEATURES

• Full body Magnesium alloy IP66
• Each Led pixel control effect
• Wash zoom+ bee eye rotating effect
• Outstanding color Marco effect; Variable strobe effects
• Overheat temperature control
• Control mode: DMX512, Auto-run, Master-Slave, Sound active, RDM
• Control Channel: 43 CH
• Dimmer: 0-100% linear dimmer
• Display: LCD colorful display CTO

SPECIFICATION

• Dimension: 279*530*663mm; NW: 31 kgs

Effect

IP-WASH1980 1 - Uplus Lighting
beam angle
IP-WASH1980 3 - Uplus Lighting
beam angle
ip-wash1980-rgbw-pixel-control-wash-effect - Uplus Lighting
main light built-in effect
IP-WASH1980 9 - Uplus Lighting
strip light built-in effect
IP-WASH1980 11 - Uplus Lighting
strip light built-in effect
ip-wash1980-blue-cyan-pixel-wash-effect - Uplus Lighting
main light +strip light built-in effect
ip-wash1980-multicolor-led-pixel-effect - Uplus Lighting
main light +strip light built-in effect
IP-WASH1980 8 - Uplus Lighting
main light +strip light built-in effect
LUX Date & Dimension
uplus-ip-wash1980-led-wash-moving-head-beam-angle-lux-chart - Uplus Lighting
IP WASH6125 SIZE - Uplus Lighting

Features

IP-WASH1980 lamp source - Uplus Lighting
IP-WASH1980 beam angle - Uplus Lighting
IP-WASH6125 size - Uplus Lighting
IP-WASH 1980 weight - Uplus Lighting

APPLICATION

uplus-ip-wash1980-concert-stage-rgbw-wash-moving-head-lighting - Uplus Lighting
Concert Stage
Wide wash and pixel effects energize live performances.
uplus-ip-wash1980-theater-stage-rgbw-wash-moving-head-lighting - Uplus Lighting
Theater Show
Smooth dimming supports refined dramatic color transitions.
uplus-ip-wash1980-church-stage-pixel-wash-moving-head-lighting - Uplus Lighting
Church Stage
Soft washes and pixel effects enhance worship atmospheres.
uplus-ip-wash1980-tv-studio-rgbw-wash-moving-head-lighting - Uplus Lighting
TV Studio
Rich RGBW output creates clean camera-friendly scene lighting.
uplus-ip-wash1980-outdoor-festival-ip66-wash-moving-head-lighting - Uplus Lighting
Outdoor Festival
IP66 prtection performs confidently in open-air environments.
uplus-ip-wash1980-corporate-event-wash-zoom-moving-head-lighting - Uplus Lighting
Corporate Event
Flexible zoom adapts to launched, galas and presentations.

Packaging & Logistic

Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

Is the 6-50° zoom adjustment easy to operate? Can it accurately lock the spot size?

The zoom adjustment is smooth and precise, supporting DMX console or manual setting on a standalone unit. It can quickly lock the desired spot size, adapting to different site requirements.

How long will it overheat under continuous high-intensity use? How is the heat dissipation?

Built-in high-efficiency heat dissipation system; it does not easily overheat even under continuous high-intensity operation for several hours, suitable for large-scale performances, long-term lighting applications, etc.

What is the lifespan of the LED chips? Is replacement and maintenance convenient?

The LED chips can last for tens of thousands of hours under normal use. The modular design makes replacement easy and requires no complicated operations.

What is the maximum number of lights that can be controlled simultaneously when controlling multiple lights?

Multiple lights can be synchronized via DMX512 or master-slave mode. Theoretically, there is no limit, but the specific number depends on the console's load capacity.

Can the IP66 protection rating be used long-term in heavy rain and dusty environments?

The IP66 sealing design can directly withstand heavy rain and heavy dust. No additional protection is needed for long-term outdoor use, ensuring stability.
