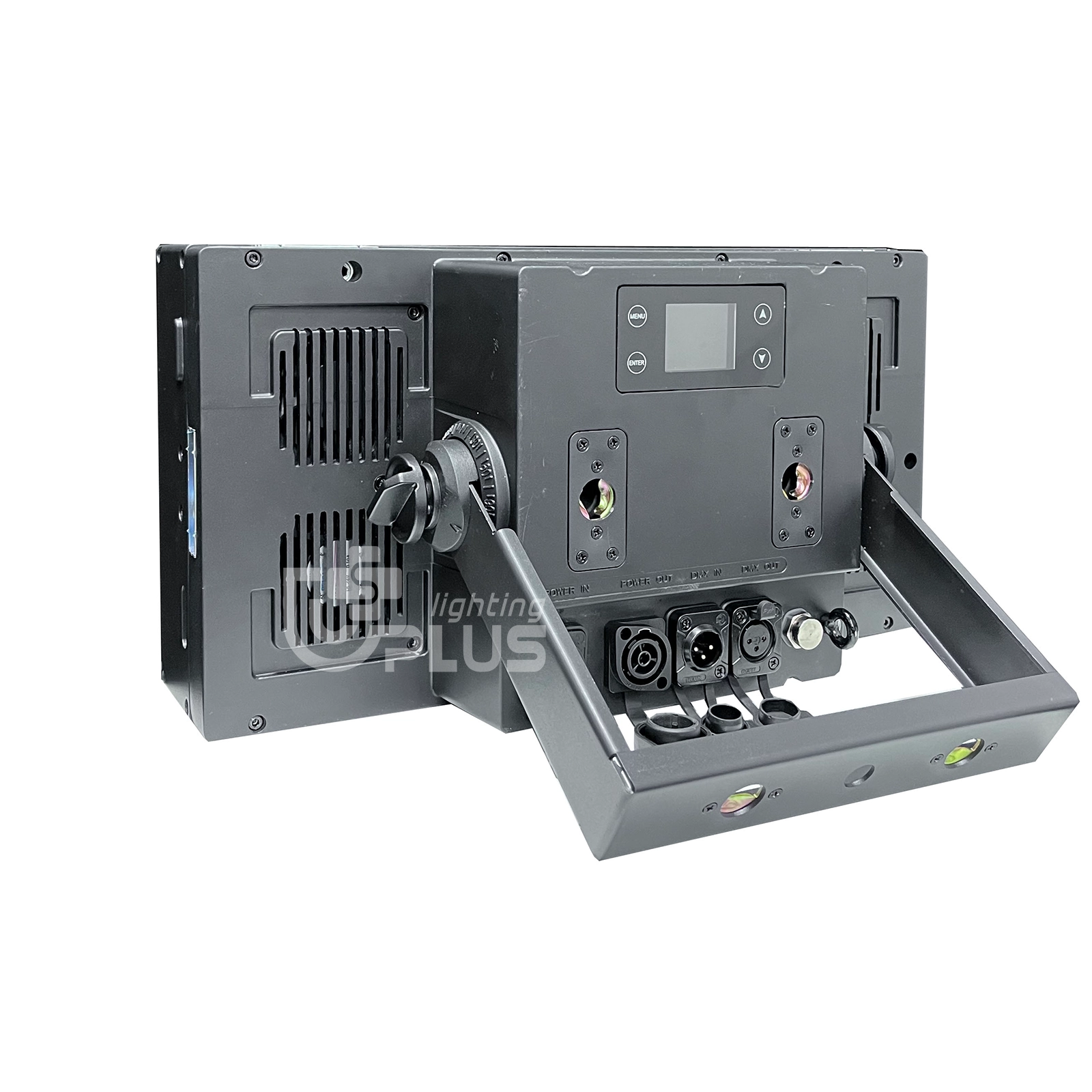

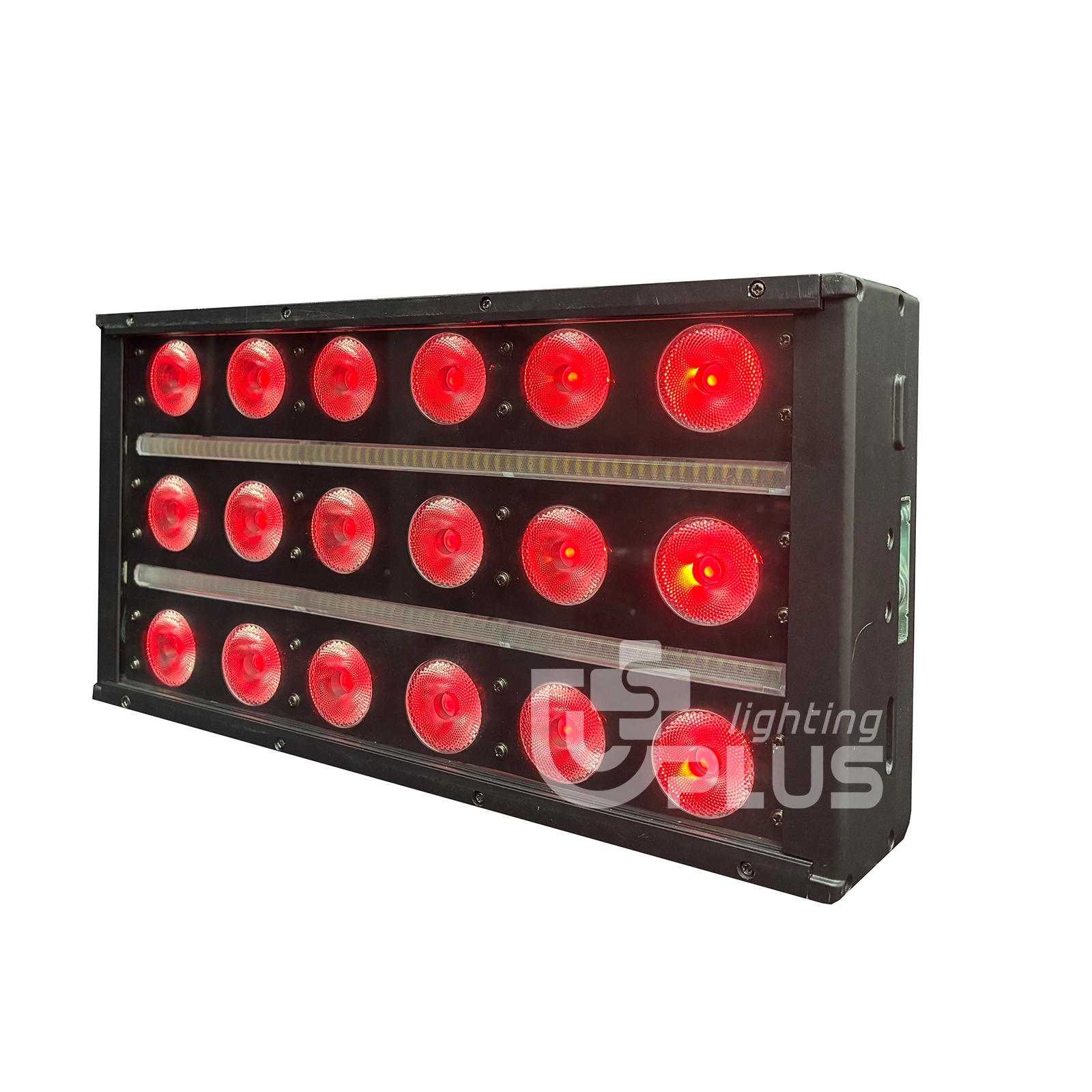

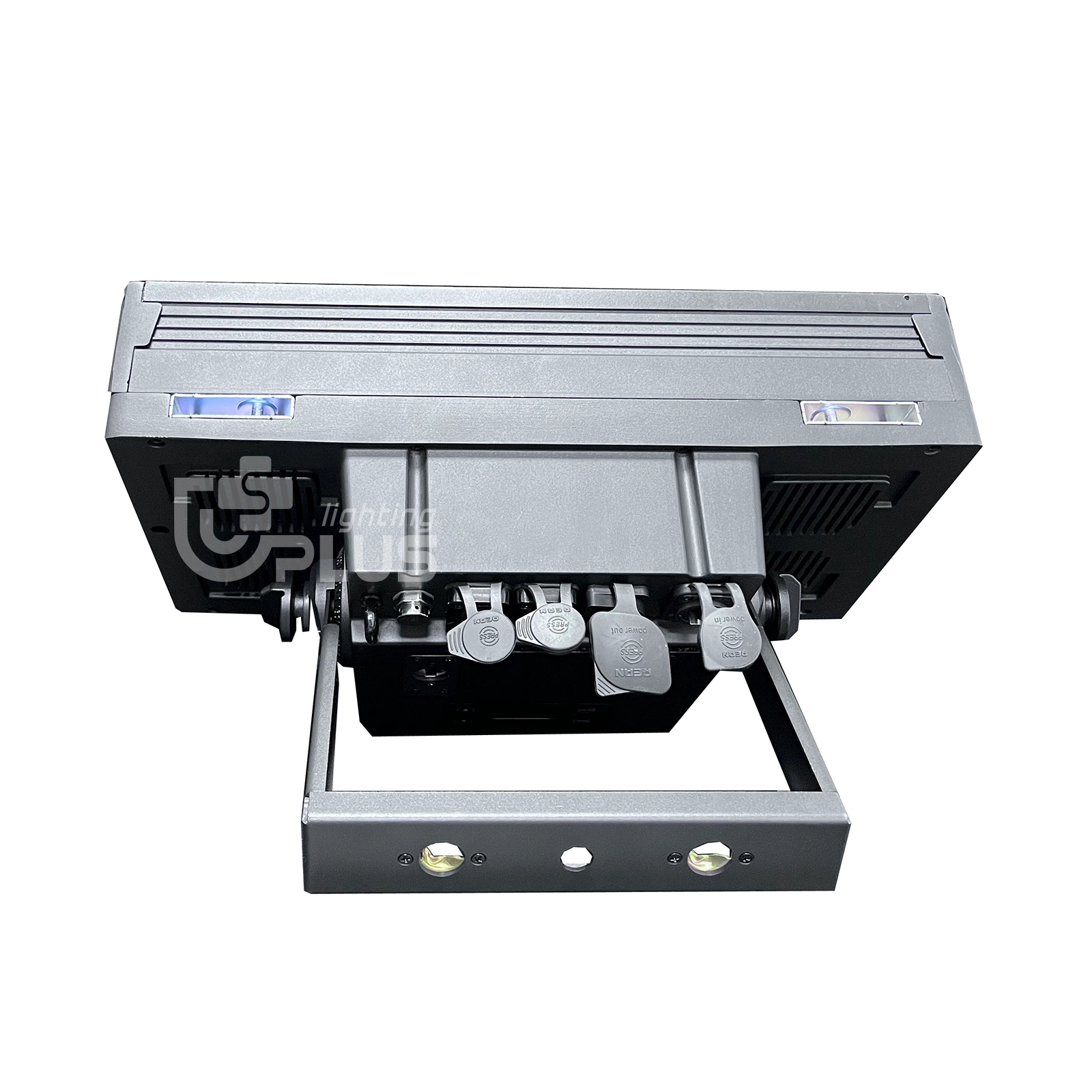

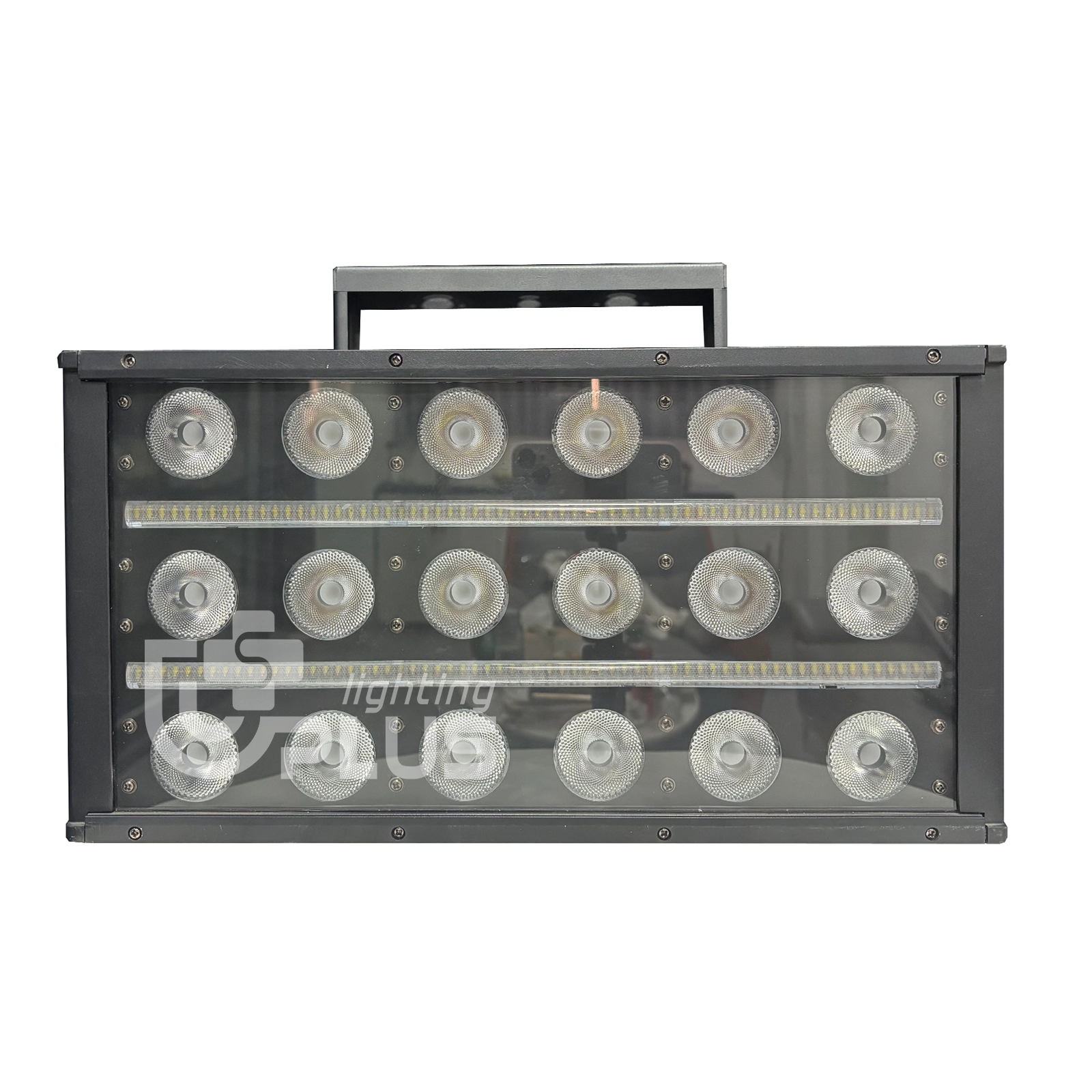

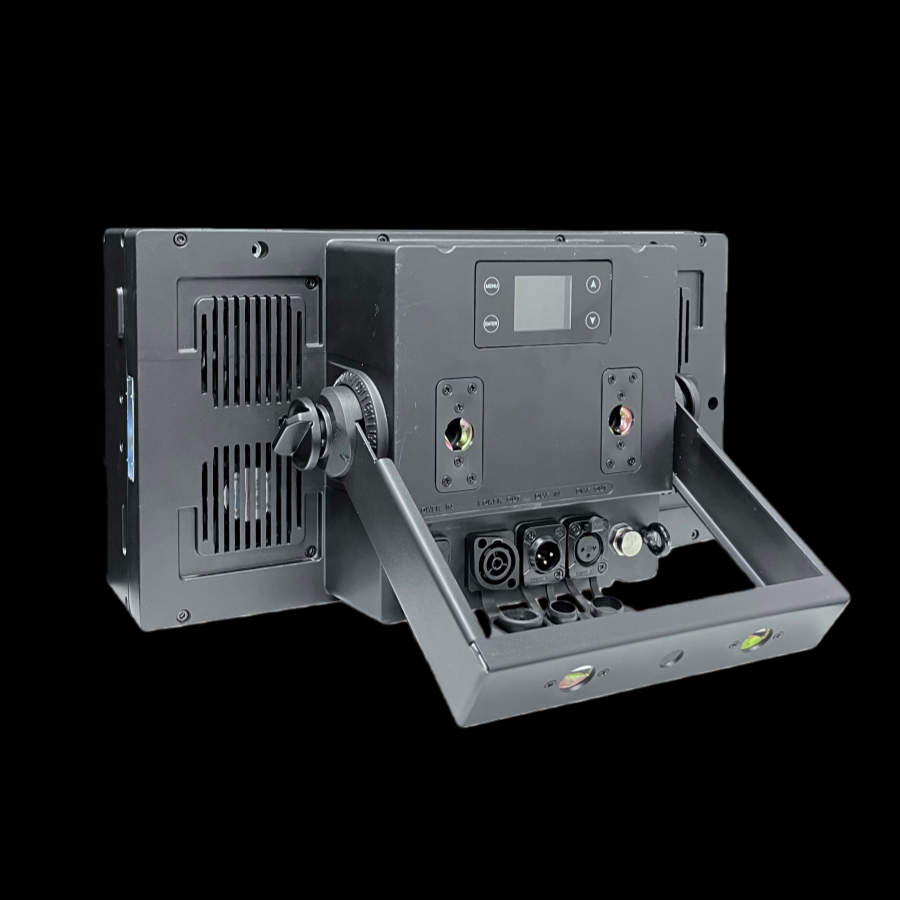

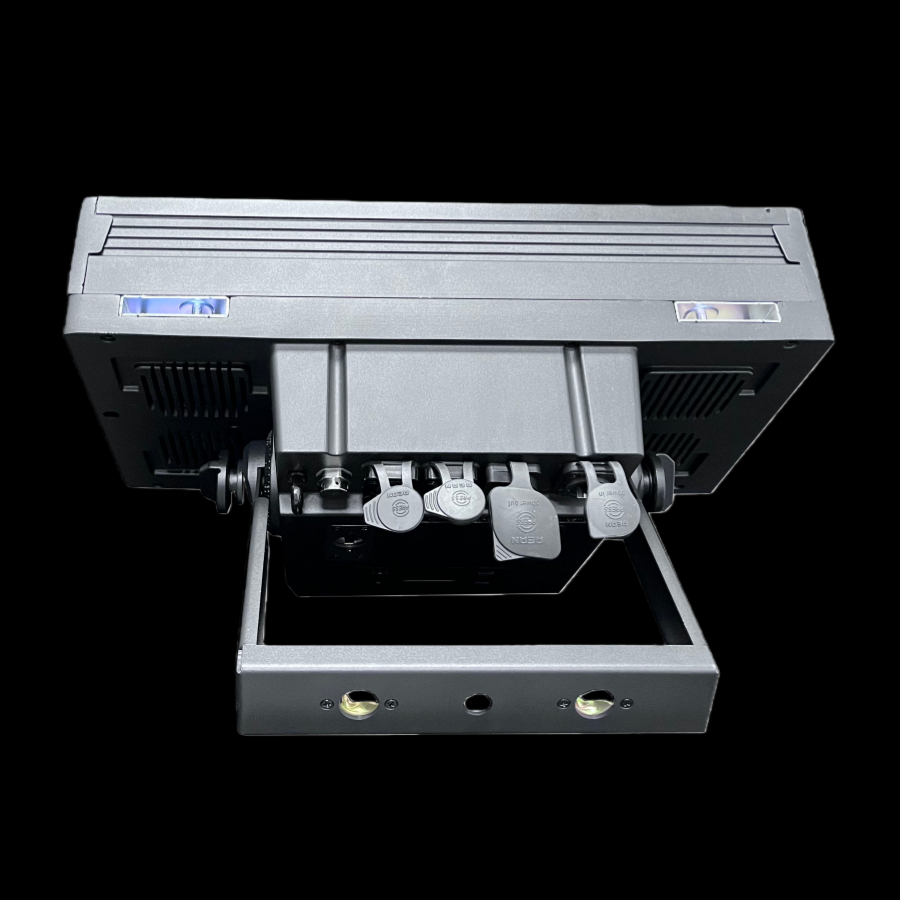

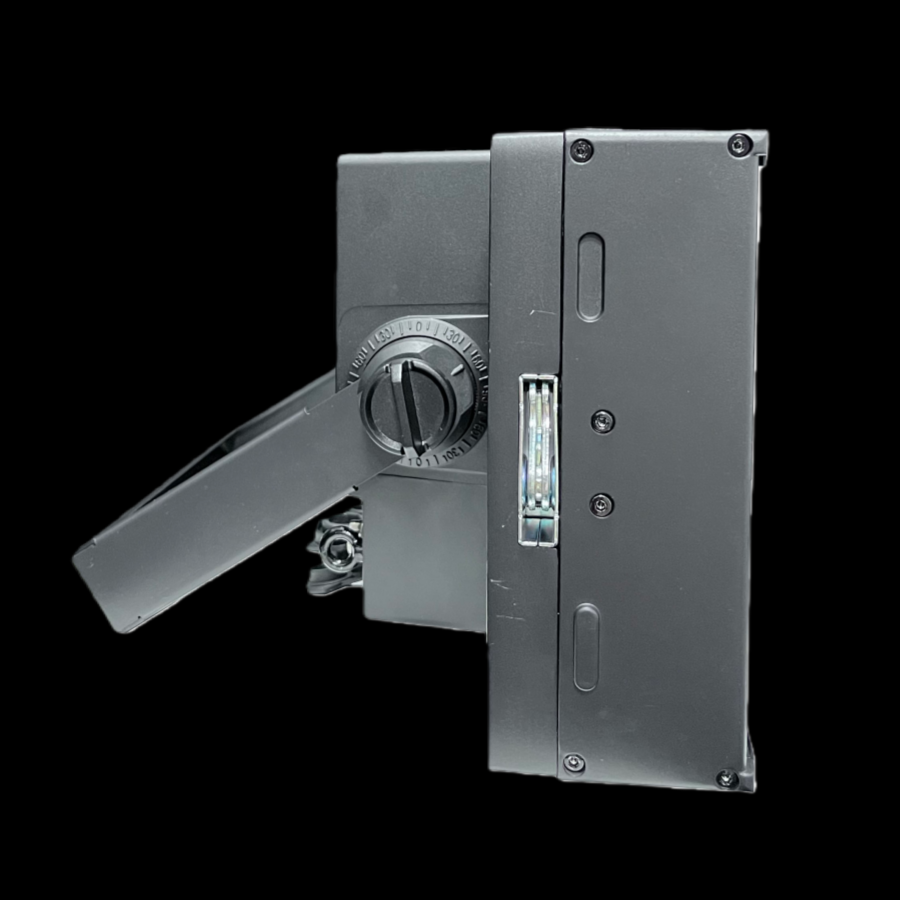

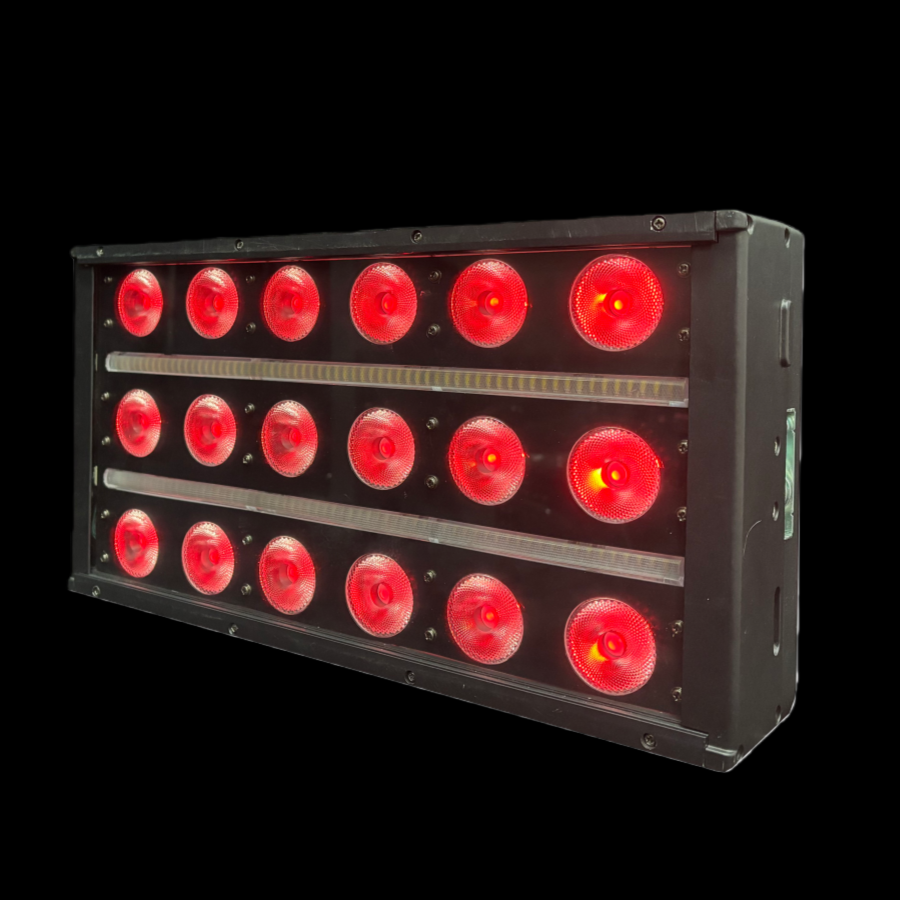

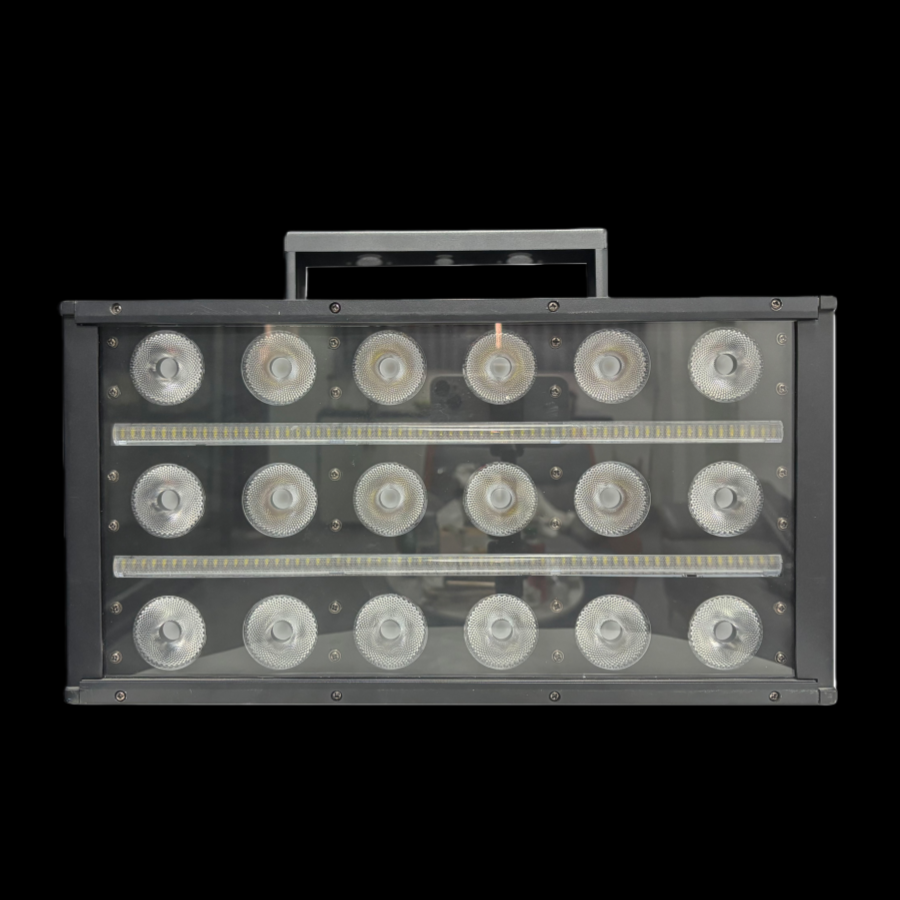

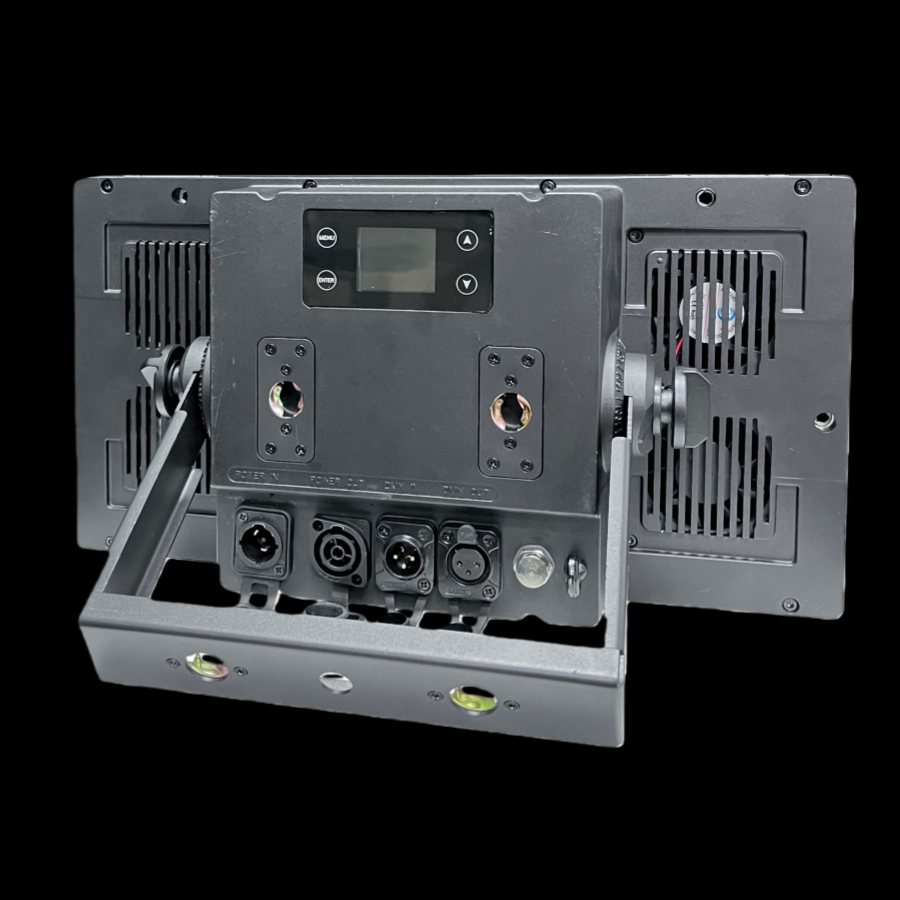

IP-WS1820 IP-WS1820 RGBW IP65 18*20W pixel wash and strobe panel light
The IP65 18*20W pixel wash and strobe panel light is an outdoor pixel panel light that integrates color washing and strobe functions. The 18 20W LEDs support independent pixel light control, resulting in rich and varied light effects. It is IP65 protected against rain and dust, compatible with DMX512 control, and suitable for outdoor performances, cultural and tourism light shows, and other scenarios.
Specifications
OPTICS
•Light source:128x3W Cold White+18x20W RGBL/RGBW(optional)
•Power Consumption: 550W
•Beam angle: 40°
•Spot angle: 114°
FEATURES
•Control: DMX512,Auto, Sound active, Master/slave
•DMX Channel: 5/15/49/103/88 CH
•Display: LCD display
•IP65 rate
•Dimmer:0-100% linear dimming
•Dimming mode: 5 types
•Dimming curve: 4 types
•Strobe: 1-20Hz/s
SPECIFICATION
•Dimension: 408*274*162mm; NW: 11.4KG
Effect
Features
APPLICATION
Packaging & Logistic
Frequently Asked Questions
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
Can I visit Uplus Lighting company onsite?
Of course, our company is located at No. 4, Xiaotang Middle Road, Jianggao Town, Baiyun District, Guangzhou, China. Welcome to visit our factory!
What is Uplus Lighting's main product for factories?
The main products provided by Uplus are stage lighting, related accessories, and consoles. Our products are suitable for many large-scale international performances, concerts, theaters, music festivals, TV programs, etc.
Are you a manufacturer or a trading company?
We come directly from the factory and also have a sales office in Baiyun, Guangzhou.
Is the IP-WS1820 suitable for outdoor stage and rental use?
The IP-WS1820 has an IP65 rating, a specified 50,000-hour LED lifespan, and weighs 11.4 kg. It measures 408 × 162 × 274 mm for installation and transport planning.
What dimming, strobe and control options does the IP-WS1820 support?
The fixture supports DMX512, Auto, Sound Active and Master-Slave control, with 5/15/49/88/103-channel modes, 0–100% linear dimming, 5 dimming modes, 4 dimming curves, and 1–20Hz strobe.
