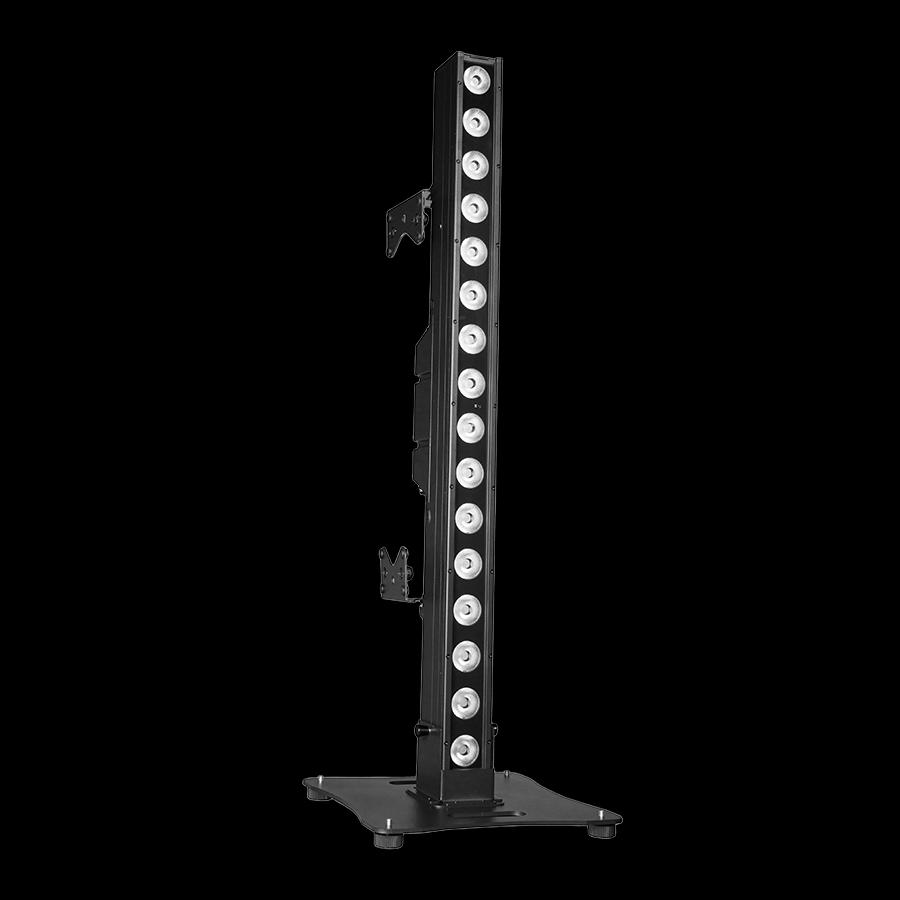

ip-b1620-vertical-rgba-led-bar-light-product-view - Uplus Lighting

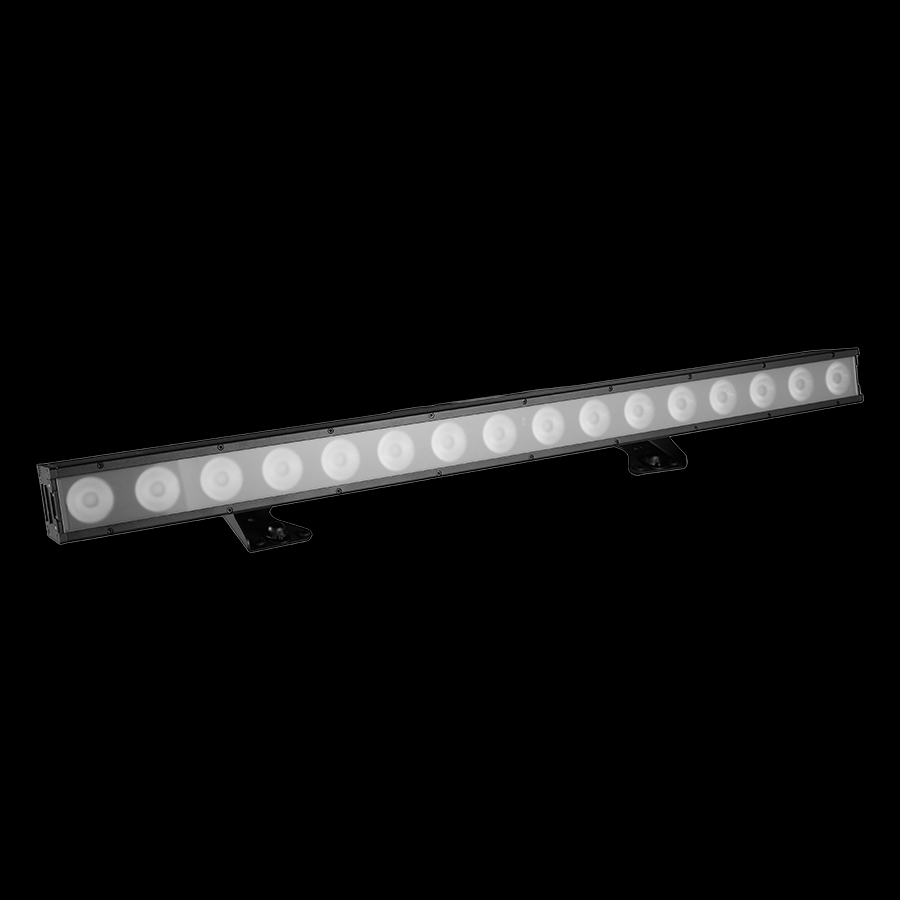

ip-b1620-16x20w-rgba-led-bar-light-product-view - Uplus Lighting

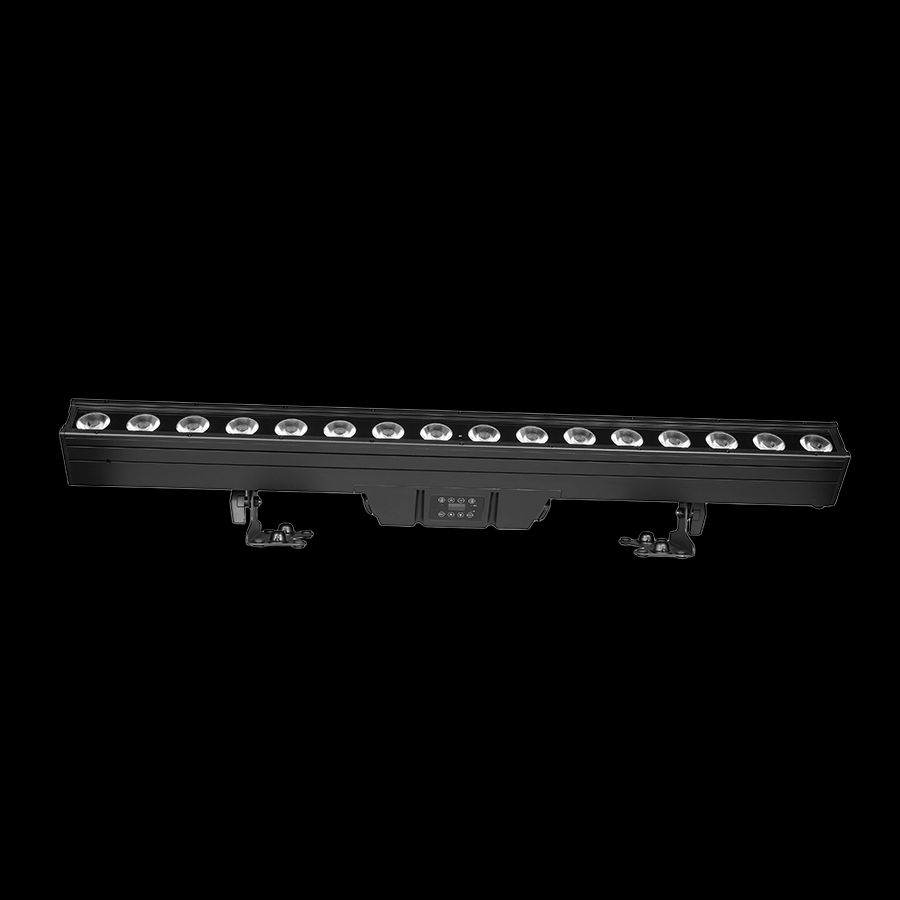

ip-b1620-horizontal-rgba-led-bar-light-front-view - Uplus Lighting

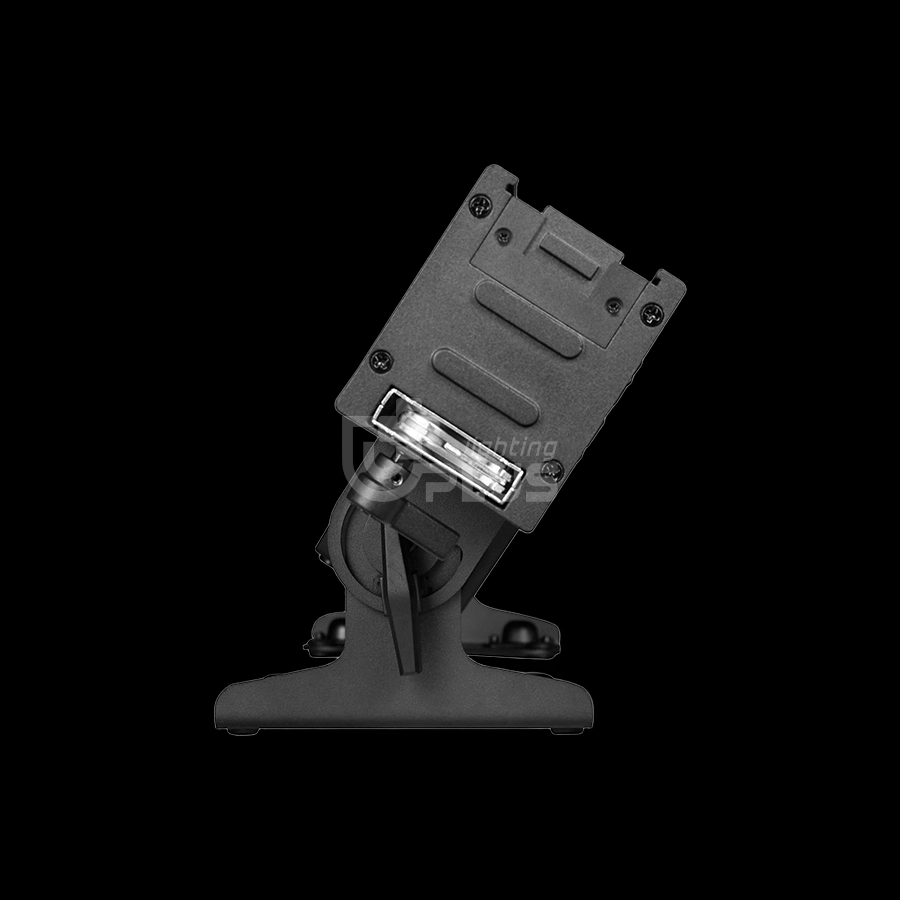

ip-b1620-led-bar-light-side-angle-view - Uplus Lighting
undefined
ip-b1620-vertical-rgba-led-bar-light-product-view - Uplus Lighting

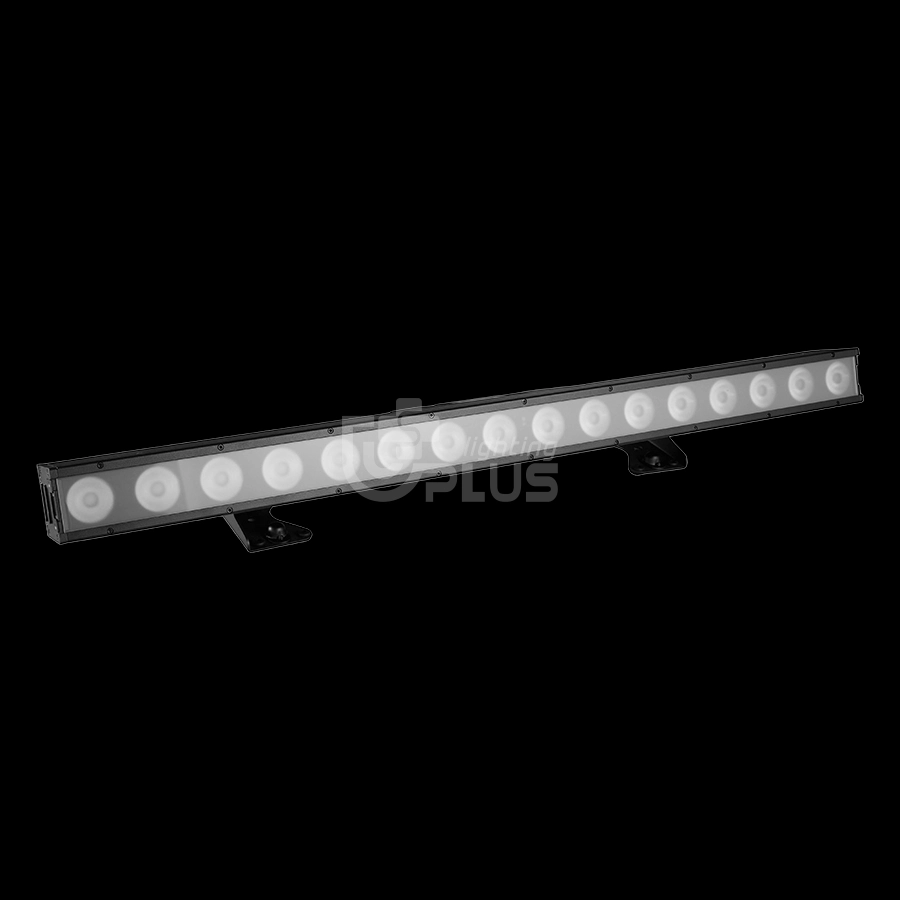

ip-b1620-16x20w-rgba-led-bar-light-product-view - Uplus Lighting

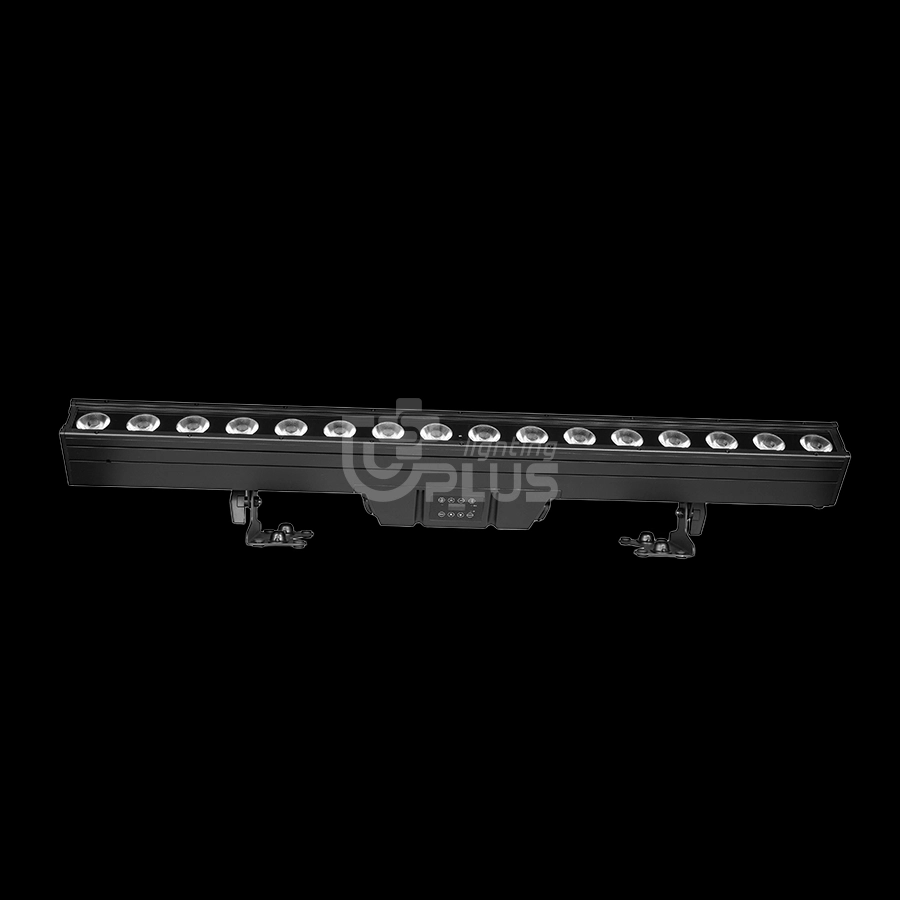

ip-b1620-horizontal-rgba-led-bar-light-front-view - Uplus Lighting

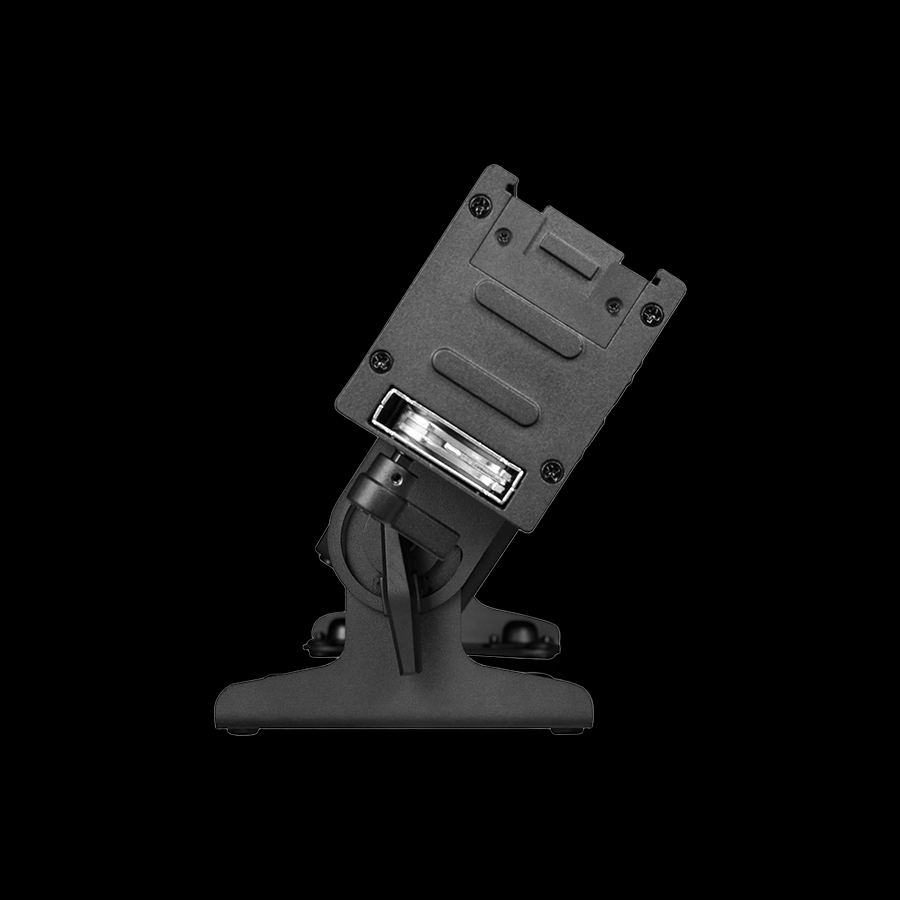

ip-b1620-led-bar-light-side-angle-view - Uplus Lighting

IP-B1620 IP65 16*20w RGBA Led battery Splicing bar light

This outdoor battery light and stage battery light is the IP-B1620, an IP65-rated splicing bar with 16 × 20 W RGBA LEDs.

Equipped with an intelligent BMS (Battery Management System), the fixture supports both built-in battery operation and AC power connection without damaging the battery. The intuitive MENU interface reduces reliance on external lighting consoles, allowing users to easily select operating modes, monitor estimated remaining battery runtime, adjust color temperature (CCT) and brightness, and access a wide range of built-in programs and pixel effects. Quick-access settings for CCT, WiFi mode, and brightness provide greater flexibility and convenience for different lighting applications.

INTRODUCTION
INTRODUCTION
SPECIFICATIONS
SPECIFICATIONS
EFFECT
EFFECT
LUX DATE & DIMENSION
LUX DATE & DIMENSION
FEATURES
FEATURES
APPLICATION
APPLICATION
PACKAGING & LOGISTIC
PACKAGING & LOGISTIC
FAQs
FAQs

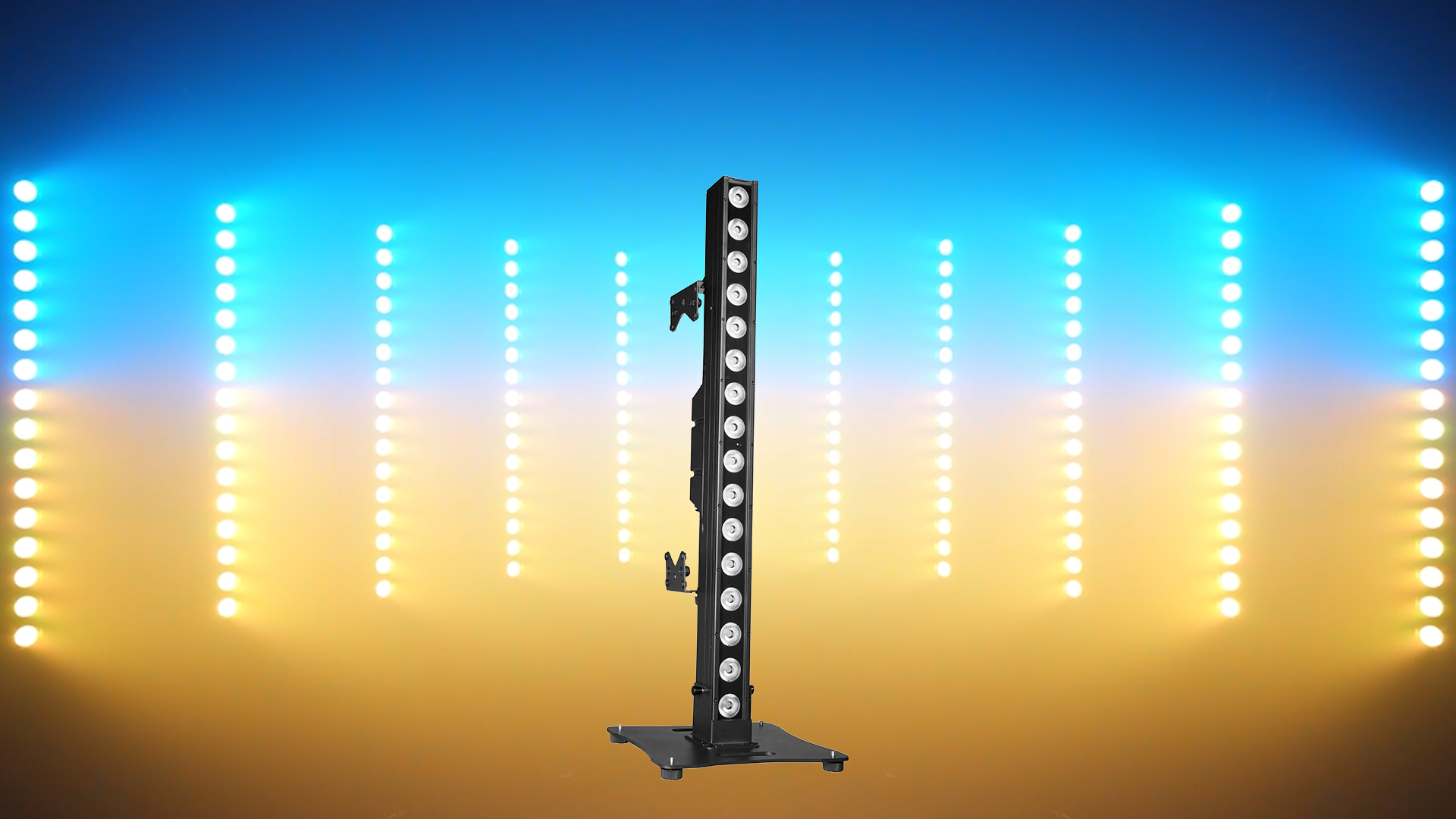

ip-b1620-rgba-led-bar-light-stage-lighting-cover - Uplus Lighting

Specifications

OPTICS

• Light source: 16*20w RGBA 4in1 led
• Beam angle:20°(10°/40° optional)
• Colour temperature (range): 2000 to 10000K adjustable
• Battery type: lithium battery
• Battery: Imported 18650 lithium battery 13200 mah capacity

FEATURES

• Optional PWM: 800 Hz, 1000 Hz, 2000 Hz, 4000 Hz, 12000 Hz, 25000 Hz
• Battery charging time: 5 hours
• Charging time: 6 hours fully charged

• Time mode: max/3/4/5/6/7/8 hour mode can be selected
• Control protocol: RDM, 2.4G, WDMX. IR. APP

• Compatibility of wireless WDMX "G": g3, g4, g4s
• Seetronic Powercon True 1 and Data in/out connectors
• IP rated: IP65

• Can be spliced

SPECIFICATION

• Dimension: 1027*140*192mm; NW: 9.45 kg

Effect

ip-b1620-red-led-bar-light-wall-wash-effect - Uplus Lighting
RGBA

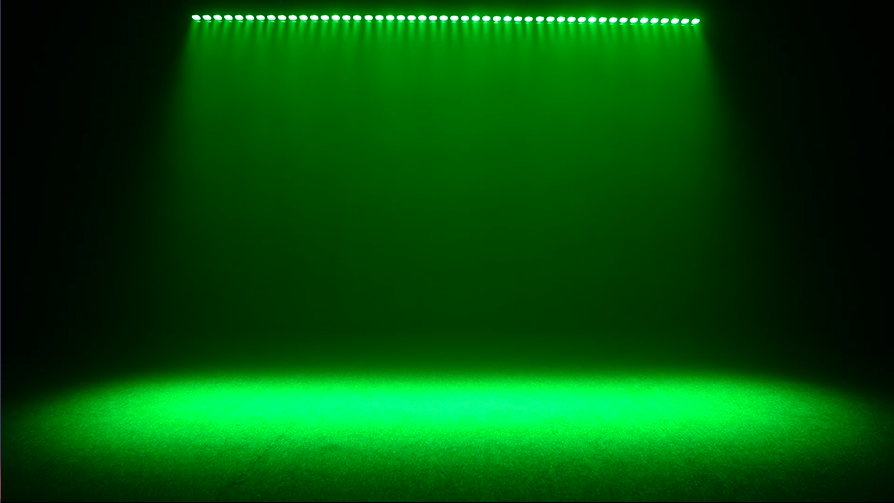

ip-b1620-green-wall-wash-battery-led-bar-light - Uplus Lighting
RGBA
ip-b1620-blue-led-bar-light-wall-wash-effect - Uplus Lighting
RGBA
ip-b1620-amber-led-bar-light-wall-wash-effect - Uplus Lighting
RGBA

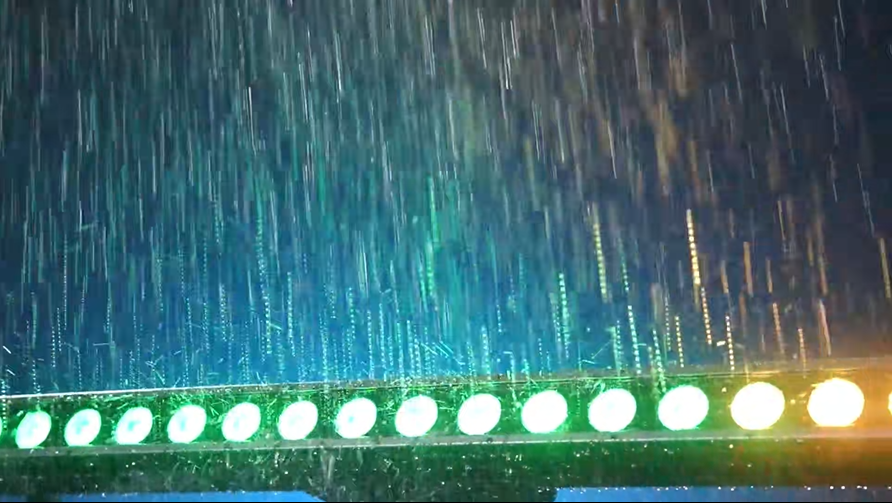

ip-b1620-ip65-waterproof-led-bar-light-rain-effect - Uplus Lighting
Waterproof Test

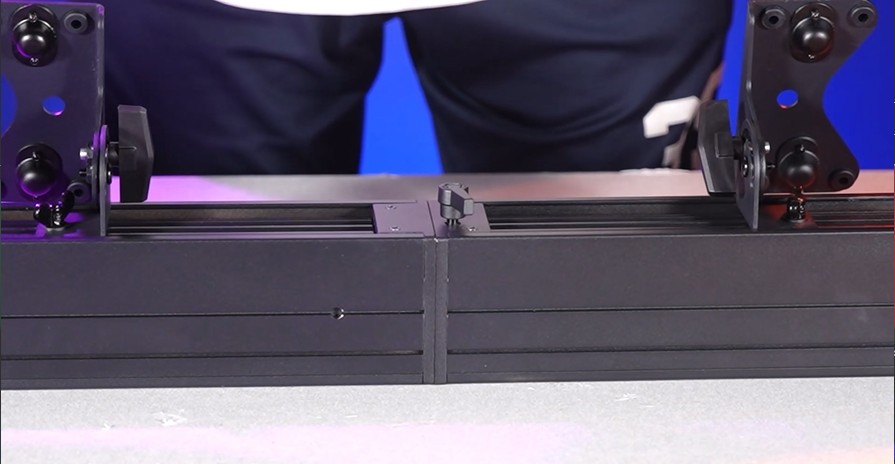

ip-b1620-battery-led-bar-light-floor-installation - Uplus Lighting
Splicing function

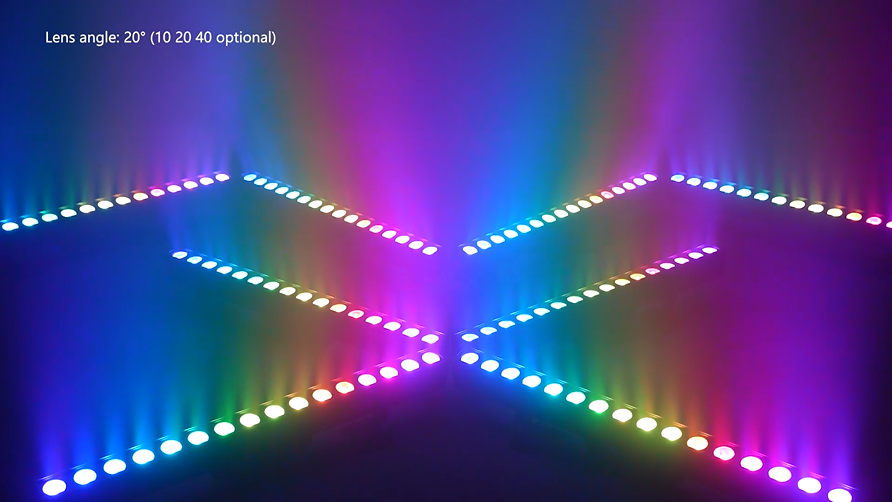

ip-b1620-splicing-led-bar-light-linear-stage-effect - Uplus Lighting
Built-in Effect
ip-b1620-blue-purple-led-bar-light-stage-effect - Uplus Lighting
Built-in Effect
ip-b1620-blue-purple-led-bar-light-stage-beam-effect - Uplus Lighting
Built-in Effect
ip-b1620-spliced-led-bar-lights-rgb-stage-design - Uplus Lighting
Built-in Effect
ip-b1620-rgba-led-bar-light-rainbow-wall-wash - Uplus Lighting
Built-in Effect
ip-b1620-rgba-led-bar-light-blue-amber-stage-effect - Uplus Lighting
Built-in Effect
LUX Date & Dimension
ip-b1620-dimension-drawing-professional-led-bar-light - Uplus Lighting

Features

ip-b1620-16x20w-rgba-4in1-led-light-source - Uplus Lighting
ip-b1620-20-degree-beam-angle-led-bar-light - Uplus Lighting
ip-b1620-2000k-10000k-adjustable-color-temperature - Uplus Lighting
ip-b1620-1027x140x192mm-led-bar-light-dimensions - Uplus Lighting
ip-b1620-9-45kg-net-weight-led-bar-light - Uplus Lighting

APPLICATION

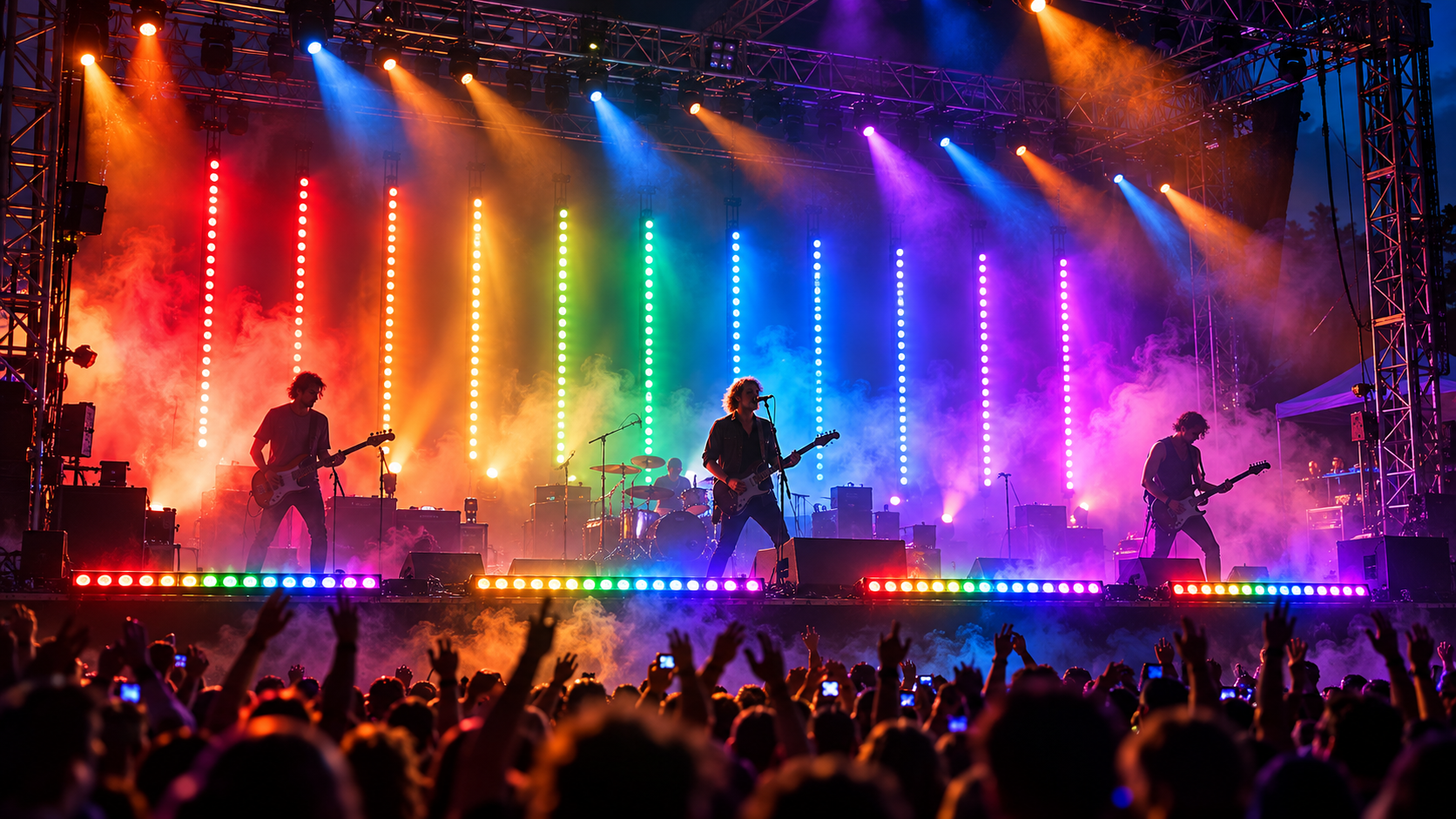

ip-b1620-live-concert-rgba-battery-splicing-bar-light - Uplus Lighting
Live Concert
Vibrant RGBA effects energize large outdoor concert stages.

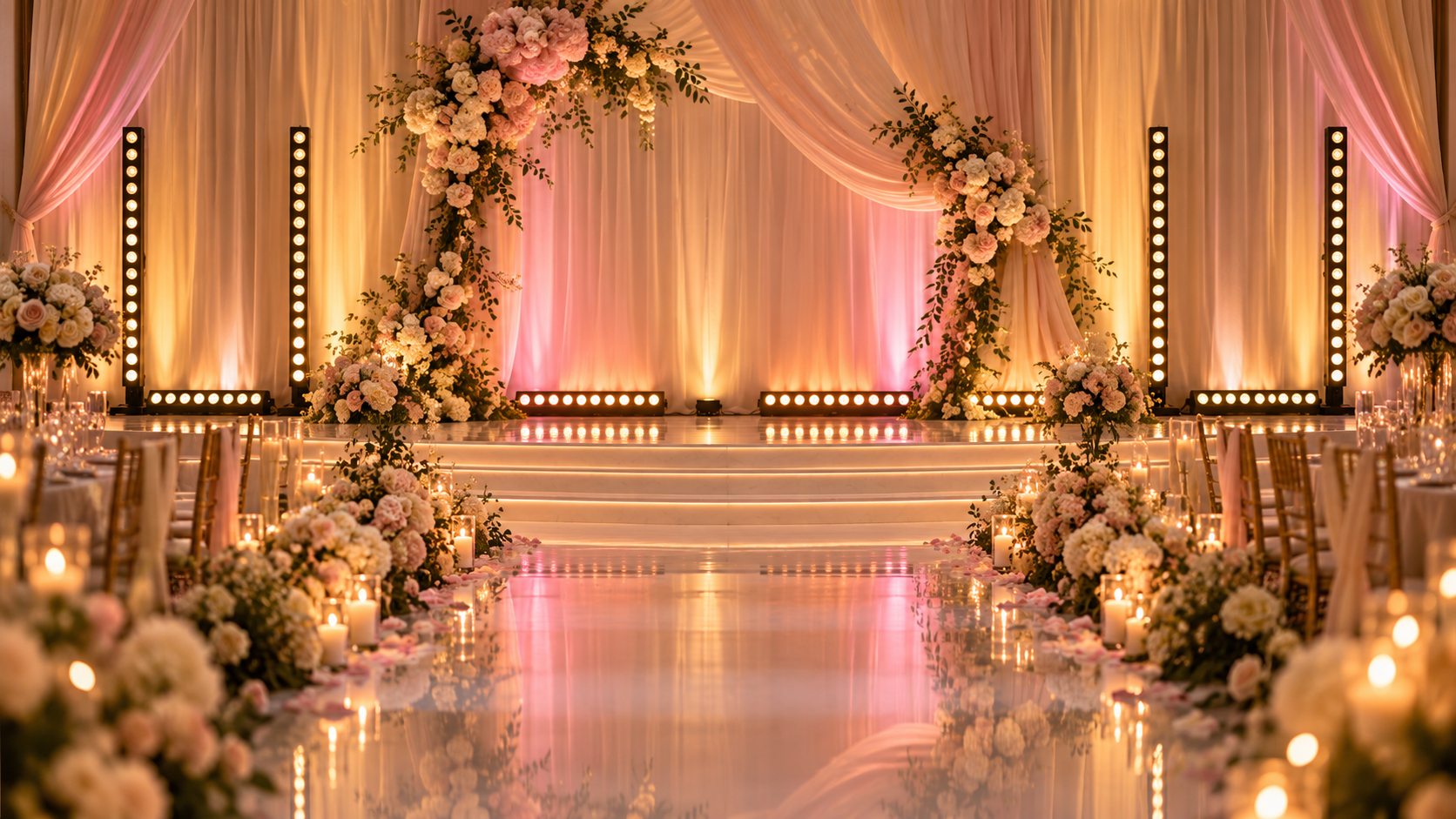

ip-b1620-wedding-venue-warm-uplighting-battery-bar-light - Uplus Lighting
Wedding Venue
Warm uplighting creates elegant ambiance for wedding celebrations.

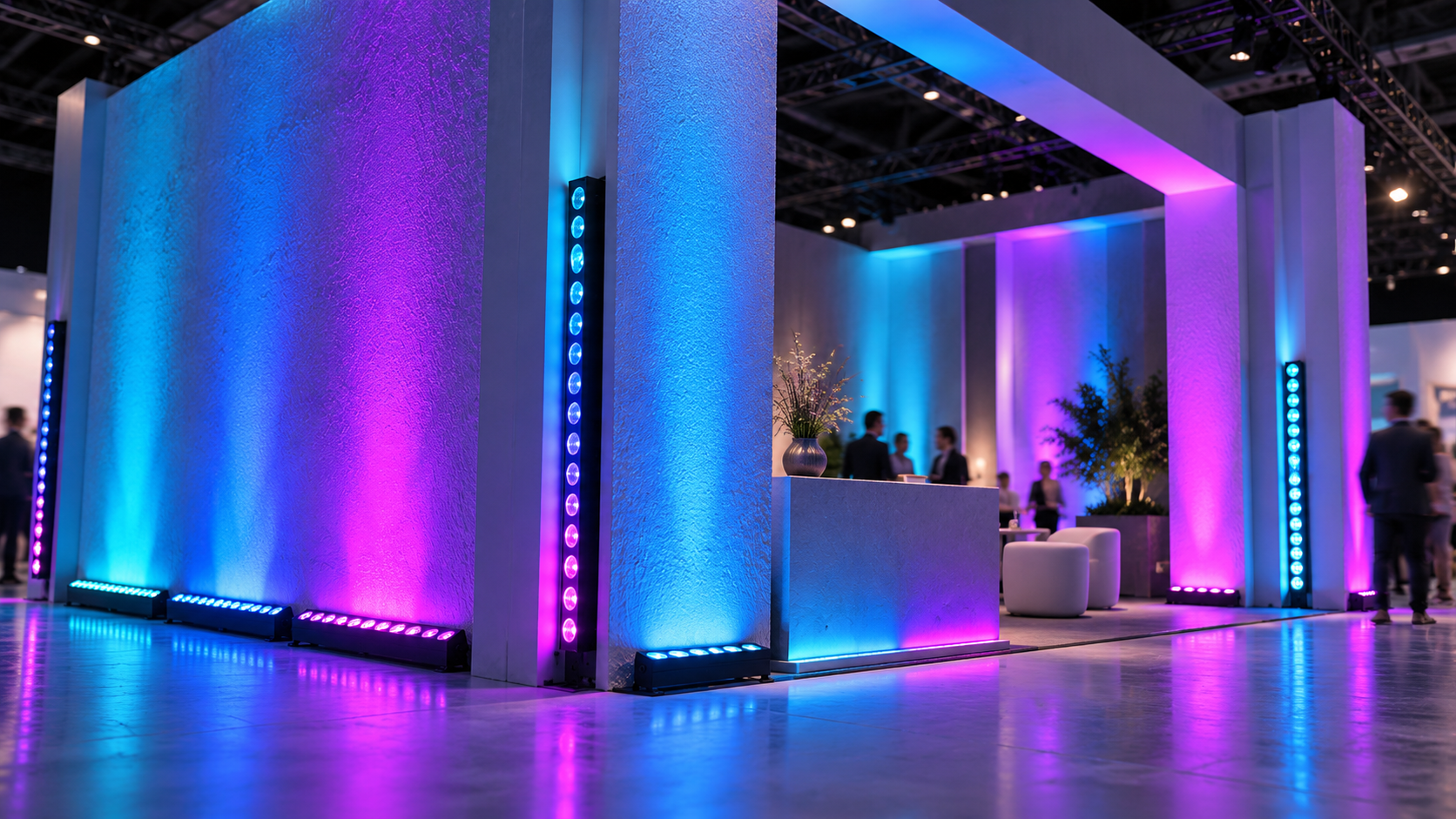

ip-b1620-exhibition-booth-rgba-wall-wash-bar-light - Uplus Lighting
Exhibition Booth
Colorful wall washing enhances modern exhibition booth designs.

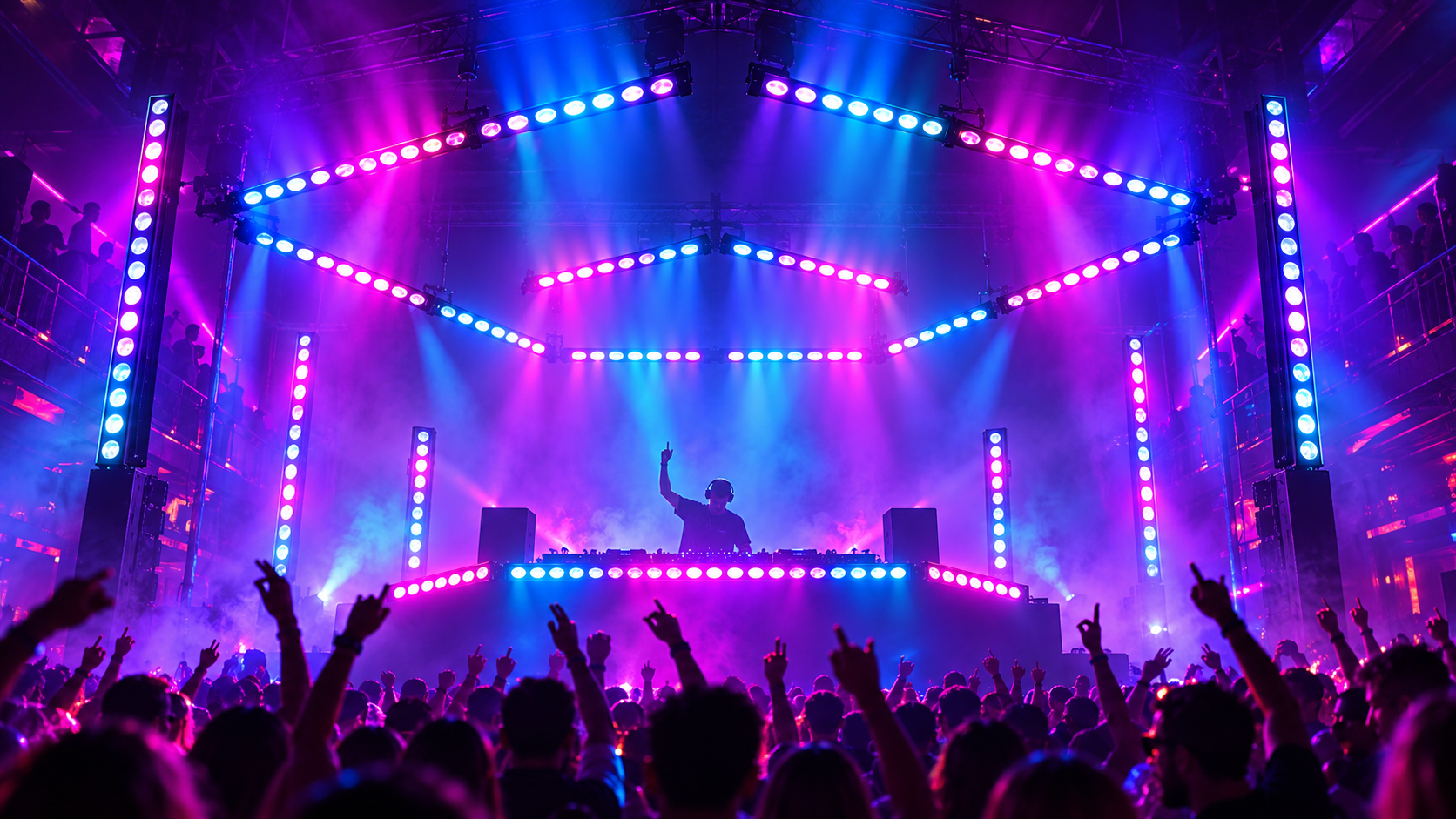

ip-b1620-nightclub-dj-stage-splicing-led-bar-light - Uplus Lighting
Night Club
Spliced bars create immersive geometric effects around DJ stages.

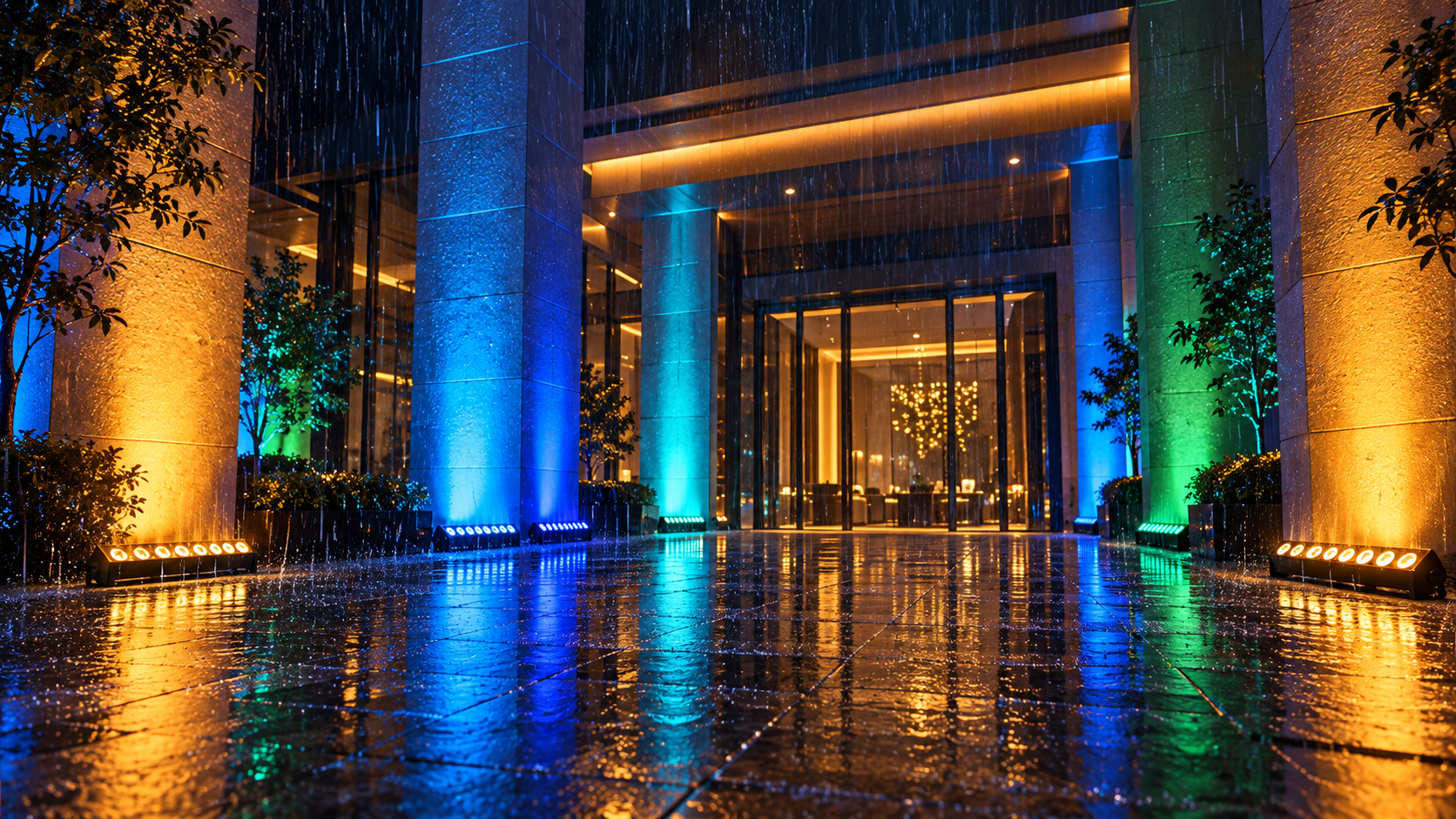

ip-b1620-ip65-outdoor-rain-event-led-bar-light - Uplus Lighting
Outdoor Event
Waterproof lighting delivers reliable color effects in rainy conditions.

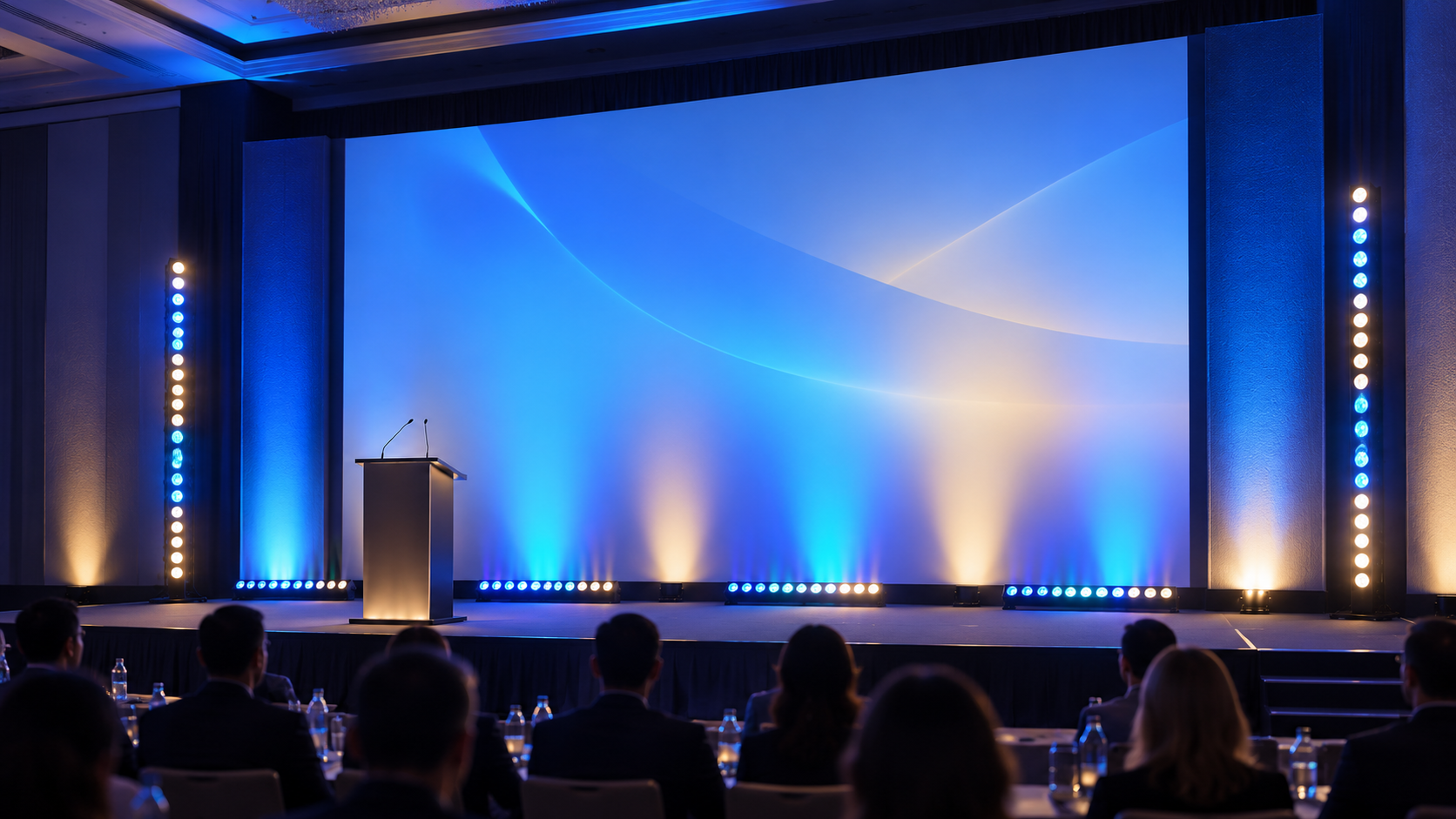

ip-b1620-corporate-event-stage-battery-led-bar-light - Uplus Lighting
Corporate Event
Professional blue-white lighting enhances conference and presentation stages.

Packaging & Logistic

Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

What battery capacity and runtime options does the IP-B1620 offer?

The IP-B1620 uses a 21,000mAh 18650 lithium battery. Runtime modes include Max, 3, 4, 5, 6, 7 and 8 hours.

What wireless control options does the IP-B1620 support?

The fixture supports RDM, 2.4G, WDMX, IR and APP control. WDMX “G” compatibility includes G3, G4 and G4S.

Can multiple IP-B1620 battery bar lights be spliced together?

Yes. The IP-B1620 is designed as a splicing bar light, allowing multiple fixtures to be connected for longer linear lighting layouts.

Do you provide ODM service?

Yes, Uplus provides comprehensive ODM services to customers and aftermarket partners.

Which product can be customized?

Our stage lights can be customized according to your needs, and we will try our best to meet your requirements.
