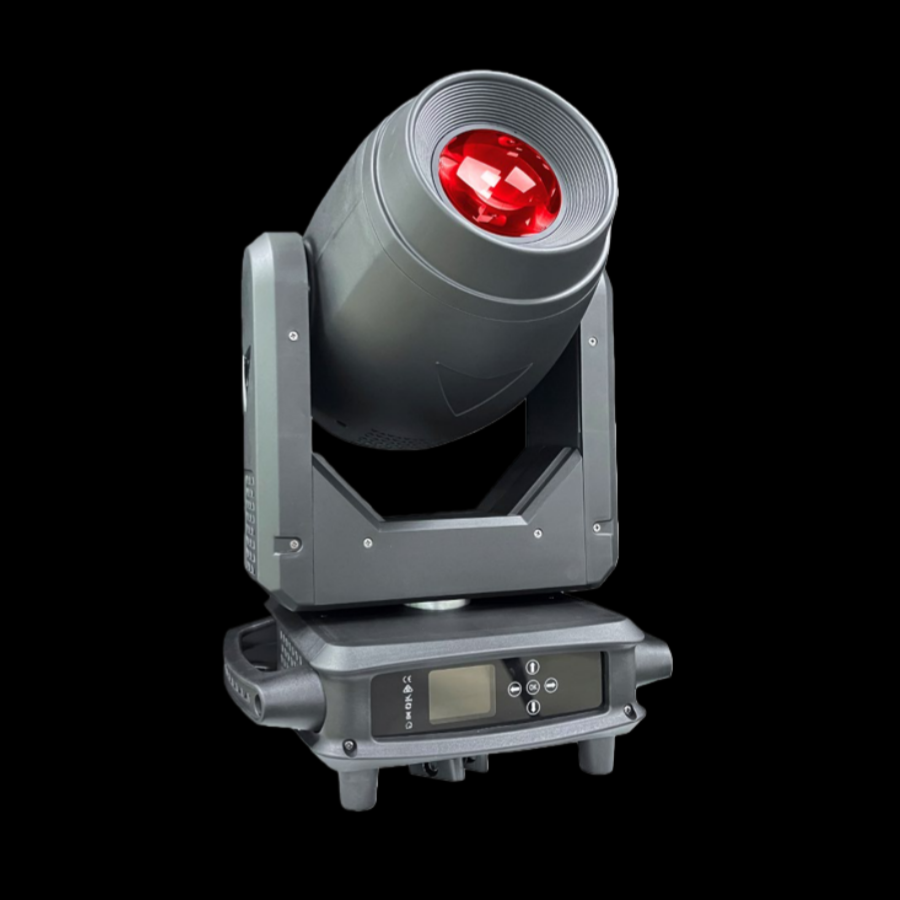

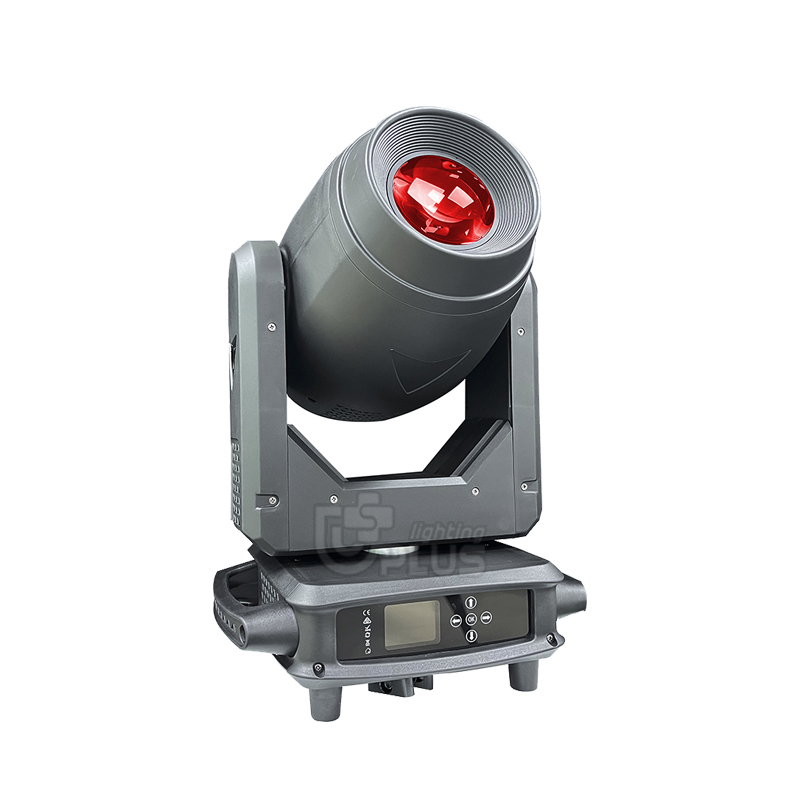

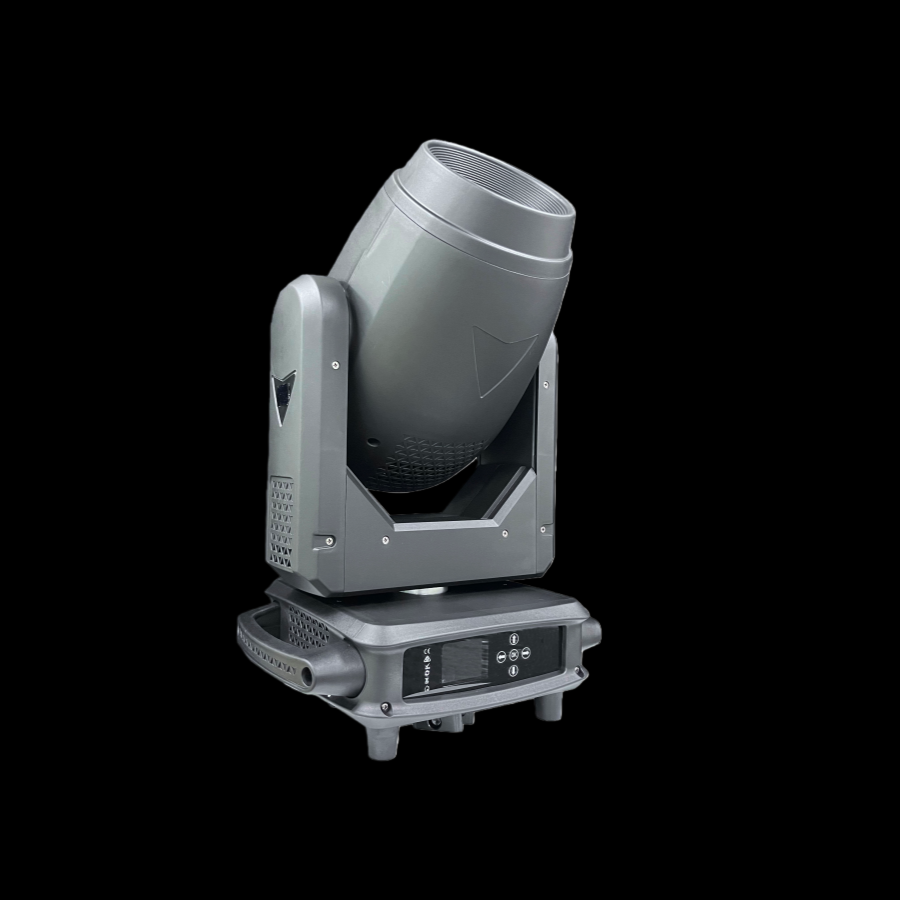

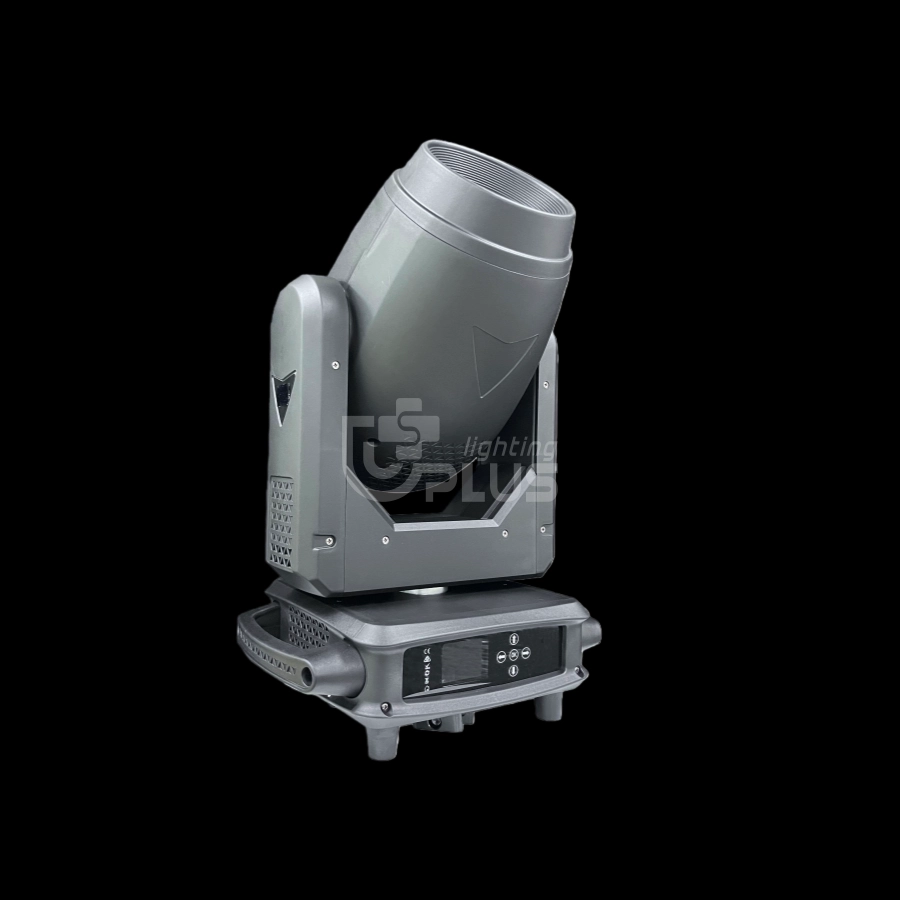

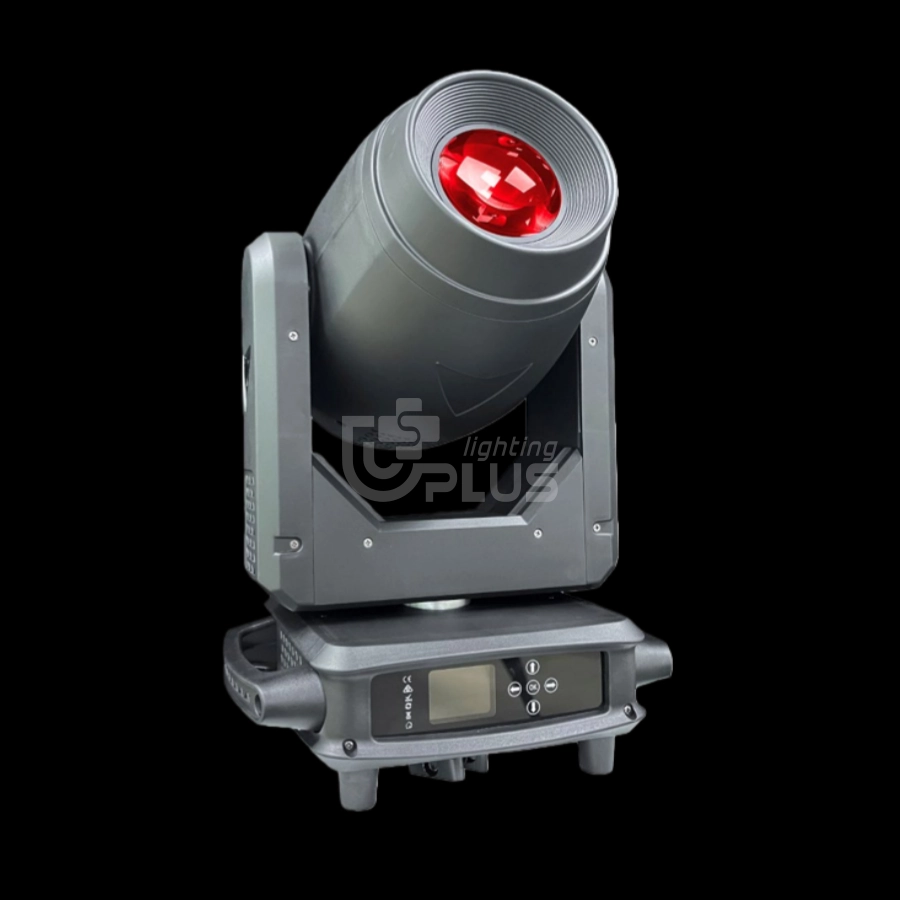

uplus-lighting-200w-led-bsw-3in1-moving-head-red-lens-angled-view - Uplus Lighting

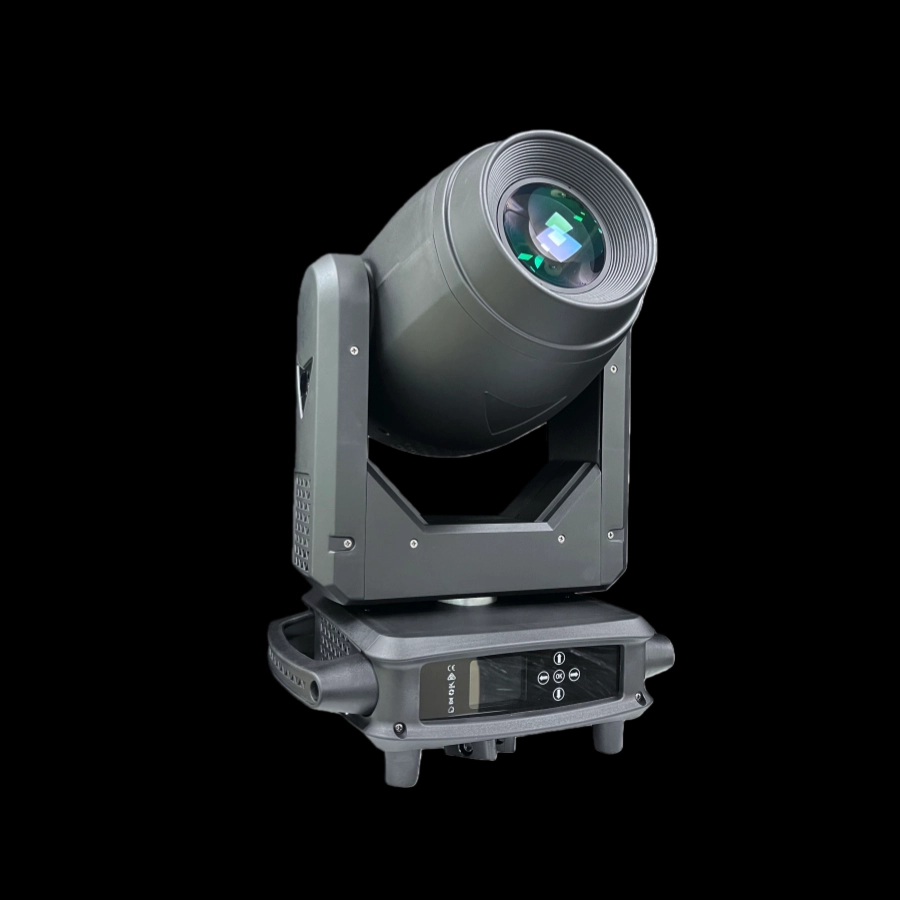

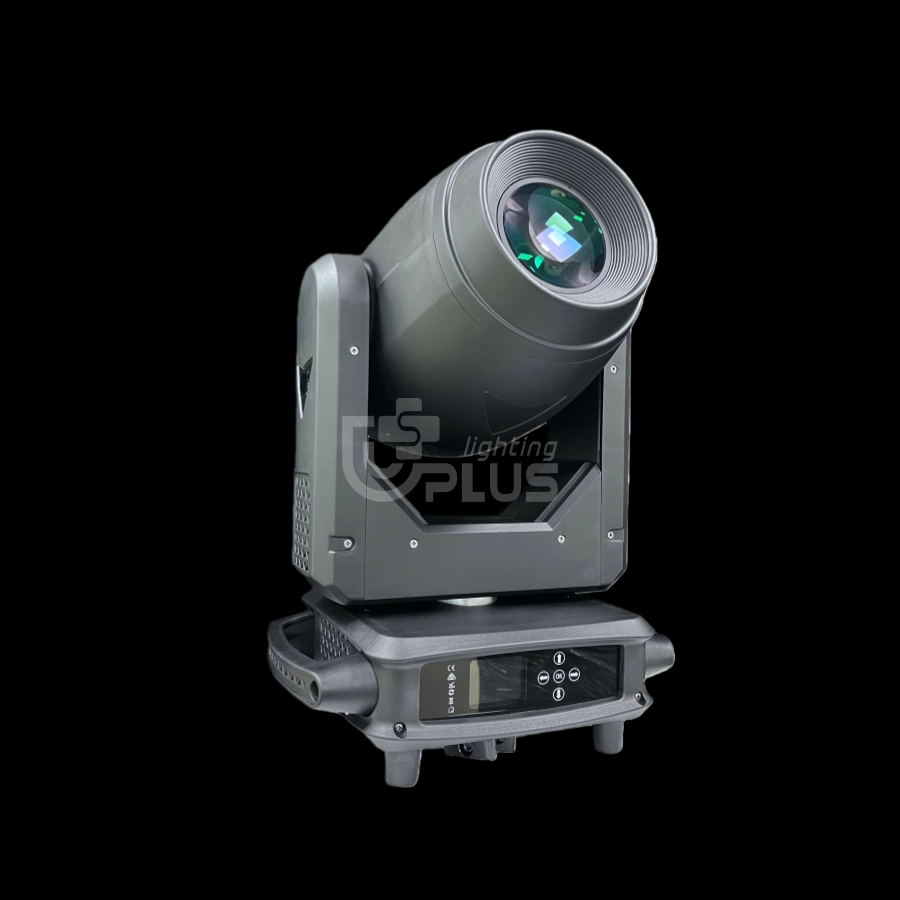

uplus-lighting-200w-led-bsw-3in1-moving-head-blue-green-lens-view - Uplus Lighting

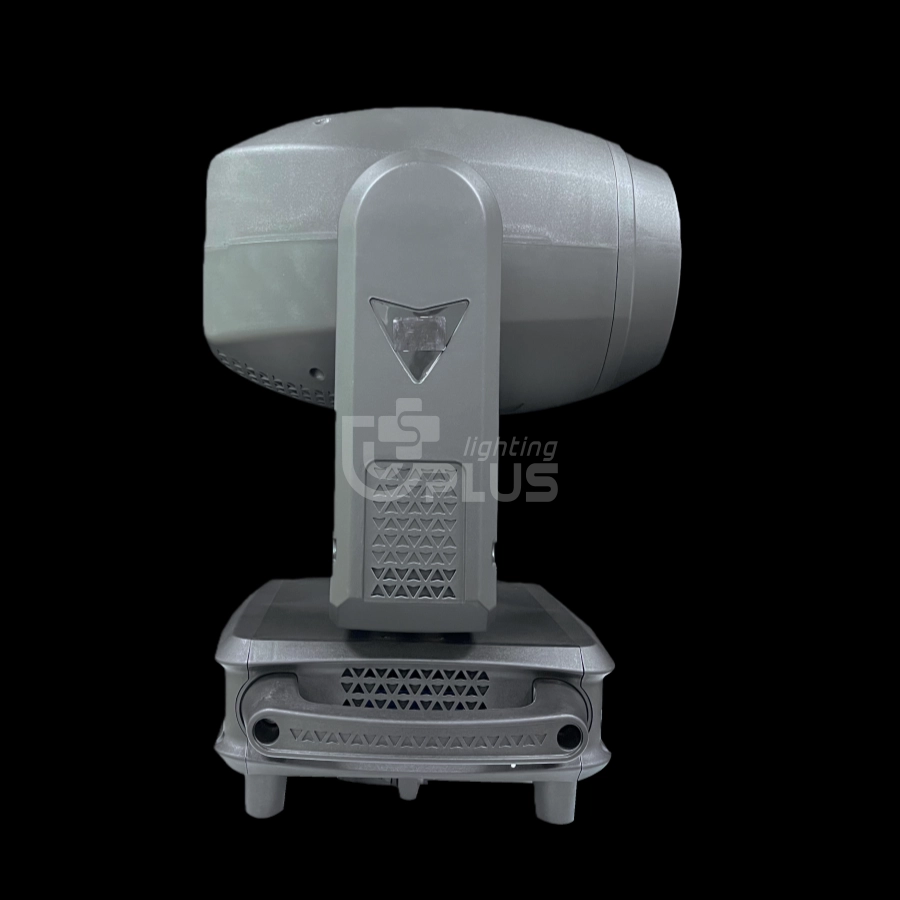

uplus-lighting-200w-led-bsw-3in1-moving-head-side-angled-view - Uplus Lighting
uplus-lighting-200w-led-bsw-3in1-moving-head-front-product-view - Uplus Lighting

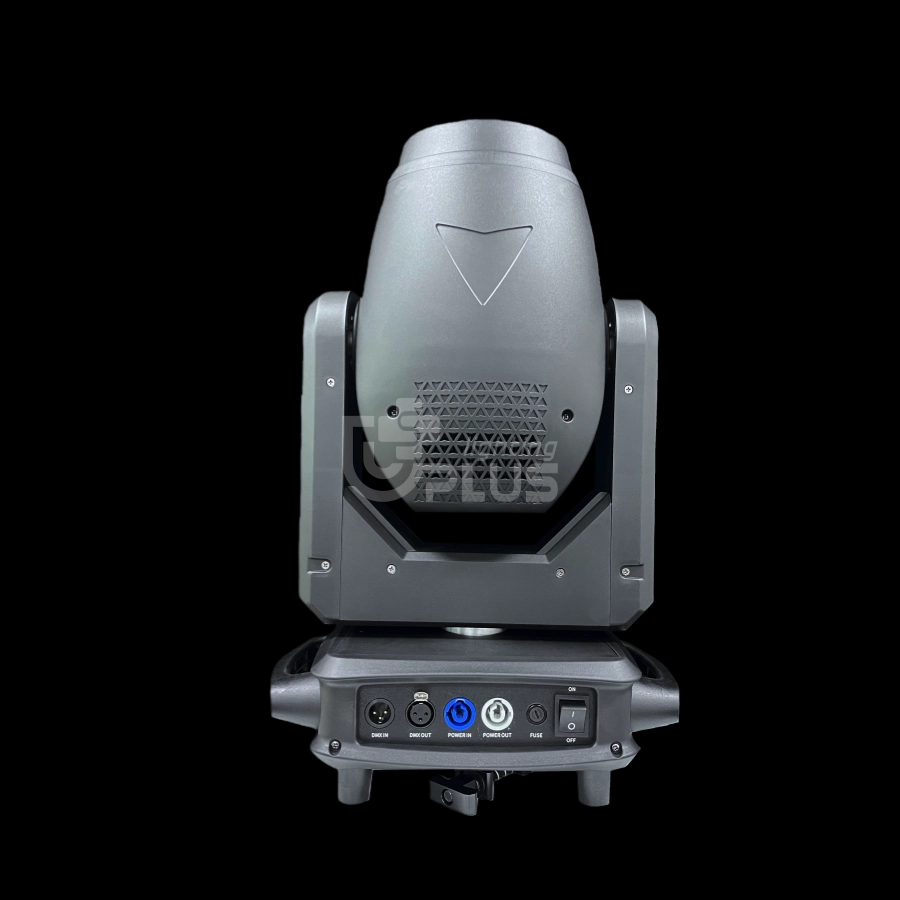

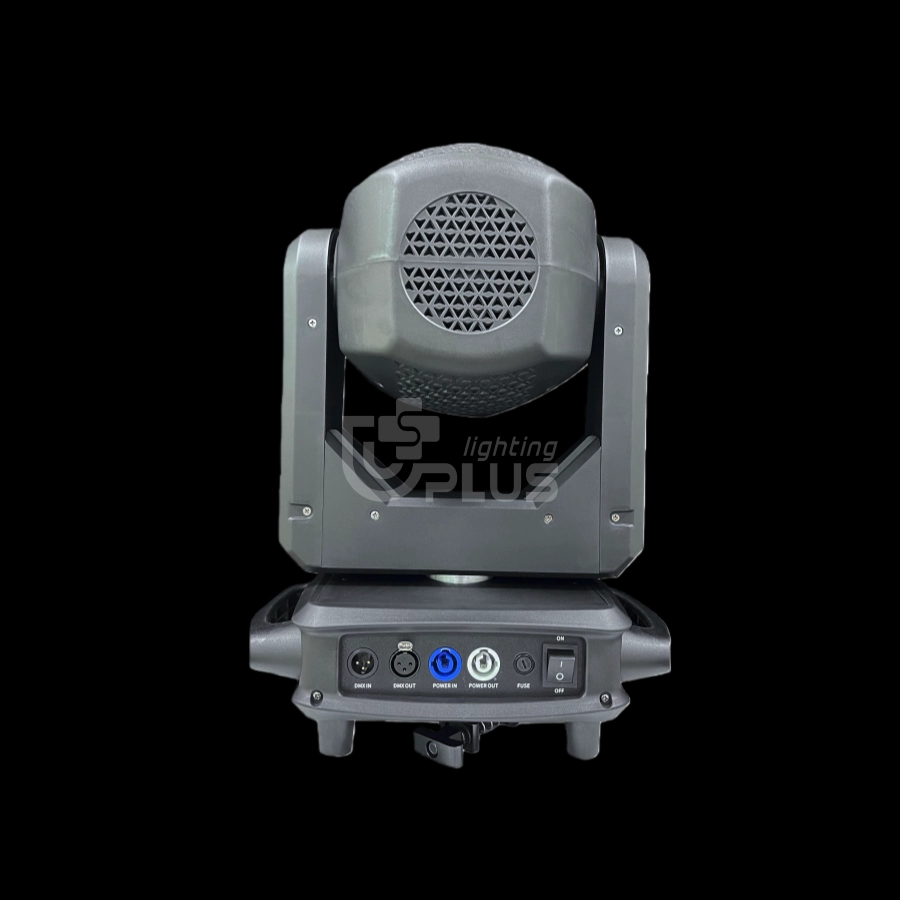

uplus-lighting-200w-led-bsw-3in1-moving-head-rear-view - Uplus Lighting
uplus-lighting-200w-led-bsw-3in1-moving-head-front-lens-view - Uplus Lighting
uplus-lighting-200w-led-bsw-3in1-moving-head-red-lens-angled-view - Uplus Lighting
uplus-lighting-200w-led-bsw-3in1-moving-head-blue-green-lens-view - Uplus Lighting
uplus-lighting-200w-led-bsw-3in1-moving-head-side-angled-view - Uplus Lighting
uplus-lighting-200w-led-bsw-3in1-moving-head-front-product-view - Uplus Lighting
uplus-lighting-200w-led-bsw-3in1-moving-head-rear-view - Uplus Lighting
uplus-lighting-200w-led-bsw-3in1-moving-head-front-lens-view - Uplus Lighting

200 LED BSW 200W LED BSW 3-in-1 moving head

The 200W LED BSW 3-in-1 moving head integrates three lighting effects: beam, pattern, and wall washer. Its power is suitable for small and medium-sized scenes, and its light control is precise and flexible, making it suitable for creating light and shadow effects in bars, theaters, small and medium-sized performances, and other occasions.

GET A FREE QUOTE ➜
GET THE PRODUCT CATALOG ➜
200 LED BSW.pdf
200 LED BSW.zip
INTRODUCTION
INTRODUCTION
SPECIFICATIONS
SPECIFICATIONS
EFFECT
EFFECT
LUX DATE & DIMENSION
LUX DATE & DIMENSION
FEATURES
FEATURES
APPLICATION
APPLICATION
PACKAGING & LOGISTIC
PACKAGING & LOGISTIC
FAQs
FAQs
200W LED BSW 3-in-1 moving head 7 - Uplus Lighting

Specifications

OPTICS

•Light source: 200W Osram LED chip

•Power Consumption: 300W

•Beam angle: 6-35°

•Color Tempreture: 8000K

FEATURES

•Color: 7 fixed colors+white
•Static gobo: 8 static gobos+1 white circle
•Rotation Gobo:  7 rotating gobos+1 white circle
•Prism: 3 prism, can be rotated in both directions
•Frost filter: with smooth wash effect
•DMX Channel: 20CH
•Four dimming curves
•Control mode: DMX512, selfpropelled, master/slave, RDM

SPECIFICATION

•Dimension: 338*530*225mm; NW: 12.5kgs

Effect

uplus-lighting-200-led-bsw-white-wide-beam-effect - Uplus Lighting
beam angle
uplus-lighting-200-led-bsw-white-vertical-beam-effect - Uplus Lighting
beam angle
uplus-lighting-200-led-bsw-white-narrow-beam-effect - Uplus Lighting
beam angle
uplus-lighting-200-led-bsw-white-focused-beam-projection - Uplus Lighting
beam angle
uplus-lighting-200-led-bsw-white-square-gobo-projection - Uplus Lighting
8 fixed gobos+white
uplus-lighting-200-led-bsw-white-triangle-gobo-projection - Uplus Lighting
8 fixed gobos+white
uplus-lighting-200-led-bsw-white-sunburst-gobo-pattern - Uplus Lighting
7 rotating gobos+white
uplus-lighting-200-led-bsw-white-decorative-gobo-effect - Uplus Lighting
7 rotating gobos+white
uplus-lighting-200-led-bsw-orange-flower-gobo-effect - Uplus Lighting
3 prisms
uplus-lighting-200-led-bsw-white-flower-gobo-effect - Uplus Lighting
3 prisms

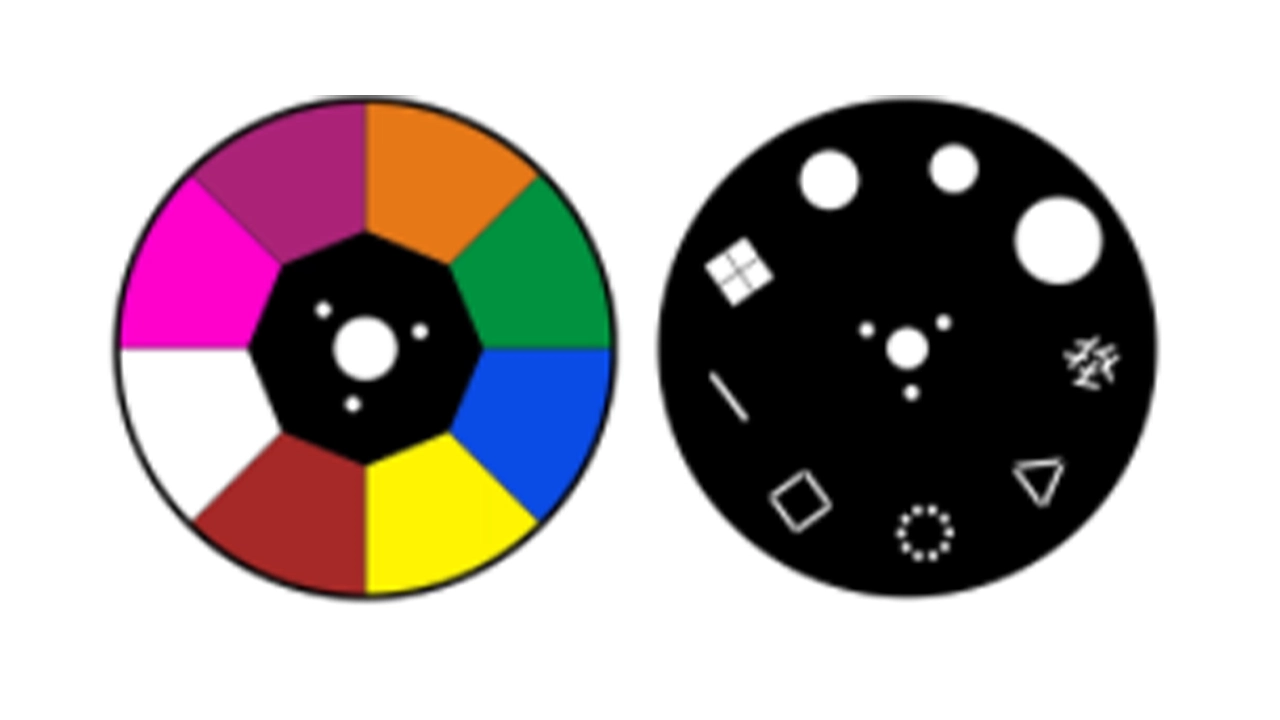

uplus-lighting-200-led-bsw-color-and-gobo-wheel-diagram - Uplus Lighting
color wheel&gobo wheel

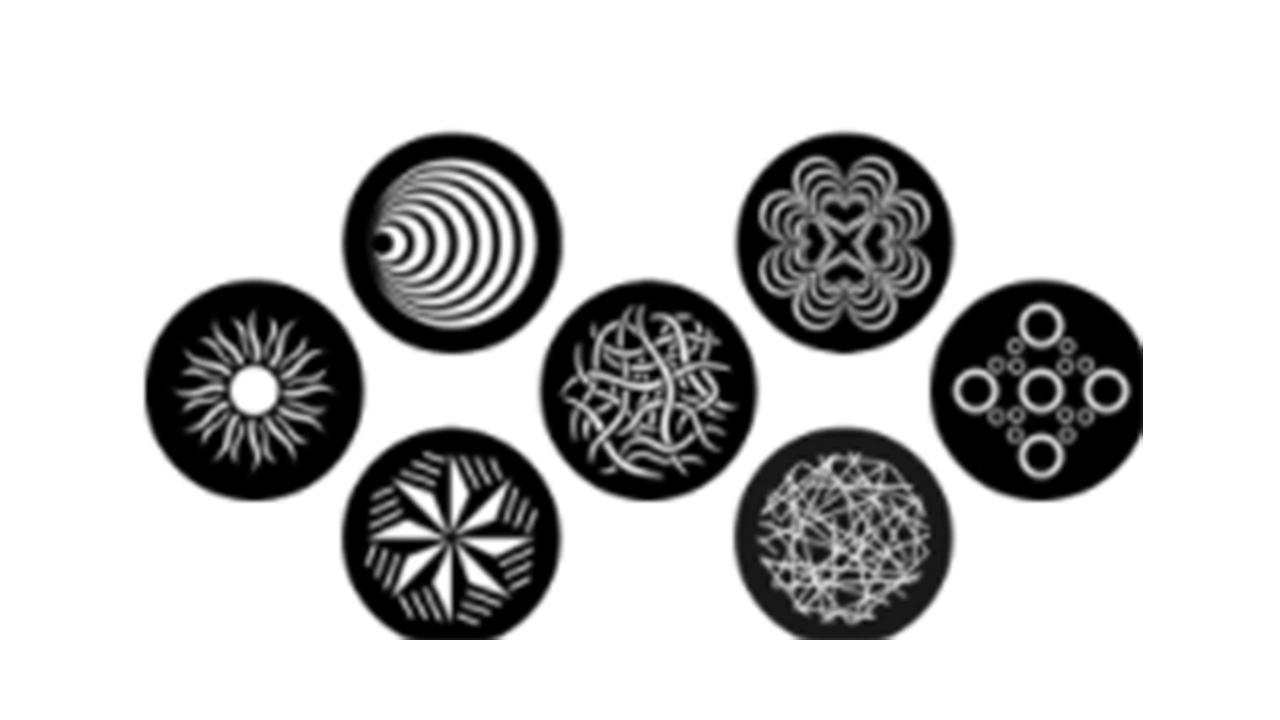

uplus-lighting-200-led-bsw-gobo-wheel-pattern-diagram - Uplus Lighting
fixed gobo wheel

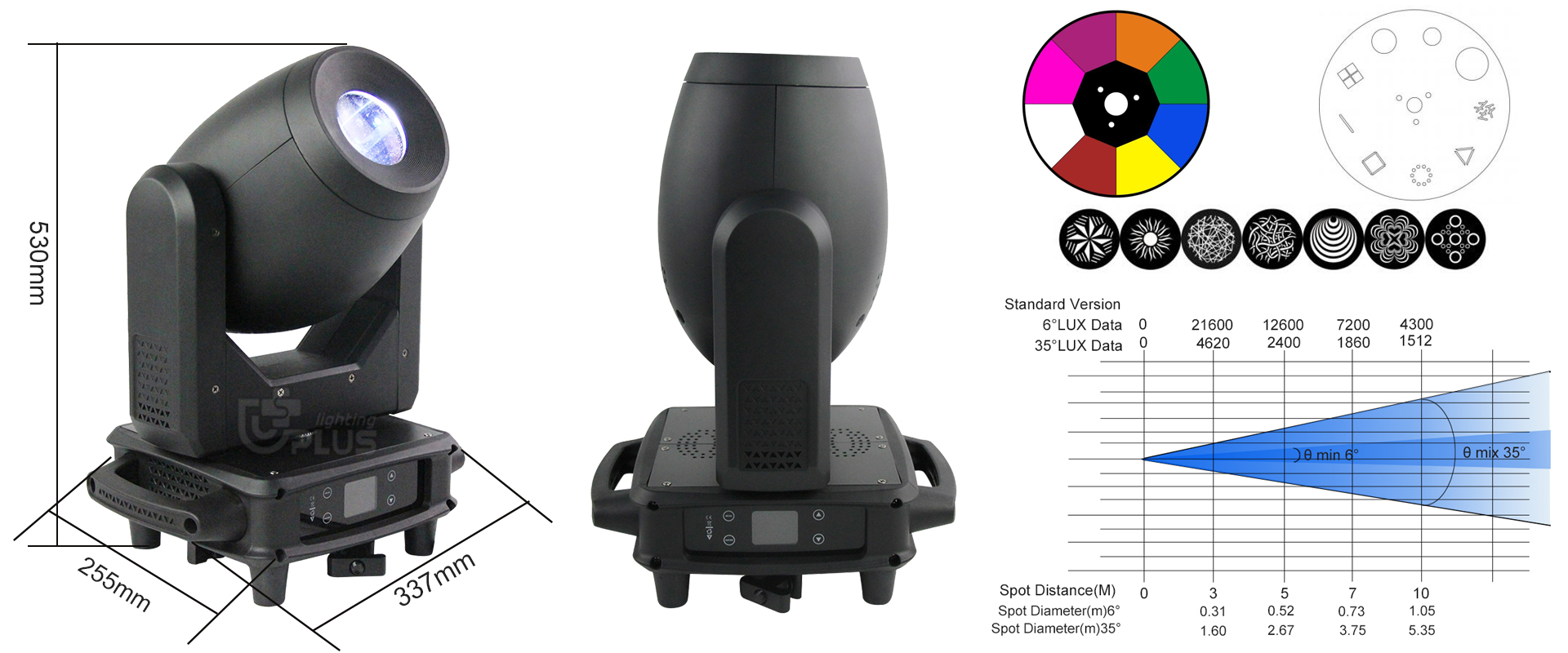

LUX Date & Dimension

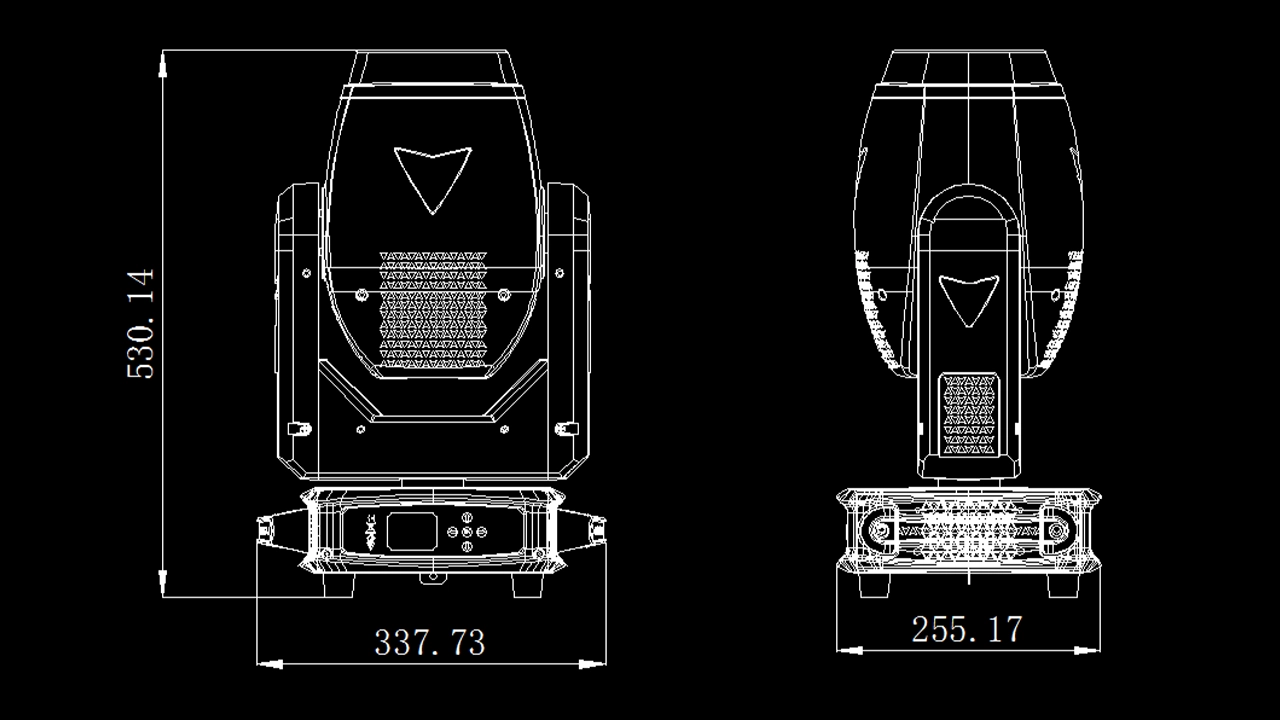

uplus-lighting-200-led-bsw-moving-head-technical-dimension-drawing - Uplus Lighting

Features

uplus-lighting-200-led-bsw-200w-osram-led-light-source - Uplus Lighting
uplus-lighting-moving-head-6-35-degree-zoom-angle - Uplus Lighting
uplus-lighting-moving-head-8000k-color-temperature - Uplus Lighting
uplus-lighting-moving-head-dimensions-338x530x225mm - Uplus Lighting
uplus-lighting-moving-head-weight-12-5kg - Uplus Lighting

APPLICATION

Courtyard-Balcony-Decoration - Uplus Lighting
Courtyard/Balcony Decoration
Lights up at dusk, projecting dynamic light and shadow patterns. Paired with greenery or outdoor furniture, it creates a warm and relaxing indoor/outdoor space.
Festival-Atmosphere-Decoration - Uplus Lighting
Festival Atmosphere Decoration
No wiring required. Simply place it at the entrance or on the lawn. RGB dynamic colors enhance the festive atmosphere.
Small-Outdoor-Parties - Uplus Lighting
Small Outdoor Parties/Camping
Decorate campsites and terrace parties. The waterproof design is unaffected by outdoor dew or light rain. Flowing light and shadow enhance the interactive atmosphere.
Shop-Window-Display - Uplus Lighting
Shop/Window Display
Place at entrances or in shop windows. Dynamic text and patterns attract passersby, suitable for attracting customers to restaurants, retail stores, and other offline stores.
Children's-Birthday-Parties - Uplus Lighting
Children's Birthday Parties/Small Events
Suitable for both indoor and outdoor use. Brightly colored dynamic lasers paired with cartoon patterns appeal to children.
Garden-Weddings - Uplus Lighting
Garden Weddings/Small Celebrations
Soft dynamic light and shadow are projected onto the venue. The waterproof feature is suitable for outdoor environments, creating a romantic atmosphere.

Packaging & Logistic

Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

What color and gobo options are available on the 200 LED BSW?

It includes 7 colors + white, 8 fixed gobos + white, and 7 rotating gobos + white.

What light source does the 200 LED BSW use?

The 200 LED BSW uses a 200W LED with an Osram chip in a beam, spot and wash 3-in-1 moving head design.

What prism, frost and focus functions does the 200 LED BSW support?

The fixture features a bidirectional 3-facet prism, a linear frost filter, and an electric focusing system.

Who should I contact if I receive a damaged item?

If you receive a damaged item, please take a photo and send it to us. We will then confirm with the logistics company whether it is a shipping issue or a problem with our product packaging. After verification, we will resend the product or provide compensation.

How do I select the appropriate product?

Please send us an inquiry or tell us your purpose and location, and we will provide you with the appropriate product as soon as we receive your information.
