Where Will You Use the Cutting Light? IP1000 BSWF & IP700 BSWF Application Guide for Professional Stage Lighting

Introduction

When a lighting designer asks “Where will you use the cutting light?”, the answer determines everything—from output power and beam angle to weather protection and framing precision.

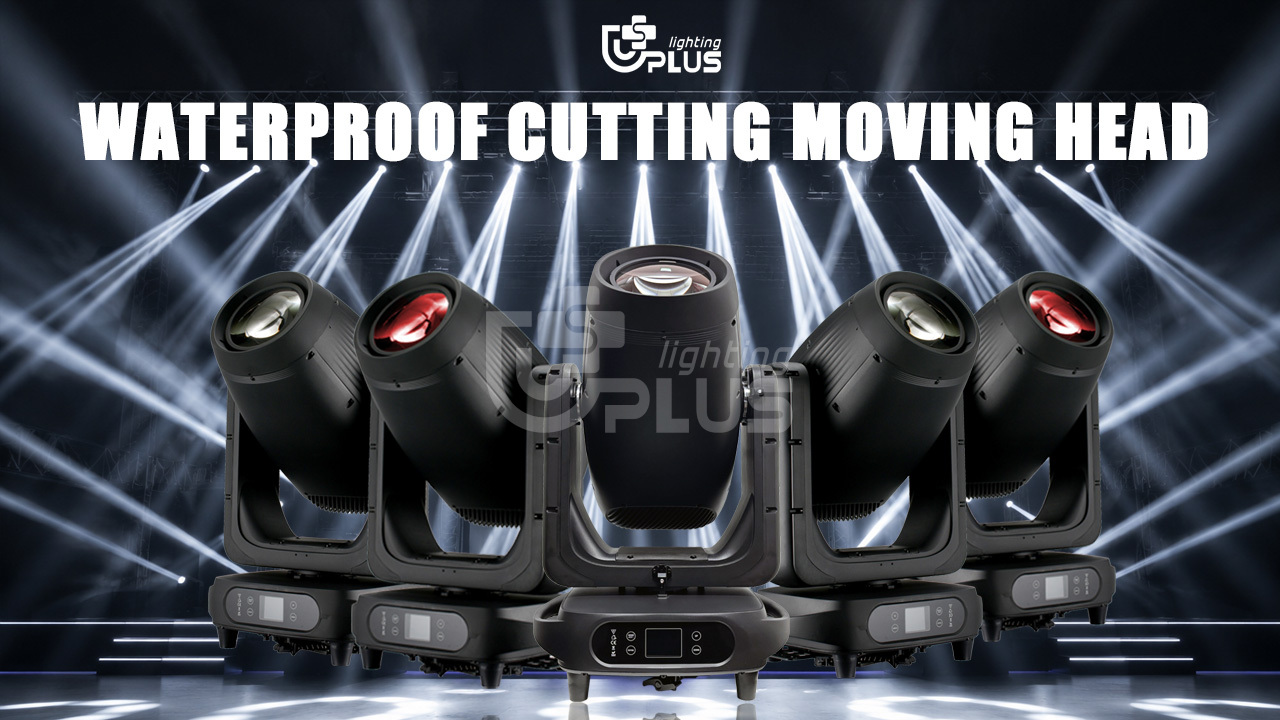

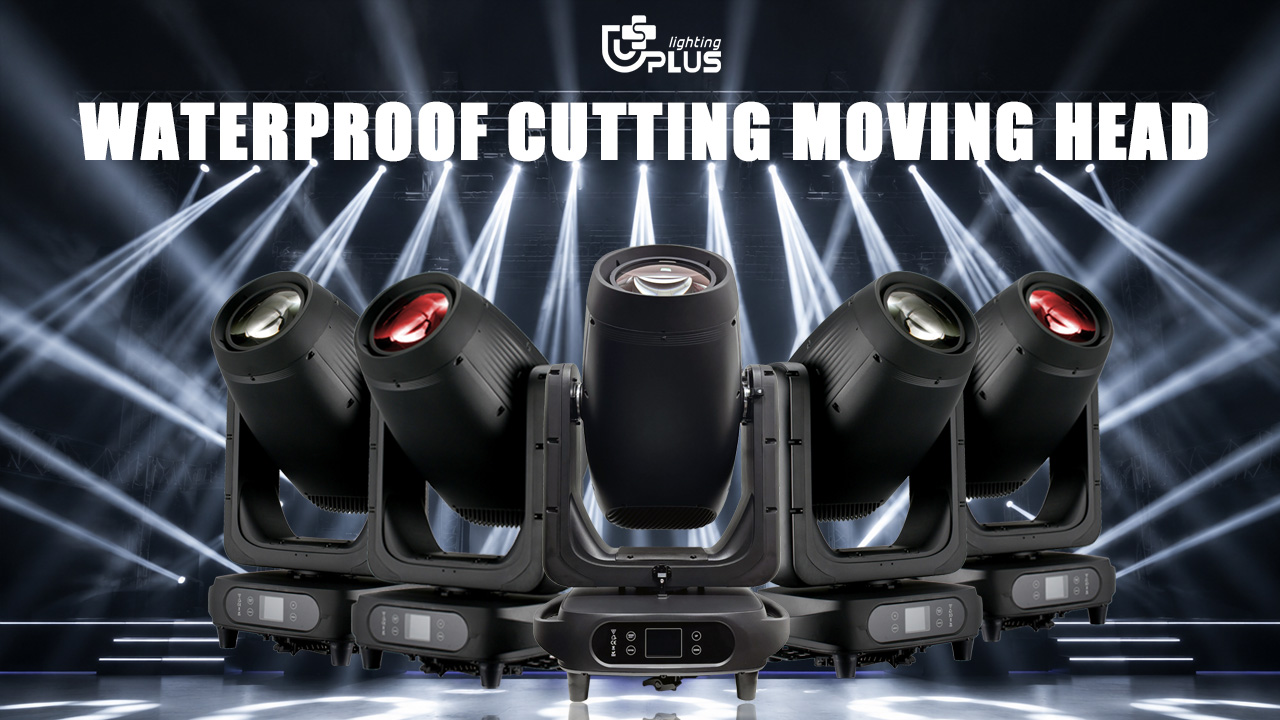

The UPLUS IP1000 BSWF and IP700 BSWF are professional IP65 waterproof 4-in-1 Beam, Spot, Wash & Framing moving head lights designed for demanding indoor and outdoor productions. Their advanced framing system, CMY color mixing, wide zoom range, and rugged waterproof construction make them suitable for a wide range of professional applications.

This guide explains the ideal use cases, key performance advantages, and the differences between the IP1000 BSWF and IP700 BSWF.

What Is a Cutting Light?

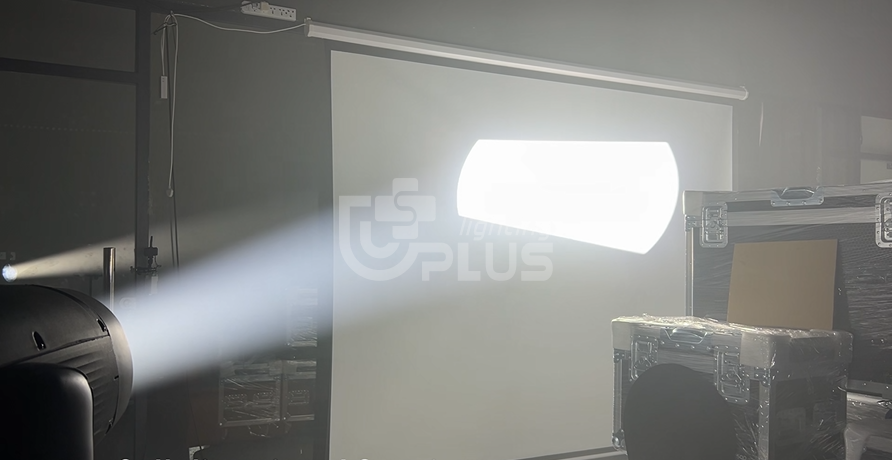

A cutting light (also called a framing moving head or profile moving head) is a fixture equipped with adjustable framing blades that allow lighting designers to shape the beam precisely. Unlike a standard beam or wash light, a cutting light can create sharp-edged rectangles, isolate performers, illuminate scenery without spill, and rotate the entire framing system for accurate alignment.

Both the IP1000 BSWF and IP700 BSWF feature 8 individually positionable framing blades with ±90° framing system rotation, providing exceptional control for professional stage lighting.

Ideal Applications for IP1000 BSWF & IP700 BSWF

1. Large Outdoor Concerts

Outdoor concerts require high output, long throw distance, and reliable weather protection. The IP65-rated housing protects the fixtures from rain, dust, and humidity, while the 3.8° narrow beam produces powerful aerial effects visible across large venues.

Best choice: IP1000 BSWF for stadiums, arena tours, and major outdoor concerts.

2. Music Festivals

Festivals demand versatile fixtures that can switch instantly between beam, spot, wash, and framing effects. The built-in CMY linear color mixing, CTO adjustment (3200K–6800K), animation wheel, rotating gobos, and 5-facet rotating prism allow designers to create dynamic looks without changing fixtures.

Best choice: IP1000 BSWF for main stages; IP700 BSWF for secondary stages and festival tents.

3. Professional Theaters & Performing Arts Centers

Theaters require precise beam shaping and smooth dimming. The 8 framing blades can accurately cut light around scenery, curtains, and performers, while the 4 dimming curves ensure smooth fades for dramatic productions.

Best choice: IP700 BSWF for most theater applications; IP1000 BSWF for large opera houses and high-trim installations.

4. Television Studios & Broadcast Production

Broadcast environments demand stable color temperature, flicker-free operation, and precise positioning. The linear CTO adjustment and 16-bit Pan/Tilt scanning provide accurate color matching and smooth camera-friendly movement.

Best choice: IP700 BSWF for studio grids and TV production facilities.

5. Corporate Events & Product Launches

Corporate productions often require clean, controlled lighting with minimal spill. The framing system can highlight speakers, logos, vehicles, or product displays with sharp edges and professional precision.

Best choice: IP700 BSWF for conference halls and exhibition centers.

6. Architectural Events & Outdoor Ceremonies

For temporary architectural lighting, opening ceremonies, and public events, the IP65 protection eliminates the need for additional rain covers. The wide 50° wash can illuminate façades and large scenic elements, while the framing blades provide precise control over illuminated areas.

Best choice: IP1000 BSWF for large façades and outdoor ceremonies; IP700 BSWF for medium-scale installations.

7. Rental & Touring Companies

Rental companies benefit from fixtures that can serve multiple roles. Instead of carrying separate beam, spot, wash, and profile fixtures, one BSWF fixture can handle all four functions, reducing inventory complexity and transportation costs.

Best choice: Both models, depending on venue size and power requirements.

Key Technical Advantages

Optical Flexibility

• Zoom range: 3.8°–50°
• Beam: razor-sharp aerial effects

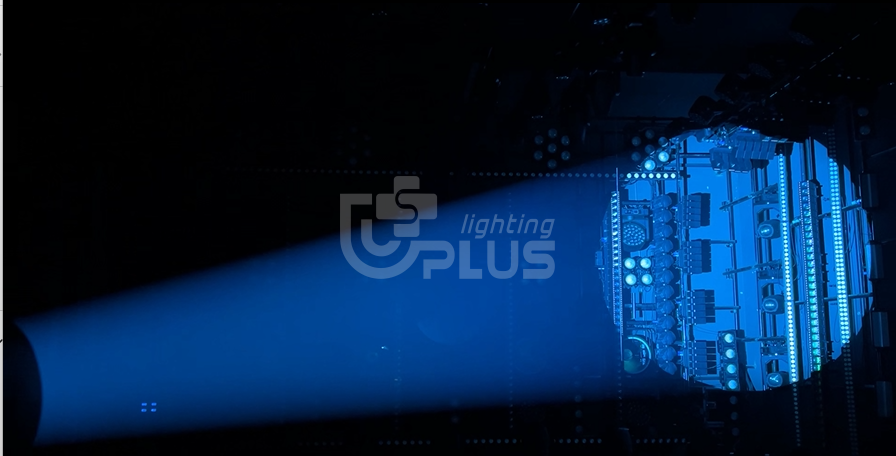

• Spot: crisp gobo projection
• Wash: even stage coverage
• Framing: precise beam shaping

Creative Effects

• CMY linear color mixing
• Linear CTO: 3200K–6800K
• 7 colors + open white
• 7 rotating gobos + open
• 1 animation wheel
• Rotating 5-facet prism

Professional Control

• 34 / 36 / 56 DMX512 channels
• 16-bit Pan/Tilt scanning
• Pan: 540°
• Tilt: 270°
• 0–100% linear dimming with 4 dimming curves

Rugged Construction

• Die-cast aluminum housing
• Aviation-grade die-cast magnesium alloy
• IP65 waterproof rating
• Net weight: 26 kg with folding hook

IP1000 BSWF vs. IP700 BSWF

Which Model Should You Choose?

• Choose IP1000 BSWF if you need maximum brightness, long throw distance, and large-scale outdoor performance.
• Choose IP700 BSWF if you prioritize lower power consumption, theater-grade framing precision, and medium-sized venue applications.

Why UPLUS Lighting?

Established in 2012, UPLUS Lighting specializes in professional stage lighting manufacturing, OEM production, ODM development, and customized lighting solutions. Our products are used in concerts, theaters, television productions, music festivals, and rental inventories across Europe, Russia, the Americas, South Korea, the Middle East, and Africa.

With experienced R&D, production, and sales teams, we provide reliable products, responsive technical support, and long-term partnership service.

Conclusion

The IP1000 BSWF and IP700 BSWF are not just moving heads—they are complete Beam, Spot, Wash & Framing solutions engineered for professional productions. Their IP65 waterproof protection, 8-blade framing system, CMY+CTO color control, and 3.8°–50° zoom range make them equally effective in stadium concerts, theaters, TV studios, corporate events, and outdoor architectural applications.

If you are deciding where to use a cutting light, the answer is simple: any professional environment that demands precise beam shaping, powerful output, and reliable all-weather performance.

FAQ

What is the main advantage of a cutting light?

A cutting light allows precise beam shaping using adjustable framing blades, reducing light spill and creating sharp-edged illumination.

Can the IP1000 BSWF and IP700 BSWF be used outdoors?

Yes. Both fixtures are IP65-rated, making them suitable for rain, dust, and harsh outdoor environments.

Which model is better for a 5,000-seat indoor arena?

The IP1000 BSWF is recommended because of its higher output and longer throw capability.

Which model is better for a theater or TV studio?

The IP700 BSWF is typically the better choice due to its lower power consumption and excellent framing precision.

Do both models support CMY color mixing and CTO adjustment?

Yes. Both fixtures feature CMY linear color mixing and linear CTO adjustment from 3200K to 6800K.
