What Does a Stage with Linked LED Strobe Lights Look Like? Discover the Power of the UPLUS IP-S400 & IP Strobe SP

What Does a Stage with Linked LED Strobe Lights Look Like?

Modern stage lighting is no longer just about brightness. Today's audiences expect immersive visual experiences where lighting becomes part of the performance itself. One of the biggest trends in professional stage lighting is the use of linked LED strobe lights, which create synchronized flashes, animated pixel effects, colorful backgrounds, and creative geometric lighting designs.

When multiple LED strobes are connected together, the entire stage becomes a dynamic visual canvas. Whether for concerts, music festivals, TV productions, touring shows, or architectural lighting, linked strobe systems deliver an impressive combination of power, creativity, and flexibility.

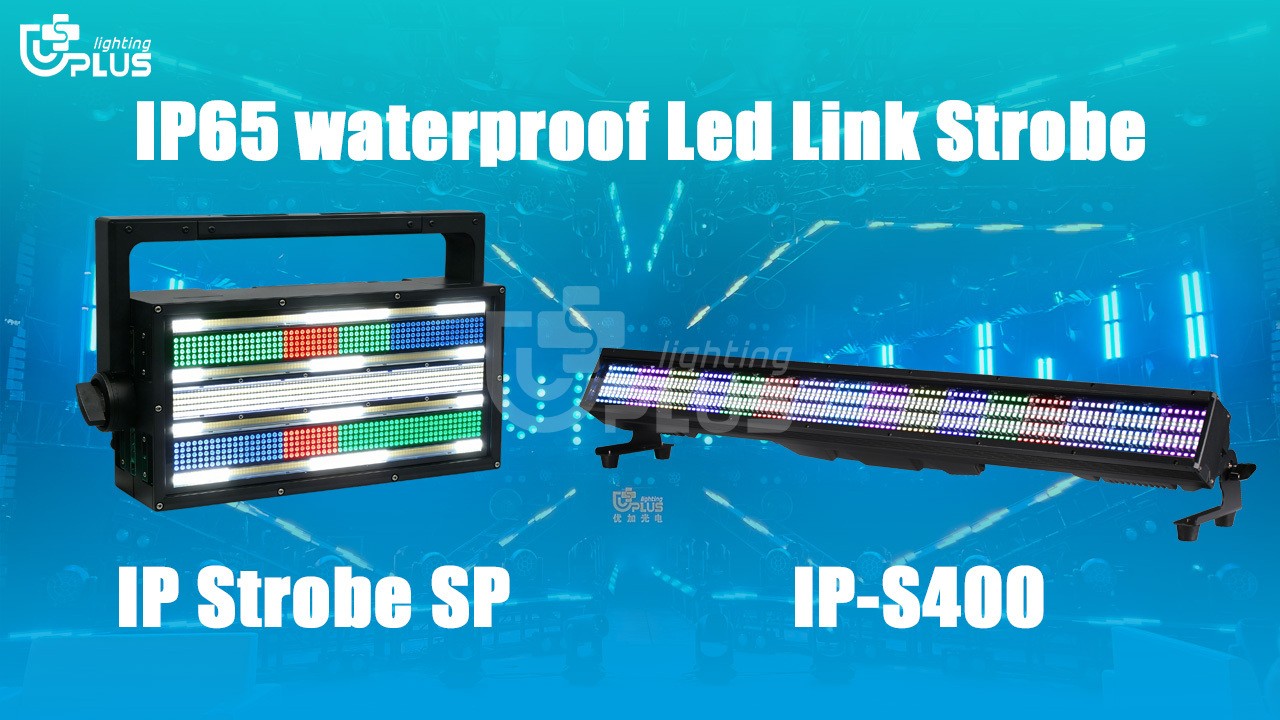

UPLUS Lighting introduces two professional waterproof strobe fixtures designed for these demanding applications:

• IP-S400 IP65 LED Link Strobe Bar
• IP Strobe SP 600W Waterproof LED Strobe

Together, they offer designers endless possibilities for creating unforgettable stage effects.

Why Choose Linked LED Strobe Lights?

Traditional strobe lights simply produce powerful flashes. Modern linked strobes combine:

• High-output white strobe
• RGB color effects
• Pixel mapping
• Dynamic chases
• Creative installation
• Waterproof outdoor operation

Instead of working independently, multiple fixtures can be arranged into walls, grids, tunnels, crosses, or custom stage structures that move together through DMX or Art-Net control.

The result is a stage that feels alive.

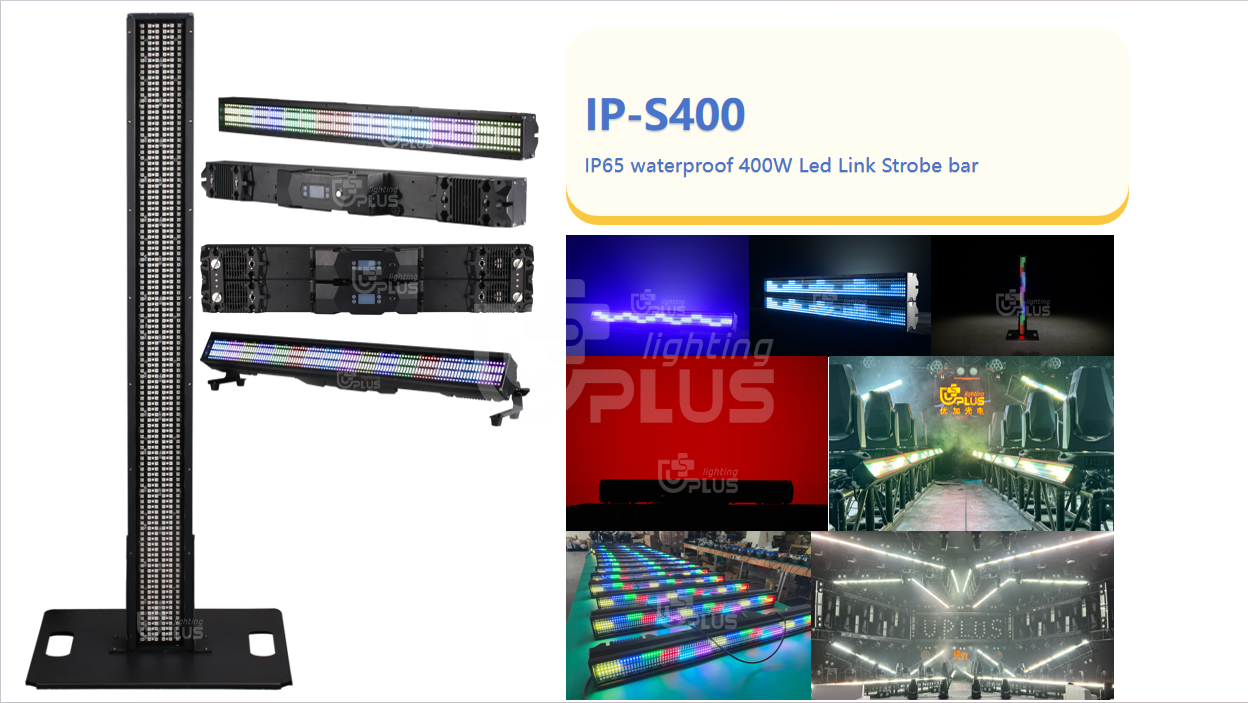

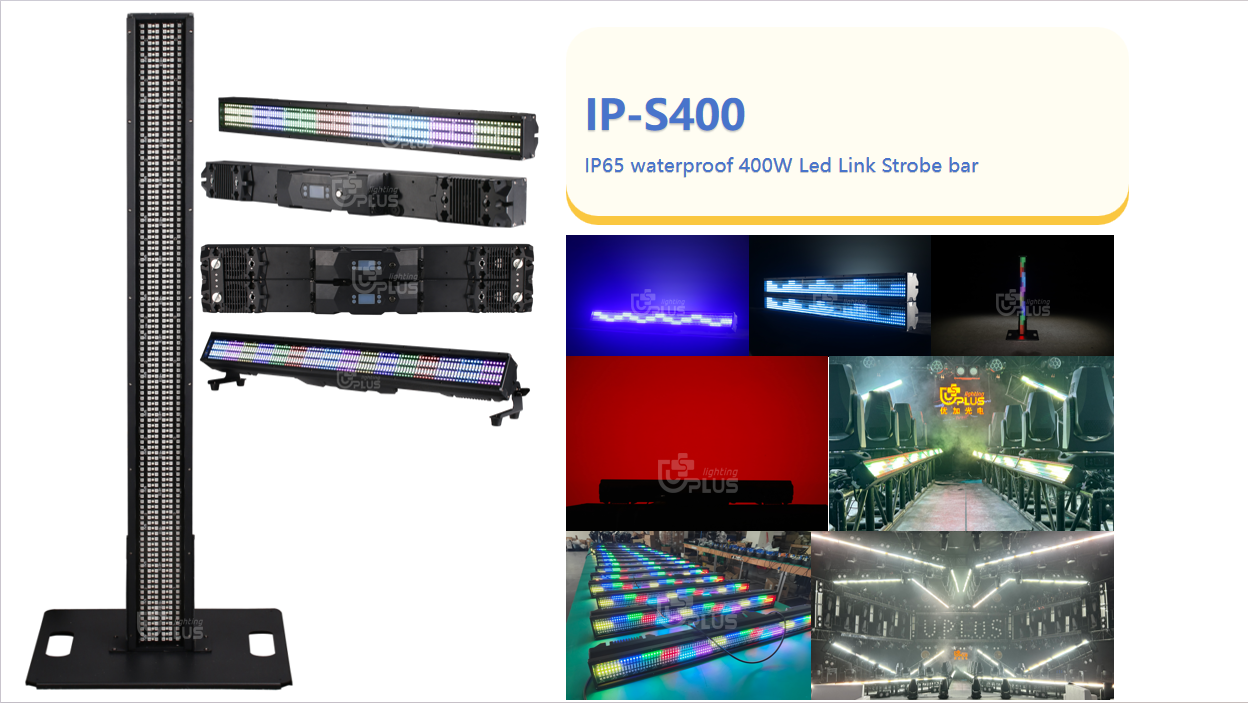

UPLUS IP-S400 – IP65 Waterproof LED Link Strobe Bar

Built for Creative Stage Designs

The IP-S400 is much more than a traditional strobe bar. Its unique four-side splicing design allows every fixture to connect seamlessly with others, enabling lighting designers to build custom shapes and large-scale lighting installations.

Whether installed vertically, horizontally, or combined into complex structures, the IP-S400 creates continuous lighting effects across multiple fixtures.

Key Specifications

• IP65 waterproof design
• 400W LED Link Strobe Bar
• 896 × 0.2W RGB LEDs
• 2W White LEDs
• RGB segmented into 3 × 16 sections
• White segmented into 2 × 16 sections
• Four-side free splicing
• Rich built-in color and pattern macro effects
• Strong aluminum housing
• IP65 intelligent cooling fan
• LCD display
• Seetronic waterproof power and XLR connectors
• Omega quick-lock bracket
• Control via DMX512, Master-Slave, Auto Run, RDM
• Optional Art-Net support

•

Creative Installation Advantages

One of the biggest strengths of the IP-S400 is flexibility.

Lighting designers can create:

• LED walls
• Pixel tunnels
• Truss outlines
• Stage frames
• Ceiling matrices
• Video-like lighting effects
• Concert backdrops
• Festival lighting structures

Because every side can connect with another fixture, installation becomes incredibly efficient while maintaining a clean visual appearance.

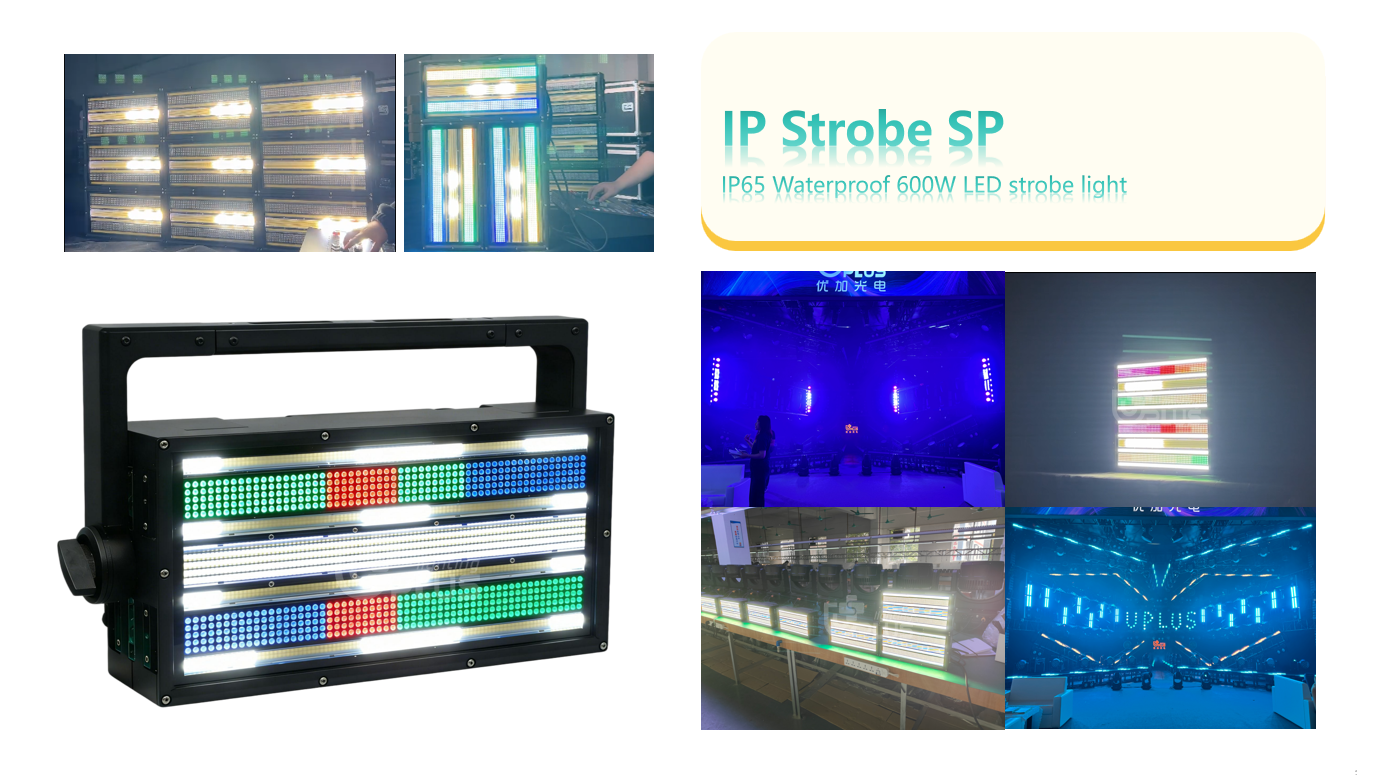

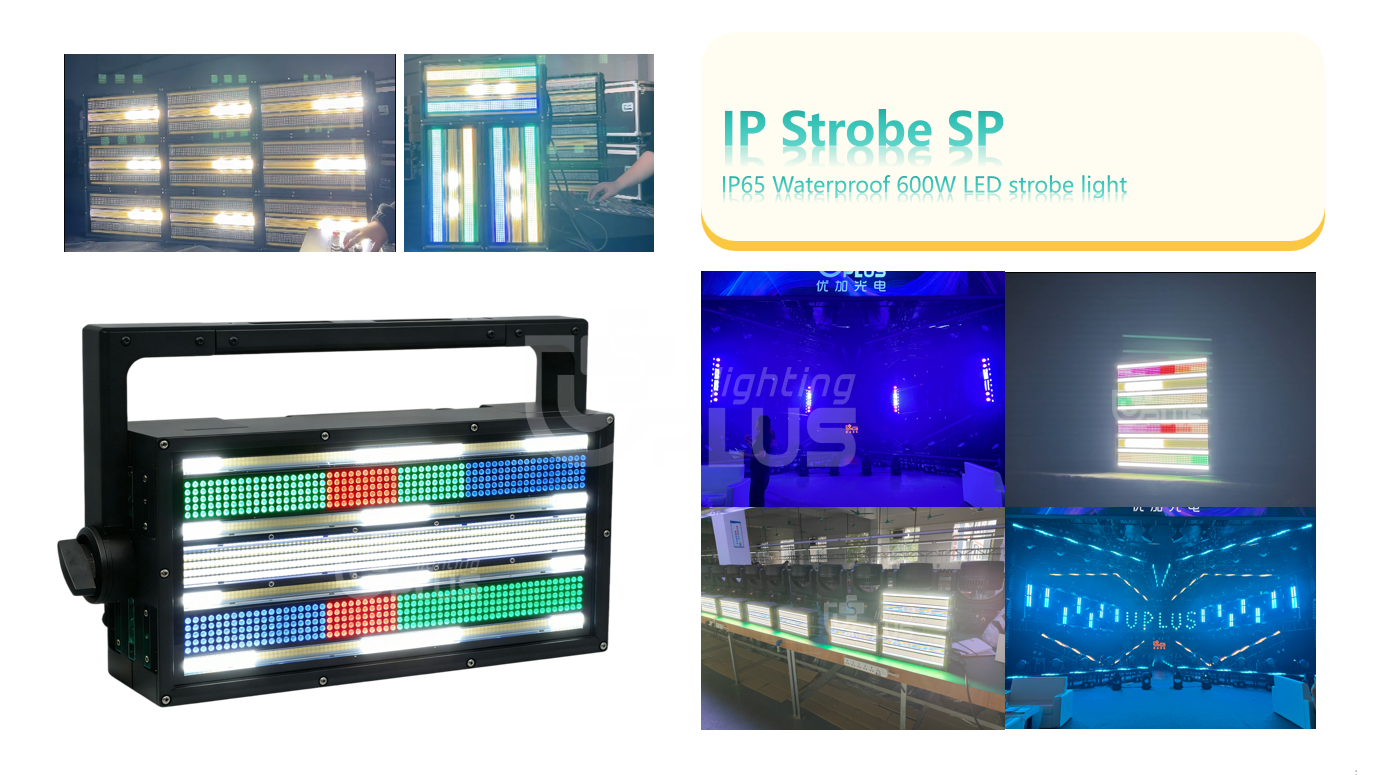

UPLUS IP Strobe SP – High-Power Waterproof LED Strobe

When maximum brightness is required, the IP Strobe SP delivers outstanding performance.

Designed for large concerts and outdoor productions, it combines intense white strobe output with colorful RGB backlighting for spectacular visual impact.

Key Specifications

• 600W Waterproof LED Strobe
• 1080 × 1W White LEDs (6500K)
• White segmented into 60 sections (5 × 12)
• 600 × 0.5W RGB 3-in-1 LEDs
• RGB segmented into 12 sections (2 × 6)
• Power consumption: 550W
• Beam angle: 68°
• Multiple DMX modes:
  • 15CH
  • 39CH
  • 71CH
  • 112CH
  • 178CH
  • 209CH
  • 275CH
• Waterproof housing
• Dimensions:
  502 × 288 × 195 mm
• Weight:
  12 kg

The fixture uses the same DMX channel structure as the ROXX CLUSTER S2, making it easier for lighting programmers already familiar with that workflow.

IP-S400 + IP Strobe SP: The Perfect Combination

Using both fixtures together creates a professional lighting system suitable for almost every type of production.

IP-S400 Adds

• Linear lighting
• Pixel effects
• RGB animations
• Stage outlines
• Geometric installations
• Continuous visual movement

IP Strobe SP Adds

• Powerful white strobe
• Audience blinder effects
• High-impact flash moments
• RGB background wash
• Large-area illumination

Together they create layers of lighting that deliver both detail and intensity.

Perfect Applications

The combination is ideal for:

• Concert tours
• Music festivals
• Outdoor performances
• Television studios
• Live broadcasts
• Nightclubs
• Corporate events
• Rental companies
• Churches
• Architectural lighting
• Theme parks
• Large entertainment venues

Thanks to their IP65 waterproof protection, both fixtures perform reliably in rain, dust, and other challenging outdoor environments.

Professional Control for Creative Freedom

Both fixtures are designed for professional lighting systems.

Supported control options include:

• DMX512
• RDM
• Master-Slave
• Auto Run
• Optional Art-Net (IP-S400)

Their multiple DMX channel modes allow beginners to use simple presets while giving experienced programmers full pixel-level control.

Built for Rental Companies

Rental companies demand equipment that is reliable, durable, and easy to install.

UPLUS designed these fixtures with those requirements in mind:

• Heavy-duty aluminum construction
• Waterproof Seetronic connectors
• Quick-lock Omega brackets
• Efficient cooling systems
• Multiple mounting options
• Fast setup and teardown
• Long service life

These features reduce maintenance while improving return on investment.

Why Choose UPLUS Lighting?

Established in 2012, UPLUS Lighting specializes in professional stage lighting solutions for global rental companies, concert productions, and entertainment venues.

Our products are trusted in:

• Europe
• North America
• South America
• Russia
• South Korea
• Middle East
• Africa

We provide:

• OEM manufacturing
• Customized lighting solutions
• Professional technical support
• Strict quality control
• Fast delivery
• Long-term partnership services

Frequently Asked Questions (FAQ)

What is a linked LED strobe light?

A linked LED strobe light is a fixture designed to connect seamlessly with multiple units, allowing synchronized lighting effects, pixel mapping, and creative stage structures.

Can the IP-S400 be installed outdoors?

Yes. The IP-S400 features an IP65 waterproof rating, making it suitable for concerts, festivals, touring productions, and permanent outdoor installations.

What makes the IP-S400 unique?

Its four-side splicing design allows multiple fixtures to be connected in different directions, creating flexible lighting structures with continuous visual effects.

What is the difference between the IP-S400 and IP Strobe SP?

The IP-S400 focuses on linear pixel effects, RGB animations, and modular stage designs, while the IP Strobe SP provides extremely powerful white strobe output combined with RGB backlighting for maximum visual impact.

Are these fixtures suitable for rental companies?

Absolutely. Both products feature durable construction, waterproof protection, professional connectors, and flexible control options, making them ideal for frequent transportation and event use.

Can they work together?

Yes. Combining the IP-S400 and IP Strobe SP creates a layered lighting system that delivers stunning pixel effects, synchronized strobes, audience blinders, and colorful stage backgrounds.

Conclusion

If you're looking to create a stage that truly captivates audiences, linked LED strobe lighting is one of the most effective solutions available. The UPLUS IP-S400 offers unmatched flexibility with its four-side linking design and pixel-controlled RGB effects, while the IP Strobe SP delivers powerful white strobes and vibrant RGB backlighting for maximum impact.

Whether you're designing a concert stage, festival setup, television production, or outdoor event, these two professional IP65 fixtures work together to produce dynamic, immersive lighting experiences that leave a lasting impression.

Contact UPLUS Lighting today to learn more about the IP-S400 and IP Strobe SP, and discover how they can elevate your next project.
