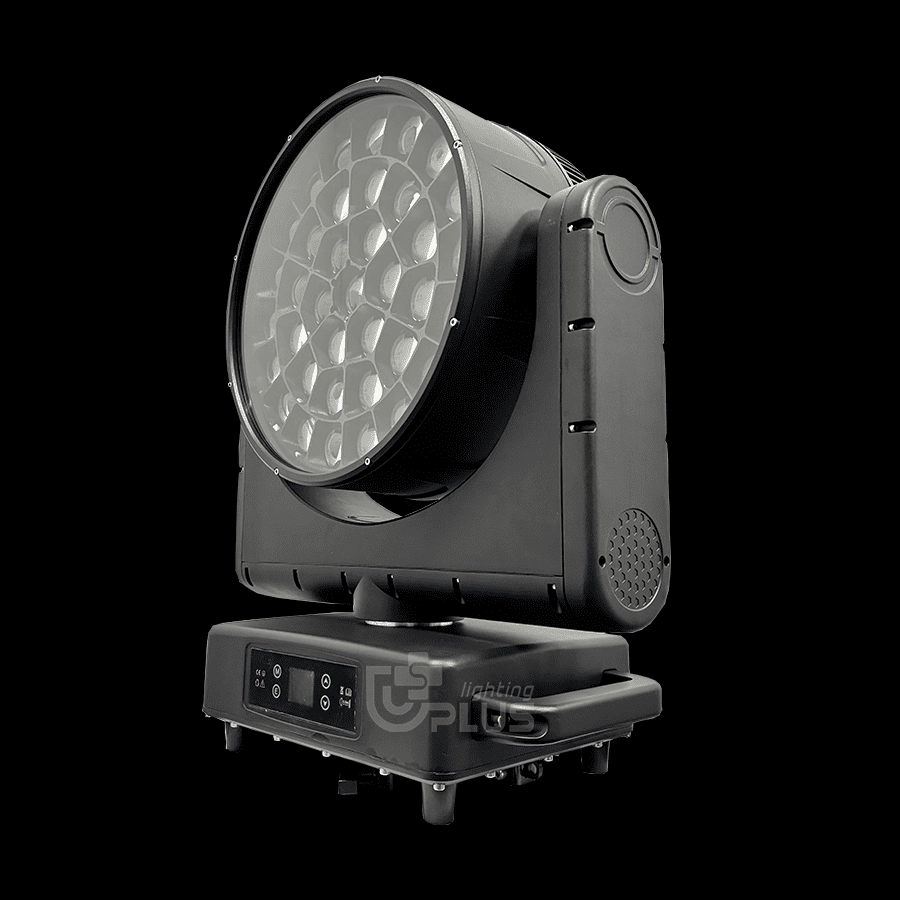

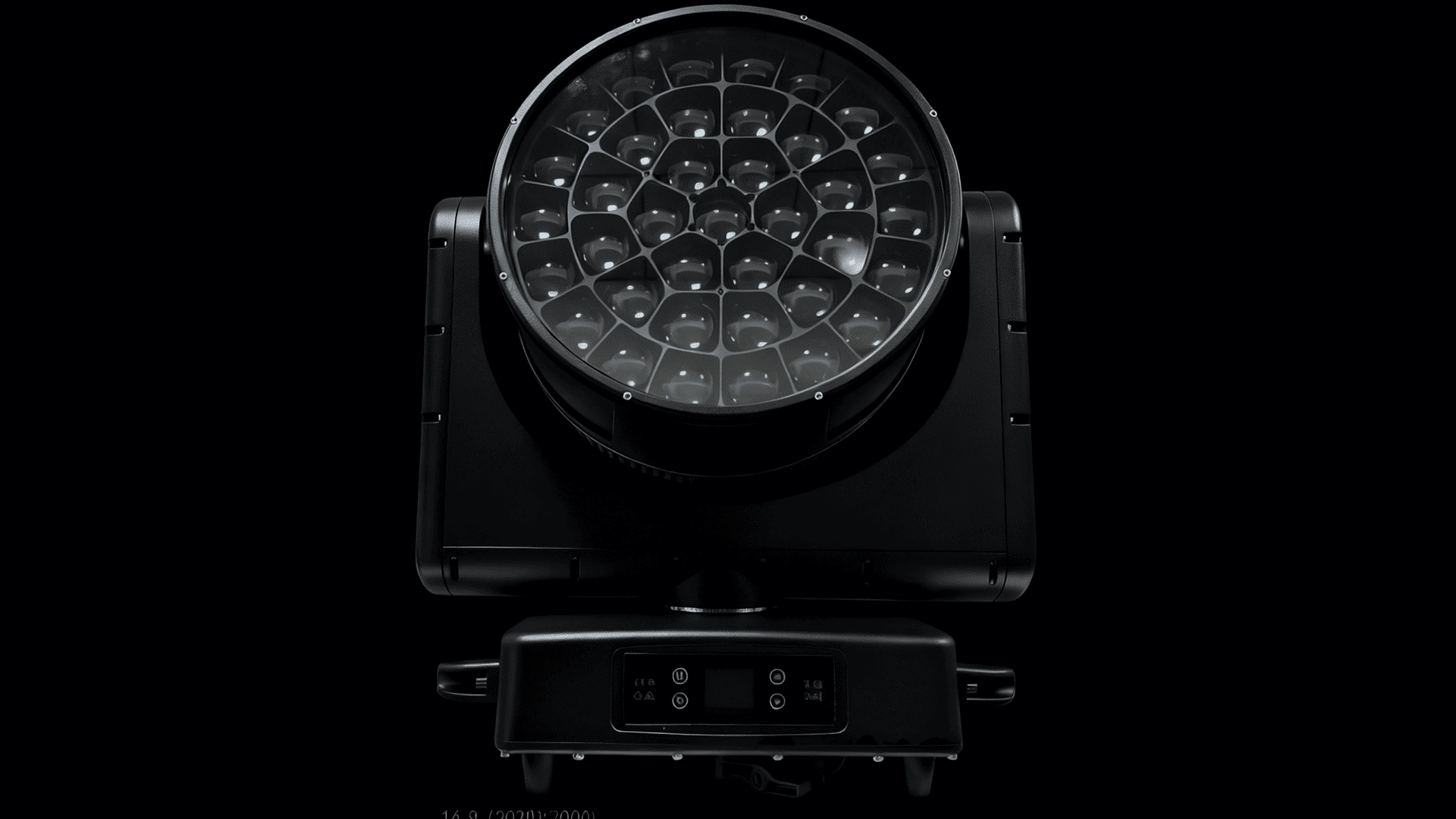

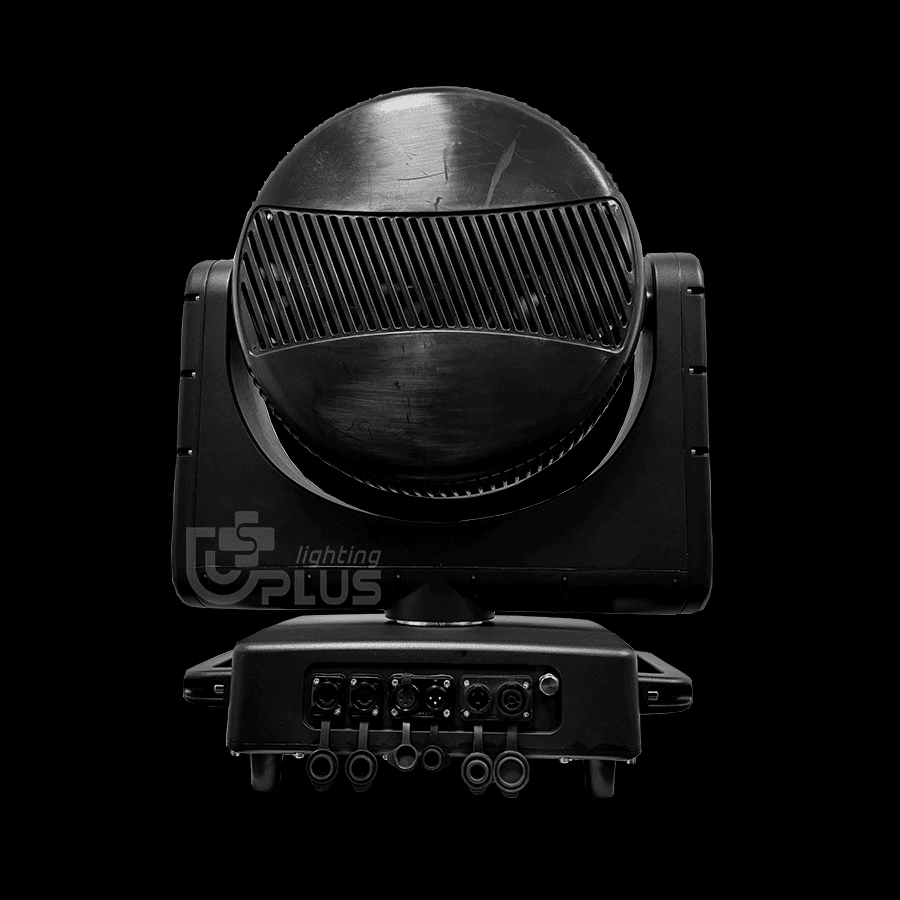

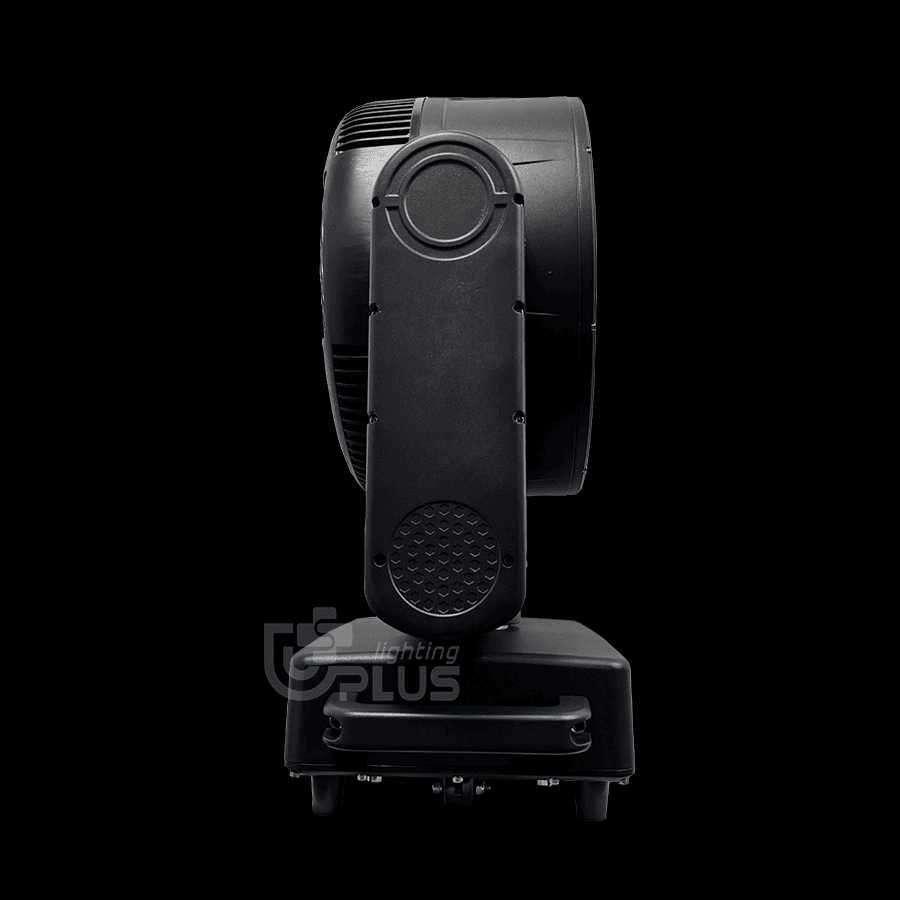

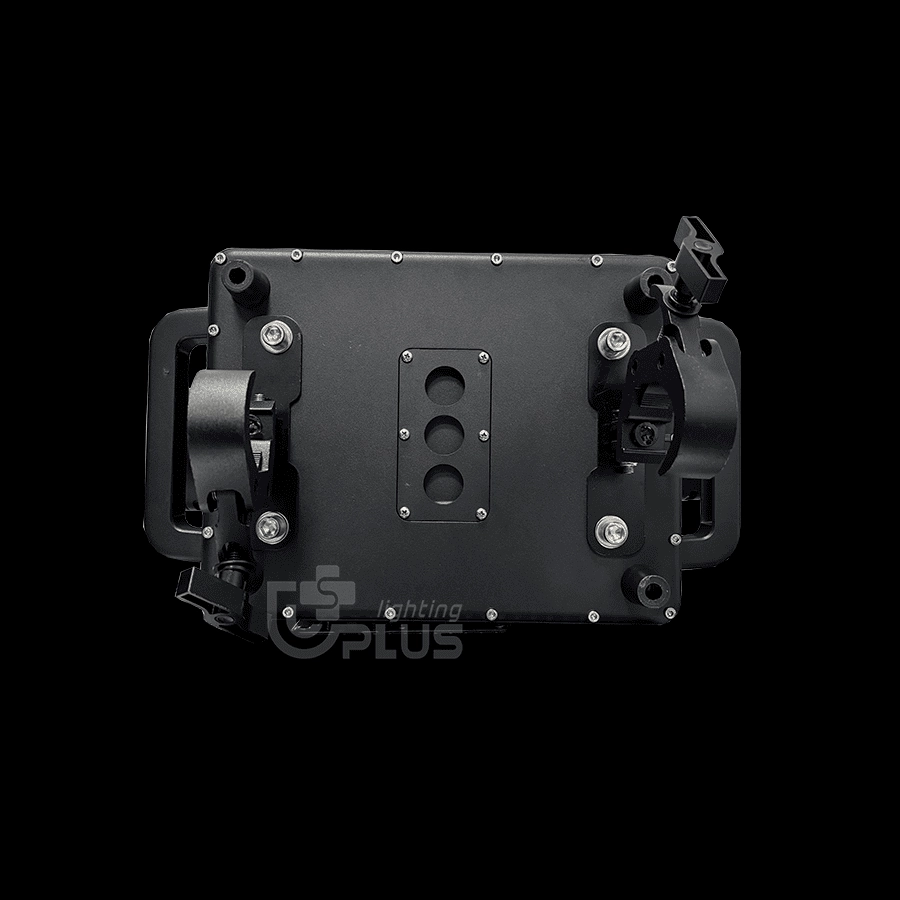

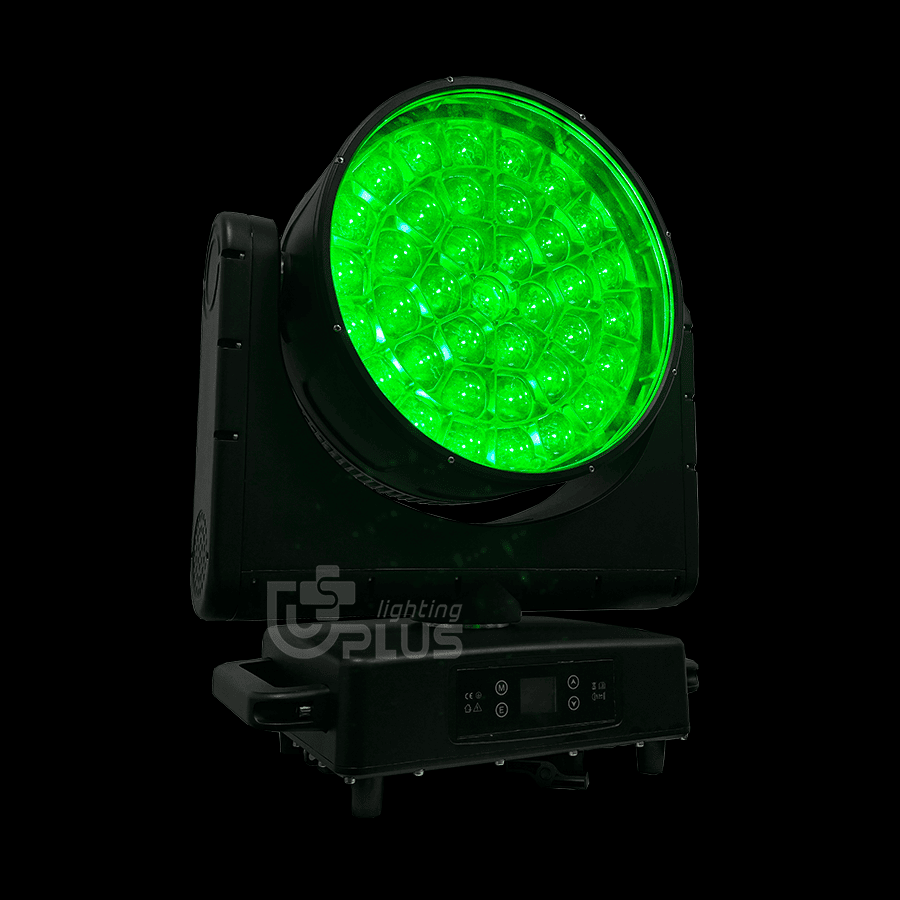

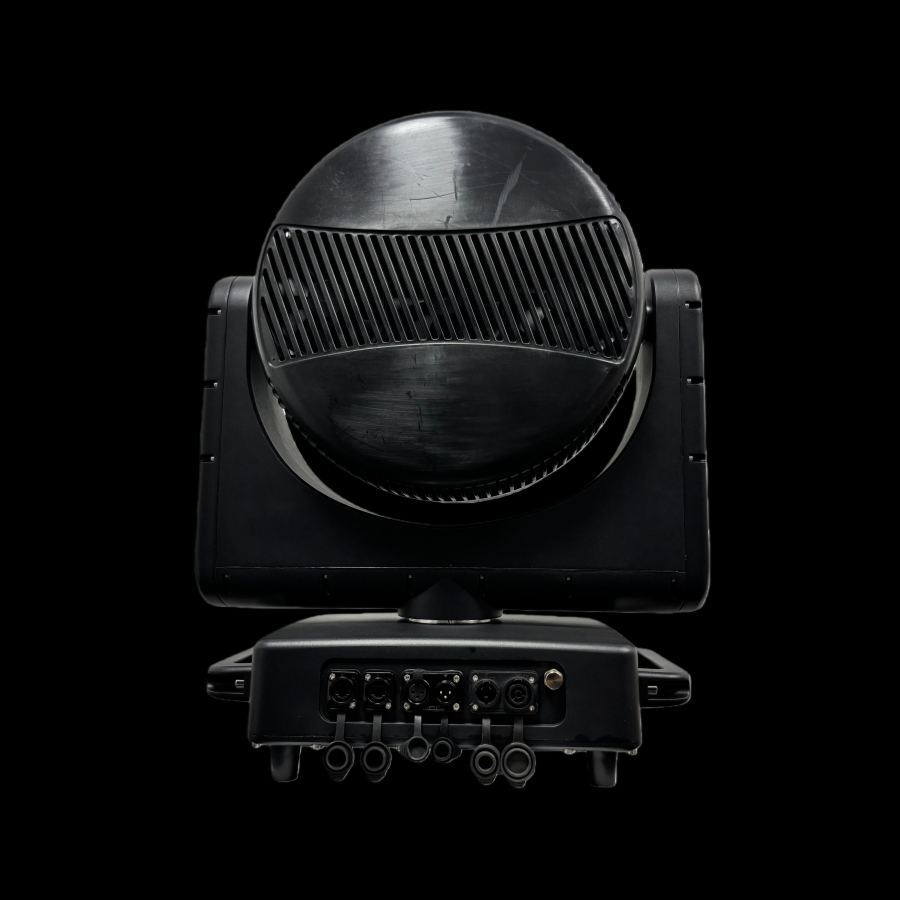

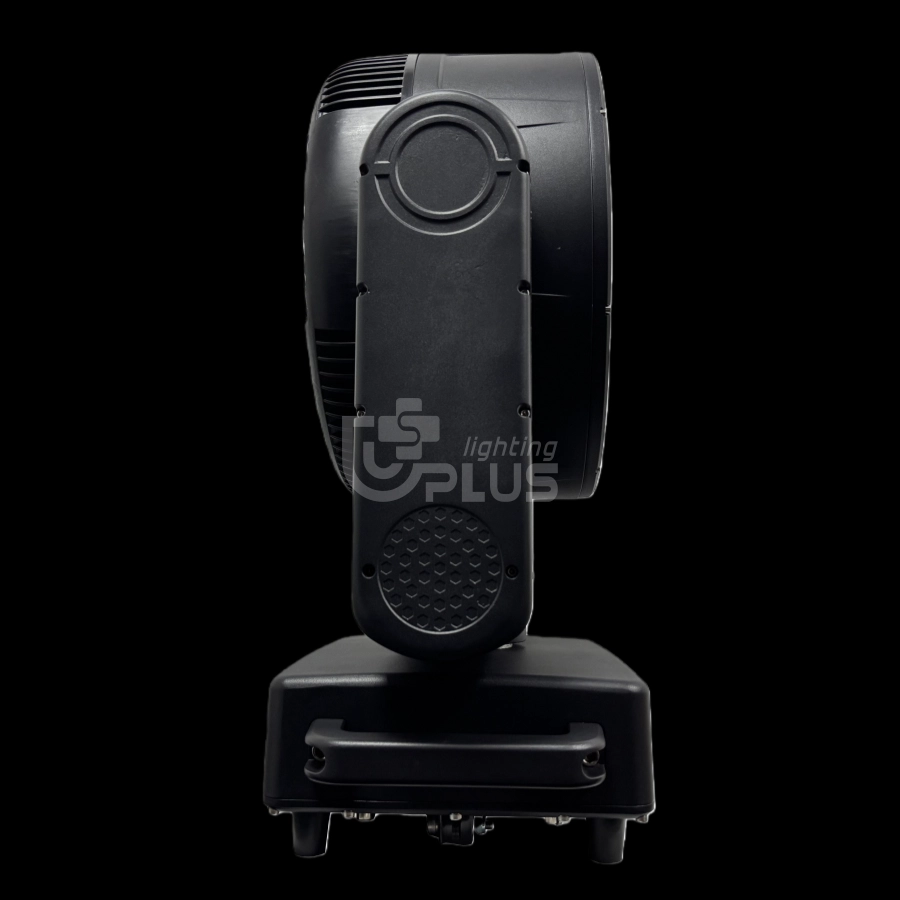

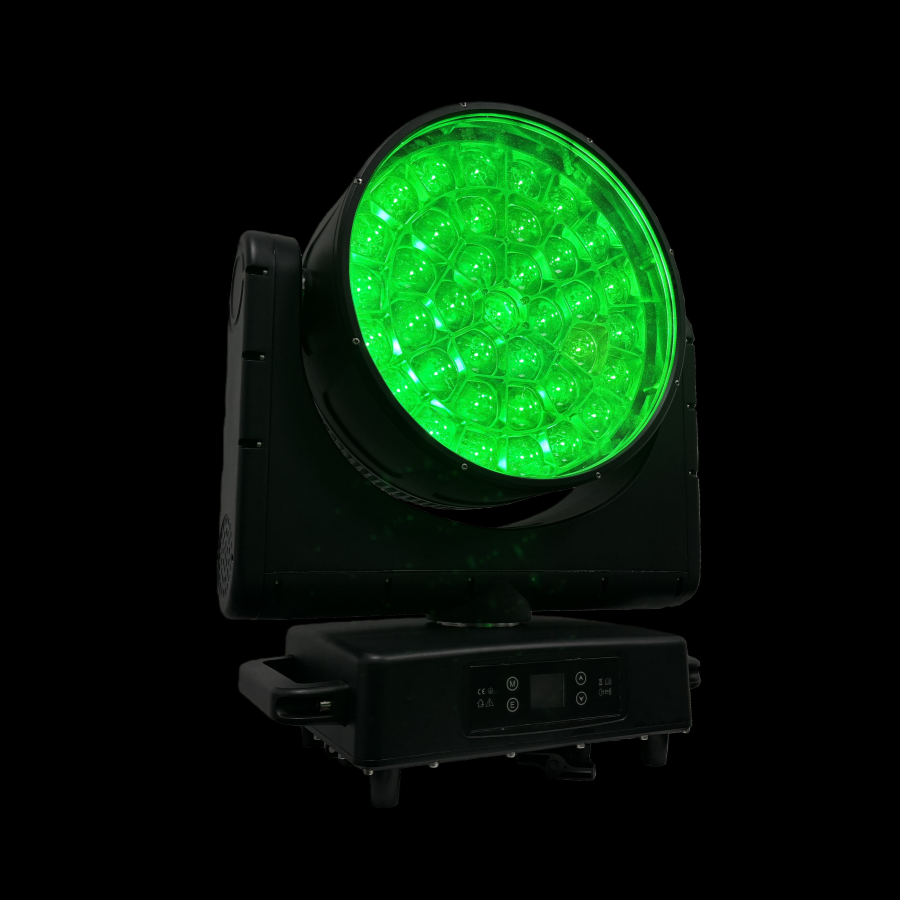

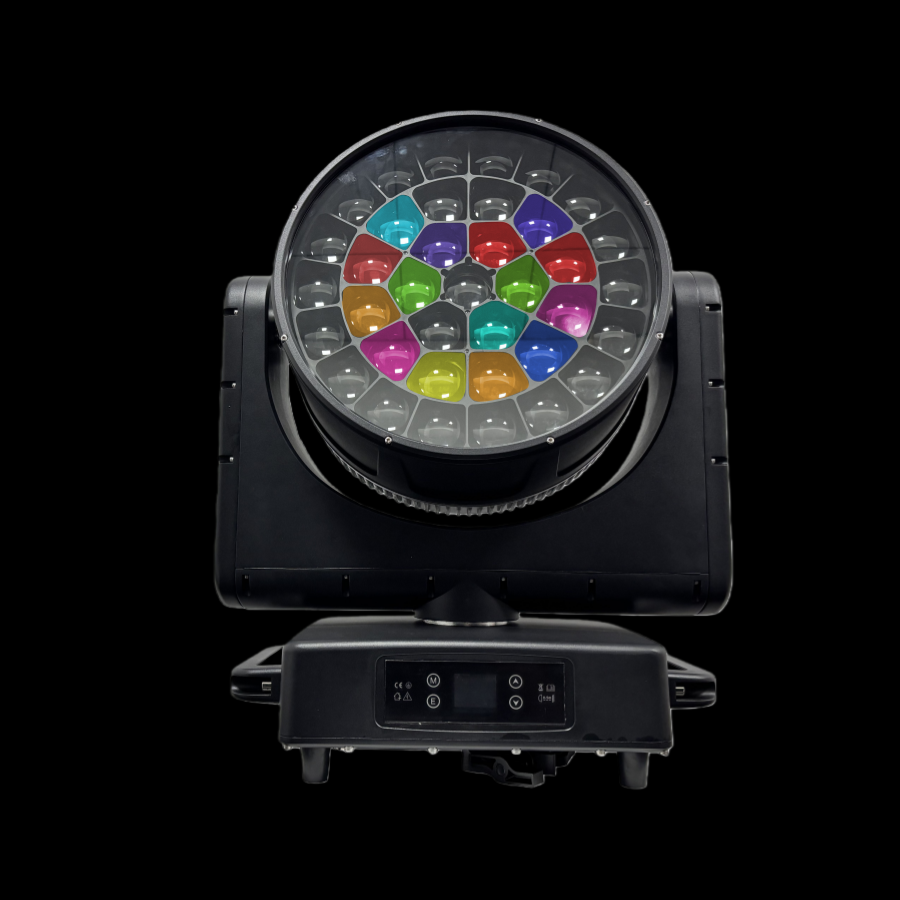

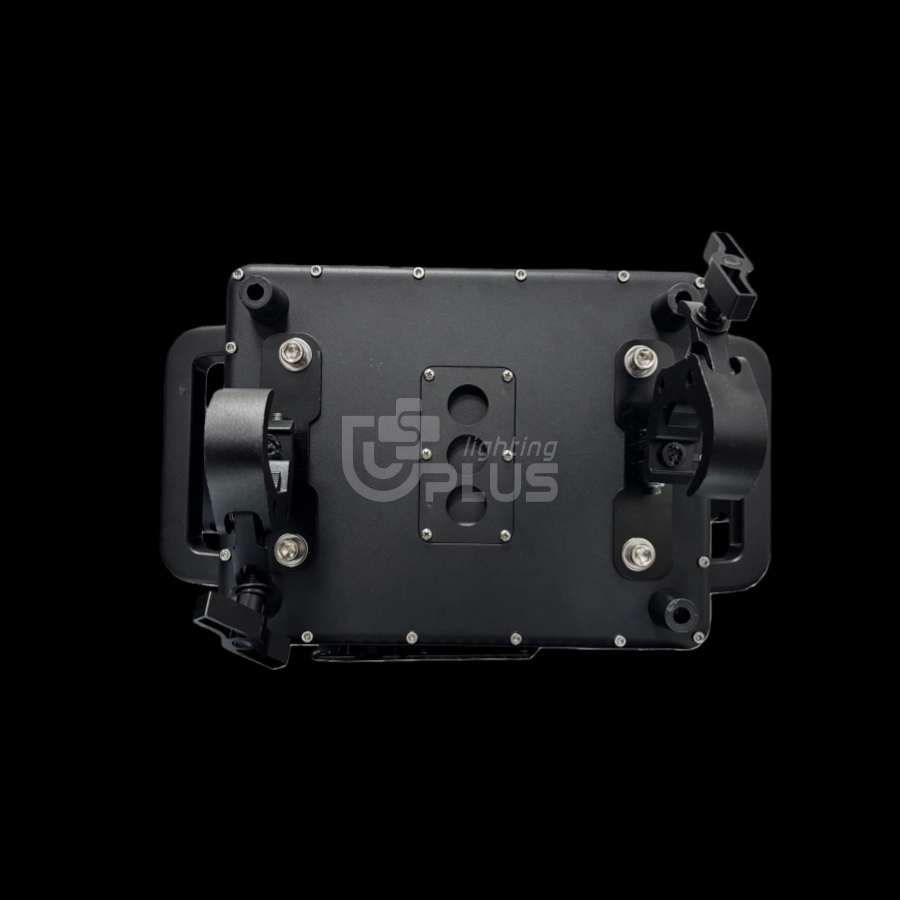

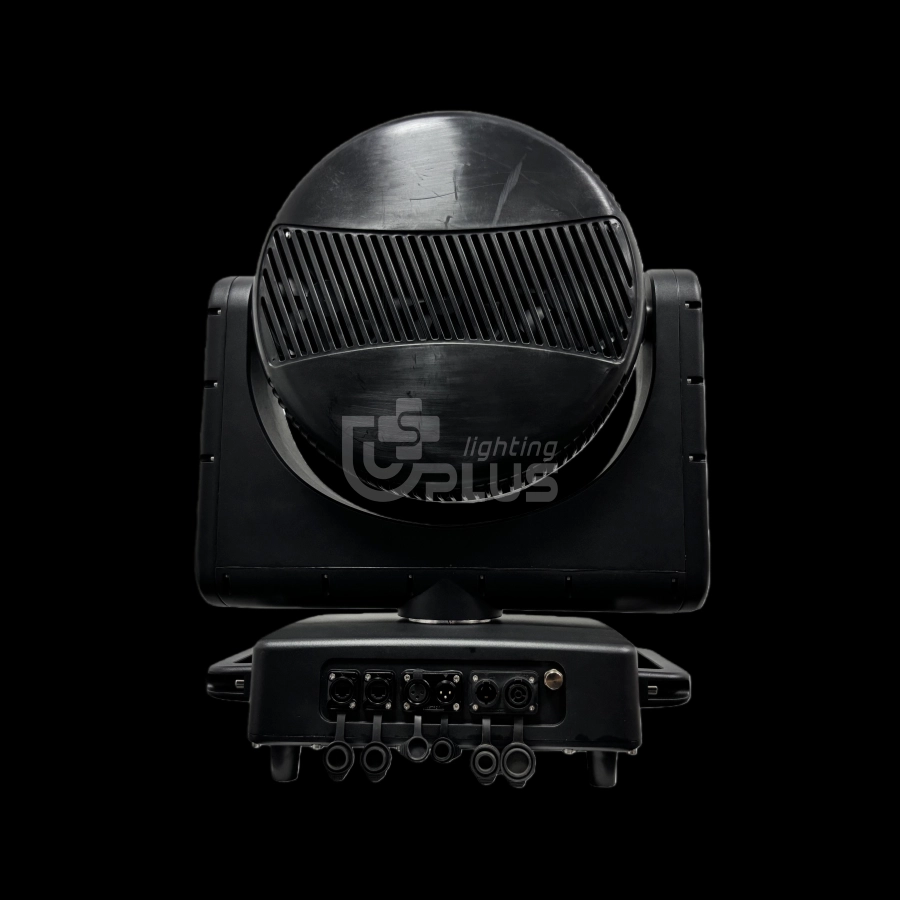

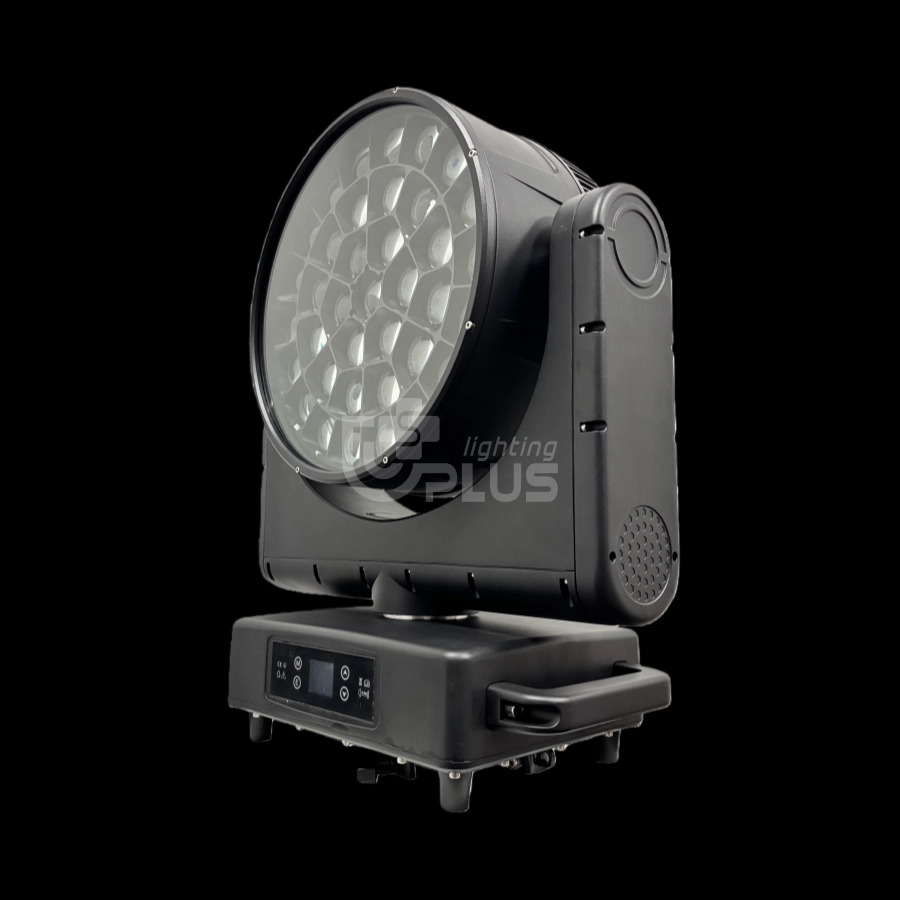

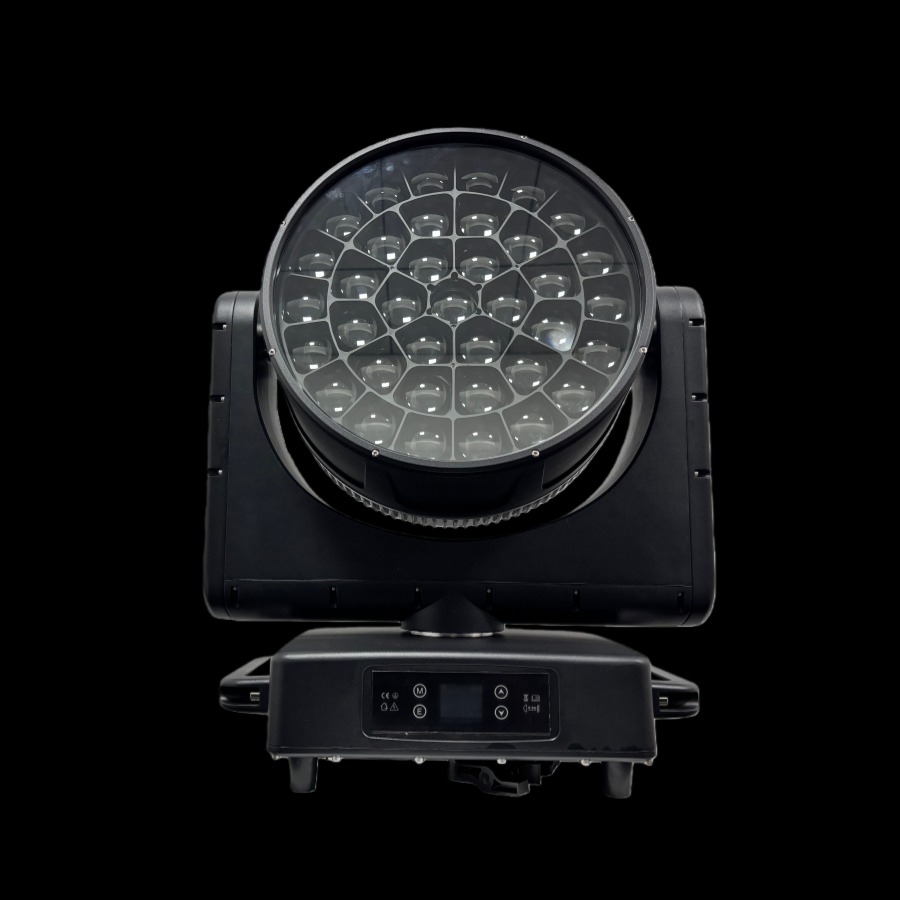

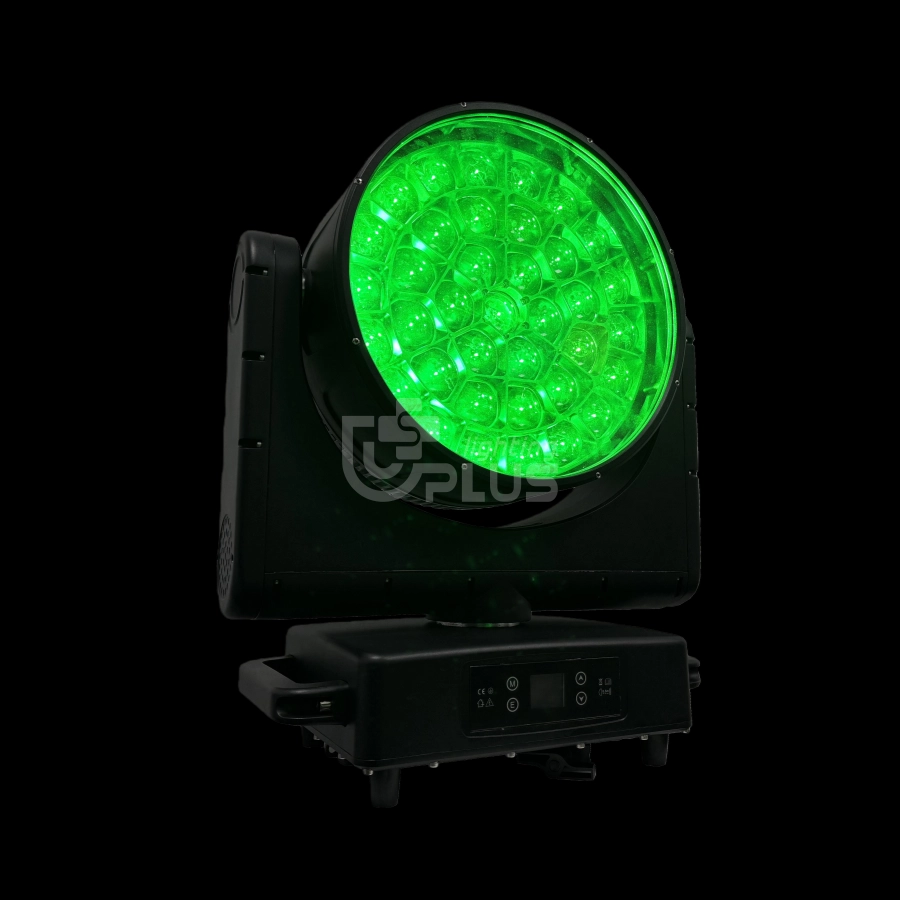

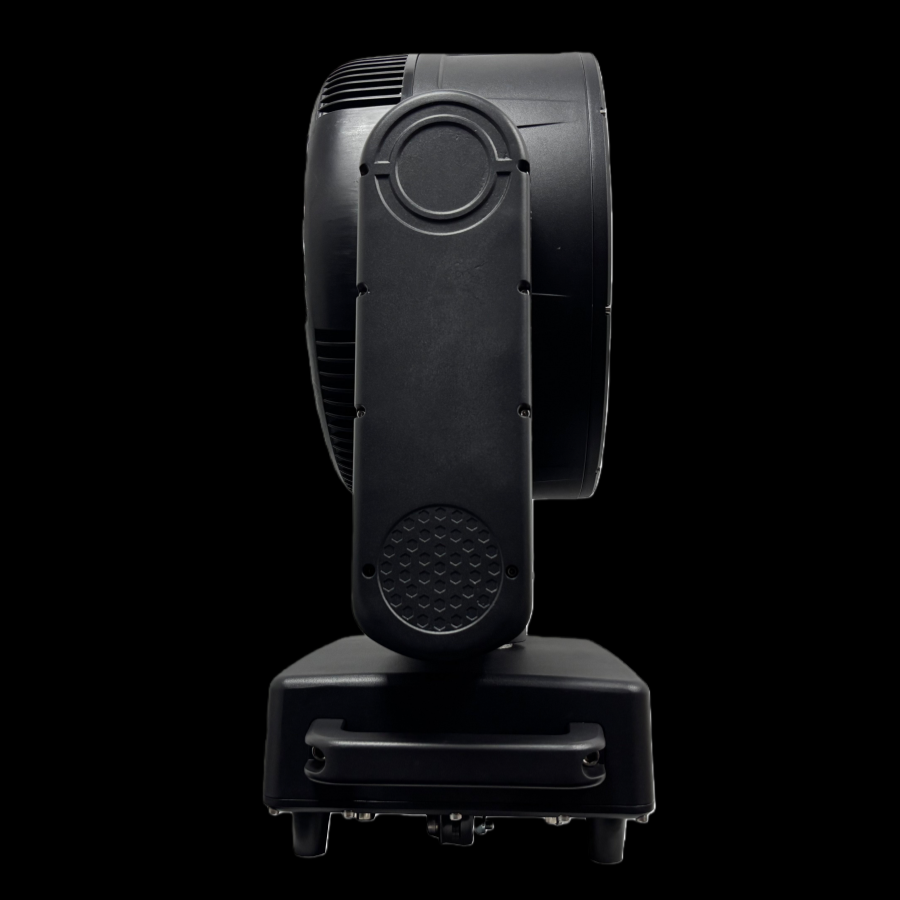

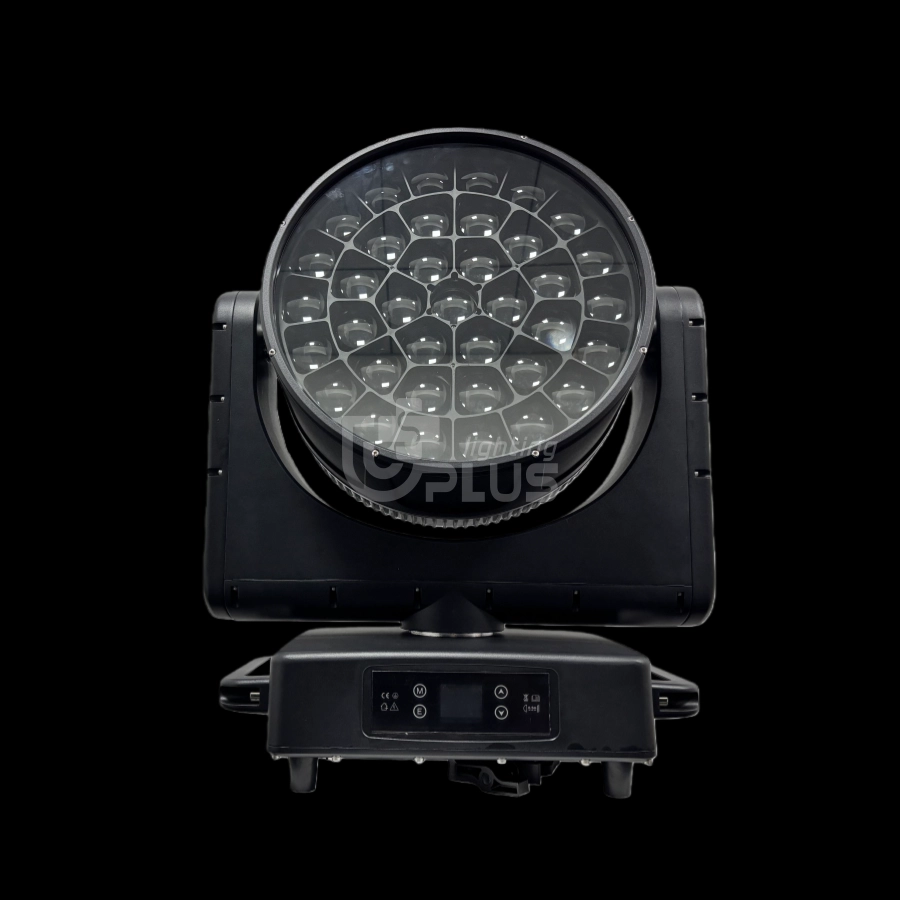

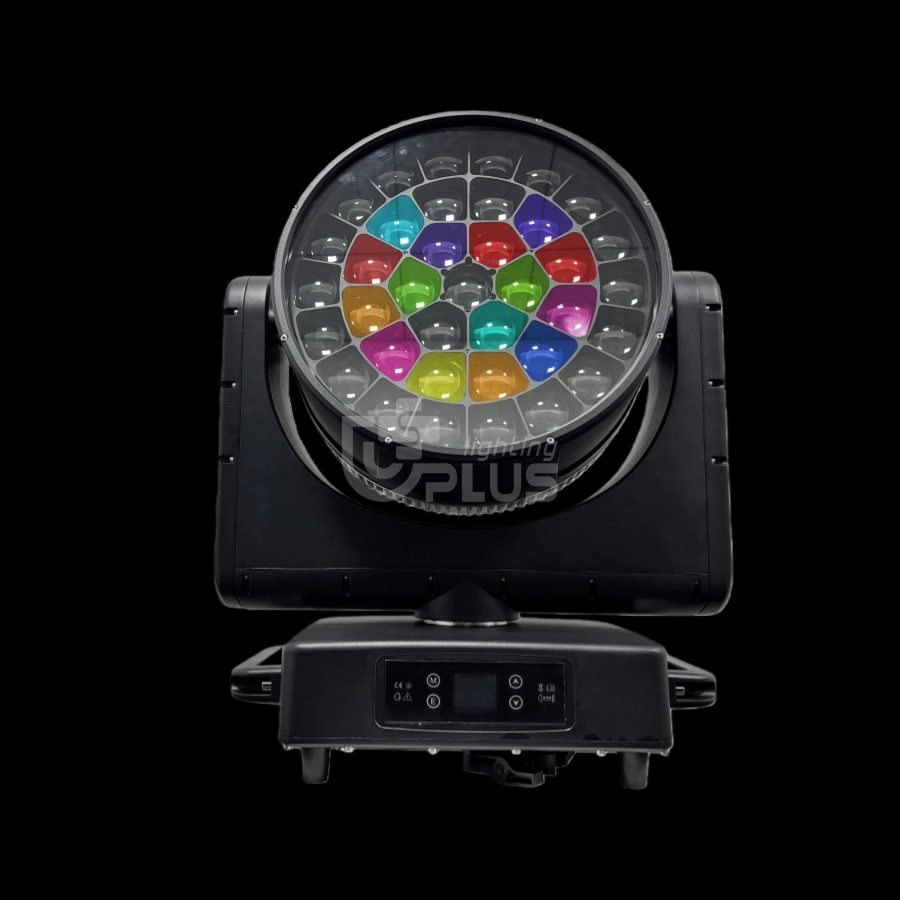

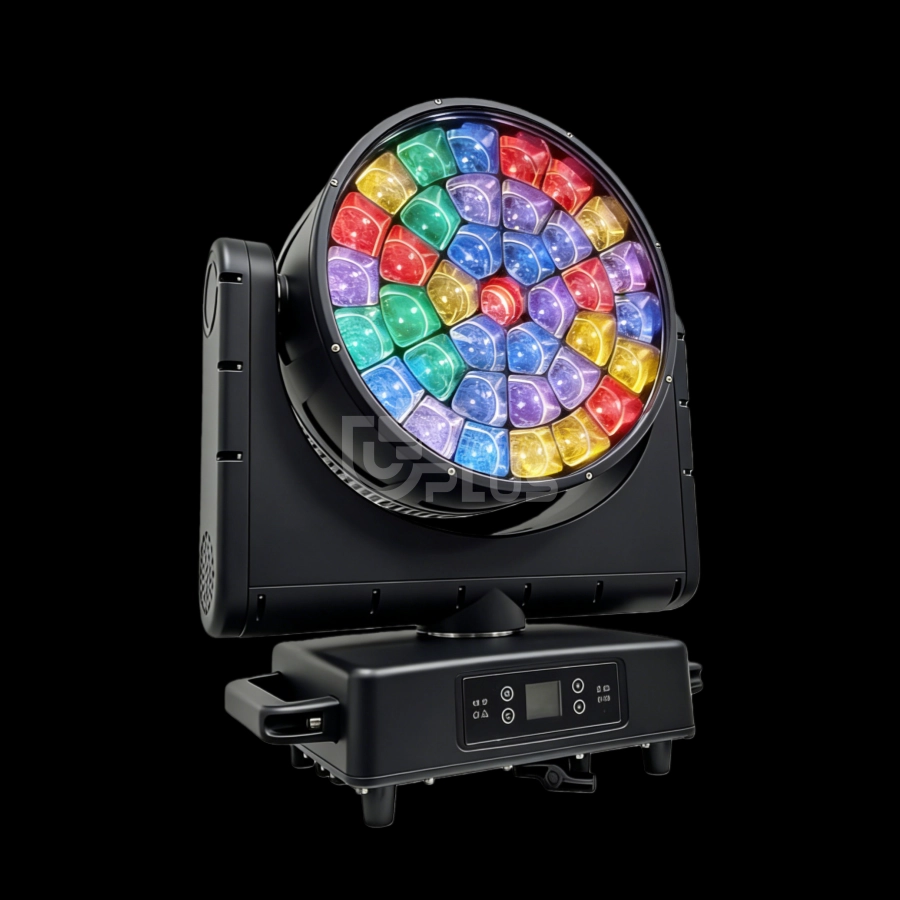

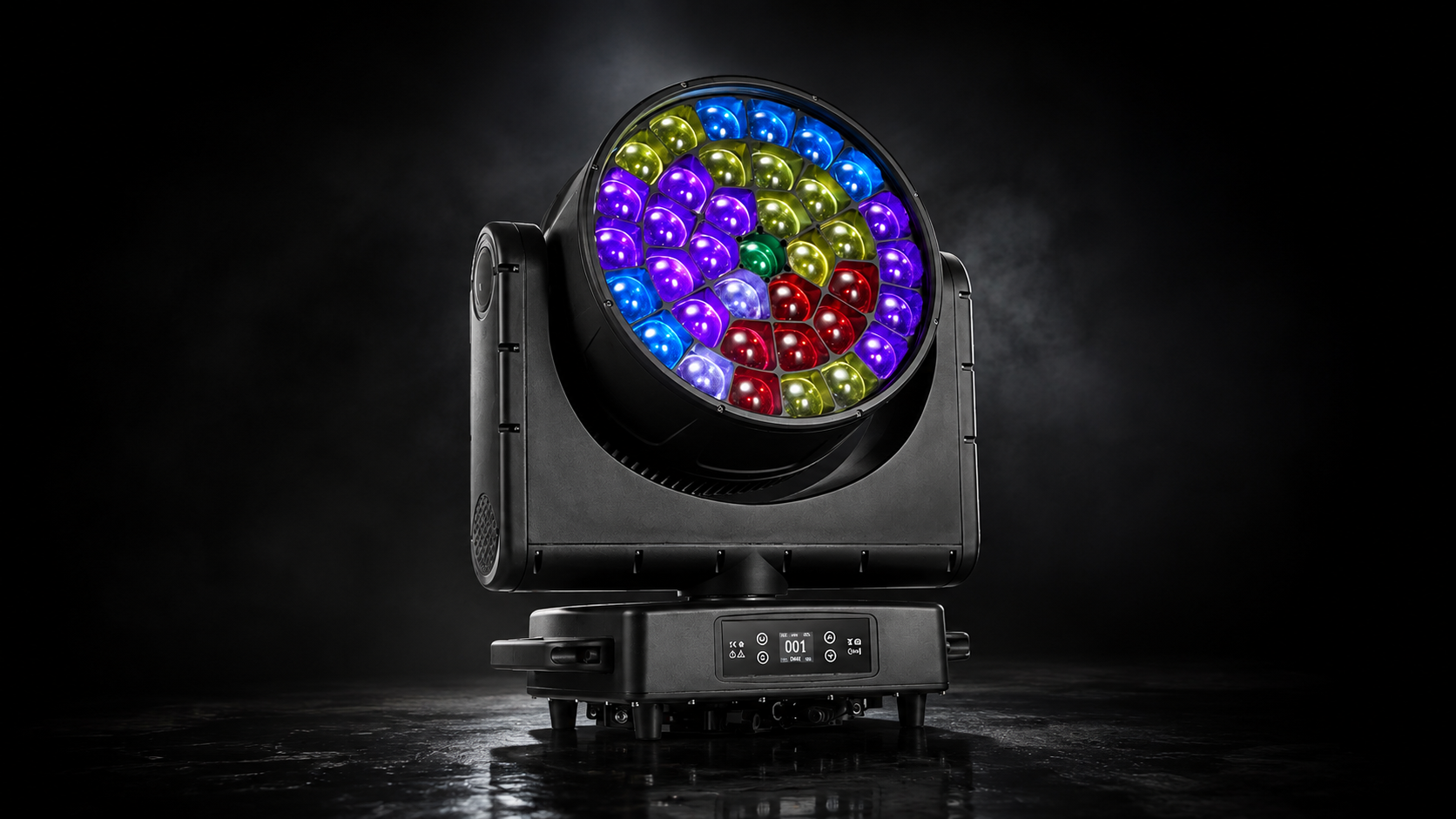

K25: IP66 37*40W Wash zoom & Bee eye moving head

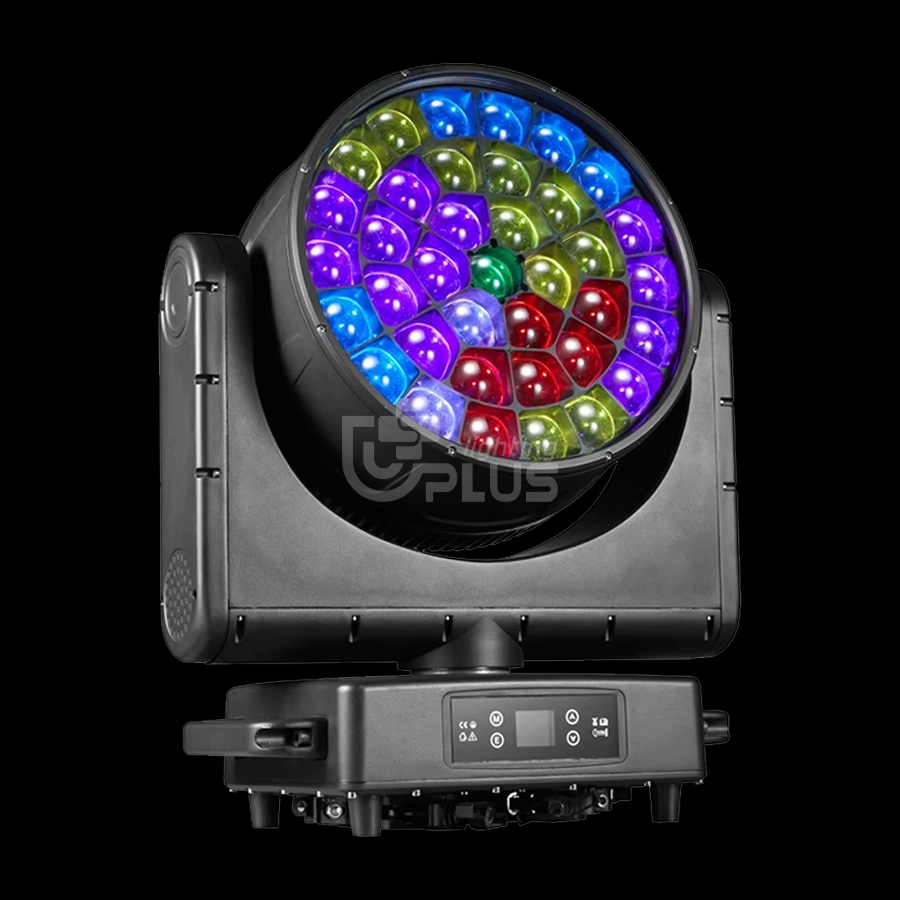

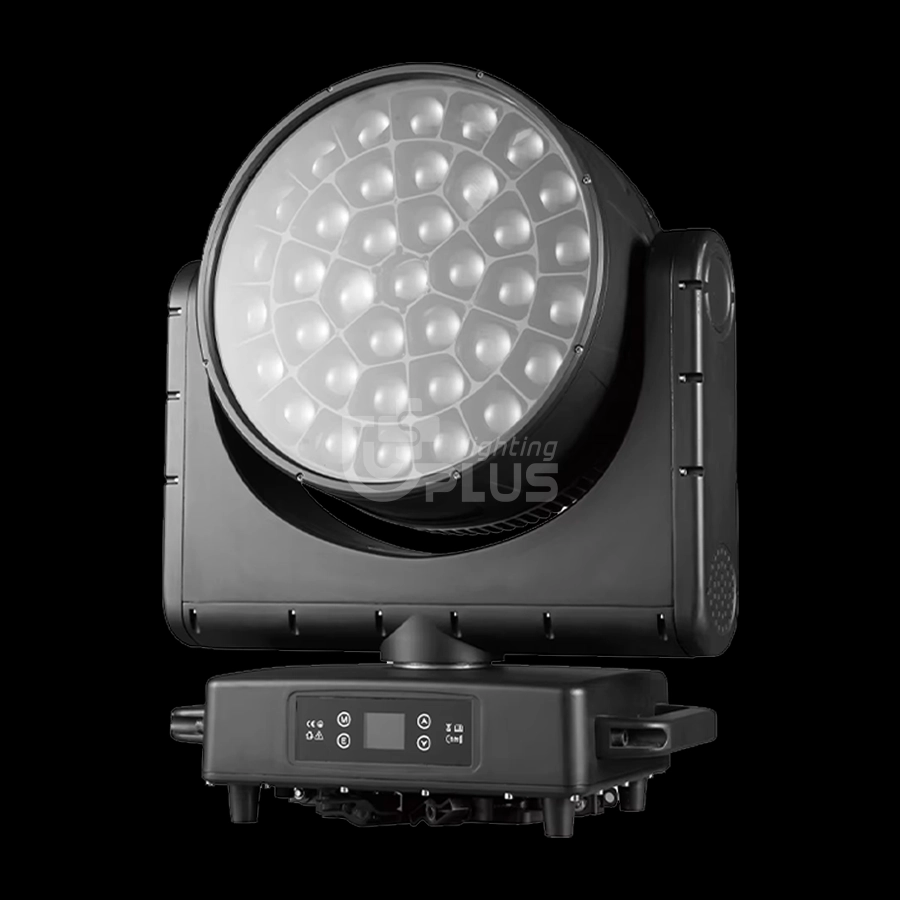

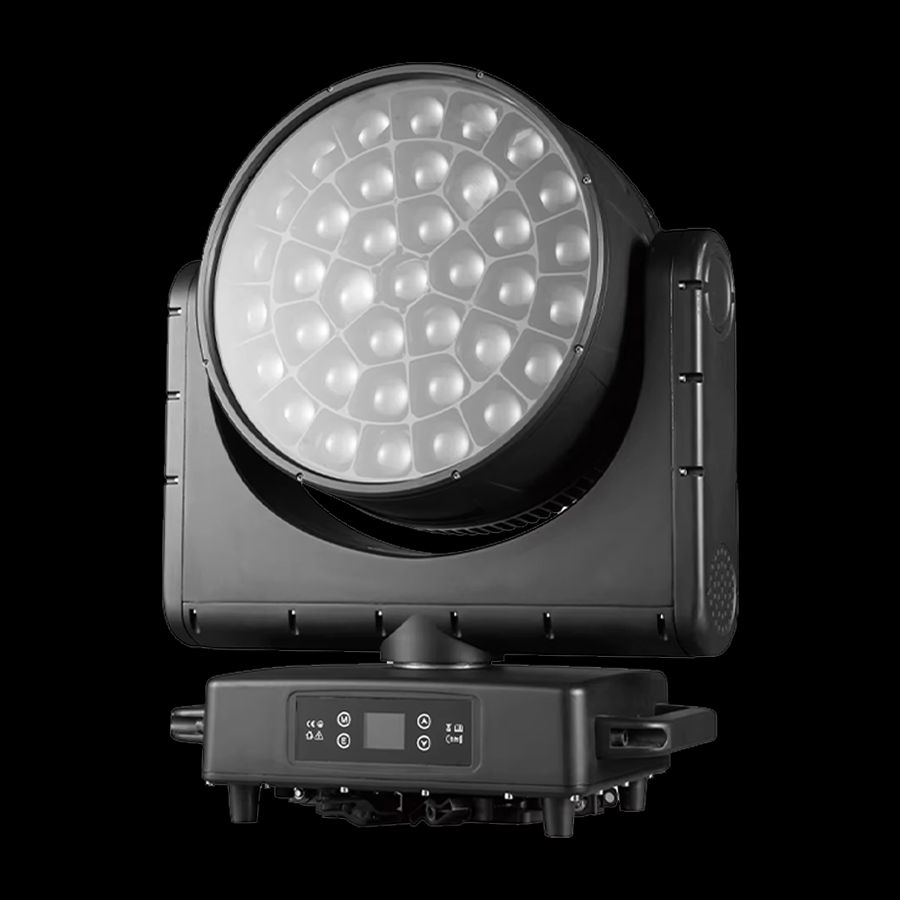

IP-PZ3740

The K25: IP66 37*40W Wash Zoom & Bee Eye Moving Head is a professional-grade outdoor lighting device that integrates wall washing and bee eye effects. It features 37 groups of 40W high-power LED beads, providing strong total power. Combined with professional optical design, it achieves delicate and uniform color mixing, covering the full color spectrum.

INTRODUCTION
INTRODUCTION
SPECIFICATIONS
SPECIFICATIONS
EFFECT
EFFECT
LUX DATE & DIMENSION
LUX DATE & DIMENSION
FEATURES
FEATURES
APPLICATION
APPLICATION
PACKAGING & LOGISTIC
PACKAGING & LOGISTIC
FAQs
FAQs
IP-PZ3740 - Uplus Lighting

Specifications

OPTICS

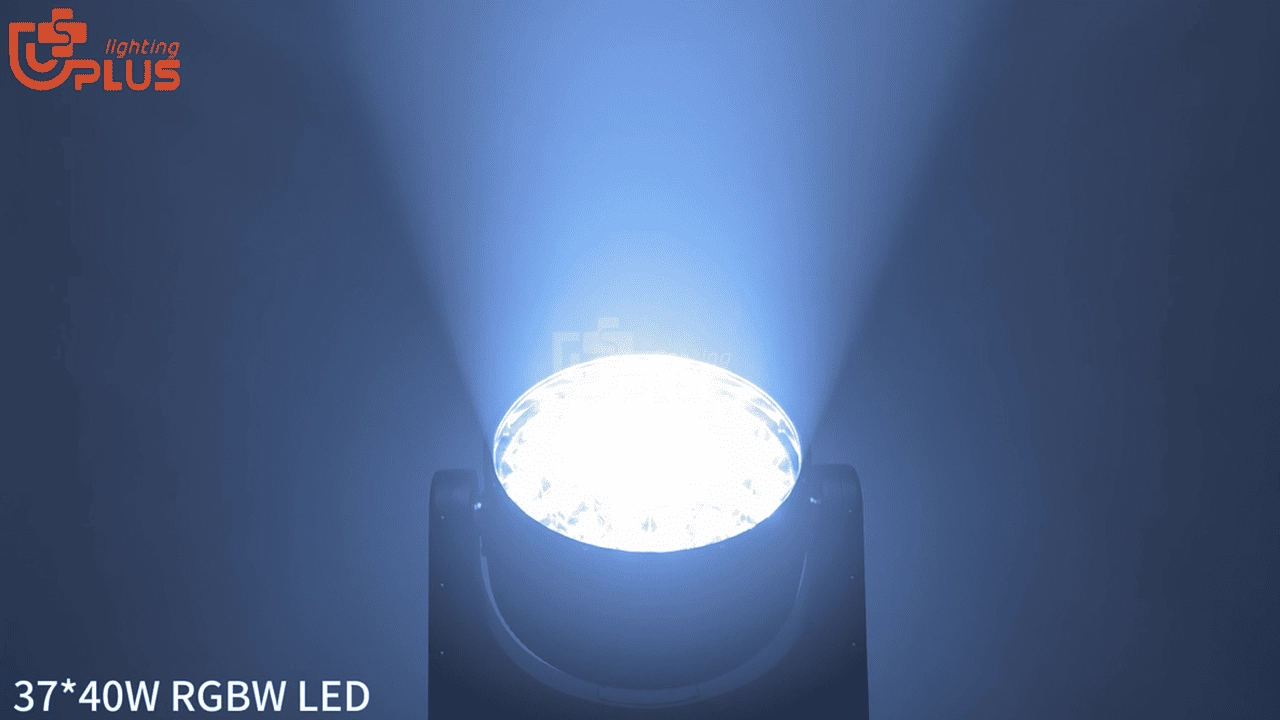

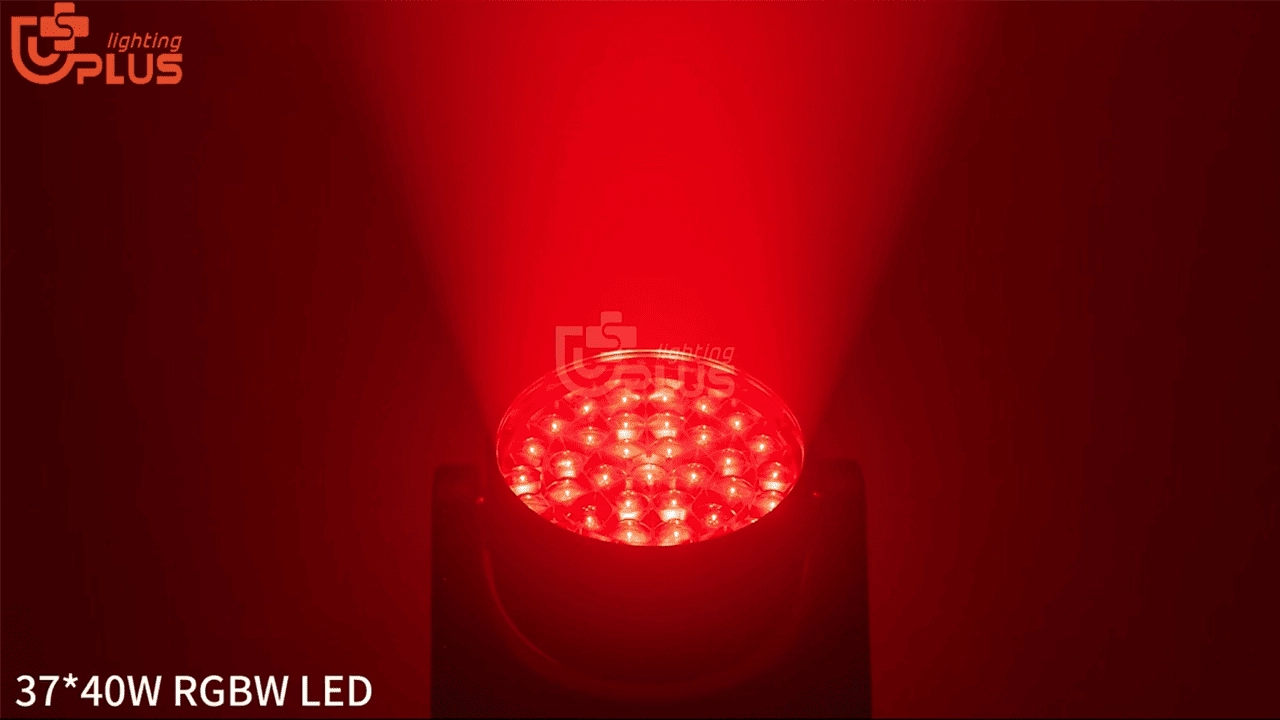

• Light source: 37*40W RGBW 4-in-1 LED
• Power Consumption: 1500W
• Zoom angle: 6°–50°

FEATURES

• Full body Magnesium alloy IP66

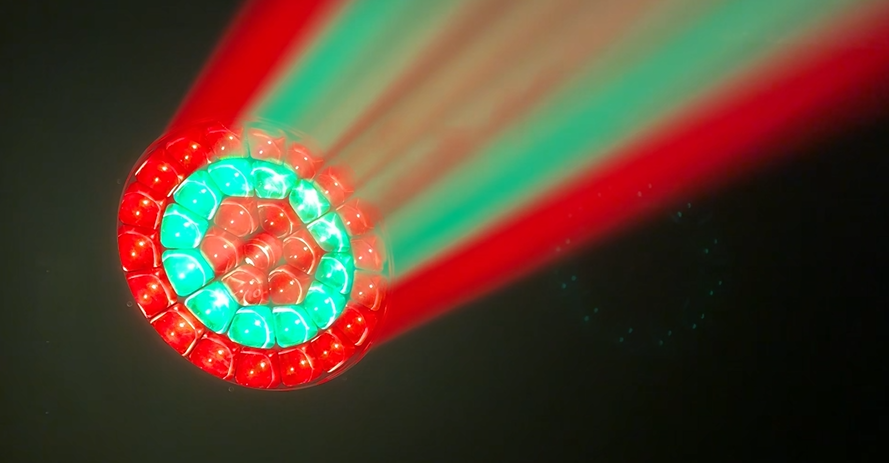

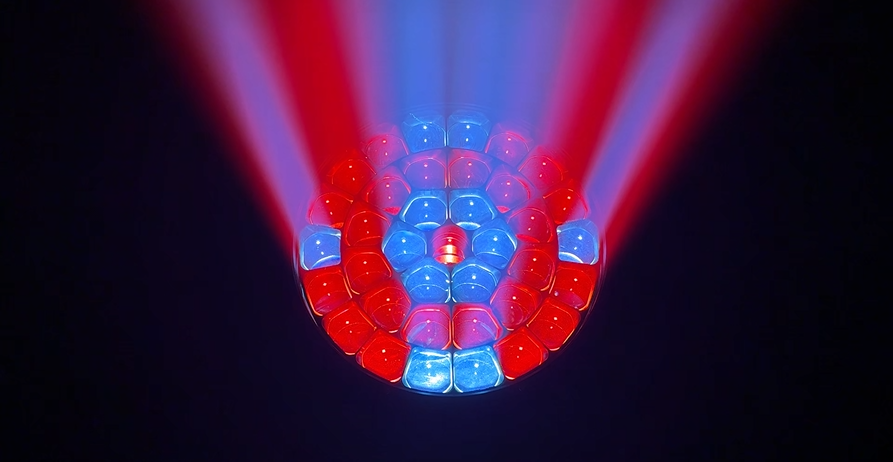

• Each Led pixel control effect
• Wash zoom+ bee eye rotating effect
• Outstanding color Marco effect; Variable strobe effects
• Over heat temperature control
• Control mode: DMX512, Auto-run, Master-Slave, Sound active, RDM
• Control Channel: 21/22/35/36/111/148 CH
• Dimmer: 0-100% linear dimmer
• Display: LCD colorful display

SPECIFICATION

• Dimension: 279*530*663mm; NW: 31 kg

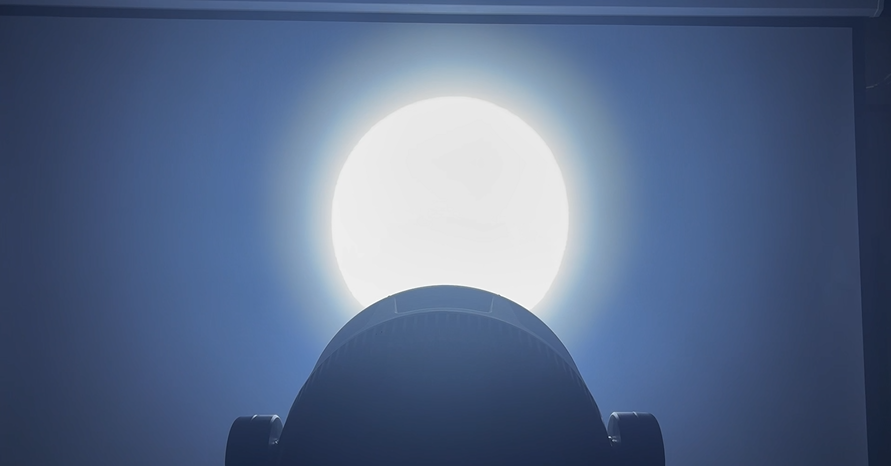

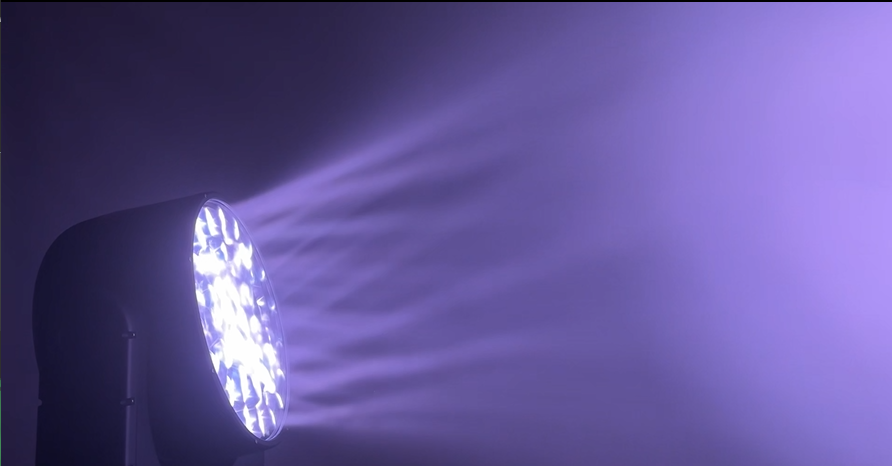

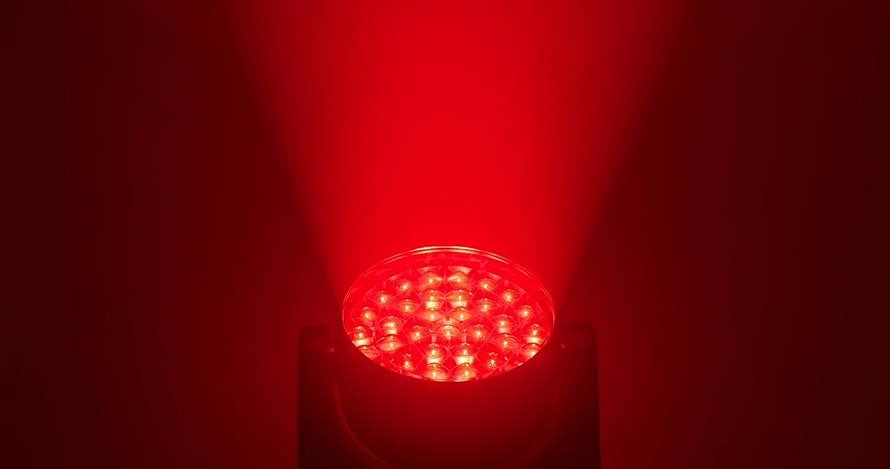

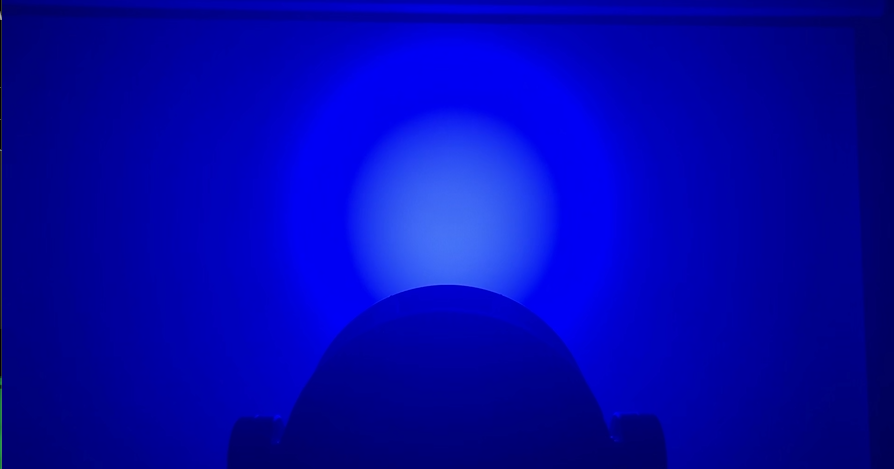

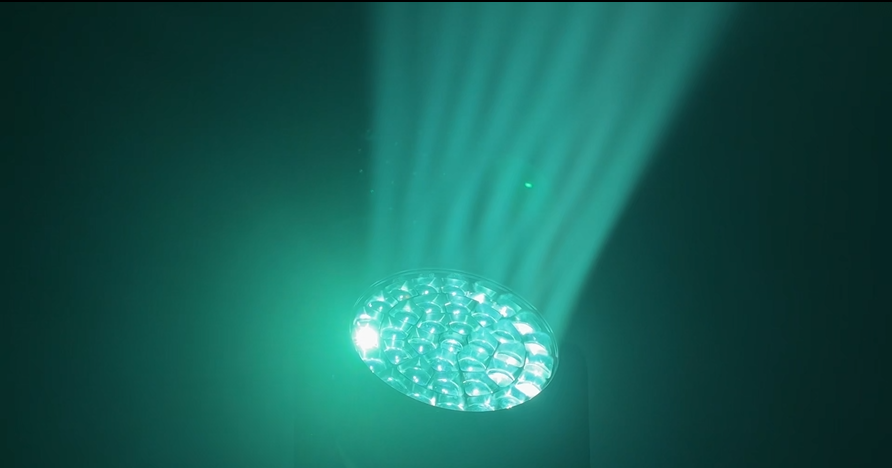

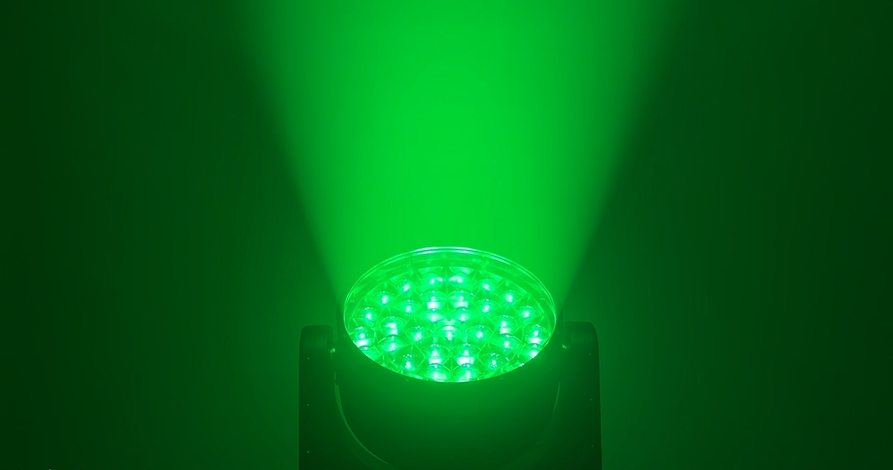

Effect

effect (8) - Uplus Lighting
effect (9) - Uplus Lighting
effect (6) - Uplus Lighting
effect (4) - Uplus Lighting
effect (2) - Uplus Lighting
effect (10) - Uplus Lighting
effect (11) - Uplus Lighting
effect (3) - Uplus Lighting
effect (1) - Uplus Lighting
effect (5) - Uplus Lighting
effect (7) - Uplus Lighting

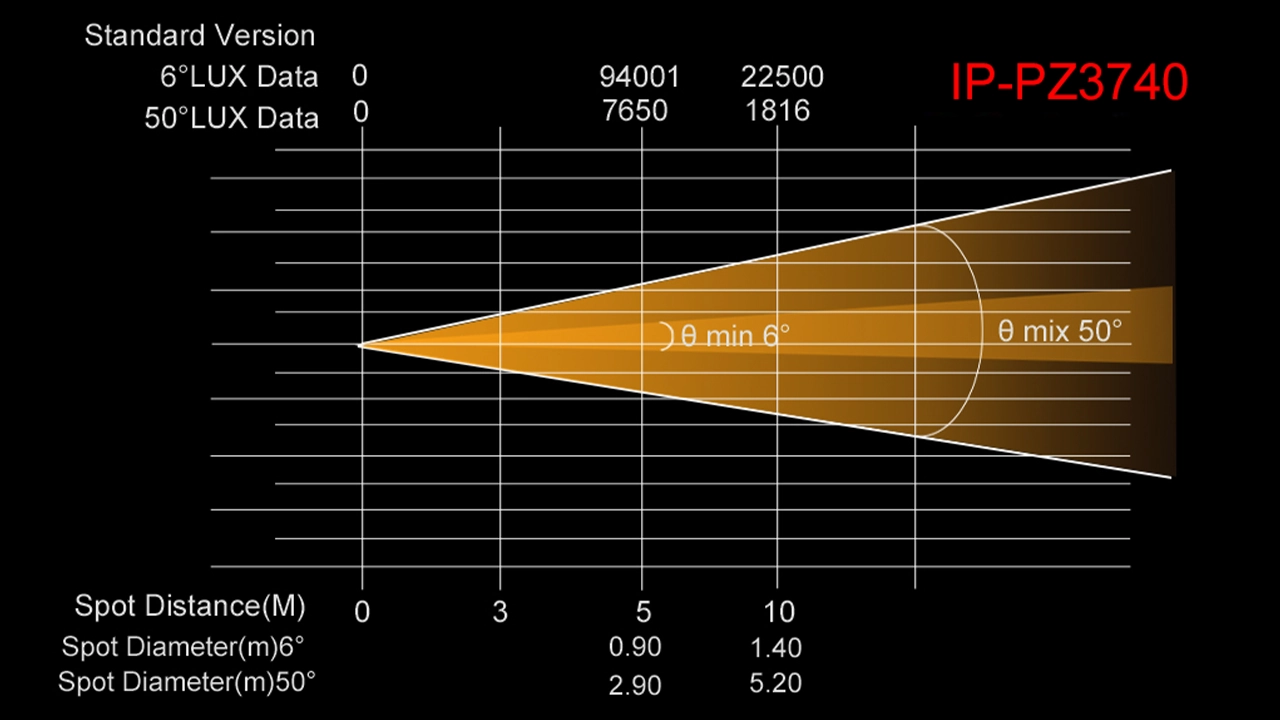

LUX Date & Dimension
IP-PZ3740 - Uplus Lighting
LUX Date
IP-PZ3740 - Uplus Lighting

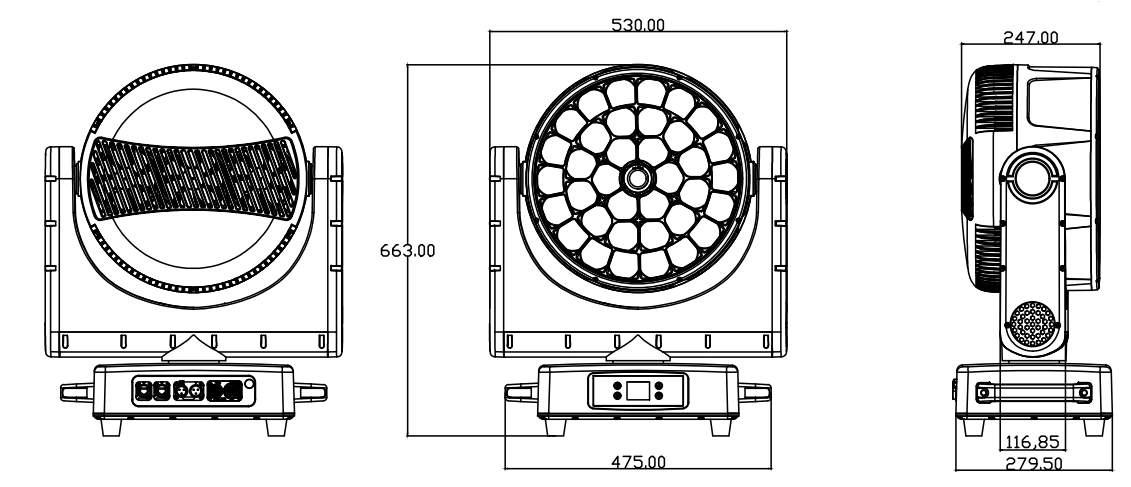

Dimension

Features

Light Source Configuration
37 groups of 40W high-power LED beads, providing full-color spectrum coverage, uniform color rendering, and powerful luminous efficacy.
Dual-Effect Integration

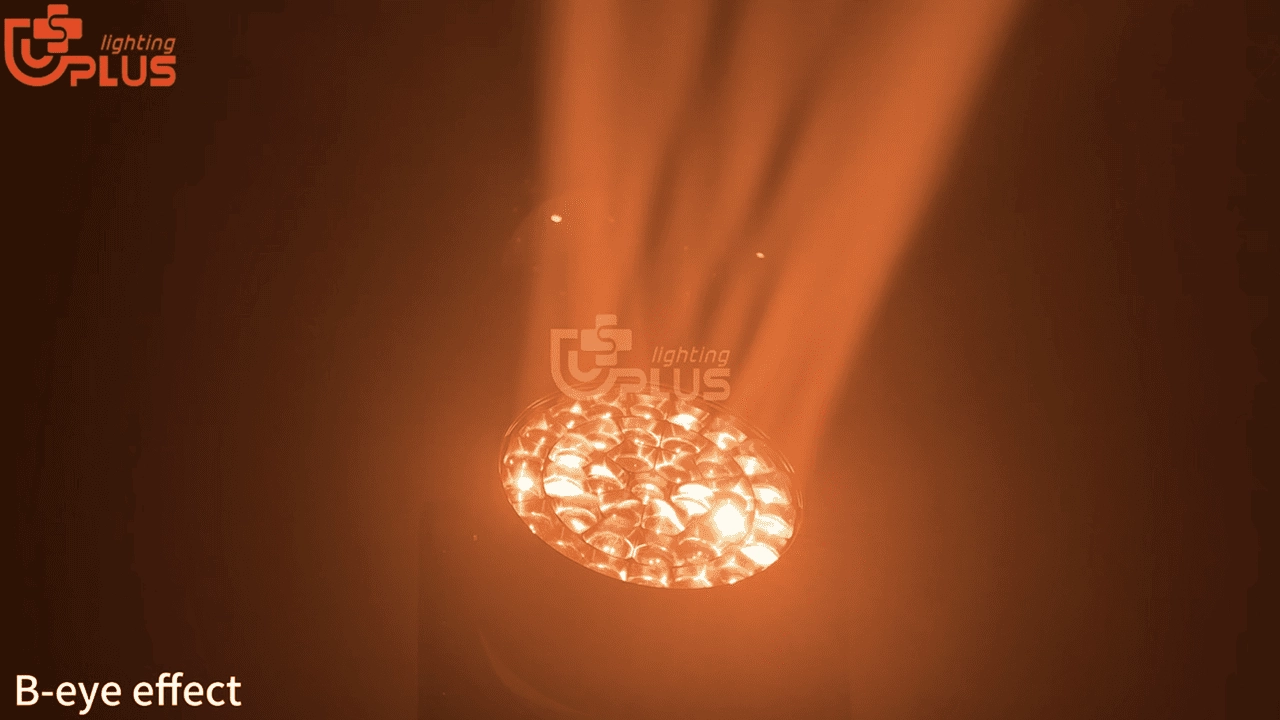

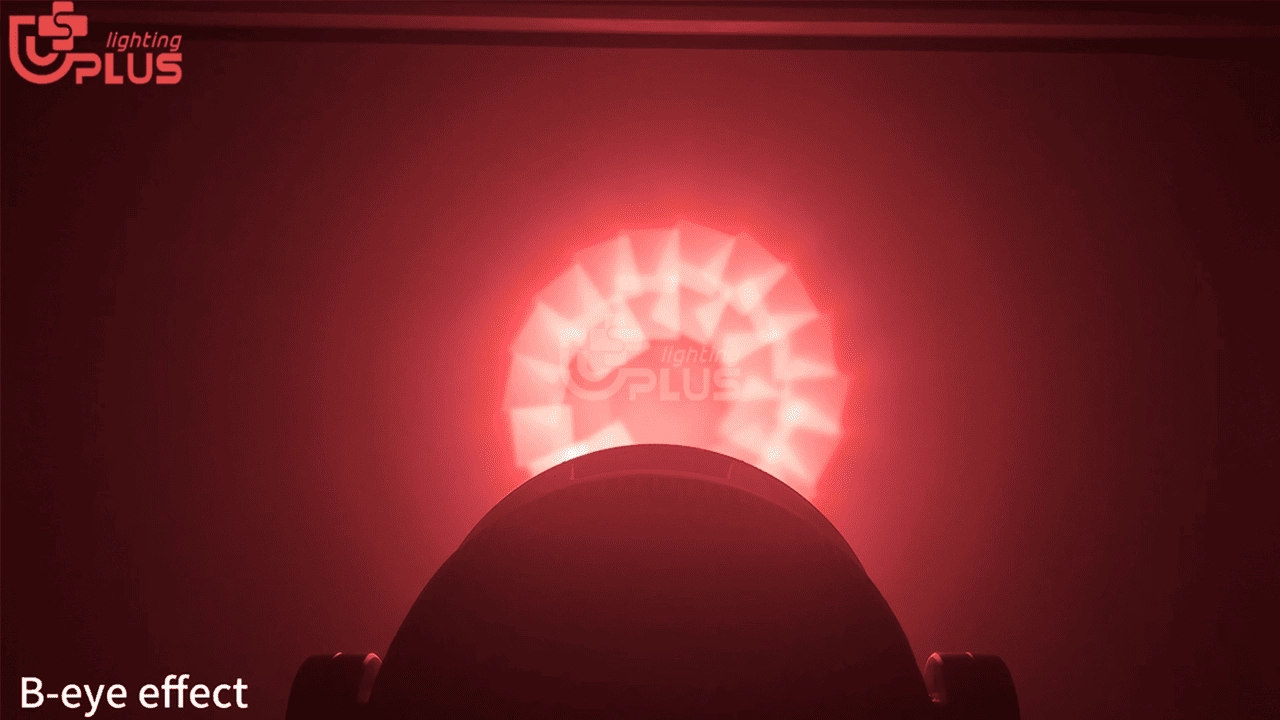

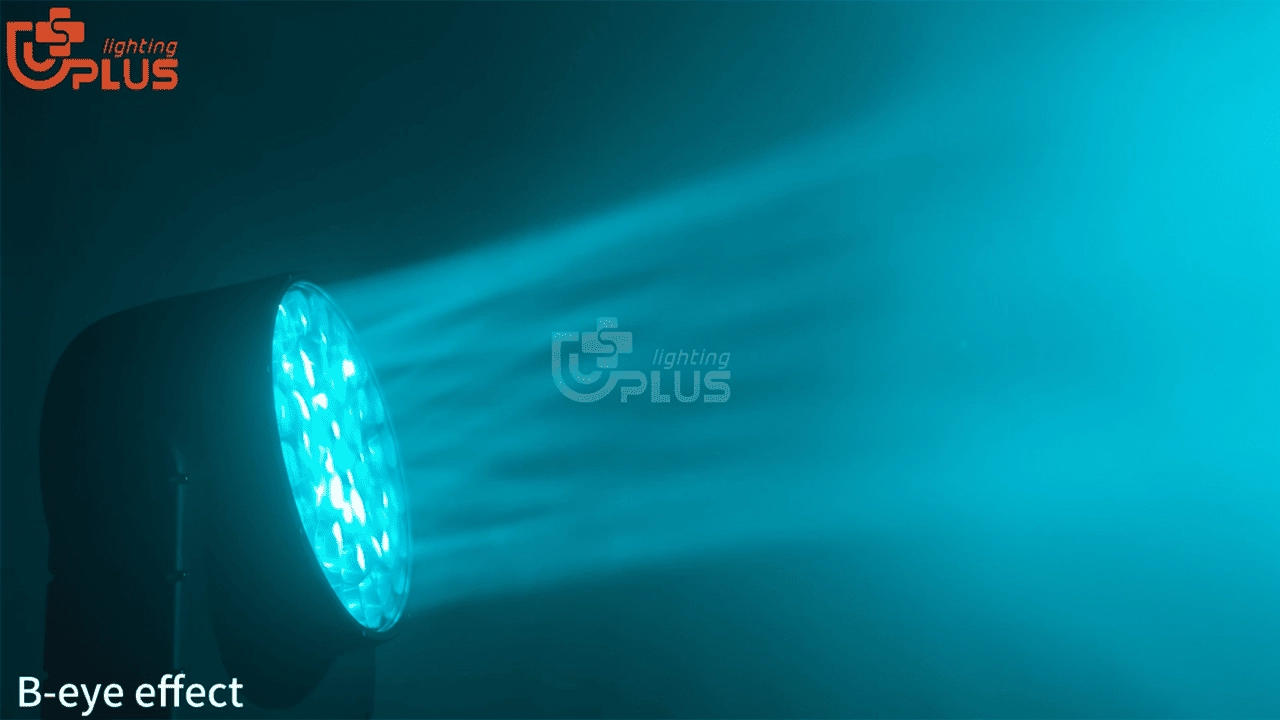

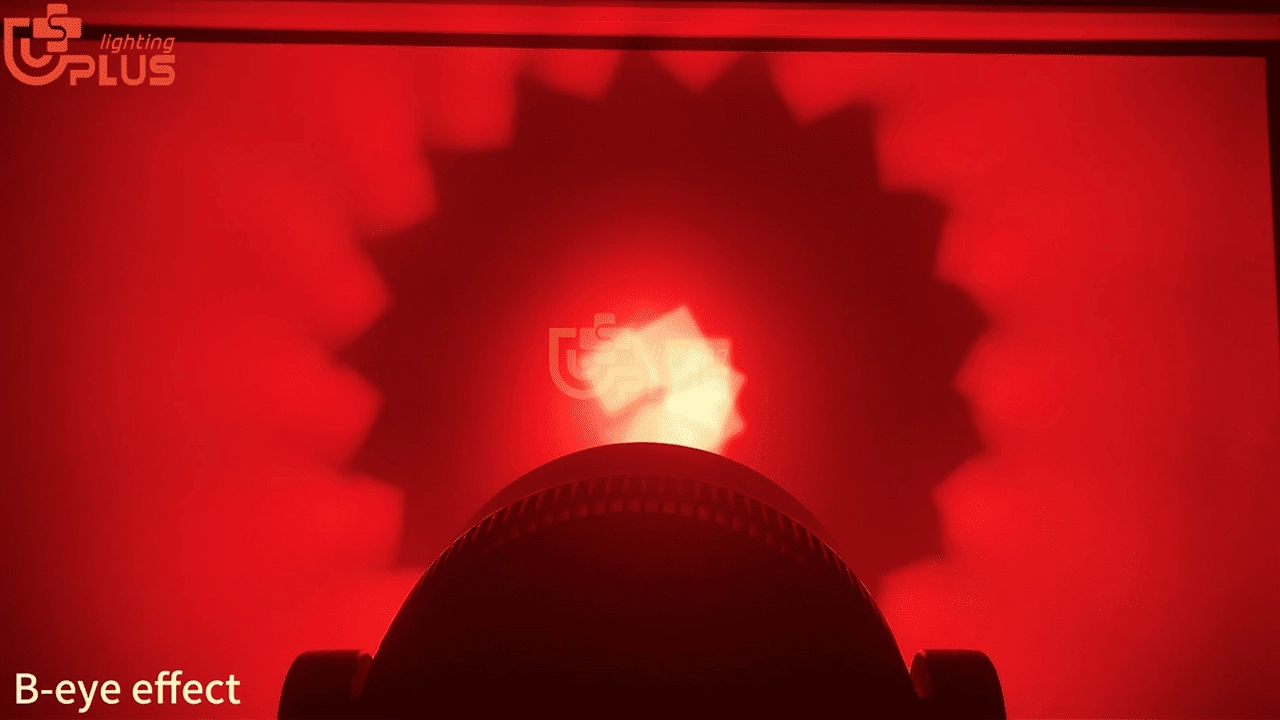

Integrates large-area wall washing and honeycomb effects; the honeycomb effect can be activated independently to achieve dynamic effects such as multi-beam projection and strobe.
Zoom Adjustment
Supports a wide zoom range of 6-50°, allowing for flexible light spot scaling to precisely adapt to different venue sizes.
Protection Performance
IP66 high-level waterproof and dustproof rating, robust sealed structure, resisting harsh environments such as heavy rain and strong dust.
Control Method
Compatible with DMX512/RDM protocols, it supports self-propelled, voice-activated, and master-slave modes and is adaptable to professional consoles and standalone operation.

APPLICATION

Moving Head Stage Lights - Uplus Lighting

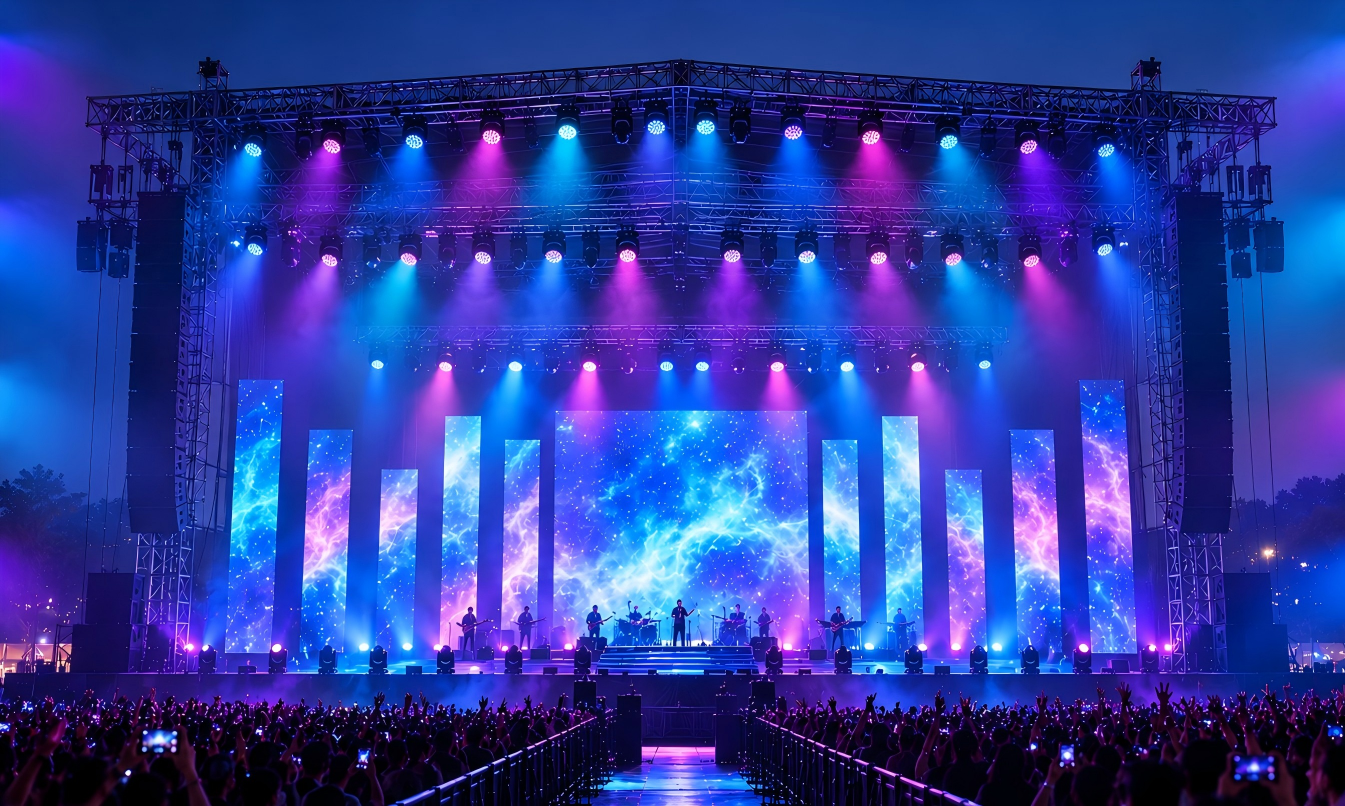

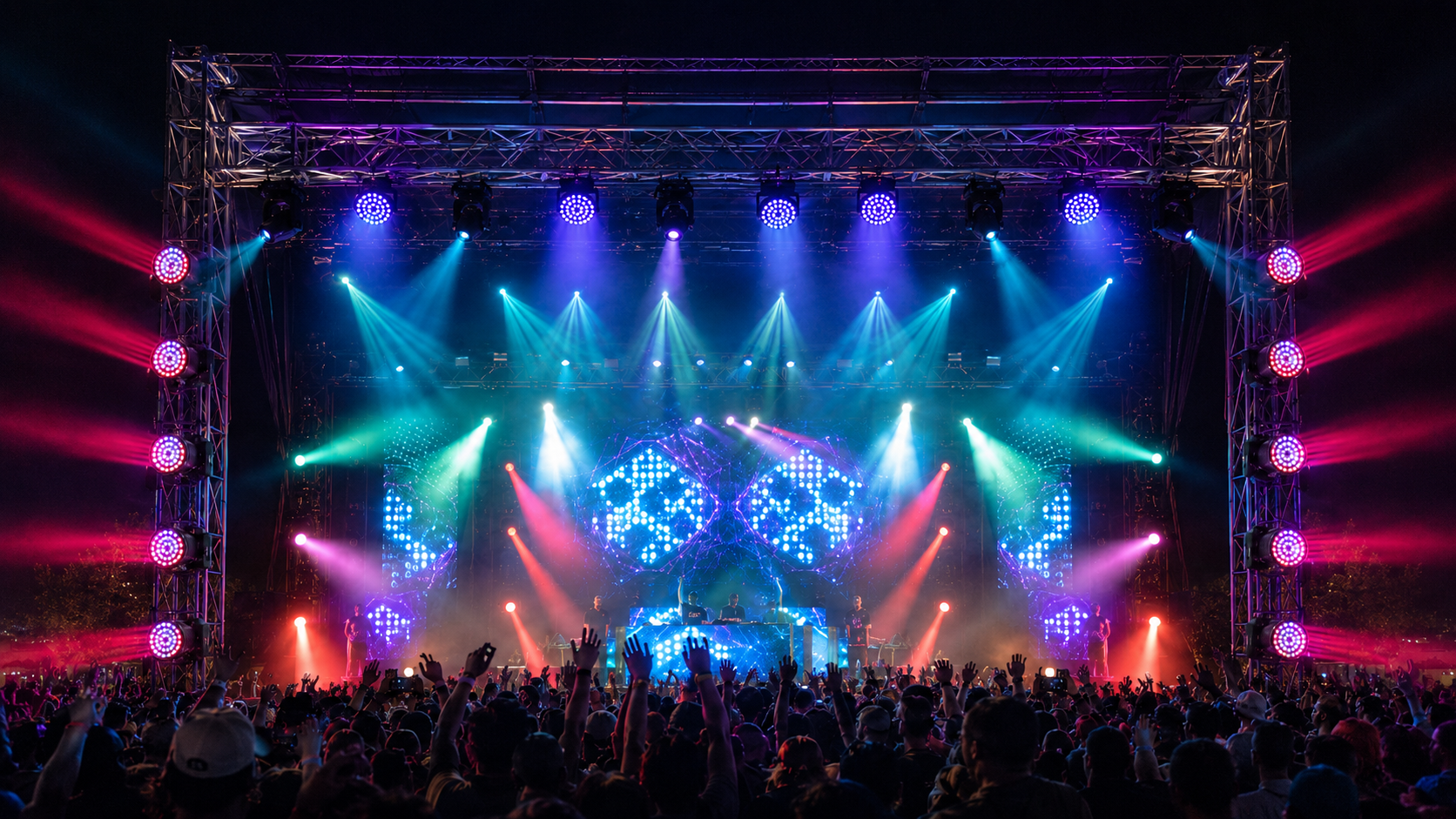

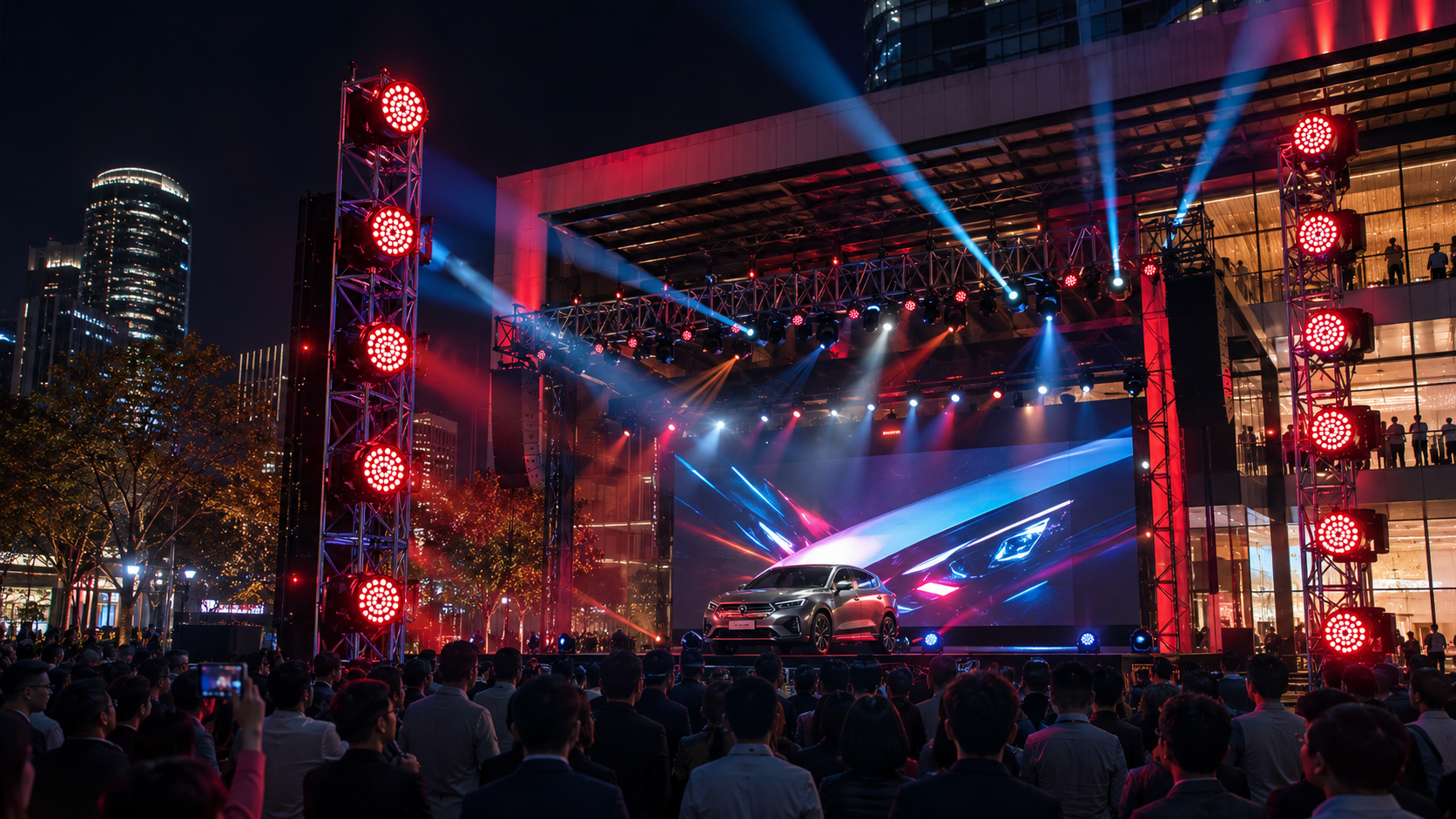

Outdoor Performances
Wide-area wall washing with bee-eye effects, resistant to heavy rain and dust, and compatible with stages of various sizes.
Architectural-lighting - Uplus Lighting
Urban Lighting
Contour shading and dynamic projection, high protection, stable long-term outdoor operation.
Outdoor-Music-Festivals - Uplus Lighting

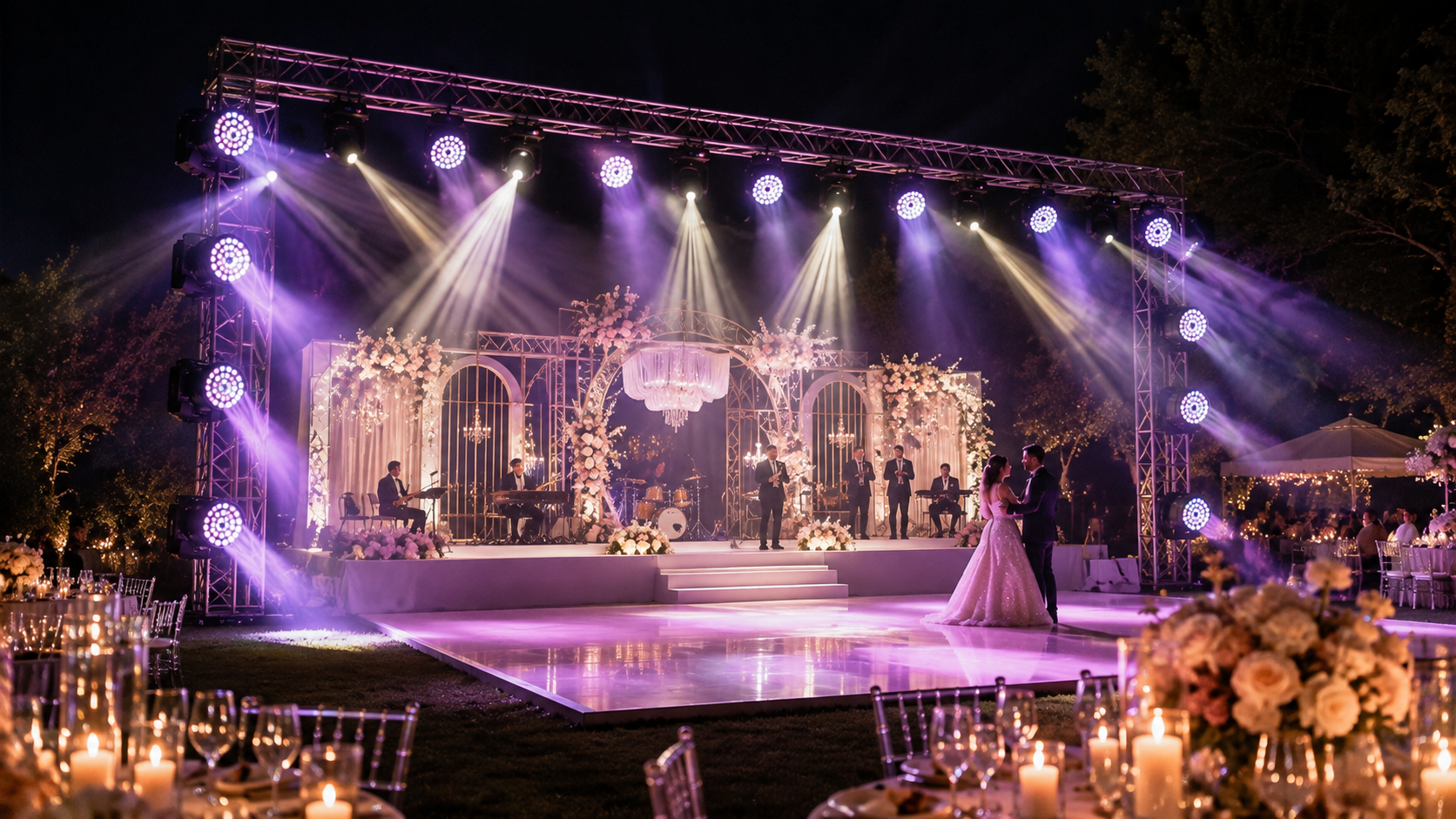

Commercial Celebrations
Full-area coverage and high-brightness effects, multi-mode control, adaptable to event flow.
Architectural-lighting - Uplus Lighting

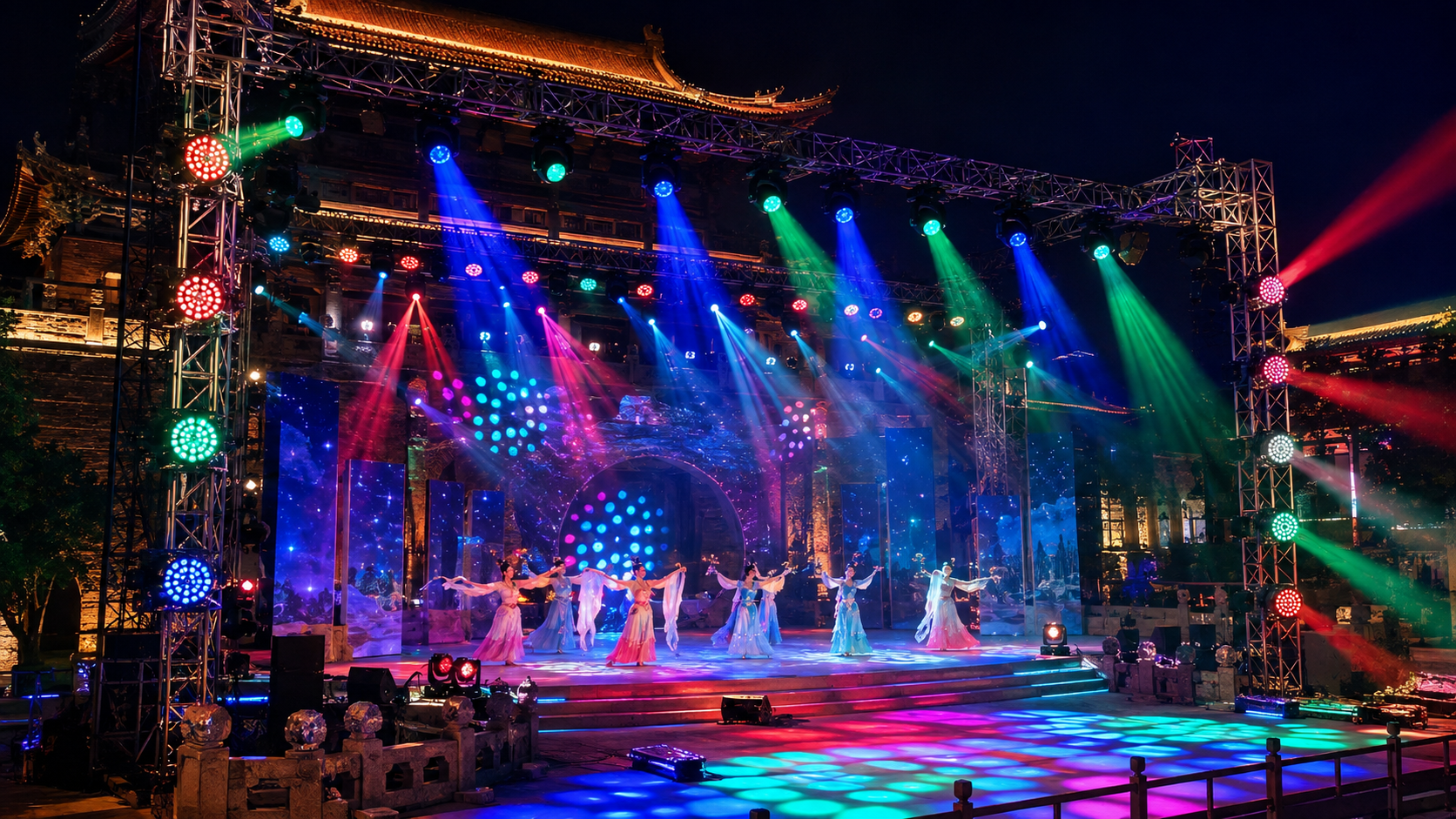

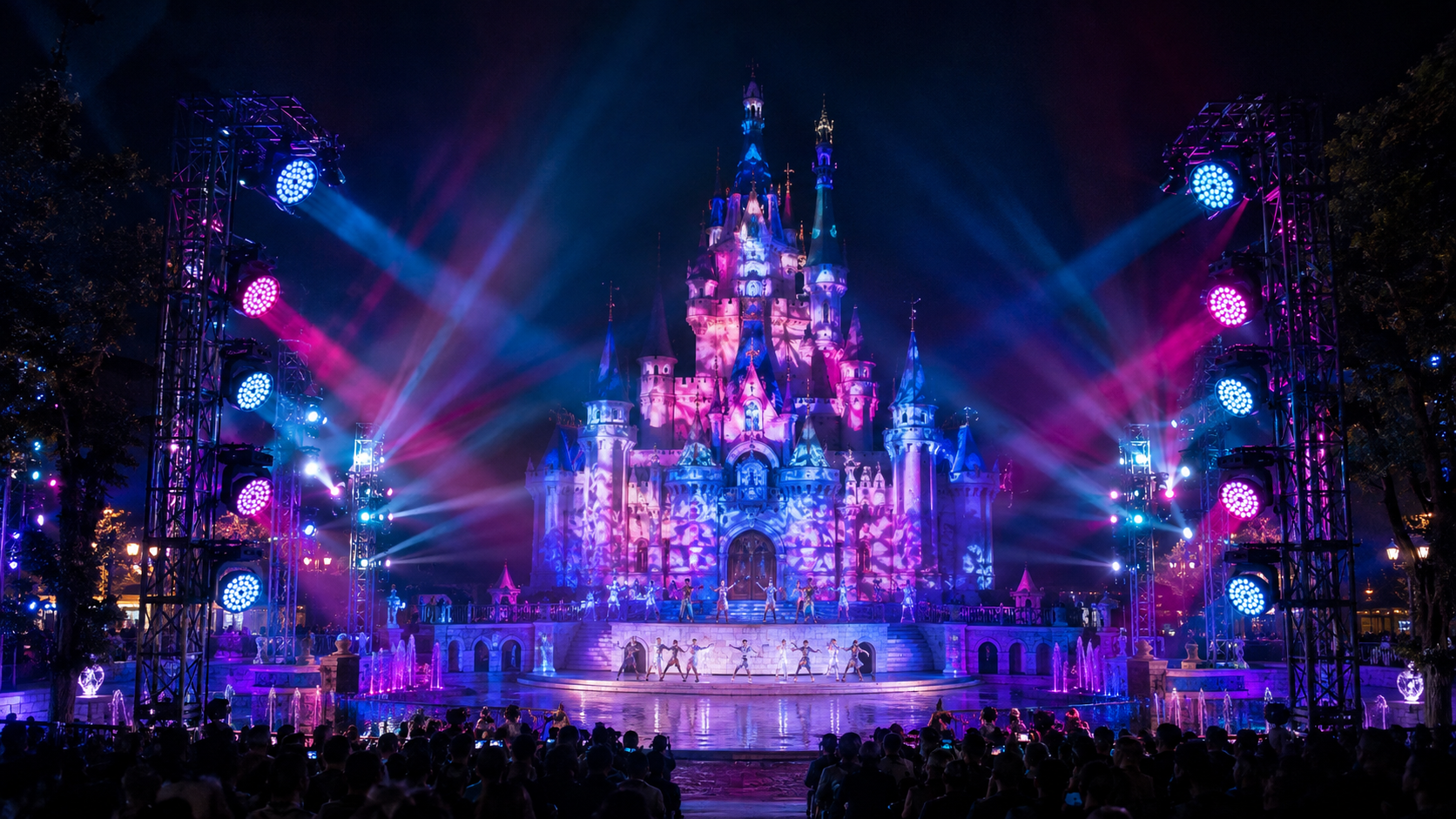

Cultural Tourism Night Tours
Immersive shading and photo-worthy highlights, resistant to complex environments, suitable for long-term operation.
led par light - Uplus Lighting
Indoor High-End Venues
Dual-effect lighting and professional output, meeting the needs of large-area lighting and scene atmosphere.

Packaging & Logistic

Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

IP-PZ3740
How many modes are there for the bee-eye effect? ​​Can it be customized?

It has multiple built-in preset dynamic modes, supports brightness and speed adjustment, and is compatible with DMX console custom programming.

Can IP66 protection be used long-term in salt spray and dusty environments near the sea?

It can withstand heavy rain, strong dust, and light salt spray. It is stable in complex outdoor environments for long-term use and requires no additional protection.

Can the lighting effects and movements of multiple lights be kept consistent when controlled synchronously?

It supports DMX512 or master-slave mode linkage. Parameters are set uniformly, ensuring synchronized operation across multiple lights without deviation.

Can beginners operate it quickly without a professional console?

It supports self-running and voice-activated modes. Preset programs are launched upon startup, requiring no professional knowledge; beginners can quickly get started.
