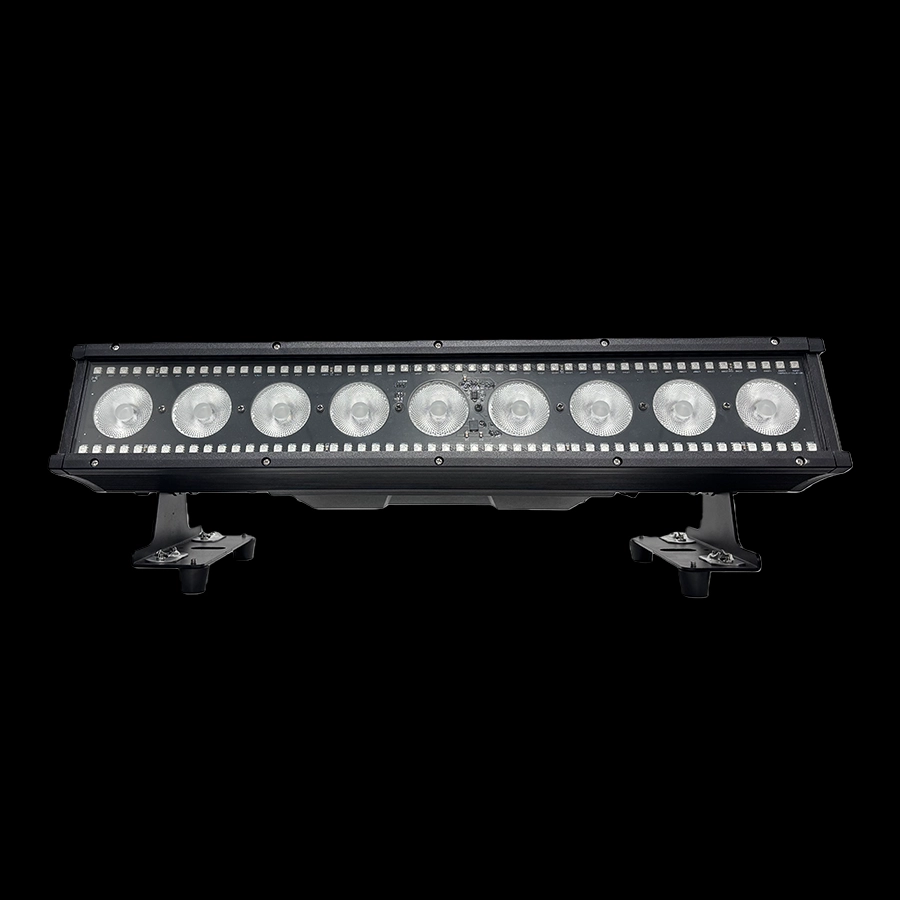

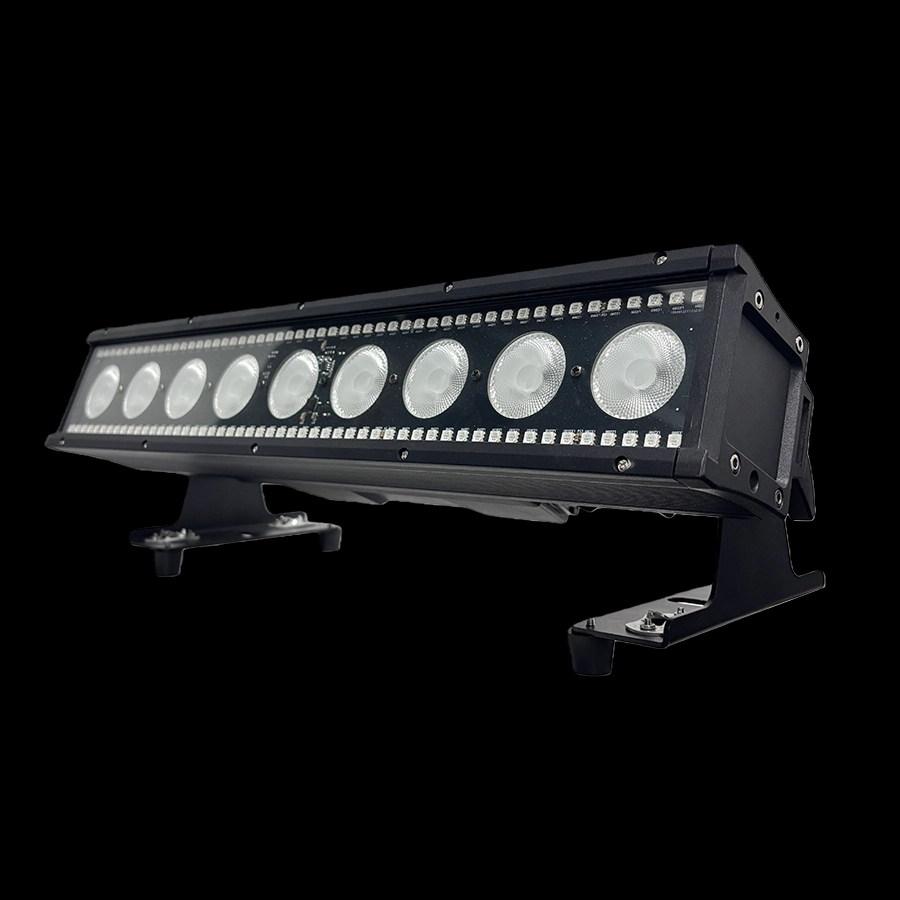

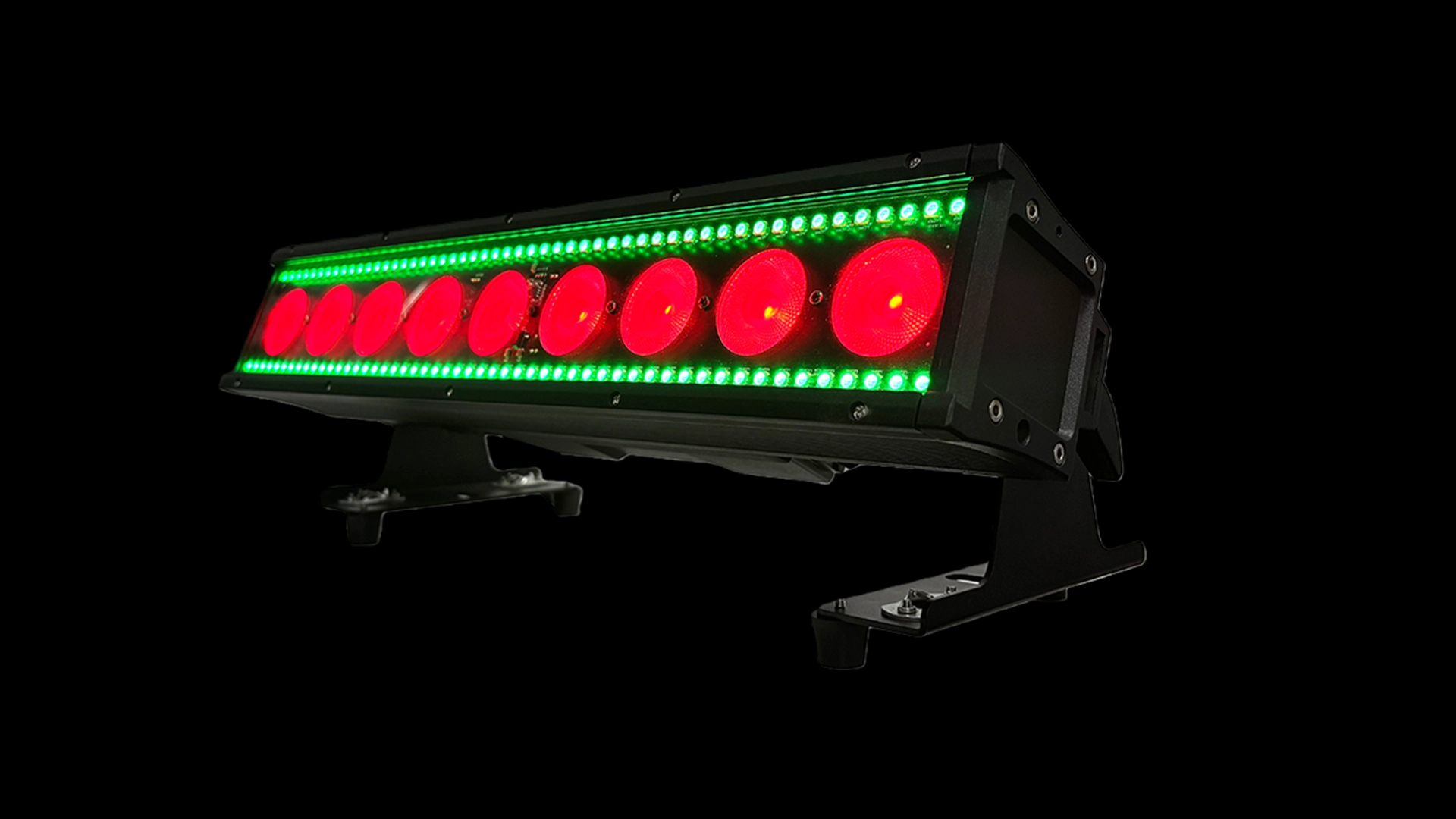

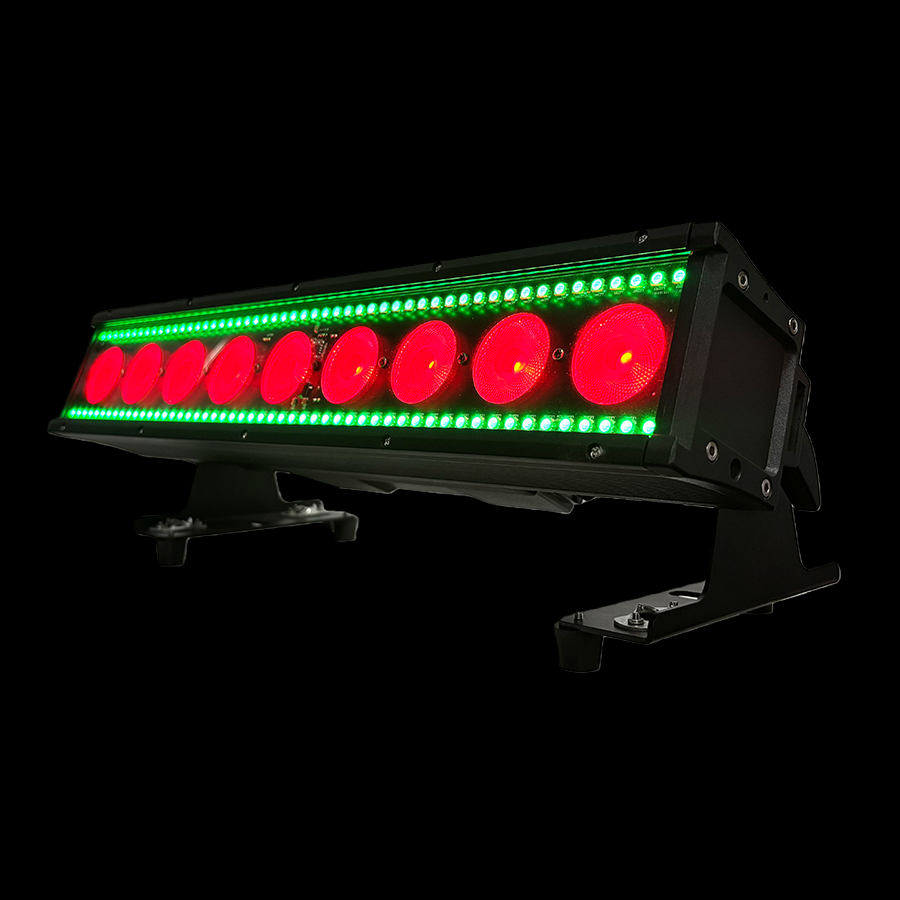

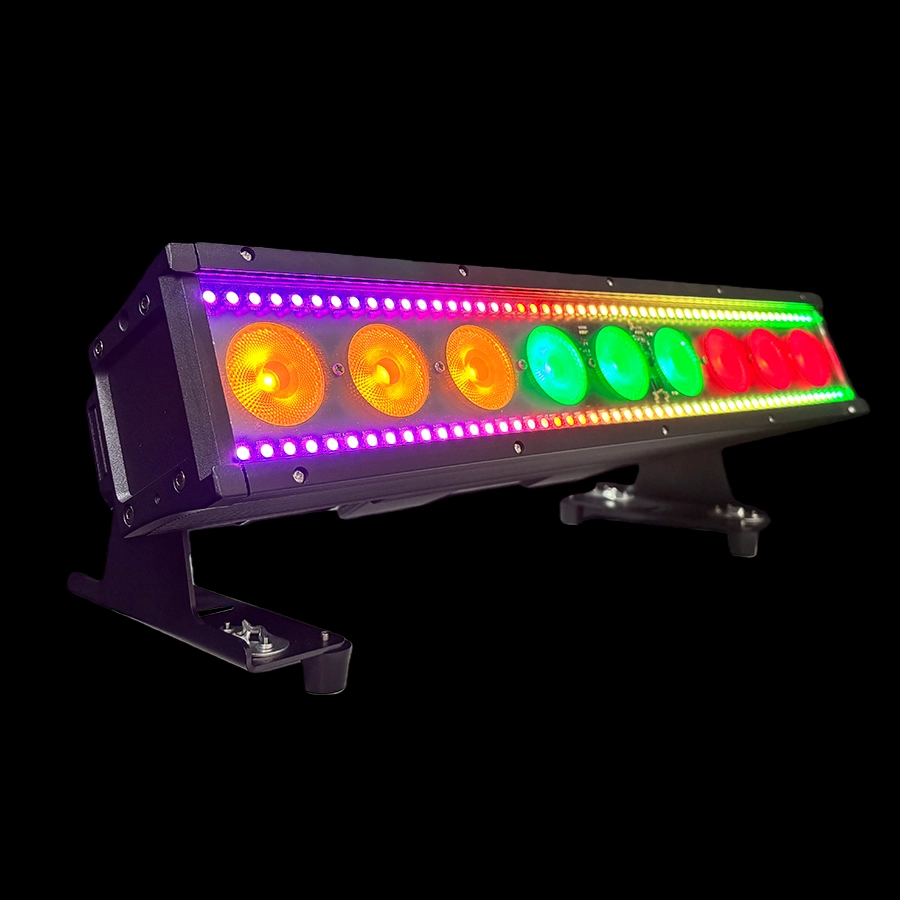

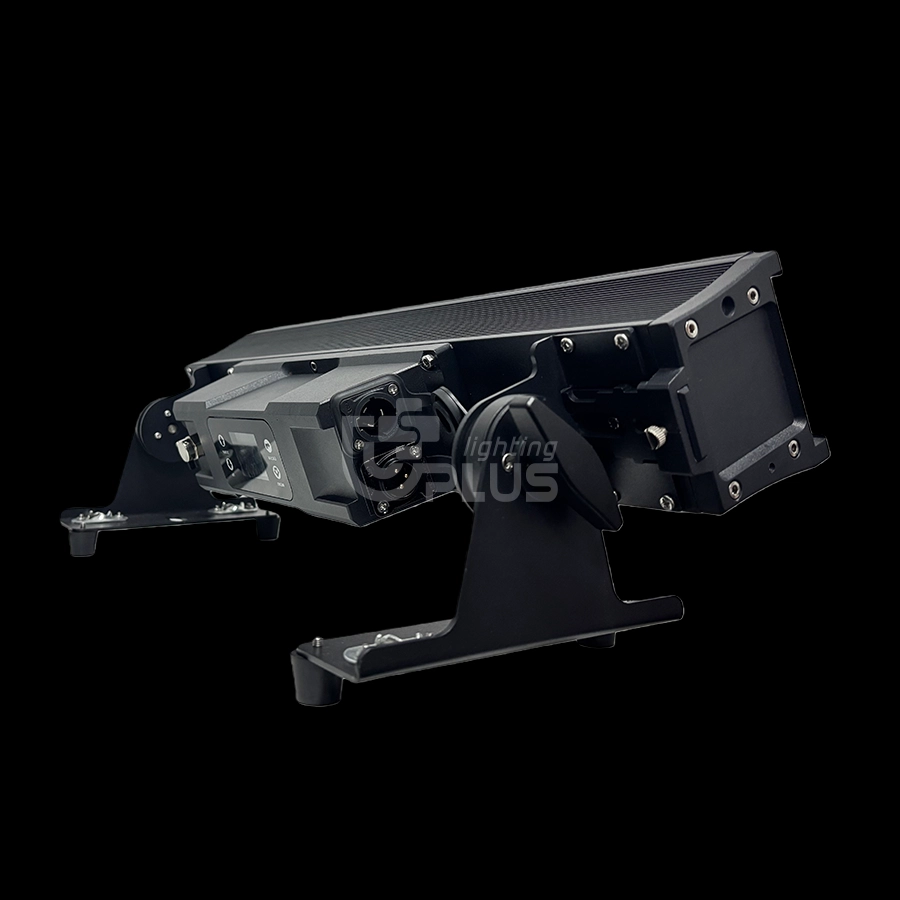

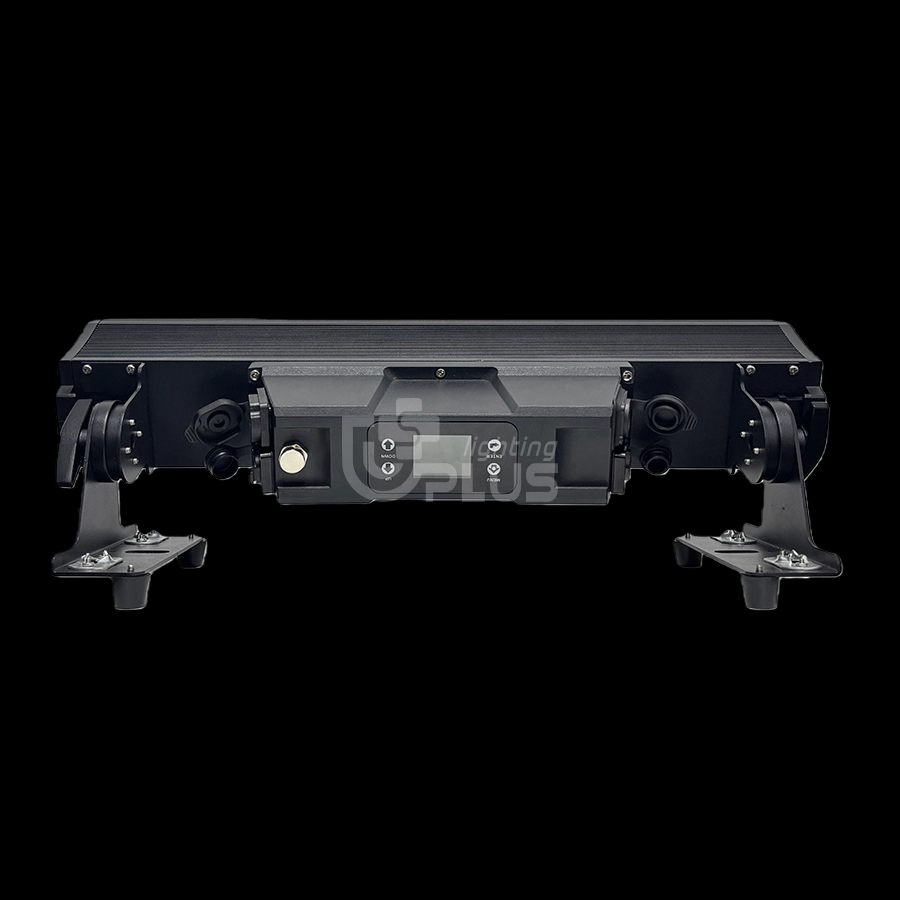

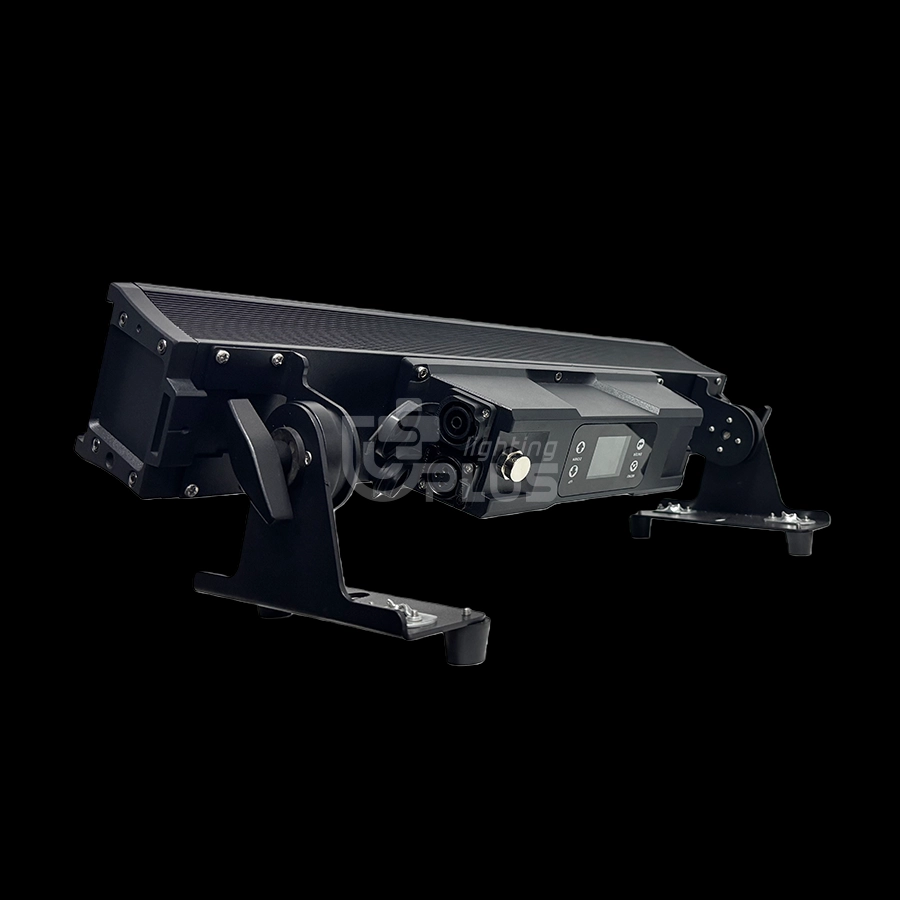

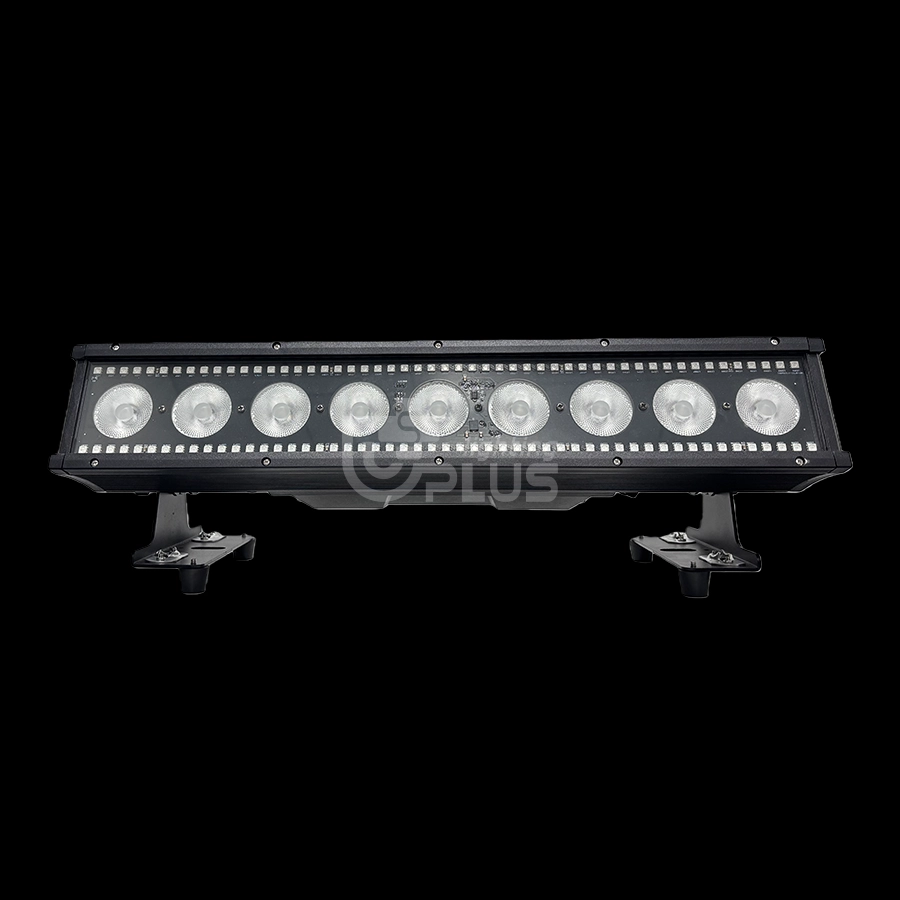

IP-PIX906 IP65 9x6in1 Led Splicing bar light with pixel control
Led Stage Light Bar IP-PIX906 IP65 9x6in1 by Uplus Lighting offers pixel control for precise effects in demanding environments. Designed for seamless splicing, this durable Stage Light Bars solution ensures reliable performance and flexible configurations for professional lighting setups.
Specifications
OPTICS
⦁ Light source:9*12W RGBWAUV 6in1 LED
strip:104*0.2w RGB led
⦁ Can be spliced
⦁ Beam angle:25°(15°/35° /45° Optional)
⦁ Max consumption Power: 150W
⦁ Strong aluminum body with waterproof fan
MOVEMENT
⦁ Tilt: 180° (each module can move independently)
FEATURES
⦁ DMX Channel:9/210/96/28/20/116CH

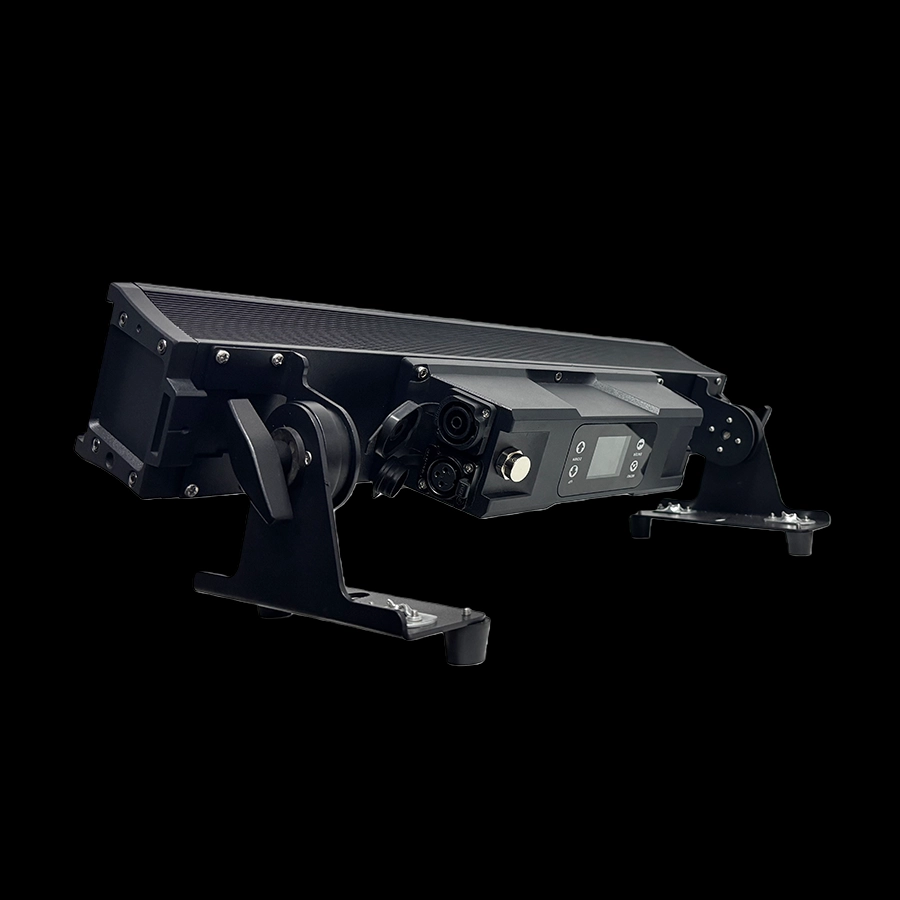

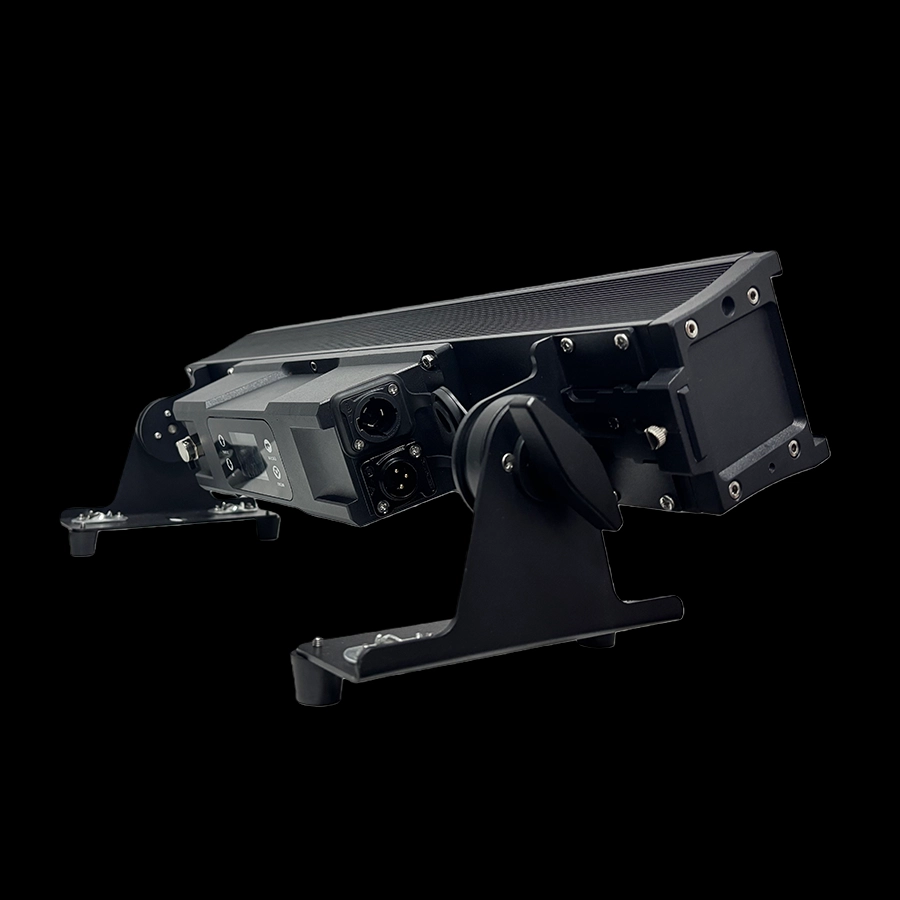

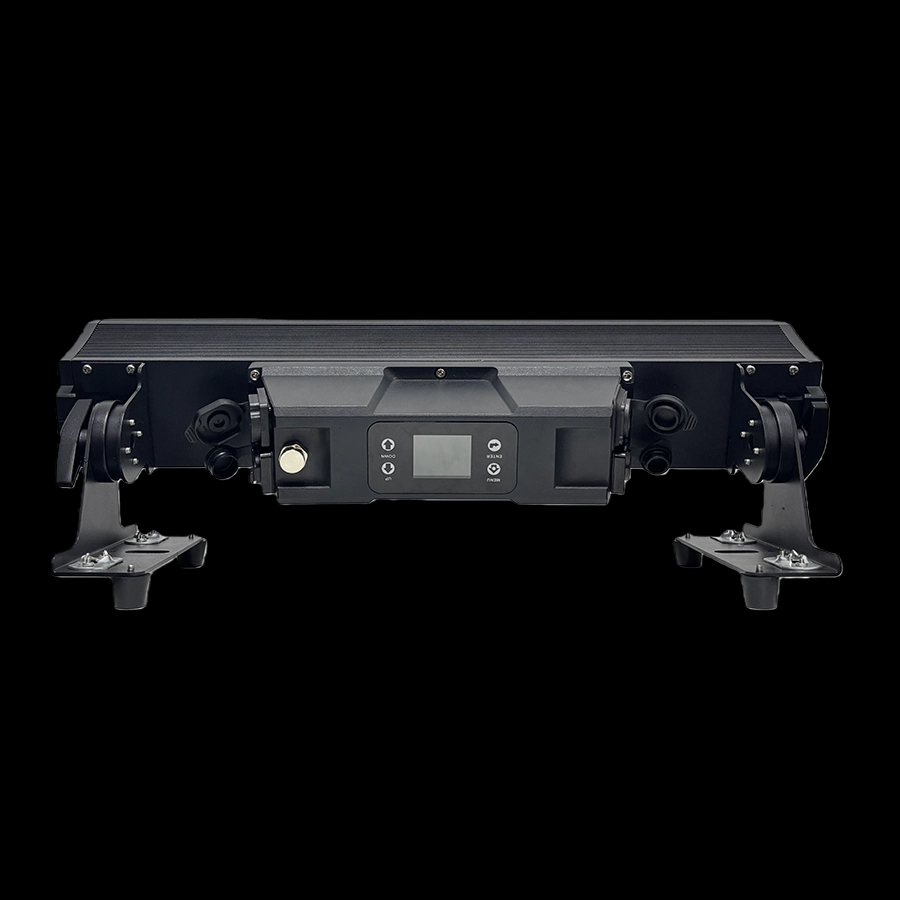

⦁ Seetronic power & XRL in/out waterproof socket
⦁ Omega quick lock system bracket
⦁ Control: DMX512/Master-Slave/Auto Run/RDM
⦁ Seetronic Powercon True 1 and Data in/out connectors
SPECIFICATION
⦁ Dimension: 500*95*195mm; NW: 4.8kgs

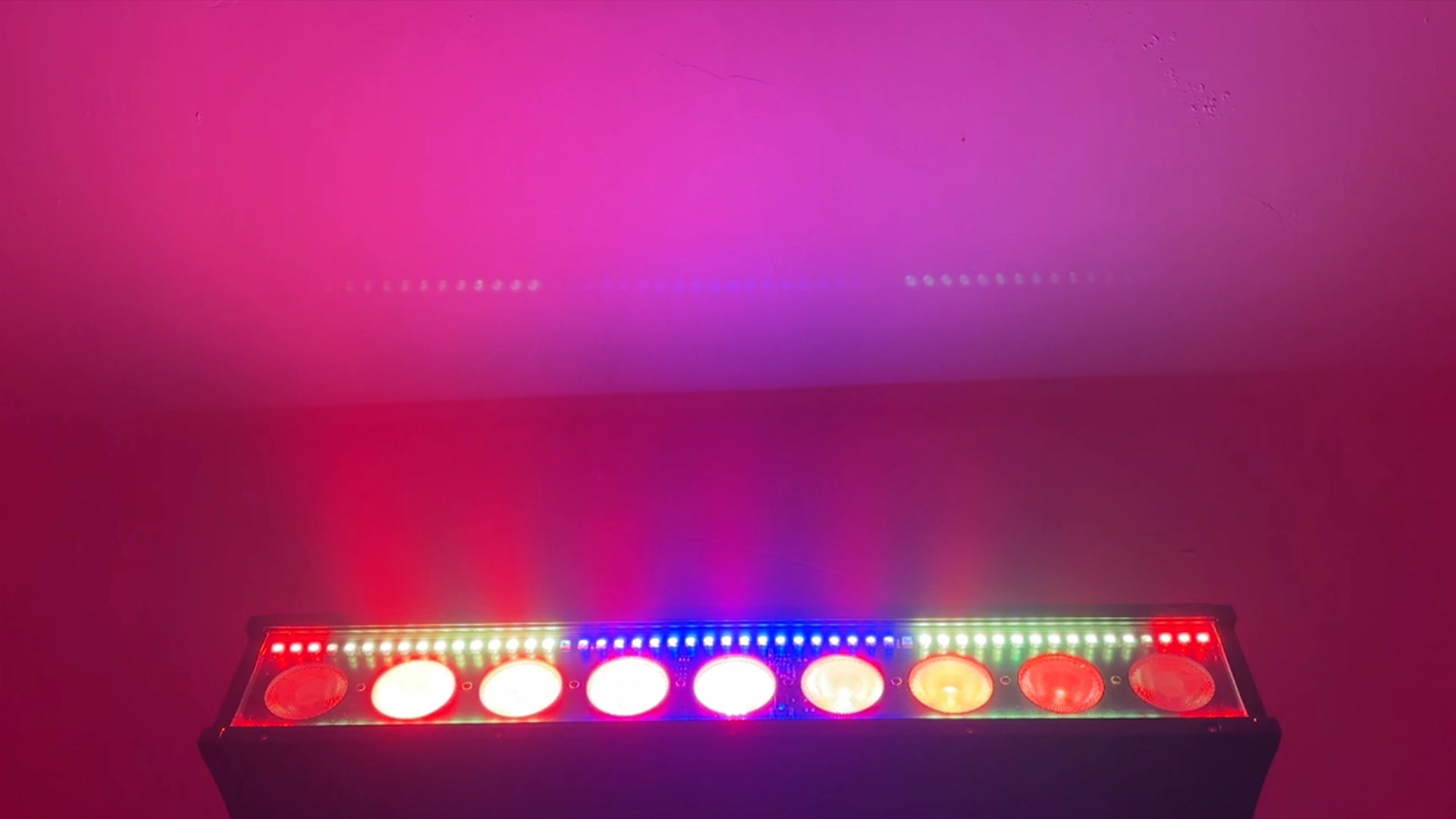

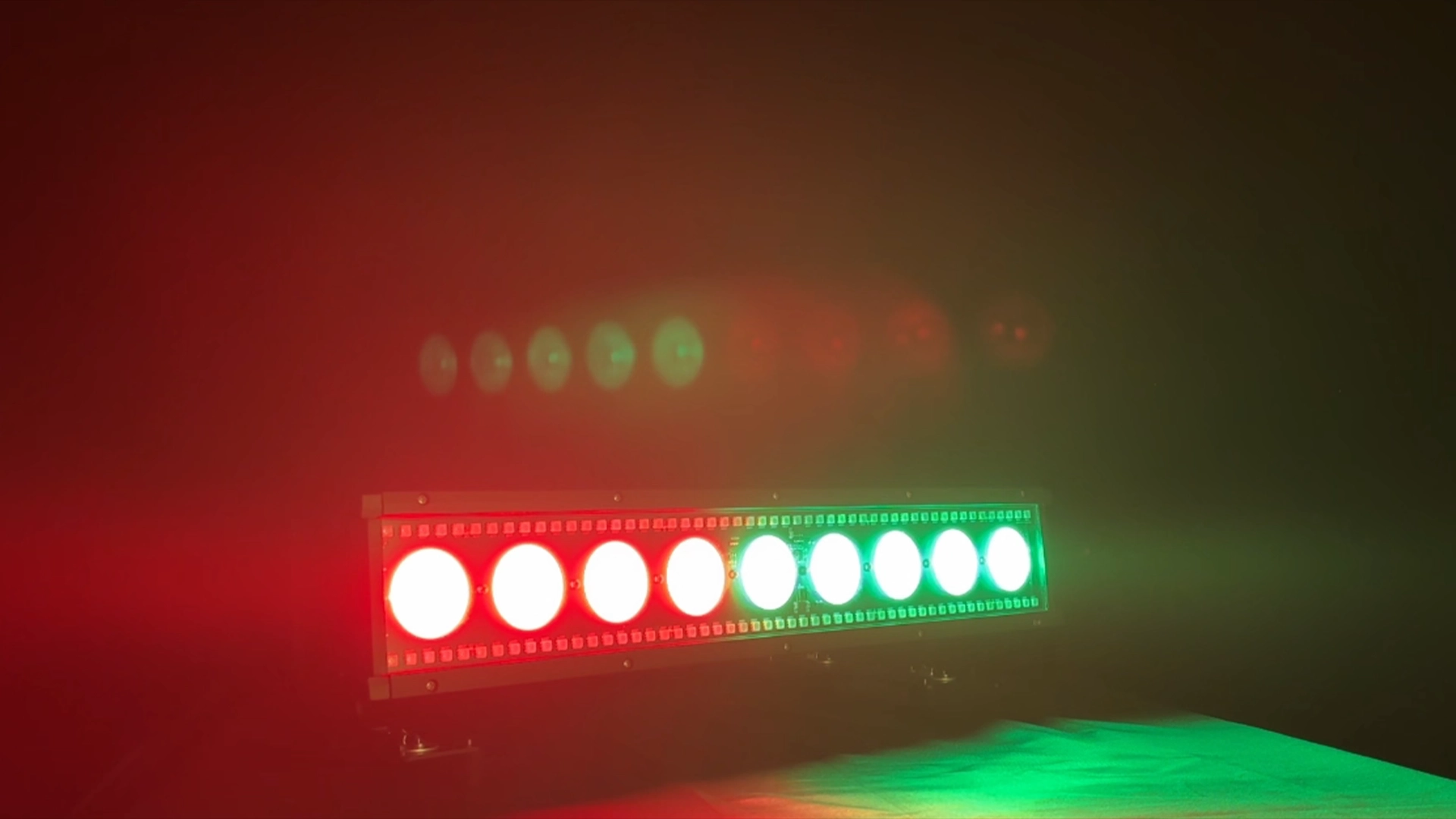

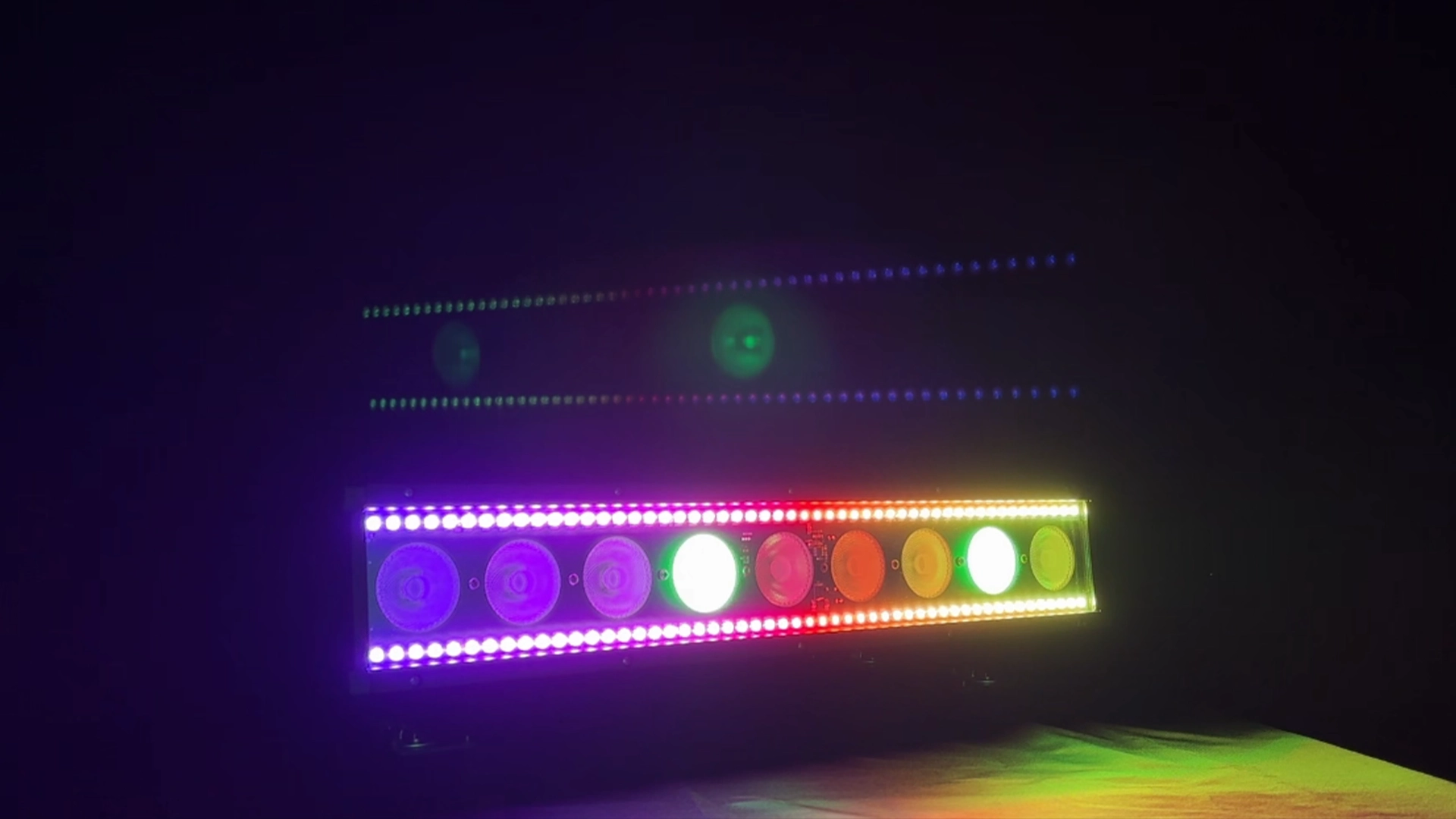

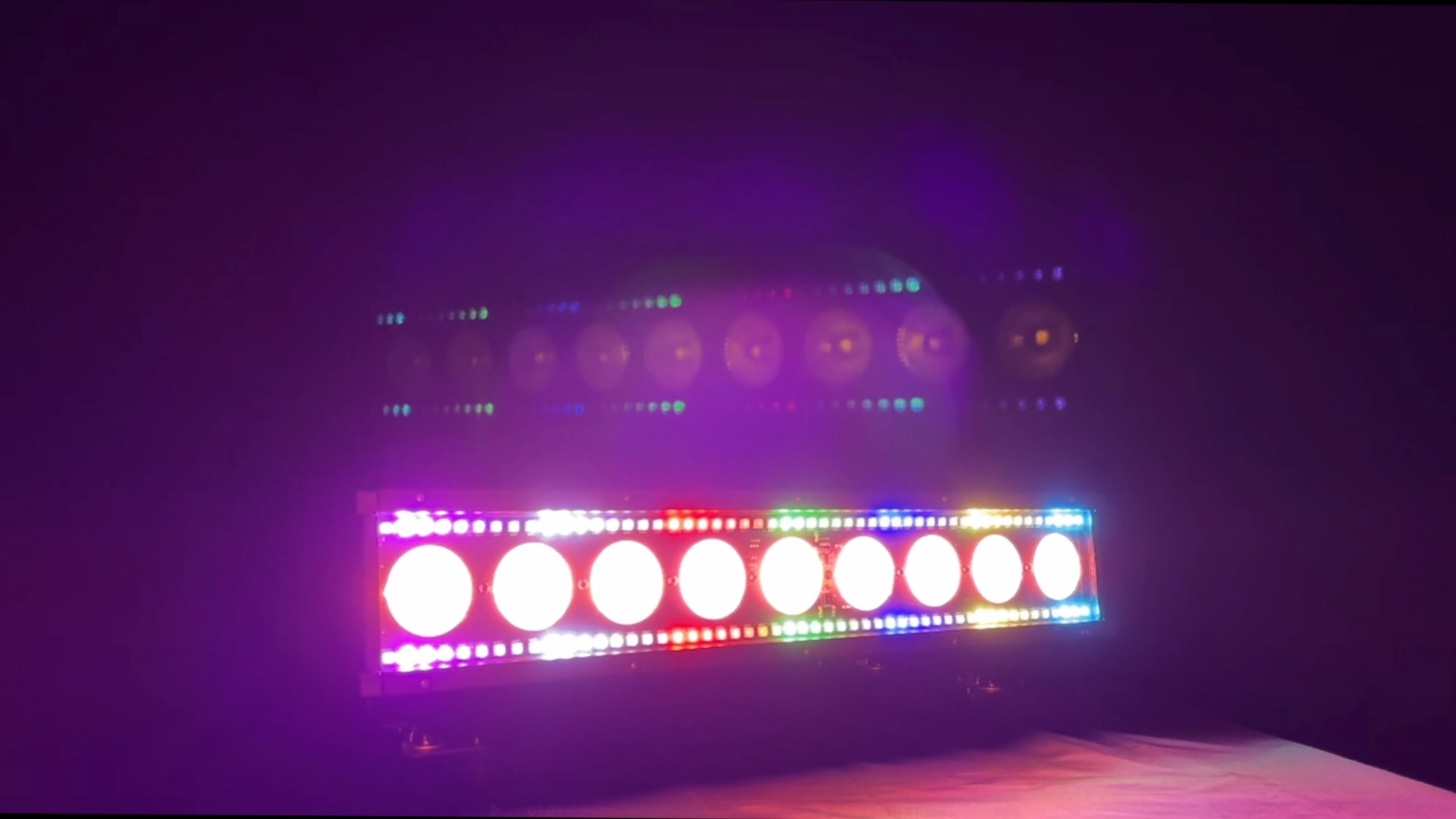

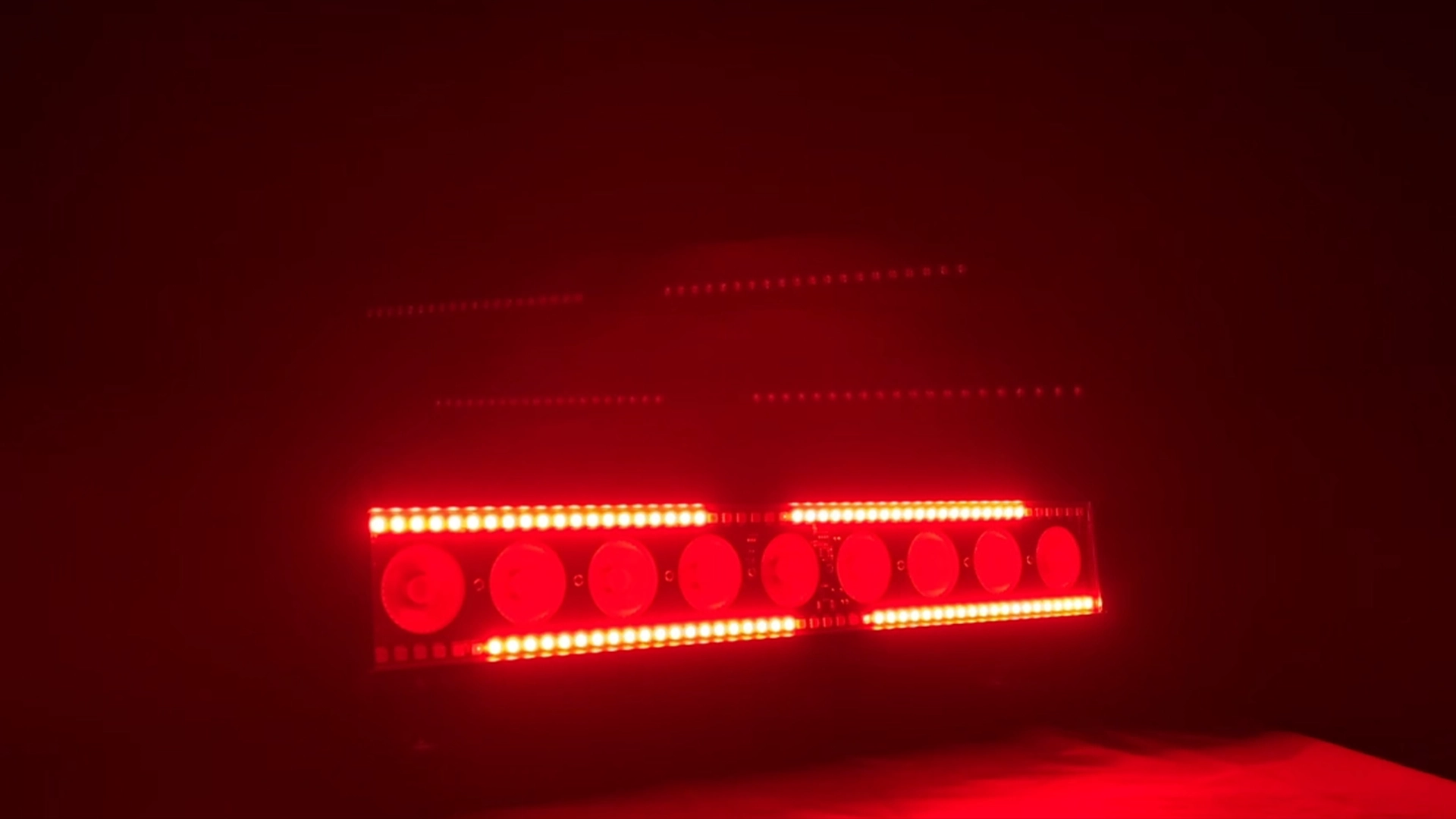

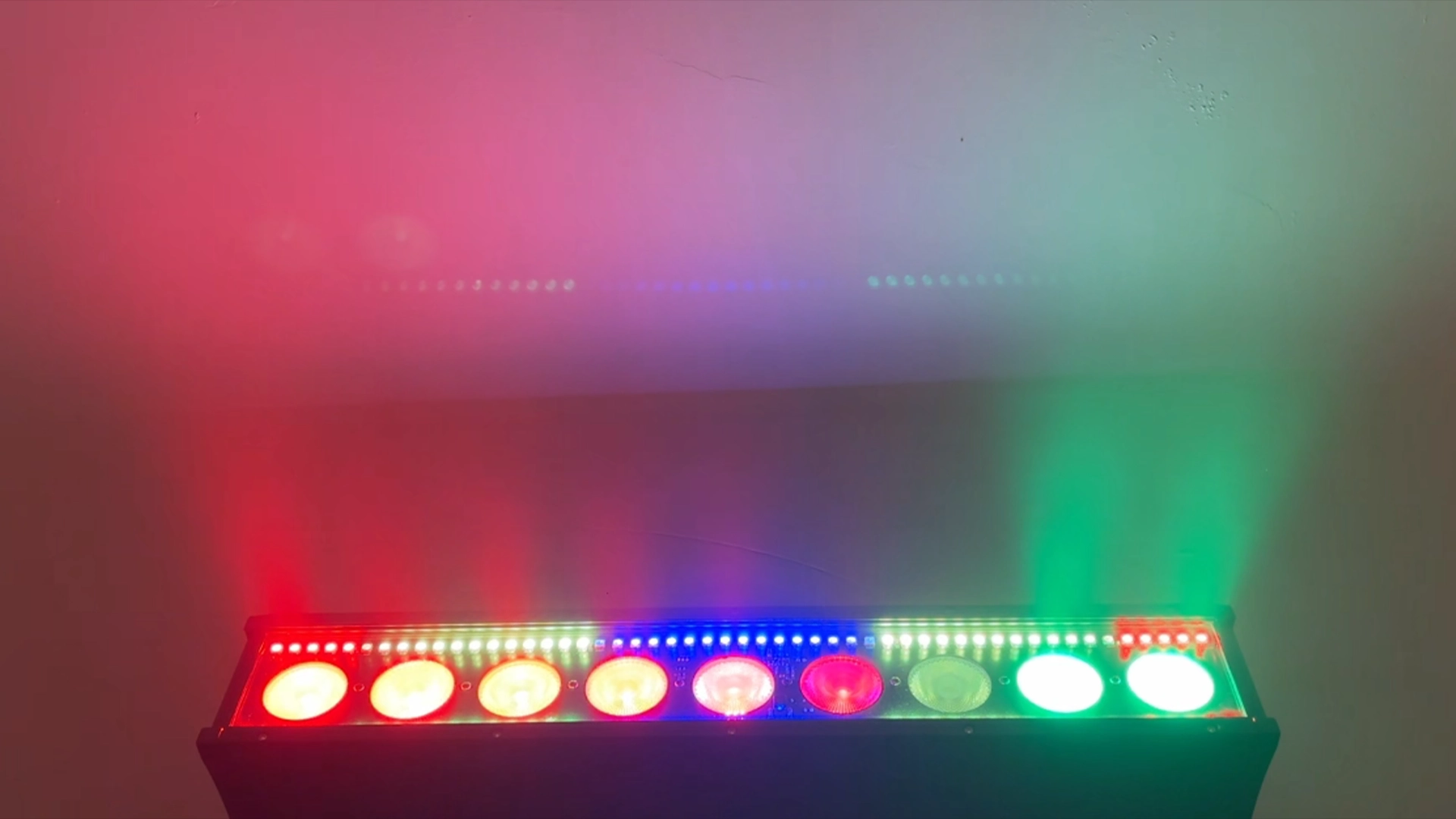

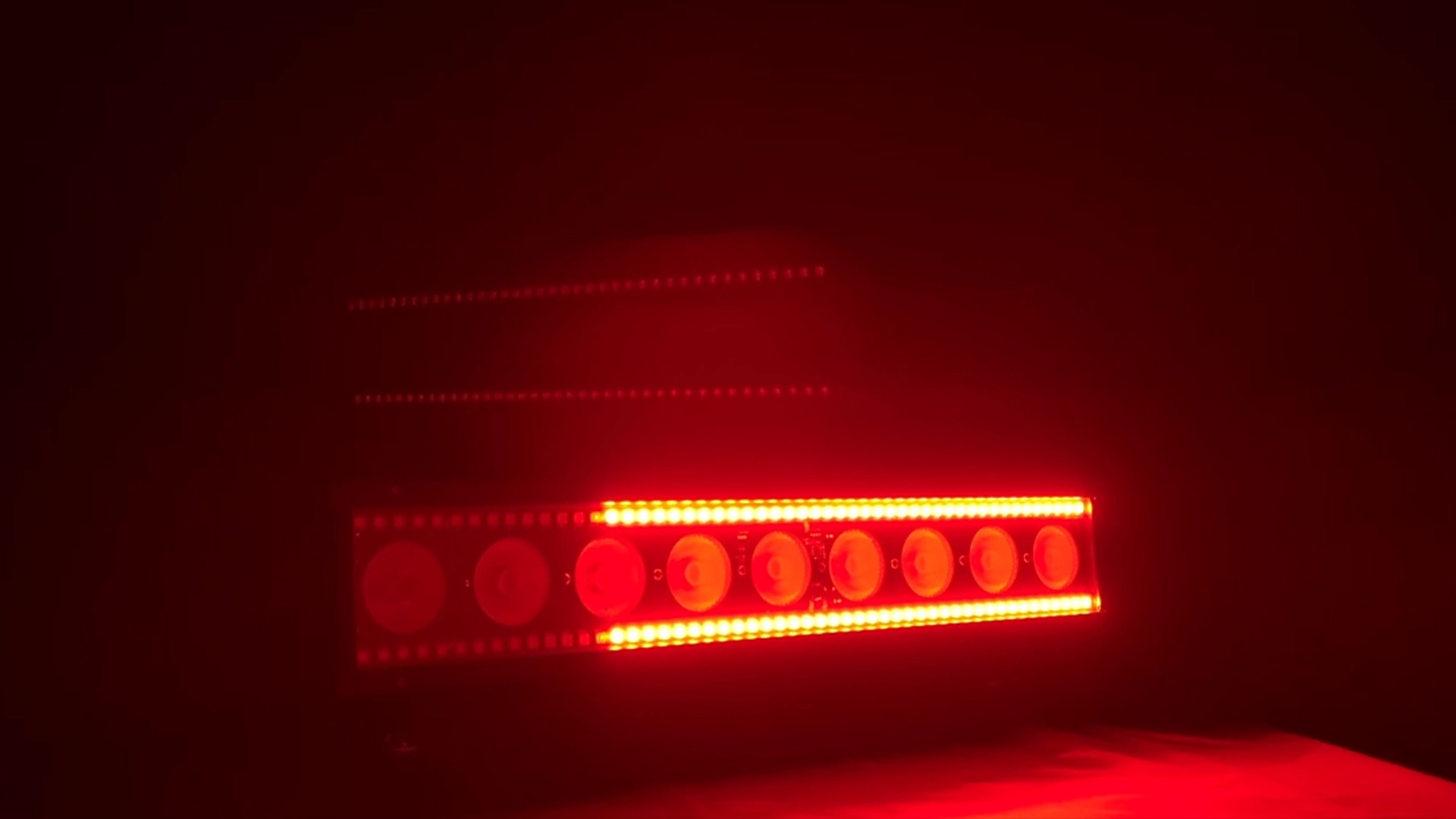

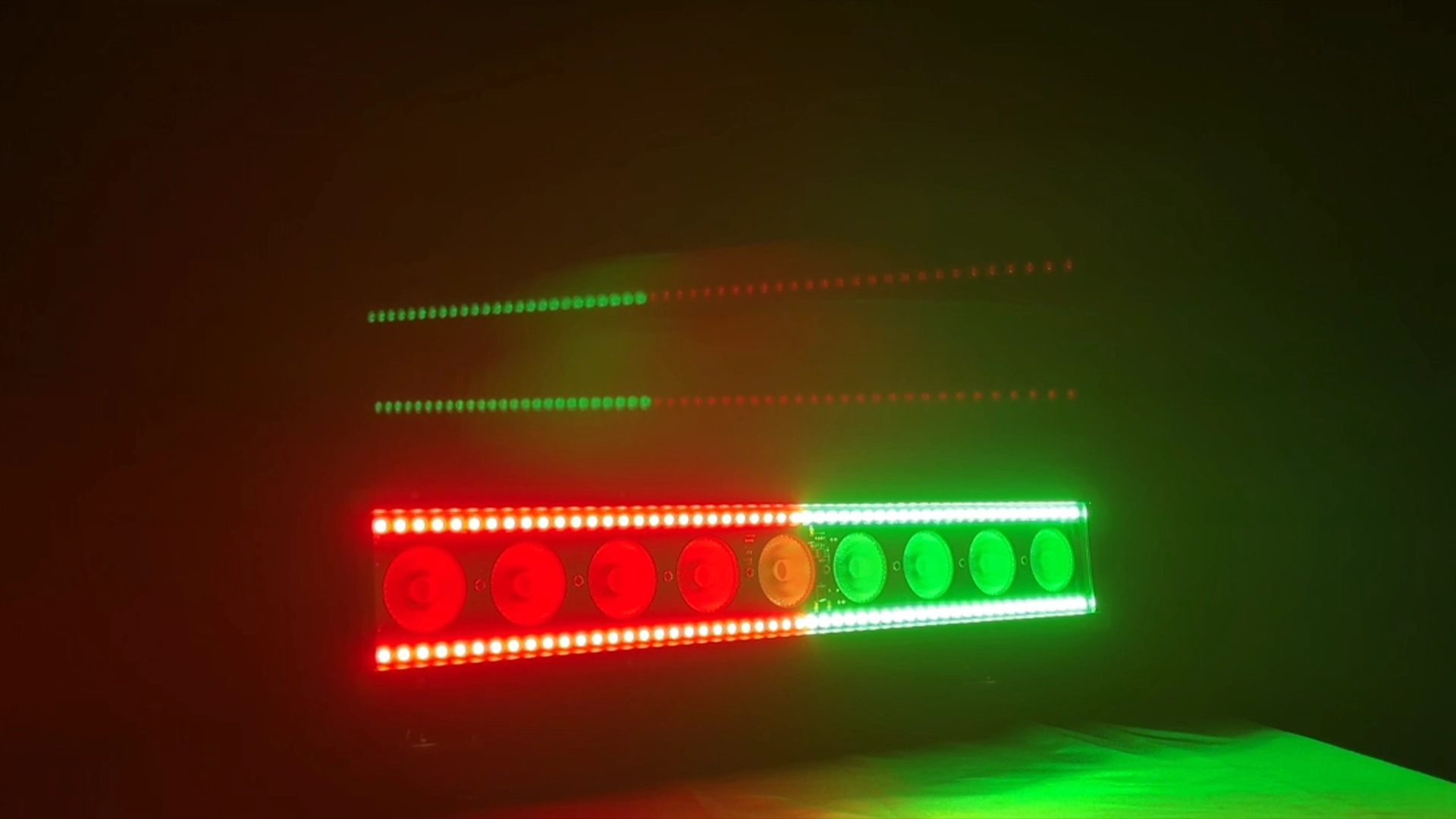

Effect

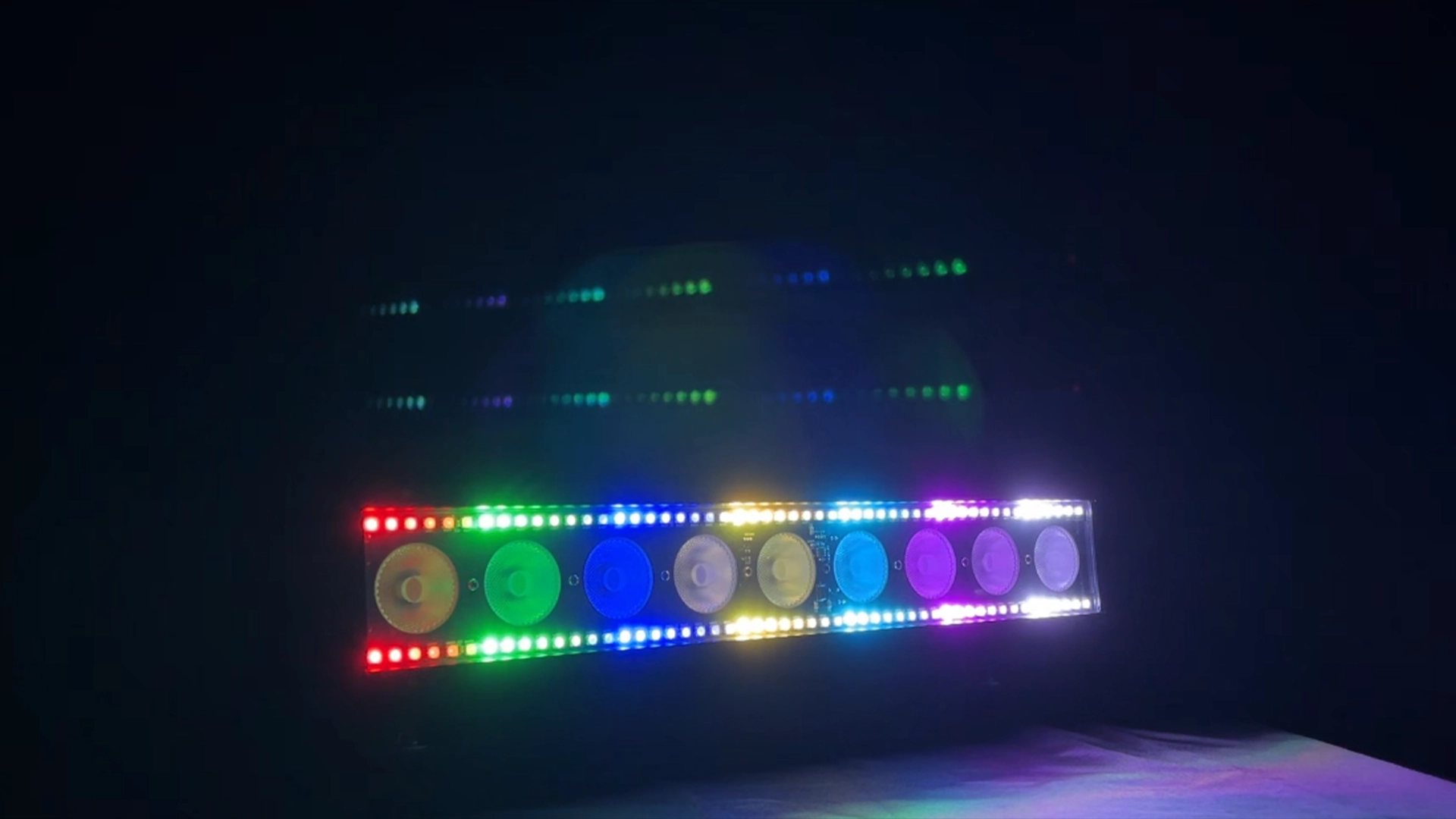

main light built-in effect
main light built-in effect
main light built-in effect
main light built-in effect

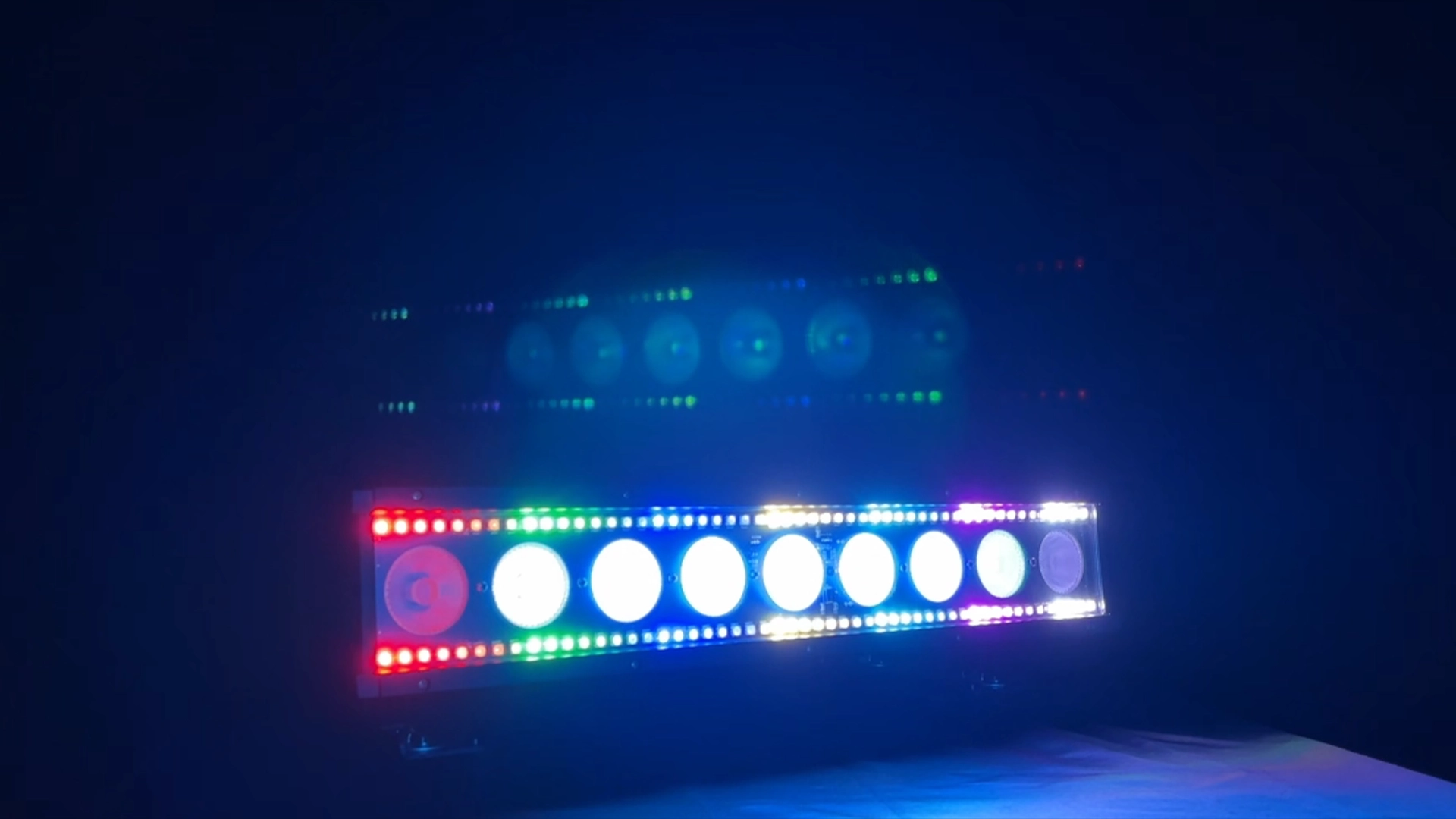

auxiliary light built-in effect
auxiliary light built-in effect
auxiliary light built-in effect
auxiliary light built-in effect

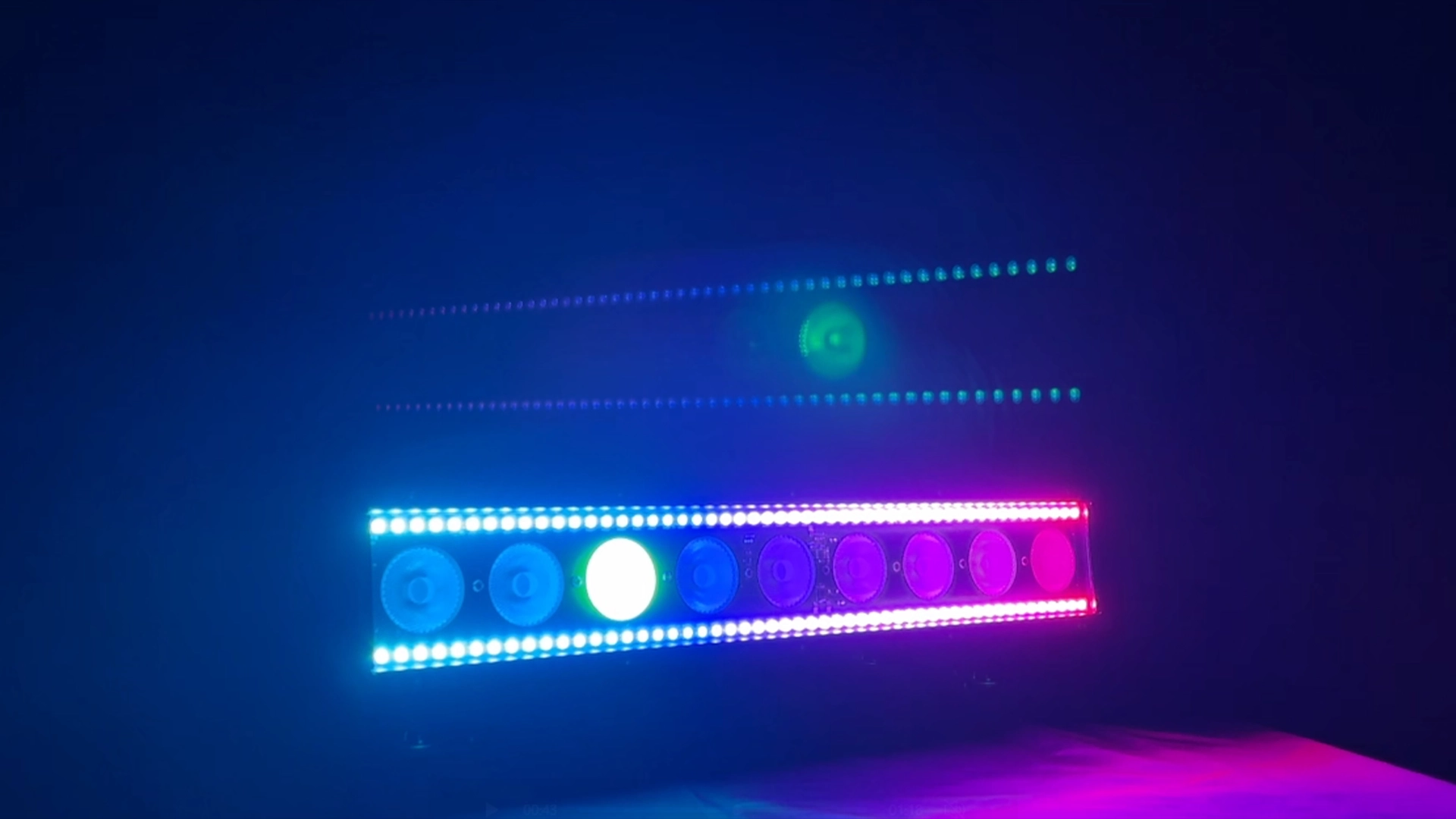

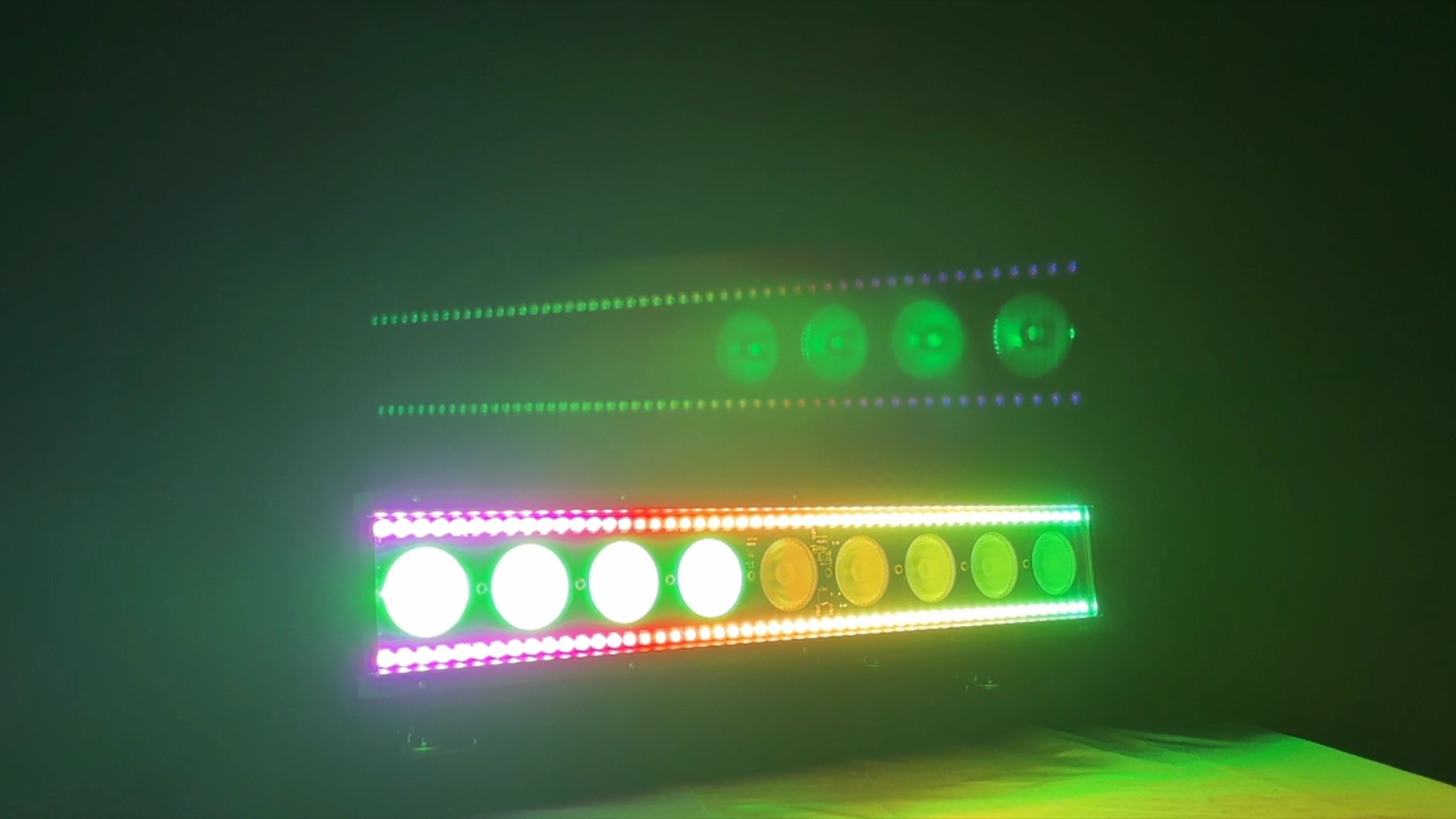

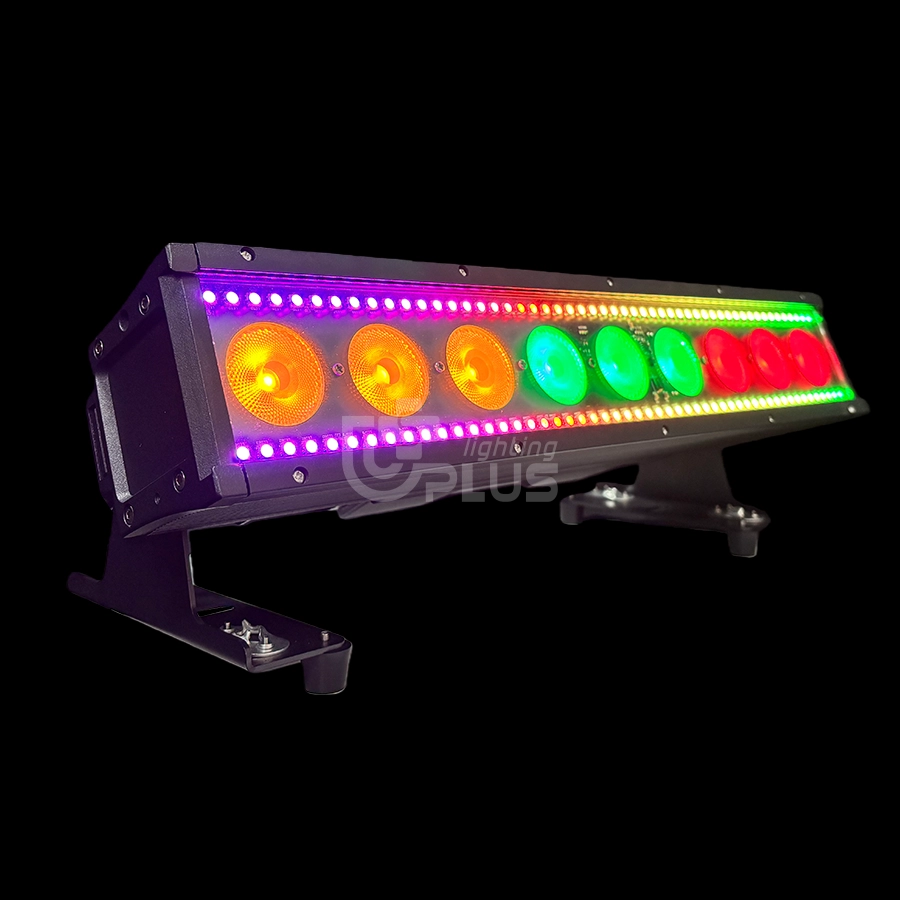

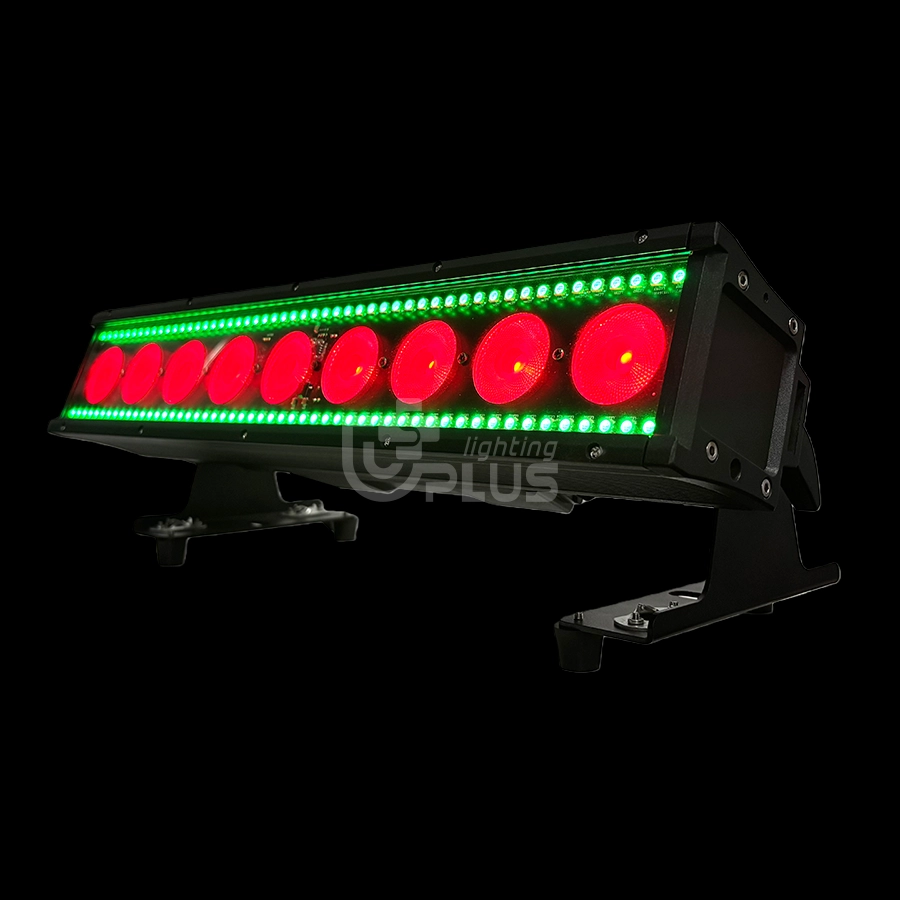

main light+auxiliary light built-in effect
main light+auxiliary light built-in effect
main light+auxiliary light built-in effect
main light+auxiliary light built-in effect
Features
APPLICATION
Large-scale outdoor events
Music festivals, celebrations, opening ceremonies, fashion shows.
Architectural lighting
Building facade coloring, landmark lighting, bridge landscape lighting.
TV Studios
Use as background matrix walls or effect lighting to enhance the sense of stage depth.
Clubs/nightclubs
Create a dynamic, immersive entertainment atmosphere.
Rental and performances
Provide rental companies with a selection of powerful, reliable, and effective lighting.
Packaging & Logistic
Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.
