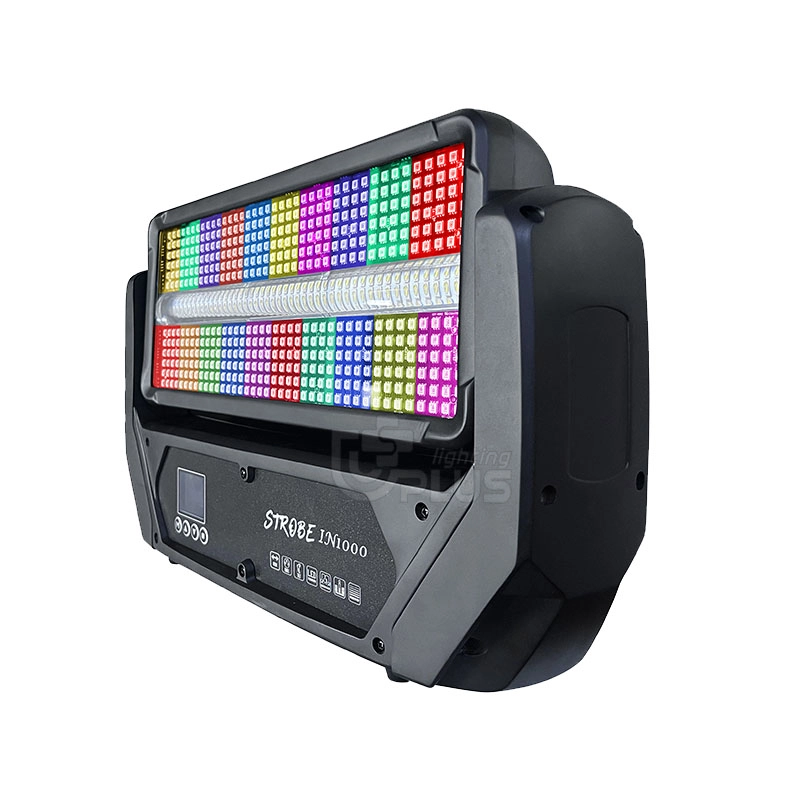

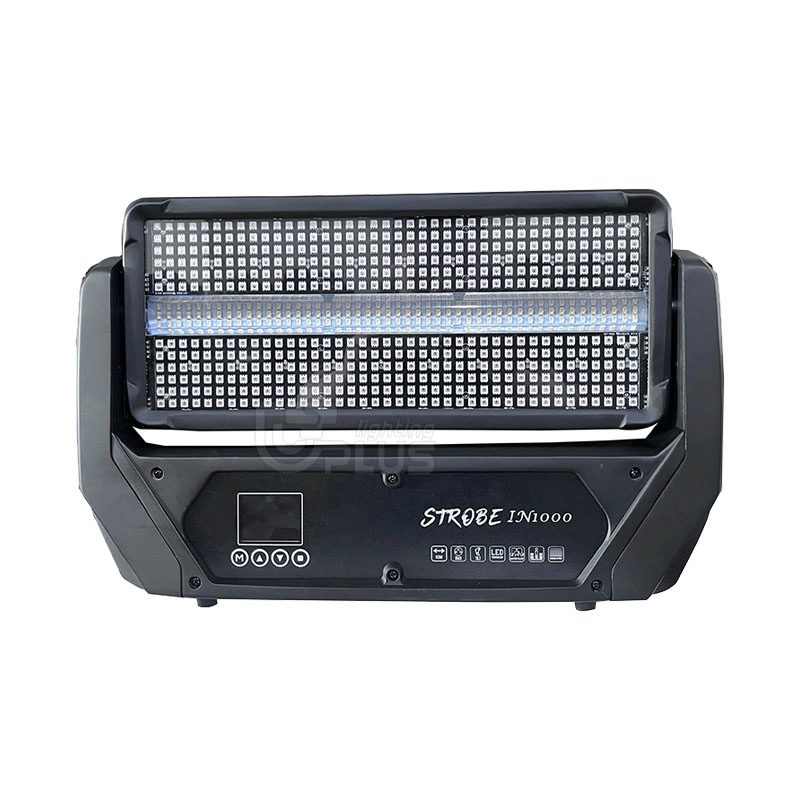

| Strobe Panel LEDs |
| LED Type: 5050 1.5W RGB 3in1 LEDs |
| LED Count: 480 |
| LED Colors: RGB |
| LED Segments: Pixel control |
| Strobe Tube LEDs |
| LED Type: 3535 5W 6500K LEDs |
| LED Count: 144 |
| LED Colors: Cool-White+Amber |
| LED Segments: 8+8 |
| Movement |
| Resolution: 8-16 Bit |
| Tilt (Degrees): 185° |
| Control |
| Control Modes: 10CH / 20CH / 25CH (Artnet/SACN and DMX mixed mode) / Madrix mode |
| Display: Illuminated graphic LCD |
| Protocol: DMX-512, RDM,Artnet, SACN |
| RDM: Bidirectional communication |
| Cooling: Temperature controlled, overheating protection |
| Effects |
| Dimmer: 0-100% electronic |
| Shutter: electronic, max. 20 Hz |
| Internal Effects: LED Macro Effects |

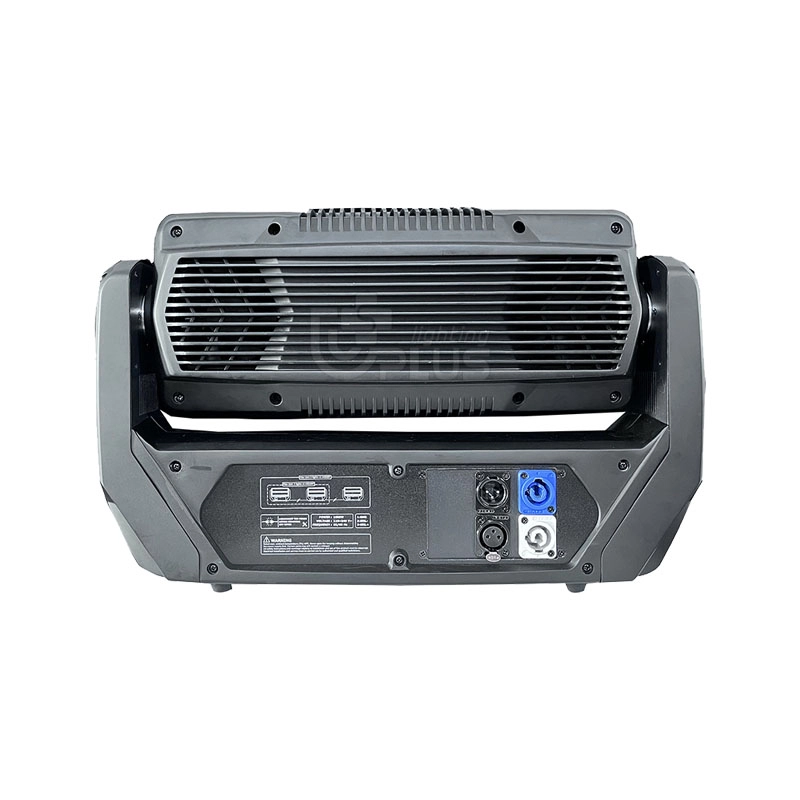

| Connectors |
| Signal connection: XLR 5-Pin or 3-Pin In/Out |
| Artnet/SACN connection: RJ45 In&Out |
| Power Input: PowerCON In/Out |
| Operating Conditions |
| Mains voltage: 100-240V AC / 50-60Hz |
| Power: 1000W |
| Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F |
| Operating Position: any |
| Mounting Options |
| Hanging: Omega-Bracket |
| Safety wire attachment: foldout eyelets |
| Dimension:448*122*292mm,NW:8.5KGS |
