| OPTICS |
| Light source： |
| ①.Tube Led: 144*5 W cool white Led; |
| ②.144*5W Amber white+cool white |
| 8+8 segments |
| Panel Led: 480*1.5W RGB 3in1 led; 20 Segments |
| Power Consumption:1000W |
| Beam angle: 135° |
| PAN/TILT |
| Tilt movement: 185°; Pan: 0 ° |
| FEATURES |
| DMX Channel:10 / 20 / 77 CH |
| Protection Rating：IP20 |
| Protocol: USITT DMX-512, RDM |

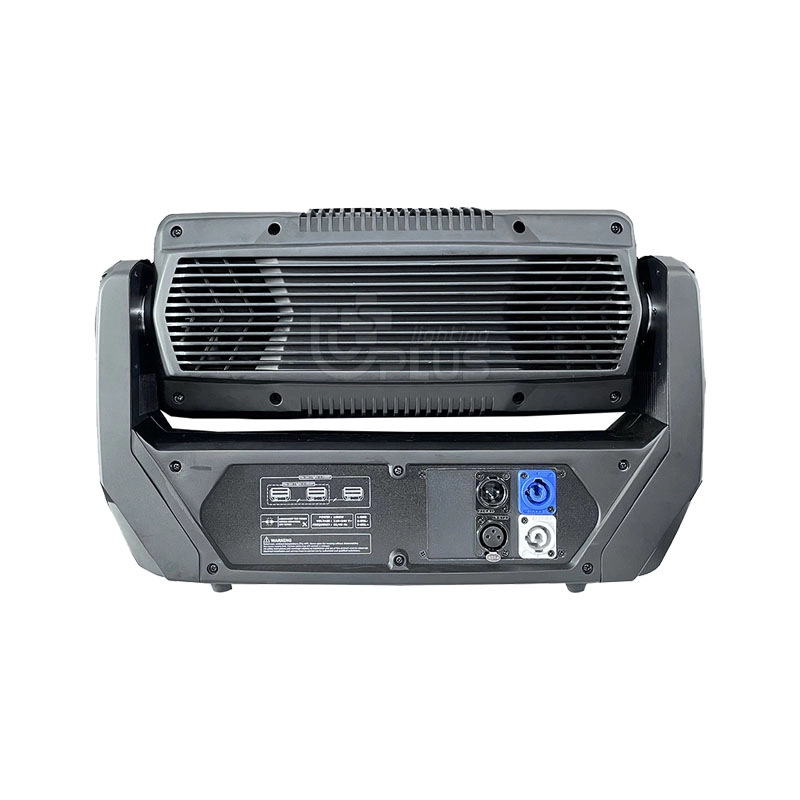

| Power Input: PowerCON TRUE1 In/Out |
| Dimmer: 0-100% linear adjustment |
| Temperature controlled, overheating protection |
| SPECIFICATION |
| Dimension:448x122x292mm NW:8.5KGS |
Get a Free Quote
If you have any comments or good suggestions, please leave us a message, later our professional staff will contact you as soon as possible.
The 12*60W pixel zoom bar moving head features independent pixel light control for each bead, supporting precise zoom and distinct light effects, making it suitable for stages, bars, cultural and tourism lighting, and other scenarios.
The 6*60W Pixel zoom bar moving head is equipped with six 60W high-power LEDs, supporting independent light control at the pixel level for each LED. Combined with flexible zoom function, it can present rich dynamic light and shadow effects. It is easy to install and deploy, and is suitable for creating atmosphere in indoor scenes such as medium-sized stages, bar parties, and immersive exhibition halls.
The 5*60W Pixel zoom bar moving head is equipped with five 60W high-power LEDs, supporting independent light control at the pixel level for each LED. Combined with flexible zoom function, it can achieve delicate gradient and dynamic light and shadow effects. It is easy to install and deploy, and is suitable for creating atmosphere in indoor scenes such as small and medium-sized stages, bars, and immersive exhibition halls.

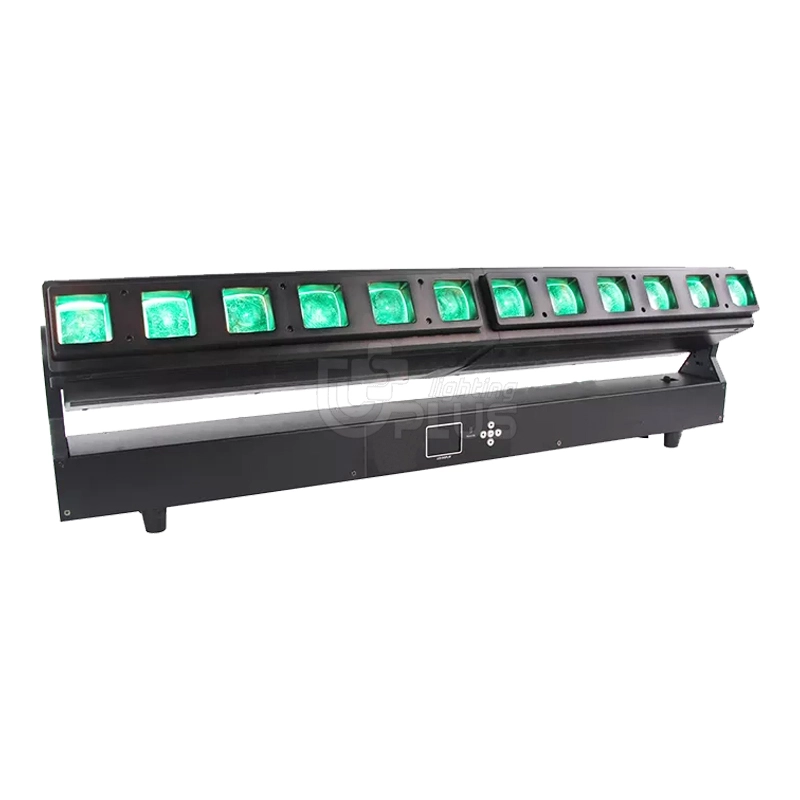

The 12*40W pixel zoom moving head light strip features independent light control for each LED, supports precise pixel-level adjustment and wide-range zoom, and offers rich lighting effects. It is suitable for stages, bars, cultural and tourism lighting, and other scenarios to create dynamic light and shadow effects.
