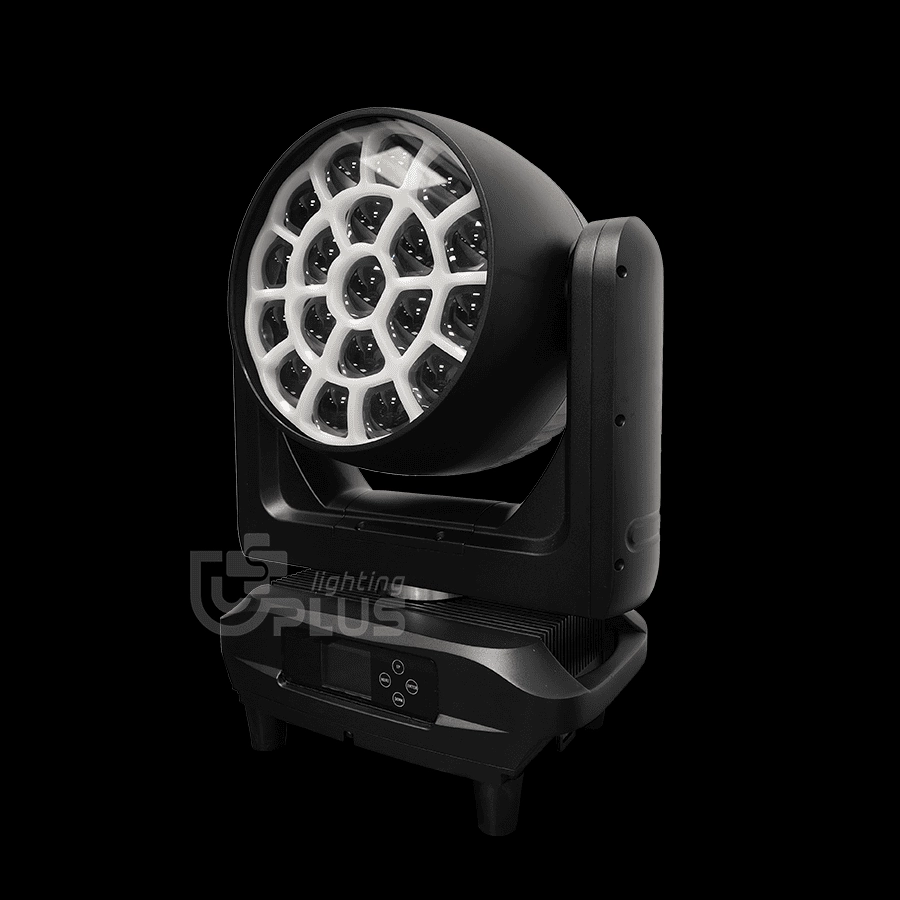

IP-B1950 (7) - Uplus Lighting
IP-B1950 (6) - Uplus Lighting

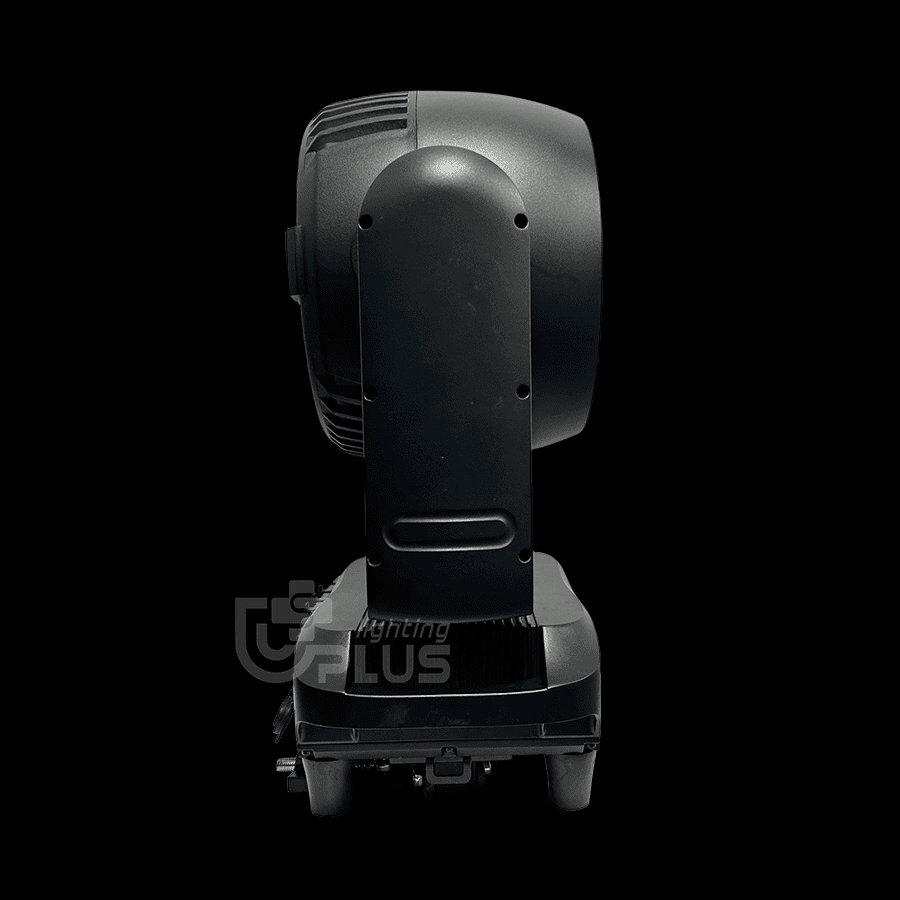

IP-B1950 (4) - Uplus Lighting
undefined
IP-B1950 - Uplus Lighting

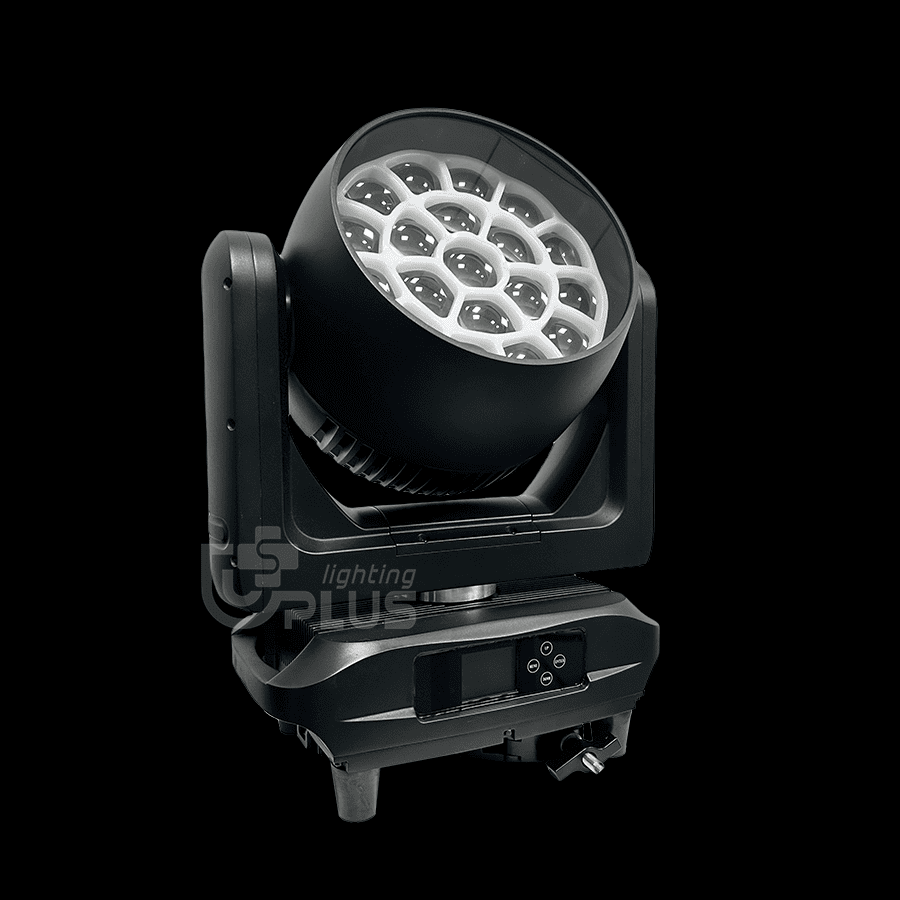

IP-B1950 (3) - Uplus Lighting
IP-B1950 (1) - Uplus Lighting
IP-B1950 (7) - Uplus Lighting

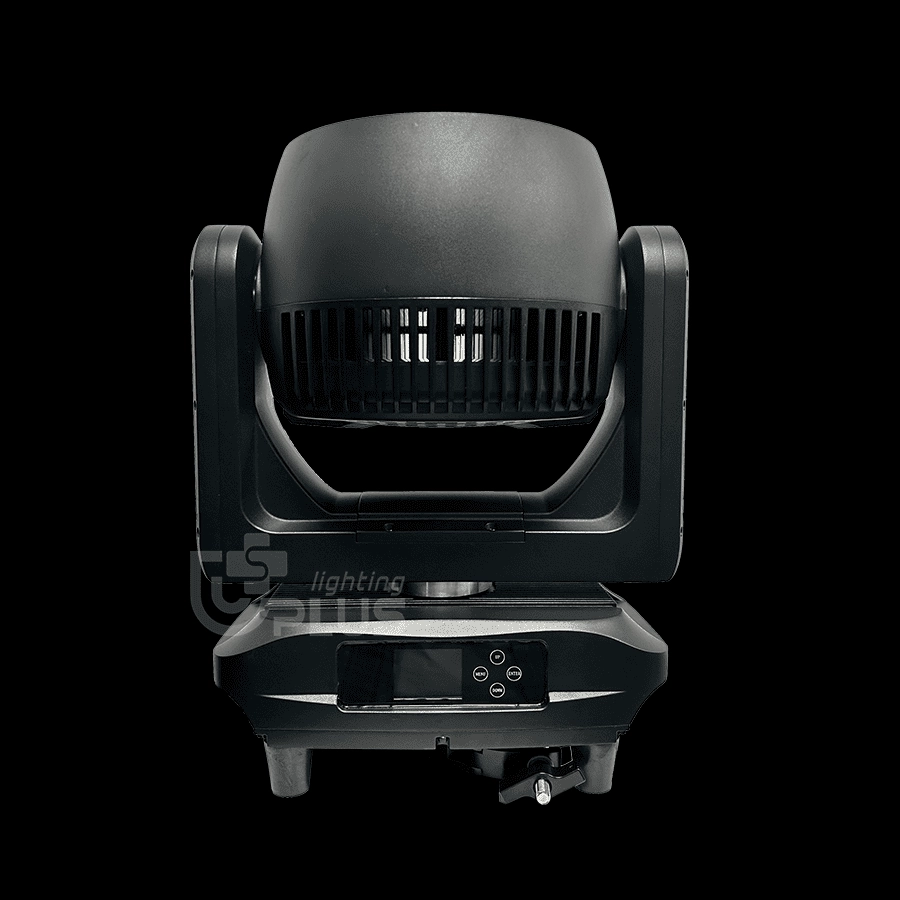

IP-B1950 (6) - Uplus Lighting
IP-B1950 (4) - Uplus Lighting

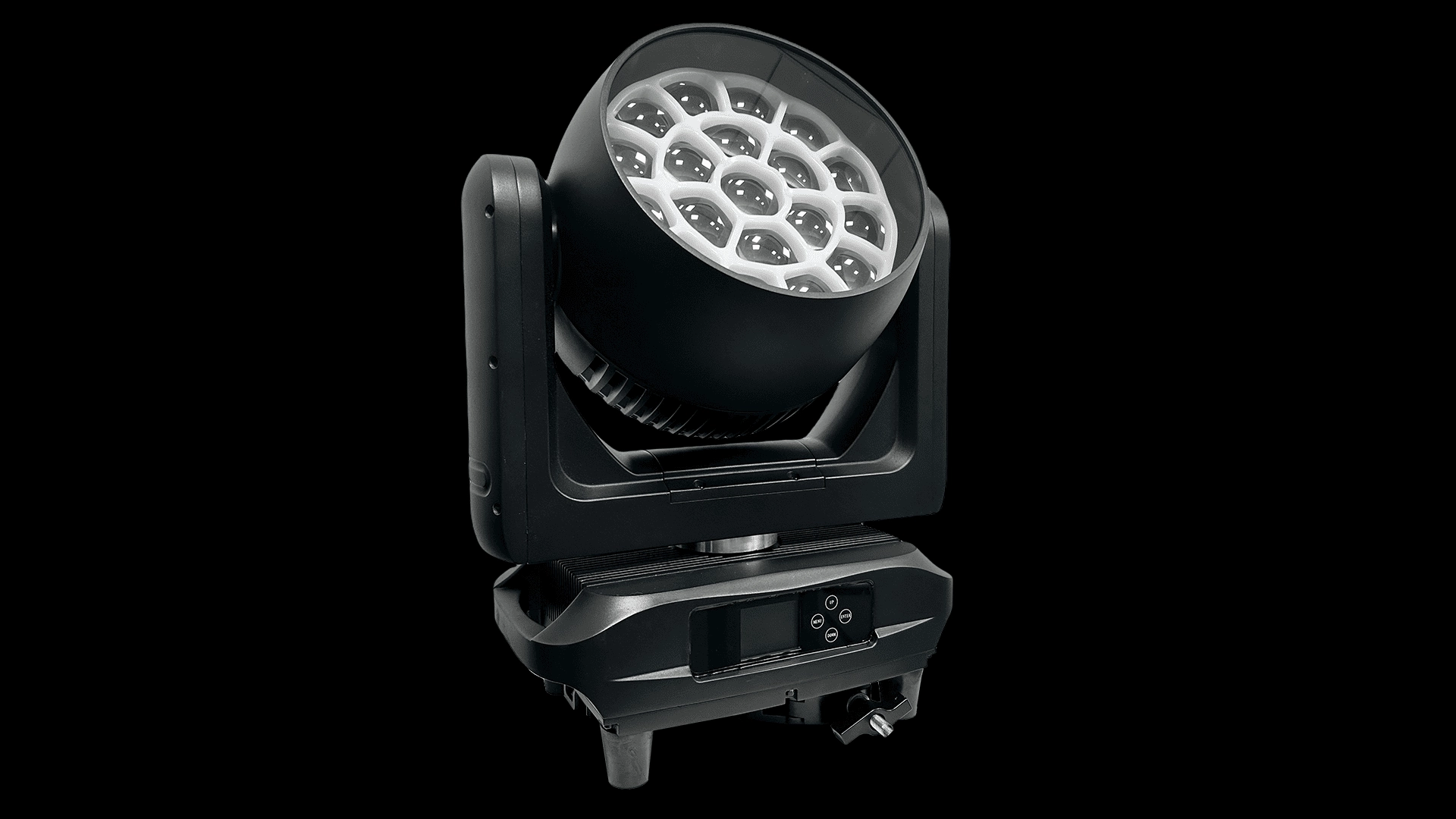

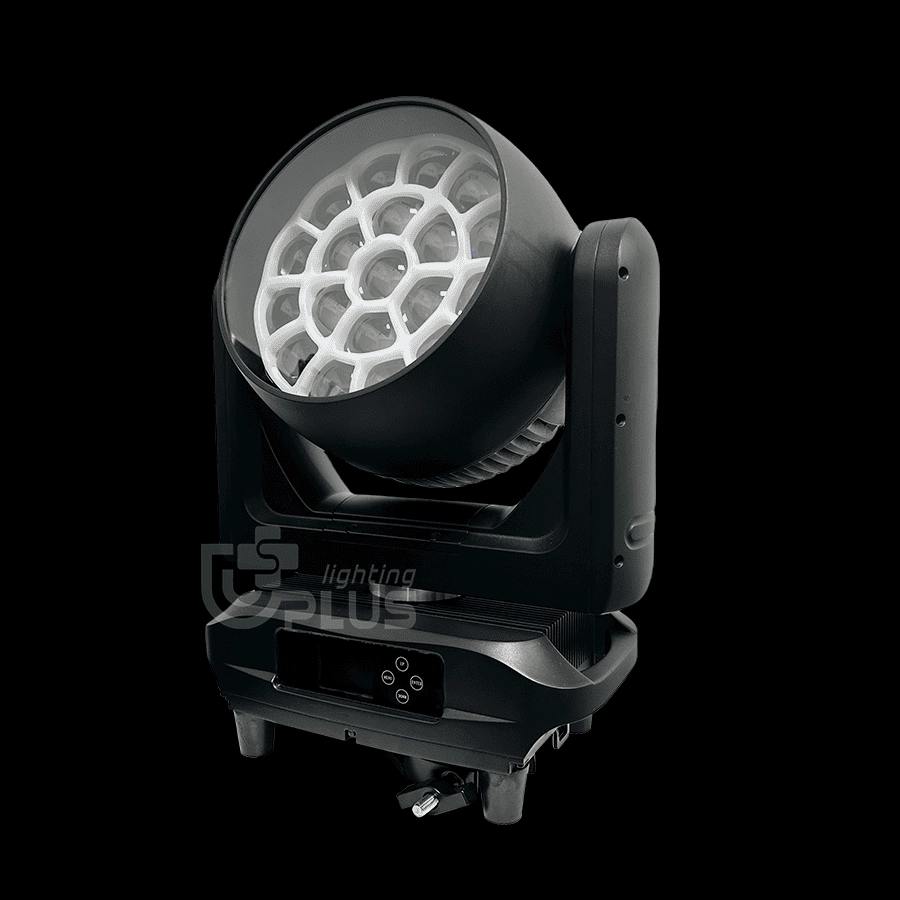

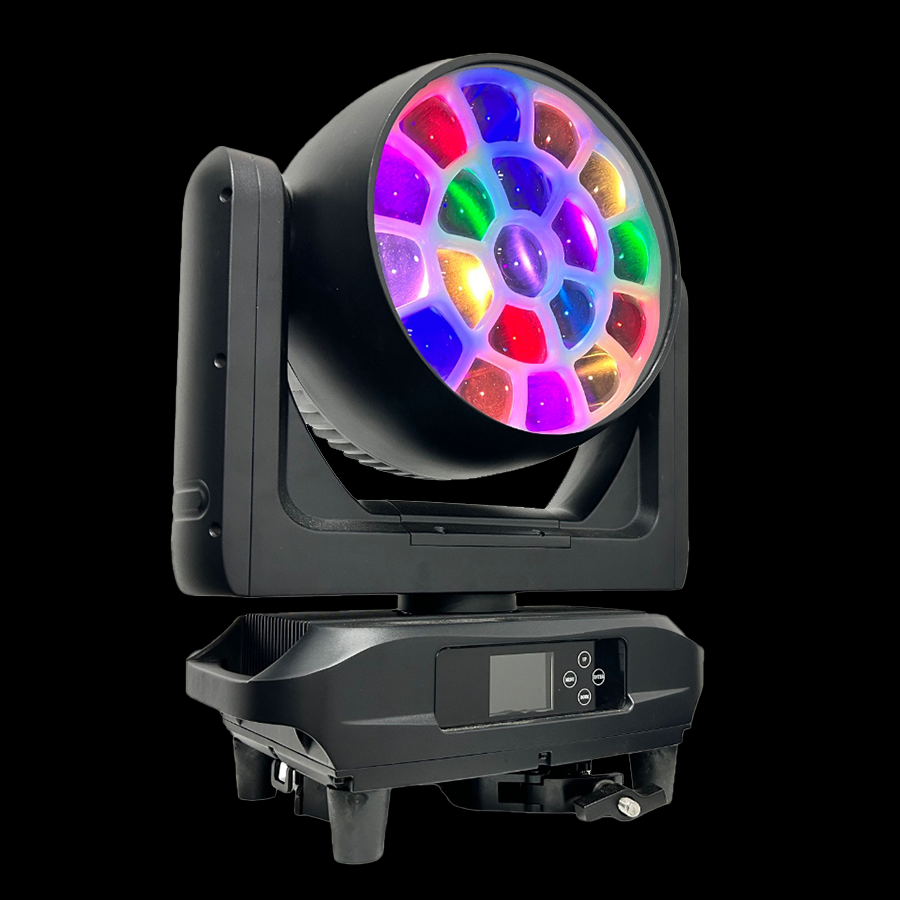

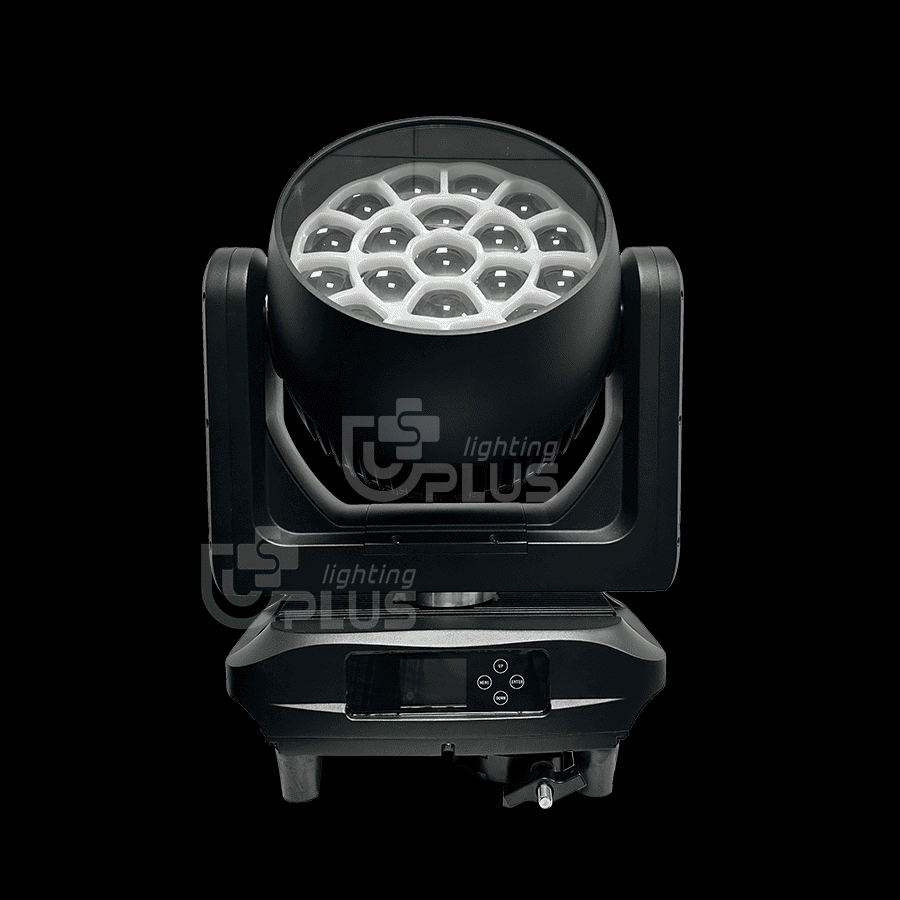

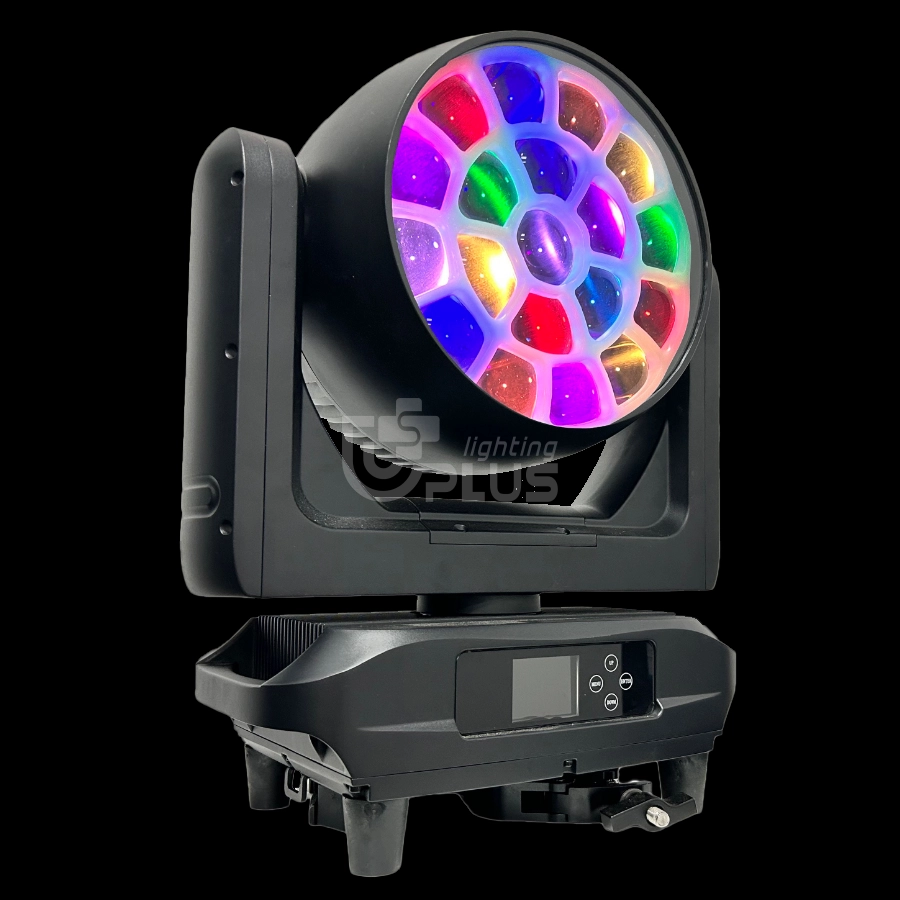

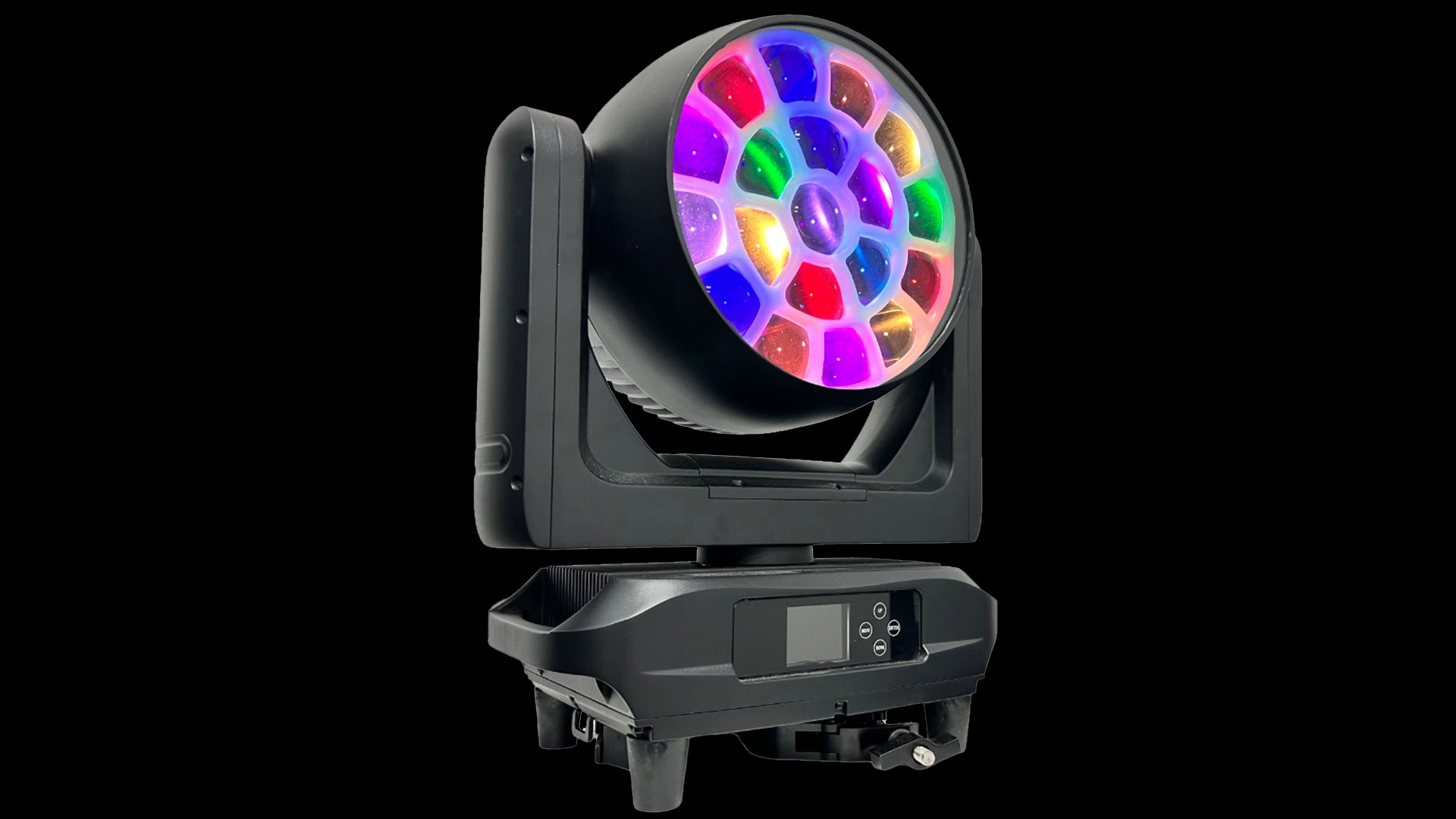

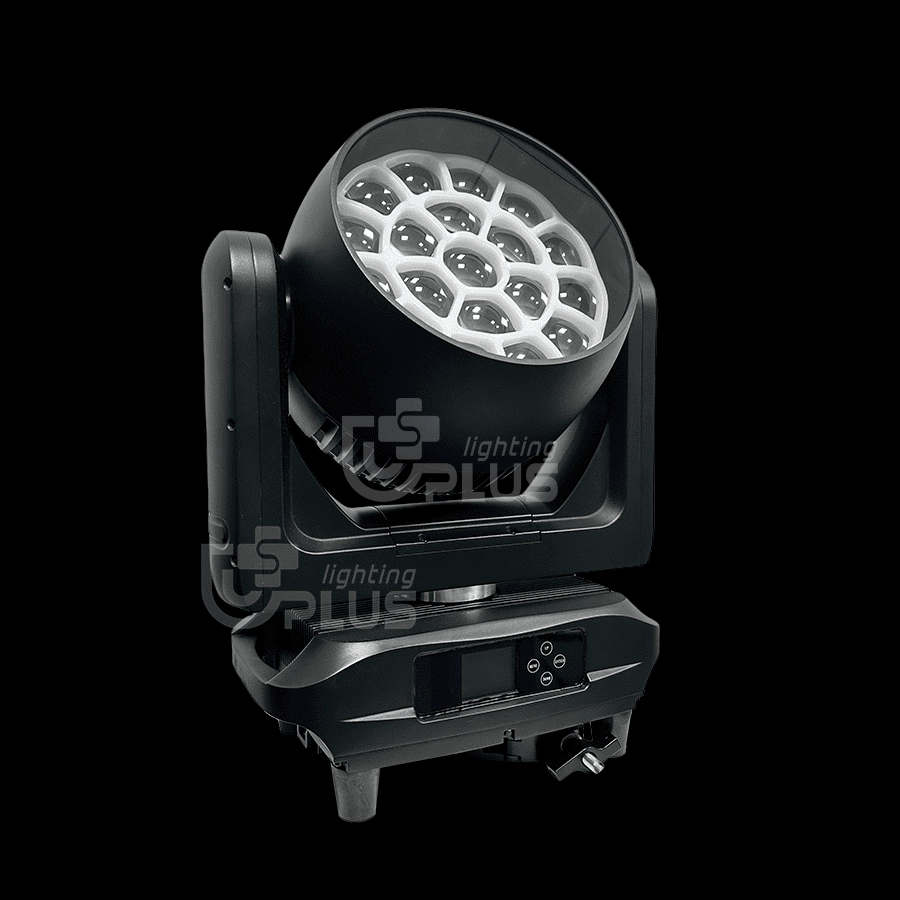

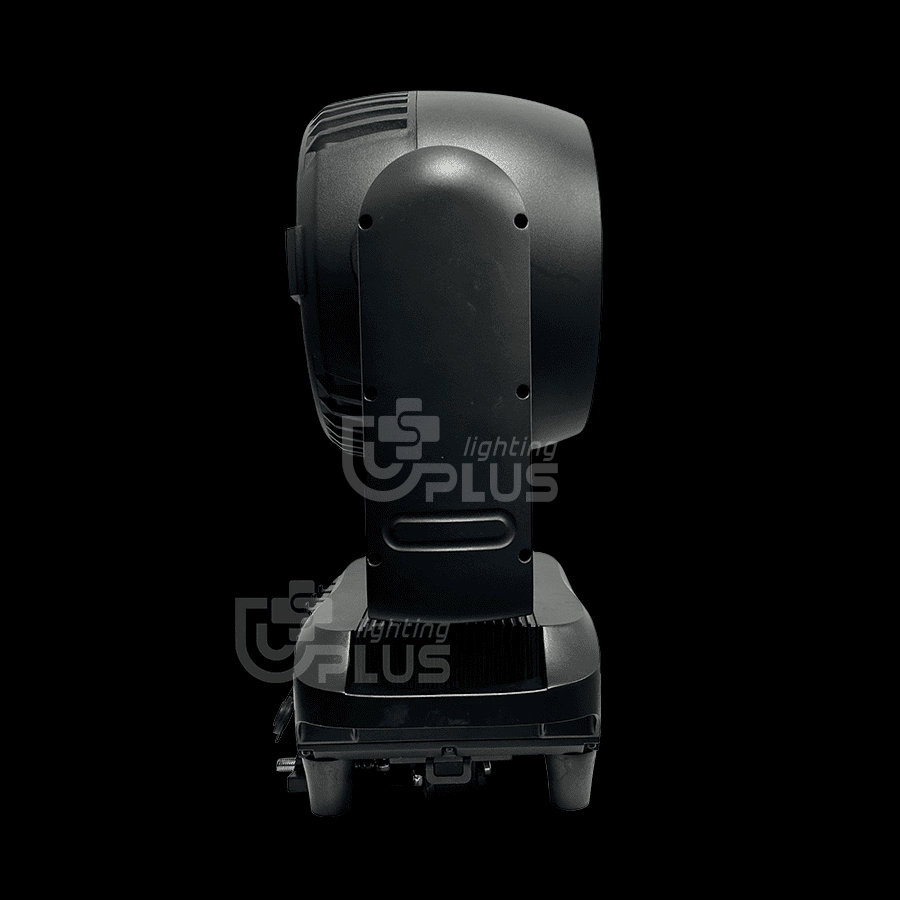

IP-B1950 IP66 19*50W Wash zoom moving head with circle light

IP66 19*50W Wash Zoom Moving Head with Circle Light: 19 sets of high-power RGBW LEDs combine wall washing and color rendering with a ring light effect. A 6-50° zoom allows for flexible site adaptation.



IP66 high protection against heavy rain and dust. Multiple dynamic lighting effects and DMX control ensure stable application in professional indoor and outdoor environments.

INTRODUCTION
INTRODUCTION
SPECIFICATIONS
SPECIFICATIONS
EFFECT
EFFECT
LUX DATE & DIMENSION
LUX DATE & DIMENSION
FEATURES
FEATURES
APPLICATION
APPLICATION
PACKAGING & LOGISTIC
PACKAGING & LOGISTIC
FAQs
FAQs
IP-B1950 - Uplus Lighting

Specifications

OPTICS

• Input Voltage: AC 100 ~ 240V, 50/60 Hz
• Power Consumption: 950 W maximum

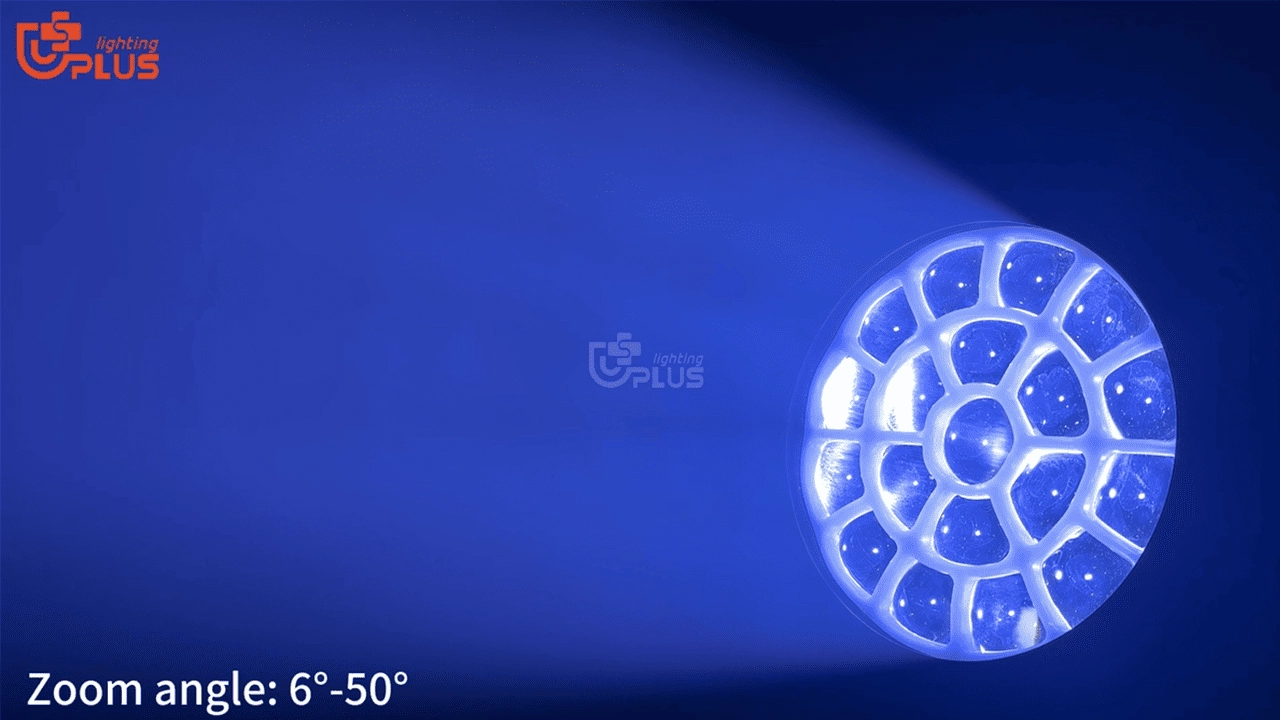

• Beam Angle: 6° to 50°
• Light Source: 19x50W RGBW 4-in-1 LED
• LED strip: 210 PCS RGB 3-in-1 LED
• Extremely long life: < 40,000 H
• Pan movement: 540° (16 bit)
• Tilt movement: 270° (16 bit)

FEATURES

• DMX modes: 26/50/50/127 channels
• Dimmer: Electronic dimmer from 0 to 100%
• Strobe effect: 1 to 20 flashes per second
• Display: Graphic LCD display with flip function
• IP65 XLR 3-pin connector/IP65 etherCON RJ45 connectors/IP65 powerCON TRUE1 connector
• DMX 512 protocol.
• DMX-RDM compatible
• Stand-alone mode, local control panel
• ArtNet™ & SACN protocol
• Advanced liquid cooling system
• Selectable ventilation user modes
• Excess temperature protection
• IP66 protection rating
• Maximum permitted: 45°C (113°F)
• Minimum permitted: -18°C (-4°F)
• Minimum usage distance: 2 m (6.56 ft)

SPECIFICATION

• Dimension: 216*349*473mm
• NW: 17.4kg with folding hook

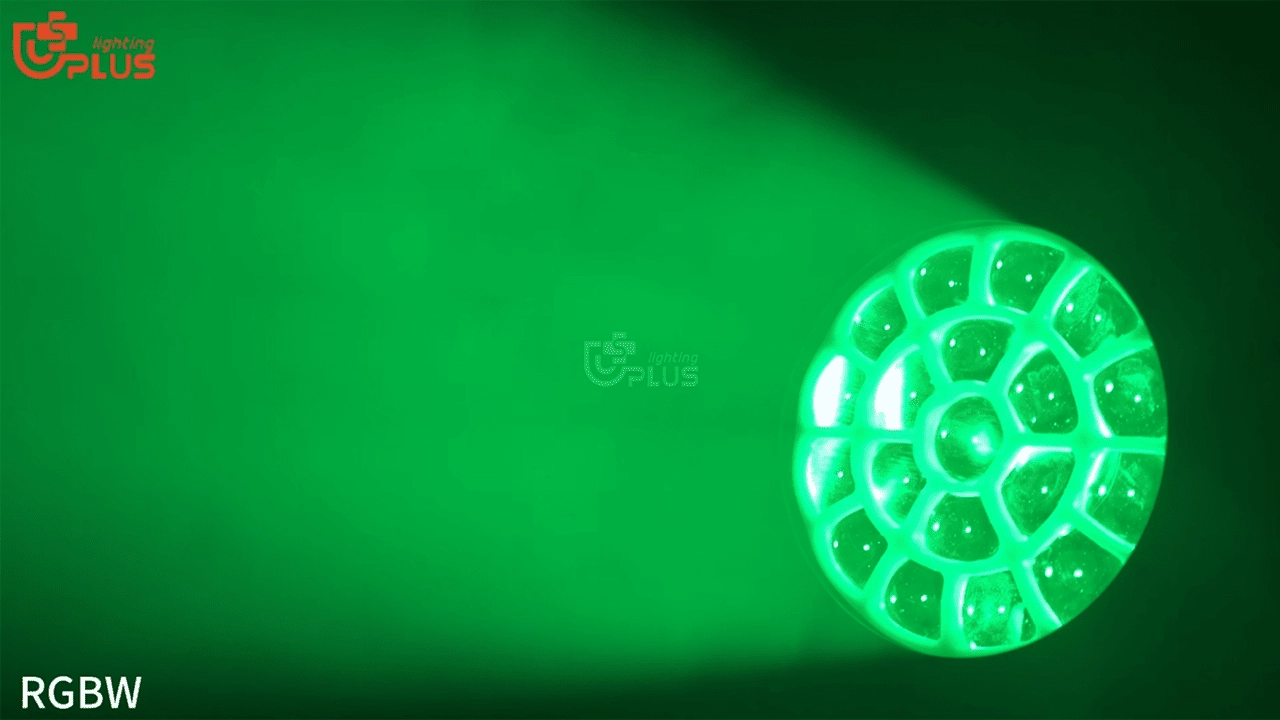

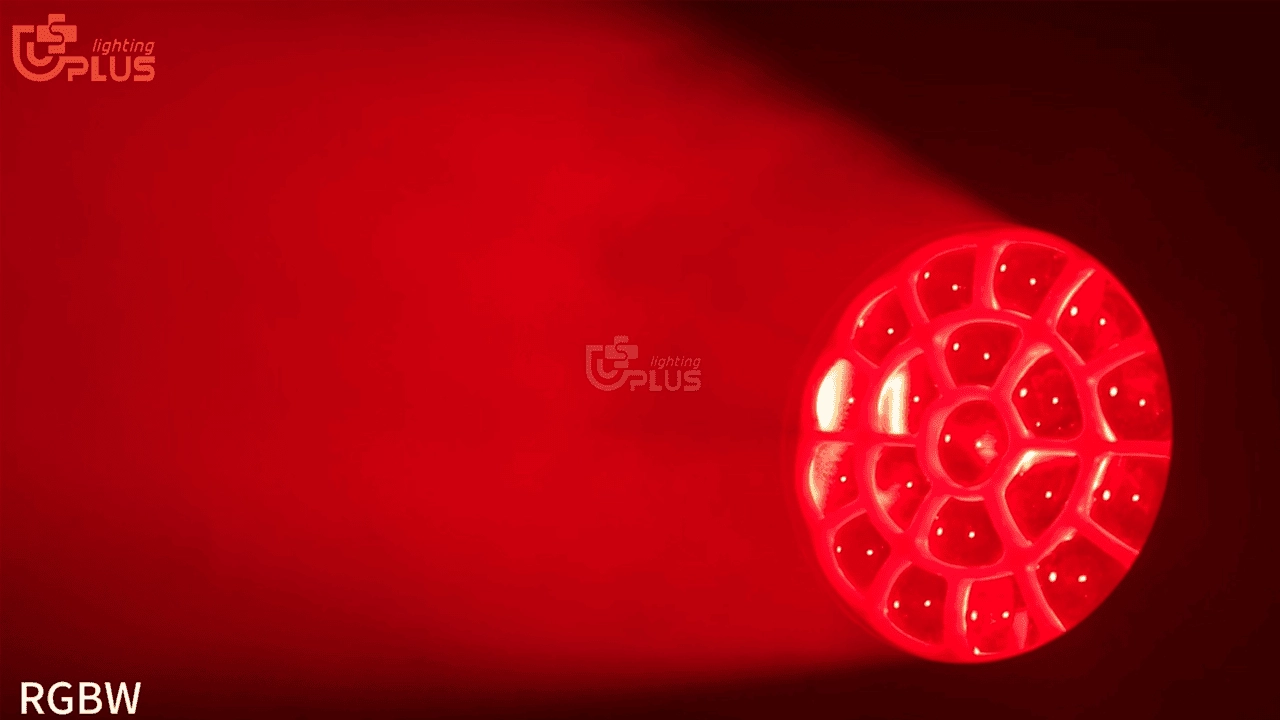

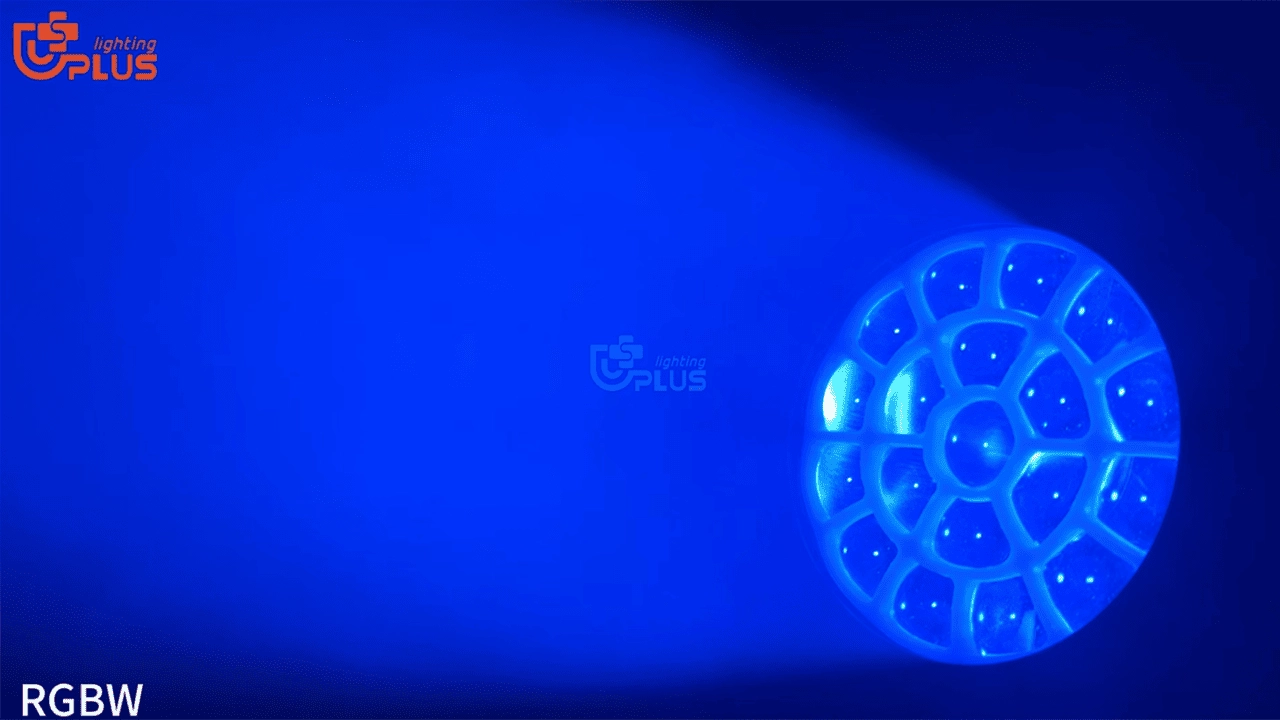

Effect

IP-B1950 1 - Uplus Lighting

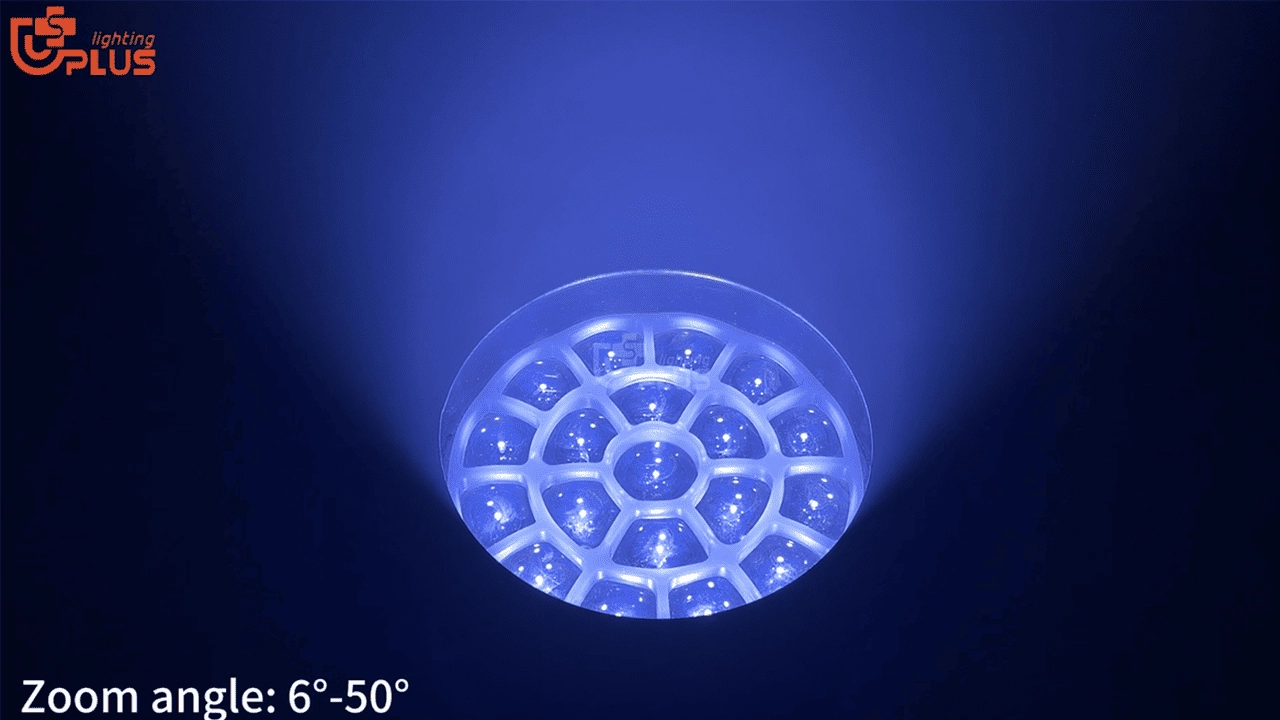

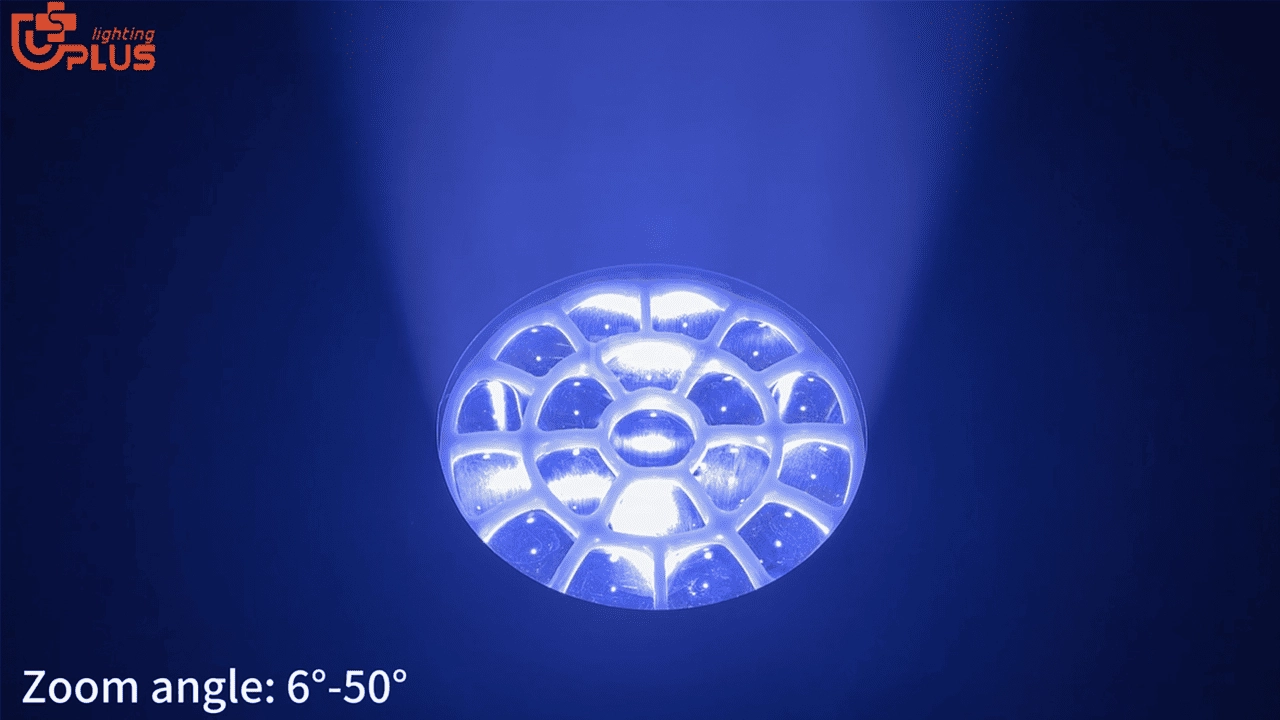

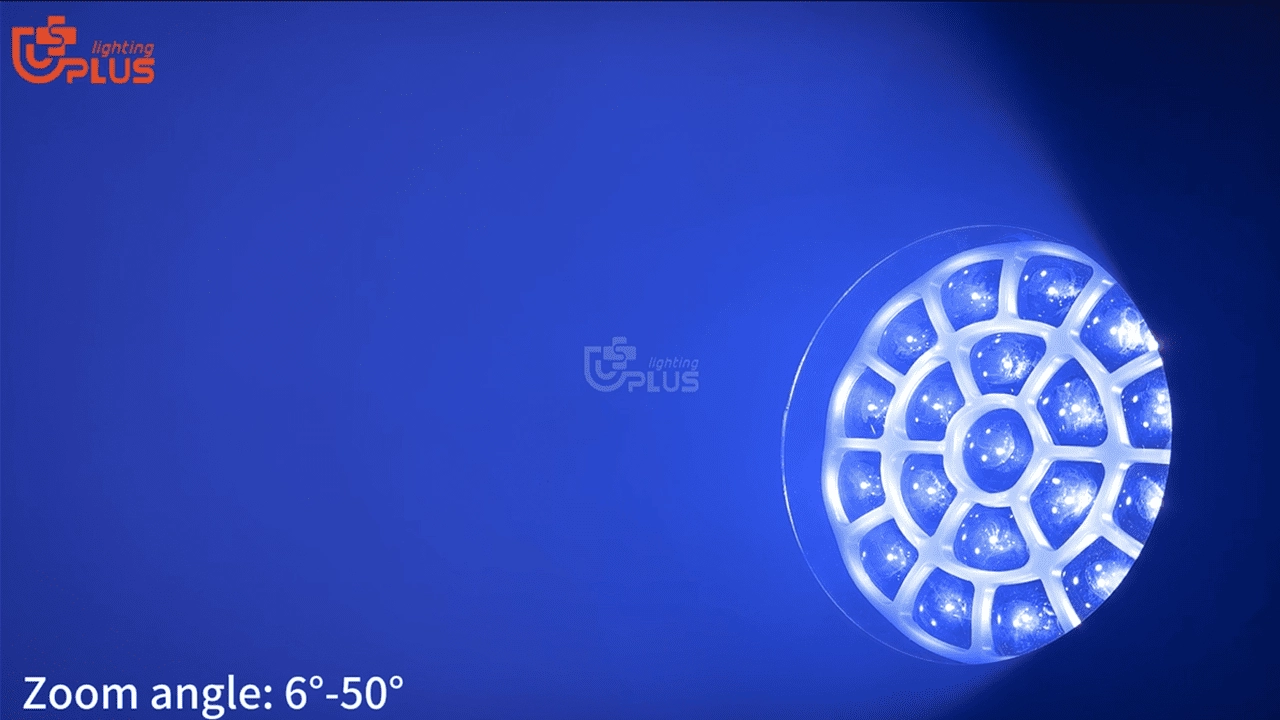

beam angle
IP-B1950 2 - Uplus Lighting
beam angle
IP-B1950 3 - Uplus Lighting
beam angle
IP-B1950 4 - Uplus Lighting
beam angle
IP-B1950 5 - Uplus Lighting

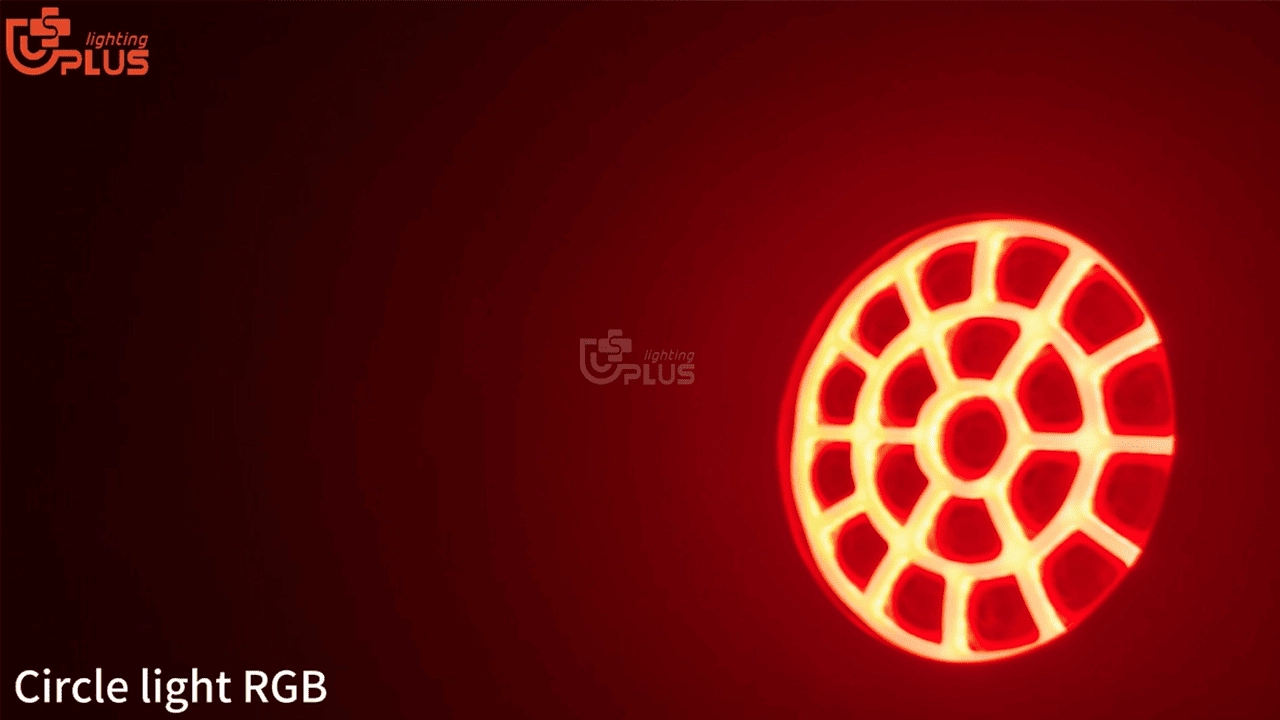

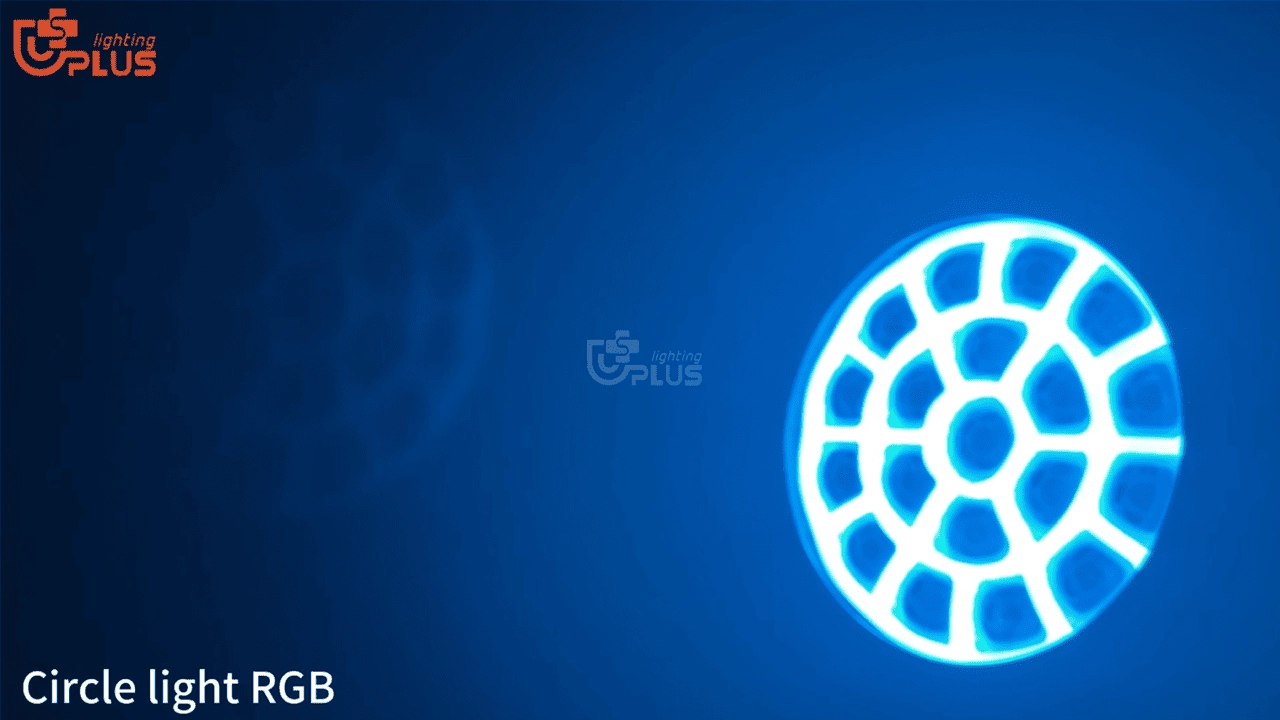

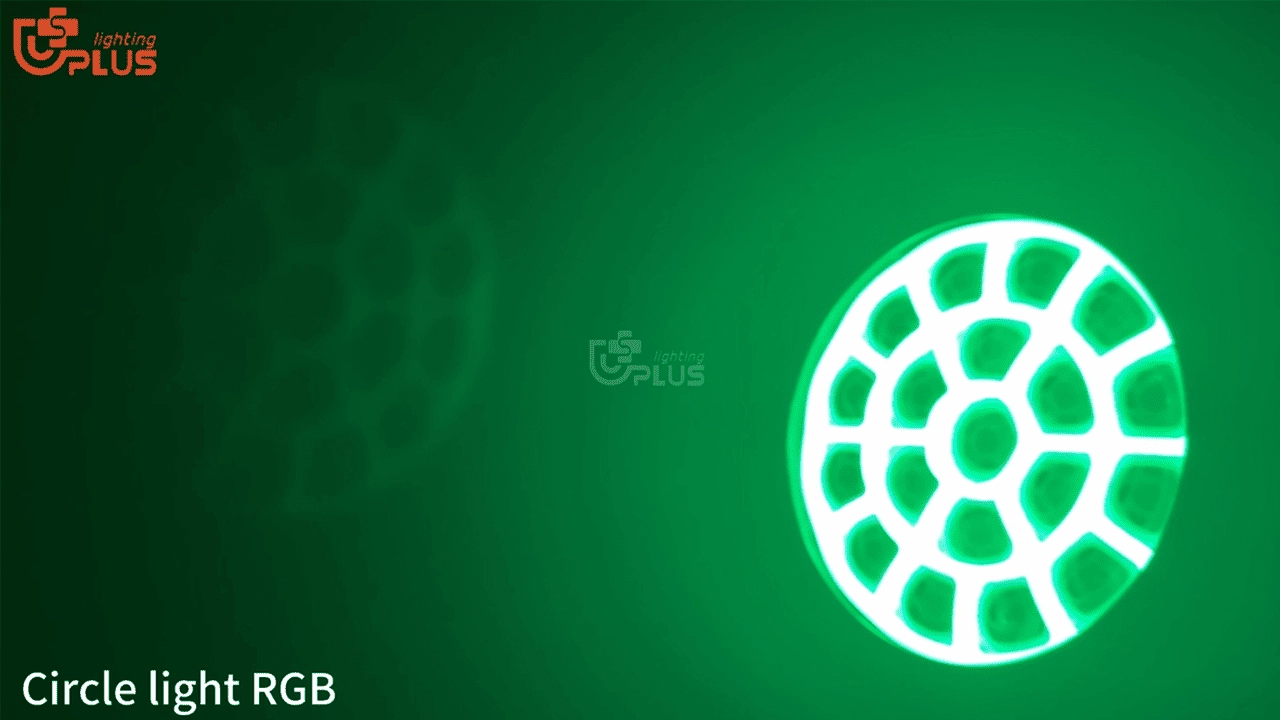

circle light built-in effect
IP-B1950 6 - Uplus Lighting
circle light built-in effect
IP-B1950 7 - Uplus Lighting
circle light built-in effect
IP-B1950 8 - Uplus Lighting
circle light built-in effect

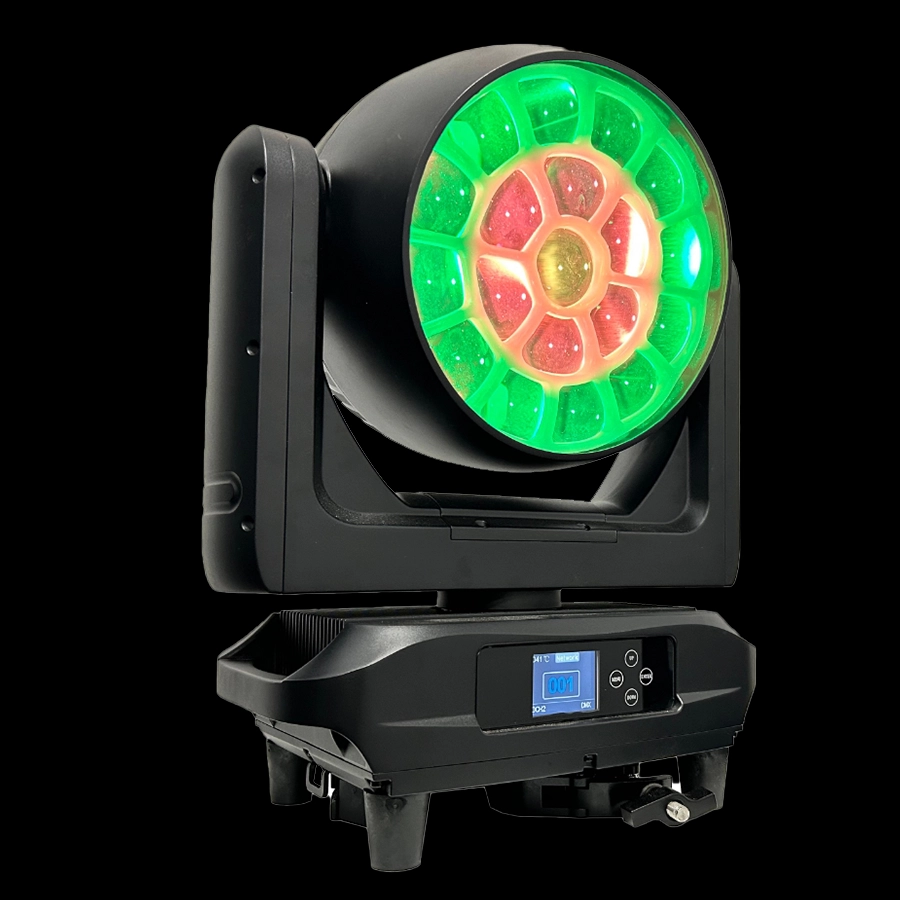

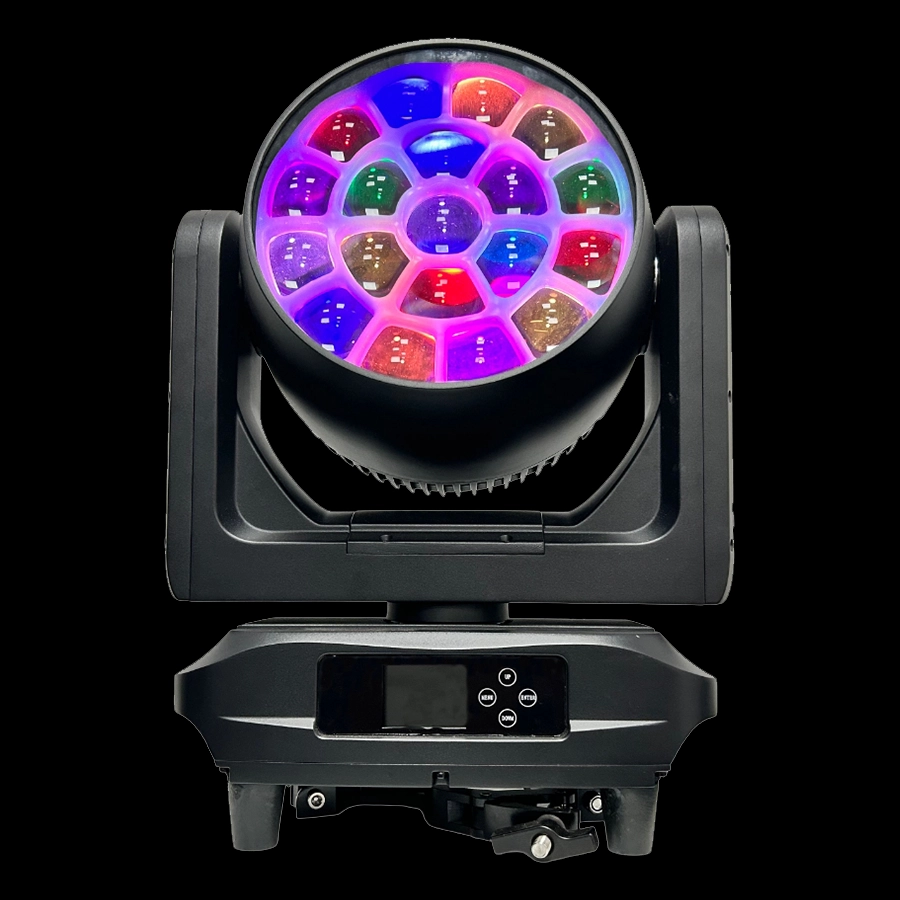

IP-B1950 9 - Uplus Lighting

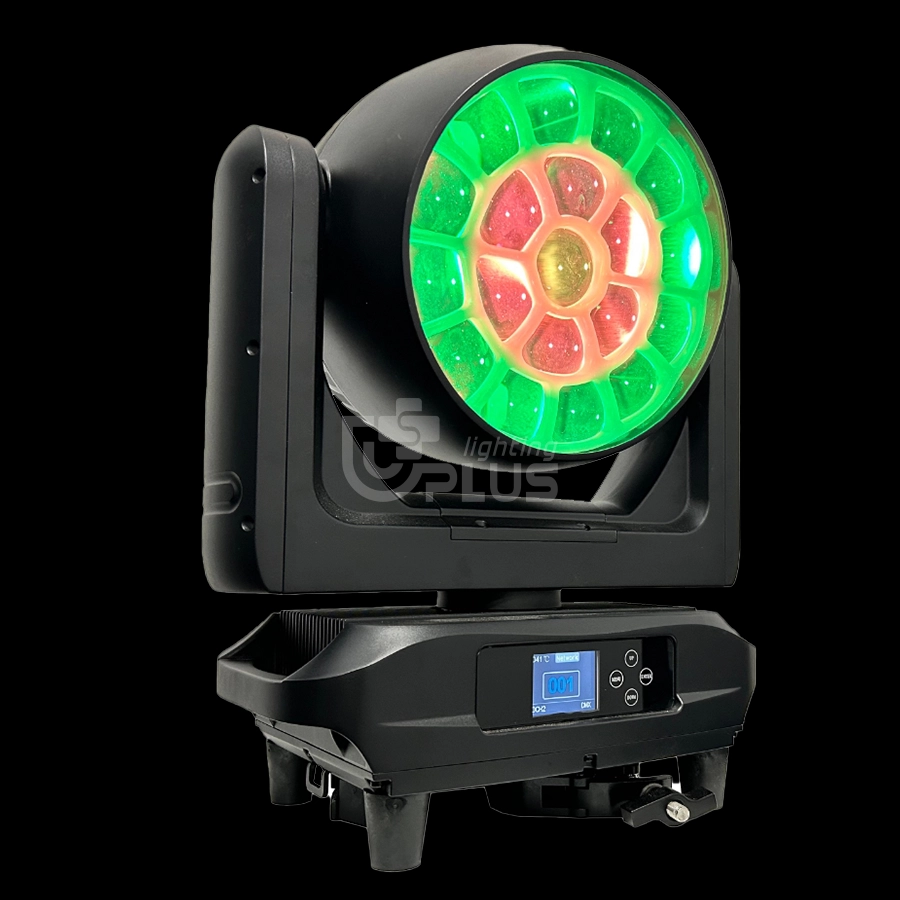

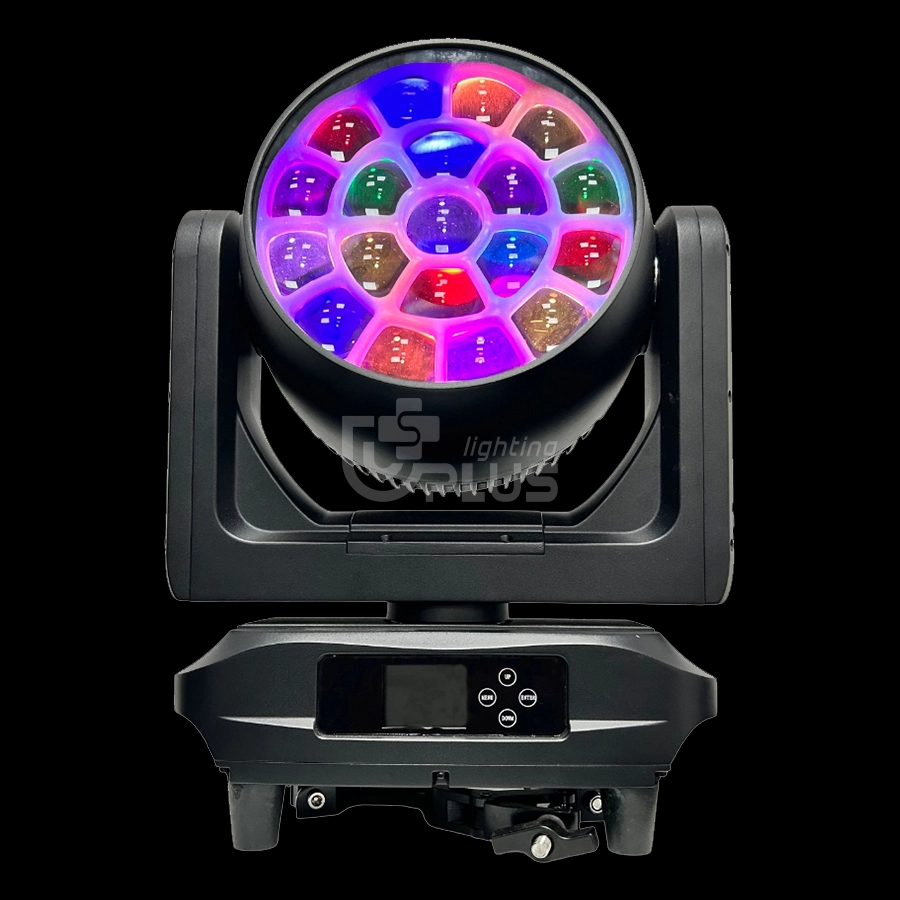

main light+circle light built-in effect
IP-B1950 10 - Uplus Lighting
main light+circle light built-in effect
IP-B1950 11 - Uplus Lighting
main light+circle light built-in effect
IP-B1950 12 - Uplus Lighting
main light+circle light built-in effect
LUX Date & Dimension
IP-B1950 - Uplus Lighting

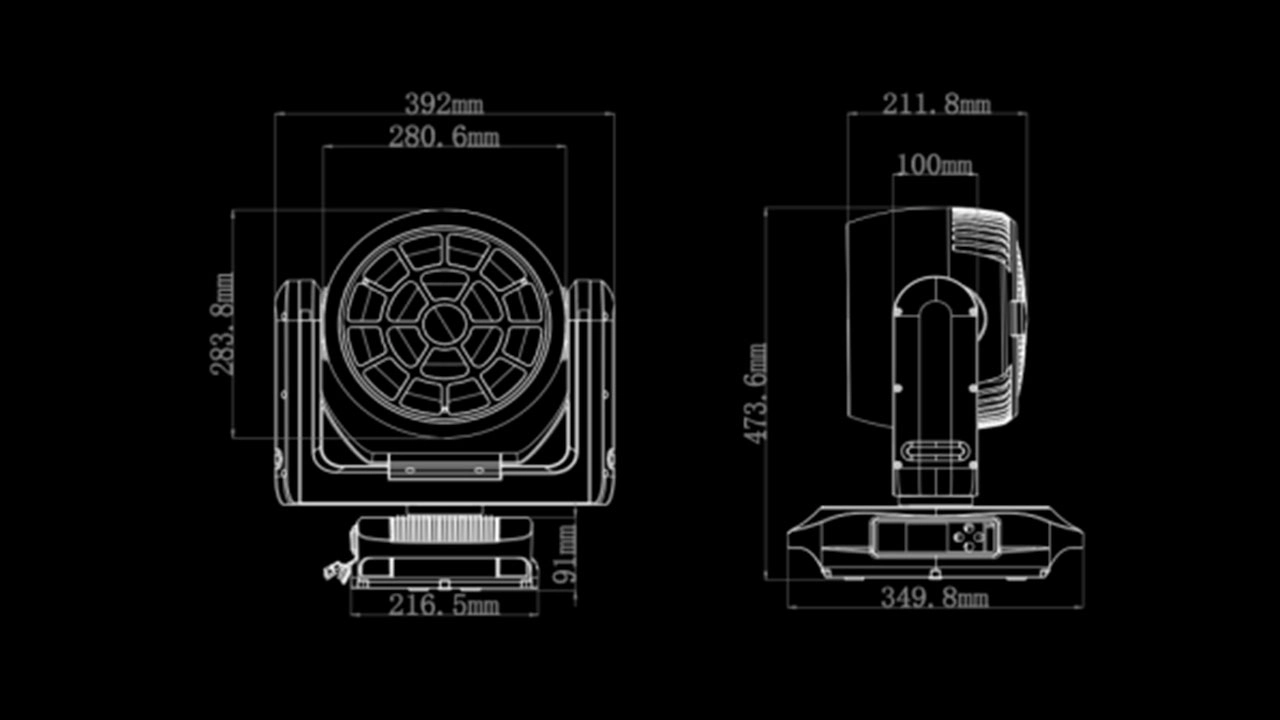

Dimension
IP-B1950-1 - Uplus Lighting

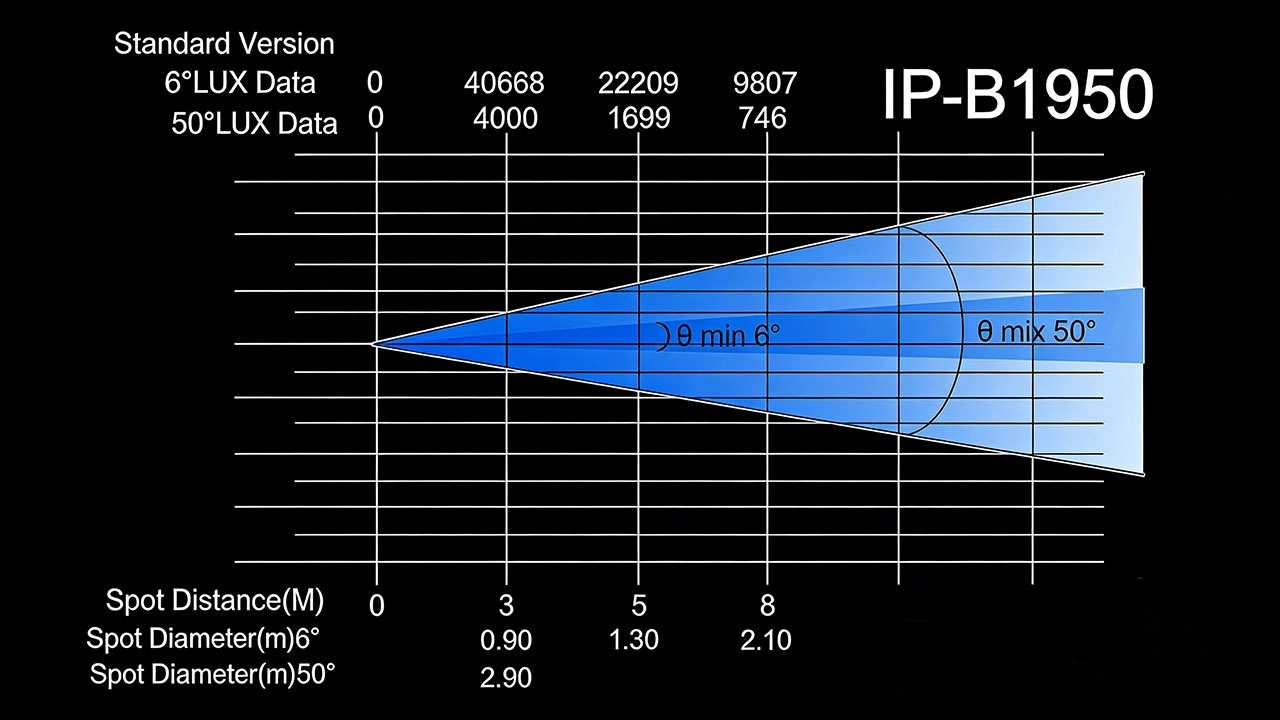

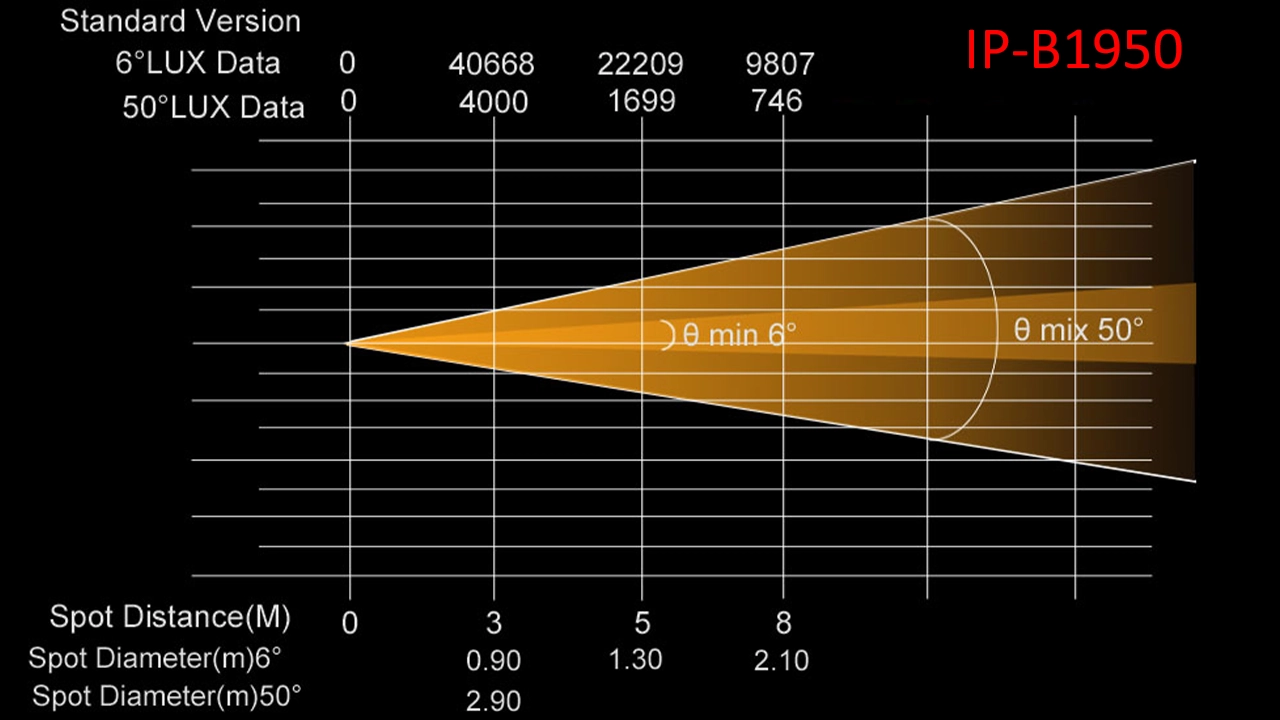

LUX Date

Features

IP-B1950 lamp source - Uplus Lighting
IP-B1950 beam angle - Uplus Lighting
IP-B1950 size1 - Uplus Lighting
IP-B1950 weight - Uplus Lighting

APPLICATION

Moving Head Stage Lights - Uplus Lighting
Outdoor Performances
Wide-area wall washing with a ring light focal point, resistant to heavy rain and dust, and adaptable to different stage sizes.
Architectural-lighting - Uplus Lighting
Urban Lighting
Outlines building contours, ring light adds depth, stable long-term outdoor operation.
Outdoor-Music-Festivals - Uplus Lighting
Commercial Celebrations
Full-area coverage and dual-effect lighting enhance the atmosphere, and multiple modes are adaptable to event flow.
Architectural-lighting - Uplus Lighting
Cultural Tourism Night Tours
Immersive lighting and photo-worthy highlights, resistant to outdoor environments, suitable for long-term operation.
led par light - Uplus Lighting
Indoor High-End Venues
Dual-effect lighting enhances professionalism, meeting large-area lighting needs.

Packaging & Logistic

Packaging
Cartons or flight cases.
Production Time
Depends on the production time required for the product.
Shipping
Available by air, sea, rail, or express.

Frequently Asked Questions

Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.

IP-B1950
How is the accuracy of the 6-50° zoom adjustment? Can it be used in small spaces?

High zoom accuracy; the 6° narrow angle allows for precise focusing, suitable for localized lighting in small spaces, with no wasted light spots.

Is it easy for beginners to operate without a professional control panel?

Supports self-propelled and voice-activated modes. Preset light effects are activated upon startup. No professional knowledge is required, and beginners can quickly get started.

Can the ring light be used independently? Can the color and brightness be adjusted?

Yes, the ring light can be turned on independently, and its color, brightness, and dynamic mode can be adjusted independently for flexible wall washing effects.

Can the IP66 protection be used in heavy rain or seaside salt spray environments?

It can directly withstand heavy rain, strong dust, and light salt spray. It is stable in complex outdoor environments for long-term use and requires no additional protection.
