The Ultimate Guide to LED Stage Light Bars: 2026 Professional Setup Tips

Quick Summary: Key Takeaways for Lighting Pros

LED stage light bars are linear lighting fixtures used to wash surfaces with color or create dynamic pixel-mapped effects for live events and theater. For 2026, success depends on mastering high-CRI output for broadcast, understanding IP65 ratings for outdoor versatility, and calculating power loads for safe daisy chaining.

To maximize your rig's potential, keep these core principles in mind:

• Versatility: Use bars for wall grazing, cyclorama washing, and audience-facing "eye candy."
• Specs Matter: Prioritize high refresh rates (>1000 Hz) to prevent flicker on camera.
• Signal Integrity: Proper DMX addressing and termination are vital to prevent signal degradation.
• Fixture Type: Choose linear wash fixtures for uniform coverage or pixel bars for motion effects.

What is an LED Stage Light Bar?

An LED stage light bar (often called a batten or strip light) is a linear array of LED diodes designed to cast a wide, uniform wash of light onto backdrops, walls, or performers. Unlike traditional halogen strips, these modern fixtures utilize digital protocols to control individual LEDs for complex color mixing and chasing effects.

These fixtures have revolutionized stage design by offering low power consumption and minimal heat emission. According to Wikipedia, modern LED instruments allow for additive color mixing, enabling designers to create millions of colors from a single unit without the need for physical gel filters. This capability makes them indispensable for:

• Cyclorama Washing: Flooding the large fabric backdrop of a stage with smooth color.
• Set Highlighting: accentuating scenic elements or architectural details.
• Pixel Mapping: Creating low-resolution video effects by treating each LED as a pixel.

Types of LED Bars: From Wash to Pixel Mapping

LED bars fall into specific categories based on their lens design and intended application, ranging from static architectural washes to high-speed dynamic effects. Understanding the distinction between these types is critical for specifying the right gear for your production.

Here are the primary categories of linear fixtures:

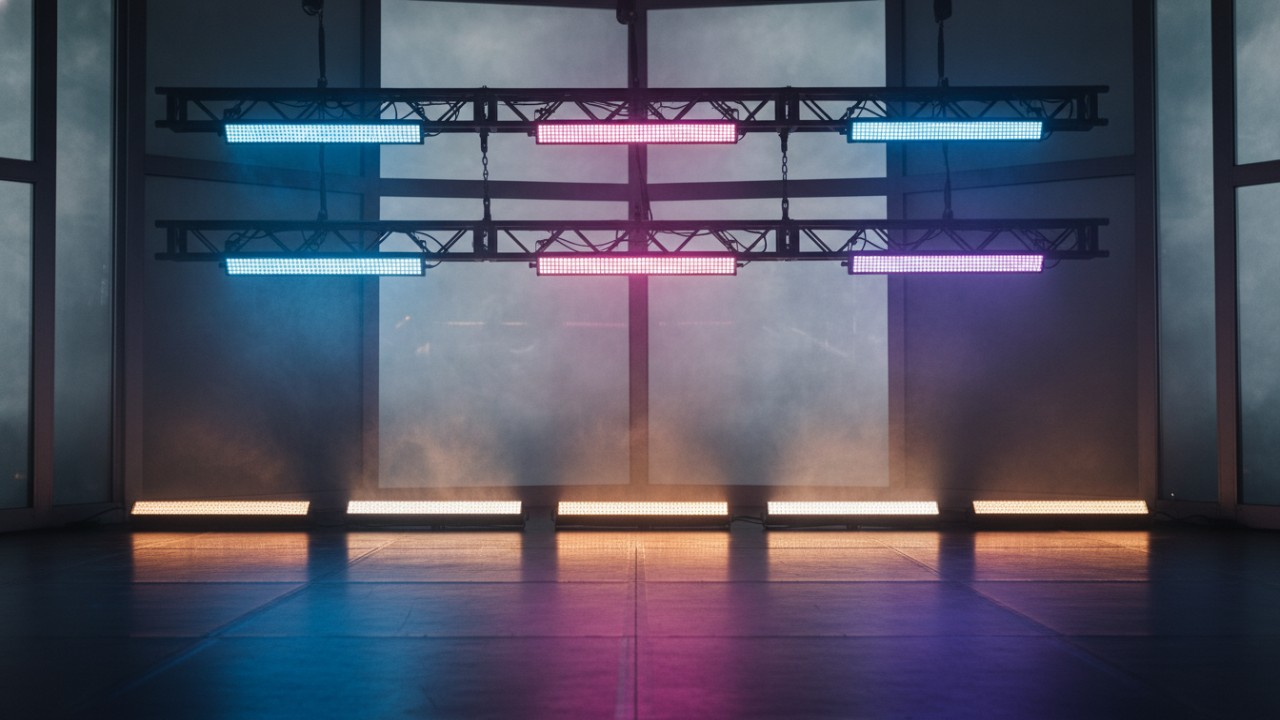

• Linear Wash Bars: These feature wide beam angles to ensure smooth color blending. They are ideal for uplighting and "grazing" textured walls to create depth.
• Pixel Mapping Bars: These units allow independent control of each LED zone. They are best suited for "eye-candy" effects facing the audience, where DMX512 pixel mapping allows for intricate chase sequences.
• Motorized Bars: Some advanced models feature tilt functionality, adding physical movement and sweeping beams to the light show.
• Battery/Wireless Bars: Portable solutions that utilize wireless DMX control, perfect for weddings and events where running data cables is logistically impossible.

Professional Setup Guide: Positioning & Mounting

Proper positioning of your LED bars ensures maximum impact while maintaining safety standards and clean aesthetics. Whether you are installing a permanent rig in a theater or setting up a temporary festival stage, the physical placement of the fixture dictates the quality of the light output.

Follow these professional mounting standards:

1. Wall Grazing: Mount the bar 6–12 inches from the wall. This close proximity highlights the texture of brick or stone surfaces. Adjust the beam angle to minimize hotspots.
2. Truss Mounting: Always use secure clamps (such as C-clamps or O-clamps) rated for the fixture's weight. Safety cables are mandatory for any overhead installation to prevent accidents.
3. Floor Uplighting: Utilize the fixture's built-in feet or trunnions. Ensure they are angled to cover the maximum vertical area without blinding guests or performers.
4. Linking: Connect units using DMX and PowerCON cables. Adhere to the Master/Slave hierarchy if operating without a console to ensure synchronized colors.

Advanced Control: Mastering DMX & Color Mixing

DMX control is the backbone of professional lighting, allowing you to manipulate color, intensity, and strobe effects with digital precision. As defined by the USITT (United States Institute for Theatre Technology), DMX512 is the standard protocol for digital communication networks that control stage lighting and effects.

To achieve professional results, you must master the following concepts:

• Channel Modes: Select the appropriate mode for your needs. Use 3-channel mode (RGB) for simple color washing or 48+ channel mode for full pixel-mapping flexibility.
• Color Spectrum: Understand the difference between RGBW vs. RGBWA+UV. While RGBW adds a white diode for better pastels, RGBWA+UV includes amber and ultraviolet, allowing for warm theatrical tones and blacklight effects.
• Programming Logic: When programming gradients, ensure your software patches the fixture correctly to align the pixels (left-to-right) for seamless chase effects.
• Refresh Rate: Unlike basic e-commerce specs, professional setups demand high refresh rates (Hz) to ensure flicker-free operation on high-definition video cameras.

Expert Tips & Common Mistakes to Avoid

Even experienced lighting technicians can encounter issues with signal reflection or power overload when managing complex LED rigs. Preventing these problems during the design phase is far cheaper and easier than troubleshooting them during a live show.

Avoid these common pitfalls:

• Mistake: Overloading the Power Link. Never daisy chain more units than the specific amp rating allows. A typical stage lighting daisy chain is limited to 8–10 units at 120V to prevent tripping breakers.
• Mistake: Ignoring Termination. Always use a DMX terminator at the end of the signal chain. This simple resistor prevents data reflection (ghosting) that causes lights to flicker randomly.
• Tip: Use Diffusion Filters. Frost filters can soften the beam and blend individual LED dots, creating a more organic, halogen-like look preferred in theater.
• Tip: Verify Beam Angles. When renting or buying, check the angle. Narrow (10–15°) is for beams; wide (40°+) is for washes.

Choosing the Right Gear: Industry-Leading Solutions

Selecting the right LED stage light bar requires balancing technical specifications with build quality and manufacturer support.

At Guangzhou Uplus Lighting Co., Ltd., we have seen the industry evolve since our establishment in 2012. As a professional manufacturer specializing in high-end stage lighting, we understand that touring-grade equipment must withstand the rigors of the road. While budget plastic fixtures may suffice for a bedroom DJ, professional applications like opera houses and large-scale concerts require robust aluminum alloy construction and reliable electronics.

When evaluating gear, consider:

• Build Quality: Look for metal housings that dissipate heat effectively, extending the lifespan of the LEDs.
• Brand Ecosystem: Ensure the fixtures integrate well with your existing control system. Uplus Lighting solutions, for example, are designed to meet the rigorous demands of global partners and have been applied in major TV programs and concerts.
• Versatility: In 2026, the best investment is a hybrid fixture that serves as both an architectural wash and a dynamic stage effect, maximizing your ROI.

Conclusion

LED stage light bars are versatile tools that can transform a venue through vibrant color washing, intricate pixel mapping, and dynamic movement. Success lies in understanding the delicate balance between beam angles, DMX control protocols, and safe power management. By leveraging the right equipment and following professional setup standards, you can create immersive visual experiences that captivate any audience.

Contact us today to optimize your stage lighting strategy with our professional solutions.

What is the difference between a wash bar and a pixel bar?

The main difference lies in control. A wash bar generally acts as a single unit or has very few zones, designed to flood an area with uniform color. A pixel bar allows for the control of individual LEDs or small groups of LEDs, enabling the creation of motion graphics, text, and chase effects.

How many DMX channels does a stage light bar need?

The number of channels depends on the complexity of control you desire. Basic control (color/dimmer) typically requires 3-7 channels. However, full pixel mapping can require 50+ channels per fixture, as every individual pixel needs its own set of Red, Green, and Blue addresses.

Can I link different brands of LED light bars together?

Yes, you can link different brands together as long as they all use the standard DMX512 protocol. However, built-in "Master/Slave" automatic programs usually only work effectively between identical models from the same manufacturer.

What does RGBWA+UV stand for?

It stands for Red, Green, Blue, White, Amber, and Ultraviolet. This configuration offers the widest possible color spectrum. The amber diode helps create warm pastels and tungsten-like whites, while the UV diode creates fluorescent "blacklight" effects.

How do I stop my LED bars from flickering on camera?

Flicker is usually caused by a low refresh rate or signal interference. Ensure your fixtures have a high PWM (Pulse Width Modulation) refresh rate, ideally greater than 1000Hz. Also, check that your DMX cables are not running parallel to high-voltage power lines, which can induce noise.

What is the best beam angle for wall washing?

For smooth, uniform coverage, a wider beam angle (25° to 40°+) is best. Narrow angles (under 15°) are better for creating defined columns of light or "light curtain" effects.

Are all LED stage light bars waterproof?

No, standard fixtures are typically rated IP20, which means they are for indoor use only. If you plan to use them for outdoor festivals or architectural lighting, you must look for an IP65 rating or higher to ensure protection against rain and dust.

How many LED bars can I daisy chain on one power outlet?

This depends entirely on the total wattage of the fixtures and the circuit amperage (usually 15A or 20A). Always check the "Power Linking" specification in the manual. Typically, you can link around 10-20 low-wattage units, but high-power bars may be limited to 4-6 units.
